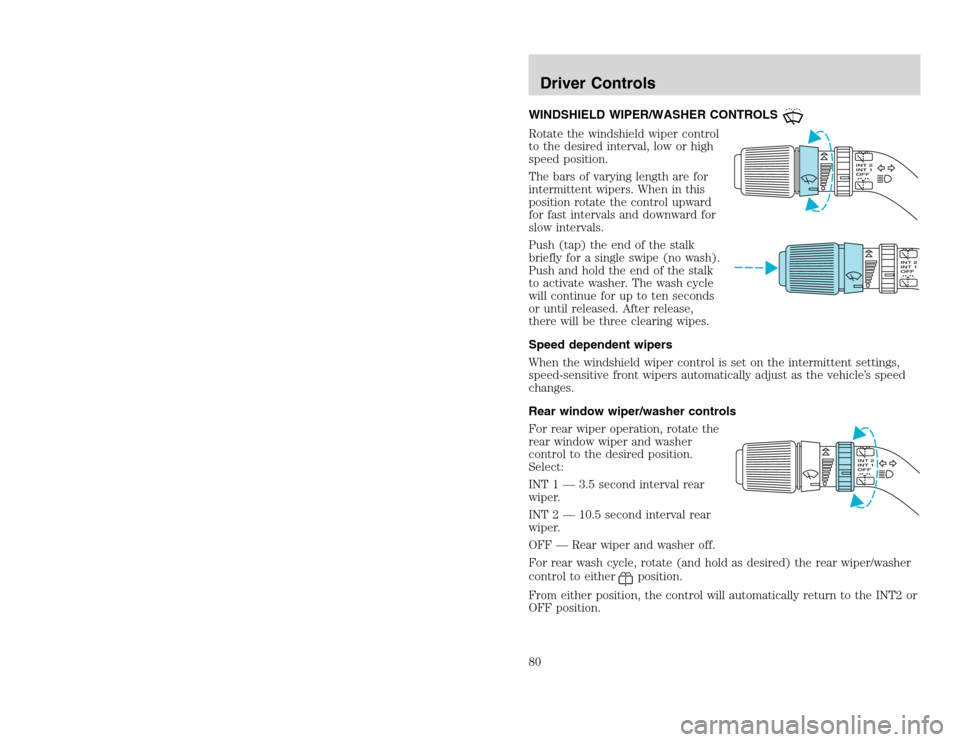

WINDSHIELD WIPER/WASHER CONTROLSRotate the windshield wiper control
to the desired interval, low or high
speed position.
The bars of varying length are for
intermittent wipers. When in this
position rotate the control upward
for fast intervals and downward for
slow intervals.
Push (tap) the end of the stalk
briefly for a single swipe (no wash).
Push and hold the end of the stalk
to activate washer. The wash cycle
will continue for up to ten seconds
or until released. After release,
there will be three clearing wipes.
Speed dependent wipers
When the windshield wiper control is set on the intermittent settings,
speed-sensitive front wipers automatically adjust as the vehicle’s speed
changes.
Rear window wiper/washer controls
For rear wiper operation, rotate the
rear window wiper and washer
control to the desired position.
Select:
INT 1 — 3.5 second interval rear
wiper.
INT 2 — 10.5 second interval rear
wiper.
OFF — Rear wiper and washer off.
For rear wash cycle, rotate (and hold as desired) the rear wiper/washer
control to either
position.
From either position, the control will automatically return to the INT2 or
OFF position.
Driver Controls80
WINDSHIELD WIPER/WASHER CONTROLSRotate the windshield wiper control
to the desired interval, low or high
speed position.
The bars of varying length are for
intermittent wipers. When in this
position rotate the control upward
for fast intervals and downward for
slow intervals.
Push (tap) the end of the stalk
briefly for a single swipe (no wash).
Push and hold the end of the stalk
to activate washer. The wash cycle
will continue for up to ten seconds
or until released. After release,
there will be three clearing wipes.
Speed dependent wipers
When the windshield wiper control is set on the intermittent settings,
speed-sensitive front wipers automatically adjust as the vehicle’s speed
changes.
Rear window wiper/washer controls
For rear wiper operation, rotate the
rear window wiper and washer
control to the desired position.
Select:
INT 1 — 3.5 second interval rear
wiper.
INT 2 — 10.5 second interval rear
wiper.
OFF — Rear wiper and washer off.
For rear wash cycle, rotate (and hold as desired) the rear wiper/washer
control to either
position.
From either position, the control will automatically return to the INT2 or
OFF position.
Driver Controls80

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 136 B
Turn signal ............................13, 73
V
Vehicle dimensions ...................260
Vehicle Identification Number
(VIN) ..........................................262
Vehicle loading ..........................177
Ventilating your vehicle ...........156
W
Warning chimes .....................14–15
Warning lights (see Lights) .......10Washer fluid ..............................222
Water, Driving through .............177
Windows
power .........................................85
rear wiper/washer .....................80
Windshield washer fluid and
wipers
checking and adding fluid .....222
checking and cleaning ..............81
liftgate reservoir .....................222
operation ...................................80
replacing wiper blades .............81
Wrecker towing .........................202Index272
Turn signal ............................13, 73
V
Vehicle dimensions ...................260
Vehicle Identification Number
(VIN) ..........................................262
Vehicle loading ..........................177
Ventilating your vehicle ...........156
W
Warning chimes .....................14–15
Warning lights (see Lights) .......10Washer fluid ..............................222
Water, Driving through .............177
Windows
power .........................................85
rear wiper/washer .....................80
Windshield washer fluid and
wipers
checking and adding fluid .....222
checking and cleaning ..............81
liftgate reservoir .....................222
operation ...................................80
replacing wiper blades .............81
Wrecker towing .........................202Index272
