Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 15
Entertainment Systems 19
AM/FM stereo cassette with CD 19
AM/FM stereo with CD 27
Rear seat entertainment system 41
Climate Controls 57
Manual heating and air conditioning 57
Electronic automatic temperature control 60
Lights 71
Headlamps 71
Turn signal control 73
Bulb replacement 75
Interior lamps 76
Driver Controls 80
Windshield wiper/washer control 80
Steering wheel adjustment 82
Power windows 85
Mirrors 87
Speed control 89
Message center 93
Locks and Security 105
Keys 105
Locks 105
Anti-theft system 106
Table of Contents
1
Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 15
Entertainment Systems 19
AM/FM stereo cassette with CD 19
AM/FM stereo with CD 27
Rear seat entertainment system 41
Climate Controls 57
Manual heating and air conditioning 57
Electronic automatic temperature control 60
Lights 71
Headlamps 71
Turn signal control 73
Bulb replacement 75
Interior lamps 76
Driver Controls 80
Windshield wiper/washer control 80
Steering wheel adjustment 82
Power windows 85
Mirrors 87
Speed control 89
Message center 93
Locks and Security 105
Keys 105
Locks 105
Anti-theft system 106
Table of Contents
1
Page 14 of 272
20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 7 B
Door ajar
Illuminates when any door is open
(or not fully closed).
SecuriLockanti-theft system
Illuminates when the anti-theft
alarm system is armed. If the light
fails to illuminate, continues to flash
or remains on, have the system serviced.
Refer toSecuriLockpassive anti-theft systemin theLocks and
Securitychapter.
Four wheel drive indicator
Illuminates when the four-wheel
drive is engaged. If the light
continues to flash have the system
serviced.
Four wheel drive low
Illuminates when four-wheel drive
low is engaged. If the light continues
to flash have the system serviced.
Safety belt warning chimeSounds to remind you to fasten your safety belts.
BeltMinderchimeSounds intermittently to remind you to fasten your safety belts.
Supplemental restraint system (SRS) warning chimeSounds when a malfunction in the supplemental restraint system (front
or side airbags) has been detected. Have the supplemental restraint
system inspected immediately.
Headlamps on warning chime
Sounds when the headlamps or parking lamps are on, the key is removed
from the ignition and the driver’s door is opened.
4x4LOW
RANGE
Instrument Cluster14
Door ajar
Illuminates when any door is open
(or not fully closed).
SecuriLockanti-theft system
Illuminates when the anti-theft
alarm system is armed. If the light
fails to illuminate, continues to flash
or remains on, have the system serviced.
Refer toSecuriLockpassive anti-theft systemin theLocks and
Securitychapter.
Four wheel drive indicator
Illuminates when the four-wheel
drive is engaged. If the light
continues to flash have the system
serviced.
Four wheel drive low
Illuminates when four-wheel drive
low is engaged. If the light continues
to flash have the system serviced.
Safety belt warning chimeSounds to remind you to fasten your safety belts.
BeltMinderchimeSounds intermittently to remind you to fasten your safety belts.
Supplemental restraint system (SRS) warning chimeSounds when a malfunction in the supplemental restraint system (front
or side airbags) has been detected. Have the supplemental restraint
system inspected immediately.
Headlamps on warning chime
Sounds when the headlamps or parking lamps are on, the key is removed
from the ignition and the driver’s door is opened.
4x4LOW
RANGE
Instrument Cluster14
Page 15 of 272
20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 8 A
Key-in-ignition warning chime
Sounds when the key is left in the ignition and the driver’s door is
opened.
Parking brake ON warning chime
Sounds when the parking brake is set, the engine is running and the
vehicle is driven more than 5 Km (3 mph).
GAUGES
Engine coolant temperature gauge
Indicates the temperature of the
engine coolant. At normal operating
temperature, the needle remains
within the normal area (the area
between the “H” and “C”). If it
enters the red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch off
the engine immediately and let the
engine cool. Refer toEngine
coolantin theMaintenance and
specificationschapter.
Never remove the coolant reservoir cap while the engine is
running or hot. Steam and scalding liquid from a hot cooling
system can burn you badly.
This gauge indicates the temperature of the engine coolant, not the
coolant level. If the coolant is not at its proper level the gauge indication
will not be accurate.
Instrument Cluster
15
Key-in-ignition warning chime
Sounds when the key is left in the ignition and the driver’s door is
opened.
Parking brake ON warning chime
Sounds when the parking brake is set, the engine is running and the
vehicle is driven more than 5 Km (3 mph).
GAUGES
Engine coolant temperature gauge
Indicates the temperature of the
engine coolant. At normal operating
temperature, the needle remains
within the normal area (the area
between the “H” and “C”). If it
enters the red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch off
the engine immediately and let the
engine cool. Refer toEngine
coolantin theMaintenance and
specificationschapter.
Never remove the coolant reservoir cap while the engine is
running or hot. Steam and scalding liquid from a hot cooling
system can burn you badly.
This gauge indicates the temperature of the engine coolant, not the
coolant level. If the coolant is not at its proper level the gauge indication
will not be accurate.
Instrument Cluster
15
Page 74 of 272
20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 37 B

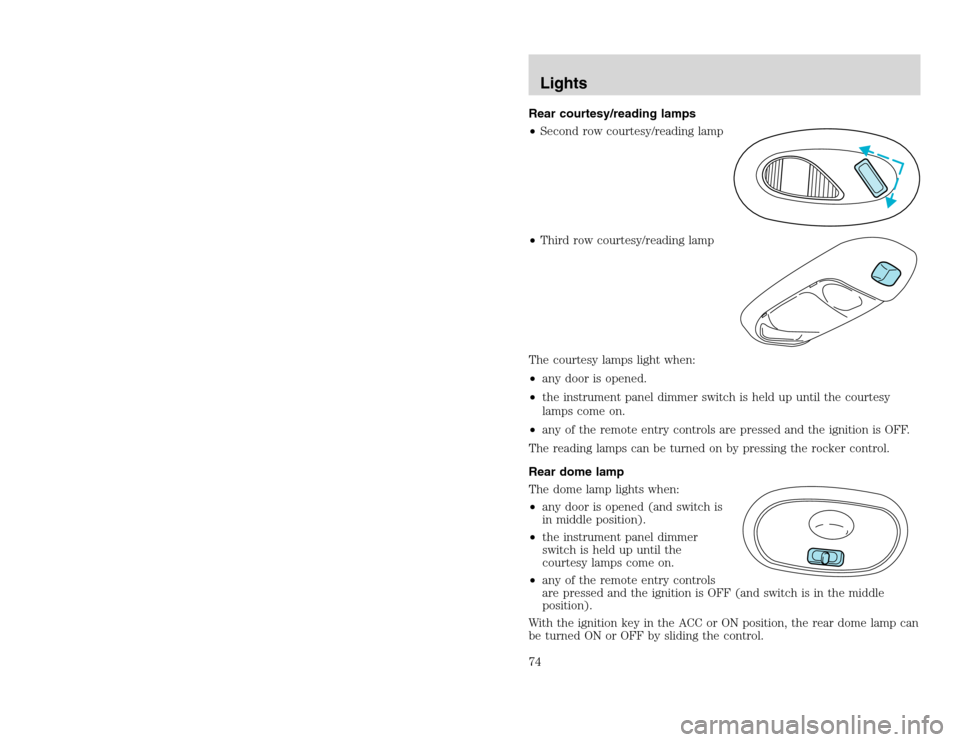

Rear courtesy/reading lamps
