Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 15
Entertainment Systems 19
AM/FM stereo cassette with CD 19
AM/FM stereo with CD 27
Rear seat entertainment system 41
Climate Controls 57
Manual heating and air conditioning 57
Electronic automatic temperature control 60
Lights 71
Headlamps 71
Turn signal control 73
Bulb replacement 75
Interior lamps 76
Driver Controls 80
Windshield wiper/washer control 80
Steering wheel adjustment 82
Power windows 85
Mirrors 87
Speed control 89
Message center 93
Locks and Security 105
Keys 105
Locks 105
Anti-theft system 106
Table of Contents
1
Page 8 of 272
These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAir Bag-Front
Air Bag-SideChild Seat
Child Seat Installation
WarningChild Seat Tether
Anchorage
Brake SystemAnti-Lock Brake System
Brake Fluid -
Non-Petroleum BasedTraction Control
AdvanceTracMaster Lighting Switch
Hazard Warning FlasherFog Lamps-Front
Fuse CompartmentFuel Pump Reset
Windshield Wash/WipeWindshield
Defrost/Demist
Rear Window
Defrost/DemistPower Windows
Front/Rear
Introduction
8
Page 9 of 272
Vehicle Symbol Glossary
Power Window Lockout
Child Safety Door
Lock/Unlock
Interior Luggage
Compartment Release
Symbol
Panic Alarm
Engine OilEngine Coolant
Engine Coolant
TemperatureDo Not Open When Hot
BatteryAvoid Smoking, Flames,
or Sparks
Battery AcidExplosive Gas
Fan WarningPower Steering Fluid
Maintain Correct Fluid
LevelMAX
MIN
Emission System
Engine Air FilterPassenger Compartment
Air Filter
JackCheck fuel cap
Low tire warning
Introduction
9

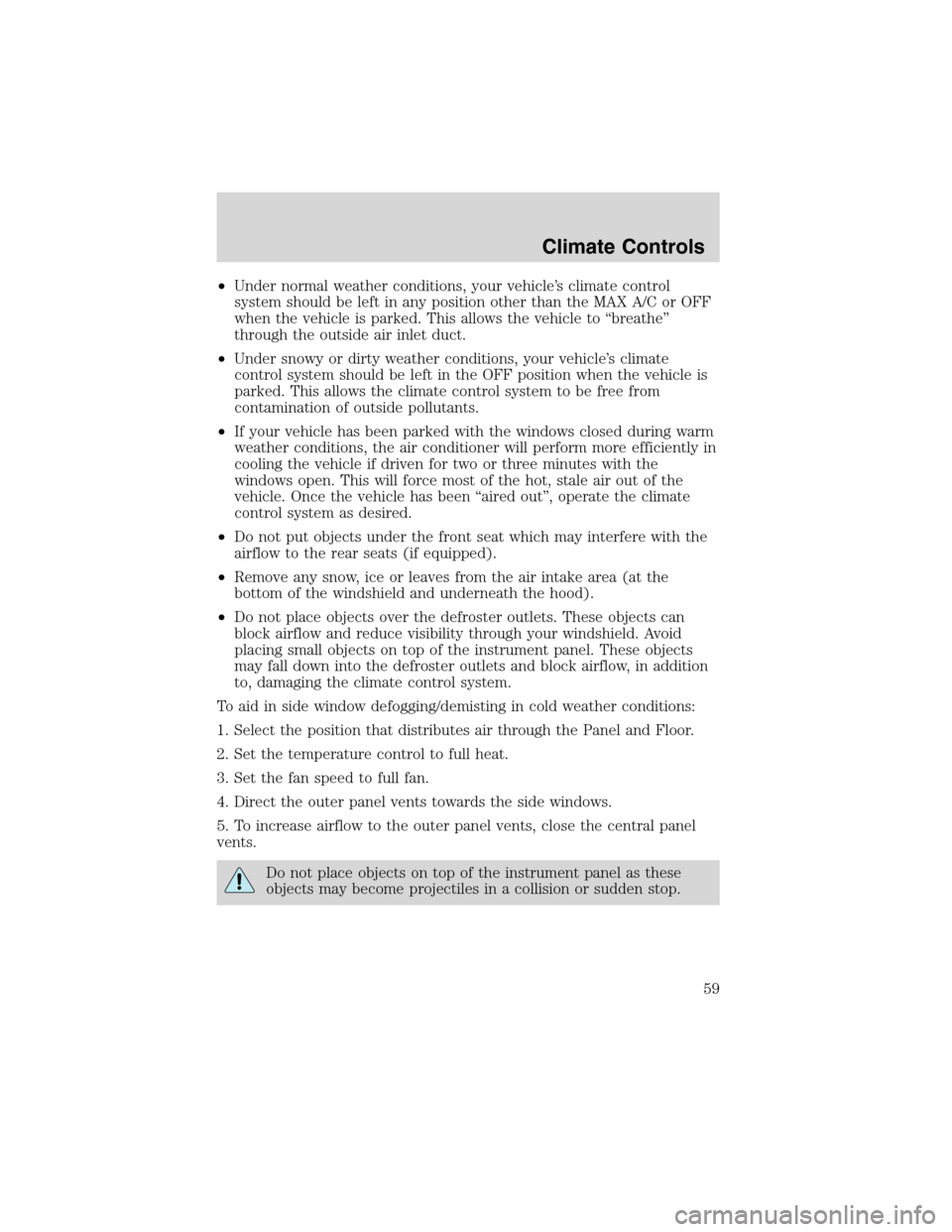

Page 59 of 272
•Under normal weather conditions, your vehicle’s climate control
system should be left in any position other than the MAX A/C or OFF
when the vehicle is parked. This allows the vehicle to “breathe”
through the outside air inlet duct.
•Under snowy or dirty weather conditions, your vehicle’s climate
control system should be left in the OFF position when the vehicle is
parked. This allows the climate control system to be free from
contamination of outside pollutants.
•If your vehicle has been parked with the windows closed during warm
weather conditions, the air conditioner will perform more efficiently in
cooling the vehicle if driven for two or three minutes with the
windows open. This will force most of the hot, stale air out of the
vehicle. Once the vehicle has been “aired out”, operate the climate
control system as desired.
•Do not put objects under the front seat which may interfere with the
airflow to the rear seats (if equipped).
•Remove any snow, ice or leaves from the air intake area (at the
bottom of the windshield and underneath the hood).
•Do not place objects over the defroster outlets. These objects can
block airflow and reduce visibility through your windshield. Avoid
placing small objects on top of the instrument panel. These objects
may fall down into the defroster outlets and block airflow, in addition
to, damaging the climate control system.
To aid in side window defogging/demisting in cold weather conditions:
1. Select the position that distributes air through the Panel and Floor.
2. Set the temperature control to full heat.
3. Set the fan speed to full fan.
4. Direct the outer panel vents towards the side windows.
5. To increase airflow to the outer panel vents, close the central panel
vents.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
Climate Controls
59
Page 61 of 272
Turning the EATC on
Press AUTO, any of the override controls or the fan speed control. The
EATC will only operate when the vehicle is running.
Turning the EATC system off
Press OFF.
Automatic operation
Press AUTO and select the desired temperature. The selected
temperature and the word AUTO will appear in the display window. The
EATC system will either heat or cool to achieve the selected
temperature. The system will automatically determine fan speed, airflow
location and if outside air or recirculated air is required.
When in AUTO and weather conditions require heat, the EATC system
directs the majority of the airflow to the floor area. The system will allow
some airflow through the windshield defroster ducts to reduce window
fogging. However, if the engine is not warm enough to provide heat, the
fan will be at a low speed and the airflow will be directed to the
windshield. In approximately 3
1 2minutes or less, the fan speed will start
to increase and the airflow location will change to the floor.
If unusual conditions exist (i.e.-window fogging, etc.), the manual
override controls allow you to select airflow locations and the fan control
allows you to adjust fan speed as necessary.
Climate Controls
61
Page 62 of 272
Temperature selection
The display window indicates the
selected temperature, function
(AUTO, A/C,
) or one of the
manual override controls) and
manual control of fan speed (
).
To control the temperature, select any temperature between 16°C (60°F)
and 32°C (90°F) by pressing the blue (cooler) or red (warmer) controls.
Temperature conversion
Press AUTO and
at the same time (for one second) to switch
between Fahrenheit and Celsius.
Climate Controls
62
Page 63 of 272
Fan speed ()
When AUTO is pressed, fan speed is adjusted automatically for existing
conditions. You can override fan speed at any time. To control fan speed
manually, press the fan control to cancel the automatic fan speed
operation. Press the control up for higher fan speed or down for lower
fan speed. The display will show (
) and a a bar graph to indicate
manual fan speed operation and relative speed.
To return to automatic fan operation, press AUTO.
A/C control
Used to manually enable or disable
the operation of the air conditioning
in all modes except
.Inall
modes, the air conditioning will only
function if the outside temperature
is about 6°C (43°F) or higher. When
manual A/C is selected, A/C will be
displayed in the display window.
In
, if the outside temperature
is about 6°C (43°F) or higher, the air conditioner will automatically
dehumidify the air to reduce window fogging. However, A/C will not be
displayed in the display window.
The air conditioning compressor can operate in all modes except OFF.
However, the air conditioning will only function if the outside
temperature is about 6°C (43°F) or higher.
Since the air conditioner removes considerable moisture from the air
during operation, it is normal if clear water drips on the ground under
the air conditioner drain while the system is working and even after you
have stopped the vehicle.
Climate Controls
63
Page 64 of 272
When AUTO is selected, the A/C operates automatically for existing
conditions and A/C will be displayed in the display window. If A/C is
selected while in AUTO operation, A/C will not be displayed in the
display window and the EATC system will remain in AUTO operation.
However, the EATC system will operate without the use of the air
conditioning. To return to automatic air conditioning operation, press
AUTO.
Recirculation control
Used to manually enable or disable
the operation of the recirculated air
operation in all modes except
.
The use of recirculated air when the
air conditioning is operating helps to
reduce the amount of time to cool
down the interior of the vehicle in
very hot conditions. Recirculated air
may also help to keep undesired
outside odors from reaching the vehicle interior. It is recommended to
allow the EATC system to automatically control the selection of outside
or recirculated air.
The recirculation control cannot be selected in the
, as interior
fogging may occur.
When AUTO is selected, the recirculated air feature operates
automatically for existing conditions. However,
will not be
displayed in the display window. If
is pressed again,will
not be displayed in the display window and the EATC system will remain
in AUTO operation. To return to automatic recirculated air operation,
press AUTO.
Do not leave the EATC system in recirculated air operation for extended
periods of time while the system is in a heating mode or in cold/damp
conditions as this may cause interior fogging of the front, side and rear
windows.
Climate Controls
64
Page 65 of 272
Manual override controls
The manual override controls allow you to manually determine where
airflow is directed. To return to full automatic control, press AUTO.
When a manual override control is selected, the EATC system will turn
off the AUTO indicator in the display window and display those
indicators of all of the operating controls.
•
- Distributes outside or recirculated air through the instrument
panel registers. Heating and air conditioning capabilities are provided
in this mode. The air will be heated or cooled based on the
temperature selection. For added customer comfort, the system will
allow some airflow through the floor ducts in this mode.
•
- Distributes outside or recirculated air through the instrument
panel registers and the floor ducts. Heating and air conditioning
capabilities are provided in this mode. For added customer comfort,
when the temperature control is anywhere between full hot and full
cold positions, the air distributed through the floor ducts will be
slightly warmer than the air sent to the instrument panel registers.
•
- Distributes outside or recirculated air through the floor ducts.
Heating and air conditioning capabilities are provided in this mode.
The air will be heated or cooled based on the temperature selection.
•
- Distributes outside or recirculated air through the windshield
defroster ducts and the floor ducts. Heating and air conditioning
capabilities are provided in this mode. The air will be heated or cooled
based on the temperature selection. For added customer comfort, the
air distributed through the floor ducts will be slightly warmer than the
air sent to the windshield defroster ducts.
•
- Distributes outside air through the windshield defroster ducts.
This mode can be used to clear ice or fog from the windshield. If the
outside air is about 6°C (43°F) or higher, the air conditioner will
OFFAUTO
EXT TEMPA/C
F
AUTO
Climate Controls
65
Page 66 of 272
automatically dehumidify the air to reduce fogging. (Note that A/C will
not be displayed in the display window.) Recirculation and A/C
override controls cannot be selected. For added customer comfort, the
system will allow some airflow through the floor ducts in this mode.
Turning the EATC off
OFF — Outside air is shut out. The fan, heating, and air conditioning will
not operate. The outside temperature will still display when selected
with the ignition in the ON position.
Displaying outside temperature
Press EXT TEMP to display the
outside air temperature. It will be
displayed until EXT TEMP is
pressed again.
If the temperature or fan speed is adjusted or if AUTO or
modes
are selected while the outside temperature is being displayed, the vehicle
interior temperature will be displayed for four seconds. After four
seconds have passed, the outside temperature will return to the display
window.
If the outside temperature is displayed while the EATC system is in the
OFF mode and then is turned on, the outside temperature will return to
the display window.
The outside temperature reading is most accurate when the vehicle is
moving. Higher readings may be obtained when the vehicle is not
moving. The readings that you get may not agree with temperatures
given on the radio due to differences in vehicle and station location.
Operating tips
•In humid weather conditions, place the climate control system in
or rear defrost before driving. This will reduce fogging on your
windshield. Once the windshield has been cleared, operate the climate
control system as desired.
•To reduce humidity buildup inside the vehicle in cold weather
conditions, don’t drive with the climate control system in the OFF
position or
.
Climate Controls
66
