3Add the coolant type originally equipped in your vehicle.
4If equipped with auxiliary rear heater, add an additional 1.4 L (1.5
quarts).
5Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the end of the dipstick. Check the
container to verify the fluid being added is of the correct type. Refer to
yourScheduled Maintenance Guideto determine the correct service
interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCON, MERCONV and MERCONSP are not
interchangeable. DO NOT mix MERCON, MERCONV and
MERCONSP. Use of dual usage fluids in an automatic
transmission application requiring MERCONSP may cause
transmission damage. Use of a transmission fluid other than the
recommended fluid may cause transmission damage.
6Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
7Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
258

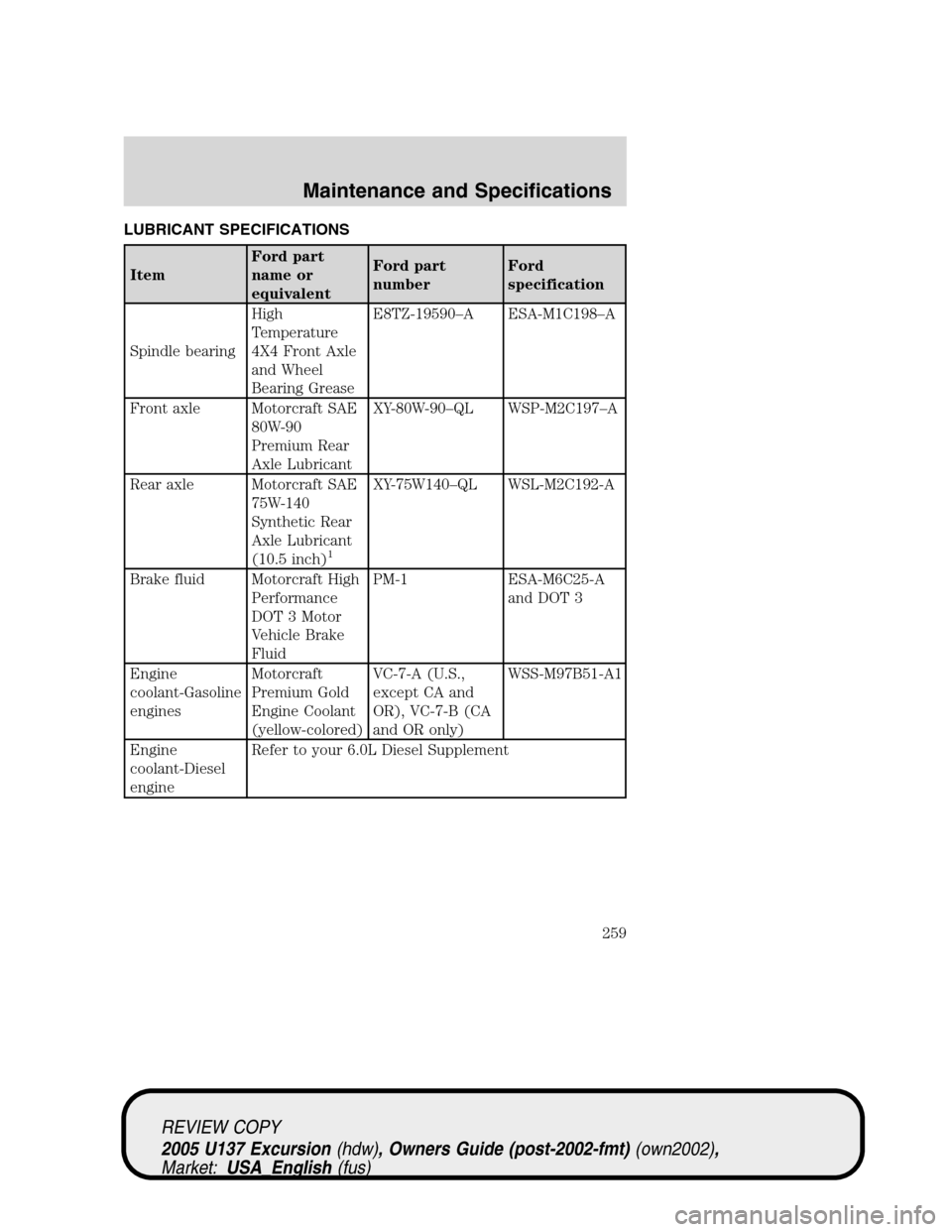

LUBRICANT SPECIFICATIONS
ItemFord part
name or
equivalentFord part
numberFord
specification
Spindle bearingHigh
Temperature
4X4 Front Axle
and Wheel
Bearing GreaseE8TZ-19590–A ESA-M1C198–A
Front axle Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W-90–QL WSP-M2C197–A
Rear axle Motorcraft SAE
75W-140
Synthetic Rear
Axle Lubricant
(10.5 inch)
1
XY-75W140–QL WSL-M2C192-A
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Engine
coolant-Gasoline
enginesMotorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA and
OR), VC-7-B (CA
and OR only)WSS-M97B51-A1
Engine
coolant-Diesel
engineRefer to your 6.0L Diesel Supplement
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
259

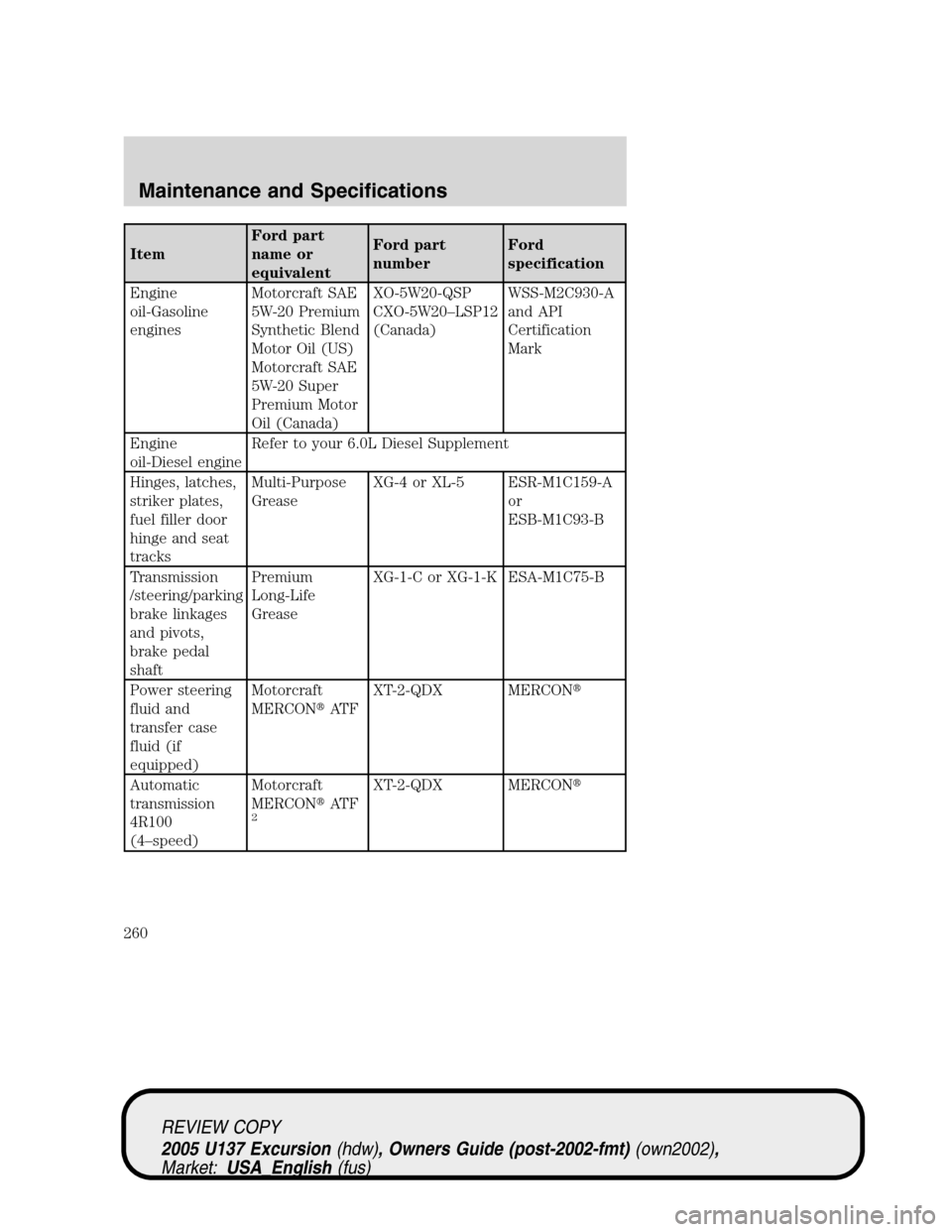

ItemFord part
name or
equivalentFord part
numberFord
specification
Engine
oil-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
and API
Certification
Mark
Engine
oil-Diesel engineRefer to your 6.0L Diesel Supplement
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or
ESB-M1C93-B
Transmission
/steering/parking
brake linkages
and pivots,
brake pedal
shaftPremium
Long-Life
GreaseXG-1-C or XG-1-K ESA-M1C75-B
Power steering
fluid and
transfer case
fluid (if
equipped)Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
4R100
(4–speed)Motorcraft
MERCONAT F
2
XT-2-QDX MERCON
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
260

ENGINE DATA
Engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.32–1.42mm
(0.052–0.056 inch)1.32–1.42mm
(0.052–0.056 inch)
Ignition system Coil on plug Coil on plug
Compression ratio 9.0:1 9.0:1
VEHICLE DIMENSIONS
EXCURSION
Dimension 4x2–inches (mm) 4x4–inches (mm)
(1) Overall length 226.7 (5759) 226.7 (5759)
(2) Overall width 79.9 (2031) 79.9 (2031)
(3) Overall height 77.4 (1967) 80.4 (2043)
(4) Wheelbase 137.0 (3480) 137.0 (3480)
(5) Track (Front /
Rear)68.8 (1746)/
68.1 (1729)68.8 (1746)/
68.1 (1729)
4
1
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
262

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
264

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your vehicle
through your local authorized Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and aerodynamic
appearance of your vehicle. In addition, each accessory is made from high
quality materials and meets or exceeds Ford’s rigorous engineering and
safety specifications. Ford Motor Company will repair or replace any
properly dealer-installed Genuine Ford Accessory found to be defective in
factory-supplied materials or workmanship during the warranty period, as
well as any component damaged by the defective accessory. The accessory
will be warranted for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your new
vehicle and installed by the dealer are covered for the full length of your
New Vehicle’s Limited Warranty—3 years or 36,000 miles (60,000 km)
(whichever occurs first). Contact your dealer for details and a copy of the
warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Fender flares
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Running boards
Splash guards
Step Bars
Wheels
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Accessories
Accessories
265

A
Accessory delay ..........................66
Air bag supplemental restraint
system ........................................117
and child safety seats ............119
description ..............................117
disposal ....................................121
driver air bag ..........................119
indicator light .........................121
operation .................................119
passenger air bag ...................119
Air cleaner filter ...............253–255
Air conditioning ..........................45
Antifreeze
(see Engine coolant) ................233
Anti-lock brake system
(see Brakes) ......................172–173
Audio system (see Radio) ...17, 21
Automatic transmission
driving an automatic
overdrive .........................177, 179
fluid, adding ............................250
fluid, checking ........................250
fluid, refill capacities ..............256
fluid, specification ..................262
Auxiliary power point .................64
Axle
lubricant specifications ..259, 262
refill capacities ........................256
traction lok ..............................175
B
Battery .......................................231
acid, treating emergencies .....231
jumping a disabled battery ....204
maintenance-free ....................231
replacement, specifications ...255servicing ..................................231
BeltMinder .................................112
Brakes ........................................172
anti-lock ...........................172–173
anti-lock brake system (ABS)
warning light ...........................172
fluid, checking and adding ....250
fluid, refill capacities ..............256
fluid, specifications .........259, 262
lubricant specifications ..259, 262
parking ....................................173
shift interlock ..........................176
Break-in period .............................5
Bulbs ............................................54
C
Capacities for refilling fluids ....256
Cargo net .....................................82
Cell phone use ............................81
Certification Label ....................263
Changing a tire .........................140
Child safety restraints ..............122
child safety belts ....................122
Child safety seats ......................124
attaching with tether straps ..128
in front seat ............................126
in rear seat ..............................126
Cleaning your vehicle
engine compartment ..............220
instrument panel ....................222
interior .....................................222
interior trim ............................222
plastic parts ............................221
safety belts ..............................222
washing ....................................219
waxing .....................................219
wheels ......................................220
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
Index
268

wiper blades ............................221
Climate control (see Air
conditioning or Heating) ......45, 47
Clock adjust
6-CD in dash .............................23
AM/FM/Tape/CD .......................19
Compass, electronic ....................75
calibration .................................76
set zone adjustment .................76
Console ........................................81
overhead ..............................62–63
Controls
power seat .................................99
steering column ........................73
Coolant
checking and adding ..............233
refill capacities ................237, 256
specifications ..................259, 262
Cruise control
(see Speed control) ....................70
Customer Assistance ................196
Ford accessories for your
vehicle .....................................223
Ford Extended Service
Plan ..........................................216
Getting assistance outside the
U.S. and Canada .....................217
Getting roadside assistance ...196
Getting the service you
need .........................................210
Ordering additional owner’s
literature .................................217
The Dispute Settlement
Board .......................................212
Utilizing the
Mediation/Arbitration
Program ...................................215D
Daytime running lamps
(see Lamps) ................................50
Dipstick
automatic transmission fluid .250
engine oil .................................228
Doors
lubricant specifications ..........259
Driving under special
conditions ..................182, 189, 192
sand .........................................191
snow and ice ...........................193
through water .................191, 195
E
Emergencies, roadside
jump-starting ..........................204
Emergency Flashers .................197
Emission control system ..........247
Engine ........................................262
cleaning ...................................220
coolant .....................................233
diesel ...........................................6
fail-safe coolant ......................237
idle speed control ...................231
lubrication
specifications ..................259, 262
refill capacities ........................256
service points ..........................226
starting after a collision .........197
Engine block heater .................171
Engine oil ..................................228
checking and adding ..............228
dipstick ....................................228
filter, specifications ........230, 255
recommendations ...................230
refill capacities ........................256
specifications ..................259, 262
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
269

Instrument panel
cleaning ...................................222
cluster ........................................10
lighting up panel and
interior .......................................51
J
Jack ............................................140
positioning ...............................140
storage .....................................140
Jump-starting your vehicle ......204
K
Keyless entry system .................90
Keys
positions of the ignition .........168
L
Lamps
autolamp system .......................49
bulb replacement
specifications chart ..................54
daytime running light ...............50
fog lamps ...................................50
headlamps .................................49
headlamps, flash to pass ..........51
instrument panel, dimming .....51
interior lamps .....................53–55
replacing bulbs ....... 54–56, 58–59
Lane change indicator
(see Turn signal) ........................52
Liftgate ........................................82
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........172
speed control ............................72
Load limits .................................156
Loading instructions .................162Locks
childproof ..................................85
doors ..........................................84
Lubricant specifications ...259, 262
Lug nuts ....................................146
Luggage rack ...............................83
Lumbar support, seats .........98–99
M
Message center ...........................73
english/metric button ...............74
menu button .............................74
Mirrors ...................................62, 66
automatic dimming rearview
mirror ........................................66
fold away ...................................69
heated ........................................67
side view mirrors (power) .......67
signal .........................................68
Motorcraft parts ................243, 255
O
Octane rating ............................242
Oil (see Engine oil) ..................228
Overdrive .....................................62
P
Parking brake ............................173
Parts (see Motorcraft parts) ....255
Pedals (see Power adjustable
foot pedals) .................................70
Power adjustable foot
pedals .....................................70, 98
Power distribution box
(see Fuses) ...............................199
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
271
