set clock FORD EXCURSION 2005 1.G Owners Manual

9.Clock:Press to toggle between
station mode and clock mode. Press
and hold to set the clock. Press
the
SEEK to decrease hours or
SEEK
to increase hours. Press
the
TUNE to decrease minutes
or TUNE
to increase minutes. If your vehicle has a stand alone clock
this control will not function.
10.Balance:Press BAL; then press
SEL
/to shift sound to the
left/right speakers.
Fade:Press FADE; then press
SEL
/to shift sound to the
rear/front speakers.
11.Memory preset buttons:To
set a station: Select frequency band
AM/FM, tune to a station, press and
hold a preset button until sound returns.
12.Shuffle (CD):Press to play
tracks in random order. Press again
to disable.
13.Compression (CD):Press to
bring soft and loud passages
together for a more consistent
listening level. A small“c”will
appear in the display to indicate that compression is enabled. Press again
to disable.
14.
Dolbynoise reduction:
Works in tape mode only. Reduces
tape noise and hiss; press to
activate/deactivate.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Entertainment Systems
19

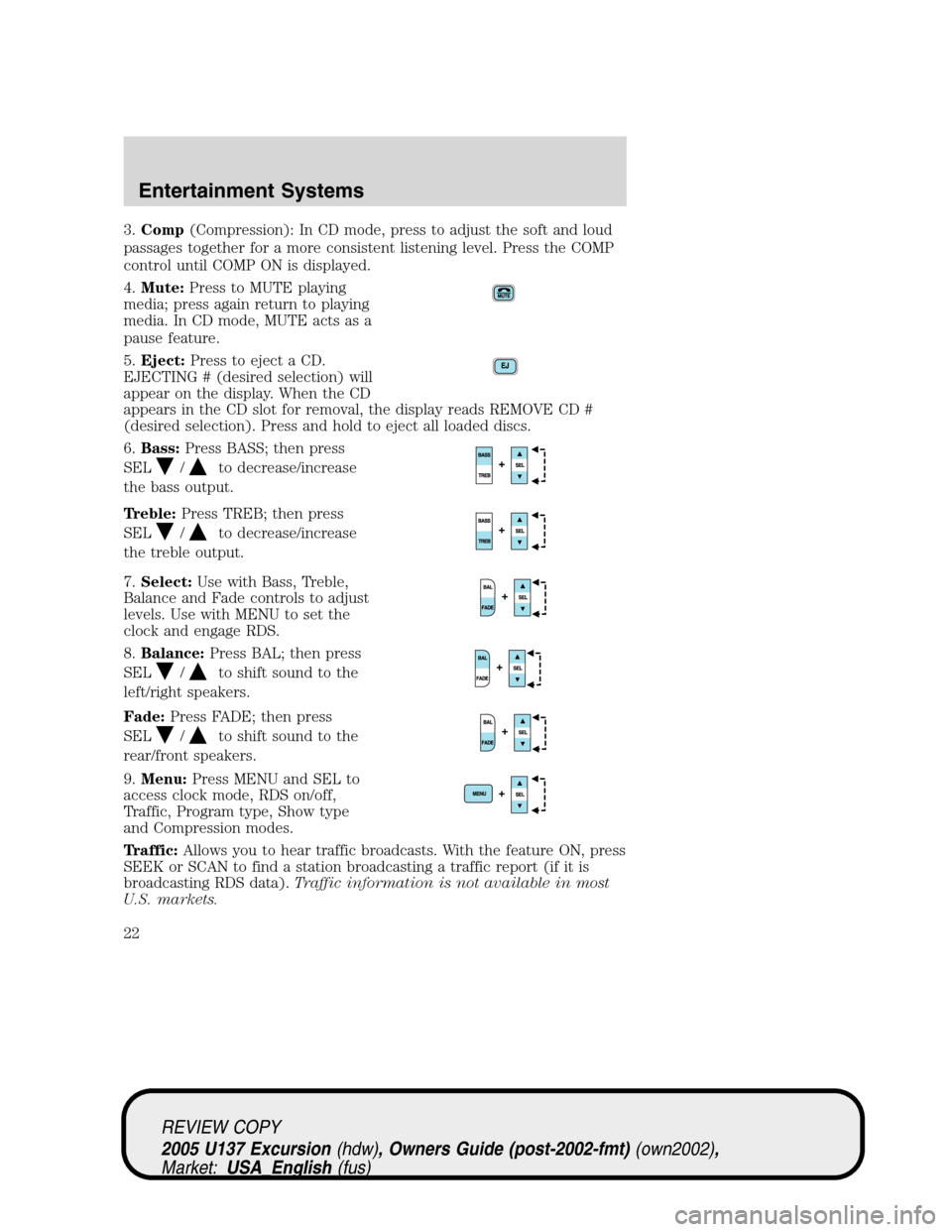

3.Comp(Compression): In CD mode, press to adjust the soft and loud
passages together for a more consistent listening level. Press the COMP
control until COMP ON is displayed.
4.Mute:Press to MUTE playing
media; press again return to playing
media. In CD mode, MUTE acts as a
pause feature.
5.Eject:Press to eject a CD.
EJECTING # (desired selection) will
appear on the display. When the CD
appears in the CD slot for removal, the display reads REMOVE CD #
(desired selection). Press and hold to eject all loaded discs.
6.Bass:Press BASS; then press
SEL
/to decrease/increase
the bass output.
Treble:Press TREB; then press
SEL
/to decrease/increase
the treble output.
7.Select:Use with Bass, Treble,
Balance and Fade controls to adjust
levels. Use with MENU to set the
clock and engage RDS.
8.Balance:Press BAL; then press
SEL
/to shift sound to the
left/right speakers.
Fade:Press FADE; then press
SEL
/to shift sound to the
rear/front speakers.
9.Menu:Press MENU and SEL to
access clock mode, RDS on/off,
Traffic, Program type, Show type
and Compression modes.
Traffic:Allows you to hear traffic broadcasts. With the feature ON, press
SEEK or SCAN to find a station broadcasting a traffic report (if it is
broadcasting RDS data).Traffic information is not available in most
U.S. markets.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Entertainment Systems
22

FIND Program type:Allows you to search RDS-equipped stations for a
certain category of music format: Classic, Country, Info, Jazz, Oldies,
R&B, Religious, Rock, Soft, Top 40.
Show TYPE:Displays the station’s call letters and format.
Compression:In CD mode, press to bring soft and loud CD passages
together for a more consistent listening level.
Setting the clock:Press MENU until SELECT HOUR or SELECT MINS
is displayed. Use SEL to manually increase (
) or decrease () the
hours/minutes. Press MENU again to disengage clock mode.
10.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound
returns. In CD mode, press to move between CDs.
This radio is equipped with six station memory preset controls which
allow you to set up to six AM stations and 12 FM stations (six in FM1
and six in FM2).
11.CD:Press to select CD mode.
Seamless play:In CD mode, the
transition between the end of one
CD and the beginning of another will not contain delay time unless SEEK
or a preset control is pressed.
12.AM/FM:Press to select a
frequency band in radio mode.
Autoset:Allows you to set the
strongest local radio stations without losing your original manually set
preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM.
AUTOSET will flash on the display. When the six strongest stations are
filled, the station stored in preset 1 will begin playing. If there are less
than six strong stations, the system will store the last one in the
remaining presets. Press again to disengage.
13.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Entertainment Systems
23

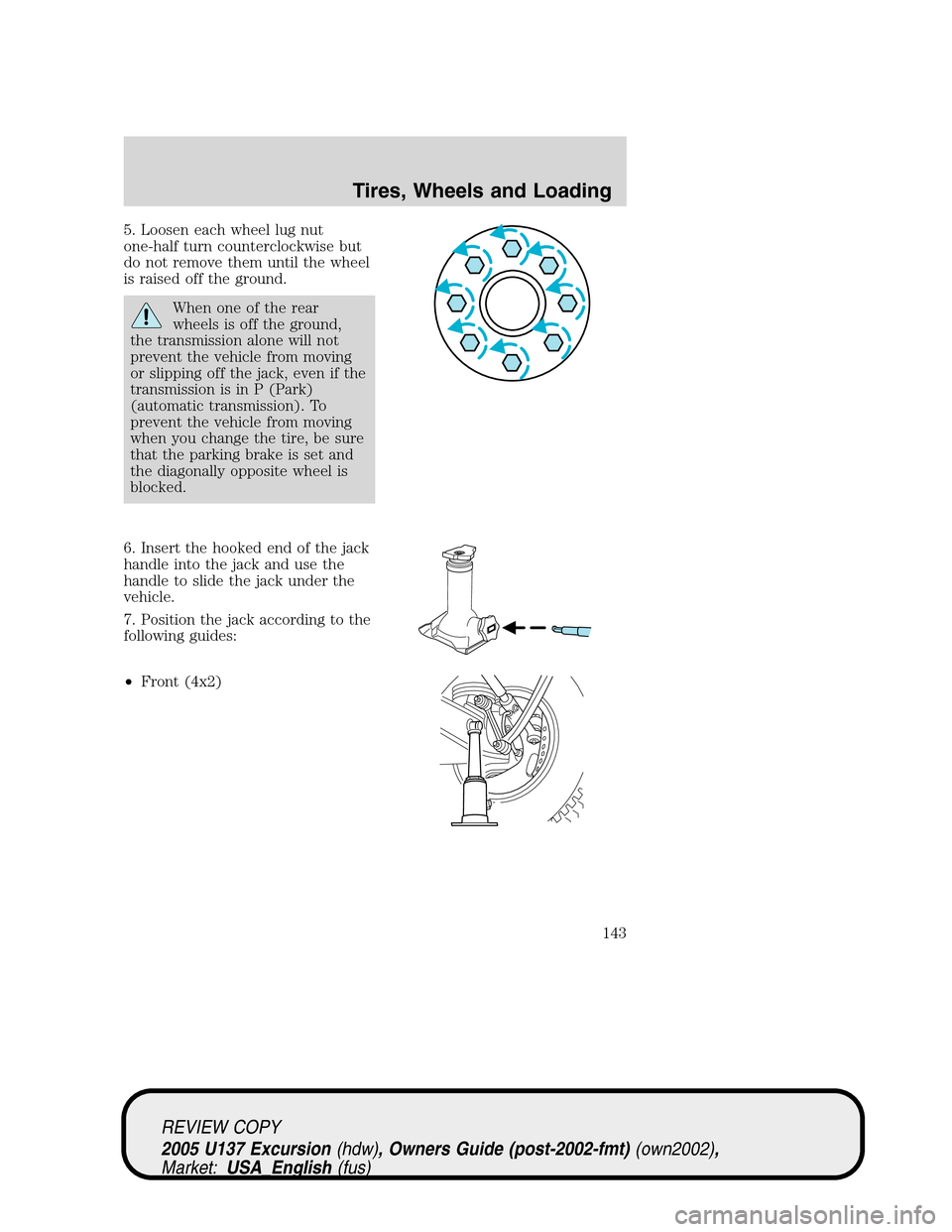

5. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
When one of the rear
wheels is off the ground,
the transmission alone will not
prevent the vehicle from moving
or slipping off the jack, even if the
transmission is in P (Park)
(automatic transmission). To
prevent the vehicle from moving
when you change the tire, be sure
that the parking brake is set and
the diagonally opposite wheel is
blocked.
6. Insert the hooked end of the jack
handle into the jack and use the
handle to slide the jack under the
vehicle.
7. Position the jack according to the
following guides:
•Front (4x2)
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Tires, Wheels and Loading
143

7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
mileage intervals listed in theScheduled Maintenance Guide. The
coolant concentration should be maintained at 50/50 coolant and distilled
water, which equates to a freeze point of -34°F (-36°C). Coolant
concentration testing is possible with a hydrometer or antifreeze tester
(such as the Rotunda Battery and Antifreeze Tester, 014–R1060). The
level of coolant should be maintained at the“FULL COLD”level or
within the“COLD FILL RANGE”in the coolant reservoir. If the level falls
below, add coolant per the instructions in theAdding engine coolant
section.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
LEAD
RETURN
RECYCLE
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
233

wiper blades ............................221
Climate control (see Air
conditioning or Heating) ......45, 47
Clock adjust
6-CD in dash .............................23
AM/FM/Tape/CD .......................19
Compass, electronic ....................75
calibration .................................76
set zone adjustment .................76
Console ........................................81
overhead ..............................62–63
Controls
power seat .................................99
steering column ........................73
Coolant
checking and adding ..............233
refill capacities ................237, 256
specifications ..................259, 262
Cruise control
(see Speed control) ....................70
Customer Assistance ................196
Ford accessories for your
vehicle .....................................223
Ford Extended Service
Plan ..........................................216
Getting assistance outside the
U.S. and Canada .....................217
Getting roadside assistance ...196
Getting the service you
need .........................................210
Ordering additional owner’s
literature .................................217
The Dispute Settlement
Board .......................................212
Utilizing the
Mediation/Arbitration
Program ...................................215D
Daytime running lamps
(see Lamps) ................................50
Dipstick
automatic transmission fluid .250
engine oil .................................228
Doors
lubricant specifications ..........259
Driving under special
conditions ..................182, 189, 192
sand .........................................191
snow and ice ...........................193
through water .................191, 195
E
Emergencies, roadside
jump-starting ..........................204
Emergency Flashers .................197
Emission control system ..........247
Engine ........................................262
cleaning ...................................220
coolant .....................................233
diesel ...........................................6
fail-safe coolant ......................237
idle speed control ...................231
lubrication
specifications ..................259, 262
refill capacities ........................256
service points ..........................226
starting after a collision .........197
Engine block heater .................171
Engine oil ..................................228
checking and adding ..............228
dipstick ....................................228
filter, specifications ........230, 255
recommendations ...................230
refill capacities ........................256
specifications ..................259, 262
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
269

Power door locks ........................84
Power mirrors .............................67
Power point .................................64
Power steering ..........................174
fluid, checking and adding ....249
fluid, refill capacity ................256
fluid, specifications .........259, 262
Power Windows ...........................65
Preparing to drive your
vehicle ........................................175
R
Radio ......................................17, 21
Relays ........................................198
Remote entry system .................86
illuminated entry ......................89
locking/unlocking doors ...........84
Reverse sensing system ...........182
Roadside assistance ..................196
Roof rack .....................................83
S
Safety Belt Maintenance ..........116
Safety belts (see Safety
restraints) ..........................107–110
Safety defects, reporting ..........218
Safety restraints ................107–110
belt minder .............................112
extension assembly ................116
for adults .........................108–110
for children .....................121–122
lap belt ....................................111
safety belt maintenance .........116
warning light and chime ........112
Safety seats for children ..........124Seat belts
(see Safety restraints) .............107
Seats ............................................96
child safety seats ....................124
Servicing your vehicle ..............225
Setting the clock
AM/FM/In-dash 6 CD ................23
AM/FM/Tape/CD .......................19
Snowplowing .................................7
Spark plugs,
specifications .....................255, 262
Special notice
diesel-powered vehicles .............6
utility-type vehicles ....................7
Specification chart,
lubricants ...........................259, 262
Speed control ..............................70
Starting your
vehicle ........................168–169, 171
jump starting ..........................204
Steering wheel
controls ......................................73
tilting .........................................61
T
Temperature control
(see Climate control) .................47
Tilt steering wheel ......................61
Tires ...........................134–135, 140
alignment ................................153
care ..........................................152
changing ..........................140, 142
checking the pressure ............137
inspecting and inflating .........136
label .........................................151
replacing ..................................140
rotating ....................................154
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
272
