FORD EXPEDITION 2003 2.G Owners Manual

COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
25A Natural Natural———
30A Green Green Green Pink Pink
40A——Orange Green Green
50A——Red Red Red
60A——Blue—Yellow
70A——Ta n—Brown
80A——Natural—Black
Passenger compartment fuse panel / power distribution box
The fuse panel is located under the right-hand side of the instrument
panel. Remove the panel cover to access the fuses.
Roadside Emergencies
231

The fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
1 10A* Front wiper motor, Instrument cluster,
Rear wiper motor, Tire Pressure
Monitoring System (TPMS)
2 20A* Turn signal flasher, Stoplamp switch,
Hazard flasher, IVD (AdvanceTrac)
stoplamps relay
3 7.5A* Power mirrors, Memory seat switch,
Memory seat module
4 10A* DVD player, Rear seat audio controls,
CDDJ
5 7.5A* Powertrain Control Module (PCM) (KA
power), SC deactivate switch, Manual
climate control mode switch, Stoplamp
switch, Brake-shift interlock (BSI)
solenoid, EATC control head, BSM module,
Speed control servo, 3rd row seat relay
6 15A* Headlamp switch, Parklamps, License plate
lamps, Trailer tow electric brake controller,
BSM parklamps relay
7 7.5A* Radio
8 10A* Rear window defroster switch, Heated
mirrors
9 10A* Alternator
10 20A* Back-up lamps, Back-up lamp relay, Trailer
tow parklamp relay
11 10A* A/C clutch relay, 4x4 IWE solenoid
12 10A* Speed control servo, Speed control
13 10A* EATC control head, Manual climate control
head
Roadside Emergencies
232

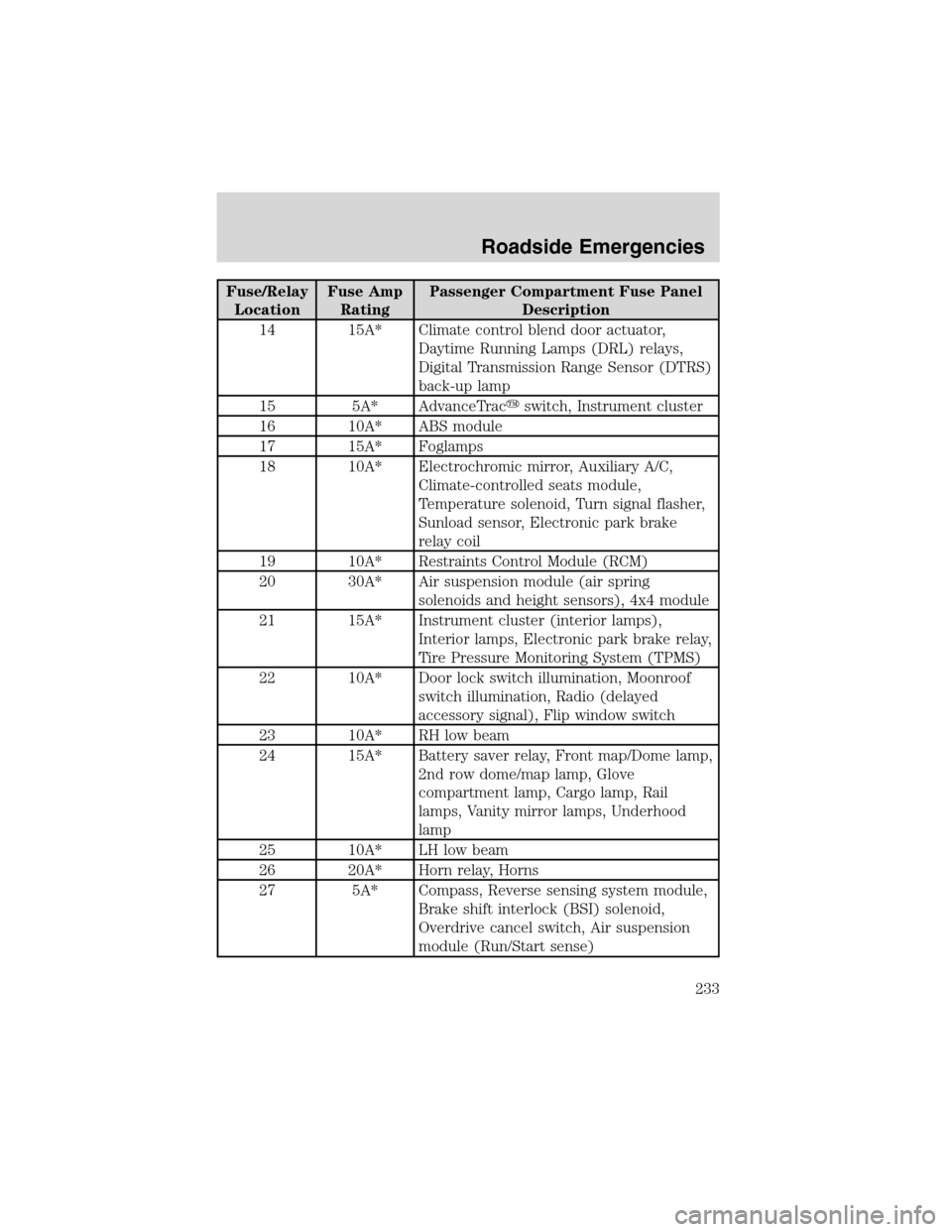

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
14 15A* Climate control blend door actuator,
Daytime Running Lamps (DRL) relays,
Digital Transmission Range Sensor (DTRS)
back-up lamp
15 5A* AdvanceTracswitch, Instrument cluster
16 10A* ABS module
17 15A* Foglamps
18 10A* Electrochromic mirror, Auxiliary A/C,
Climate-controlled seats module,
Temperature solenoid, Turn signal flasher,
Sunload sensor, Electronic park brake
relay coil
19 10A* Restraints Control Module (RCM)
20 30A* Air suspension module (air spring
solenoids and height sensors), 4x4 module
21 15A* Instrument cluster (interior lamps),
Interior lamps, Electronic park brake relay,
Tire Pressure Monitoring System (TPMS)
22 10A* Door lock switch illumination, Moonroof
switch illumination, Radio (delayed
accessory signal), Flip window switch
23 10A* RH low beam
24 15A* Battery saver relay, Front map/Dome lamp,
2nd row dome/map lamp, Glove
compartment lamp, Cargo lamp, Rail
lamps, Vanity mirror lamps, Underhood
lamp
25 10A* LH low beam
26 20A* Horn relay, Horns
27 5A* Compass, Reverse sensing system module,
Brake shift interlock (BSI) solenoid,
Overdrive cancel switch, Air suspension
module (Run/Start sense)
Roadside Emergencies
233

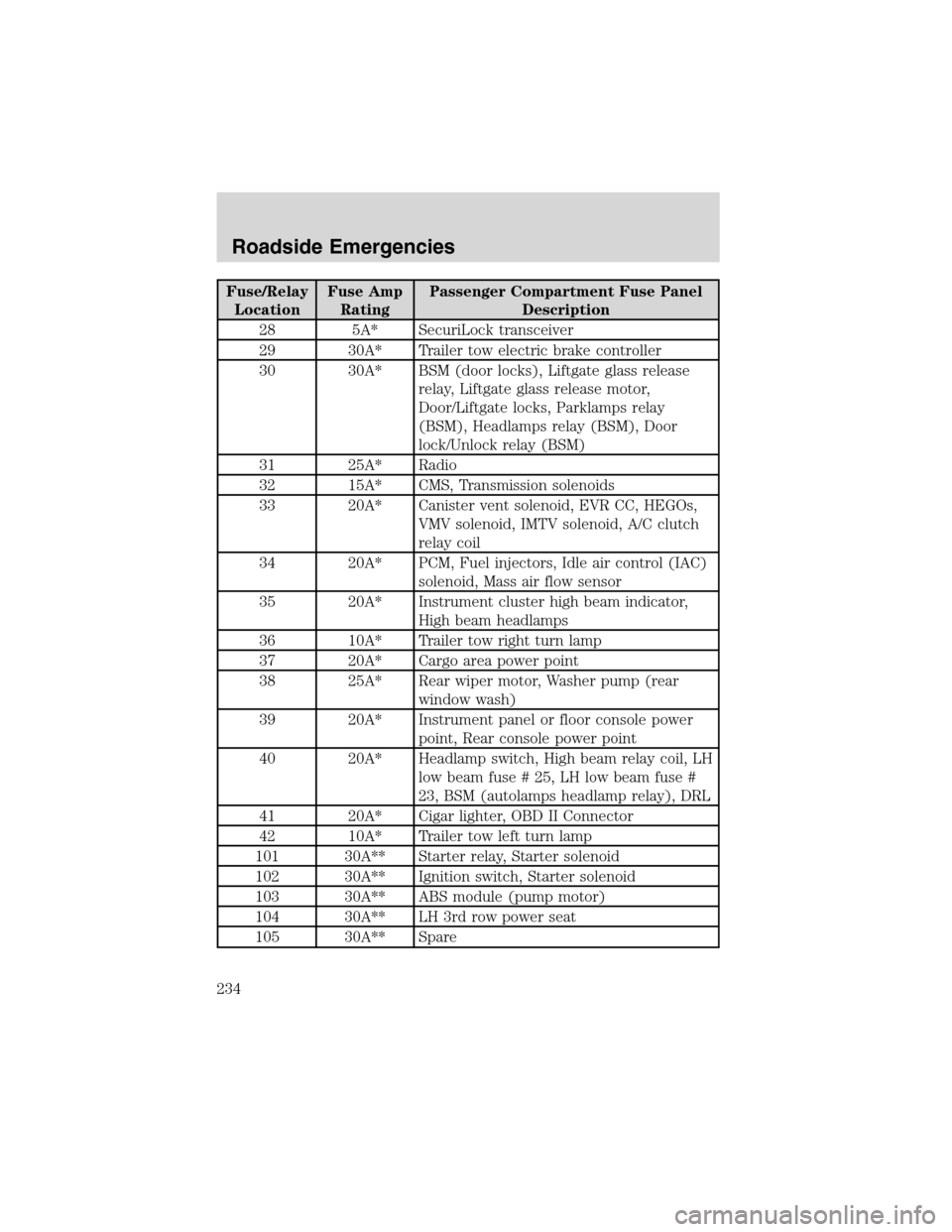

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
28 5A* SecuriLock transceiver
29 30A* Trailer tow electric brake controller
30 30A* BSM (door locks), Liftgate glass release
relay, Liftgate glass release motor,
Door/Liftgate locks, Parklamps relay
(BSM), Headlamps relay (BSM), Door
lock/Unlock relay (BSM)
31 25A* Radio
32 15A* CMS, Transmission solenoids
33 20A* Canister vent solenoid, EVR CC, HEGOs,
VMV solenoid, IMTV solenoid, A/C clutch
relay coil
34 20A* PCM, Fuel injectors, Idle air control (IAC)
solenoid, Mass air flow sensor
35 20A* Instrument cluster high beam indicator,
High beam headlamps
36 10A* Trailer tow right turn lamp
37 20A* Cargo area power point
38 25A* Rear wiper motor, Washer pump (rear
window wash)
39 20A* Instrument panel or floor console power
point, Rear console power point
40 20A* Headlamp switch, High beam relay coil, LH
low beam fuse # 25, LH low beam fuse #
23, BSM (autolamps headlamp relay), DRL
41 20A* Cigar lighter, OBD II Connector
42 10A* Trailer tow left turn lamp
101 30A** Starter relay, Starter solenoid
102 30A** Ignition switch, Starter solenoid
103 30A** ABS module (pump motor)
104 30A** LH 3rd row power seat
105 30A** Spare
Roadside Emergencies
234

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
106 30A** Trailer tow battery charge relay
107 30A** Auxiliary blower relay, Auxiliary blower
motor
108 30A** Power passenger seat switch, Passenger
power lumbar switch
109 30A** Driver seat motor switch, Driver lumbar
switch, Adjustable pedal switch, Memory
module
110 30A** Spare
111 50A** Air suspension solid state relay, Air
suspension compressor
112 30A** ABS module (valves)
113 30A** Front wiper motor, Front washer pump
114 40A** Rear window defrost relay, Heated mirrors
(Fuse # 8)
115 30A** 4x4 module, Transfer case shift motor
116 40A** Front blower relay, Front blower motor
117 30A** RH 3rd row power seat
118 30A** Driver and passenger climate control seat
module
401 30A** Power window circuit breaker, Main
window switch, Window motors, Window
switches, Moonroof module
R01 Starter relay Starter motor solenoid
R02 Delayed
accessory
relayFuse # 22, CB # 401, Power windows,
Switch backlighting, Radio, Moonroof, Flip
windows
R03 Hi-beam
relayFuse # 35, Hi-beam headlamps, Hi-beam
indicator, DRL relays
R04 Rear window
defroster
relayFuse # 8 (heated mirrors), Rear window
defroster
Roadside Emergencies
235

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
R05 T/T battery
charge relayTT 7 wire connector, Battery charge
R06 Front blower
relayBlower motor, Blower motor speed control
(EATC)
R201 T/T park
lamp relayTrailer tow park lamps feed
R202 Fog lamp
relayFront fog lamps
R203 PCM relay Fuse # 32, Fuse # 33, Fuse # 34, Fuel
pump relay, PCM solenoids and sensors
R301 T/T back-up
lamp relayBack-up lamps, TT connector (back-up
lamps), Electrochromic mirror
R302 Speed
control relayElectric cooling fan clutch, Speed control
servo
R303 Fuel pump
relayFuel pump shut-off switch, PCM fuel
pump monitor, Fuel pump
R304 Battery
saver relayRail lamps, Vanity mirror lamps, Dome
lamp, Glove box lamp, Instrument cluster
R305 Horn relay Dual note horn
* Mini Fuses ** Maxi Fuses
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
The use of tire sealants is not recommended and may compromise the
integrity of your tires. The use of tire sealants may also affect your tire
pressure monitoring system (if equipped).
Spare tire information
Your vehicle is equipped with a spare tire that may be used as a spare or
a regular tire. The spare is identical to the other tires on your vehicle,
although the wheel may not match.
Roadside Emergencies
236

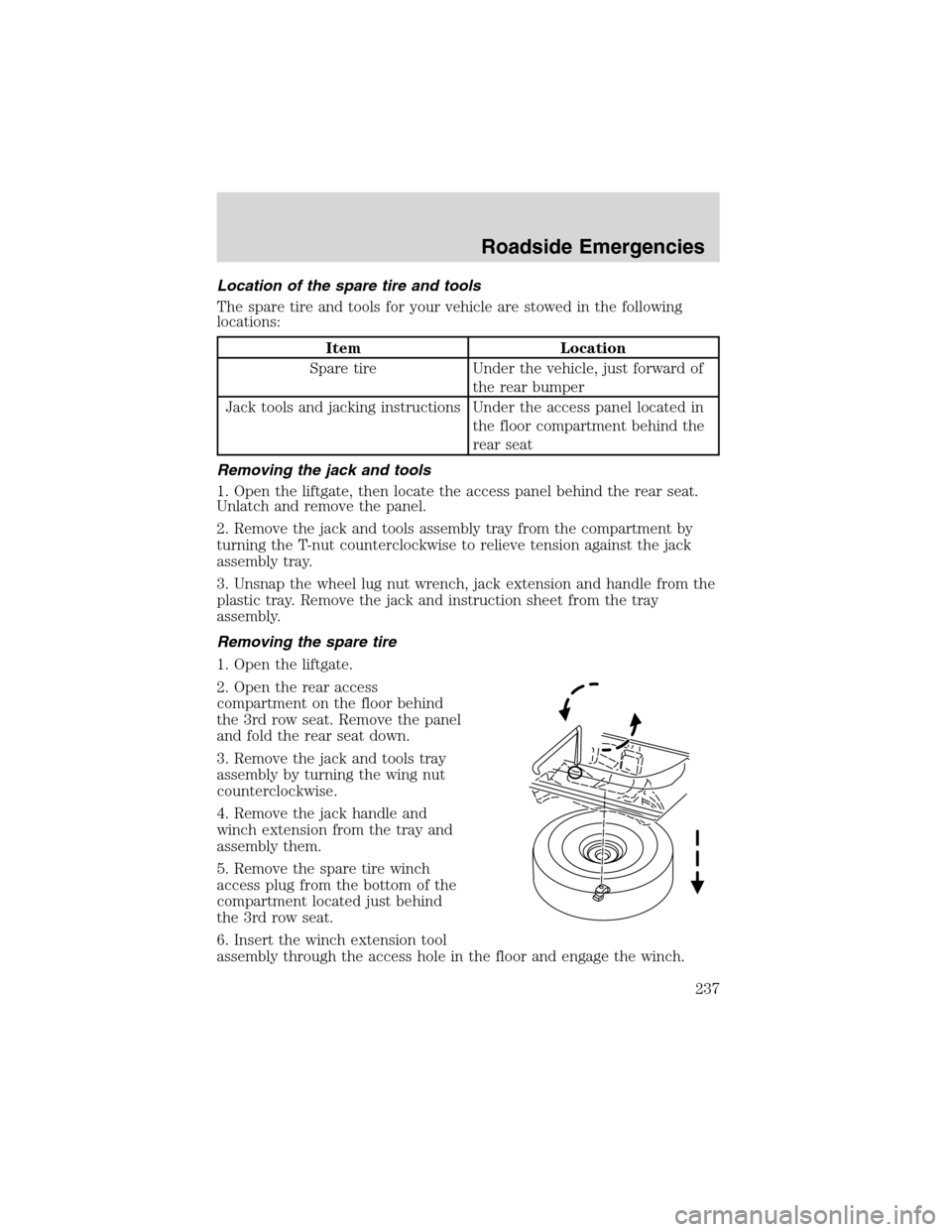

Location of the spare tire and tools
The spare tire and tools for your vehicle are stowed in the following
locations:
Item Location
Spare tire Under the vehicle, just forward of
the rear bumper
Jack tools and jacking instructions Under the access panel located in
the floor compartment behind the
rear seat
Removing the jack and tools
1. Open the liftgate, then locate the access panel behind the rear seat.
Unlatch and remove the panel.
2. Remove the jack and tools assembly tray from the compartment by
turning the T-nut counterclockwise to relieve tension against the jack
assembly tray.
3. Unsnap the wheel lug nut wrench, jack extension and handle from the
plastic tray. Remove the jack and instruction sheet from the tray
assembly.
Removing the spare tire
1. Open the liftgate.
2. Open the rear access
compartment on the floor behind
the 3rd row seat. Remove the panel
and fold the rear seat down.
3. Remove the jack and tools tray
assembly by turning the wing nut
counterclockwise.
4. Remove the jack handle and
winch extension from the tray and
assembly them.
5. Remove the spare tire winch
access plug from the bottom of the
compartment located just behind
the 3rd row seat.
6. Insert the winch extension tool
assembly through the access hole in the floor and engage the winch.
Roadside Emergencies
237

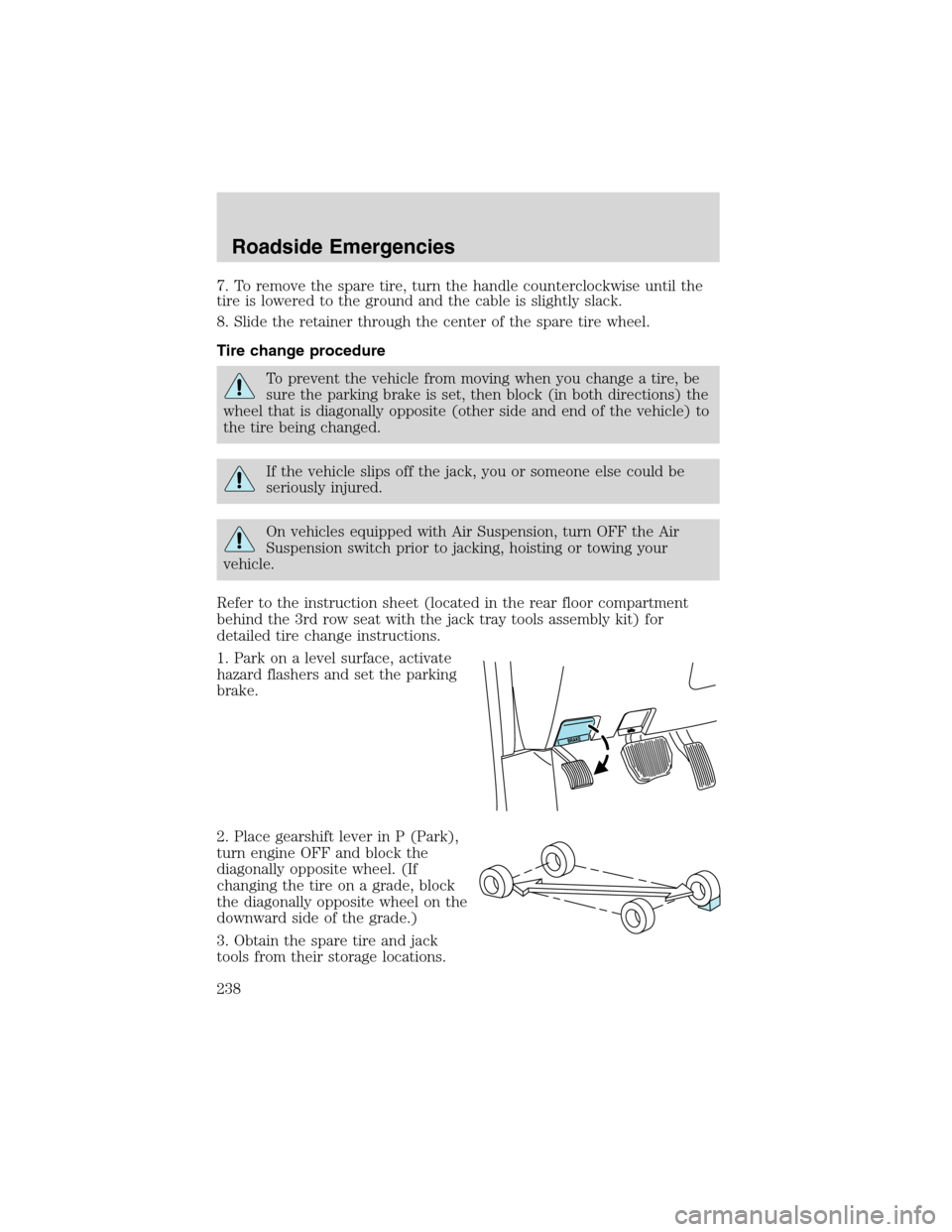

7. To remove the spare tire, turn the handle counterclockwise until the
tire is lowered to the ground and the cable is slightly slack.
8. Slide the retainer through the center of the spare tire wheel.
Tire change procedure
To prevent the vehicle from moving when you change a tire, be
sure the parking brake is set, then block (in both directions) the
wheel that is diagonally opposite (other side and end of the vehicle) to
the tire being changed.
If the vehicle slips off the jack, you or someone else could be
seriously injured.
On vehicles equipped with Air Suspension, turn OFF the Air
Suspension switch prior to jacking, hoisting or towing your
vehicle.
Refer to the instruction sheet (located in the rear floor compartment
behind the 3rd row seat with the jack tray tools assembly kit) for
detailed tire change instructions.
1. Park on a level surface, activate
hazard flashers and set the parking
brake.
2. Place gearshift lever in P (Park),
turn engine OFF and block the
diagonally opposite wheel. (If
changing the tire on a grade, block
the diagonally opposite wheel on the
downward side of the grade.)
3. Obtain the spare tire and jack
tools from their storage locations.
Roadside Emergencies
238

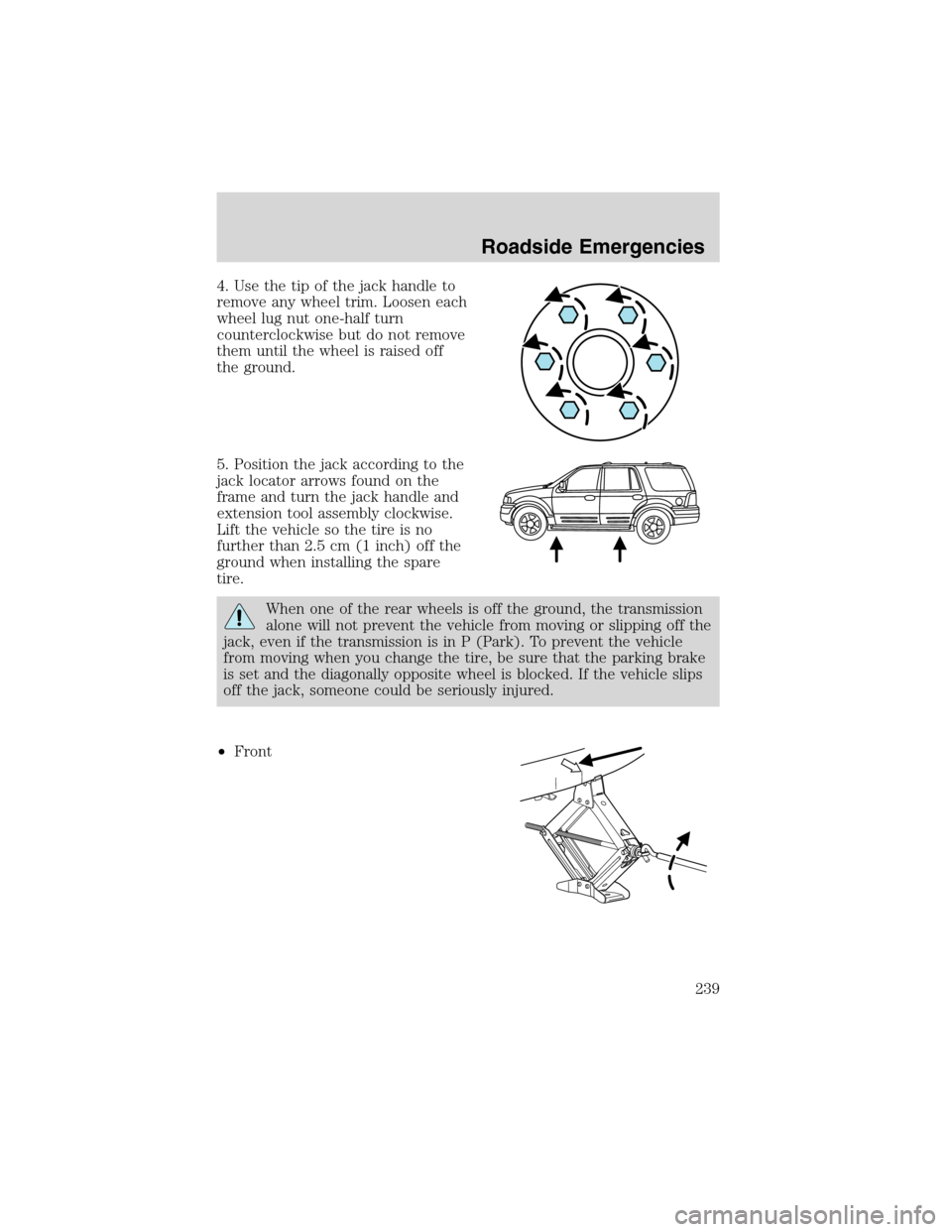

4. Use the tip of the jack handle to
remove any wheel trim. Loosen each
wheel lug nut one-half turn
counterclockwise but do not remove
them until the wheel is raised off
the ground.
5. Position the jack according to the
jack locator arrows found on the
frame and turn the jack handle and
extension tool assembly clockwise.
Lift the vehicle so the tire is no
further than 2.5 cm (1 inch) off the
ground when installing the spare
tire.
When one of the rear wheels is off the ground, the transmission
alone will not prevent the vehicle from moving or slipping off the
jack, even if the transmission is in P (Park). To prevent the vehicle
from moving when you change the tire, be sure that the parking brake
is set and the diagonally opposite wheel is blocked. If the vehicle slips
off the jack, someone could be seriously injured.
•Front
Roadside Emergencies
239

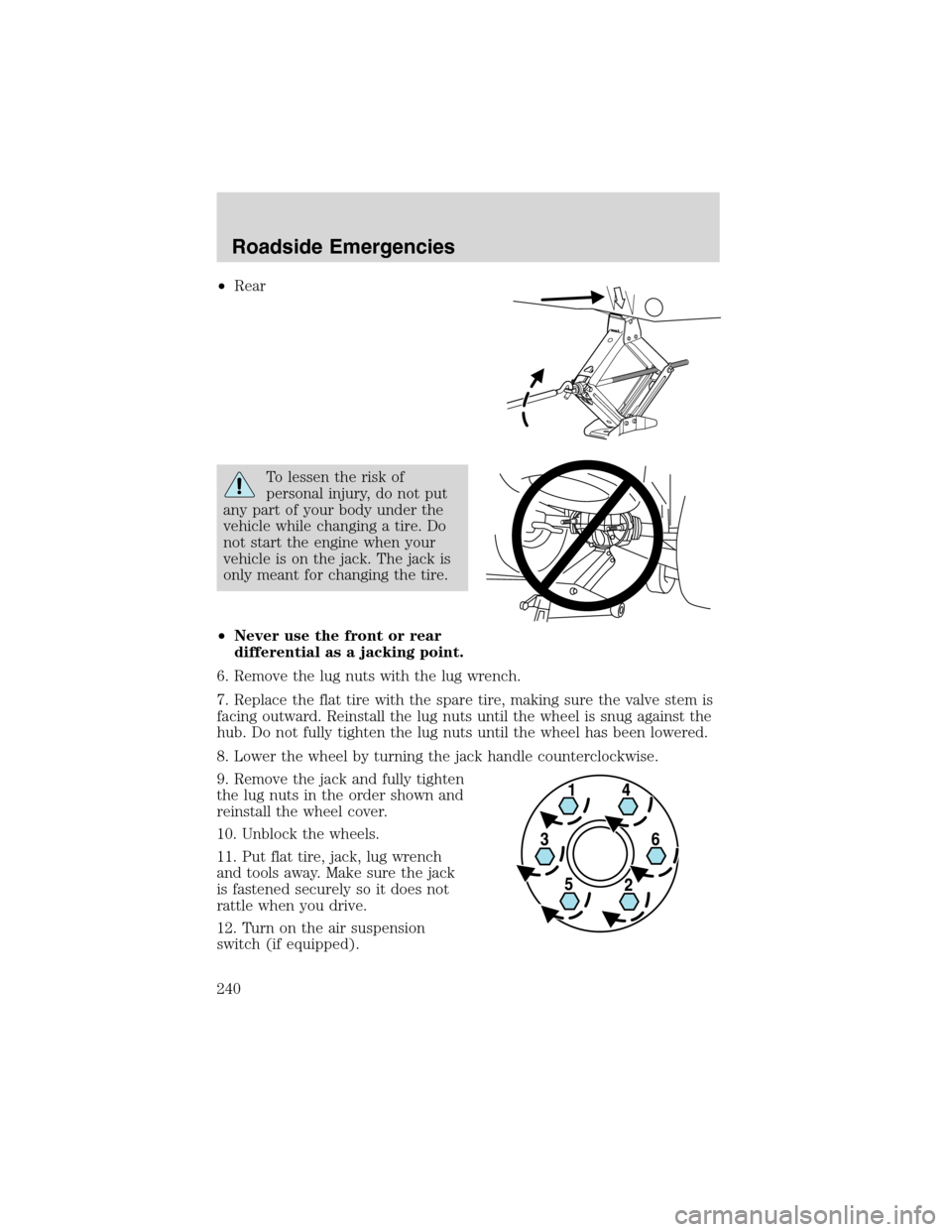

•Rear
To lessen the risk of
personal injury, do not put
any part of your body under the
vehicle while changing a tire. Do
not start the engine when your
vehicle is on the jack. The jack is
only meant for changing the tire.
•Never use the front or rear
differential as a jacking point.
6. Remove the lug nuts with the lug wrench.
7. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts until the wheel is snug against the
hub. Do not fully tighten the lug nuts until the wheel has been lowered.
8. Lower the wheel by turning the jack handle counterclockwise.
9. Remove the jack and fully tighten
the lug nuts in the order shown and
reinstall the wheel cover.
10. Unblock the wheels.
11. Put flat tire, jack, lug wrench
and tools away. Make sure the jack
is fastened securely so it does not
rattle when you drive.
12. Turn on the air suspension
switch (if equipped).
Roadside Emergencies
240
