FORD EXPEDITION 2003 2.G Owners Manual

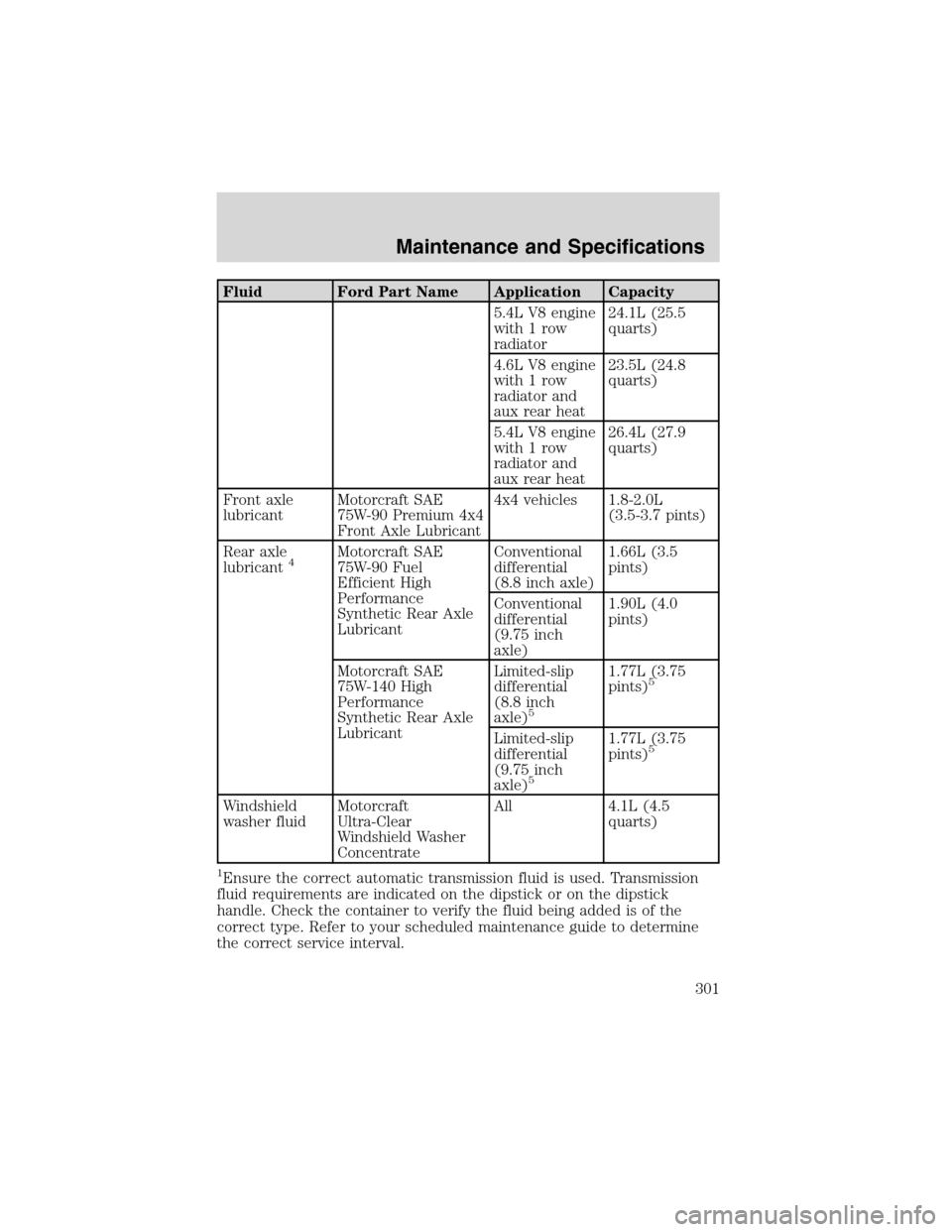

Fluid Ford Part Name Application Capacity
5.4L V8 engine
with 1 row
radiator24.1L (25.5
quarts)
4.6L V8 engine
with 1 row
radiator and
aux rear heat23.5L (24.8
quarts)
5.4L V8 engine
with 1 row
radiator and
aux rear heat26.4L (27.9
quarts)
Front axle
lubricantMotorcraft SAE
75W-90 Premium 4x4
Front Axle Lubricant4x4 vehicles 1.8-2.0L
(3.5-3.7 pints)
Rear axle
lubricant
4Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear Axle
LubricantConventional
differential
(8.8 inch axle)1.66L (3.5
pints)
Conventional
differential
(9.75 inch
axle)1.90L (4.0
pints)
Motorcraft SAE
75W-140 High
Performance
Synthetic Rear Axle
LubricantLimited-slip
differential
(8.8 inch
axle)
5
1.77L (3.75
pints)5
Limited-slip
differential
(9.75 inch
axle)
5
1.77L (3.75
pints)5
Windshield
washer fluidMotorcraft
Ultra-Clear
Windshield Washer
ConcentrateAll 4.1L (4.5
quarts)
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Maintenance and Specifications
301

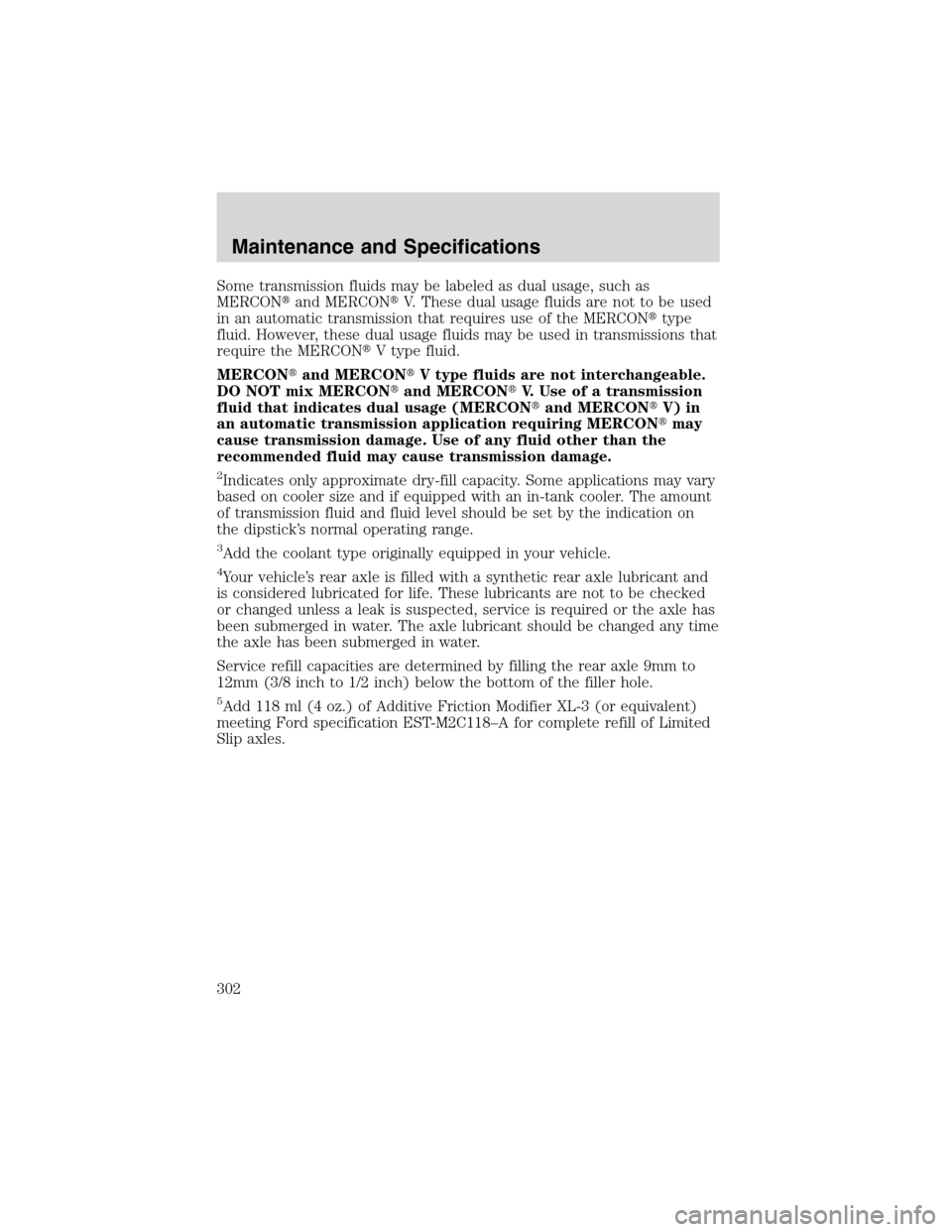

Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
2Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
3Add the coolant type originally equipped in your vehicle.
4Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and
is considered lubricated for life. These lubricants are not to be checked
or changed unless a leak is suspected, service is required or the axle has
been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.
Service refill capacities are determined by filling the rear axle 9mm to
12mm (3/8 inch to 1/2 inch) below the bottom of the filler hole.
5Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 (or equivalent)
meeting Ford specification EST-M2C118–A for complete refill of Limited
Slip axles.
Maintenance and Specifications
302

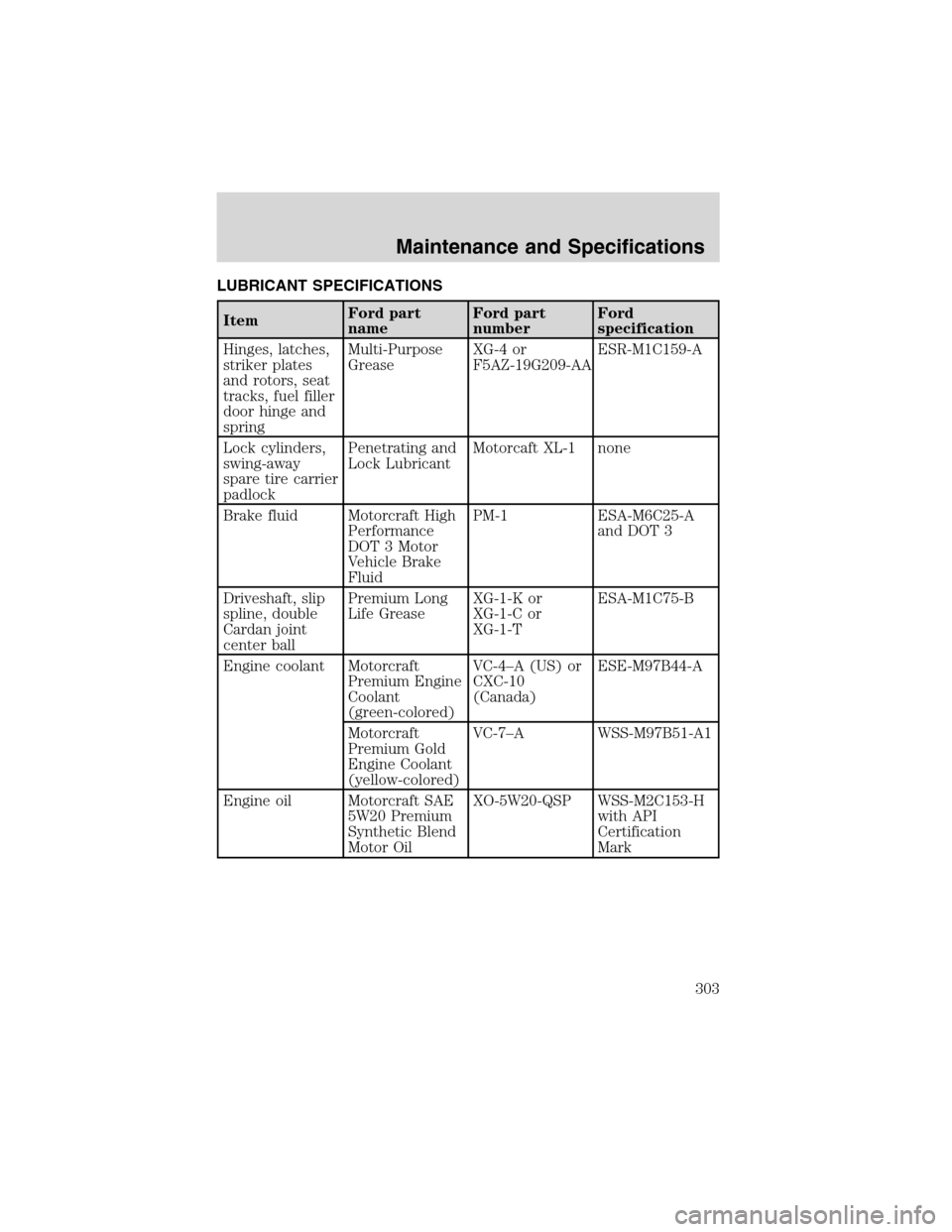

LUBRICANT SPECIFICATIONS
ItemFord part
nameFord part
numberFord
specification
Hinges, latches,
striker plates
and rotors, seat
tracks, fuel filler
door hinge and
springMulti-Purpose
GreaseXG-4 or
F5AZ-19G209-AAESR-M1C159-A
Lock cylinders,
swing-away
spare tire carrier
padlockPenetrating and
Lock LubricantMotorcaft XL-1 none
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Driveshaft, slip
spline, double
Cardan joint
center ballPremium Long
Life GreaseXG-1-K or
XG-1-C or
XG-1-TESA-M1C75-B
Engine coolant Motorcraft
Premium Engine
Coolant
(green-colored)VC-4–A (US) or
CXC-10
(Canada)ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-M97B51-A1
Engine oil Motorcraft SAE
5W20 Premium
Synthetic Blend
Motor OilXO-5W20-QSP WSS-M2C153-H
with API
Certification
Mark
Maintenance and Specifications
303

ItemFord part
nameFord part
numberFord
specification
4x4 front wheel
bearings, 4x4
spindle needle
bearings, spindle
thrust bearings
& front drive
axle u-joint/slip
splineHigh
Temperature
4x4 Front Axle
& Wheel Bearing
GreaseE8TZ-19590-A ESA-M1C198-A
Automatic
transmission
1Motorcraft
MERCONV
AT FXT-5-QM
MERCONV
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Rear axle Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Synthetic Rear
Axle Lube
XY-75W90–QFEHPmeets API GL-5
Motorcraft SAE
75W-140 High
Performance
Synthetic Rear
Axle LubeXY-75W140–QL WSL-M2C192-A
Front axle
(4X4)Motorcraft SAE
75W-90
Premium 4x4
Front Axle
LubricantXY-75W90-TQL WSP-M2C201-A
Transfer case
(4X4)Motorcraft
MERCONAT FXT-2-QDX MERCON
Windshield
washer fluidMotorcraft
Ultra-clear
Windshield
Washer
ConcentrateZC-18–A ESR-M17P5-A
Maintenance and Specifications
304

1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.

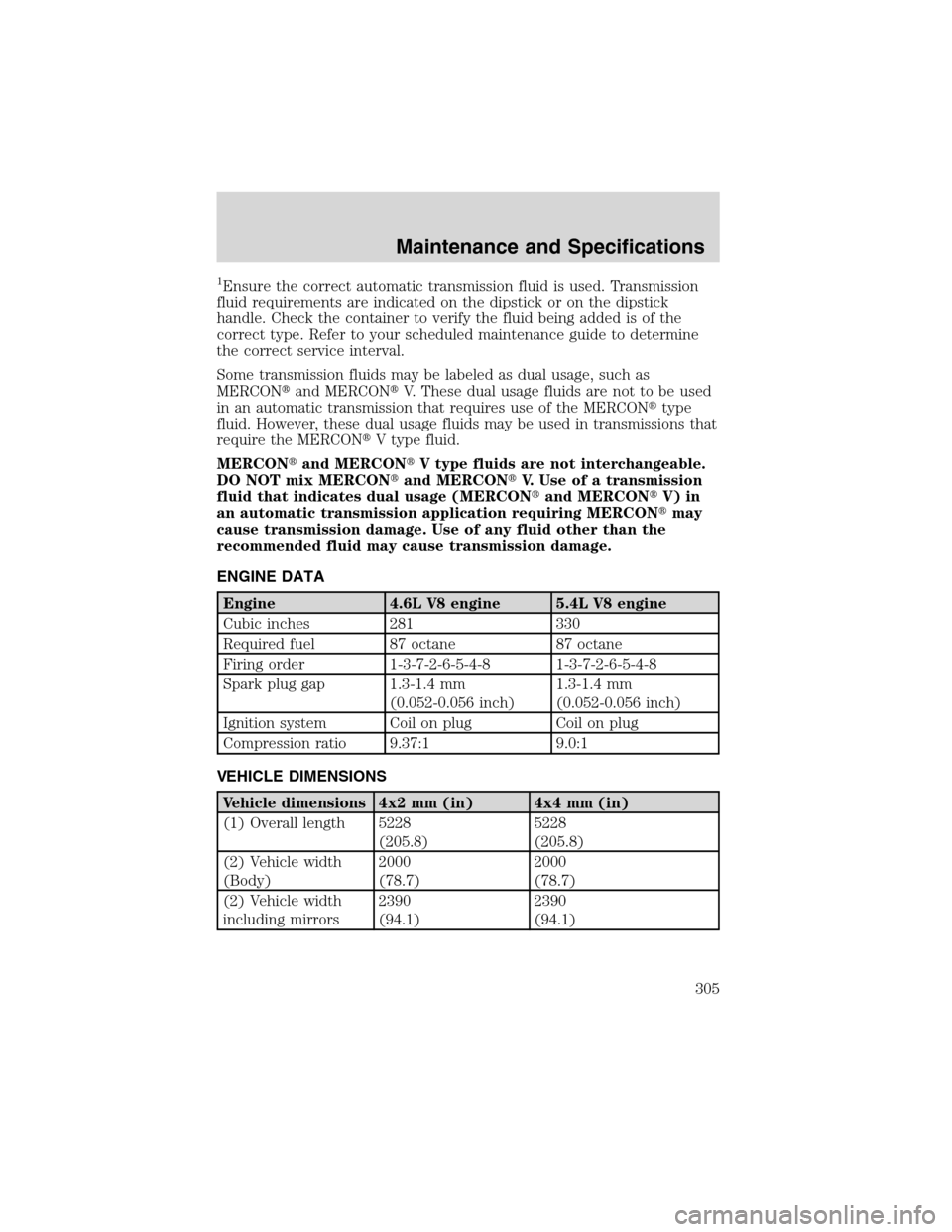

ENGINE DATA
Engine 4.6L V8 engine 5.4L V8 engine
Cubic inches 281 330
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Spark plug gap 1.3-1.4 mm
(0.052-0.056 inch)1.3-1.4 mm
(0.052-0.056 inch)
Ignition system Coil on plug Coil on plug
Compression ratio 9.37:1 9.0:1
VEHICLE DIMENSIONS
Vehicle dimensions 4x2 mm (in) 4x4 mm (in)
(1) Overall length 5228
(205.8)5228
(205.8)
(2) Vehicle width
(Body)2000
(78.7)2000
(78.7)
(2) Vehicle width
including mirrors2390
(94.1)2390
(94.1)
Maintenance and Specifications
305

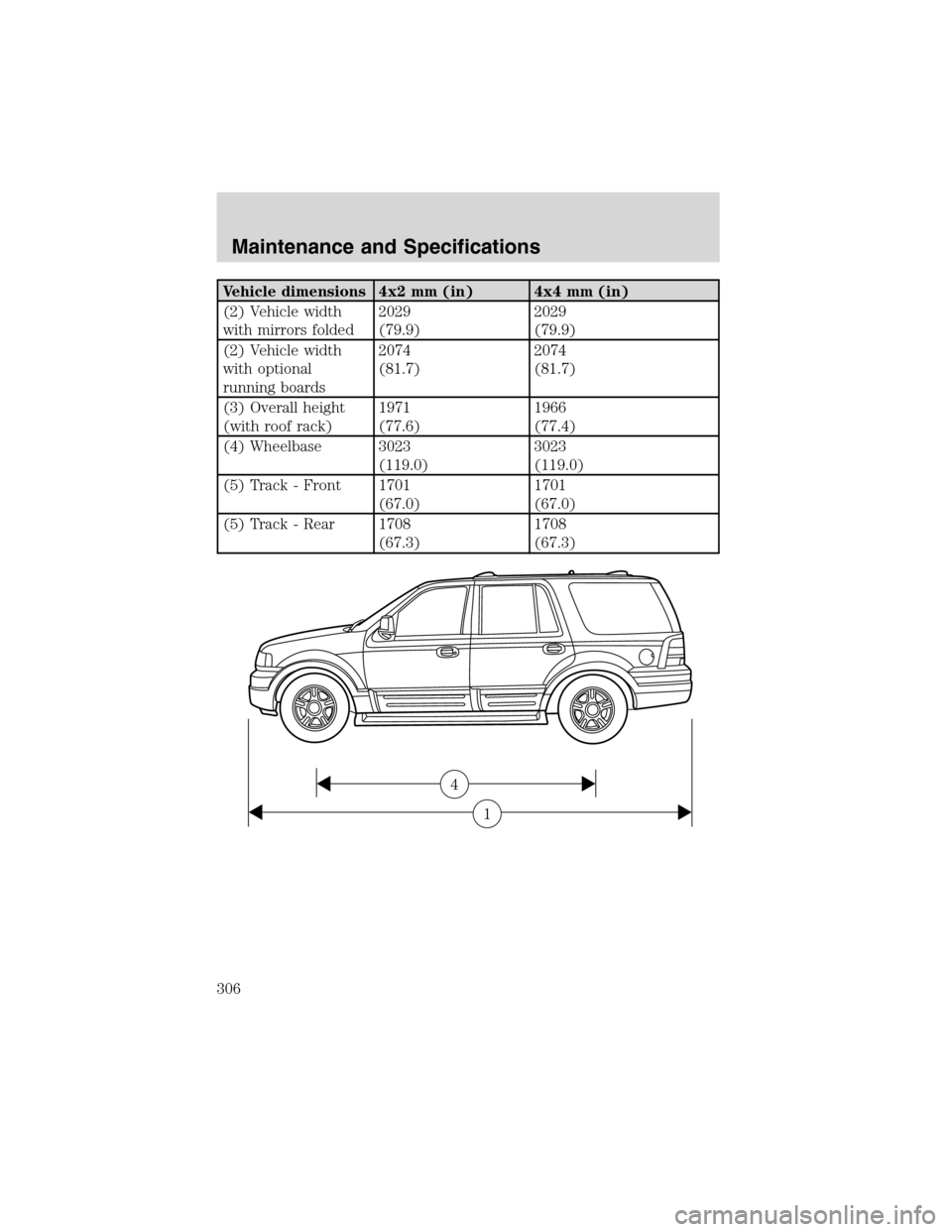

Vehicle dimensions 4x2 mm (in) 4x4 mm (in)
(2) Vehicle width
with mirrors folded2029
(79.9)2029
(79.9)
(2) Vehicle width
with optional
running boards2074
(81.7)2074
(81.7)
(3) Overall height
(with roof rack)1971
(77.6)1966
(77.4)
(4) Wheelbase 3023
(119.0)3023
(119.0)
(5) Track - Front 1701
(67.0)1701
(67.0)
(5) Track - Rear 1708
(67.3)1708
(67.3)
1
4
Maintenance and Specifications
306

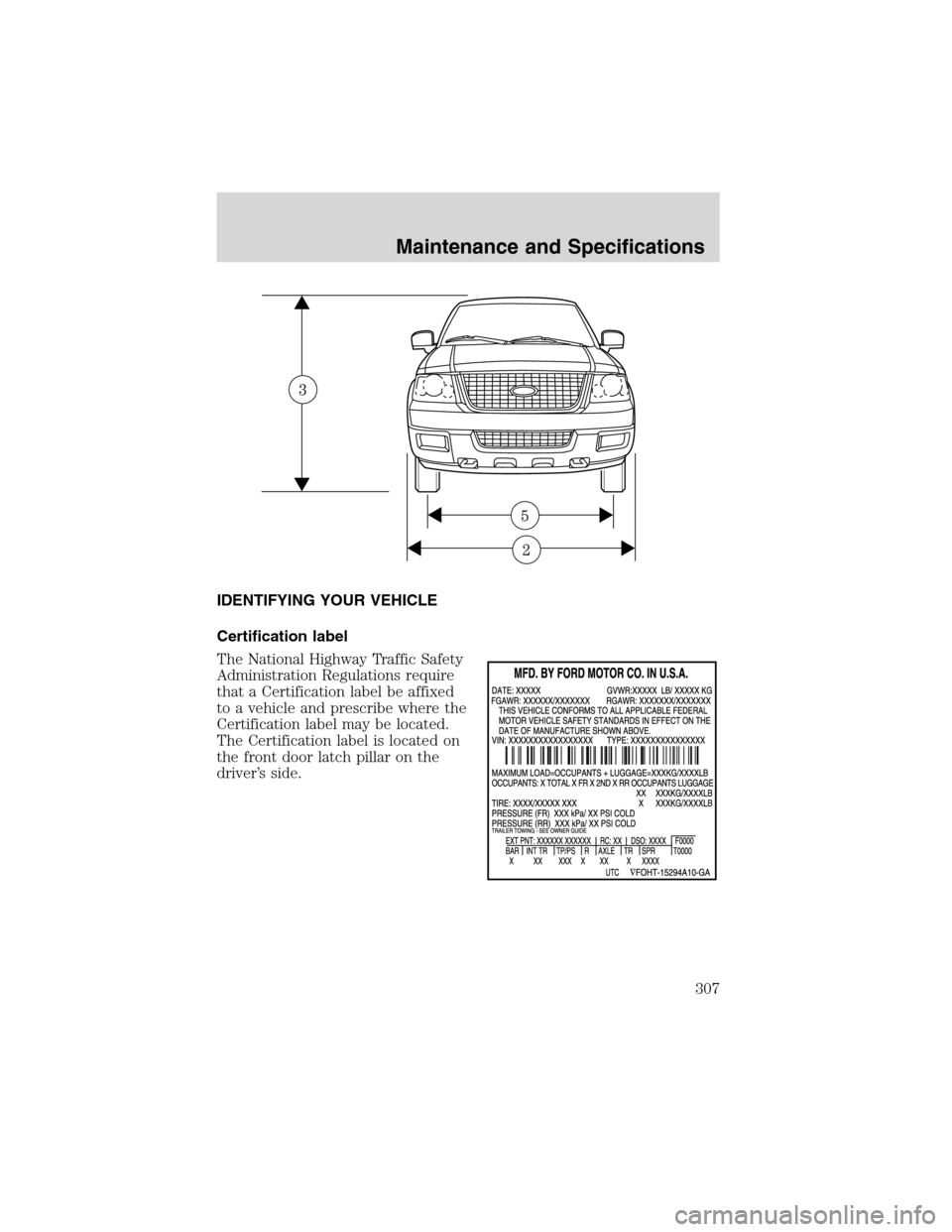

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
Maintenance and Specifications
307

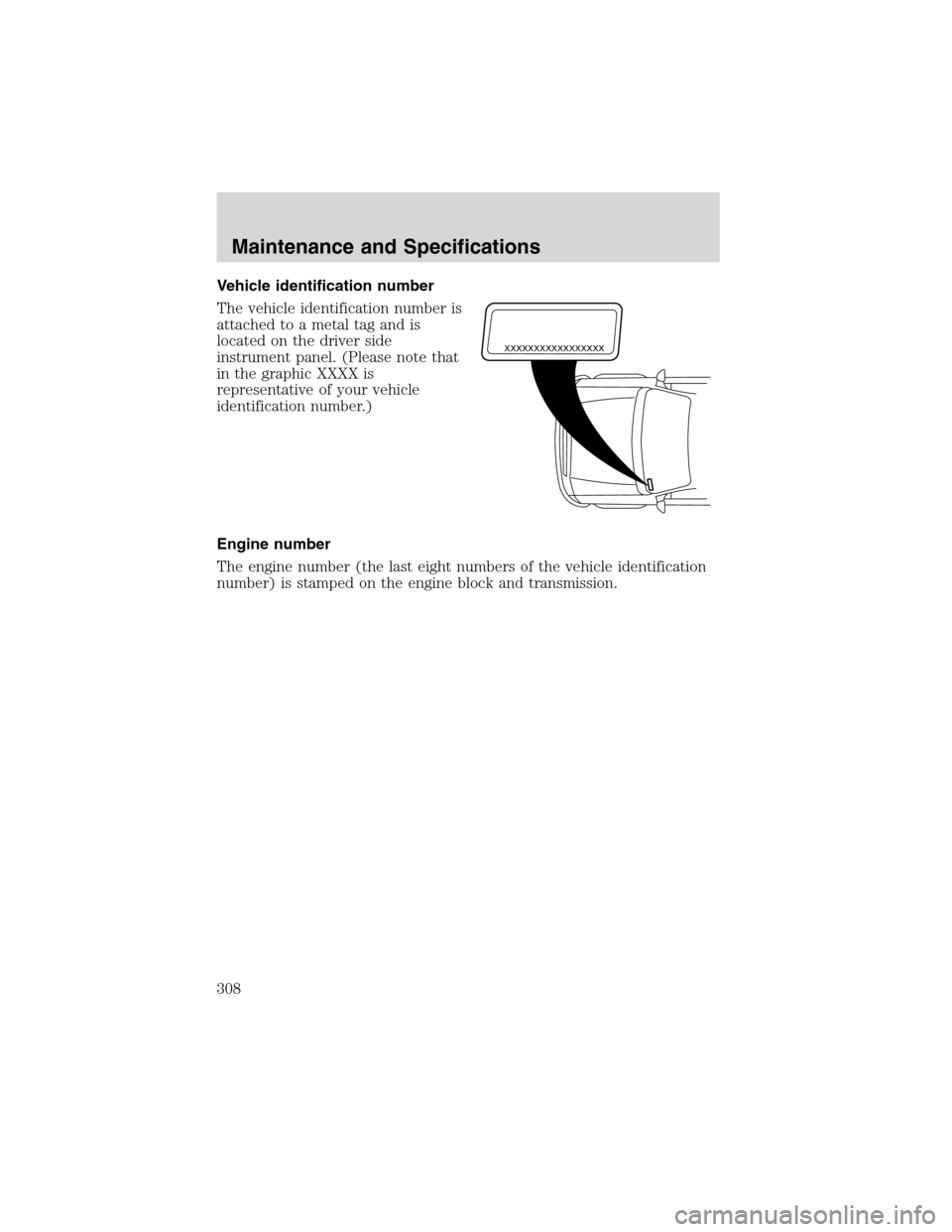

Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transmission.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
308

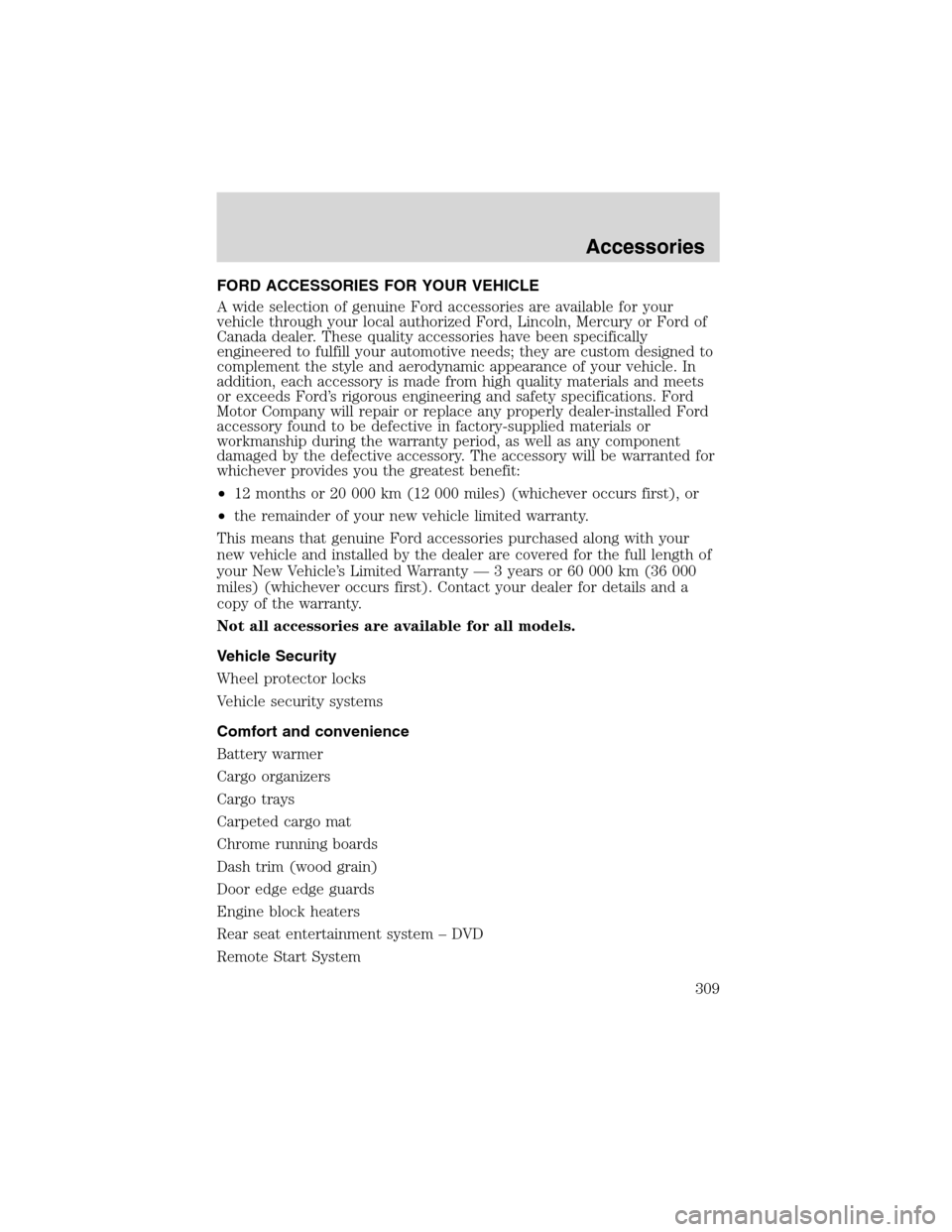

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are available for your
vehicle through your local authorized Ford, Lincoln, Mercury or Ford of
Canada dealer. These quality accessories have been specifically
engineered to fulfill your automotive needs; they are custom designed to
complement the style and aerodynamic appearance of your vehicle. In
addition, each accessory is made from high quality materials and meets
or exceeds Ford’s rigorous engineering and safety specifications. Ford
Motor Company will repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessory. The accessory will be warranted for
whichever provides you the greatest benefit:
•12 months or 20 000 km (12 000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Ford accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60 000 km (36 000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Vehicle Security
Wheel protector locks
Vehicle security systems
Comfort and convenience
Battery warmer
Cargo organizers
Cargo trays
Carpeted cargo mat
Chrome running boards
Dash trim (wood grain)
Door edge edge guards
Engine block heaters
Rear seat entertainment system–DVD
Remote Start System
Accessories
309

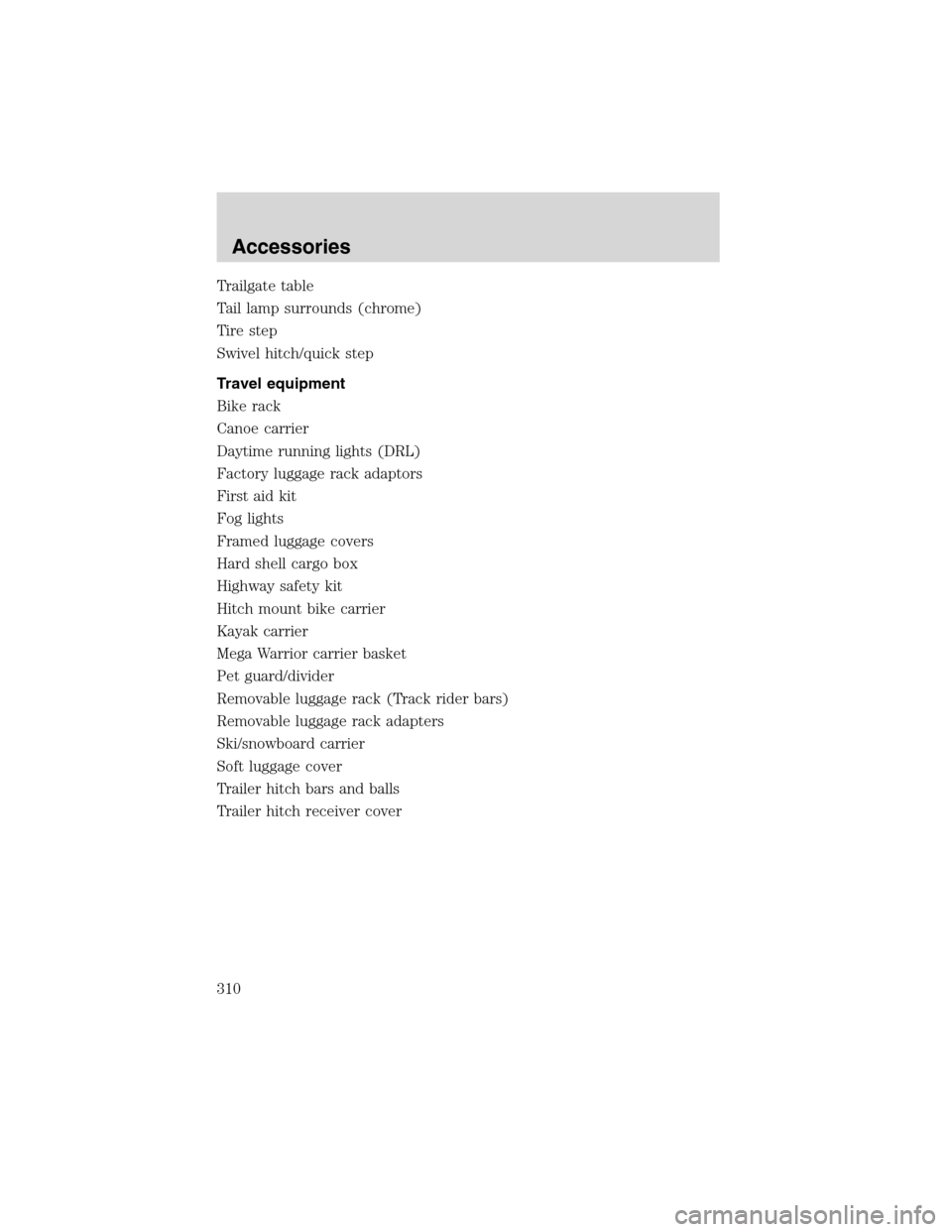

Trailgate table
Tail lamp surrounds (chrome)
Tire step
Swivel hitch/quick step
Travel equipment
Bike rack
Canoe carrier
Daytime running lights (DRL)
Factory luggage rack adaptors
First aid kit
Fog lights
Framed luggage covers
Hard shell cargo box
Highway safety kit
Hitch mount bike carrier
Kayak carrier
Mega Warrior carrier basket
Pet guard/divider
Removable luggage rack (Track rider bars)
Removable luggage rack adapters
Ski/snowboard carrier
Soft luggage cover
Trailer hitch bars and balls
Trailer hitch receiver cover
