IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
4.6L V8 engines
1. Battery
2. Automatic transmission fluid dipstick
3. Engine oil filler cap
4. Power steering fluid reservoir
5. Engine oil dipstick
6. Brake fluid reservoir
7. Engine coolant reservoir
8. Air filter assembly
9. Windshield washer fluid reservoir
2004 Expedition(exd)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
283

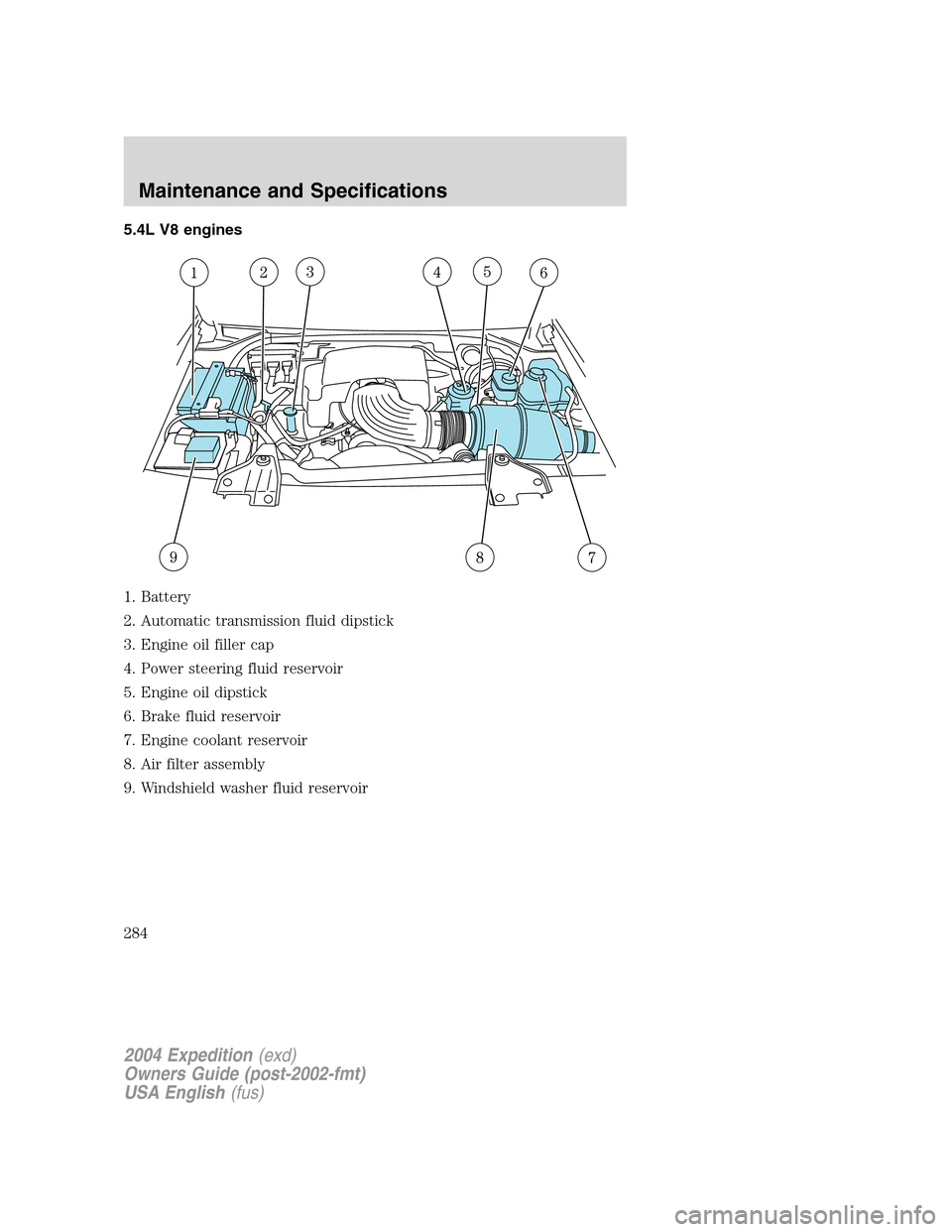

5.4L V8 engines
1. Battery
2. Automatic transmission fluid dipstick
3. Engine oil filler cap
4. Power steering fluid reservoir
5. Engine oil dipstick
6. Brake fluid reservoir
7. Engine coolant reservoir
8. Air filter assembly
9. Windshield washer fluid reservoir
2004 Expedition(exd)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
284

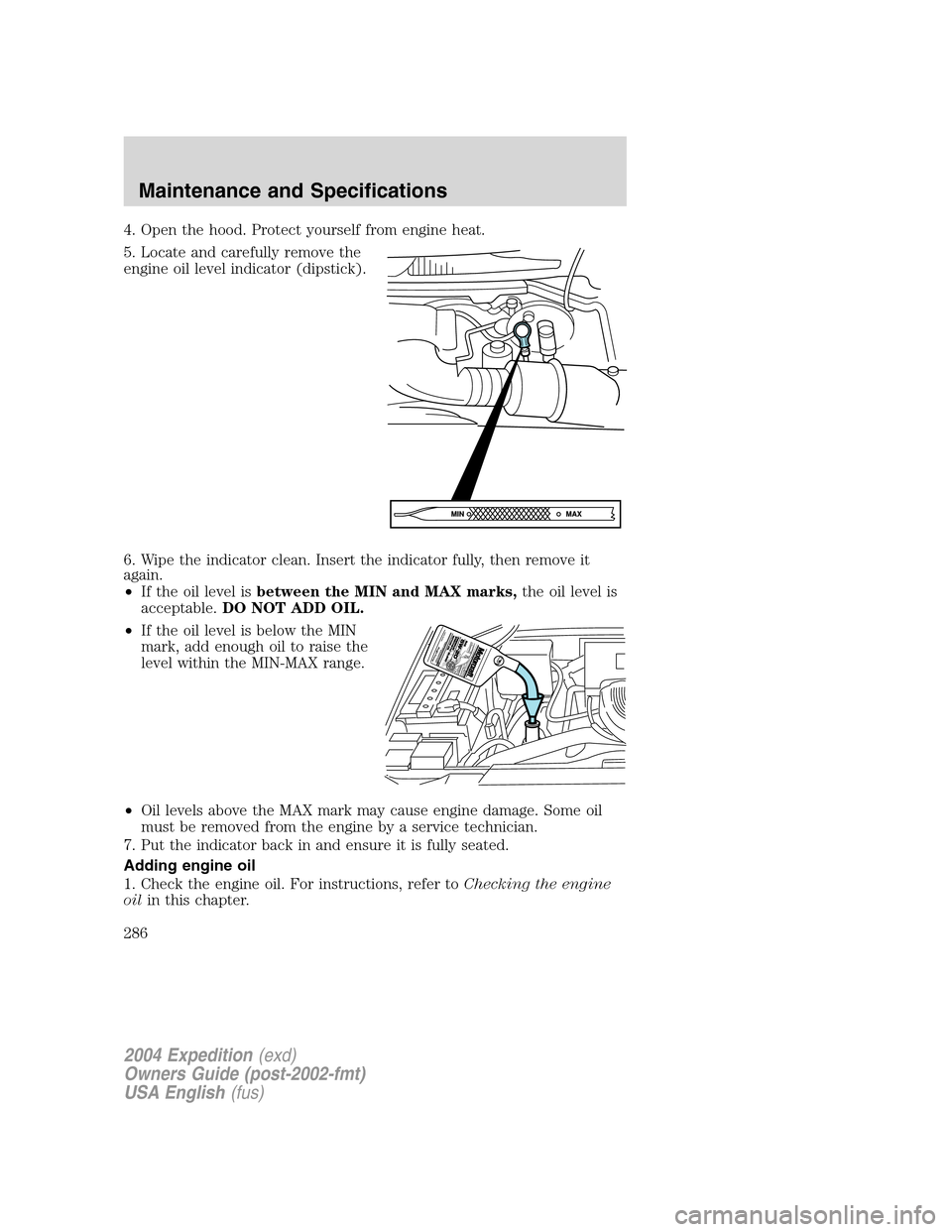

4. Open the hood. Protect yourself from engine heat.
5. Locate and carefully remove the
engine oil level indicator (dipstick).
6. Wipe the indicator clean. Insert the indicator fully, then remove it
again.
•If the oil level isbetween the MIN and MAX marks,the oil level is
acceptable.DO NOT ADD OIL.
•If the oil level is below the MIN
mark, add enough oil to raise the
level within the MIN-MAX range.
•Oil levels above the MAX mark may cause engine damage. Some oil
must be removed from the engine by a service technician.
7. Put the indicator back in and ensure it is fully seated.
Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2004 Expedition(exd)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
286

2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
MAX mark on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
1/4 of a turn until the cap is fully seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil.
Only use oils“Certified For Gasoline Engines”by the American
Petroleum Institute (API). To protect your engine’s warranty use
Motorcraft SAE 5W-20 or an equivalent 5W-20 oil meeting Ford
specification WSS-M2C153–H.SAE 5W-20 oil provides optimum fuel
economy and durability performance meeting all requirements for
your vehicle’s engine.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil according to the appropriate schedule listed in
the scheduled maintenance guide.
Ford production and aftermarket (Motorcraft) oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
2004 Expedition(exd)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
287

of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
3Add the coolant type originally equipped in your vehicle.
4Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and
is considered lubricated for life. These lubricants are not to be checked
or changed unless a leak is suspected, service is required or the axle has
been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.
Service refill capacities are determined by filling the rear axle 23mm
(0.9 inch) below the bottom of the filler hole.
5Add 118 ml (4 oz.) of Additive Friction Modifier XL-3 (or equivalent)
meeting Ford specification EST-M2C118–A for complete refill of Limited
Slip axles. For complete refills, fill using the Additive Friction Modifier
first.
6Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C153–H and the API Certification mark.
LUBRICANT SPECIFICATIONS
ItemFord part
nameFord part
numberFord
specification
Hinges, latches,
striker plates
and rotors, seat
tracks, fuel filler
door hinge and
springMulti-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or ESB-M1C93-B
Lock cylinders,
swing-away
spare tire carrier
padlockPenetrating and
Lock LubricantMotorcraft XL-1 none
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
2004 Expedition(exd)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
328

waxing .....................................275
wheels ......................................276
wiper blades ............................278
Compass, electronic ..................117
calibration ...............................118
set zone adjustment .......118, 120
Console ......................................129
overhead ..........................101–103
Controls
power seat ...............................147
steering column ......................111
Coolant
checking and adding ..............290
refill capacities ................294, 325
specifications ..................328, 331
Cruise control
(see Speed control) ..................108
Customer Assistance ................239
Ford accessories
for your vehicle ......................279
Ford Extended Service Plan .268
Getting assistance outside
the U.S. and Canada ..............272
Getting roadside assistance ...239
Getting the service
you need .................................266
Ordering additional
owner’s literature ...................273
The Dispute Settlement
Board .......................................268
Utilizing the Mediation/
Arbitration Program ...............271
D
Daytime running lamps
(see Lamps) ................................88
Defrost
rear window ..............................86Dipstickautomatic transmission fluid....307
engine oil .................................285
Doors
lubricant specifications ..........328
Driveline universal joint
and slip yoke .............................309
Driving under special
conditions ..................214, 222, 225
sand .........................................224
snow and ice ...........................226
through water .................224, 228
E
Electronic message center .......119
Emergencies, roadside
jump-starting ..........................258
Emission control system ..........304
Engine ........................................331
cleaning ...................................276
coolant .....................................290
fail-safe coolant ......................295
idle speed control ...................288
lubrication specifications ......328,
331
refill capacities ........................325
service points ..................283–284
starting after a collision .........240
Engine block heater .................200
Engine oil ..................................285
change oil soon warning,
message center .......................285
checking and adding ..............285
dipstick ....................................285
filter, specifications ........287, 325
recommendations ...................287
refill capacities ........................325
specifications ..................328, 331
