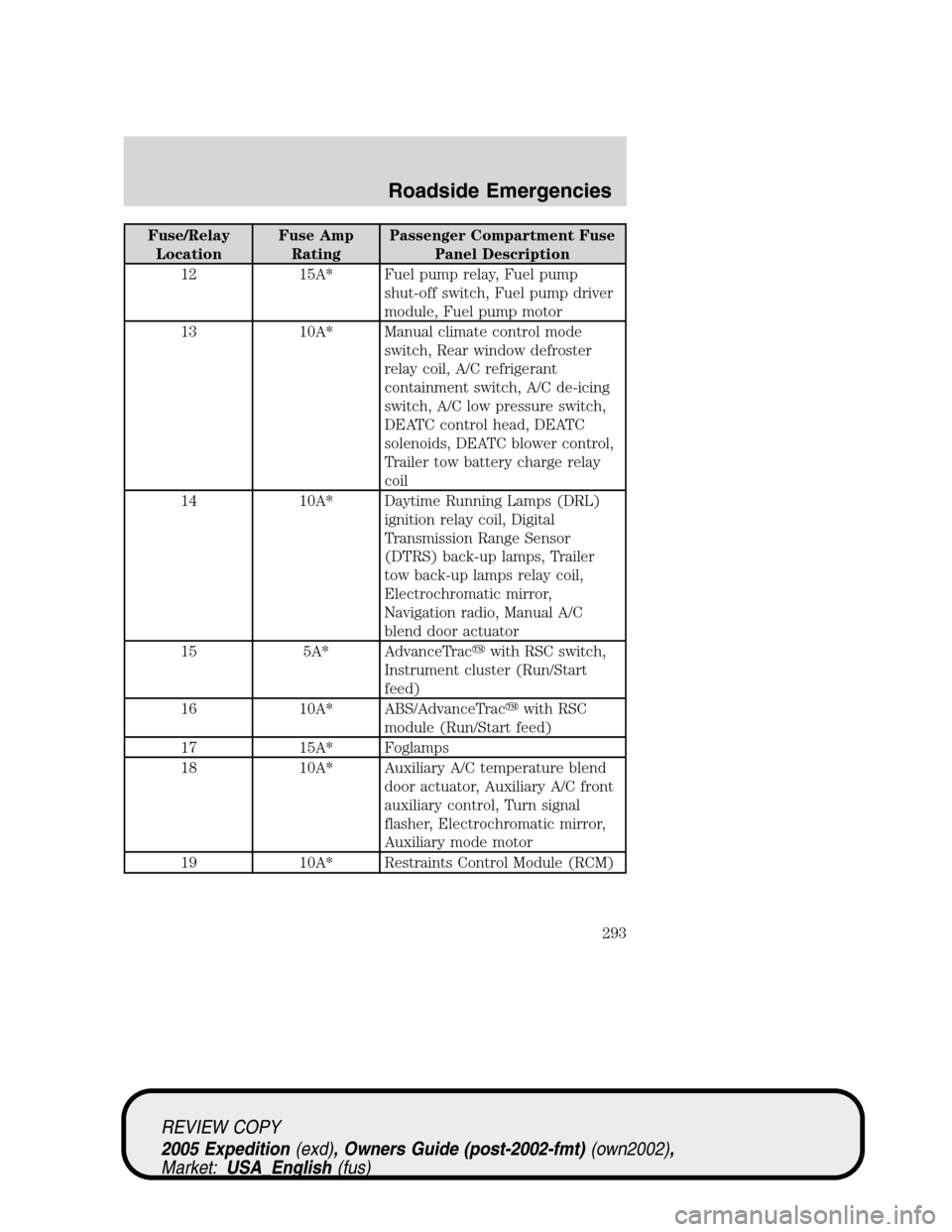

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
12 15A* Fuel pump relay, Fuel pump
shut-off switch, Fuel pump driver
module, Fuel pump motor
13 10A* Manual climate control mode
switch, Rear window defroster
relay coil, A/C refrigerant
containment switch, A/C de-icing
switch, A/C low pressure switch,
DEATC control head, DEATC
solenoids, DEATC blower control,
Trailer tow battery charge relay
coil
14 10A* Daytime Running Lamps (DRL)
ignition relay coil, Digital
Transmission Range Sensor
(DTRS) back-up lamps, Trailer
tow back-up lamps relay coil,
Electrochromatic mirror,
Navigation radio, Manual A/C
blend door actuator
15 5A* AdvanceTrac
with RSC switch,
Instrument cluster (Run/Start
feed)
16 10A* ABS/AdvanceTrac
with RSC
module (Run/Start feed)
17 15A* Foglamps
18 10A* Auxiliary A/C temperature blend
door actuator, Auxiliary A/C front
auxiliary control, Turn signal
flasher, Electrochromatic mirror,
Auxiliary mode motor
19 10A* Restraints Control Module (RCM)
REVIEW COPY
2005 Expedition(exd), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
293

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
41 20A* Cigarette lighter, OBD II
diagnostic connector
42 10A* Trailer tow left turn/stop lamps
101 30A** Starter motor relay, Starter motor
solenoid
102 30A** Ignition switch power
103 30A** ABS/AdvanceTrac
with RSC
module (pump motor)
104 30A** LH 3rd row seat relay, LH 3rd row
seat switch, LH 3rd row seat
motor
105 30A** Spare
106 30A** Trailer tow battery charge relay,
Trailer tow 7–way connector
(battery charge)
107 30A** Auxiliary A/C blower relay,
Auxiliary A/C blower motor
108 30A** Passenger seat motor switch
109 30A** Driver seat motor switch
(non-memory), Memory module,
Power memory mirrors,
Adjustable pedals switch and
motor
110 30A** Spare
111 50A** Air suspension compressor, Air
suspension compressor relay
112 30A** ABS/AdvanceTrac
with RSC
module (valves)
113 30A** Front wiper motor, Washer pump
(windshield wash)
114 40A** Rear window defroster relay, Rear
window defroster grid, Heated
mirrors (Fuse 8)
REVIEW COPY
2005 Expedition(exd), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
296

A
ABS (see Brakes) .....................259
Accessory delay ........................121
Air bag supplemental
restraint system ........189–190, 194
and child safety seats ............191
description ......................190, 194
disposal ....................................197
driver air bag ..................192, 195
indicator light .................193, 197
operation .........................192, 195
passenger air bag ...........192, 195
Air cleaner filter ...............349–350
Air conditioning ..........................96
auxiliary heater and air
conditioner ..............................100
Air suspension ...........................262
description ..............................262
Antifreeze (see
Engine coolant) ........................329
Anti-lock brake system
(see Brakes) ......................259–260
Armrests ....................................163
Audio system
(see Radio) ......................18, 28, 33
Automatic transmission
driving an automatic
overdrive .................................269
fluid, adding ............................346
fluid, checking ........................346
fluid, refill capacities ..............351
fluid, specification ..................356
Auxiliary power point ...............118
Axle
lubricant specifications ..353, 356
refill capacities ........................351
B
Battery .......................................327acid, treating emergencies .....327
jumping a disabled battery ....298
maintenance-free ....................327
replacement, specifications ...350
servicing ..................................327
BeltMinder .................................185
Brakes ........................................259
anti-lock ...........................259–260
anti-lock brake system
(ABS) warning light ...............260
fluid, checking and adding ....346
fluid, refill capacities ..............351
fluid, specifications .........353, 356
lubricant specifications ..353, 356
parking ....................................261
shift interlock ..........................268
Bulbs ..........................................106
C
Capacities for refilling fluids ....351
CD-single premium ...............18, 28
Cell phone use ..........................145
Certification Label ....................358
Changing a tire .........................220
Child safety restraints ..............198
child safety belts ....................198
Child safety seats ......................201
in front seat ............................202
in rear seat ......................202, 205
Cleaning your vehicle
engine compartment ..............316
instrument panel ....................318
interior .....................................318
plastic parts ............................317
safety belts ..............................318
washing ....................................315
waxing .....................................315
wheels ......................................316
