wiper blades FORD EXPEDITION 2005 2.G Owners Manual

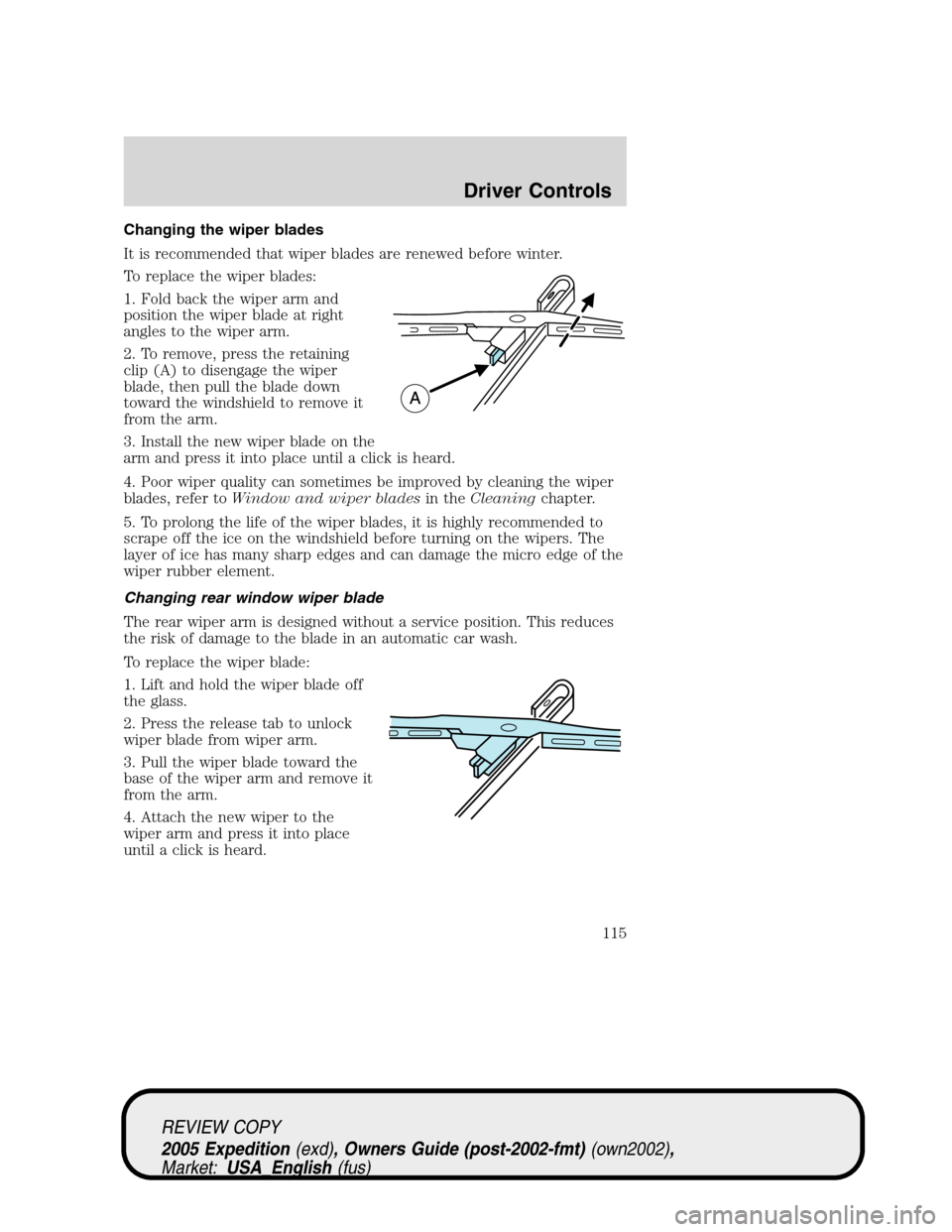

Changing the wiper blades
It is recommended that wiper blades are renewed before winter.
To replace the wiper blades:
1. Fold back the wiper arm and
position the wiper blade at right
angles to the wiper arm.
2. To remove, press the retaining
clip (A) to disengage the wiper
blade, then pull the blade down
toward the windshield to remove it
from the arm.
3. Install the new wiper blade on the
arm and press it into place until a click is heard.
4. Poor wiper quality can sometimes be improved by cleaning the wiper
blades, refer toWindow and wiper bladesin theCleaningchapter.
5. To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
Changing rear window wiper blade
The rear wiper arm is designed without a service position. This reduces
the risk of damage to the blade in an automatic car wash.
To replace the wiper blade:
1. Lift and hold the wiper blade off
the glass.
2. Press the release tab to unlock
wiper blade from wiper arm.
3. Pull the wiper blade toward the
base of the wiper arm and remove it
from the arm.
4. Attach the new wiper to the
wiper arm and press it into place
until a click is heard.
REVIEW COPY
2005 Expedition(exd), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
115

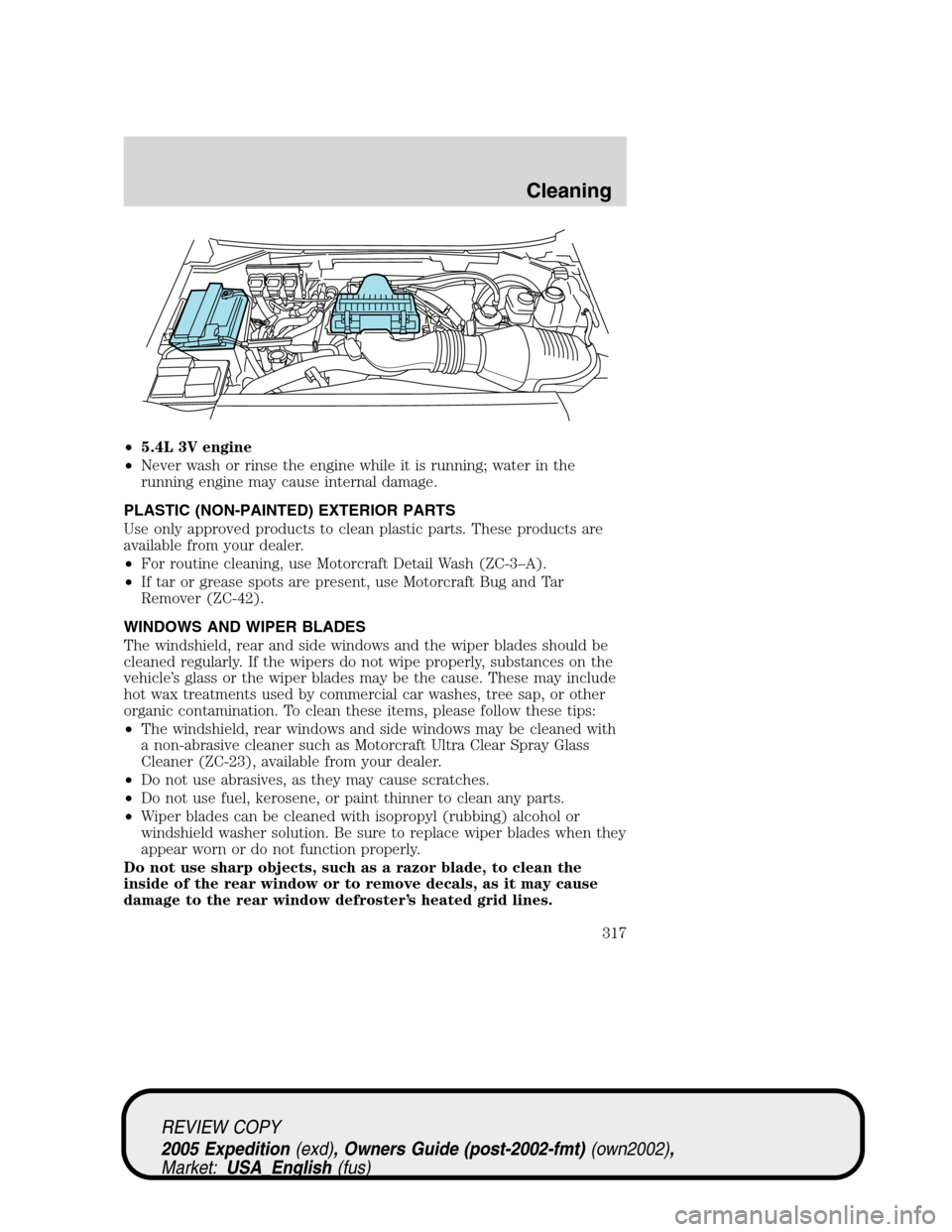

•5.4L 3V engine
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3–A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, tree sap, or other
organic contamination. To clean these items, please follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23), available from your dealer.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
•Wiper blades can be cleaned with isopropyl (rubbing) alcohol or
windshield washer solution. Be sure to replace wiper blades when they
appear worn or do not function properly.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
REVIEW COPY
2005 Expedition(exd), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Cleaning
317

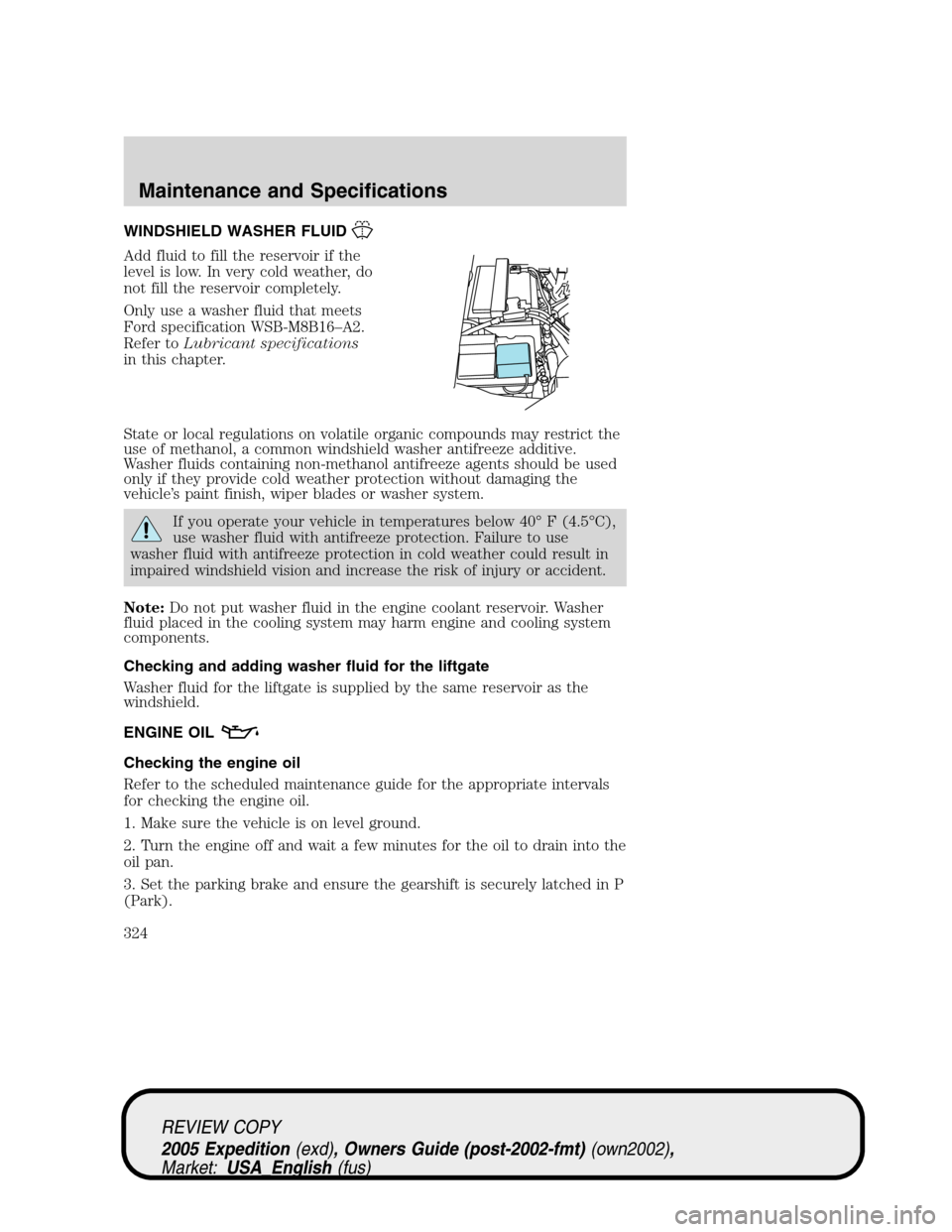

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets
Ford specification WSB-M8B16–A2.
Refer toLubricant specifications
in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
If you operate your vehicle in temperatures below 40° F (4.5°C),
use washer fluid with antifreeze protection. Failure to use
washer fluid with antifreeze protection in cold weather could result in
impaired windshield vision and increase the risk of injury or accident.
Note:Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling system
components.
Checking and adding washer fluid for the liftgate
Washer fluid for the liftgate is supplied by the same reservoir as the
windshield.
ENGINE OIL
Checking the engine oil
Refer to the scheduled maintenance guide for the appropriate intervals
for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait a few minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
REVIEW COPY
2005 Expedition(exd), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
324

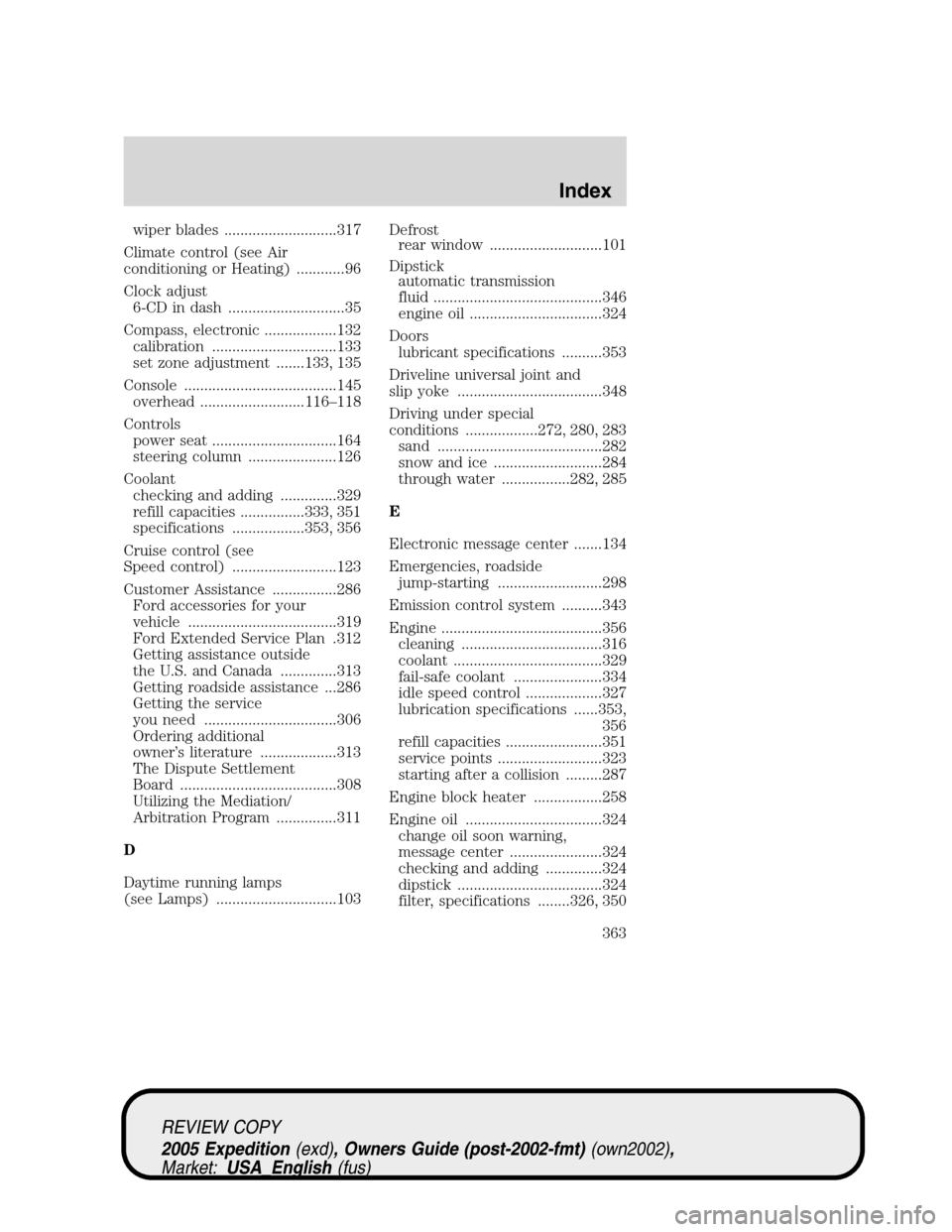

wiper blades ............................317
Climate control (see Air
conditioning or Heating) ............96
Clock adjust
6-CD in dash .............................35
Compass, electronic ..................132
calibration ...............................133
set zone adjustment .......133, 135
Console ......................................145
overhead ..........................116–118
Controls
power seat ...............................164
steering column ......................126
Coolant
checking and adding ..............329
refill capacities ................333, 351
specifications ..................353, 356
Cruise control (see
Speed control) ..........................123
Customer Assistance ................286
Ford accessories for your
vehicle .....................................319
Ford Extended Service Plan .312
Getting assistance outside
the U.S. and Canada ..............313
Getting roadside assistance ...286
Getting the service
you need .................................306
Ordering additional
owner’s literature ...................313
The Dispute Settlement
Board .......................................308
Utilizing the Mediation/
Arbitration Program ...............311
D
Daytime running lamps
(see Lamps) ..............................103Defrost
rear window ............................101
Dipstick
automatic transmission
fluid ..........................................346
engine oil .................................324
Doors
lubricant specifications ..........353
Driveline universal joint and
slip yoke ....................................348
Driving under special
conditions ..................272, 280, 283
sand .........................................282
snow and ice ...........................284
through water .................282, 285
E
Electronic message center .......134
Emergencies, roadside
jump-starting ..........................298
Emission control system ..........343
Engine ........................................356
cleaning ...................................316
coolant .....................................329
fail-safe coolant ......................334
idle speed control ...................327
lubrication specifications ......353,
356
refill capacities ........................351
service points ..........................323
starting after a collision .........287
Engine block heater .................258
Engine oil ..................................324
change oil soon warning,
message center .......................324
checking and adding ..............324
dipstick ....................................324
filter, specifications ........326, 350
REVIEW COPY
2005 Expedition(exd), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
363

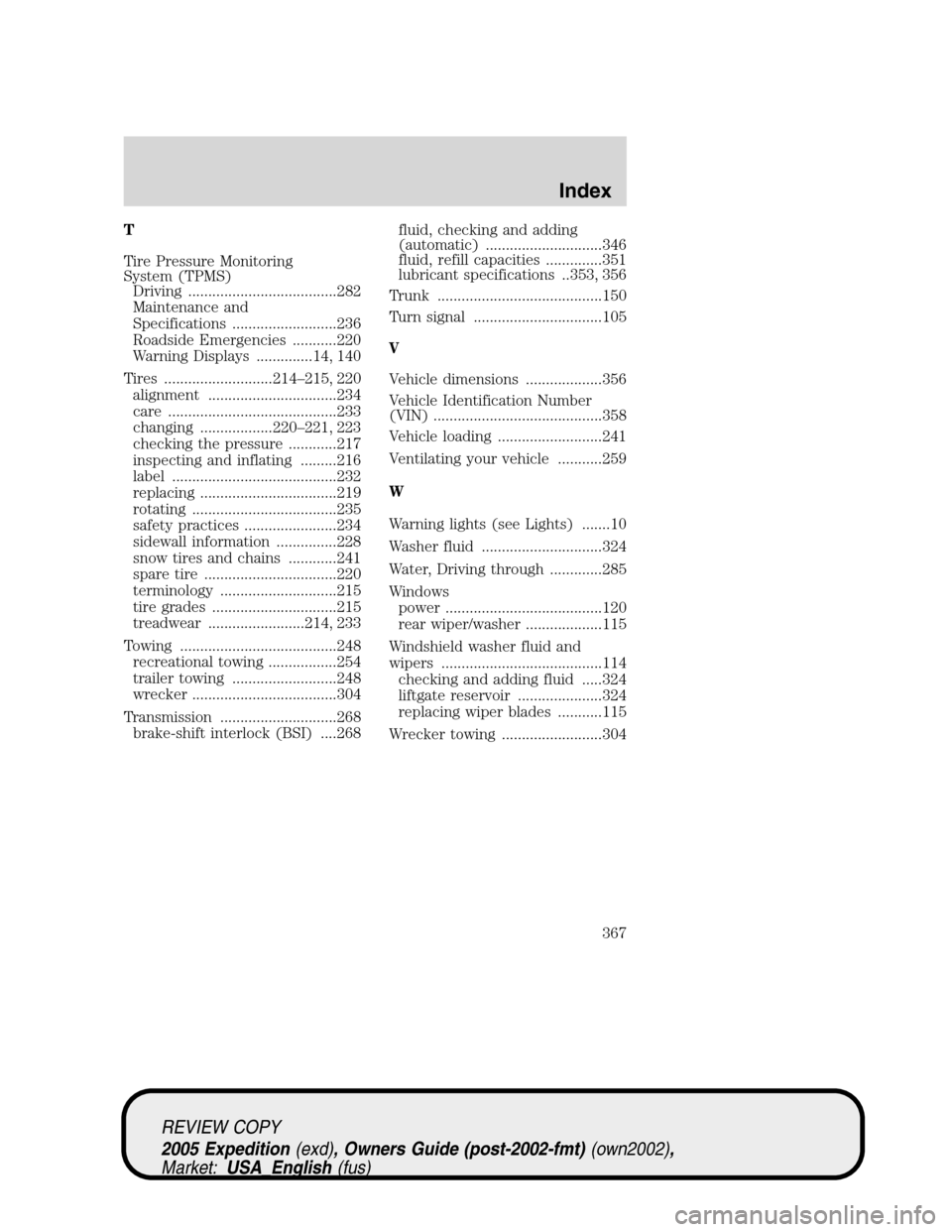

T
Tire Pressure Monitoring
System (TPMS)
Driving .....................................282
Maintenance and
Specifications ..........................236
Roadside Emergencies ...........220
Warning Displays ..............14, 140
Tires ...........................214–215, 220
alignment ................................234
care ..........................................233
changing ..................220–221, 223
checking the pressure ............217
inspecting and inflating .........216
label .........................................232
replacing ..................................219
rotating ....................................235
safety practices .......................234
sidewall information ...............228
snow tires and chains ............241
spare tire .................................220
terminology .............................215
tire grades ...............................215
treadwear ........................214, 233
Towing .......................................248
recreational towing .................254
trailer towing ..........................248
wrecker ....................................304
Transmission .............................268
brake-shift interlock (BSI) ....268fluid, checking and adding
(automatic) .............................346
fluid, refill capacities ..............351
lubricant specifications ..353, 356
Trunk .........................................150
Turn signal ................................105
V
Vehicle dimensions ...................356
Vehicle Identification Number
(VIN) ..........................................358
Vehicle loading ..........................241
Ventilating your vehicle ...........259
W
Warning lights (see Lights) .......10
Washer fluid ..............................324
Water, Driving through .............285
Windows
power .......................................120
rear wiper/washer ...................115
Windshield washer fluid and
wipers ........................................114
checking and adding fluid .....324
liftgate reservoir .....................324
replacing wiper blades ...........115
Wrecker towing .........................304
REVIEW COPY
2005 Expedition(exd), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
367
