headlamp FORD EXPEDITION 2005 2.G Quick Reference Guide

Service Engine Soon Lamp
Illuminates briefly to ensure the
system is functional. If the light
comes on after the engine is
started, refer to your Owner’s Guide.
To help prevent activation, always secure
your fuel cap by turning it clockwise 1/8 of a
turn until it stops.
Please note that if the fuel cap is not properly
secured, the warning "Check Fuel Cap" will be
displayed on the optional message center. The
warning will be reset once the cap is properly
tightened and your vehicle is driven a shortdistance. If your vehicle is not equipped with a
message center, the Service Engine Soon lampwill illuminate.
ABS Warning Lamp
Illuminates briefly when the ignition
is turned to the ON position. In an
emergency, apply continuous force
on the brake to prevent wheel lock
when braking on slippery surfaces do
notpump your brakes. Any pulsation or noise you
may feel or hear is normal.
Hazard Flasher Control
Press to activate all hazard flashers simultaneously
in an emergency to warn traffic of vehicle
breakdown, approaching danger, etc. Press the
control again to turn the flashers off. The hazard
flashers can be operated when the ignition is off.
Message Center (if equipped)
Please see Additional Features for more details.
Air Flow Adjust
You can direct or shut off the air flow from the
instrument panel registers. Turn the satin steel
portion on the round register module clockwise
to close the air vents, or counterclockwise toopen the air vents. Push and move the vent
knob in the direction you wish to adjust
the airflow.
1
4
5
6
3
7

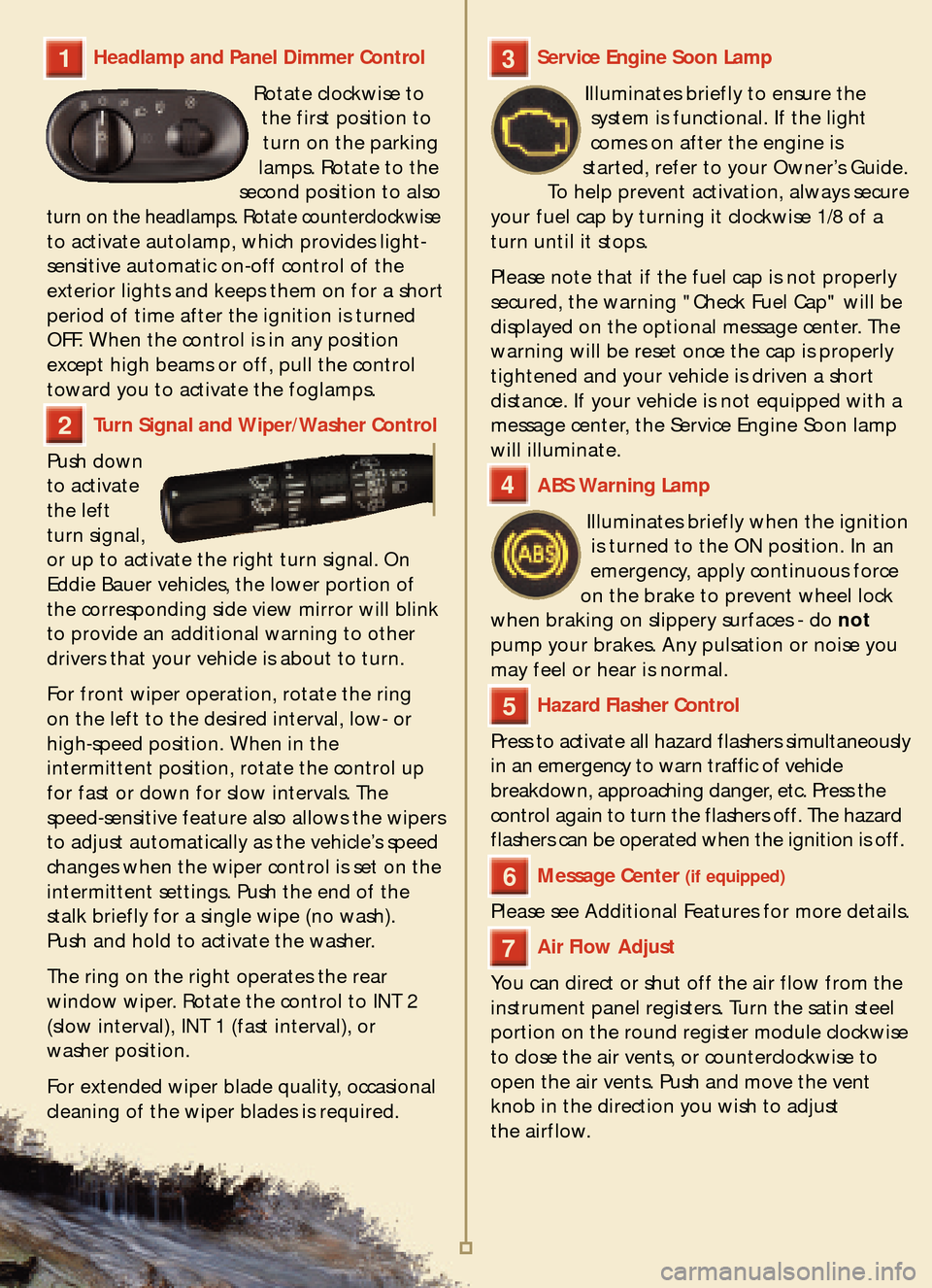

Headlamp and Panel Dimmer Control
Rotate clockwise to
the first position to
turn on the parking
lamps. Rotate to the
second position to also
turn on the headlamps. Rotate counterclockwiseto activate autolamp, which provides light
sensitive automatic onoff control of the
exterior lights and keeps them on for a short
period of time after the ignition is turned
OFF. When the control is in any position
except high beams or off, pull the control
toward you to activate the foglamps.
Turn Signal and Wiper/Washer Control
Push down
to activatethe left
turn signal,
or up to activate the right turn signal. On
Eddie Bauer vehicles, the lower portion of
the corresponding side view mirror will blink
to provide an additional warning to other
drivers that your vehicle is about to turn.
For front wiper operation, rotate the ring
on the left to the desired interval, low orhighspeed position. When in the
intermittent position, rotate the control up
for fast or down for slow intervals. The
speedsensitive feature also allows the wipers
to adjust automatically as the vehicle’s speed
changes when the wiper control is set on the
intermittent settings. Push the end of thestalk briefly for a single wipe (no wash).
Push and hold to activate the washer.
The ring on the right operates the rear
window wiper. Rotate the control to INT 2
(slow interval), INT 1 (fast interval), or washer position.
For extended wiper blade quality, occasional
cleaning of the wiper blades is required.
2

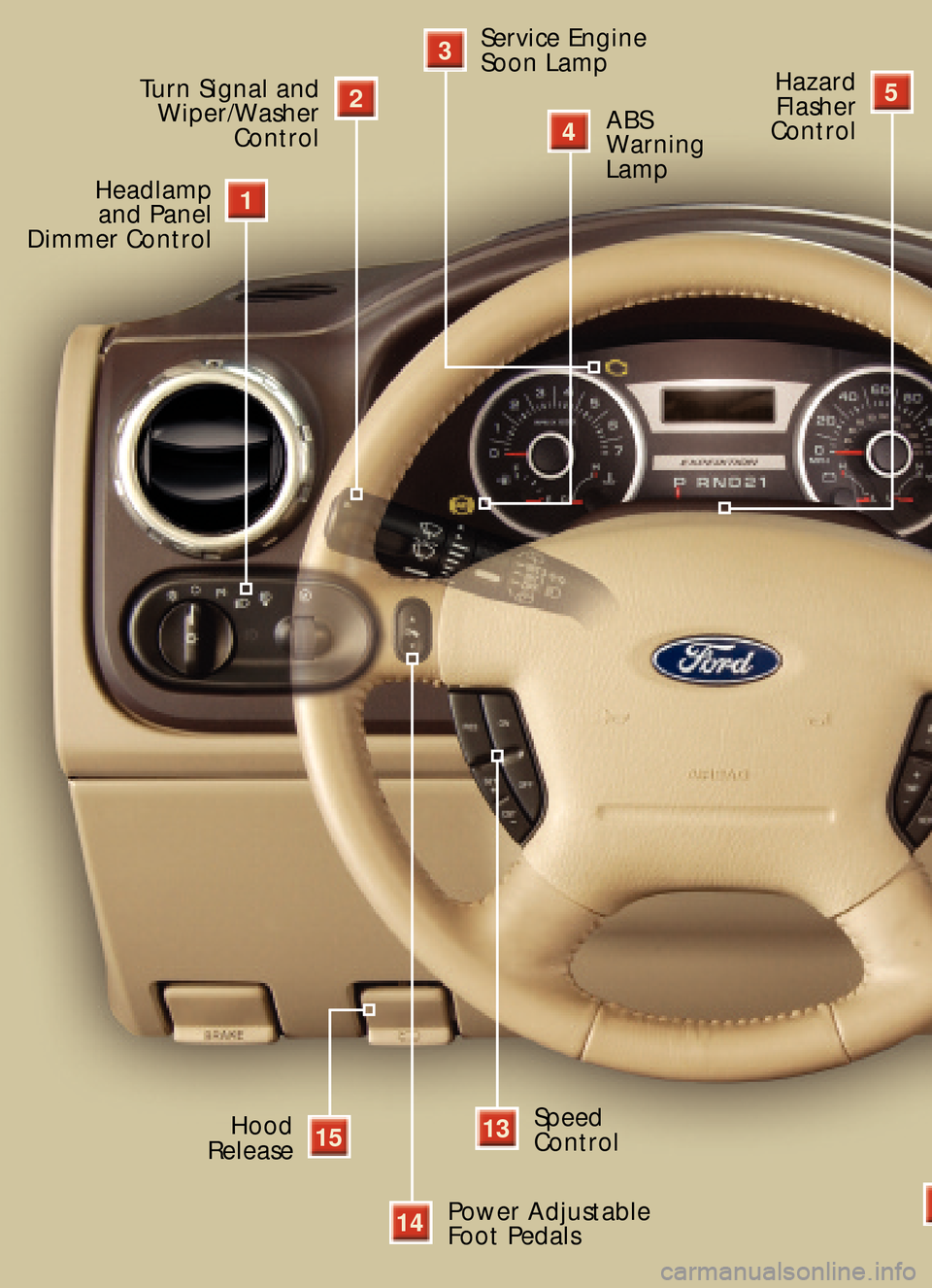

2Turn Signal and
Wiper/Washer
Control
3Service Engine
Soon Lamp
ABS
Warning Lamp
13Speed
Control
5Hazard
Flasher
Control
15Hood
Release
4
14Power Adjustable
Foot Pedals
1Headlamp
and Panel
Dimmer Control
