Folding the Outboard
Seats to a Load Floor Position
To fold the seats to a load floor position, lift
the lever (lever 1) located on the outboard
side of the seat to release the seat back.
Ensure that the seat back is locked in the
down position by applying pressure to it. To
lower the seat further to the fullylowered
position for maximum cargo capacity, locate
the pull strap at the front of the seat, then
pull forward to release the seat into a kneeldown load floor position. A moderate
force may be required to move the seat
forward and down.
Exiting the Third Row Seat
Pull up on the lever (lever 2) located at the
back of the second row seat. First, the seat
back will fold forward to the cushion, then
the seat will flip forward.
To return the seat to the upright position,
push the seat down and back until it is
latched to the floor. Then, lift the seat back
to the upright position.

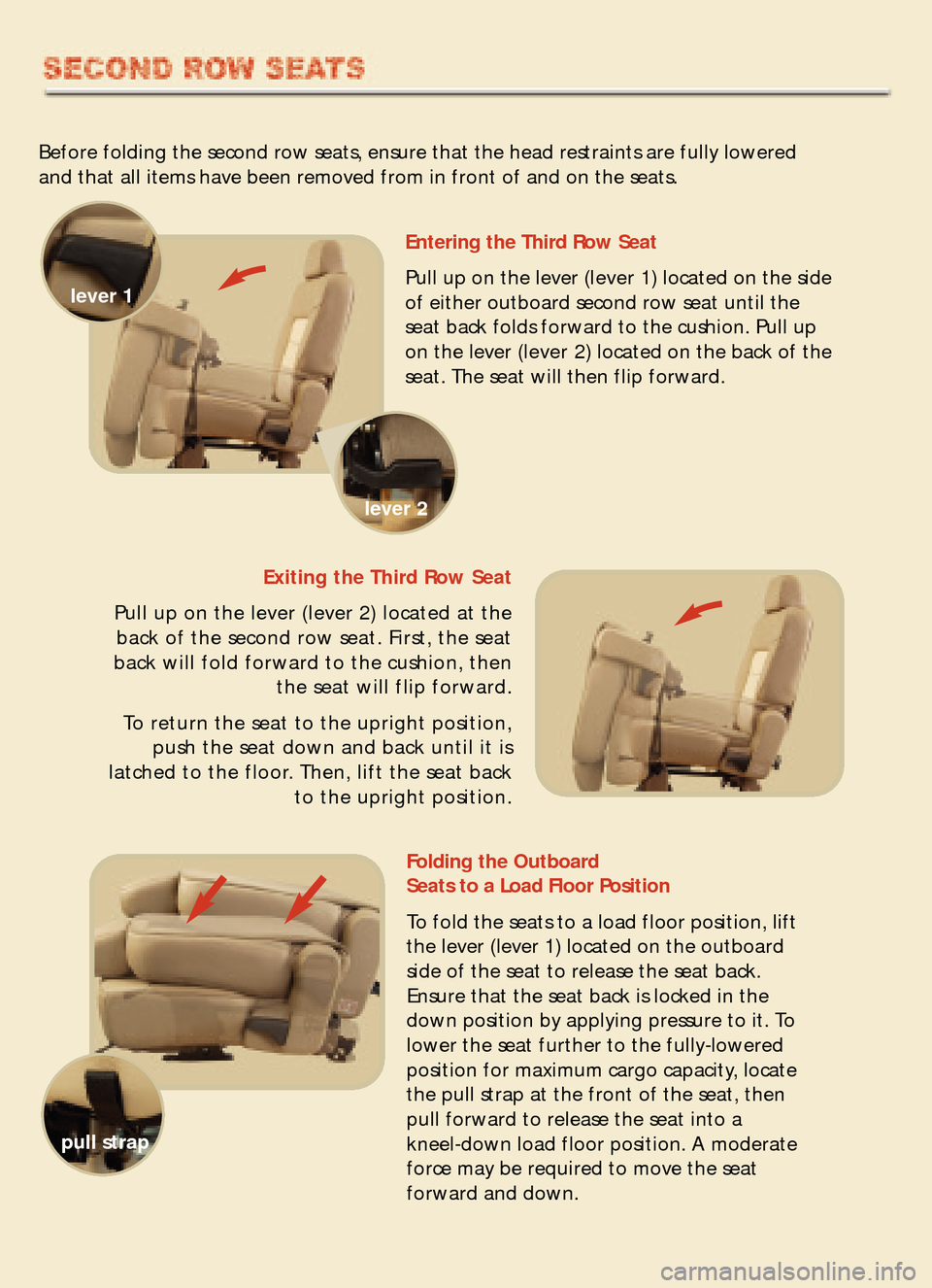

Before folding the second row seats, ensure that the head restraints are fully lowered
and that all items have been removed from in front of and on the seats.
Entering the Third Row Seat
Pull up on the lever (lever 1) located on the side
of either outboard second row seat until the
seat back folds forward to the cushion. Pull up
on the lever (lever 2) located on the back of the
seat. The seat will then flip forward. lever 1
pull strap
lever 2
