Page 231 of 392

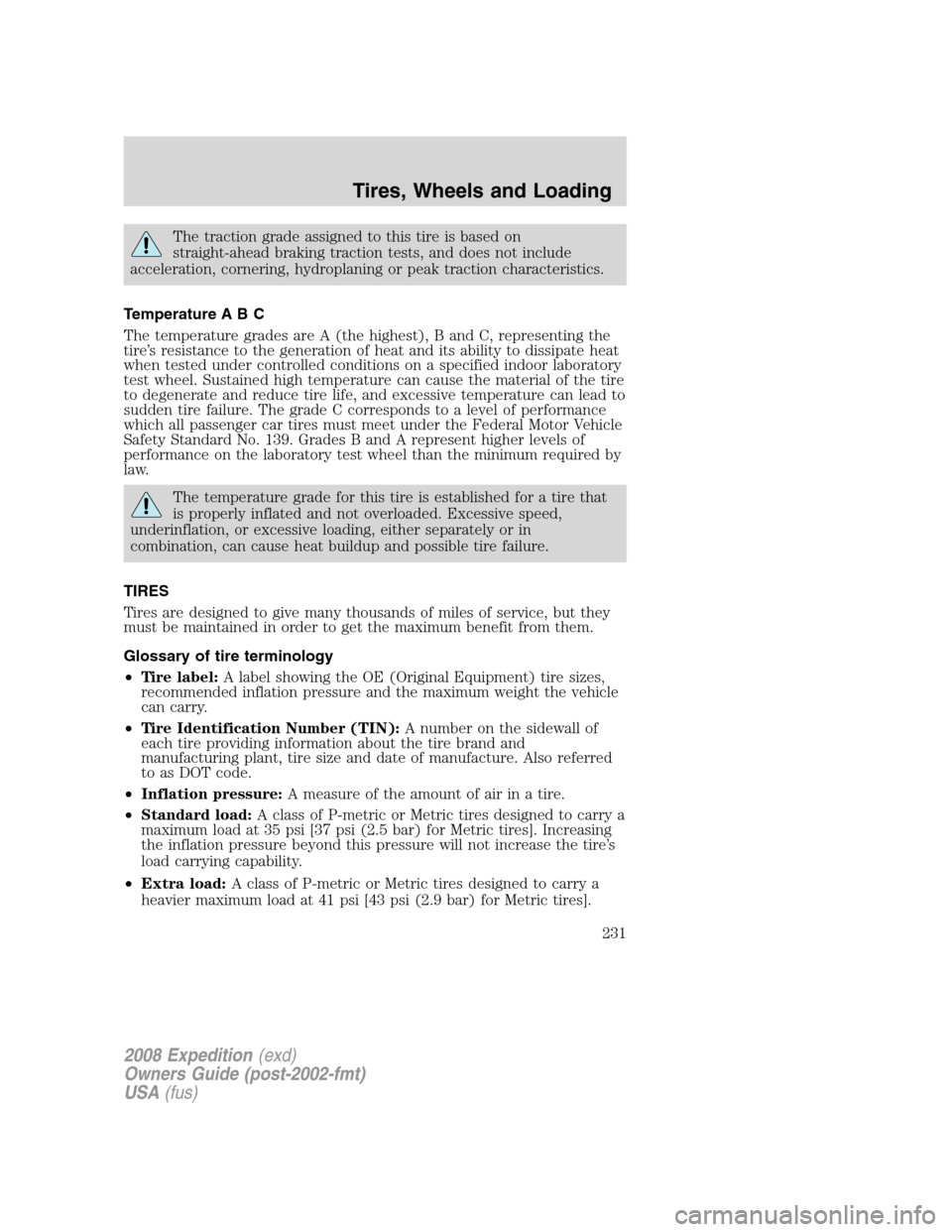

FORD EXPEDITION 2008 3.G Owners Manual The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not include
acceleration, cornering, hydroplaning or peak traction characteristics.
Temperature A B

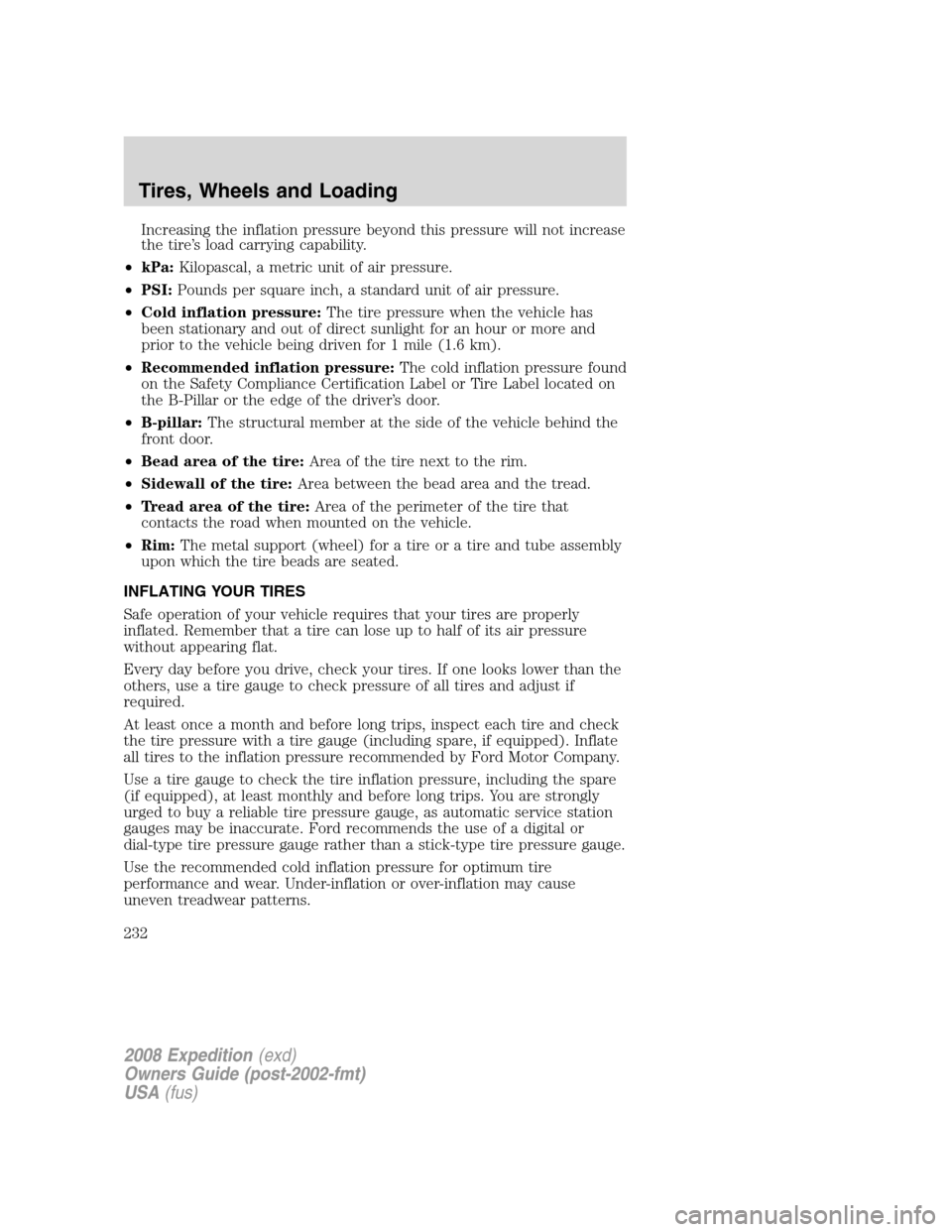

Page 232 of 392

FORD EXPEDITION 2008 3.G Owners Manual Increasing the inflation pressure beyond this pressure will not increase
the tire’s load carrying capability.
•kPa:Kilopascal, a metric unit of air pressure.
•PSI:Pounds per square inch, a stand

Page 233 of 392

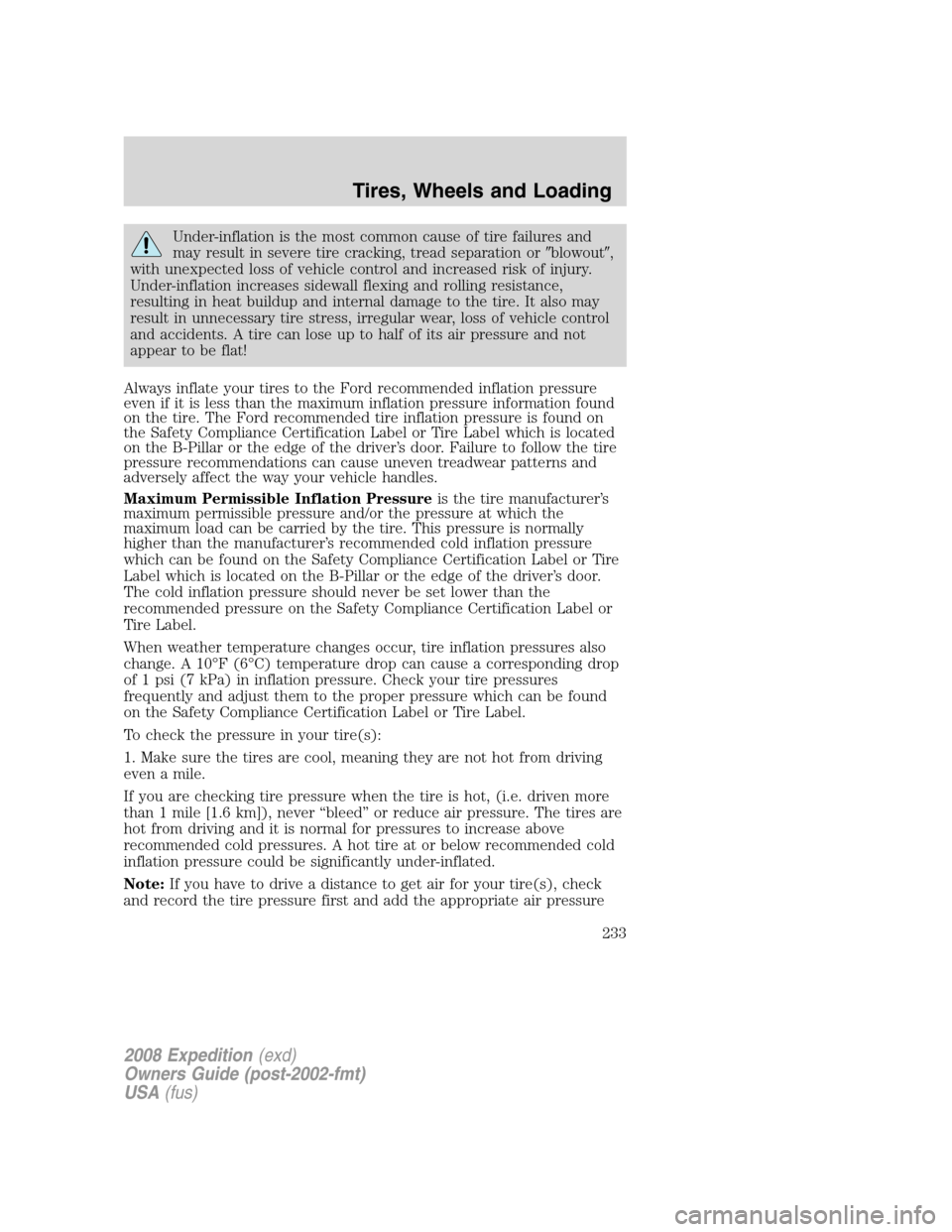

FORD EXPEDITION 2008 3.G Owners Manual Under-inflation is the most common cause of tire failures and
may result in severe tire cracking, tread separation orblowout,
with unexpected loss of vehicle control and increased risk of injury.
Un

Page 234 of 392

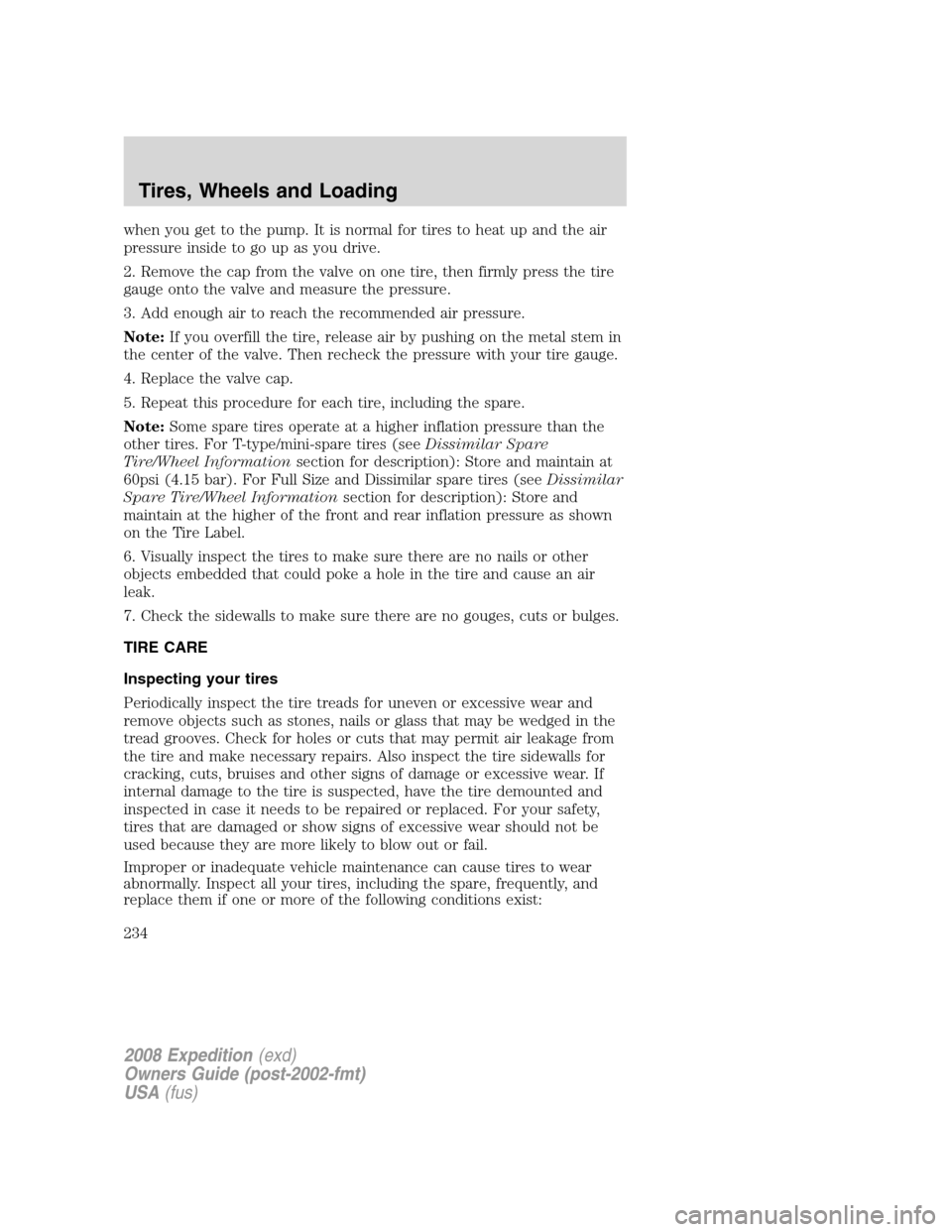

FORD EXPEDITION 2008 3.G Owners Manual when you get to the pump. It is normal for tires to heat up and the air
pressure inside to go up as you drive.
2. Remove the cap from the valve on one tire, then firmly press the tire
gauge onto the v

Page 235 of 392

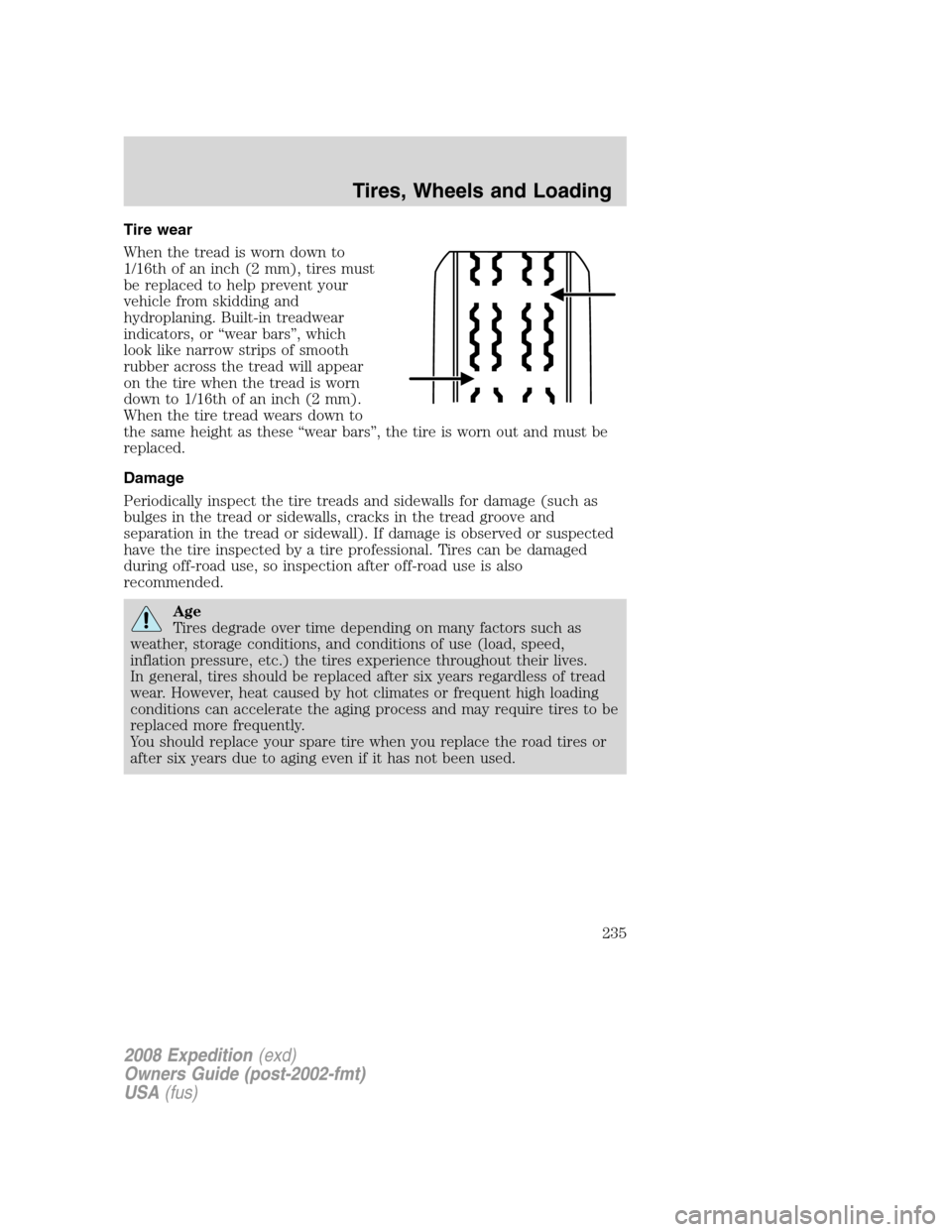

FORD EXPEDITION 2008 3.G Owners Manual Tire wear
When the tread is worn down to
1/16th of an inch (2 mm), tires must
be replaced to help prevent your
vehicle from skidding and
hydroplaning. Built-in treadwear
indicators, or “wear bars”

Page 236 of 392

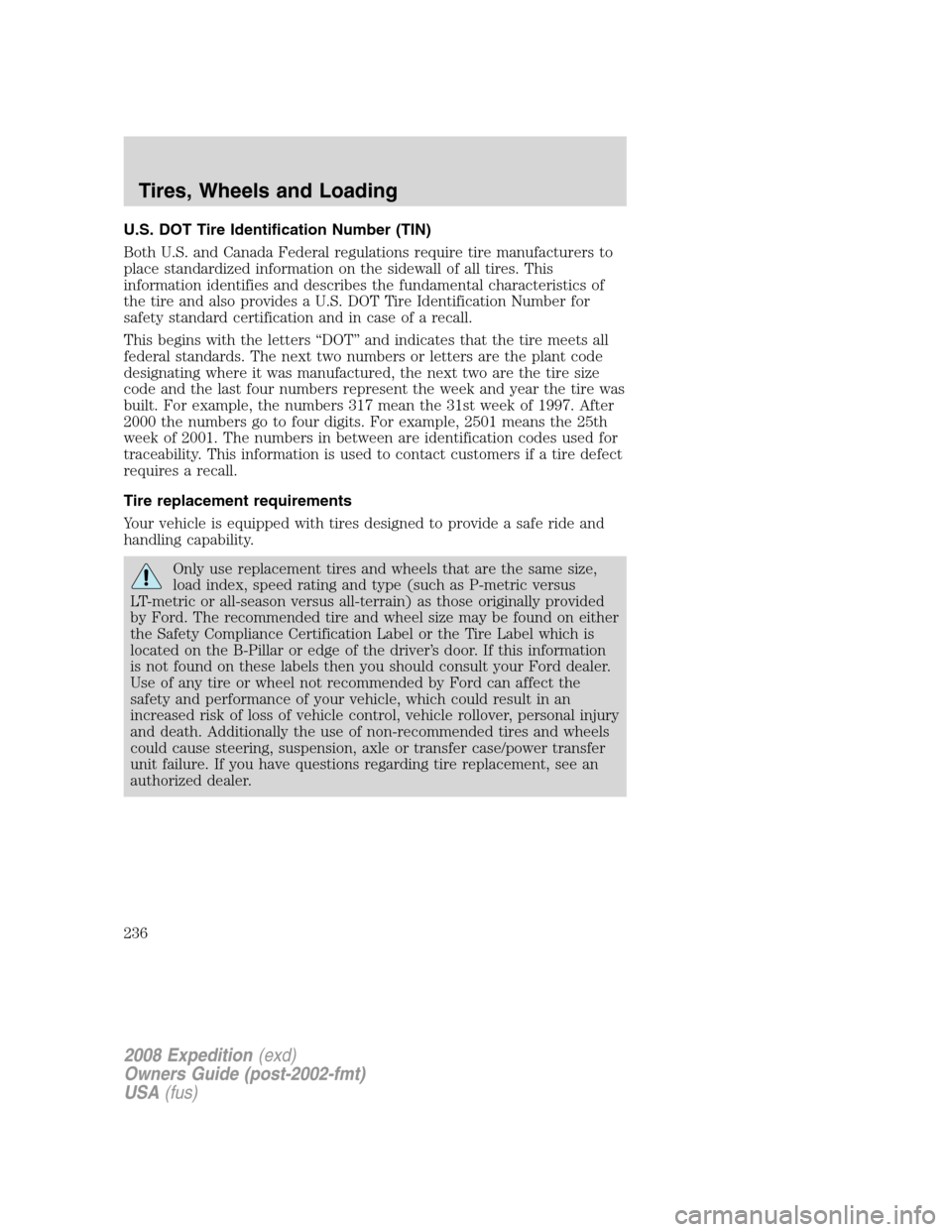

FORD EXPEDITION 2008 3.G Owners Manual U.S. DOT Tire Identification Number (TIN)
Both U.S. and Canada Federal regulations require tire manufacturers to
place standardized information on the sidewall of all tires. This
information identifie

Page 237 of 392

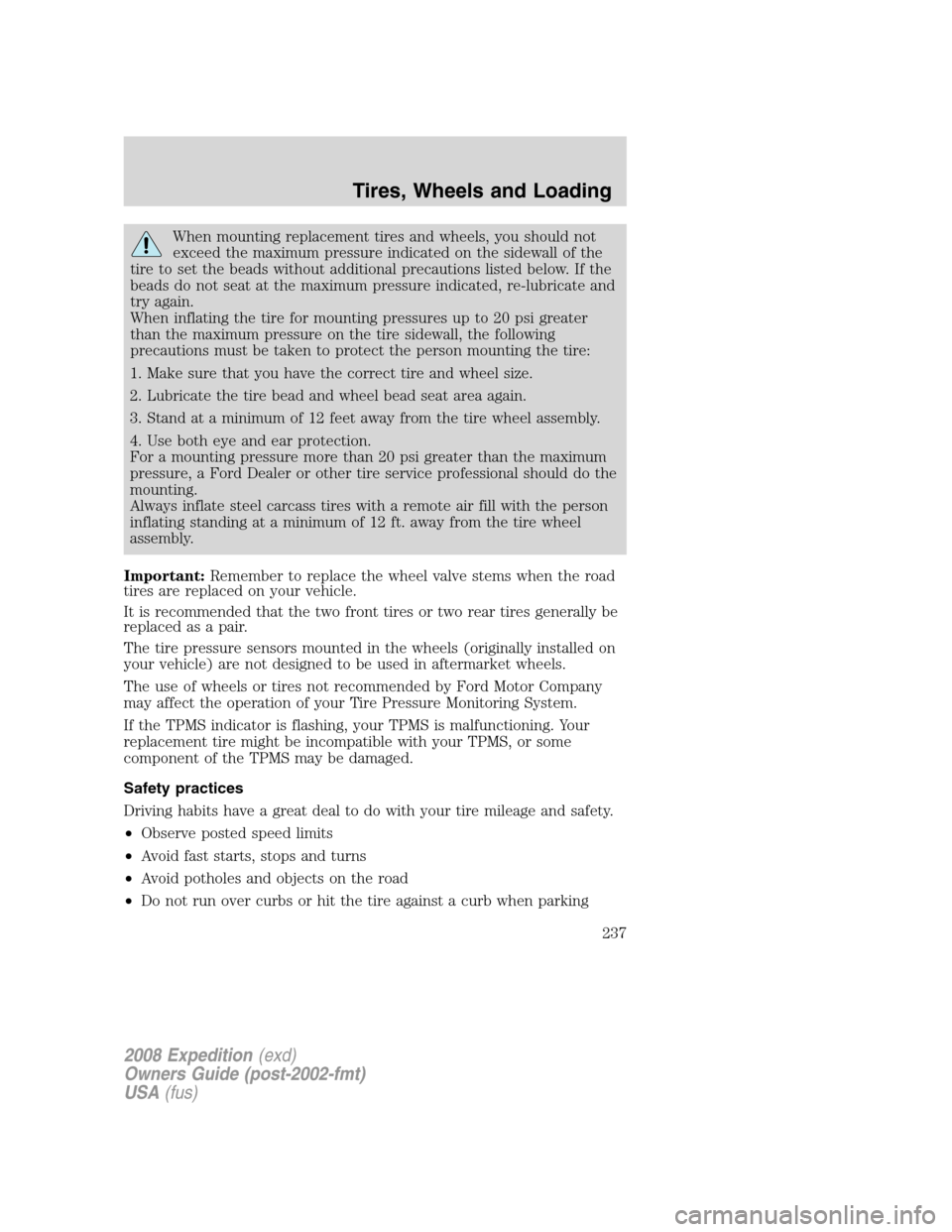

FORD EXPEDITION 2008 3.G Owners Manual When mounting replacement tires and wheels, you should not
exceed the maximum pressure indicated on the sidewall of the
tire to set the beads without additional precautions listed below. If the
beads

Page 238 of 392

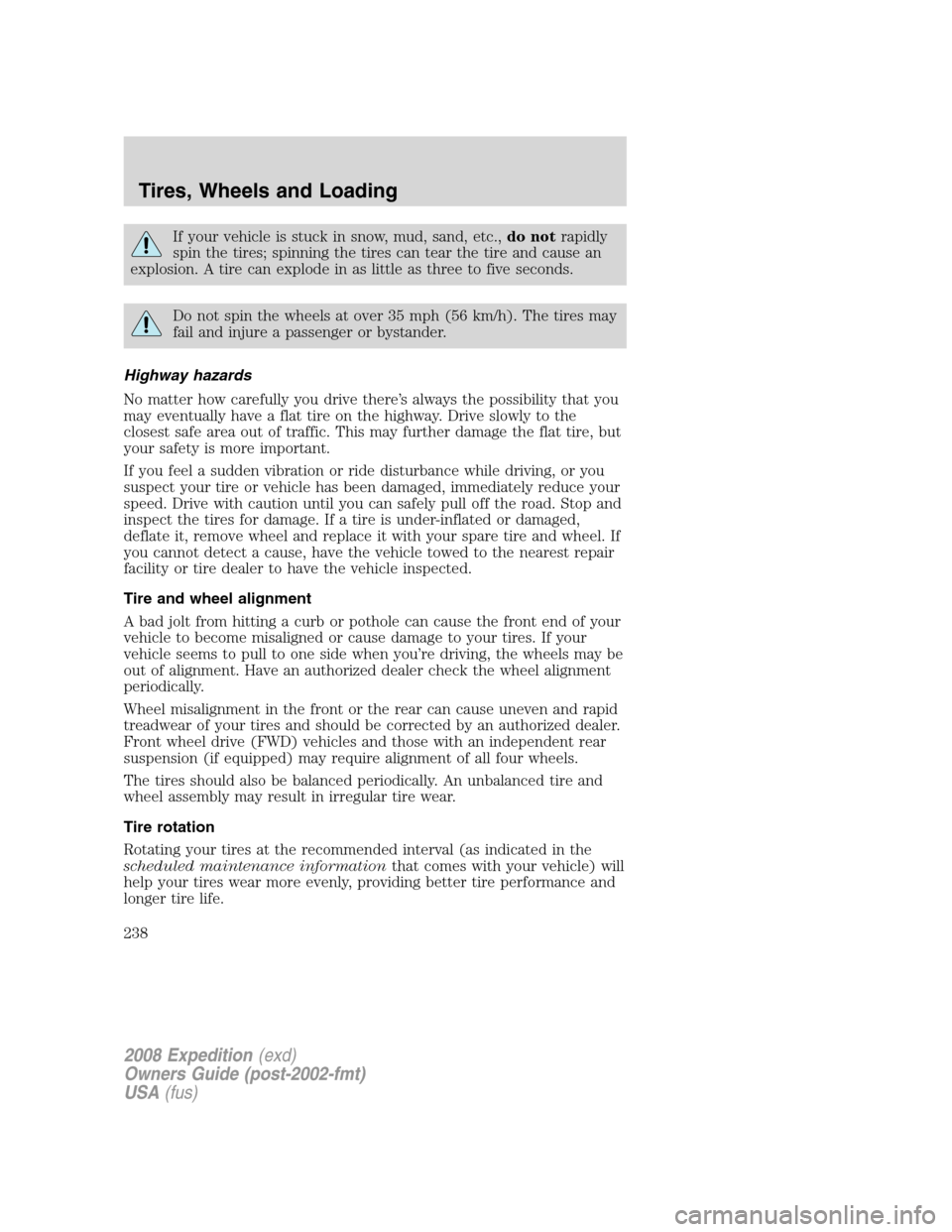

FORD EXPEDITION 2008 3.G Owners Manual If your vehicle is stuck in snow, mud, sand, etc.,do notrapidly
spin the tires; spinning the tires can tear the tire and cause an
explosion. A tire can explode in as little as three to five seconds.
D

Page 239 of 392

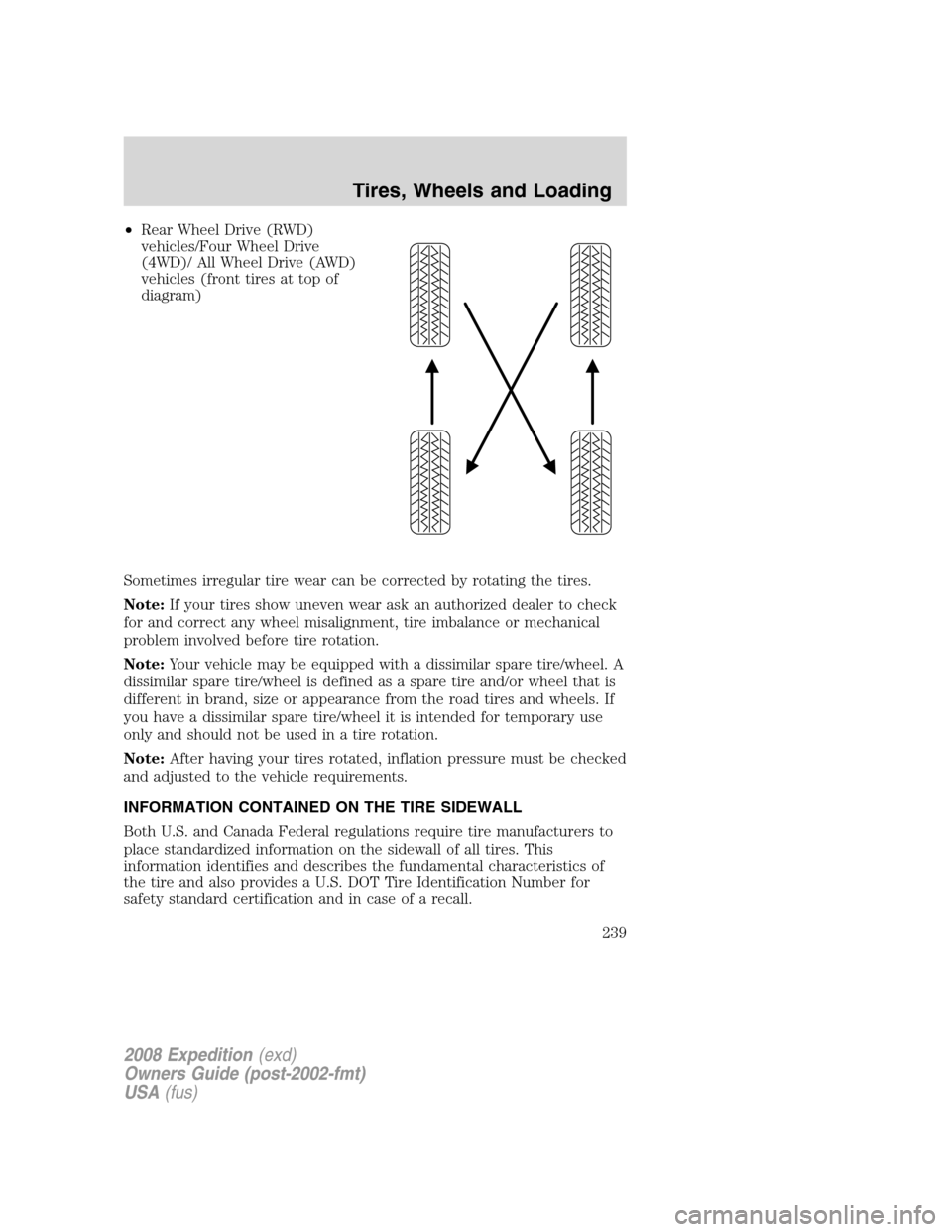

FORD EXPEDITION 2008 3.G Owners Manual •Rear Wheel Drive (RWD)
vehicles/Four Wheel Drive
(4WD)/ All Wheel Drive (AWD)
vehicles (front tires at top of
diagram)
Sometimes irregular tire wear can be corrected by rotating the tires.
Note:If

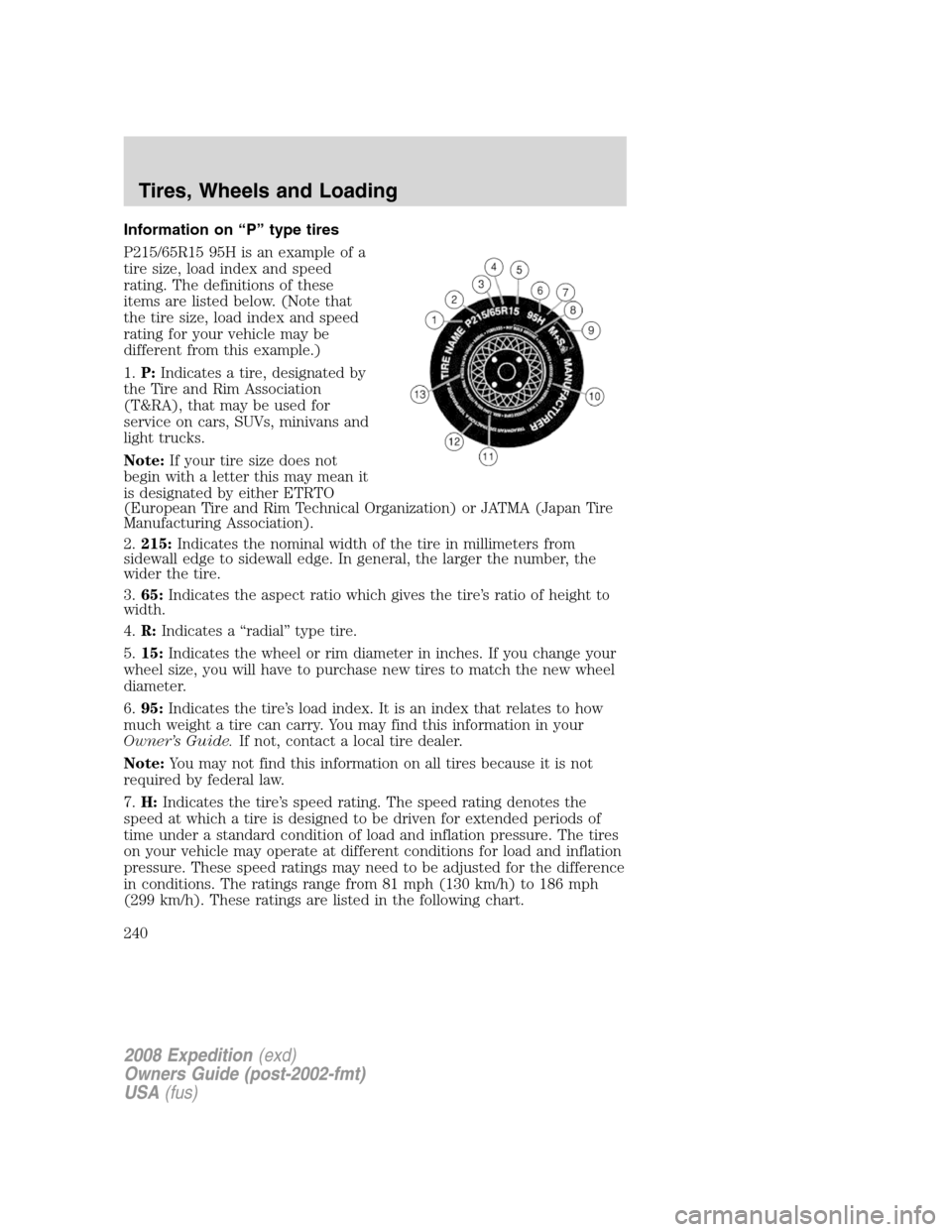

Page 240 of 392

FORD EXPEDITION 2008 3.G Owners Manual Information on “P” type tires
P215/65R15 95H is an example of a
tire size, load index and speed
rating. The definitions of these
items are listed below. (Note that
the tire size, load index and sp
