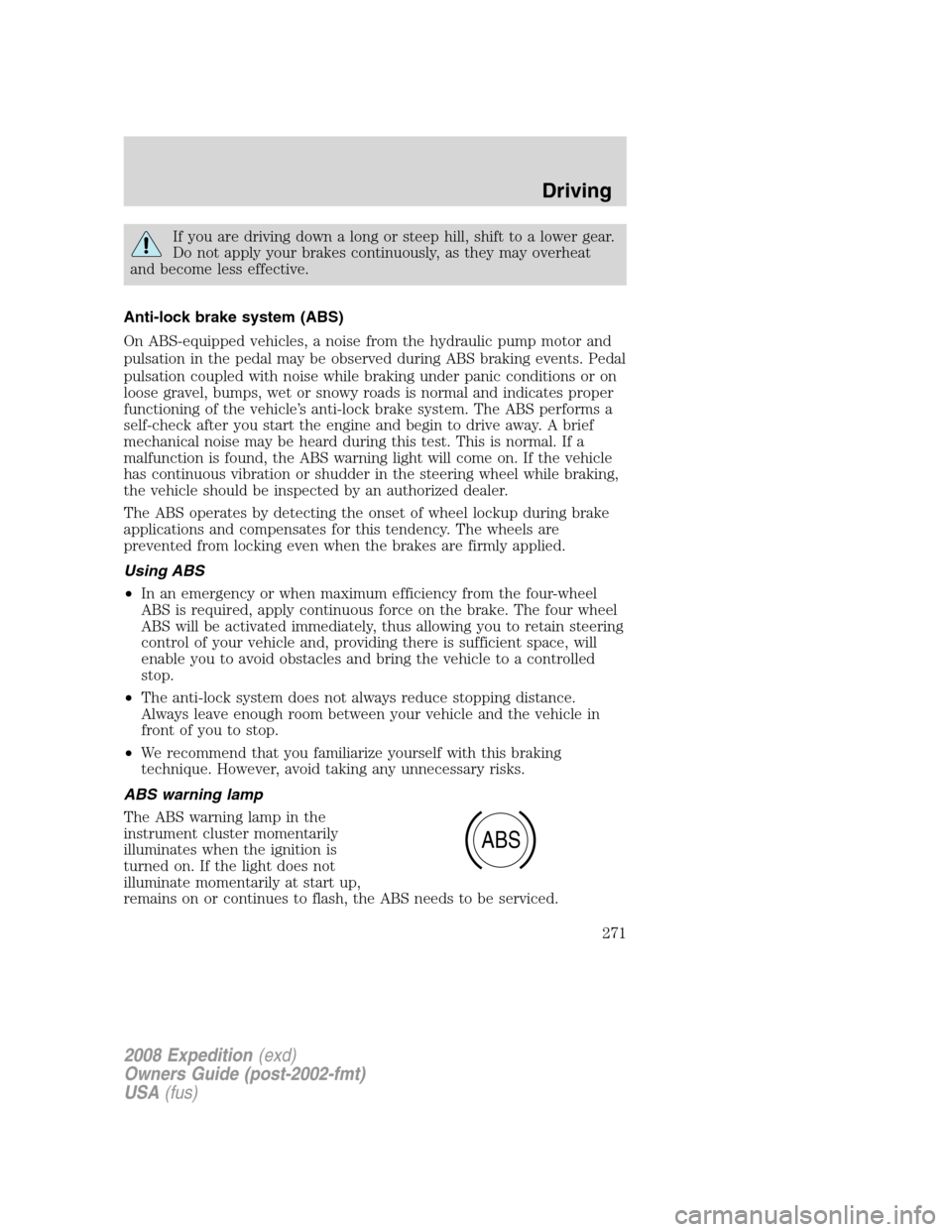

If you are driving down a long or steep hill, shift to a lower gear.
Do not apply your brakes continuously, as they may overheat
and become less effective.
Anti-lock brake system (ABS)
On ABS-equipped vehicles, a noise from the hydraulic pump motor and
pulsation in the pedal may be observed during ABS braking events. Pedal
pulsation coupled with noise while braking under panic conditions or on
loose gravel, bumps, wet or snowy roads is normal and indicates proper
functioning of the vehicle’s anti-lock brake system. The ABS performs a
self-check after you start the engine and begin to drive away. A brief
mechanical noise may be heard during this test. This is normal. If a
malfunction is found, the ABS warning light will come on. If the vehicle
has continuous vibration or shudder in the steering wheel while braking,
the vehicle should be inspected by an authorized dealer.
The ABS operates by detecting the onset of wheel lockup during brake
applications and compensates for this tendency. The wheels are
prevented from locking even when the brakes are firmly applied.
Using ABS
•In an emergency or when maximum efficiency from the four-wheel
ABS is required, apply continuous force on the brake. The four wheel
ABS will be activated immediately, thus allowing you to retain steering
control of your vehicle and, providing there is sufficient space, will
enable you to avoid obstacles and bring the vehicle to a controlled
stop.
•The anti-lock system does not always reduce stopping distance.
Always leave enough room between your vehicle and the vehicle in
front of you to stop.
•We recommend that you familiarize yourself with this braking
technique. However, avoid taking any unnecessary risks.
ABS warning lamp
The ABS warning lamp in the
instrument cluster momentarily
illuminates when the ignition is
turned on. If the light does not
illuminate momentarily at start up,
remains on or continues to flash, the ABS needs to be serviced.
ABS
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
271

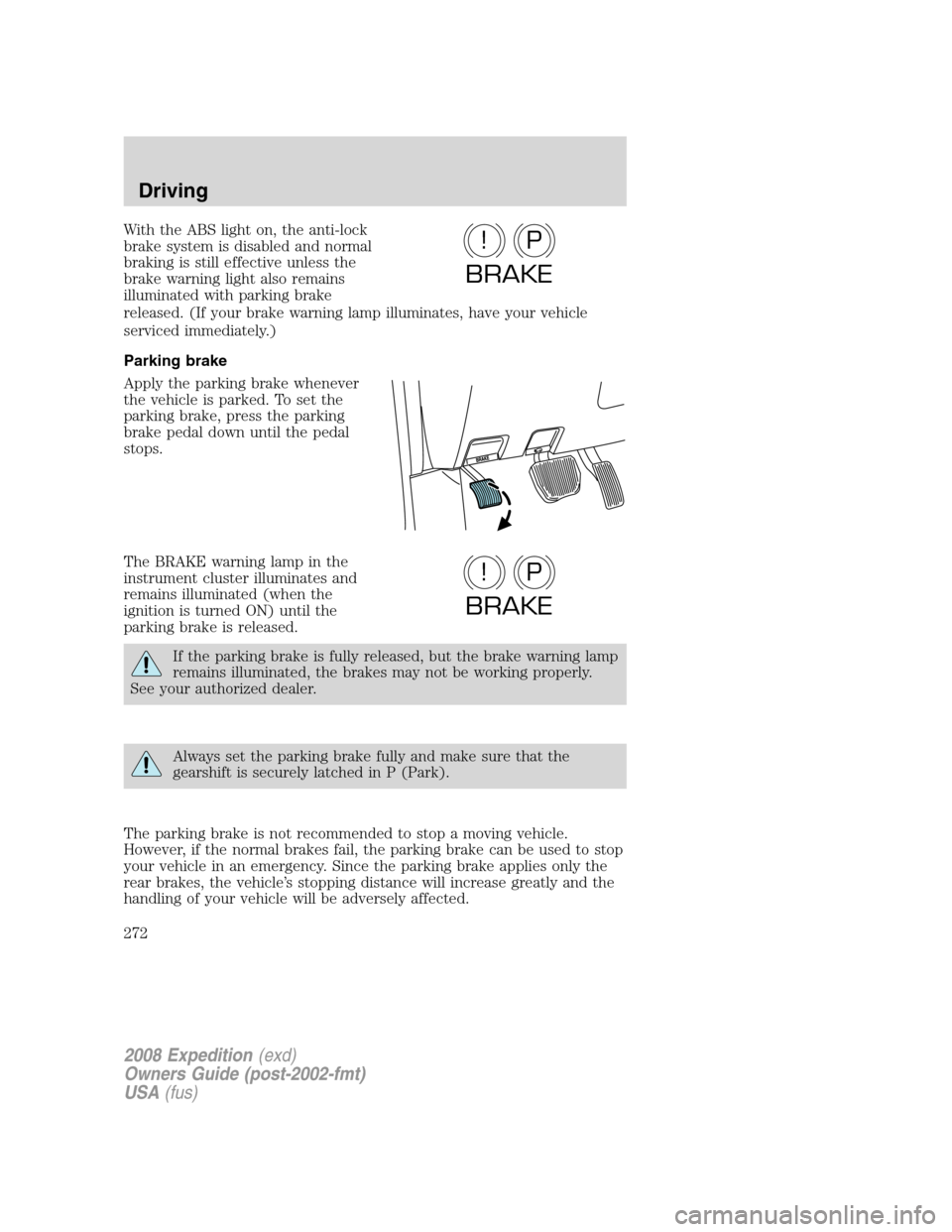

With the ABS light on, the anti-lock
brake system is disabled and normal
braking is still effective unless the
brake warning light also remains
illuminated with parking brake
released. (If your brake warning lamp illuminates, have your vehicle
serviced immediately.)
Parking brake
Apply the parking brake whenever
the vehicle is parked. To set the
parking brake, press the parking
brake pedal down until the pedal
stops.
The BRAKE warning lamp in the
instrument cluster illuminates and
remains illuminated (when the
ignition is turned ON) until the
parking brake is released.
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your authorized dealer.
Always set the parking brake fully and make sure that the
gearshift is securely latched in P (Park).
The parking brake is not recommended to stop a moving vehicle.
However, if the normal brakes fail, the parking brake can be used to stop
your vehicle in an emergency. Since the parking brake applies only the
rear brakes, the vehicle’s stopping distance will increase greatly and the
handling of your vehicle will be adversely affected.
P!
BRAKE
P!
BRAKE
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
272

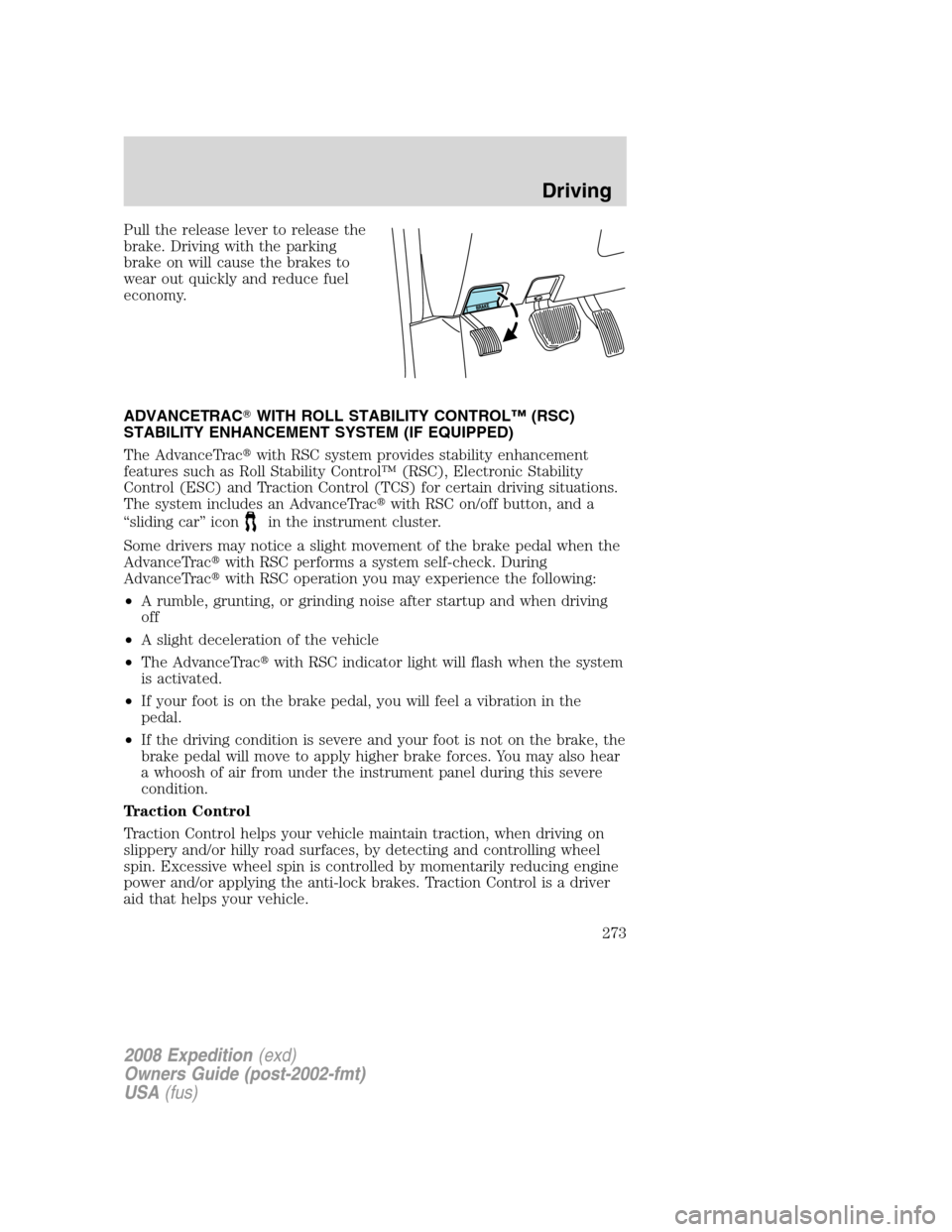

Pull the release lever to release the
brake. Driving with the parking
brake on will cause the brakes to
wear out quickly and reduce fuel
economy.
ADVANCETRACWITH ROLL STABILITY CONTROL™ (RSC)
STABILITY ENHANCEMENT SYSTEM (IF EQUIPPED)
The AdvanceTrac
with RSC system provides stability enhancement
features such as Roll Stability Control™ (RSC), Electronic Stability
Control (ESC) and Traction Control (TCS) for certain driving situations.
The system includes an AdvanceTrac
with RSC on/off button, and a
“sliding car” icon
in the instrument cluster.
Some drivers may notice a slight movement of the brake pedal when the
AdvanceTrac
with RSC performs a system self-check. During
AdvanceTrac
with RSC operation you may experience the following:
•A rumble, grunting, or grinding noise after startup and when driving
off
•A slight deceleration of the vehicle
•The AdvanceTrac
with RSC indicator light will flash when the system
is activated.
•If your foot is on the brake pedal, you will feel a vibration in the
pedal.
•If the driving condition is severe and your foot is not on the brake, the
brake pedal will move to apply higher brake forces. You may also hear
a whoosh of air from under the instrument panel during this severe
condition.
Traction Control
Traction Control helps your vehicle maintain traction, when driving on
slippery and/or hilly road surfaces, by detecting and controlling wheel
spin. Excessive wheel spin is controlled by momentarily reducing engine
power and/or applying the anti-lock brakes. Traction Control is a driver
aid that helps your vehicle.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
273

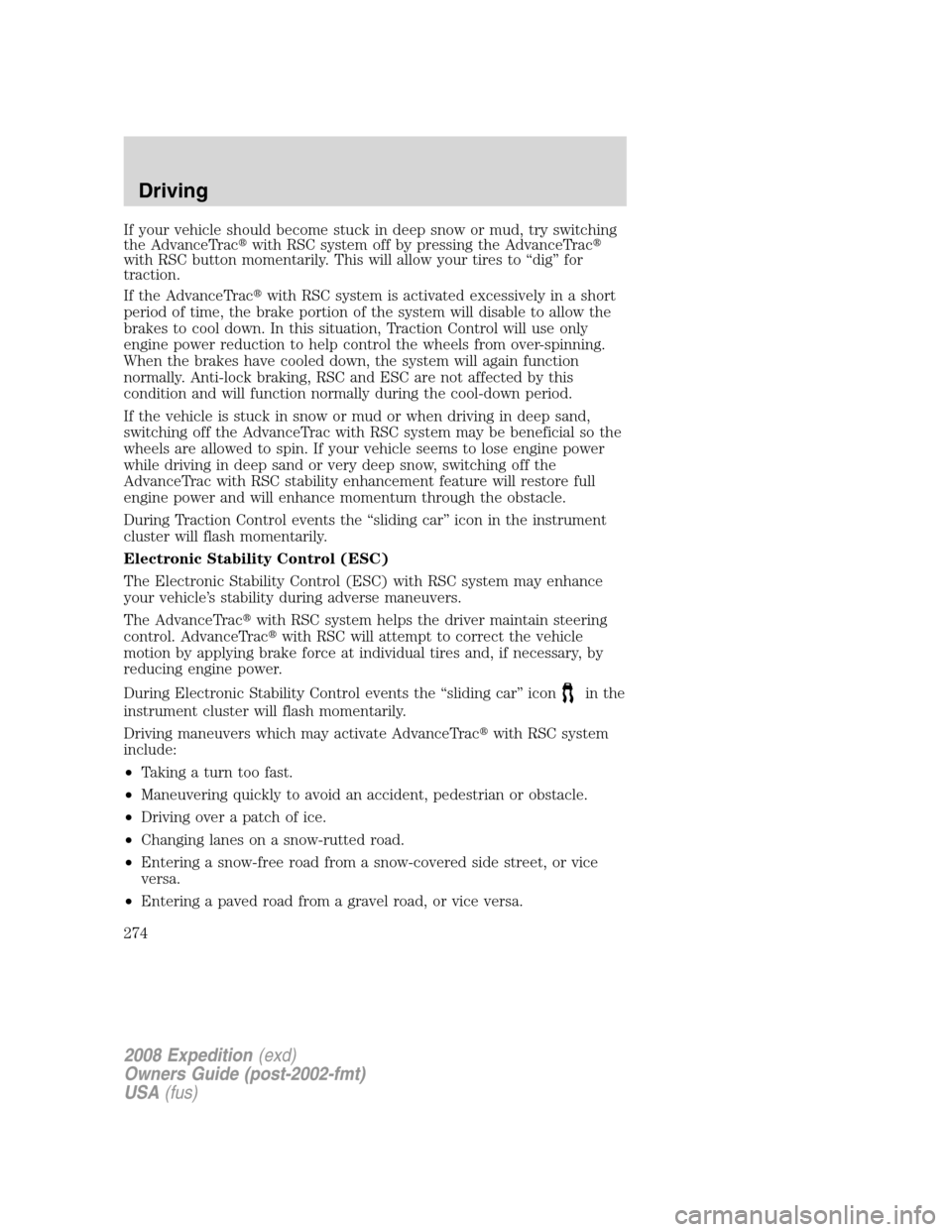

If your vehicle should become stuck in deep snow or mud, try switching
the AdvanceTrac
with RSC system off by pressing the AdvanceTrac

with RSC button momentarily. This will allow your tires to “dig” for
traction.
If the AdvanceTrac
with RSC system is activated excessively in a short
period of time, the brake portion of the system will disable to allow the
brakes to cool down. In this situation, Traction Control will use only
engine power reduction to help control the wheels from over-spinning.
When the brakes have cooled down, the system will again function
normally. Anti-lock braking, RSC and ESC are not affected by this
condition and will function normally during the cool-down period.
If the vehicle is stuck in snow or mud or when driving in deep sand,
switching off the AdvanceTrac with RSC system may be beneficial so the
wheels are allowed to spin. If your vehicle seems to lose engine power
while driving in deep sand or very deep snow, switching off the
AdvanceTrac with RSC stability enhancement feature will restore full
engine power and will enhance momentum through the obstacle.
During Traction Control events the “sliding car” icon in the instrument
cluster will flash momentarily.
Electronic Stability Control (ESC)
The Electronic Stability Control (ESC) with RSC system may enhance
your vehicle’s stability during adverse maneuvers.
The AdvanceTrac
with RSC system helps the driver maintain steering
control. AdvanceTrac
with RSC will attempt to correct the vehicle
motion by applying brake force at individual tires and, if necessary, by
reducing engine power.
During Electronic Stability Control events the “sliding car” icon
in the
instrument cluster will flash momentarily.
Driving maneuvers which may activate AdvanceTrac
with RSC system
include:
•Taking a turn too fast.
•Maneuvering quickly to avoid an accident, pedestrian or obstacle.
•Driving over a patch of ice.
•Changing lanes on a snow-rutted road.
•Entering a snow-free road from a snow-covered side street, or vice
versa.
•Entering a paved road from a gravel road, or vice versa.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
274

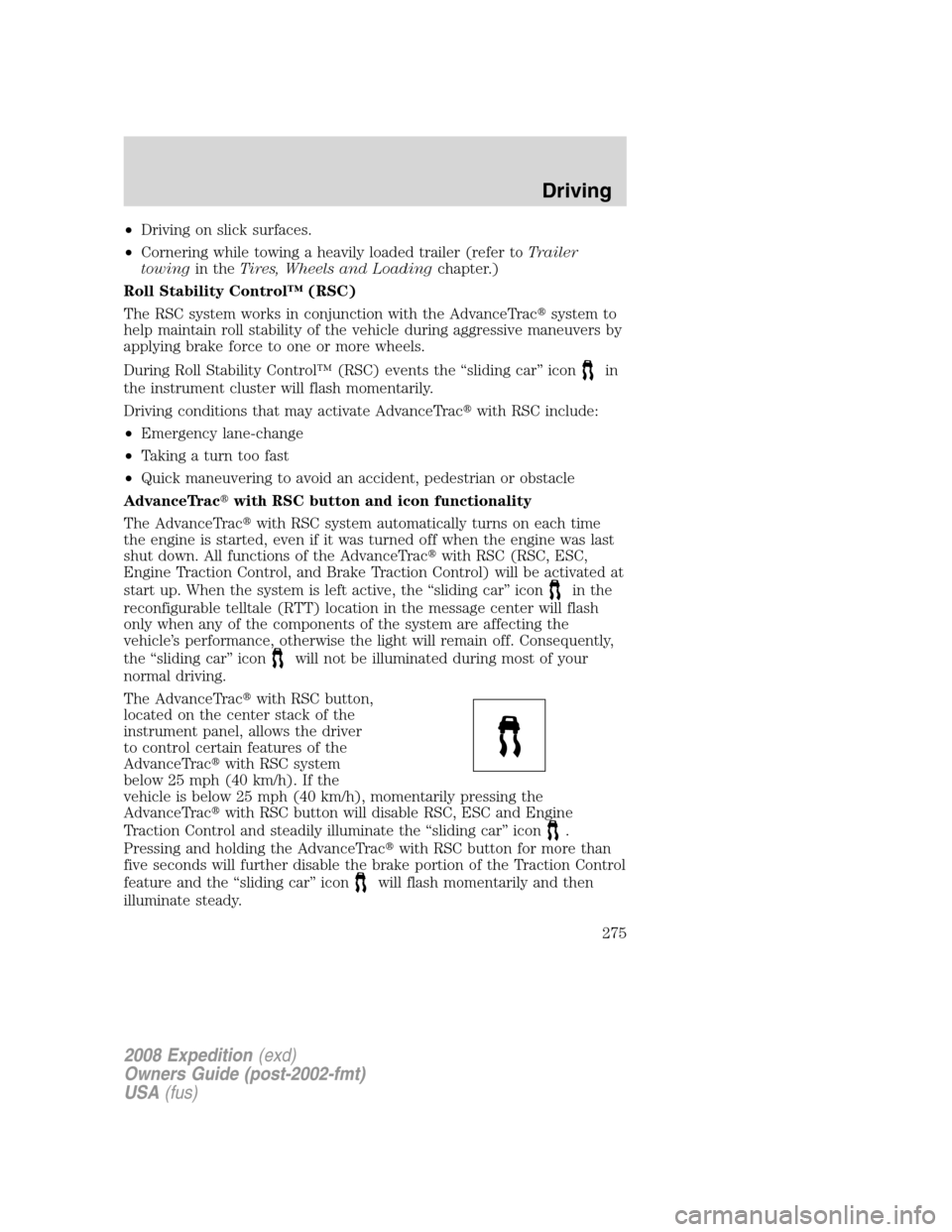

•Driving on slick surfaces.
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter.)
Roll Stability Control™ (RSC)
The RSC system works in conjunction with the AdvanceTrac
system to
help maintain roll stability of the vehicle during aggressive maneuvers by
applying brake force to one or more wheels.
During Roll Stability Control™ (RSC) events the “sliding car” icon
in
the instrument cluster will flash momentarily.
Driving conditions that may activate AdvanceTrac
with RSC include:
•Emergency lane-change
•Taking a turn too fast
•Quick maneuvering to avoid an accident, pedestrian or obstacle
AdvanceTrac
with RSC button and icon functionality
The AdvanceTrac
with RSC system automatically turns on each time
the engine is started, even if it was turned off when the engine was last
shut down. All functions of the AdvanceTrac
with RSC (RSC, ESC,
Engine Traction Control, and Brake Traction Control) will be activated at
start up. When the system is left active, the “sliding car” icon
in the
reconfigurable telltale (RTT) location in the message center will flash
only when any of the components of the system are affecting the
vehicle’s performance, otherwise the light will remain off. Consequently,
the “sliding car” icon
will not be illuminated during most of your
normal driving.
The AdvanceTrac
with RSC button,
located on the center stack of the
instrument panel, allows the driver
to control certain features of the
AdvanceTrac
with RSC system
below 25 mph (40 km/h). If the
vehicle is below 25 mph (40 km/h), momentarily pressing the
AdvanceTrac
with RSC button will disable RSC, ESC and Engine
Traction Control and steadily illuminate the “sliding car” icon
.
Pressing and holding the AdvanceTrac
with RSC button for more than
five seconds will further disable the brake portion of the Traction Control
feature and the “sliding car” icon
will flash momentarily and then
illuminate steady.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
275

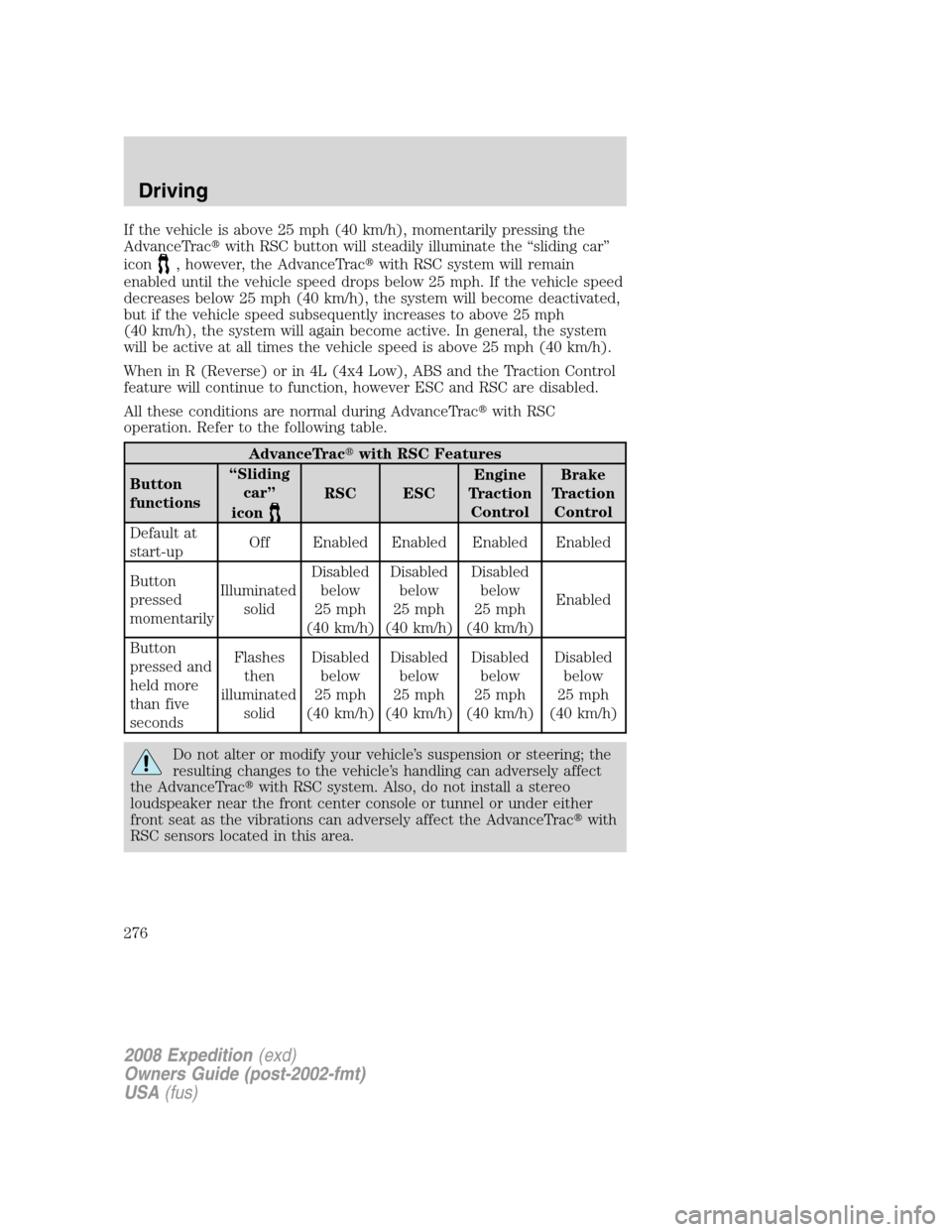

If the vehicle is above 25 mph (40 km/h), momentarily pressing the
AdvanceTrac
with RSC button will steadily illuminate the “sliding car”
icon
, however, the AdvanceTrac
with RSC system will remain
enabled until the vehicle speed drops below 25 mph. If the vehicle speed
decreases below 25 mph (40 km/h), the system will become deactivated,
but if the vehicle speed subsequently increases to above 25 mph
(40 km/h), the system will again become active. In general, the system
will be active at all times the vehicle speed is above 25 mph (40 km/h).
When in R (Reverse) or in 4L (4x4 Low), ABS and the Traction Control
feature will continue to function, however ESC and RSC are disabled.
All these conditions are normal during AdvanceTrac
with RSC
operation. Refer to the following table.
AdvanceTrac
with RSC Features
Button
functions“Sliding
car”
icon
RSC ESCEngine
Traction
ControlBrake
Traction
Control
Default at
start-upOff Enabled Enabled Enabled Enabled
Button
pressed
momentarilyIlluminated
solidDisabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)Enabled
Button
pressed and
held more
than five
secondsFlashes
then
illuminated
solidDisabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)Disabled
below
25 mph
(40 km/h)
Do not alter or modify your vehicle’s suspension or steering; the
resulting changes to the vehicle’s handling can adversely affect
the AdvanceTrac
with RSC system. Also, do not install a stereo
loudspeaker near the front center console or tunnel or under either
front seat as the vibrations can adversely affect the AdvanceTrac
with
RSC sensors located in this area.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
276

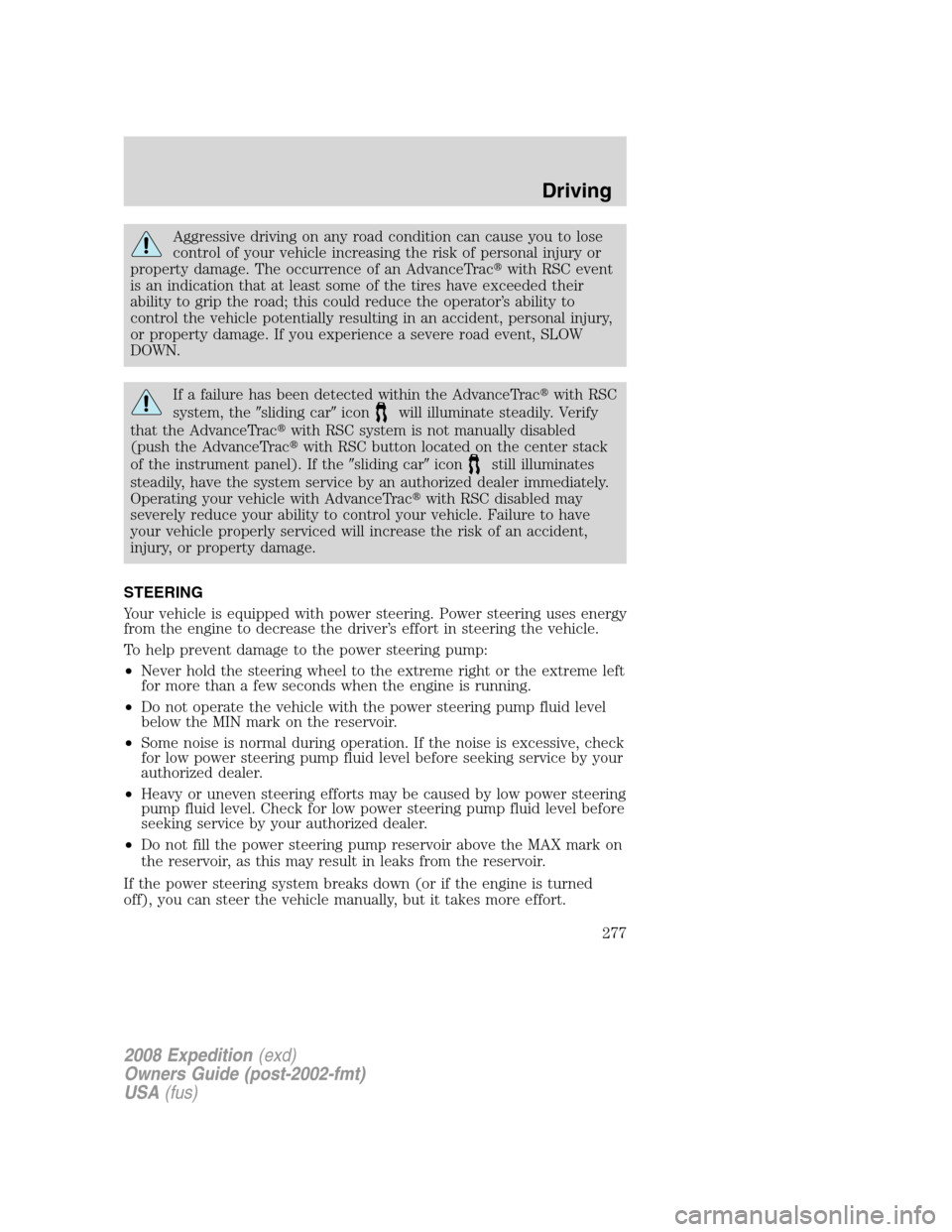

Aggressive driving on any road condition can cause you to lose
control of your vehicle increasing the risk of personal injury or
property damage. The occurrence of an AdvanceTrac
with RSC event
is an indication that at least some of the tires have exceeded their
ability to grip the road; this could reduce the operator’s ability to
control the vehicle potentially resulting in an accident, personal injury,
or property damage. If you experience a severe road event, SLOW
DOWN.
If a failure has been detected within the AdvanceTrac
with RSC
system, thesliding caricon
will illuminate steadily. Verify
that the AdvanceTrac
with RSC system is not manually disabled
(push the AdvanceTrac
with RSC button located on the center stack
of the instrument panel). If thesliding caricon
still illuminates
steadily, have the system service by an authorized dealer immediately.
Operating your vehicle with AdvanceTrac
with RSC disabled may
severely reduce your ability to control your vehicle. Failure to have
your vehicle properly serviced will increase the risk of an accident,
injury, or property damage.
STEERING
Your vehicle is equipped with power steering. Power steering uses energy
from the engine to decrease the driver’s effort in steering the vehicle.
To help prevent damage to the power steering pump:
•Never hold the steering wheel to the extreme right or the extreme left
for more than a few seconds when the engine is running.
•Do not operate the vehicle with the power steering pump fluid level
below the MIN mark on the reservoir.
•Some noise is normal during operation. If the noise is excessive, check
for low power steering pump fluid level before seeking service by your
authorized dealer.
•Heavy or uneven steering efforts may be caused by low power steering
pump fluid level. Check for low power steering pump fluid level before
seeking service by your authorized dealer.
•Do not fill the power steering pump reservoir above the MAX mark on
the reservoir, as this may result in leaks from the reservoir.
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
277

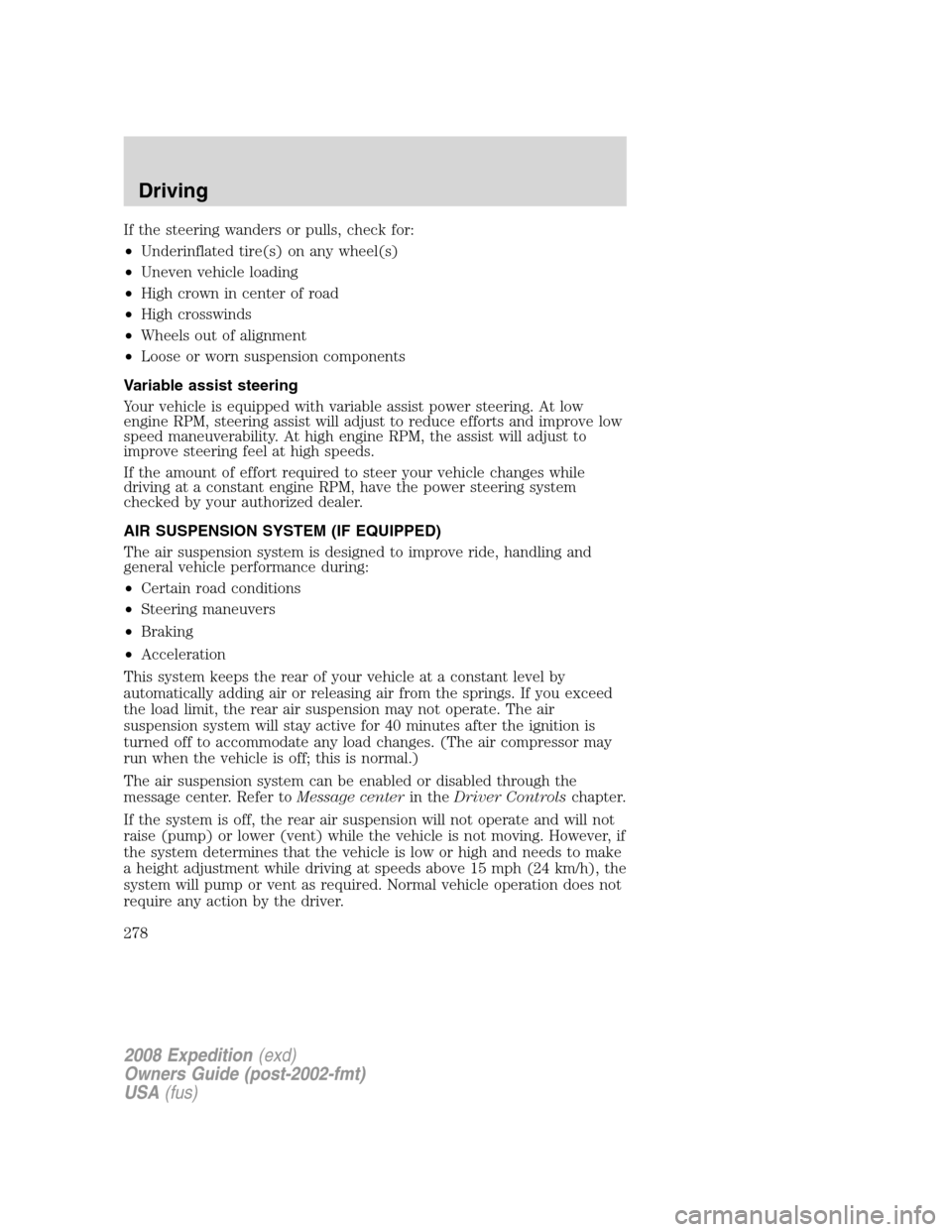

If the steering wanders or pulls, check for:
•Underinflated tire(s) on any wheel(s)
•Uneven vehicle loading
•High crown in center of road
•High crosswinds
•Wheels out of alignment
•Loose or worn suspension components
Variable assist steering
Your vehicle is equipped with variable assist power steering. At low
engine RPM, steering assist will adjust to reduce efforts and improve low
speed maneuverability. At high engine RPM, the assist will adjust to
improve steering feel at high speeds.
If the amount of effort required to steer your vehicle changes while
driving at a constant engine RPM, have the power steering system
checked by your authorized dealer.
AIR SUSPENSION SYSTEM (IF EQUIPPED)
The air suspension system is designed to improve ride, handling and
general vehicle performance during:
•Certain road conditions
•Steering maneuvers
•Braking
•Acceleration
This system keeps the rear of your vehicle at a constant level by
automatically adding air or releasing air from the springs. If you exceed
the load limit, the rear air suspension may not operate. The air
suspension system will stay active for 40 minutes after the ignition is
turned off to accommodate any load changes. (The air compressor may
run when the vehicle is off; this is normal.)
The air suspension system can be enabled or disabled through the
message center. Refer toMessage centerin theDriver Controlschapter.
If the system is off, the rear air suspension will not operate and will not
raise (pump) or lower (vent) while the vehicle is not moving. However, if
the system determines that the vehicle is low or high and needs to make
a height adjustment while driving at speeds above 15 mph (24 km/h), the
system will pump or vent as required. Normal vehicle operation does not
require any action by the driver.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
278

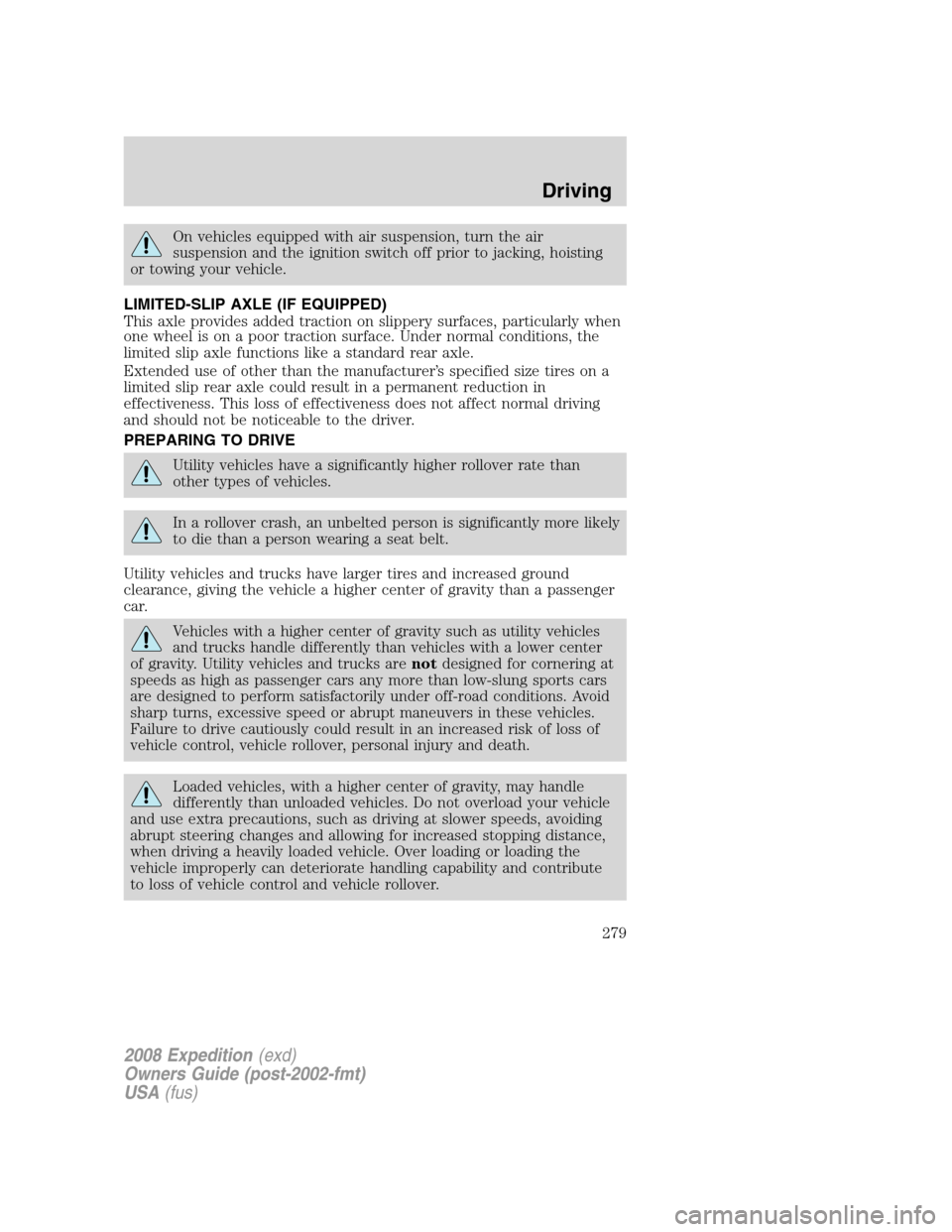

On vehicles equipped with air suspension, turn the air
suspension and the ignition switch off prior to jacking, hoisting
or towing your vehicle.
LIMITED-SLIP AXLE (IF EQUIPPED)
This axle provides added traction on slippery surfaces, particularly when
one wheel is on a poor traction surface. Under normal conditions, the
limited slip axle functions like a standard rear axle.
Extended use of other than the manufacturer’s specified size tires on a
limited slip rear axle could result in a permanent reduction in
effectiveness. This loss of effectiveness does not affect normal driving
and should not be noticeable to the driver.
PREPARING TO DRIVE
Utility vehicles have a significantly higher rollover rate than
other types of vehicles.
In a rollover crash, an unbelted person is significantly more likely
to die than a person wearing a seat belt.
Utility vehicles and trucks have larger tires and increased ground
clearance, giving the vehicle a higher center of gravity than a passenger
car.
Vehicles with a higher center of gravity such as utility vehicles
and trucks handle differently than vehicles with a lower center
of gravity. Utility vehicles and trucks arenotdesigned for cornering at
speeds as high as passenger cars any more than low-slung sports cars
are designed to perform satisfactorily under off-road conditions. Avoid
sharp turns, excessive speed or abrupt maneuvers in these vehicles.
Failure to drive cautiously could result in an increased risk of loss of
vehicle control, vehicle rollover, personal injury and death.
Loaded vehicles, with a higher center of gravity, may handle
differently than unloaded vehicles. Do not overload your vehicle
and use extra precautions, such as driving at slower speeds, avoiding
abrupt steering changes and allowing for increased stopping distance,
when driving a heavily loaded vehicle. Over loading or loading the
vehicle improperly can deteriorate handling capability and contribute
to loss of vehicle control and vehicle rollover.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
279

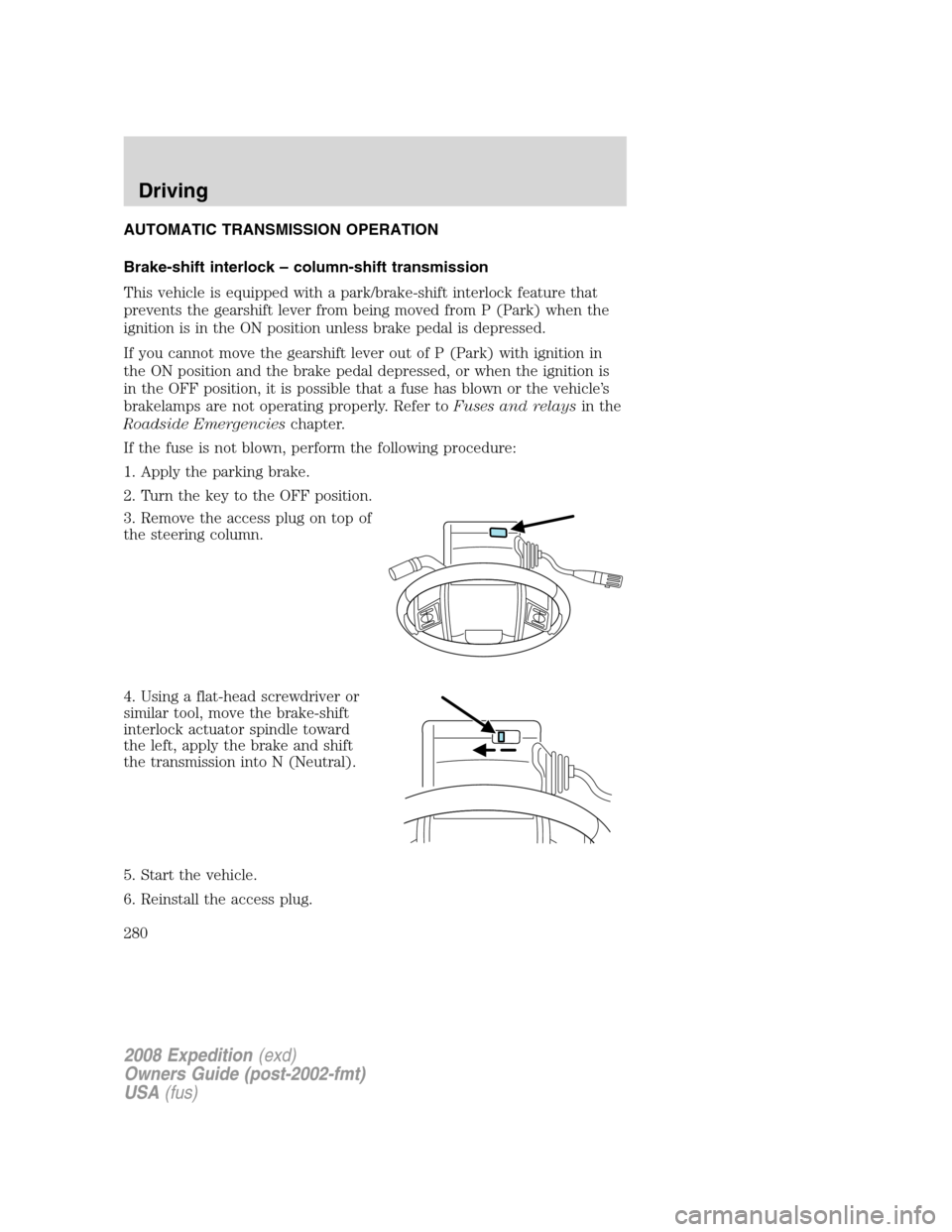

AUTOMATIC TRANSMISSION OPERATION
Brake-shift interlock – column-shift transmission
This vehicle is equipped with a park/brake-shift interlock feature that
prevents the gearshift lever from being moved from P (Park) when the
ignition is in the ON position unless brake pedal is depressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the ON position and the brake pedal depressed, or when the ignition is
in the OFF position, it is possible that a fuse has blown or the vehicle’s
brakelamps are not operating properly. Refer toFuses and relaysin the
Roadside Emergencieschapter.
If the fuse is not blown, perform the following procedure:
1. Apply the parking brake.
2. Turn the key to the OFF position.
3. Remove the access plug on top of
the steering column.
4. Using a flat-head screwdriver or
similar tool, move the brake-shift
interlock actuator spindle toward
the left, apply the brake and shift
the transmission into N (Neutral).
5. Start the vehicle.
6. Reinstall the access plug.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
280
