keyless FORD EXPEDITION 2013 3.G Owners Manual

Locks 62
Locking and unlocking..................................62
SecuriCode™ keyless entry keypad.........................71
Security 73
SecuriLockpassive anti-theft system.......................73
Anti-theft alarm.......................................75
Steering Wheel 77
Adjusting the steering wheel..............................77
Steering wheel controls.................................77
Pedals 79
Adjustable pedals......................................79
Wipers and Washers 80
Windshield wipers.....................................80
Rain-sensing wipers....................................80
Windshield washers....................................81
Rear-window wiper and washer............................81
Lighting 82
Lighting control.......................................82
Autolamps...........................................83
Instrument lighting dimmer...............................83
Daytime running lamps..................................84
Front fog lamps.......................................84
Directionindicators ....................................84
Interior lamps........................................85
Windows and Mirrors 87
Power windows.......................................87
Exteriormirrors.......................................88
Interiormirrors .......................................91
Sunvisors ...........................................92
Moonroof............................................93
2Table of Contents
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

LOCKING AND UNLOCKING
You can use the power door lock control or the remote control to lock
and unlock the vehicle.
Power Door Locks
The power door lock control is located on the driver and front passenger
door panels.
A. Unlock
B. Lock
Remote Control
The remote control can be used anytime the vehicle is not running.
Unlocking the Doors (Two-Stage Unlock)
Press the button to unlock the driver’s door.
Press the button again within three seconds to unlock all doors.
The turn signals will flash.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signals will flash twice to indicate the unlocking
mode was changed. The unlocking mode will be applied to the remote
control and keyless entry keypad.
Locking the Doors
Press the button to lock all the doors. The turn signals will
illuminate.
Press the button again within three seconds to confirm that all the doors
are closed. The doors will lock again, the horn will chirp and the turn
signals will illuminate if all the doors and the luggage compartment are
closed.
Note:If any door or the luggage compartment is not closed, or if the
hood is not closed on vehicles equipped with an anti-theft alarm or
remote start, the horn will chirp twice and the lamps will not flash.
AB
62Locks
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Power Liftgate or Liftgate Window (If Equipped)
WARNING:Make sure all persons are clear of the power liftgate
area before using the control.
WARNING:Make sure the power liftgate is closed to prevent
exhaust fumes from being drawn into the vehicle. This will also
prevent passengers and cargo from falling out. If you must drive with
the liftgate open, keep the vents open so outside air comes into the
vehicle.
Note:Be careful when opening or closing the liftgate in a garage or
other enclosed area to avoid damaging the liftgate.
Note:If equipped with a power liftgate, this control will not operate the
liftgate window.
Press twice within three seconds to open or close the liftgate,
or to reverse movement.
Press twice within three seconds to unlatch the liftgate window.
Smart Unlocks
This feature helps to prevent you from locking yourself out of the vehicle
if your key is still in the ignition.
When you open one of the front doors or the liftgate and you lock the
vehicle with the power door lock control, all the doors will lock then
unlock if your key is still in the ignition.
The vehicle can still be locked with the key in the ignition by:
•locking the driver’s door with a key
•using the lock control on the remote control
•using the keyless entry keypad.
If both front doors and the liftgate are closed, the vehicle can be locked
from any method, regardless of whether the key is in the ignition or not.
Locks63
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Illuminated Entry
The interior lamps and parking lamps illuminate when the remote entry
system is used to unlock the door(s).
The system will turn off the lights if:
•the ignition is turned on
•the lock button on the remote control is pressed
•the vehicle is locked using the keyless entry keypad
•after 25 seconds of illumination.
The dome lamp control (if equipped) must not be set to the off position
for the illuminated entry system to operate.
The lights will not turn off if:
•they have been turned on with the dimmer control
•any door is open.
Illuminated Exit
The interior lamps and parking lamps illuminate when doors are closed
and the key is removed from the ignition.
The lamps will turn off if all the doors remain closed and:
•25 seconds elapse
•the key is inserted in the ignition.
Battery Saver
If the courtesy lamps, dome lamps or headlamps are left on, the battery
saver will shut them off 10 minutes after the ignition has been turned
off.
Locks65
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

SECURICODE™ KEYLESS ENTRY KEYPAD
You can use the keyless entry
keypad to lock or unlock the doors
or release the liftgate glass without
using a key.
The keypad can be operated with
the factory set 5-digit entry code; this code is located on the owner’s
wallet card in the glove box and is available from your authorized dealer.
You can also create up to five of your own 5-digit personal entry codes.
Programming a Personal Entry Code
You can store up to three personal entry codes.
To create your own personal entry code:
1. Enter the factory set code.
2. Press the1•2on the keypad within five seconds. The doors will lock
and then unlock to confirm that the system is in programming mode.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. Press1•2on the keypad to save personal entry code 1.
The doors will lock and then unlock to confirm that your personal entry
code has been programmed.
To program additional personal entry codes, repeat Steps 1–3, then for
Step 4:
•press3•4to save personal entry code 2, or
•press5•6,7•8,or9•0to save personal entry code 3.
Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Programming Memory to a Personal Entry Code
To program a personal entry code to recall a driver memory setting,
repeat Steps 1–4 above.
•Pressing1•2on the keypad in Step 4 will program the code to driver
memory setting 1.
Locks71
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Disarming the Alarm
To disarm the alarm, do any of the following:
•Press the power door unlock button within the 20-second pre-armed
mode.
•Press the unlock button on the remote control.
•Unlock the doors with the keyless entry pad.
•Turn the ignition on with a valid key.
•Press the panic button on the remote control. The alarm system will
still be armed, but this shuts off the horn and turn lamps when the
alarm is sounding.
Note:If the driver’s door is unlocked with a key, a chime will sound
when you open the door. You will have 12 seconds to disarm the alarm
using any of the actions above, otherwise the alarm will trigger.
76Security
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

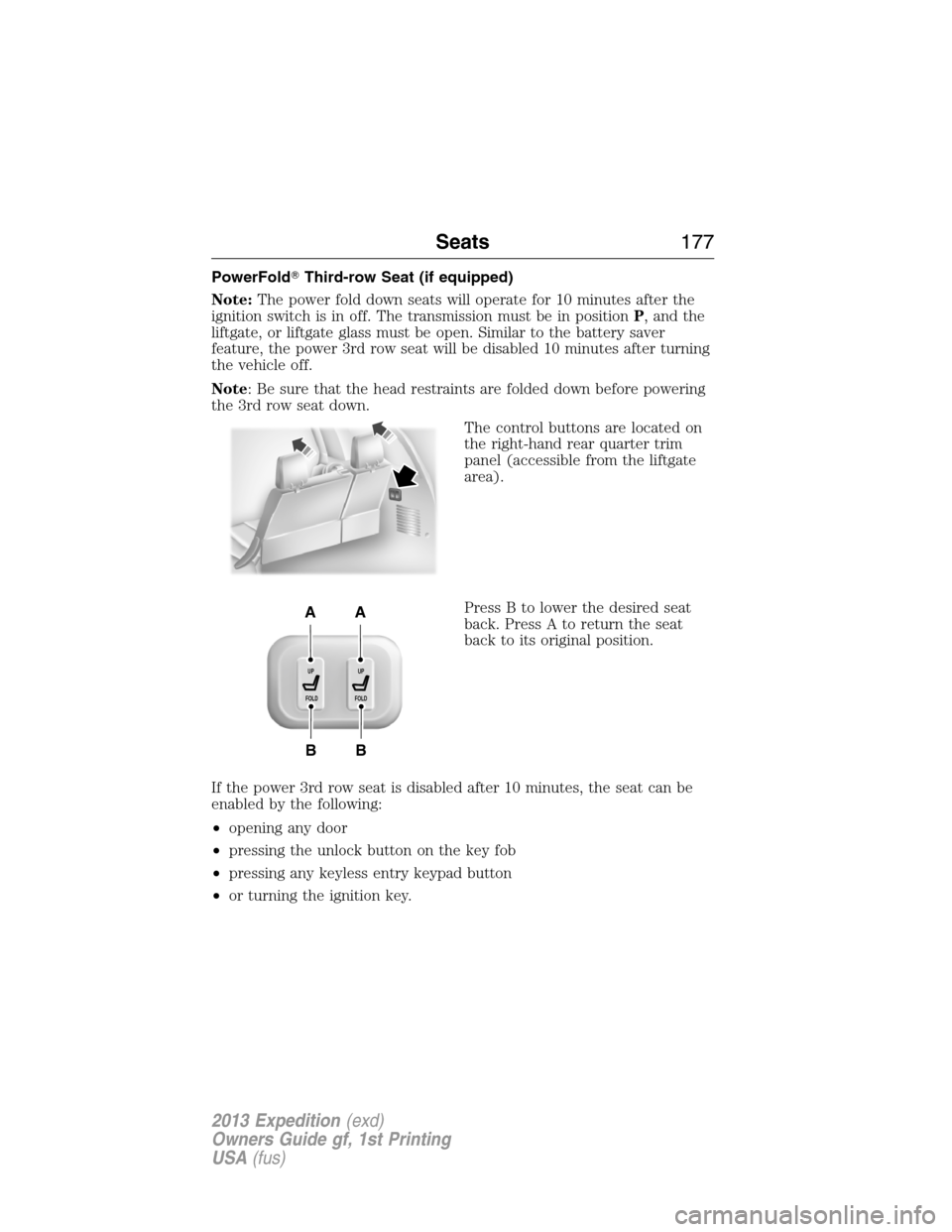

PowerFoldThird-row Seat (if equipped)
Note:The power fold down seats will operate for 10 minutes after the
ignition switch is in off. The transmission must be in positionP, and the
liftgate, or liftgate glass must be open. Similar to the battery saver
feature, the power 3rd row seat will be disabled 10 minutes after turning
the vehicle off.
Note: Be sure that the head restraints are folded down before powering
the 3rd row seat down.
The control buttons are located on
the right-hand rear quarter trim
panel (accessible from the liftgate
area).
Press B to lower the desired seat
back. Press A to return the seat
back to its original position.
If the power 3rd row seat is disabled after 10 minutes, the seat can be
enabled by the following:
•opening any door
•pressing the unlock button on the key fob
•pressing any keyless entry keypad button
•or turning the ignition key.
B
AA
B
UP
FOLDUP
FOLD
Seats177
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Fuses ..........................281–282, 286
G
Garage door opener ..........179, 183
Gas cap (see Fuel cap) ............203
Gauges .........................................94
H
Hazard flashers .........................269
HD Radio™ ...............................444
Headlamps ...................................82
aiming ......................................306
autolamp system .......................83
bulb specifications ..................312
checking alignment ................306
flash to pass ..............................82
high beam .................................82
replacing bulbs .......................308
turning on and off ....................82
Head restraints .........................159
Heating ..............146, 148, 150, 152
Homelink wireless control
system ........................................183
Hood ..........................................291
I
Ignition ...............................195, 355
Illuminated visor mirror .............92
Information displays .................101
Inspection/maintenance (I/M)
testing ........................................208
Instrument panel
cleaning ...................................317
cluster ........................................95
lighting up panel and interior...83J
Jack ............................................346
positioning ...............................346
storage .....................................346
Joining two calls
(multiparty/conference call) ....394
Jukebox features .......................457
Jump-starting your vehicle ......270
K
Keyless entry system
autolock .....................................64
keypad .......................................71
locking and unlocking doors ....72
programming entry code .........71
Keys .......................................53, 74
positions of the ignition .........195
L
Lamps ..........................................82
autolamp system .......................83
bulb replacement
specifications chart ................312
fog lamps ...................................84
headlamps .................................82
headlamps, flash to pass ..........82
instrument panel, dimming .....83
interior lamps ...........................85
replacing bulbs ...............308, 311
Lane change indicator
(see Turn signal) ........................84
LATCH anchors ...........................27
Liftgate ............................63, 66–67
Lights, warning and indicator ....95
Loading instructions .................247
Loading pictures .......................434
Index493
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Q
Quick touch buttons .................469
R
Radio ..........................................118
Single CD ................................118
Radio reception .........................116
Radio voice commands .....442, 448
Rear heated seats .....................175
Rear seat entertainment
system ........................................128
Rear view camera display ........233
Rear window defroster ............146,
148, 150, 152
Receiving a text message .........397
Recommendations for
attaching safety restraints for
children ........................................24
Relays ................................281–282
Remote entry system
illuminated entry ......................65
locking/unlocking doors ...........62
opening the trunk .....................63
replacing the batteries .............53
Roadside assistance ..................268
Roll stability control .................229
Roof rack ...................................240
S
Safety Belt Maintenance ............42
Safety belts
(see Safety restraints) ...............36
Safety defects, reporting ..........280
Safety information ....................386Safety restraints ..............36–37, 39
Belt-Minder.............................40
extension assembly ..................38
for adults .............................36–37
for children .........................19, 24
safety belt maintenance ...........42
seat belt maintenance ..............42
warning light and chime ..........40
Safety restraints -
LATCH anchors ...........................27
Safety seats for children ......19, 24
Safety Compliance
Certification Label ....................362
Satellite Radio ...........................451
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............373
SD card ......................................464
Seat belts
(see Safety restraints) ...............36
Seats
child safety seats ................19, 24
cleaning ...................................319
climate control ........................167
filter .........................................360
front seats ...............................161
heated ......................................175
memory seat .....................54, 164
SecuriCode keyless entry
system ..........................................71
SecuriLock passive anti-theft
system ..........................................73
Selecting your media source
(USB, Line in, BT audio) .........416
Setting a destination ................464
Setting the clock .......................118
Side air curtain ...........................48
Index495
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)
