FORD EXPEDITION 2021 Owners Manual

Maintenance
Action
Message
Stop your vehicle as soon as safely possible and turn off the engine.Check the oil level. If this message stays on or continues to come
on with your engine running, have the system checked as soon as possible.
Low Engine Oil
Pressure
The engine oil life is low and needs to be changed soon. SeeGeneral Maintenance Information (page 483).
Change Engine Oil
Soon
The engine oil life is low and needs to be changed immediately.See
General Maintenance Information (page 483).
Oil Change
Required
The brake fluid level is low, inspect the brake fluid level immediately.See
Brake Fluid Check (page 344).
Brake Fluid Level
Low
The brake system needs servicing. Stop your vehicle in a safe place.Have the system checked as soon as possible.
Check Brake
System
Your vehicle is still in Transport or Factory mode. This may not allowsome features to operate properly. Have your vehicle checked.
Transport /
Factory Mode
Contact Dealer
The powertrain needs service due to a powertrain concern. Havethe system checked as soon as possible.
See Manual
MyKey Action
Message
You did not program a MyKey.
MyKey not Created
MyKey is active.
MyKey Active Drive
Safely
When switching on your vehicle and MyKey is in use, displays that the MyKey speed limit is on.
Speed Limited to
XX MPH/km/h
MyKey is in use and the MyKey speed limit is on and the vehiclespeed is approaching
81 mph (130 km/h).
Near Vehicle Top
Speed
You have reached the speed limit set for your MyKey.
Vehicle at Top
Speed of MyKey Setting
You have an active MyKey with a programmed set speed limit.
Check Speed Drive
Safely
138
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Information Displays

Action
Message
Belt-Minder turns on with a MyKey in use.
Buckle Up to
Unmute Audio
With a MyKey in use, AdvanceTrac turns on.
AdvanceTrac On -
MyKey Setting
With a MyKey in use, traction control turns on.
Traction Control
On - MyKeySetting
With a MyKey in use, park aid is always on.
MyKey Park Aid
Cannot be Deactiv- ated
With a MyKey in use, lane keeping alert turns on.
Lane Keeping Alert
On MyKey Setting
Off Road Action
Message
Hill descent control mode is active.
Hill Descent Control Active
Hill descent control mode is inactive.
Hill Descent Control OFF
Your vehicle speed requirement for off-roadmode entry has not been met.
For Hill Descent Reduce Speed XX MPH/
km/h or Less
You need to select a transmission gear forhill descent mode.
For Hill Descent Select Gear
Hill descent control mode is deactivatedand you must resume control.
Hill Descent Driver Resume Control
Displays when the system requires service.Have the system checked as soon as possible.
Hill Descent Control Fault
The hill descent system is cooling due tooveruse.
Hill Descent Control Off System Cooling
The hill descent control system is ready.
Hill Descent Control Ready
139
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Information Displays

Park Aid
Action
Message
The system has detected a condition that requires service. Have
the system checked as soon as possible. See Front Parking Aid
(page 230).
Check Front Park
Aid
The system has detected a condition that requires service. Have
the system checked as soon as possible. See
Rear Parking Aid
(page 229).
Check Rear Park
Aid
Displays the park aid status.
Front Park Aid On
Off
Displays the park aid status.
Rear Park Aid On
Off
Displays if the front park aid sensor is blocked. Clean and remove
anything in this area that could cause this message to appear. See Front Parking Aid
(page 230).
Front Park Aid Not
Available Sensor Blocked See Manual
Displays if the rear park aid sensor is blocked. Clean and remove
anything in this area that could cause this message to appear. See Rear Parking Aid
(page 229).
Rear Park Aid Not
Available Sensor Blocked See Manual
Displays if the park aid sensor is blocked. Clean and remove anythingin this area that could cause this message to appear.
Park Aid Not Avail-
able Sensor
Blocked See Manual
Park Brake Action
Message
The electric parking brake is set and a manual release is attemptedwithout the brake pedal being pressed.
To Release: Press
Brake and Switch
The electric park brake is set and an automatic release is attemptedbut cannot be performed. Perform a manual release.
Park Brake Use
Switch to Release
The electric park brake is set and your vehicle speed exceeds 3 mph(5 km/h)
. Release park brake before continued driving.
Release Park
Brake
The electric park brake is not fully applied.
Park Brake Not
Applied
140
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Information Displays

Action
Message
The electric park brake is not fully released.
Park Brake Not
Released
The electric park brake system has been put into a special modethat is used to allow service of the rear brakes. Have the system checked as soon as possible.
Park Brake Main-
tenance Mode
The electric park brake system has detected a condition that
requires service. Some functionality may still be available. Have the system checked as soon as possible.
Park Brake Limited
Function Service Required
The electric park brake system has detected a condition that
requires service. Have the system checked as soon as possible.
Park Brake
Malfunction
Service Now
Power Steering Action
Message
The power steering system has detected a condition that requiresservice. Have the system checked as soon as possible.
Steering Fault
Service Now
The power steering system is not working. Stop your vehicle in asafe place. Have the system checked as soon as possible.
Steering Loss Stop
Safely
The power steering system has detected a condition within the
power steering system or passive entry or passive start system that requires service. Have the system checked as soon as possible.
Steering Assist
Fault Service Required
The steering lock system has detected a condition that requiresservice. Have the system checked as soon as possible.
Steering Lock
Malfunction
Service Now
Pre-Collision Assist Action
Message
You have a blocked sensor due to
inclement weather, ice, mud or water in
front of the radar sensor. You can typically clean the sensor to resolve.
Pre-Collision Assist Not Available Sensor
Blocked
Displays when the system requires service.Have the system checked as soon as possible.
Pre-Collision Assist Not Available
141
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Information Displays

Pro Trailer Backup Assist™
Action
Message
Pro Trailer Backup Assist™ can only beactivated when the vehicle is stopped.
Pro Trailer Backup Assist™ Not Active Stop
Vehicle to Activate
Camera System is locating the sticker. Wait
until the sticker is found before attemptingto use Pro Trailer Backup Assist.
Pro Trailer Backup Assist™ Locating Sticker
Please wait... Press Knob to Exit
Stop Now. Pro Trailer Backup Assist™ hasreached max trailer angle.
Pro Trailer Backup Assist™ Stop now
Maximum trailer angle Press Knob to Exit
Stop Now. Pro Trailer Backup Assist™ is nolonger controlling steering.
Pro Trailer Backup Assist™ Stop Now Take
Control of Steering Wheel
Slow vehicle speed. Vehicle is approachingthe exit speed for the Pro Trailer Backup Assist™ feature.
Pro Trailer Backup Assist™ Reduce Speed
Turn Knob to Steer Press Knob to Exit
Conditions for Pro Trailer Backup Assist™operation are not met. See Trailer
Reversing Aids (page 286).
Pro Trailer Backup Assist™ System is Not
Available
Pro Trailer Backup Assist™ cannot operatewith hands on wheel. Remove hands to activate.
Pro Trailer Backup Assist™ Remove Hands
from Steering Wheel to Activate Press Knob
to Exit
Pro Trailer Backup Assist™ knob has beenpushed to deactivate the system.
Pro Trailer Backup Assist™ Cancelled by
Driver Take Control of Steering Wheel
Pro Trailer Backup Assist operation is only
available in reverse gear. Shift gear selector into reverse to activate.
Pro Trailer Backup Assist™ Shift to Reverse
to Activate. Press Knob to Exit
Camera system cannot locate sticker. Shiftto park.
Pro Trailer Backup Assist™ Sticker Not
Found Shift to Park Press Knob to Exit
Camera system cannot locate sticker. SeeTrailer Reversing Aids
(page 286).
Pro Trailer Backup Assist™ Sticker Not
Found Refer to Owner's Manual. Press Knob to Exit
Drive between
4–24 mph (6– 39 km/h)
straight forward to calibrate Pro Trailer Backup Assist™.
Pro Trailer Backup Assist™ Drive Straight
Forward to Calibrate. Press Knob to Exit
The system has completed calibration.
Stop the vehicle to use Pro Trailer Backup Assist™ feature.
Pro Trailer Backup Assist™ Calibration
Complete Stop Vehicle
142
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Information Displays

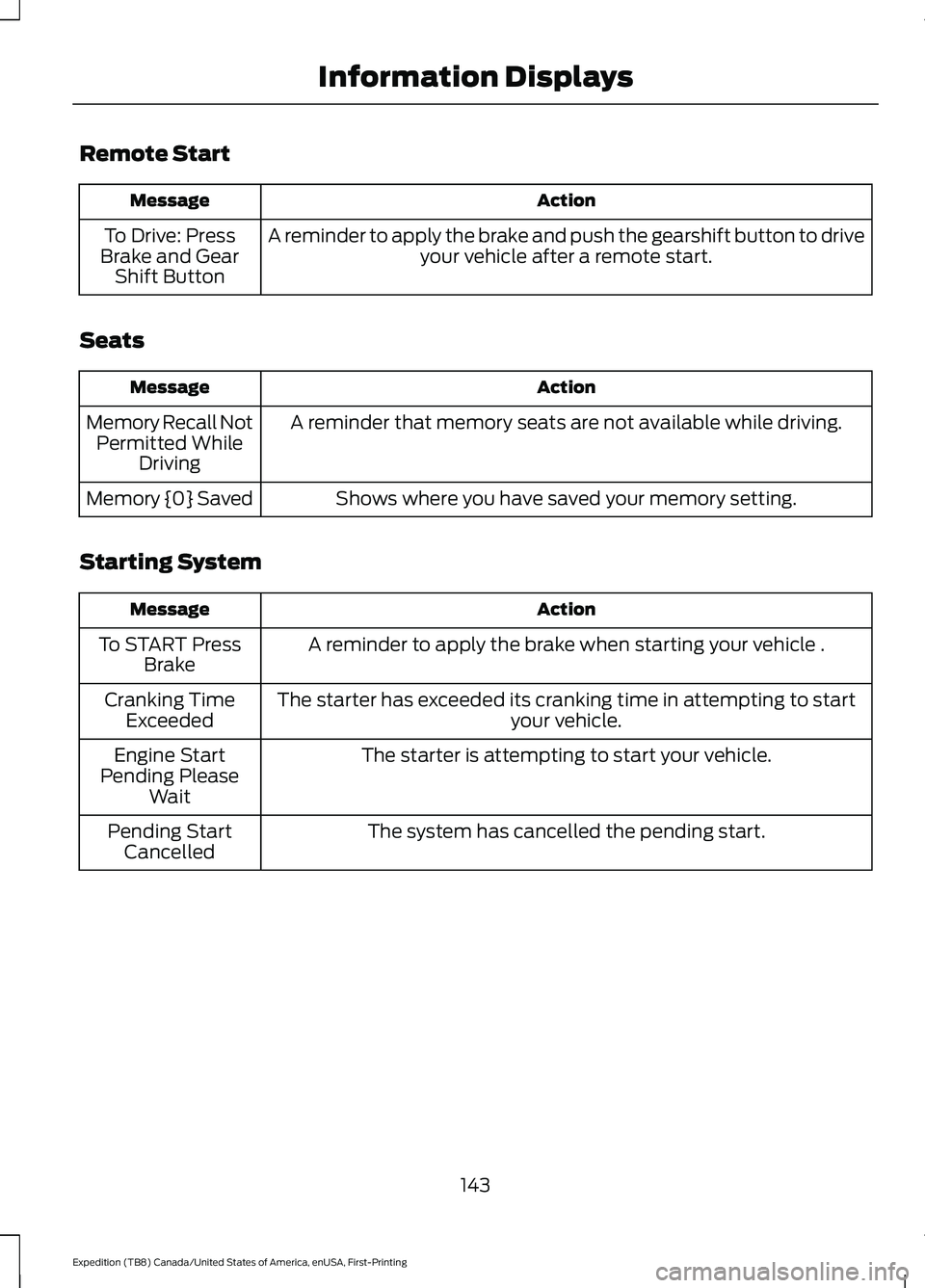

Remote Start
Action
Message
A reminder to apply the brake and push the gearshift button to drive your vehicle after a remote start.
To Drive: Press
Brake and Gear Shift Button
Seats Action
Message
A reminder that memory seats are not available while driving.
Memory Recall Not
Permitted While Driving
Shows where you have saved your memory setting.
Memory {0} Saved
Starting System Action
Message
A reminder to apply the brake when starting your vehicle .
To START Press
Brake
The starter has exceeded its cranking time in attempting to start your vehicle.
Cranking Time
Exceeded
The starter is attempting to start your vehicle.
Engine Start
Pending Please Wait
The system has cancelled the pending start.
Pending Start
Cancelled
143
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Information Displays

Tire Pressure Monitoring System
Action
Message
One or more tires on your vehicle has low tire pressure. See Tire
Pressure Monitoring System (page 378).
Tire Pressure Low
The system may require service. If this message stays on or
continues to come on, have the system checked as soon as possible. See
Tire Pressure Monitoring System (page 378).
Tire Pressure
Monitor Fault
The system may require service or your spare tire is in use. See TirePressure Monitoring System
(page 378). If this message stays
on or continues to come on, have the system checked as soon as possible.
Tire Pressure
Sensor Fault
Trailer Action
Message
The current gain setting for the trailer brake.
Trailer Brake Gain: {trailer gain value:#0.0}
The current gain setting for the trailer brakewhen a trailer is not connected.
Trailer Brake Gain: {trailer gain value:#0.0}
No Trailer
A concern is sensed in the integrated trailerbrake control module followed by a single tone. See
Towing a Trailer (page 285).
Trailer Brake Module Fault
A correct trailer connection is sensed duringa given ignition cycle.
Trailer Connected
A trailer connection becomes disconnected,either intentionally or unintentionally, and has been sensed during a given ignition cycle.
Trailer Disconnected
The trailer sway control has detected trailersway, slow down.
Trailer Sway Reduce Speed
There is a concern with your vehicle wiringand trailer wiring or brake system. See Towing a Trailer
(page 285).
Trailer Wiring Fault
There is a concern with your trailer turnlamp. Check your lamp.
Trailer Left Turn Lamps Fault Check Lamps
There is a concern with your trailer turnlamp. Check your lamp.
Trailer Right Turn Lamps Fault Check
Lamps
144
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Information Displays

Action
Message
There is a concern with your trailer battery.See Towing a Trailer (page 285).
Trailer Battery Not Charging See Manual
There is a concern with your vehicle trailerlighting module. See
Towing a Trailer
(page 285).
Trailer Lighting Module Fault See Manual
One or more tires on your trailer is belowthe specified tire pressure.
Trailer Tire Low Specified:
Displays when the system requires service.If this message stays on or continues to
come on, have the system checked as soon as possible.
Trailer Tire Pressure Sensor Fault
Displays when the system requires service.If this message stays on or continues to
come on, have the system checked as soon as possible.
Trailer Tire Pressure Monitor Fault
The system cannot detect the trailer tirepressure monitoring system.
Trailer Tire Pressure Monitor Capability Not
Detected
The trailer tire pressure monitoring systemis not setup. See
General Information
(page 119).
Trailer Tire Pressure Indication Not Setup
See Manual
Transmission Action
Message
A reminder to shift into park.
Transmission Not
in Park
145
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Information Displays

MANUAL CLIMATE CONTROL
(IF EQUIPPED)
Note:
Depending on your vehicle option
package, the controls may look different
from what you see here.
Directing the Airflow Press and release the button to
direct airflow to the windshield
air vents and de-mister.
Press and release the button to
direct airflow to the instrument
panel air vents.
Press and release the button to
direct airflow to the footwell air
vents.
You can direct air through any combination
of these air vents. Setting the Blower Motor Speed Turn the control to adjust the volume of
air circulated in the vehicle.
Setting the Temperature
Turn the control to set the temperature.
Switching the Air Conditioning On
and Off
Press and release the button.
146
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Climate ControlE293089 E244097 E265389 E265862

Use air conditioning with recirculated air
to improve cooling performance and
efficiency.
Note:
In certain conditions (for example,
maximum defrost) the air conditioning
compressor may continue to operate even
though you switch off the air conditioning.
Switching the Climate Control On
and Off Press and release the button.
Switching Maximum Air
Conditioning On and Off Turn the temperature control
counterclockwise to the lowest
setting for maximum cooling.
Recirculated air flows through the
instrument panel air vents, air conditioning
turns on and the blower motor adjusts to
the highest speed.
Switching Maximum Defrost On
and Off Turn the temperature control
clockwise to the highest setting
for maximum defrosting.
Air flows through the windshield air vents,
and the blower motor adjusts to the
highest speed.
Note: Depending on your region, air
conditioning turns on.
You can also use this setting to defog and
clear the windshield of a thin covering of
ice.
Note: To prevent window fogging, you
cannot select recirculated air when
maximum defrost is on.
Note: The heated rear window also turns
on when you select maximum defrost. Switching Recirculated Air On and
Off Press and release the button to
switch between outside air and
recirculated air.
The air currently in the passenger
compartment recirculates. This may
reduce the time needed to cool the interior,
when used with A/C, and reduce unwanted
odors from entering your vehicle.
Note: Recirculated air may turn off, or
prevent you from switching on, in all air flow
modes except MAX A/C to reduce the risk
of fogging. Recirculation may also turn on
and off in various air distribution control
combinations during hot weather to improve
cooling efficiency.
Locking the Rear Climate Control Press and release the button.
When illuminated, you can only operate
the rear passenger settings through the
front controls.
Setting the Rear Blower Motor
Speed Press and release + or - to adjust
the volume of air circulated in
the rear passenger
compartment.
Setting the Rear Temperature Press and release
+ or - to set
the temperature in the rear
passenger compartment.
Switching the Rear Climate
Control On and Off Press and release the button.
147
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Climate Control E266664 E265400
