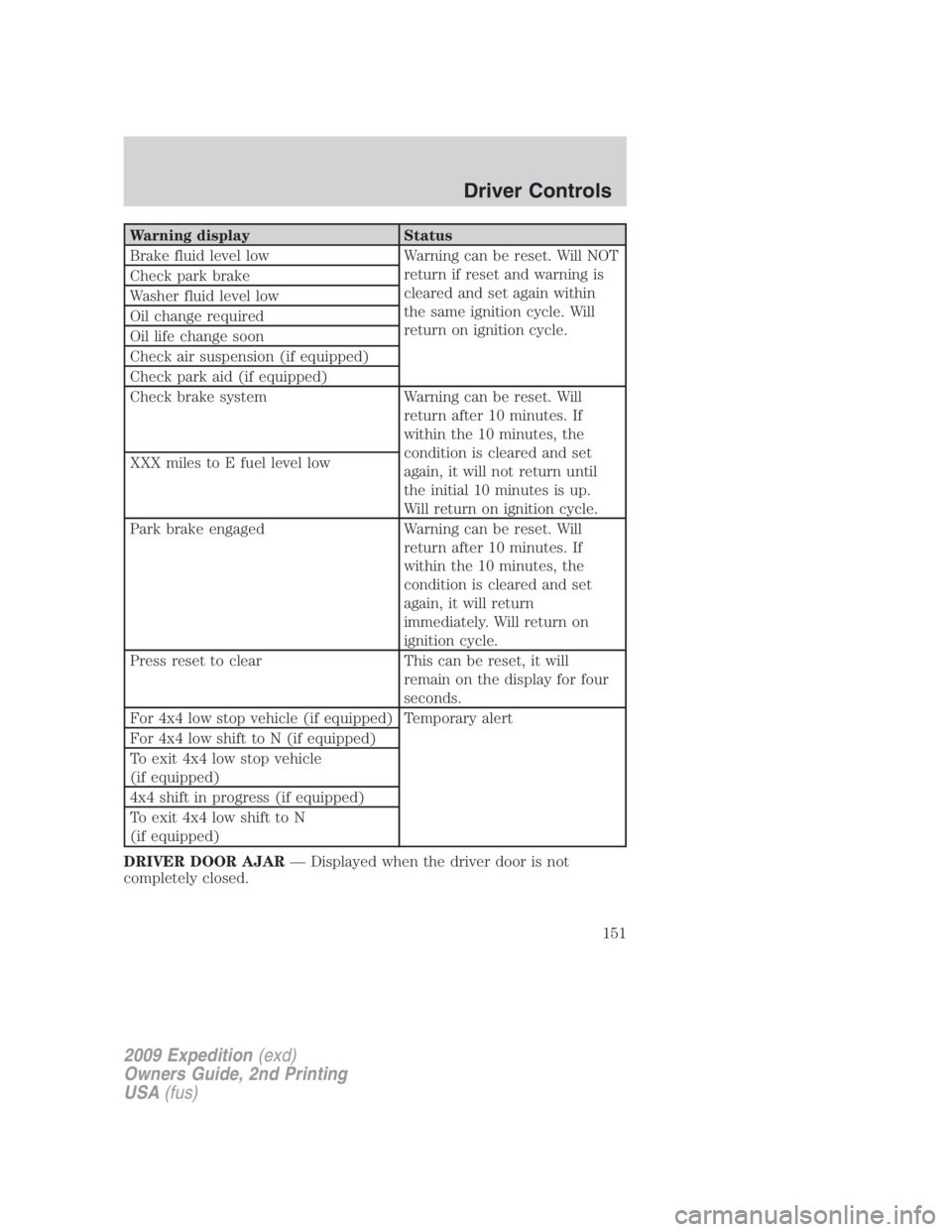

Warning display Status
Brake fluid level low Warning can be reset. Will NOT
return if reset and warning is
cleared and set again within
the same ignition cycle. Will
return on ignition cycle.Check park brake
Washer fluid level low
Oil change required
Oil life change soon
Check air suspension (if equipped)
Check park aid (if equipped)
Check brake system Warning can be reset. Will
return after 10 minutes. If
within the 10 minutes, the
condition is cleared and set
again, it will not return until
the initial 10 minutes is up.
Will return on ignition cycle.XXX miles to E fuel level low
Park brake engaged Warning can be reset. Will
return after 10 minutes. If
within the 10 minutes, the
condition is cleared and set
again, it will return
immediately. Will return on
ignition cycle.
Press reset to clear This can be reset, it will
remain on the display for four
seconds.
For 4x4 low stop vehicle (if equipped) Temporary alert
For 4x4 low shift to N (if equipped)
To exit 4x4 low stop vehicle
(if equipped)
4x4 shift in progress (if equipped)
To exit 4x4 low shift to N
(if equipped)
DRIVER DOOR AJAR — Displayed when the driver door is not
completely closed.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
151

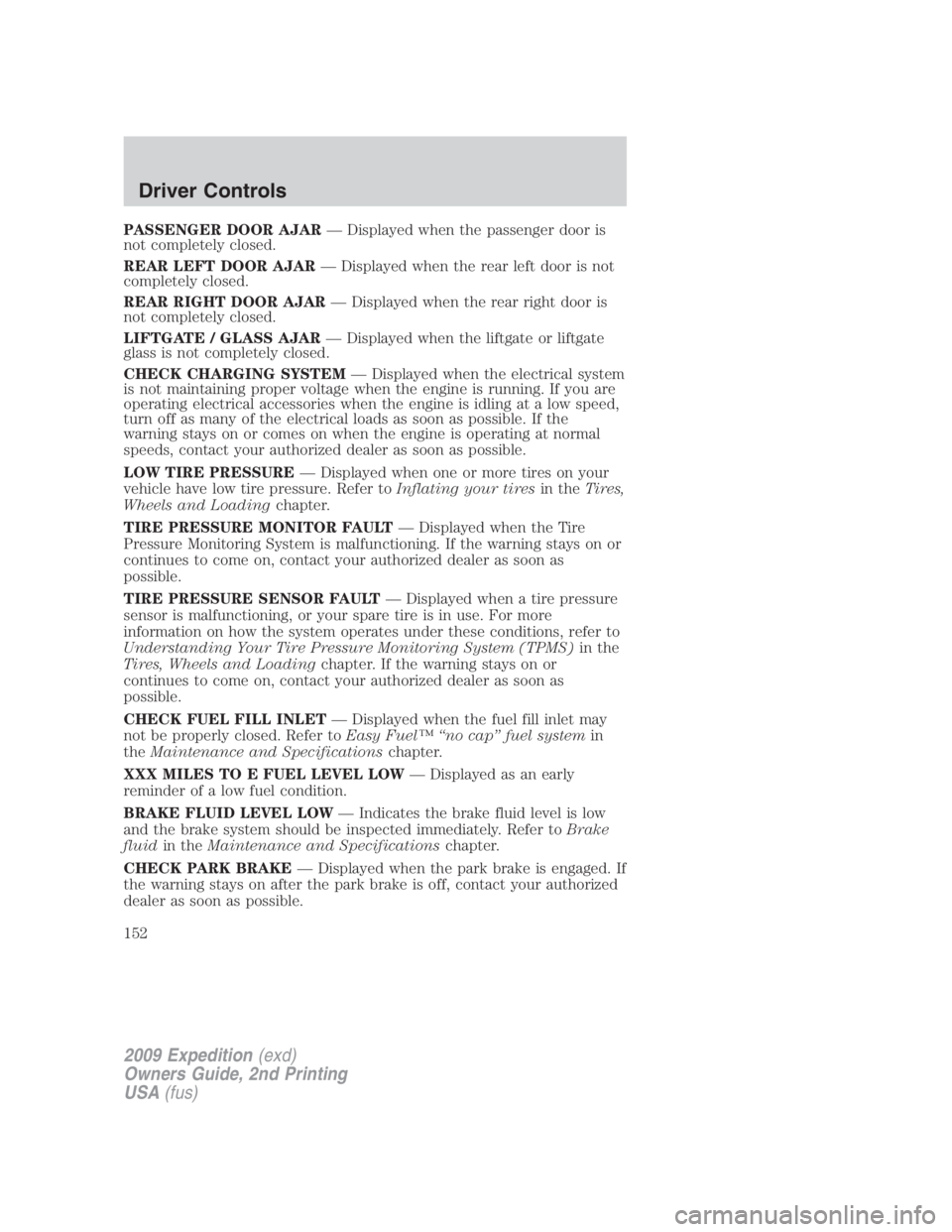

PASSENGER DOOR AJAR — Displayed when the passenger door is
not completely closed.
REAR LEFT DOOR AJAR — Displayed when the rear left door is not
completely closed.
REAR RIGHT DOOR AJAR — Displayed when the rear right door is
not completely closed.
LIFTGATE / GLASS AJAR — Displayed when the liftgate or liftgate
glass is not completely closed.
CHECK CHARGING SYSTEM — Displayed when the electrical system
is not maintaining proper voltage when the engine is running. If you are
operating electrical accessories when the engine is idling at a low speed,
turn off as many of the electrical loads as soon as possible. If the
warning stays on or comes on when the engine is operating at normal
speeds, contact your authorized dealer as soon as possible.
LOW TIRE PRESSURE — Displayed when one or more tires on your
vehicle have low tire pressure. Refer to Inflating your tires in the Tires,
Wheels and Loading chapter.
TIRE PRESSURE MONITOR FAULT — Displayed when the Tire
Pressure Monitoring System is malfunctioning. If the warning stays on or
continues to come on, contact your authorized dealer as soon as
possible.
TIRE PRESSURE SENSOR FAULT — Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring System (TPMS) in the
Tires, Wheels and Loading chapter. If the warning stays on or
continues to come on, contact your authorized dealer as soon as
possible.
CHECK FUEL FILL INLET — Displayed when the fuel fill inlet may
not be properly closed. Refer to Easy Fuel™ “no cap” fuel system in
the Maintenance and Specifications chapter.
XXX MILES TO E FUEL LEVEL LOW — Displayed as an early
reminder of a low fuel condition.
BRAKE FLUID LEVEL LOW — Indicates the brake fluid level is low
and the brake system should be inspected immediately. Refer to Brake
fluid in the Maintenance and Specifications chapter.
CHECK PARK BRAKE — Displayed when the park brake is engaged. If
the warning stays on after the park brake is off, contact your authorized
dealer as soon as possible.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
152

WASHER FLUID LEVEL LOW — Indicates the washer fluid reservoir
is less than one quarter full. Check the washer fluid level. Refer to
Windshield washer fluid in the Maintenance and Specifications
chapter.
AIR SUSPENSION OFF (if equipped) — Displayed when the air
suspension is off. For more information, refer to Air suspension system
in the Driving chapter.
CHECK AIR SUSPENSION (if equipped) — Displayed when the air
suspension system is not operating properly. If this message is displayed
while driving, pull off the road as soon as safely possible. For more
information, refer to Air suspension system in the Driving chapter.
CHECK BRAKE SYSTEM — Displayed when the braking system is not
operating properly. If the warning stays on or continues to come on,
contact your authorized dealer as soon as possible.
PARK BRAKE ENGAGED — Displayed when the manual park brake is
set, the engine is running and the vehicle is driven more than 3 mph
(5 km/h). If the warning stays on after the park brake is released,
contact your authorized dealer as soon as possible.
CHECK PARK AID(if equipped) — Displayed when the transmission
is in R (Reverse). Refer to Reverse sensing system in the Driving
chapter.
OIL LIFE CHANGE SOON — Displayed when the engine oil life
remaining is 10% or less. When oil life left is between 10% and 0%, the
XX% OIL LIFE CHANGE SOON message will be displayed.
OIL CHANGE REQUIRED — Displayed when the oil life left reaches
0%, the OIL CHANGE REQUIRED message will be displayed.
4X4 SHIFT IN PROGRESS — Displayed on 4x4 vehicles only when
4x4 Low, 4x4 High or 4x4 Auto Range is selected. For further
information, refer to AdvanceTrac
with RSC stability enhancement
system in the Driving chapter.
FOR 4X4 LOW STOP VEHICLE(if equipped) — Displayed when 4X4
LOW is selected while the vehicle is moving. For more information, refer
to Control Trac four-wheel drive (4x4) operation in the Driving
chapter.
FOR 4X4 LOW SHIFT TO N(if equipped) — Displayed when 4X4
LOW is selected and the vehicle is stopped. For more information, refer
to Control Trac four-wheel drive (4x4) operation in the Driving
chapter.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
153

TO EXIT 4X4 LOW STOP VEHICLE(if equipped) — Displayed when
2WD is selected while the vehicle is operating in 4X4 LOW. For more
information, refer to Control Trac four-wheel drive (4x4) operation in
the Driving chapter.
TO EXIT 4X4 LOW SHIFT TO N(if equipped) — Displayed when
2WD is selected while the vehicle has been stopped in 4X4 LOW. For
more information, refer to Control Trac four-wheel drive (4x4)
operation in the Driving chapter.

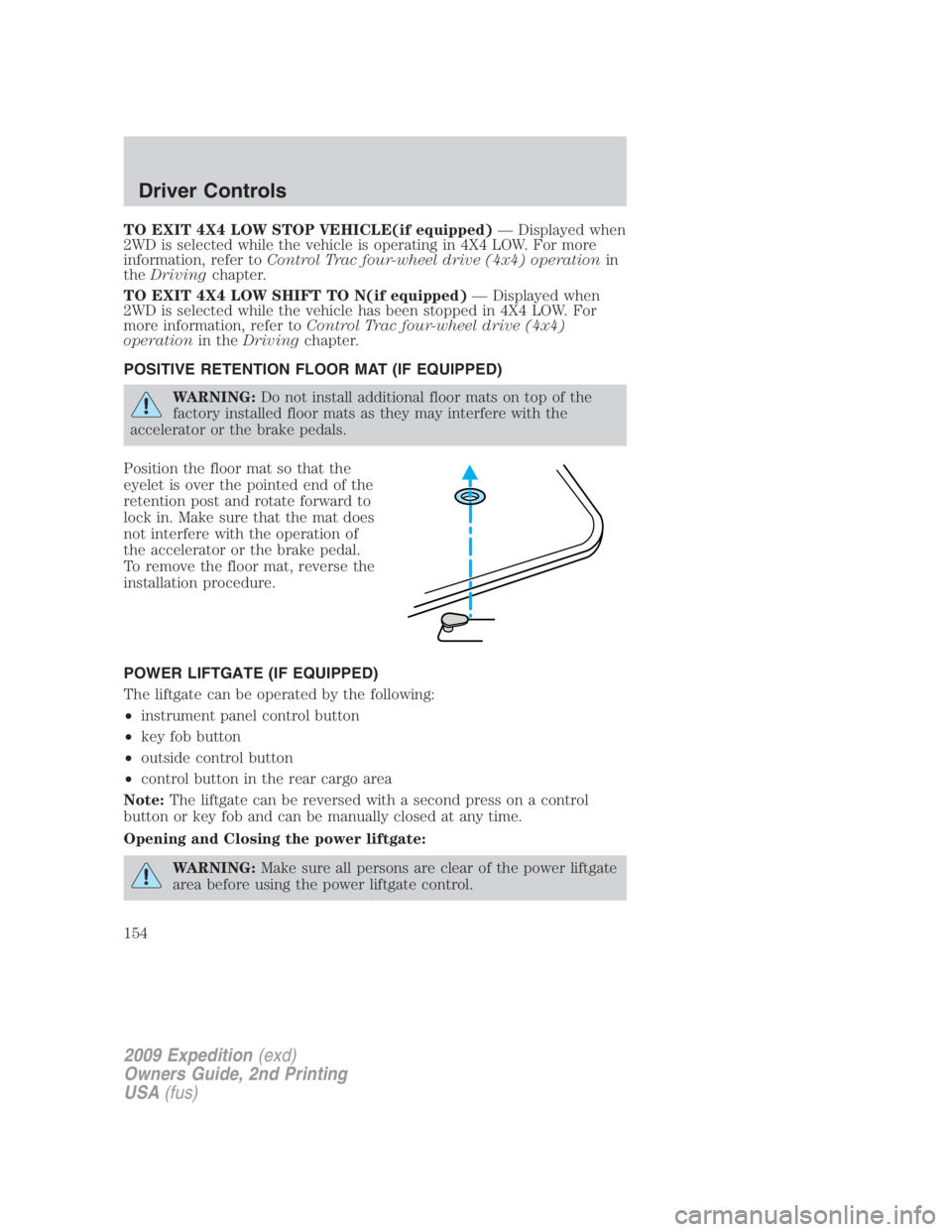

POSITIVE RETENTION FLOOR MAT (IF EQUIPPED)
WARNING: Do not install additional floor mats on top of the
factory installed floor mats as they may interfere with the
accelerator or the brake pedals.
Position the floor mat so that the
eyelet is over the pointed end of the
retention post and rotate forward to
lock in. Make sure that the mat does
not interfere with the operation of
the accelerator or the brake pedal.
To remove the floor mat, reverse the
installation procedure.
POWER LIFTGATE (IF EQUIPPED)
The liftgate can be operated by the following:
• instrument panel control button
• key fob button
• outside control button
• control button in the rear cargo area
Note: The liftgate can be reversed with a second press on a control
button or key fob and can be manually closed at any time.
Opening and Closing the power liftgate:
WARNING: Make sure all persons are clear of the power liftgate
area before using the power liftgate control.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
154

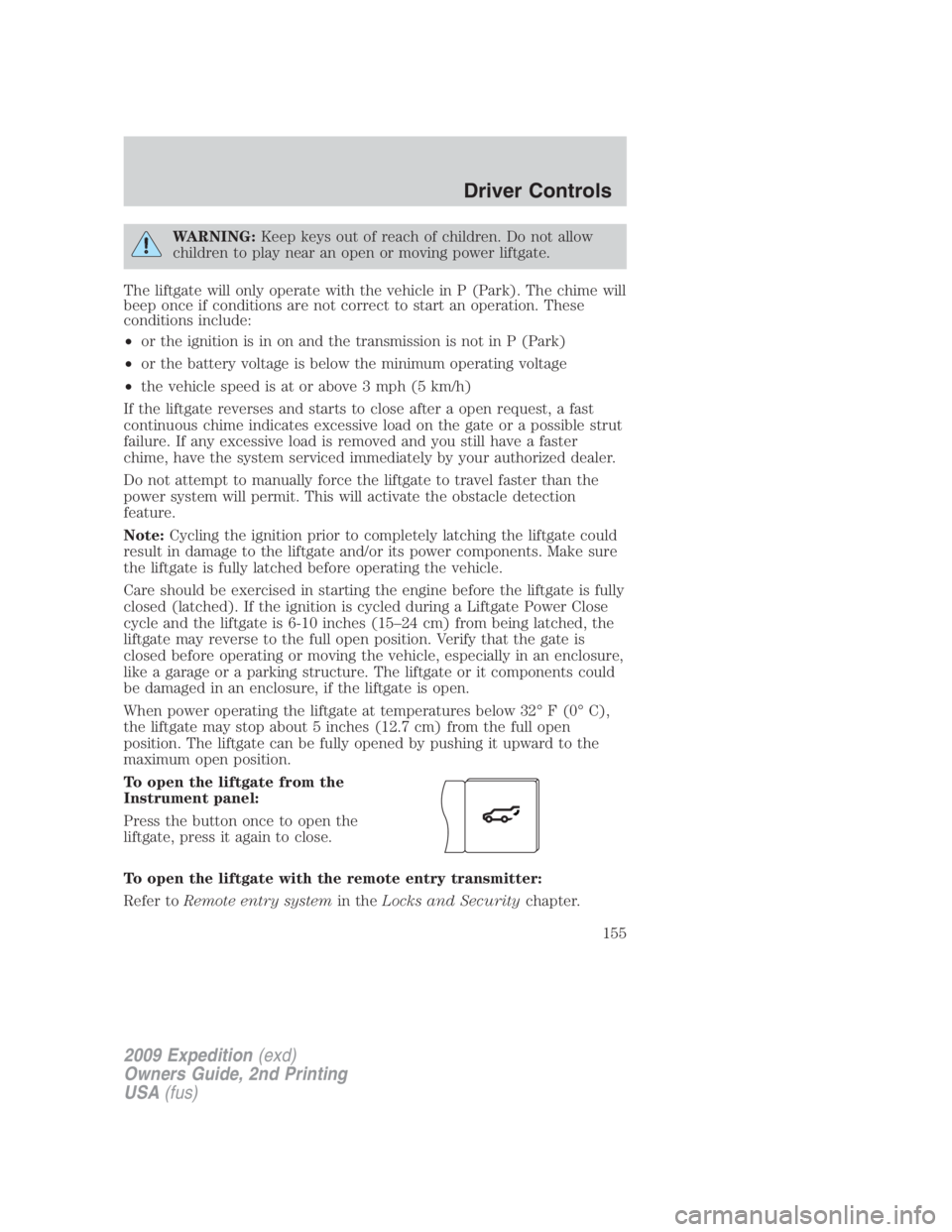

WARNING: Keep keys out of reach of children. Do not allow
children to play near an open or moving power liftgate.
The liftgate will only operate with the vehicle in P (Park). The chime will
beep once if conditions are not correct to start an operation. These
conditions include:
• or the ignition is in on and the transmission is not in P (Park)
• or the battery voltage is below the minimum operating voltage
• the vehicle speed is at or above 3 mph (5 km/h)
If the liftgate reverses and starts to close after a open request, a fast
continuous chime indicates excessive load on the gate or a possible strut
failure. If any excessive load is removed and you still have a faster
chime, have the system serviced immediately by your authorized dealer.
Do not attempt to manually force the liftgate to travel faster than the
power system will permit. This will activate the obstacle detection
feature.
Note: Cycling the ignition prior to completely latching the liftgate could
result in damage to the liftgate and/or its power components. Make sure
the liftgate is fully latched before operating the vehicle.
Care should be exercised in starting the engine before the liftgate is fully
closed (latched). If the ignition is cycled during a Liftgate Power Close
cycle and the liftgate is 6-10 inches (15–24 cm) from being latched, the
liftgate may reverse to the full open position. Verify that the gate is
closed before operating or moving the vehicle, especially in an enclosure,
like a garage or a parking structure. The liftgate or it components could
be damaged in an enclosure, if the liftgate is open.
When power operating the liftgate at temperatures below 32° F (0° C),
the liftgate may stop about 5 inches (12.7 cm) from the full open
position. The liftgate can be fully opened by pushing it upward to the
maximum open position.
To open the liftgate from the
Instrument panel:
Press the button once to open the
liftgate, press it again to close.
To open the liftgate with the remote entry transmitter:
Refer to Remote entry system in the Locks and Security chapter.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
155

To open the liftgate with outside
liftgate control button (manual
actuation):
1. To open, unlock the liftgate with
the remote entry transmitter or
power door unlock control.
2. To open the liftgate, push the
control button located in the top of
the liftgate pull cup handle.
Note: For the best performance
allow the power system to open the liftgate after releasing the control
button. Continued upward force after unlatching may activate the
obstacle detection feature and stop the power operation.
Note: If weight is added to the gate (bike rack, snow, etc.) the gate may
automatically start a power close event immediately after a power open.
In this mode a unique continuous chime will sound.
To close the liftgate with the
rear cargo area control button:
Press and release the control on the
left rear quarter panel to close the
liftgate. The chime will beep once if
conditions are not correct to start
an operation (i.e., the vehicle is out
of park). In a normal close, the
chime will begin just before the gate
starts to move and continue for total
of three seconds.
Press and release the control to open or reverse the liftgate.
Rear cargo area control button will not open the liftgate when the
liftgate is latched.
WARNING: Keep clear of the liftgate when activating the rear
switch.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
156

To manually operate the liftgate:
1. Disable the liftgate power function, refer to the Message center in this
chapter.
2. Open and close the liftgate as you would a standard liftgate.
Note: In case of operation in extreme cold -40°F (-40°C), or on extreme
inclines, manual operation of the liftgate is suggested.
Obstacle detection
The power liftgate system is equipped with an obstacle detection feature.
If the power liftgate is closing, the system is designed to reverse to full
open when it encounters a solid obstacle. A three second chime is also
sounded when an obstacle is detected. Once the obstacle is removed, the
liftgate can be closed under power.
If the power liftgate is opening, the system is designed to stop when it
encounters a solid obstacle. A chime will sound for three seconds while
the obstacle is present.
Resetting the power liftgate:
The power liftgate may not operate under these conditions. If any of
these conditions occur, the power liftgate must be reset.
• a low voltage or dead battery
• disconnected battery
• the liftgate is manually closed and left ajar (unlatched)
To reset the power liftgate:
1. Disconnect the battery for 20 seconds then, reconnect the battery.
2. Manually close and fully latch the liftgate.
3. Power open the liftgate by using the remote entry transmitter or
instrument panel button.
Note: If the power liftgate system is turned in the message
center, the system cannot be activated with the outside release handle or
rear cargo area control button. The system will need to be turned
to resume operation with the outside release handle or rear cargo area
control button. The power liftgate is still operational through the use of
the Remote entry transmitter and IP button when the power liftgate is
turned off in the message center.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
157

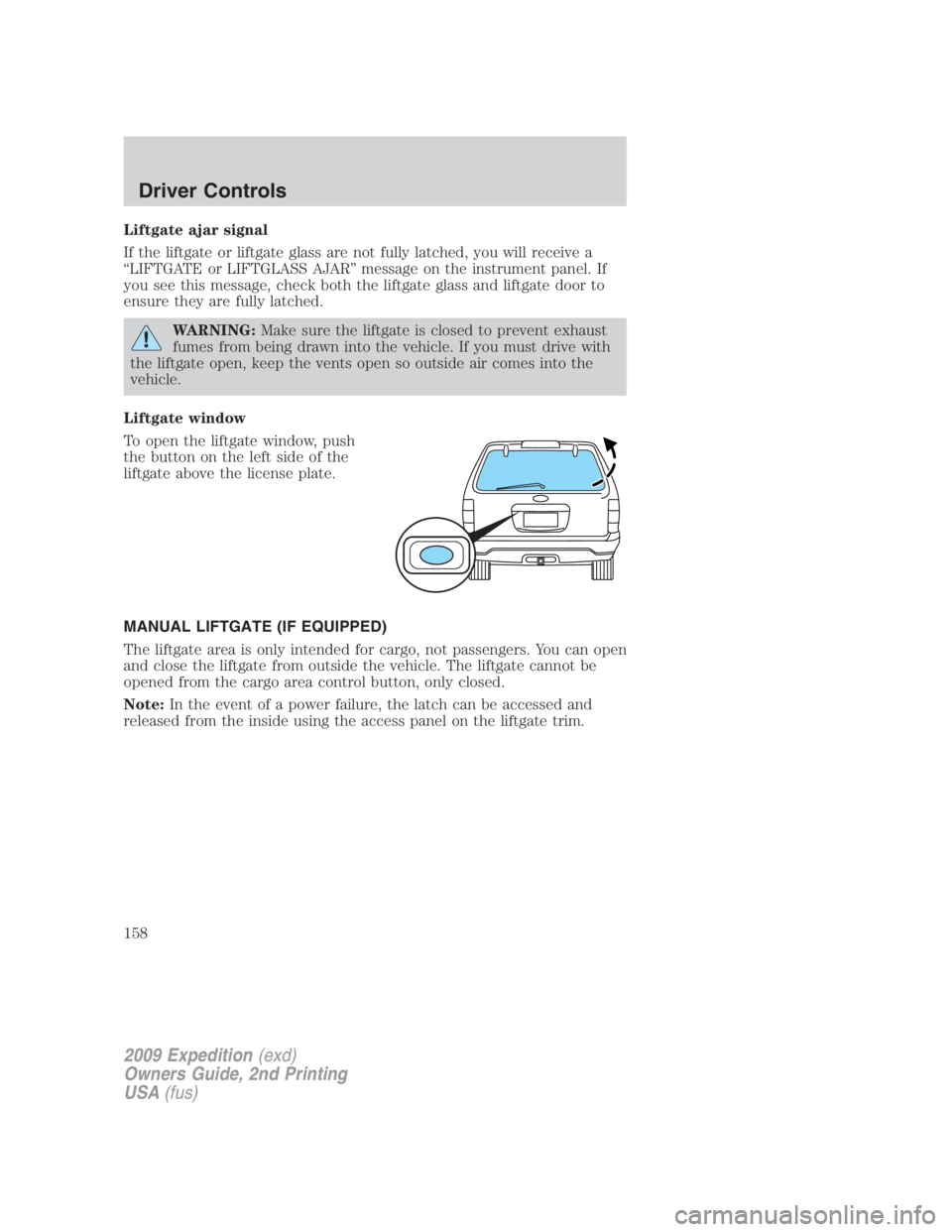

Liftgate ajar signal
If the liftgate or liftgate glass are not fully latched, you will receive a
“LIFTGATE or LIFTGLASS AJAR” message on the instrument panel. If
you see this message, check both the liftgate glass and liftgate door to
ensure they are fully latched.
WARNING: Make sure the liftgate is closed to prevent exhaust
fumes from being drawn into the vehicle. If you must drive with
the liftgate open, keep the vents open so outside air comes into the
vehicle.
Liftgate window
To open the liftgate window, push
the button on the left side of the
liftgate above the license plate.
MANUAL LIFTGATE (IF EQUIPPED)
The liftgate area is only intended for cargo, not passengers. You can open
and close the liftgate from outside the vehicle. The liftgate cannot be
opened from the cargo area control button, only closed.
Note: In the event of a power failure, the latch can be accessed and
released from the inside using the access panel on the liftgate trim.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
158

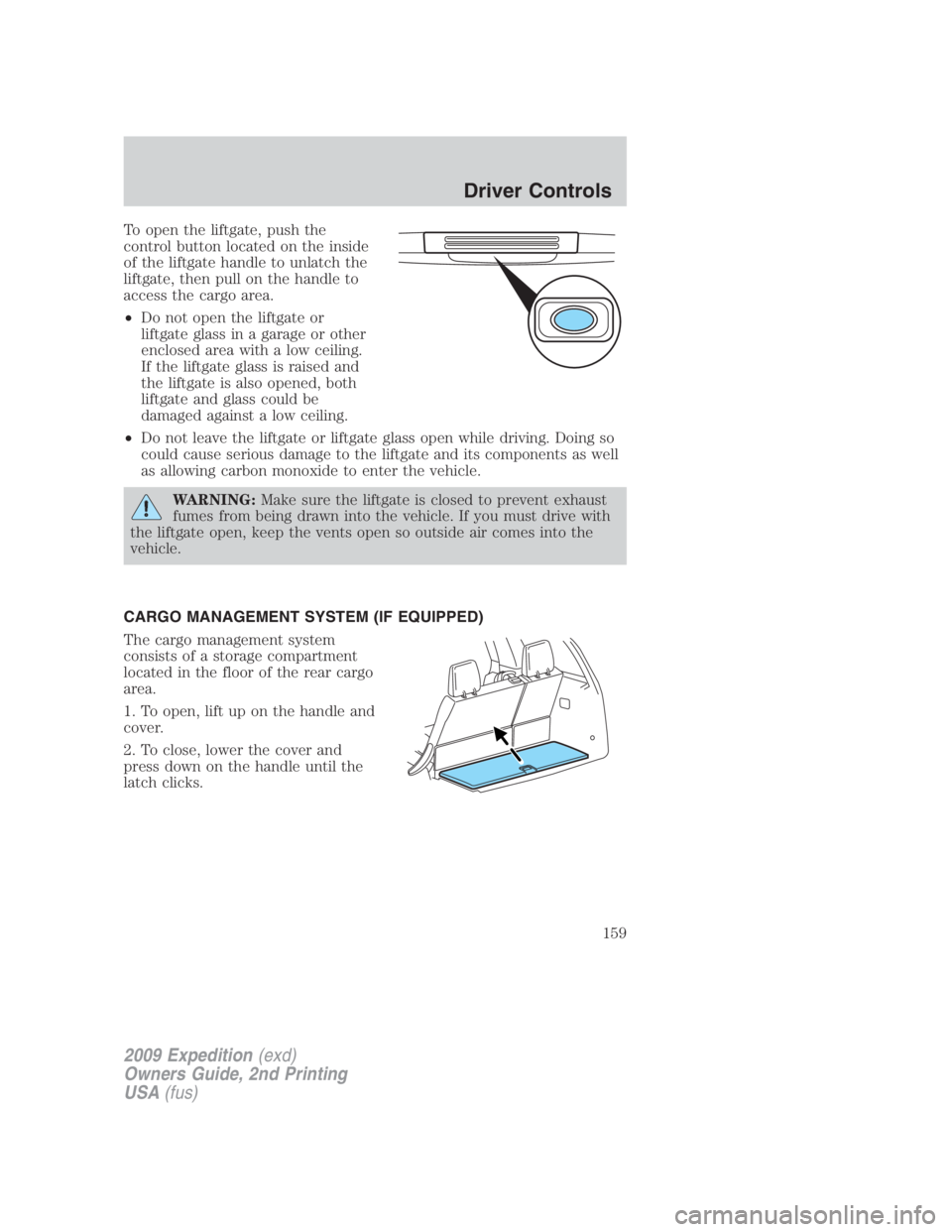

To open the liftgate, push the
control button located on the inside
of the liftgate handle to unlatch the
liftgate, then pull on the handle to
access the cargo area.
• Do not open the liftgate or
liftgate glass in a garage or other
enclosed area with a low ceiling.
If the liftgate glass is raised and
the liftgate is also opened, both
liftgate and glass could be
damaged against a low ceiling.
• Do not leave the liftgate or liftgate glass open while driving. Doing so
could cause serious damage to the liftgate and its components as well
as allowing carbon monoxide to enter the vehicle.
WARNING: Make sure the liftgate is closed to prevent exhaust
fumes from being drawn into the vehicle. If you must drive with
the liftgate open, keep the vents open so outside air comes into the
vehicle.
CARGO MANAGEMENT SYSTEM (IF EQUIPPED)
The cargo management system
consists of a storage compartment
located in the floor of the rear cargo
area.
1. To open, lift up on the handle and
cover.
2. To close, lower the cover and
press down on the handle until the
latch clicks.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Driver Controls
159

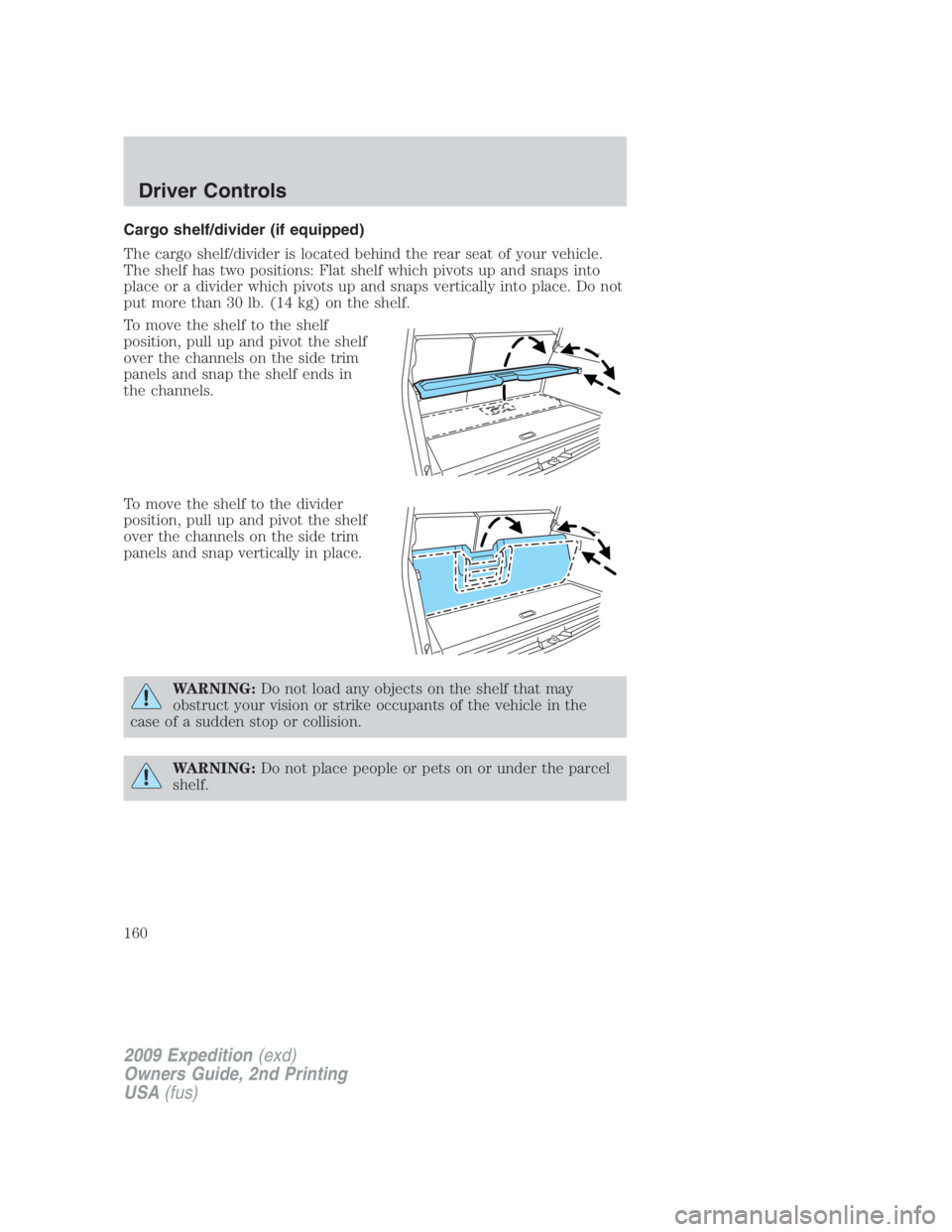

Cargo shelf/divider (if equipped)
The cargo shelf/divider is located behind the rear seat of your vehicle.
The shelf has two positions: Flat shelf which pivots up and snaps into
place or a divider which pivots up and snaps vertically into place. Do not
put more than 30 lb. (14 kg) on the shelf.
To move the shelf to the shelf
position, pull up and pivot the shelf
over the channels on the side trim
panels and snap the shelf ends in
the channels.
To move the shelf to the divider
position, pull up and pivot the shelf
over the channels on the side trim
panels and snap vertically in place.
WARNING: Do not load any objects on the shelf that may
obstruct your vision or strike occupants of the vehicle in the
case of a sudden stop or collision.
WARNING: Do not place people or pets on or under the parcel
shelf.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Driver Controls
160
