FORD EXPEDITION EL 2009 Owners Manual

Item Capacity Ford part name Ford part number /
Ford specification
Power steering fluid Fill between MIN
and MAX lines on
reservoir Motorcraft
MERCON
VATF XT-5-QM /
MERCON
V
Front axle fluid (4X4) 3.5 pints (1.7L) Motorcraft SAE 80W-90
Premium Rear Axle Lube XY-80W90-QL /
WSP-M2C197-A
Rear axle fluid
–Conventional
differential
(9.75 inch axle) 4.5 pints (2.13L)
Motorcraft SAE 75W-140
Synthetic Rear Axle
Lube
6XY-75W140-QL /
WSL-M2C192-A
Rear axle
fluid–Limited-slip
differential
(9.75 inch axle) 4.25 pints
(2.01L)
5Transfer case fluid
(4X4) 1.6-1.8 quarts
(1.5-1.7L) Motorcraft Transfer Case
Fluid XL–12 /
—
Windshield washer fluid 4.5 quarts (4.1L) Motorcraft Premium
Windshield Washer
Concentrate ZC-32-A /
WSB-M8B16-A2
Fuel tank (Standard) 28.0 gallons
(106.0L) ——2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Maintenance and Specifications
401

Item Capacity Ford part name Ford part number /
Ford specification
Fuel tank
(Expedition EL – U.S.
only) 33.5 gallons
(126.8L)
Fuel tank
(Expedition Max –
Canada only) 33.5 gallons
(126.8L)
1Add the coolant type originally equipped in your vehicle.
2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.
3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler.
4Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance information to determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.
5Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent for complete refill of Ford
Limited Slip rear axles.
6Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants are not to be checked or changed unless a leak is suspected, service is
required or the axle has been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Maintenance and Specifications
402

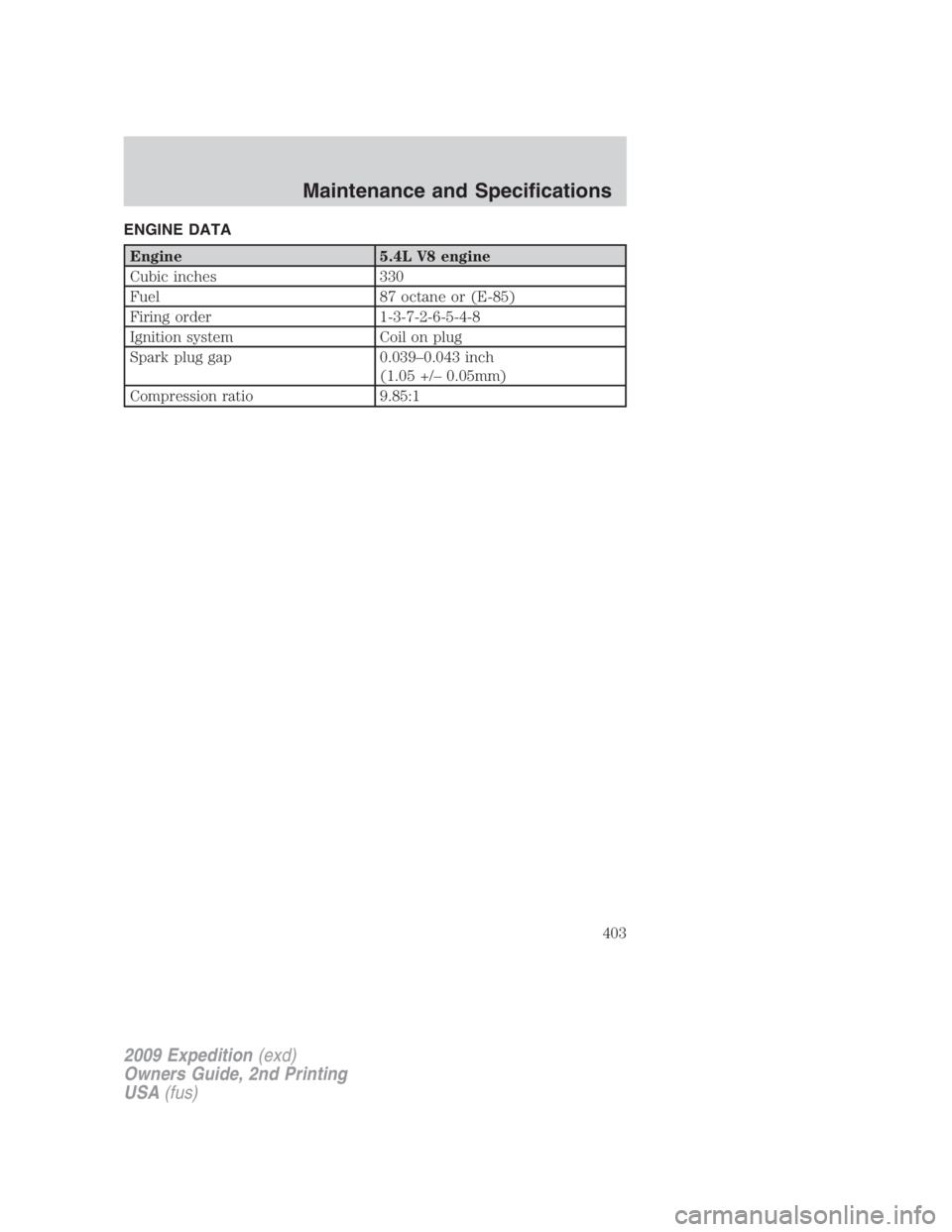

ENGINE DATA
Engine 5.4L V8 engine
Cubic inches 330
Fuel 87 octane or (E-85)
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap 0.039–0.043 inch
(1.05 +/– 0.05mm)
Compression ratio 9.85:1
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Maintenance and Specifications
403

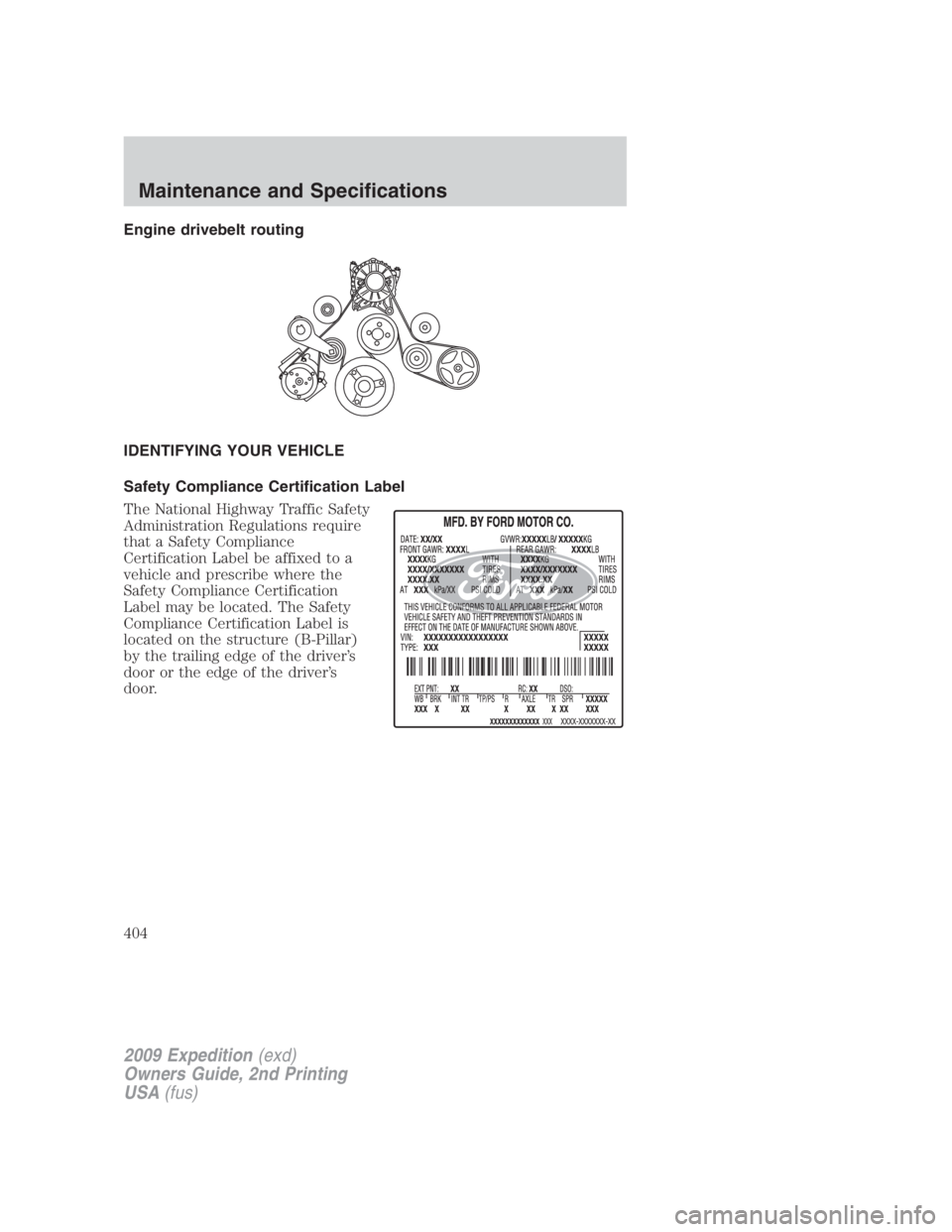

Engine drivebelt routing
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Maintenance and Specifications
404

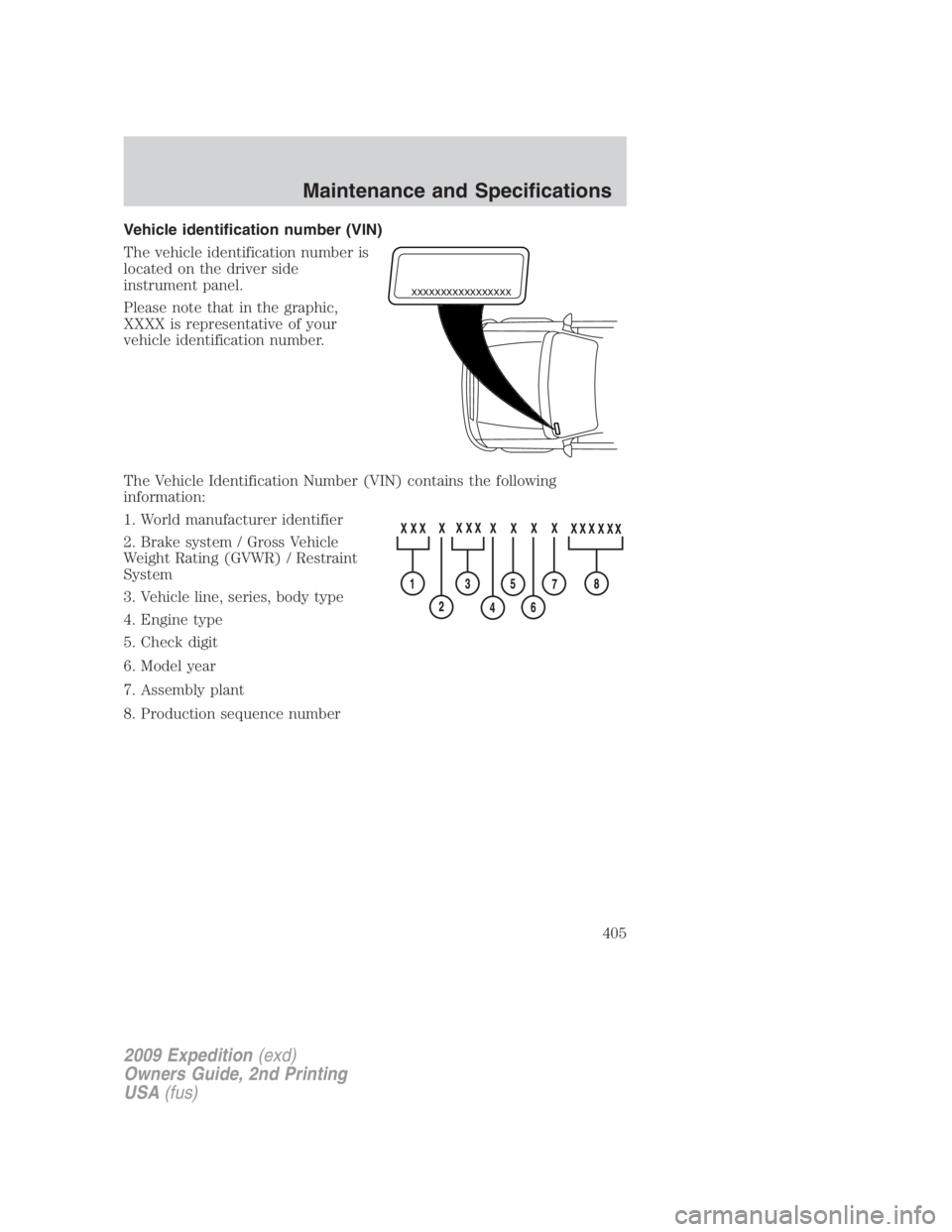

Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number XXXXXXXXXXXXXXXXX
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Maintenance and Specifications
405

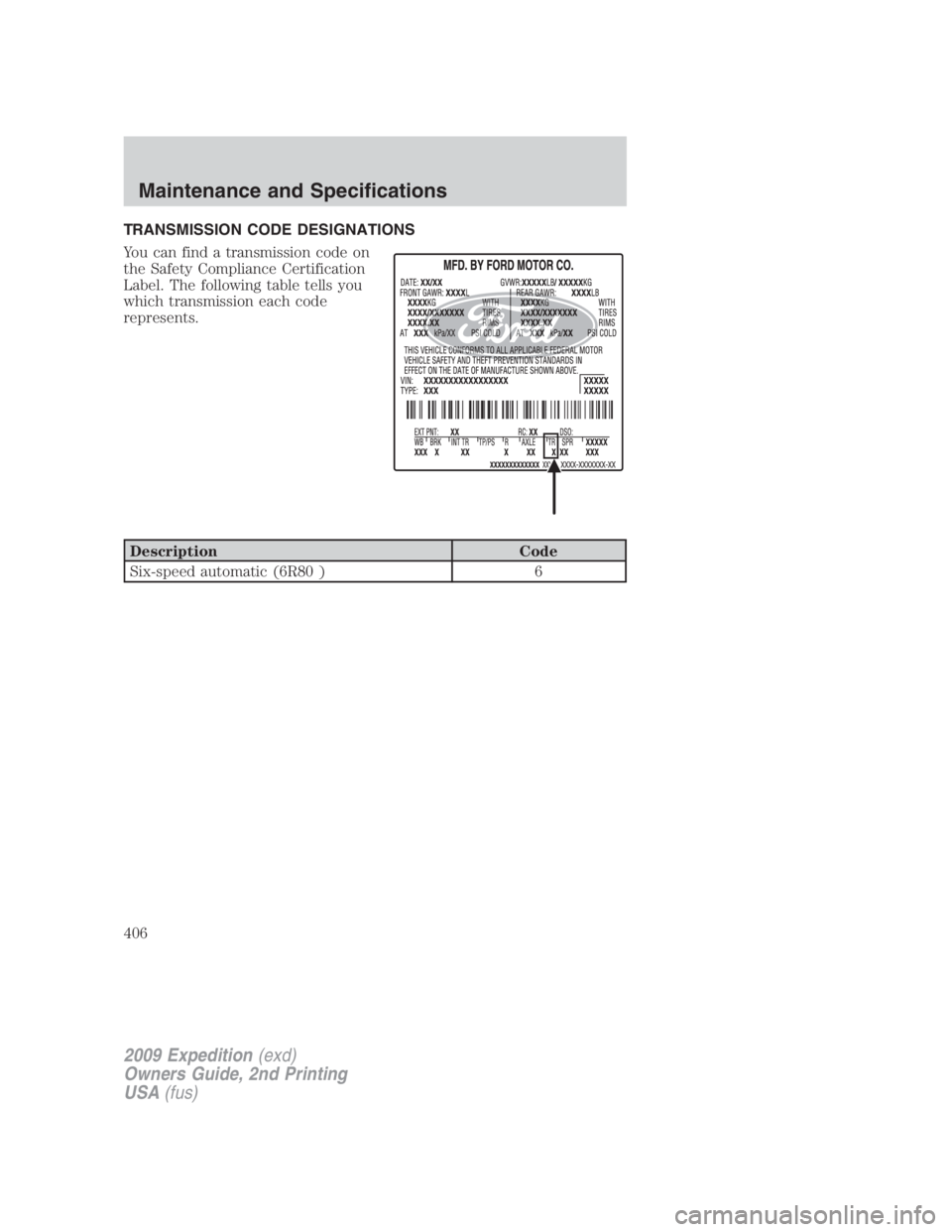

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Six-speed automatic (6R80 ) 6
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Maintenance and Specifications
406

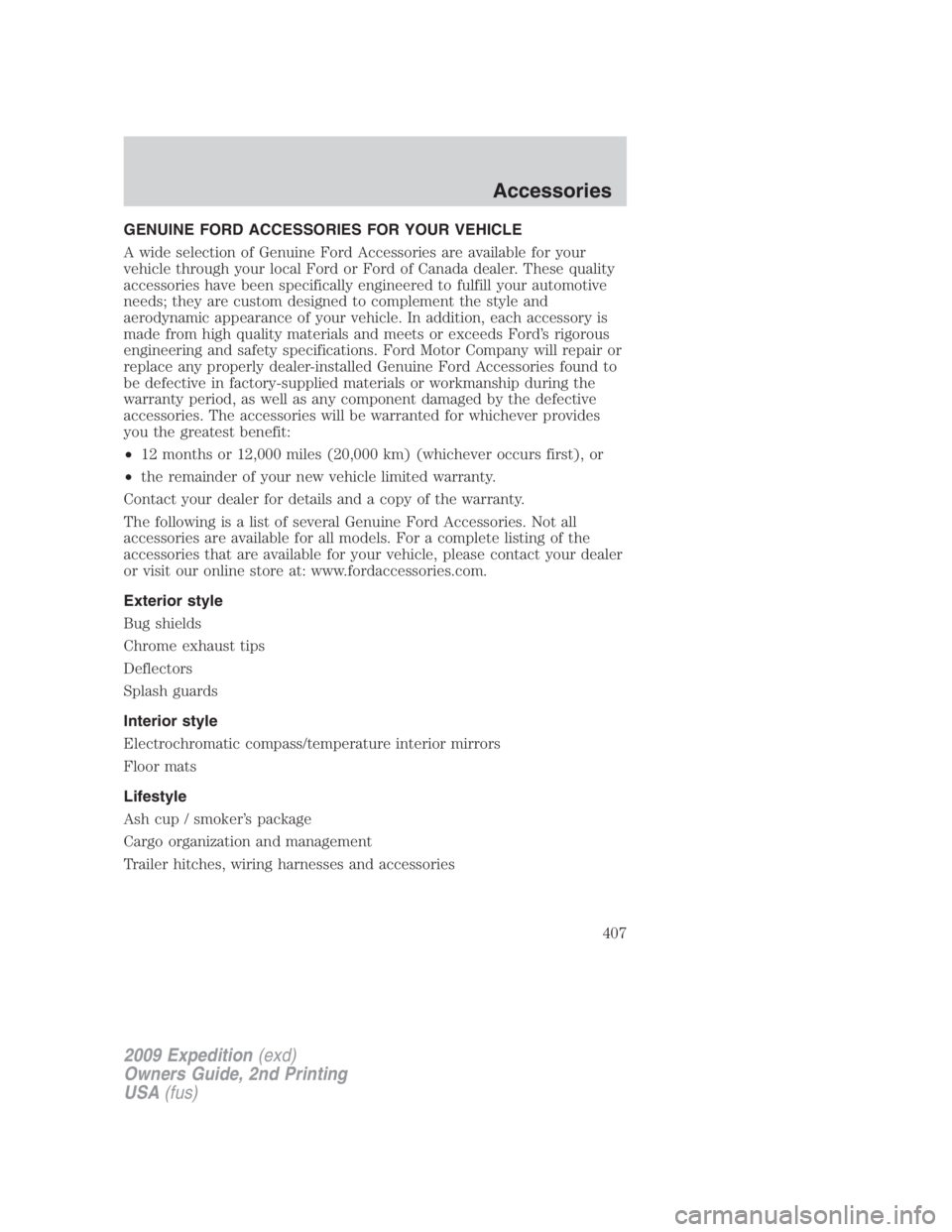

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
• 12 months or 12,000 miles (20,000 km) (whichever occurs first), or
• the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Trailer hitches, wiring harnesses and accessories
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Accessories
407

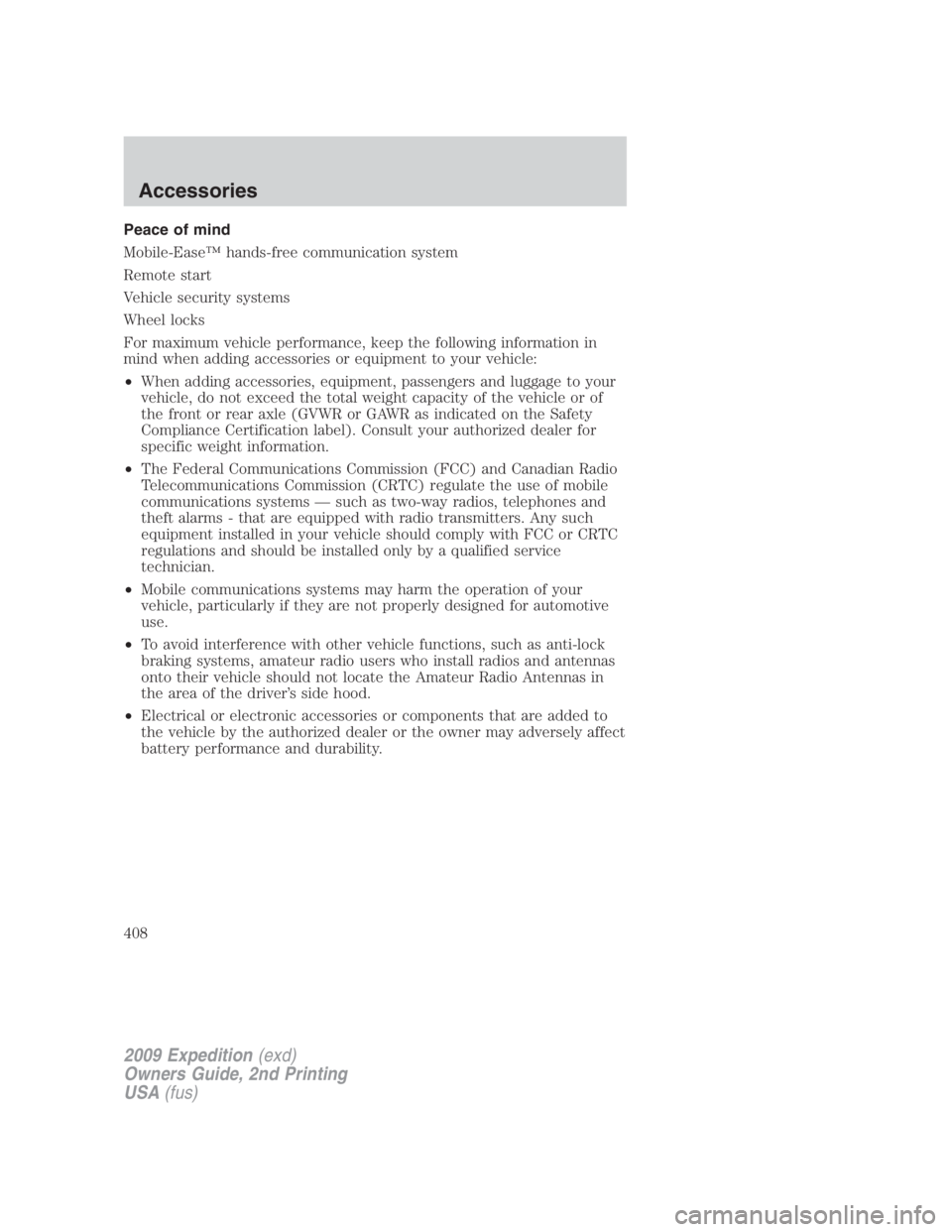

Peace of mind
Mobile-Ease™ hands-free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
• When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
• The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
• Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
• To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
• Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Accessories
408

A
ABS (see Brakes) .....................289
Accessory delay ........................114
AdvanceTrac ..............................291
Air cleaner filter ...............395, 398
Air suspension ...........................297
description ..............................297
Airbag supplemental
restraint system ........217, 221, 223
and child safety seats ............219
description ..............217, 221, 223
disposal ....................................227
driver airbag ............219, 222, 224
indicator light .................221, 226
operation .................219, 222, 224
passenger airbag .....219, 222, 224
side airbag ...............................221
Antifreeze
(see Engine coolant) ................374
Anti-lock brake system
(see Brakes) ..............................289
Anti-theft system ..............177, 181
arming the system ..................181
disarming a triggered
system .....................................182
Armrests ....................................187
Audio system
(see Radio) ......................20, 24, 32
Automatic transmission
driving an automatic
overdrive .................................300
fluid, adding ............................395
fluid, checking ........................395
fluid, refill capacities ..............399
fluid, specification ..................399
Auxiliary input jack (Line in) ....40
Auxiliary power point ...............110 Axle
lubricant specifications ..........399
refill capacities ........................399
B
Battery .......................................372
acid, treating emergencies .....372
jumping a disabled battery ....339
maintenance-free ....................372
replacement, specifications ...398
servicing ..................................372
Belt-Minder
.............................213
Booster seats .............................242
Brakes ........................................288
anti-lock ...................................289
anti-lock brake system (ABS)
warning light ...........................289
fluid, checking and adding ....394
fluid, refill capacities ..............399
fluid, specifications .................399
lubricant specifications ..........399
parking ....................................290
shift interlock ..................298–299
Bulbs ............................................99
C
Capacities for refilling fluids ....399
Cargo cover ...............................160
Cargo management system ......159
Cassette tape player ...................24
Cell phone use ..............................8
Changing a tire .........................329
Child safety seats ......................231
in front seat ............................232
in rear seat ..............................232
LATCH .....................................235
recommendations ...................229
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus) Index
409

Child safety seats - booster
seats ...........................................242
Cleaning your vehicle
engine compartment ..............357
instrument panel ....................358
interior .............................359–360
plastic parts ............................357
washing ....................................355
waxing .....................................356
wheels ......................................356
wiper blades ............................358
Clock adjust
6-CD in dash .............................34
AM/FM/CD .................................26
Compass, electronic ..................132
calibration ...............................133
set zone adjustment .......132, 148
Console ......................................110
overhead ..........................108–109
Controls
power seat ...............................188
steering column ......................123
Coolant
checking and adding ..............374
refill capacities ................378, 399
specifications ..........................399
Cruise control
(see Speed control) ..................120
Customer Assistance ................319
Ford Extended
Service Plan ............................352
Getting assistance outside the
U.S. and Canada .....................352
Getting roadside assistance ...319
Getting the service
you need .................................348
Ordering additional owner’s
literature .................................353 Utilizing the
Mediation/Arbitration
Program ...................................351
D
Daytime running lamps
(see Lamps) ................................95
Dipstick
automatic transmission
fluid ..........................................395
engine oil .................................369
Driving under special
conditions ..................304, 313, 316
sand .........................................315
snow and ice ...........................317
through water .................315, 318
DVD system .................................51
E
Electronic message
center .................................130, 140
Emergencies, roadside
jump-starting ..........................339
running out of fuel .........339, 386
Emission control system ..........391
Engine ................................403–404
cleaning ...................................357
coolant .....................................374
fail-safe cooling .......................379
idle speed control ...................372
lubrication specifications .......399
refill capacities ........................399
service points ..........................366
starting after a collision .........321
Engine block heater .................286
Engine oil ..................................369
change oil soon warning,
message center .......................369
2009 Expedition (exd)
Owners Guide, 2nd Printing
USA (fus)Index
410
