To set a higher set speed
²Press and hold SET ACC.
Release the control when the
desired vehicle speed is reached
or
²Press and release SET ACC.
Each press will increase the set
speed by 1.6 km/h (1 mph) or
²Accelerate with your accelerator
pedal, then press and release
SET ACC.
You can accelerate with the
accelerator pedal at any time
during speed control usage.
Releasing the accelerator pedal will
return your vehicle to the
previously programmed set speed.
To set a lower set speed
²Press and hold COAST. Release
the control when the desired
speed is reached or
²Press and release COAST. Each
press will decrease the set
speed by 1.6 km/h (1 mph) or
²Depress the brake pedal. When
the desired vehicle speed is
reached, press SET ACC.
RSM
SET
ACC
COAST
RSM
SET
ACC
COAST
uno_tap-down-feature
uno_resume-feature
Controls and features
42
Page 42 of 236
To return to a set speed
²Press RSM. For RSM to operate,
the vehicle speed must be faster
than 48 km/h (30 mph).
To disengage speed control
²Depress the brake pedal or
²Depress the clutch pedal (if
equipped)
Disengaging the speed control will
not erase the previously
programmed set speed.
Pressing OFF will erase the
previously programmed set speed.
Indicator light
Lights when the speed control is
turned on and remains lit until
either the speed control or the
ignition is turned off.
RSM
SET
ACC
COAST
SPEED
CONT
uno_disengaging
uno_light
uno_tilt_steer
Controls and features
43
Page 43 of 236

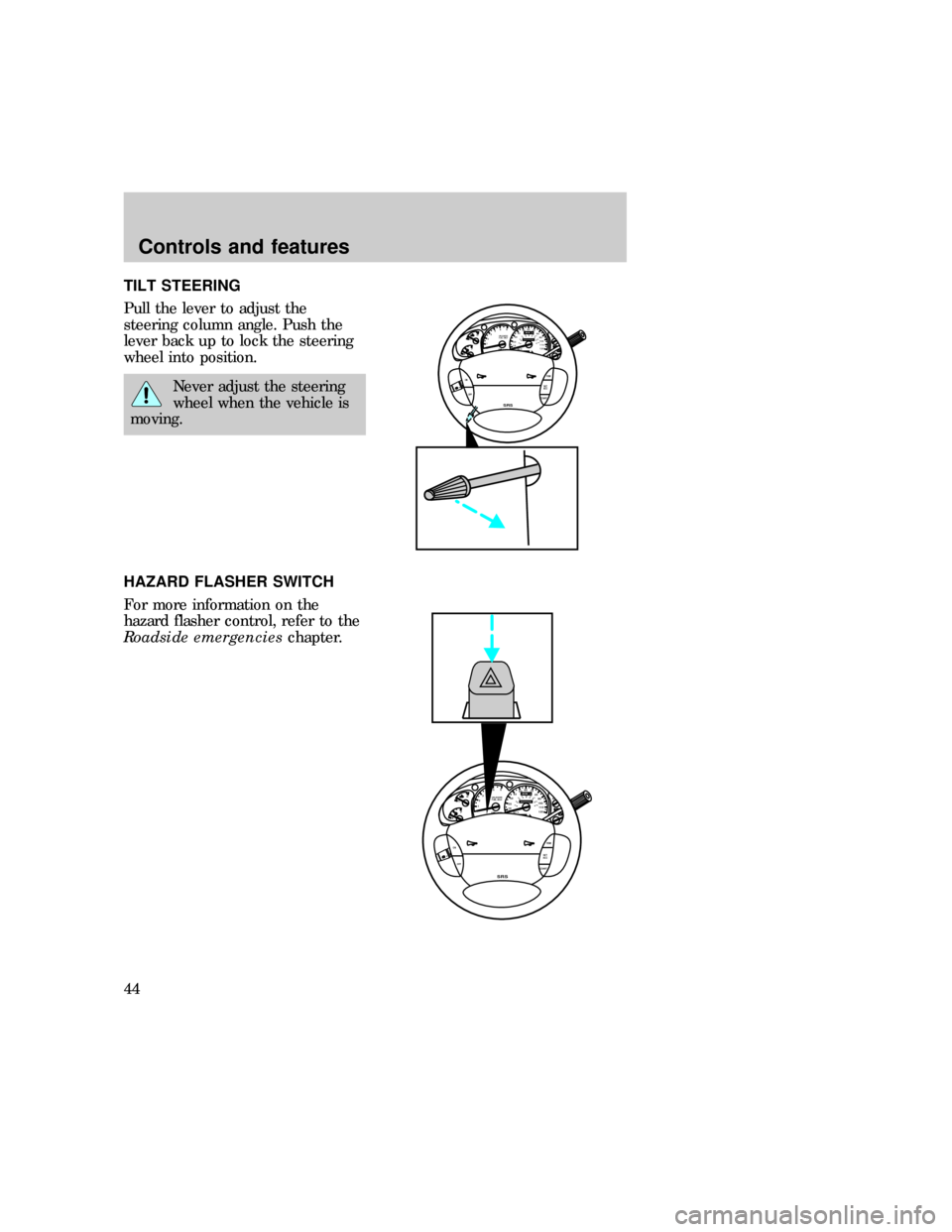

TILT STEERING
Pull the lever to adjust the
steering column angle. Push the
lever back up to lock the steering
wheel into position.
Never adjust the steering
wheel when the vehicle is
moving.
HAZARD FLASHER SWITCH
For more information on the
hazard flasher control, refer to the
Roadside emergencieschapter.
0P RND21
UNLEADED
FUEL ONLY
RPM x 100012345
6H
C
F
E
RSM
SET
ACC
COAST OFF ON
SRS
- +H
H
L L020
1030405060
70
80
90
110
120000000oooo
km/h10020406080100
120
140
160
180
0P RND21
UNLEADED
FUEL ONLY
RPM x 100012345
6H
C
F
E
RSM
SET
ACC
COAST OFF ON
SRS
- +H
H
L L020
1030405060
70
80
90
110
120000000oooo
km/h10020406080100
120
140
160
180
uno_hazard
uno_high_beams_flash_to_pass
Controls and features
44
Page 44 of 236
FLASH-TO-PASS
Pull toward you and release
quickly for ªflash-to-passº
operation.
USING OVERDRIVE
Overdrive is the normal drive
position and will stay on
automatically until deactivated.
The overdrive function allows
automatic upshift to second, third
and fourth gear.
0P RND21
UNLEADED
FUEL ONLY
RPM x 100012345
6H
C
F
E
RSM
SET
ACC
COAST OFF ON
SRS
- +H
H
L L020
1030405060
70
80
90
110
120000000ooookm/h10020406080100
120
140
160
180
uno_overdrive
uno_deactivate_od
Controls and features
45
Page 45 of 236
Deactivating overdrive
To deactivate overdrive, press the
control at the end of the gearshift
lever. The
O/D
OFFwill illuminate.
Deactivate overdrive when:
²driving with a heavy load
²driving in hilly terrain
²additional engine braking is
desired

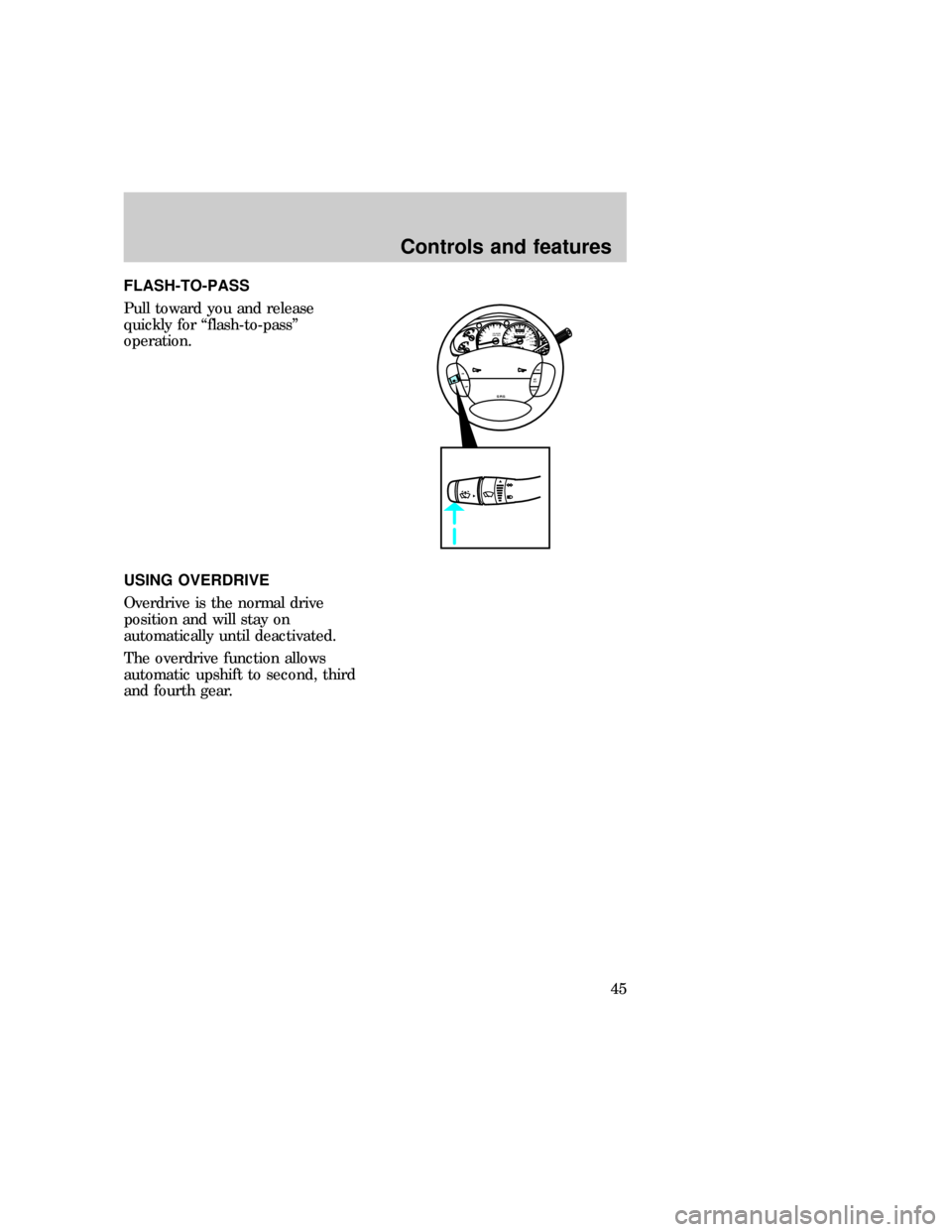

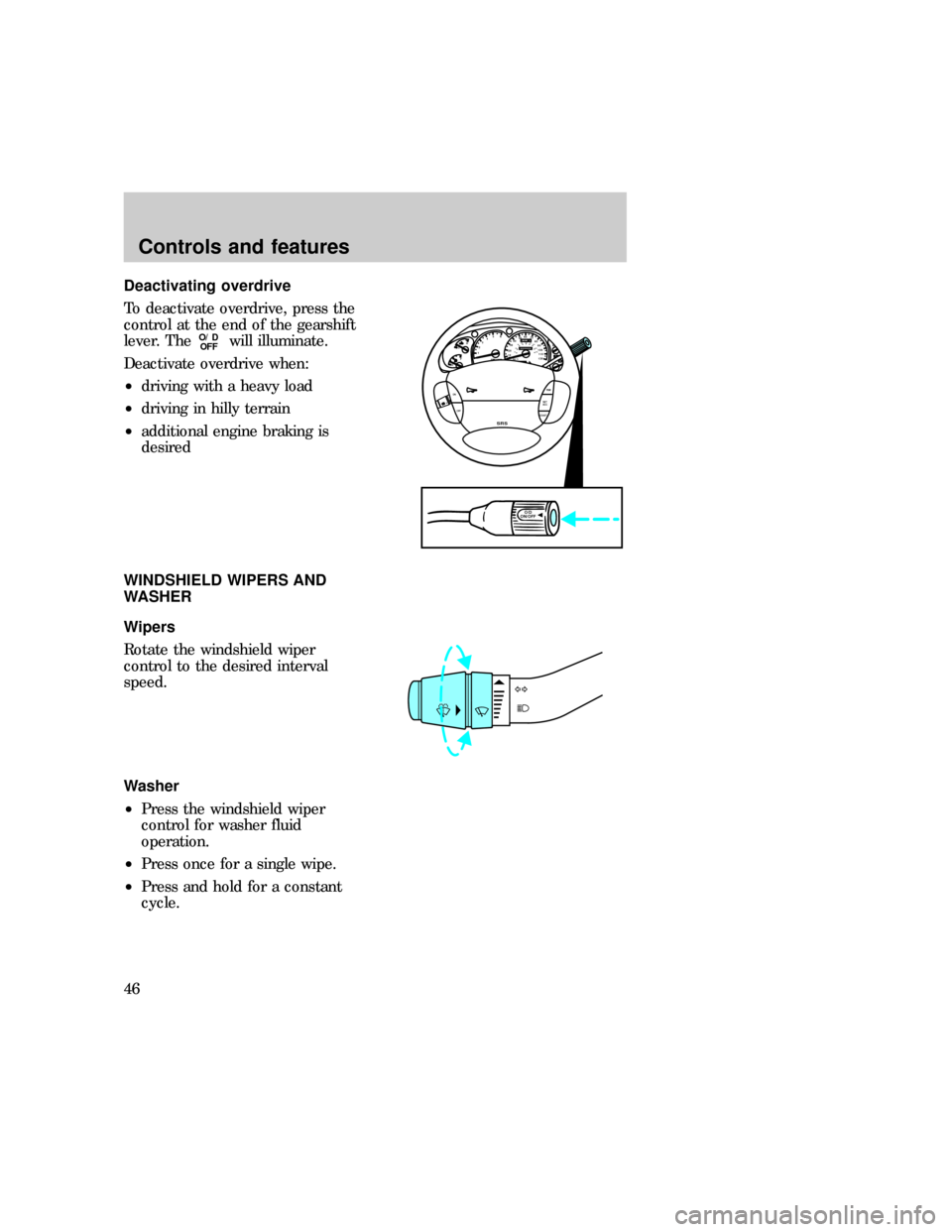

WINDSHIELD WIPERS AND
WASHER
Wipers
Rotate the windshield wiper
control to the desired interval
speed.
Washer
²Press the windshield wiper
control for washer fluid
operation.
²Press once for a single wipe.
²Press and hold for a constant
cycle.0P RND21RPM x 100012345
6H
C
F
E
RSM
SET
ACC
COAST OFF ON
SRS
- +H
H
L L020
1030405060
70
80
90
110
120000000oooo
km/h10020406080100
120
140
160
180
O/D
ON/OFF
uno_title_waher_wiper
uno_wipers
uno_washer
uno_speed_dependent_wipers
Controls and features
46
Page 46 of 236
Speed dependent wipers
(if equipped)
This feature operates only in the
intermittent wiping mode. In
position one (slowest delay) this
feature will not function. At higher
speeds, the Speed Dependent
feature shortens the delay between
wipes when you use the variable
interval wipers. Delay will
automatically adjust at speeds
between 16 and 105 km/h (10 and
65 mph. This will help compensate
for the extra moisture that
accumulates on your windshield at
higher speeds.
Map lamps
Press the left or right control to
turn the lamp on.
Press again to turn the lamp off.
AUTOLAMP DELAY SYSTEM
(IF EQUIPPED)
The autolamp sets the headlamps
to turn on and off automatically.
The autolamp may be set to:
²turn on the lamps automatically
at night
²turn off the lamps automatically
during daylight
OPEN
GARAGE
MODELAMPLAMP
AUTO
MIRROR ON
DIMON AUTOLAMP
uno_map_lamps uno_auto-mirror
Controls and features
47
Page 47 of 236
²keep the lamps on for up to
three minutes after the key is
turned to OFF
Setting autolamp
1. Make sure that the headlamp
control is in the Off position.
Leaving the headlamp control on
will override the autolamp.
2. Turn the ignition to the ON
position or start the vehicle.
3. Slide the delay control all the
way to the left.
4. Press the ON/OFF control. The
lamp indicator will glow.
5. The autolamp automatically
turns the lamps on and off. The
indicator light will illuminate when
the headlamps turn on.
OFF
AUTO
MIRROR ON
DIMON AUTOLAMP
AUTO
MIRROR ON
DIMON AUTOLAMP
uno_auto-set
uno_auto_dim_mirror
Controls and features
48
Page 48 of 236

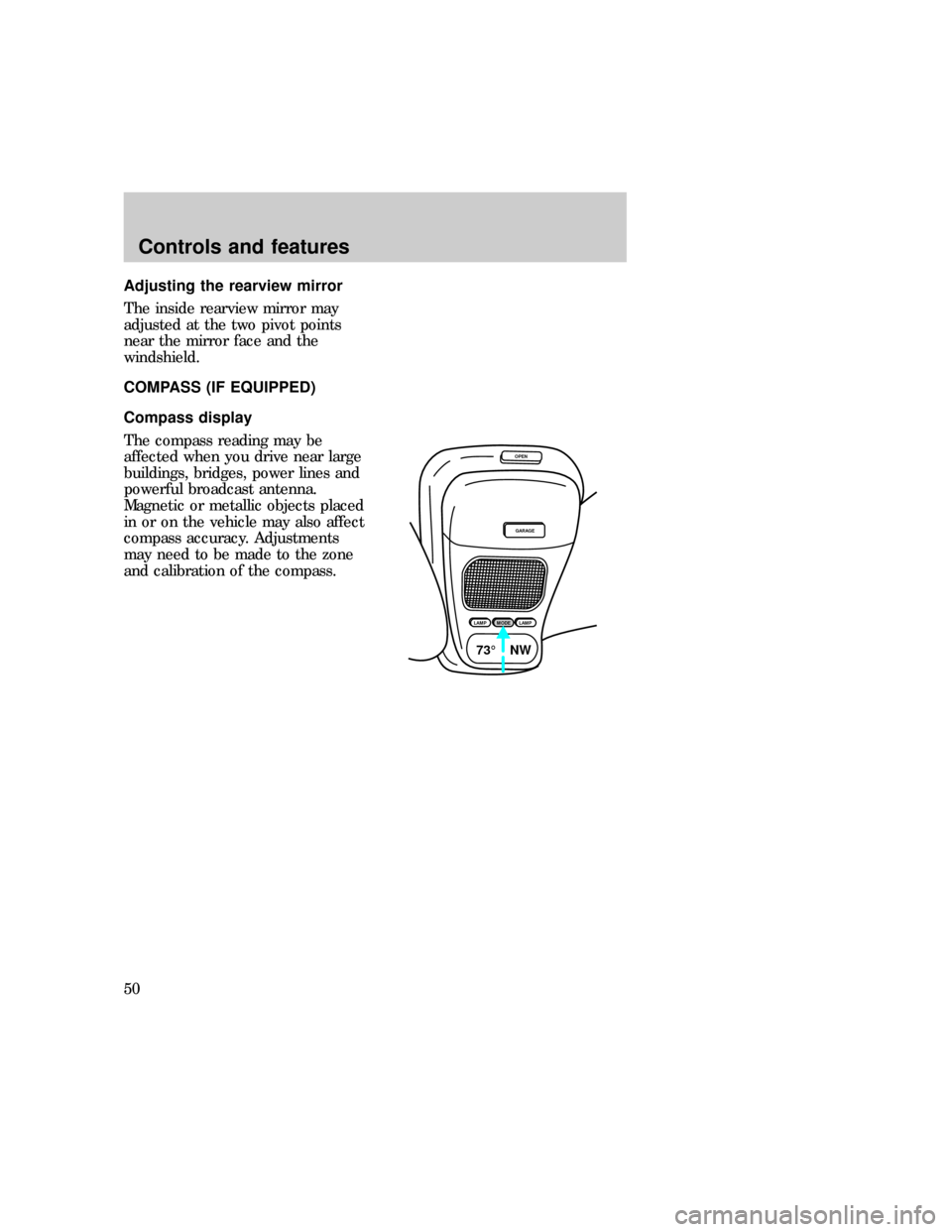

AUTOMATIC DIMMING
FEATURE (IF EQUIPPED)
The autolamp/automatic dimming
mirror is equipped with an
automatic dimming feature. This
feature will change from the
normal state to the non-glare
ªactiveº state when bright lights
(glare) reach the mirror. When the
mirror detects bright light from
front or behind, it will adjust
automatically to minimize glare.

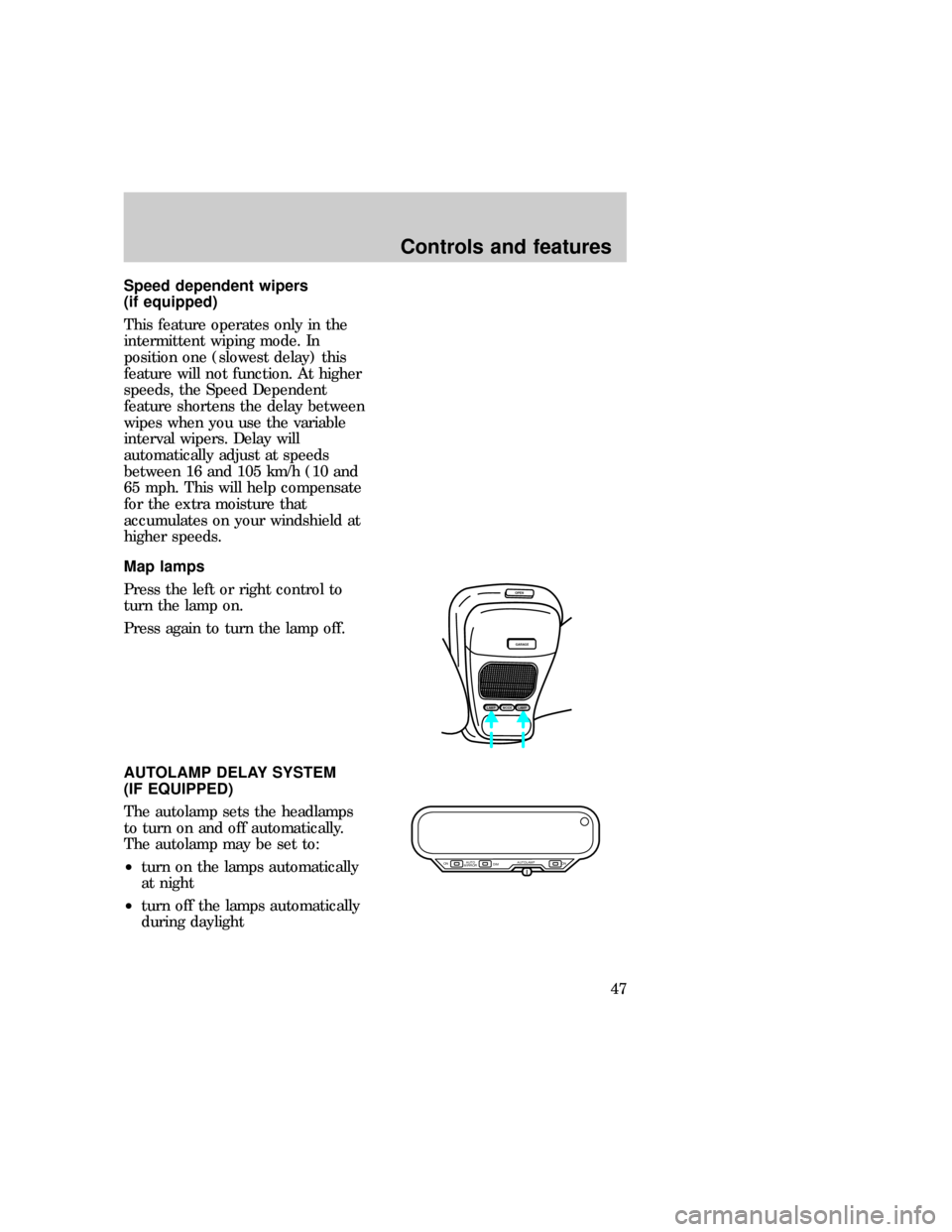

To activate the mirror, have the
key in the ON position and push
the ON button once. The lamp
indicator will glow. Press again to
turn off.
To temporarily darken push the
DIM button. The mirror will return
to normal as soon as the button is
released.
The mirror will automatically
return to the normal position
whenever the vehicle is placed in
R (Reverse) (when the mirror is in
the ON position). This helps to
ensure a bright clear view in the
mirror when backing up.
AUTO
MIRROR ON
DIMON AUTOLAMP
AUTO
MIRROR ON
DIMON AUTOLAMP
uno_mirror_adjust
Controls and features
49
Page 49 of 236

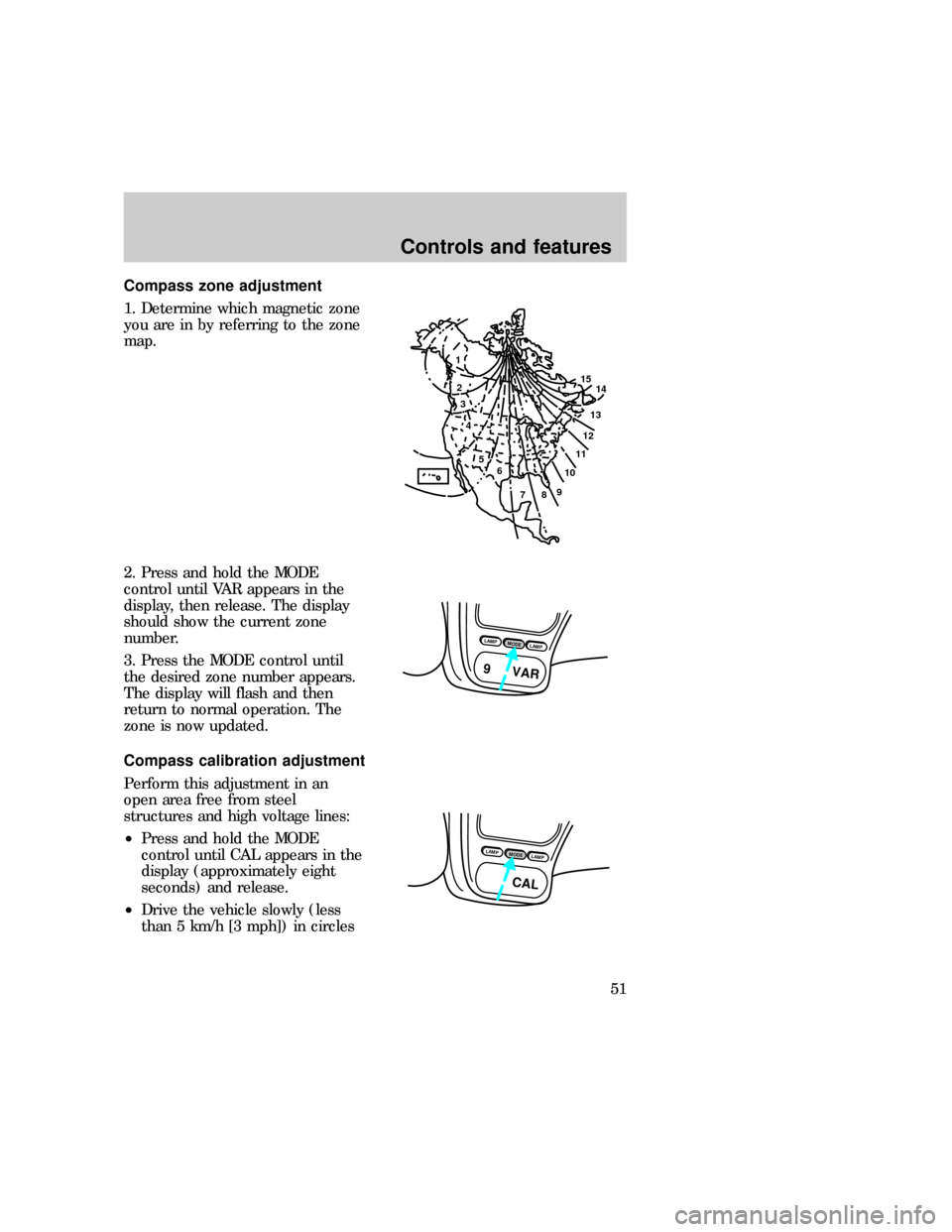

Adjusting the rearview mirror
The inside rearview mirror may
adjusted at the two pivot points
near the mirror face and the
windshield.
COMPASS (IF EQUIPPED)
Compass display
The compass reading may be
affected when you drive near large
buildings, bridges, power lines and
powerful broadcast antenna.
Magnetic or metallic objects placed
in or on the vehicle may also affect
compass accuracy. Adjustments
may need to be made to the zone
and calibration of the compass.
OPEN
GARAGE
LAMPMODELAMP
73¡ NW
uno_compass-head
uno_compass_temp_display
uno_adjust-zone
Controls and features
50
Page 50 of 236

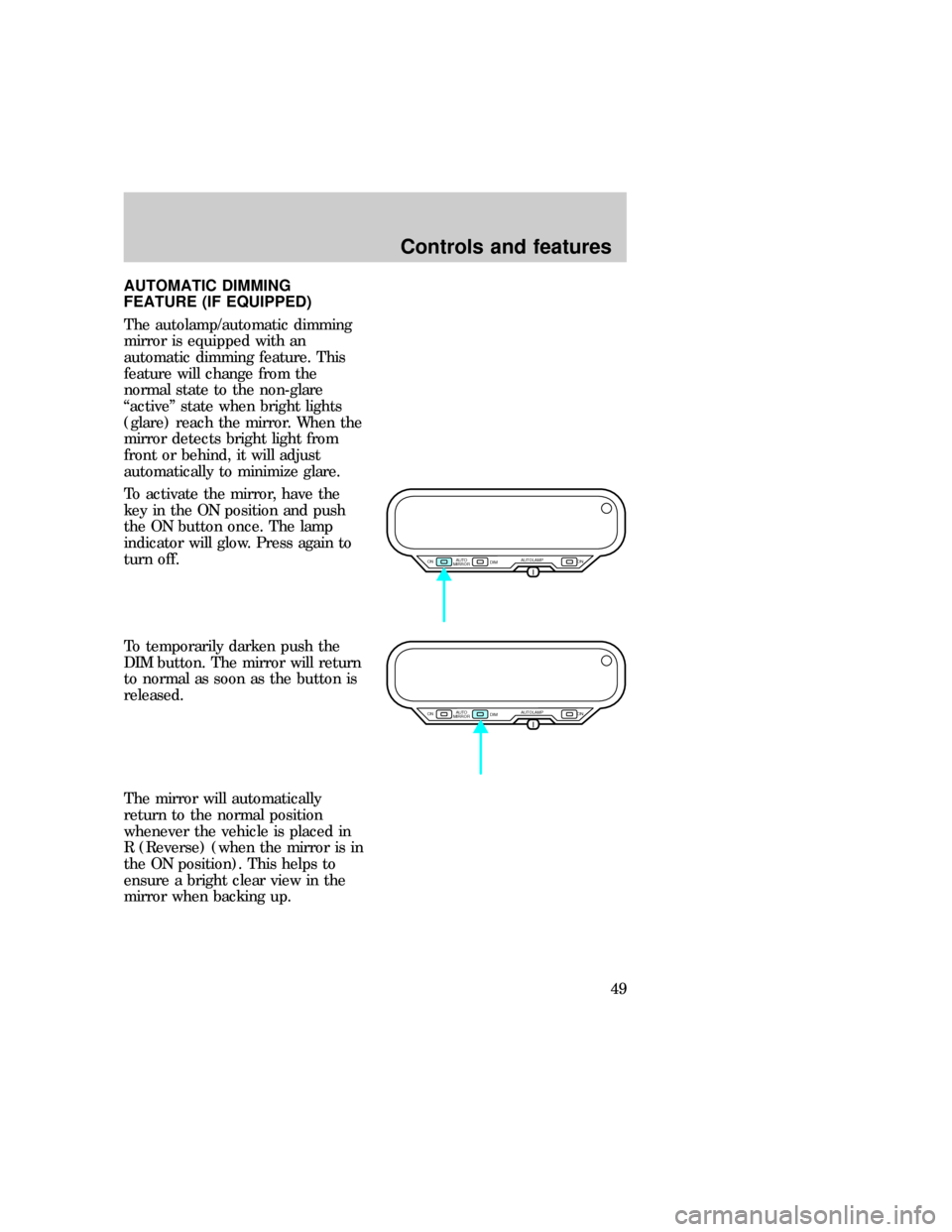

Compass zone adjustment
1. Determine which magnetic zone
you are in by referring to the zone
map.
2. Press and hold the MODE
control until VAR appears in the
display, then release. The display
should show the current zone
number.
3. Press the MODE control until
the desired zone number appears.
The display will flash and then
return to normal operation. The
zone is now updated.
Compass calibration adjustment
Perform this adjustment in an
open area free from steel
structures and high voltage lines:
²Press and hold the MODE
control until CAL appears in the
display (approximately eight
seconds) and release.
²Drive the vehicle slowly (less
than 5 km/h [3 mph]) in circles
1
2
3
4
5
6
7891011121314 15
LAMPMODELAMP
9 VAR
LAMPMODELAMP
CAL
uno_adjust-calibration
Controls and features
