FORD EXPLORER 1997 2.G User Guide

is not in the ignition) and the
driver's door is opened.
Key-in-ignition warning chime
Sounds when the key is left in the
ignition in the Off/Lock or Acc
position and the driver's door is
opened.
Safety belt warning chime
For information on the safety belt
warning chime, refer to the
Seating and safety restraints
chapter.
Supplemental restraint system
(SRS) warning chime
For information on the SRS
warning chime, refer to the
Seating and safety restraints
chapter.uno_key_chime
com_safety_chime.01
com_srs_chime.01
uno_gauges_title
Instrumentation
12

INSTRUMENT CLUSTER
GAUGES

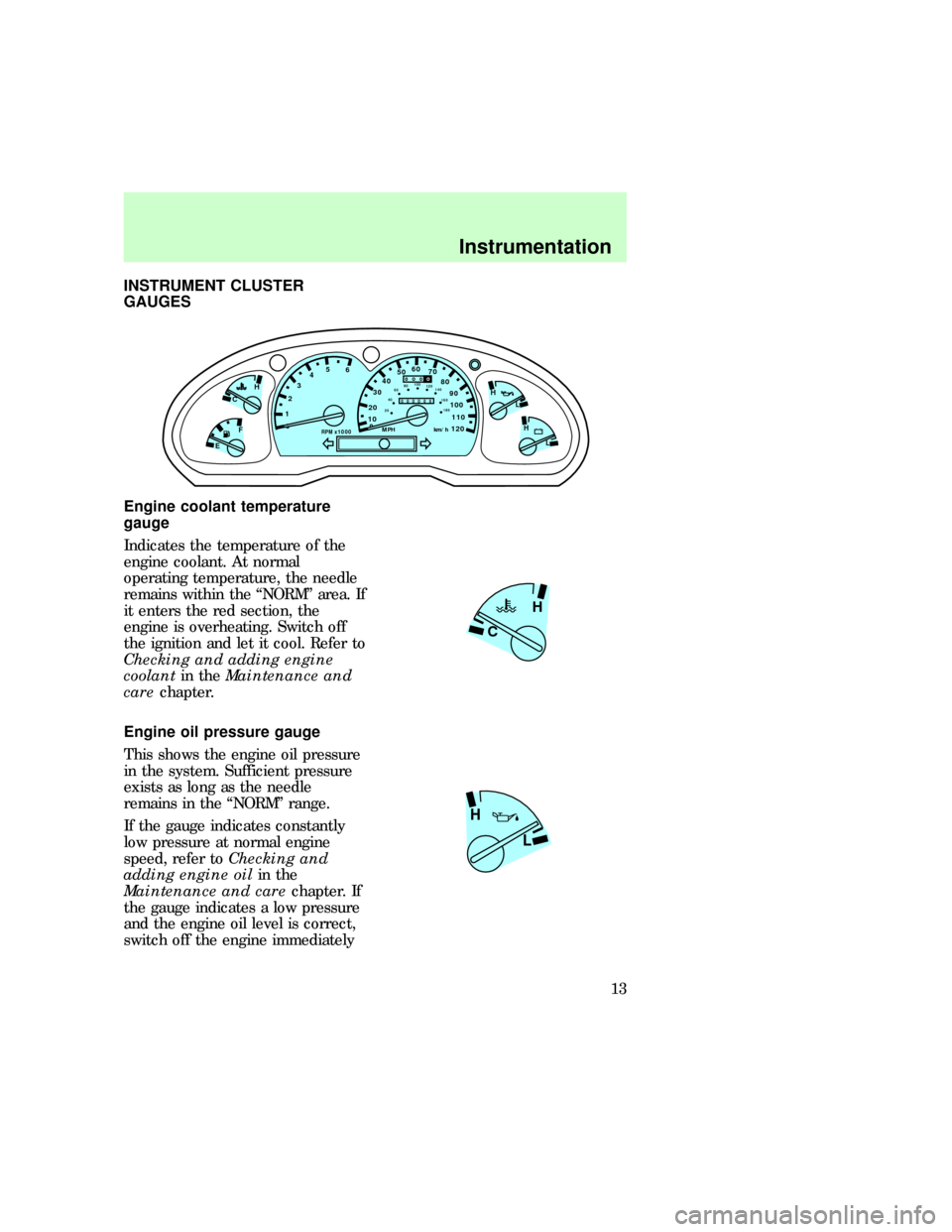

Engine coolant temperature
gauge
Indicates the temperature of the
engine coolant. At normal
operating temperature, the needle
remains within the ªNORMº area. If
it enters the red section, the
engine is overheating. Switch off
the ignition and let it cool. Refer to
Checking and adding engine
coolantin theMaintenance and
carechapter.
Engine oil pressure gauge
This shows the engine oil pressure
in the system. Sufficient pressure
exists as long as the needle
remains in the ªNORMº range.
If the gauge indicates constantly
low pressure at normal engine
speed, refer toChecking and
adding engine oilin the
Maintenance and carechapter. If
the gauge indicates a low pressure
and the engine oil level is correct,
switch off the engine immediately
0RPM x 1000
12345
6- +
H
H
L LH
C
F
E
0
20
1030405060
70
80
90
110
120000000
oooo
10020406080100
120
140
160
180
MPH km/h
H
C
H
L
com_coolant_temperature.01
com_oil_pressure.01
Instrumentation
13

and have your vehicle checked at
your dealership or by a qualified
technician.

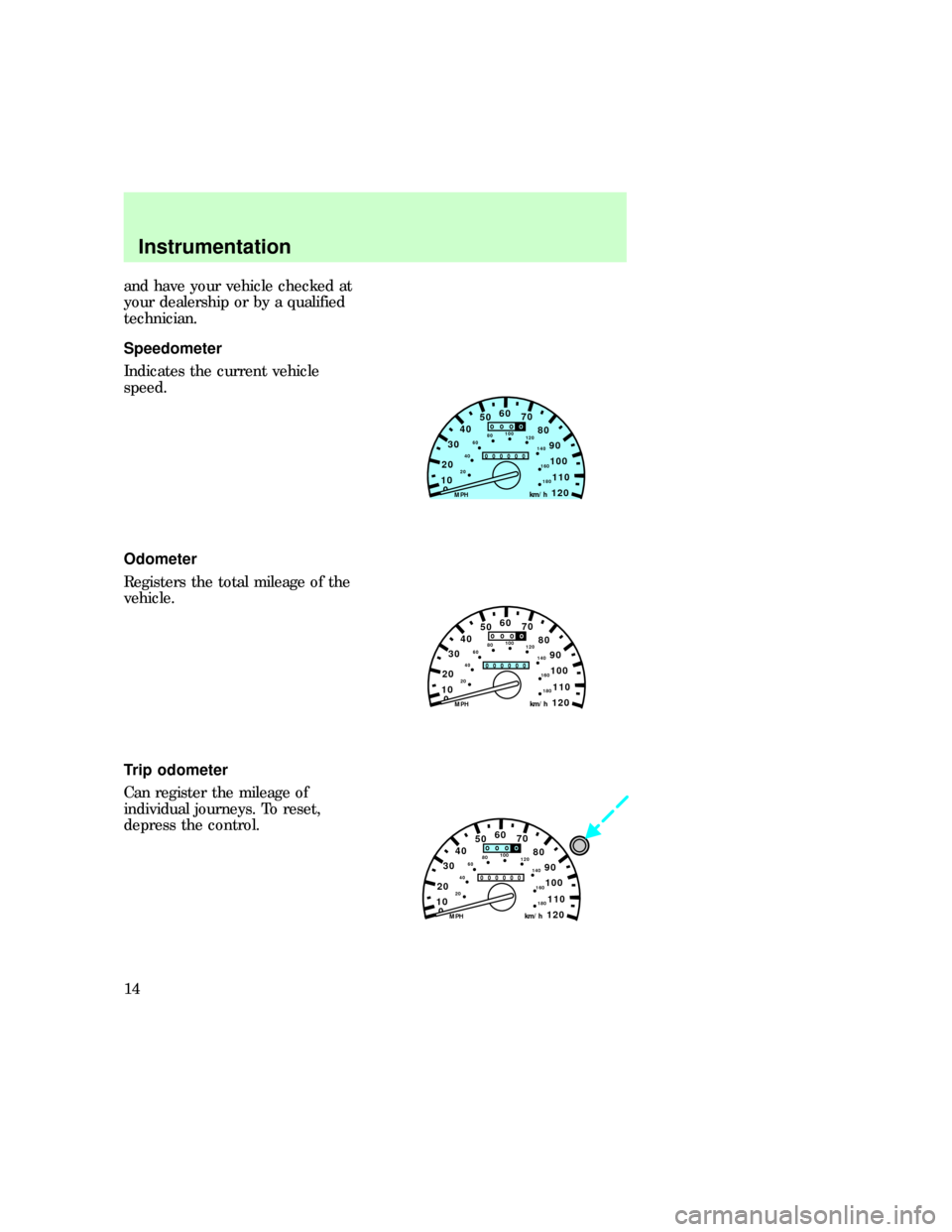

Speedometer
Indicates the current vehicle
speed.
Odometer
Registers the total mileage of the
vehicle.
Trip odometer
Can register the mileage of
individual journeys. To reset,
depress the control.
0
20
1030405060
70
80
90
110
120000000
oooo
km/hMPH
10020406080100
120
140
160
180
0
20
1030405060
70
80
90
110
120000000
oooo
100
km/hMPH
20406080100
120
140
160
180
0
20
1030405060
70
80
90
110
120000000
oooo
100
km/hMPH
20406080100
120
140
160
180
com_speedometer.01 uno_odometer
uno_trip_odometer
uno_tachometer
Instrumentation
14

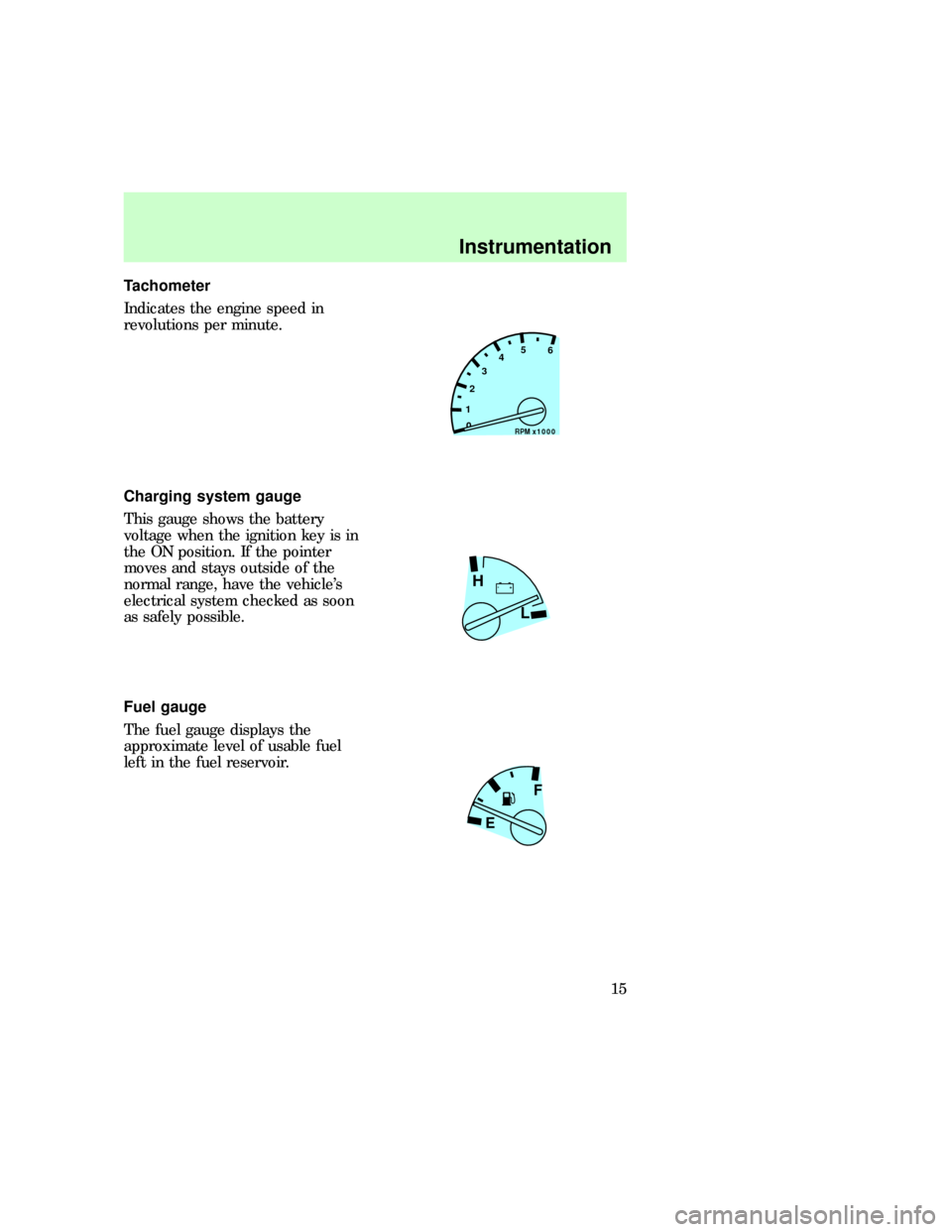

Tachometer
Indicates the engine speed in
revolutions per minute.
Charging system gauge
This gauge shows the battery
voltage when the ignition key is in
the ON position. If the pointer
moves and stays outside of the
normal range, have the vehicle's
electrical system checked as soon
as safely possible.
Fuel gauge
The fuel gauge displays the
approximate level of usable fuel
left in the fuel reservoir.
0RPM x 1000
12345
6
- +H
L
F
E
uno_voltage
uno_fuel_gauge
uno_message_title
Instrumentation
15

MESSAGE CENTER
(IF EQUIPPED)
With the ignition in the ON
position, the message center
displays important vehicle
information through a constant
monitor of vehicle systems. You
may select display features on the
message center for a display of
status preceded by a brief
indicator chime. The system will
also notify you of potential vehicle
problems with a display of system
warnings.

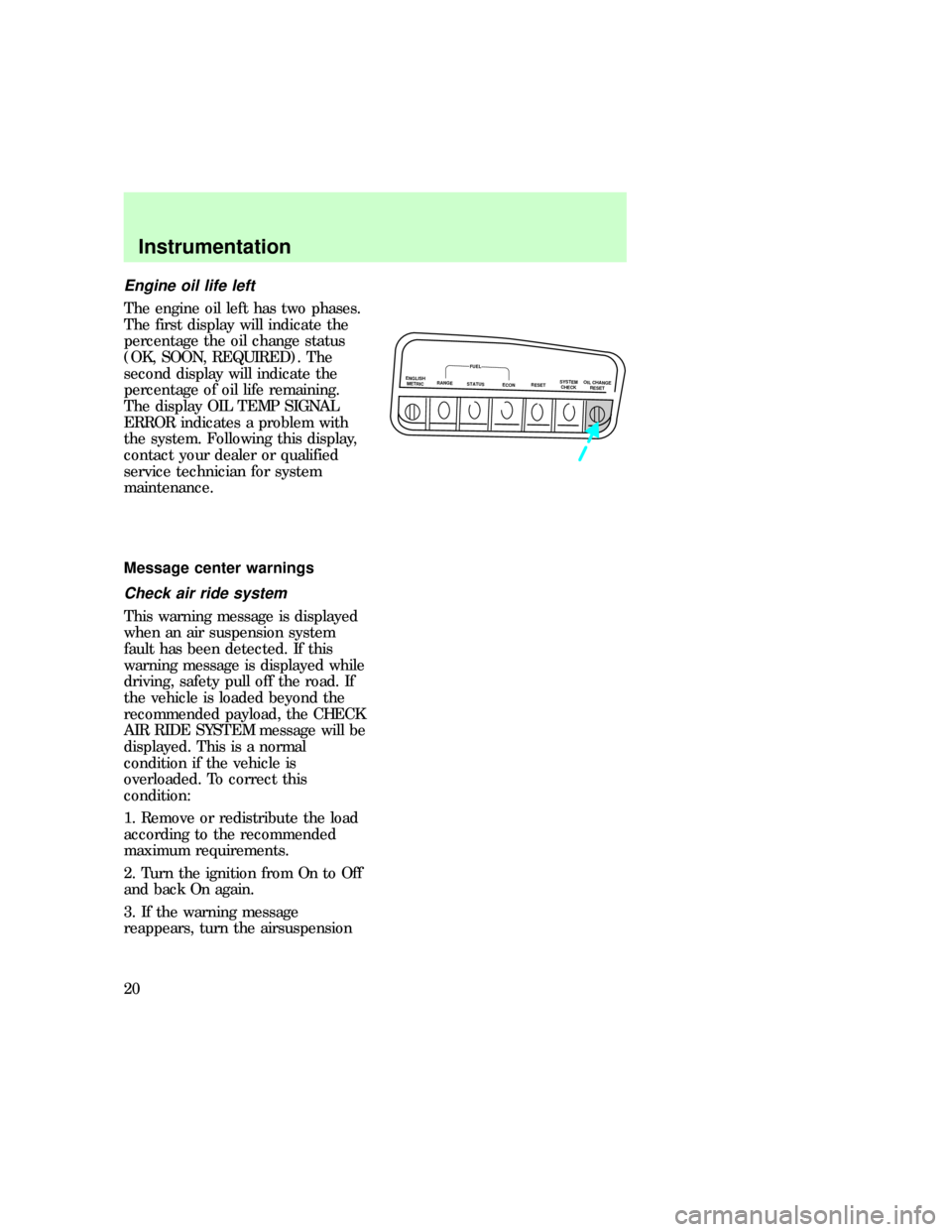

Selectable features
English/metric display
Press to toggle the message center
display between metric or English
units.
ENGLISH
METRICRANGESTATUS
ECONRESETSYSTEM
CHECKOIL CHANGE
RESETFUEL
ENGLISH
METRICRANGESTATUS
ECONRESETSYSTEM
CHECKOIL CHANGE
RESET
FUEL
uno_selectable_message
uno_metric_english uno_fuel_range
Instrumentation
16

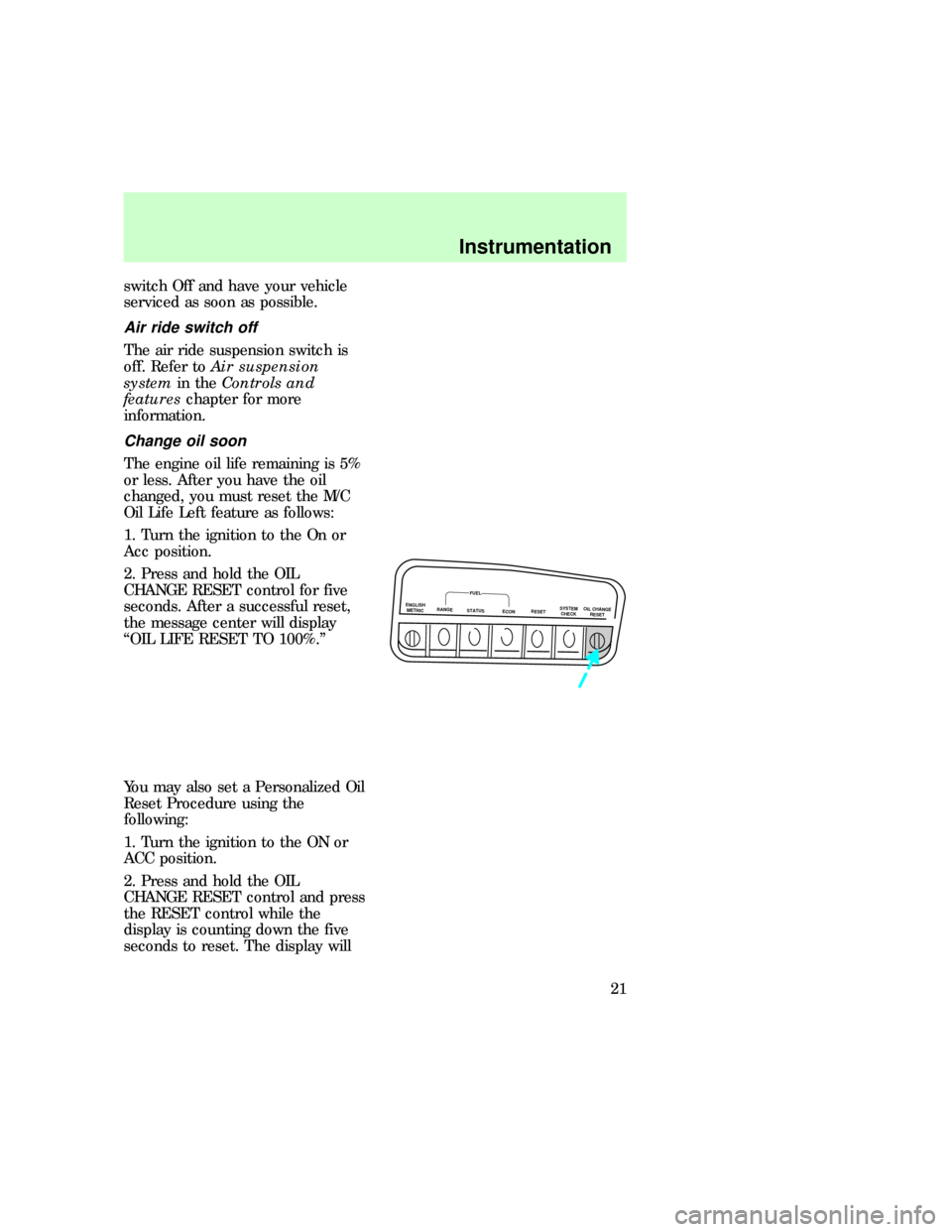

Fuel range
Press once to display the
approximate kilometers (miles) left
to drive before the fuel tank is
empty.
Press again to display the distance
driven since fuel was last added to
the tank.
For maximum accuracy of this
display feature, the ignition should
be in the Off position during
fueling. The display FUEL LEVEL
ERROR indicates a problem with
the fuel indication system. See
your dealer or qualified service
technician for system maintenance.
Fuel status
Press once to display the
approximate amount of fuel
remaining in the fuel tank.
Press again to display the
approximate amount of fuel used
since the system was last reset.
ENGLISH
METRICRANGESTATUS
ECONRESETSYSTEM
CHECKOIL CHANGE
RESET
FUEL
ENGLISH
METRICRANGESTATUS
ECONRESETSYSTEM
CHECKOIL CHANGE
RESET
FUEL
uno_fuel_status uno_fuel_economy
Instrumentation
17

Fuel economy
Press once to display your vehicle's
average fuel economy in
kilometers/liters (miles/gallons).
Press again to display the fuel
economy that your vehicle is
getting at that particular time. Your
vehicle must be moving in order
for this display to function
properly.

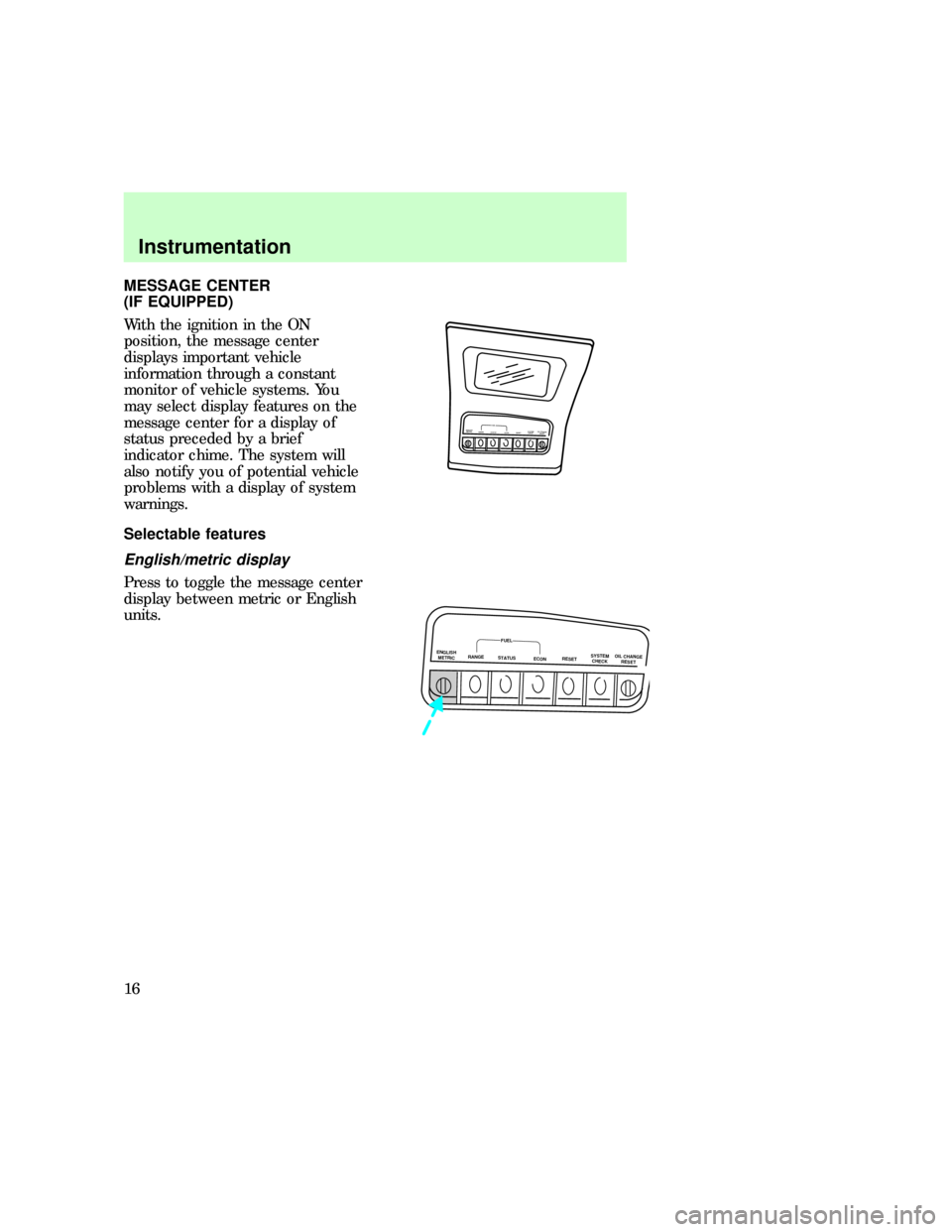

Reset
Press the reset control to reset the
current feature being displayed.
Warnings, distance driven, average
fuel economy, fuel used and
personalized oil reset percentage
are the only features that respond
to reset.

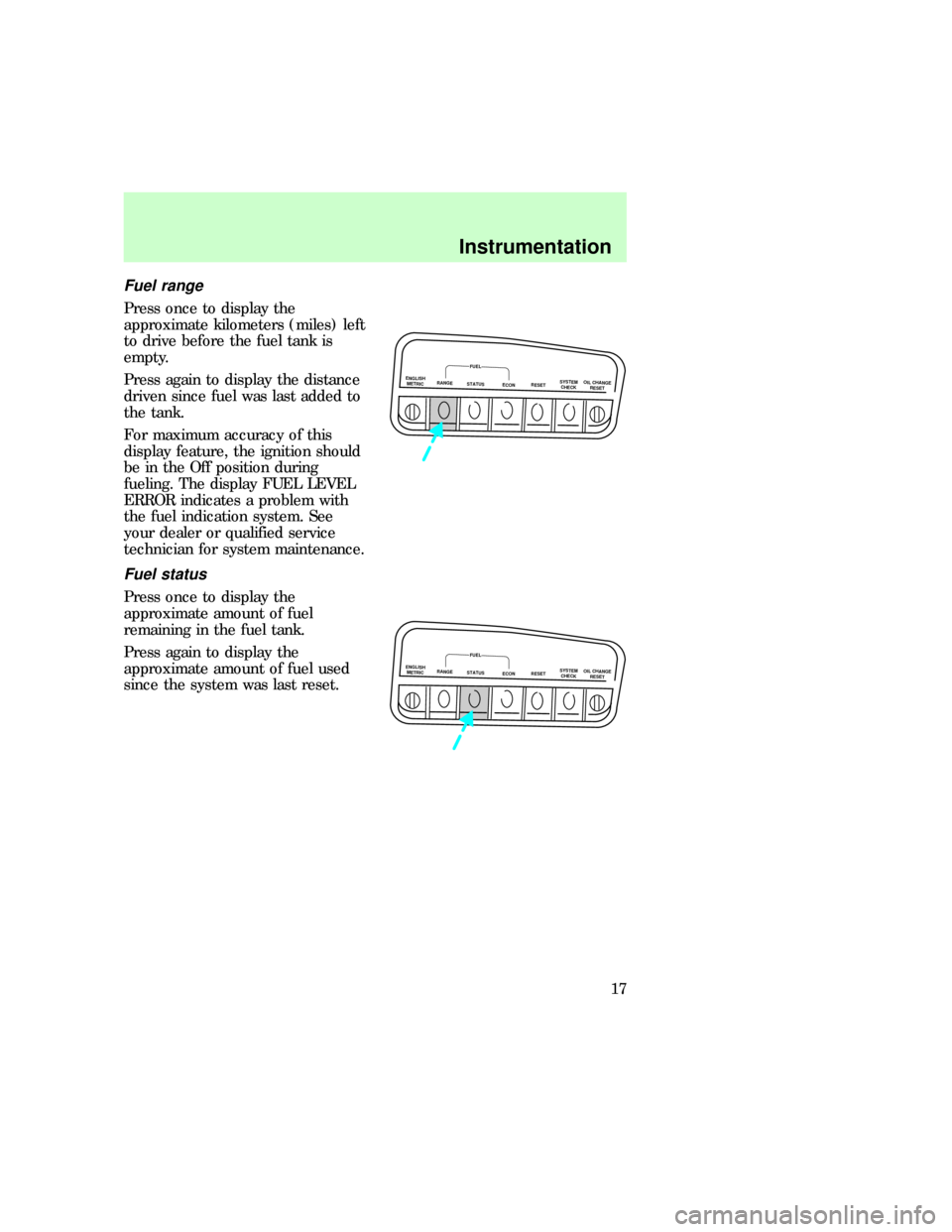

System check
Press the system check control to
display the status of the following
systems:
²engine oil life left
²engine oil level
²voltage level
²engine coolant temperature
²washer fluid level
²head lamps
²tail lamps
²brake lamps
ENGLISH
METRICRANGESTATUS
ECONRESETSYSTEM
CHECKOIL CHANGE
RESET
FUEL
ENGLISH
METRICRANGESTATUS
ECONRESETSYSTEM
CHECKOIL CHANGE
RESET
FUEL
ENGLISH
METRICRANGESTATUS
ECONRESETSYSTEM
CHECKOIL CHANGE
RESET
FUEL
uno_reset_system
uno_system_check
Instrumentation
18

²automatic ride control (if
equipped)
²fuel level
The engine oil life left has two
phases. The first display will
indicate the oil change status (OK,
SOON, REQUIRED). The second
display will indicate the percentage
of oil life remaining. The display
OIL TEMP SIGNAL ERROR
indicates a problem with the
system. Following this display,
contact your dealer or qualified
service technician for system
maintenance.
Operating the message center
during system check
The message center controls will
operate as follows during the
system check sequence:
1. Press the system check controls
to advance to the next display.
2. Press the reset control to
immediately conclude the system
check.
3. Press the range, fuel status or
fuel economy control to conclude
the system check and display the
requested feature.
4. Press the metric/English control
to conclude the system check and
change the previous display to the
new mode.
5. Press the oil change reset
control to conclude the system
check and begin the oil change
reset procedure.
uno_operating_system
uno_oil_life_left
Instrumentation
19

Engine oil life left
The engine oil left has two phases.
The first display will indicate the
percentage the oil change status
(OK, SOON, REQUIRED). The
second display will indicate the
percentage of oil life remaining.
The display OIL TEMP SIGNAL
ERROR indicates a problem with
the system. Following this display,
contact your dealer or qualified
service technician for system
maintenance.
Message center warnings
Check air ride system
This warning message is displayed
when an air suspension system
fault has been detected. If this
warning message is displayed while
driving, safety pull off the road. If
the vehicle is loaded beyond the
recommended payload, the CHECK
AIR RIDE SYSTEM message will be
displayed. This is a normal
condition if the vehicle is
overloaded. To correct this
condition:
1. Remove or redistribute the load
according to the recommended
maximum requirements.
2. Turn the ignition from On to Off
and back On again.
3. If the warning message
reappears, turn the airsuspension
ENGLISH
METRICRANGESTATUS
ECONRESETSYSTEM
CHECKOIL CHANGE
RESET
FUEL
uno_warnings_title
uno_check_air_ride
Instrumentation
20

switch Off and have your vehicle
serviced as soon as possible.
Air ride switch off
The air ride suspension switch is
off. Refer toAir suspension
systemin theControls and
featureschapter for more
information.
Change oil soon
The engine oil life remaining is 5%
or less. After you have the oil
changed, you must reset the M/C
Oil Life Left feature as follows:
1. Turn the ignition to the On or
Acc position.
2. Press and hold the OIL
CHANGE RESET control for five
seconds. After a successful reset,
the message center will display
ªOIL LIFE RESET TO 100%.º
You may also set a Personalized Oil
Reset Procedure using the
following:
1. Turn the ignition to the ON or
ACC position.
2. Press and hold the OIL
CHANGE RESET control and press
the RESET control while the
display is counting down the five
seconds to reset. The display will
ENGLISH
METRICRANGESTATUS
ECONRESETSYSTEM
CHECKOIL CHANGE
RESET
FUEL
uno_air_ride
uno_change_oil
Instrumentation
