Page 185 of 296

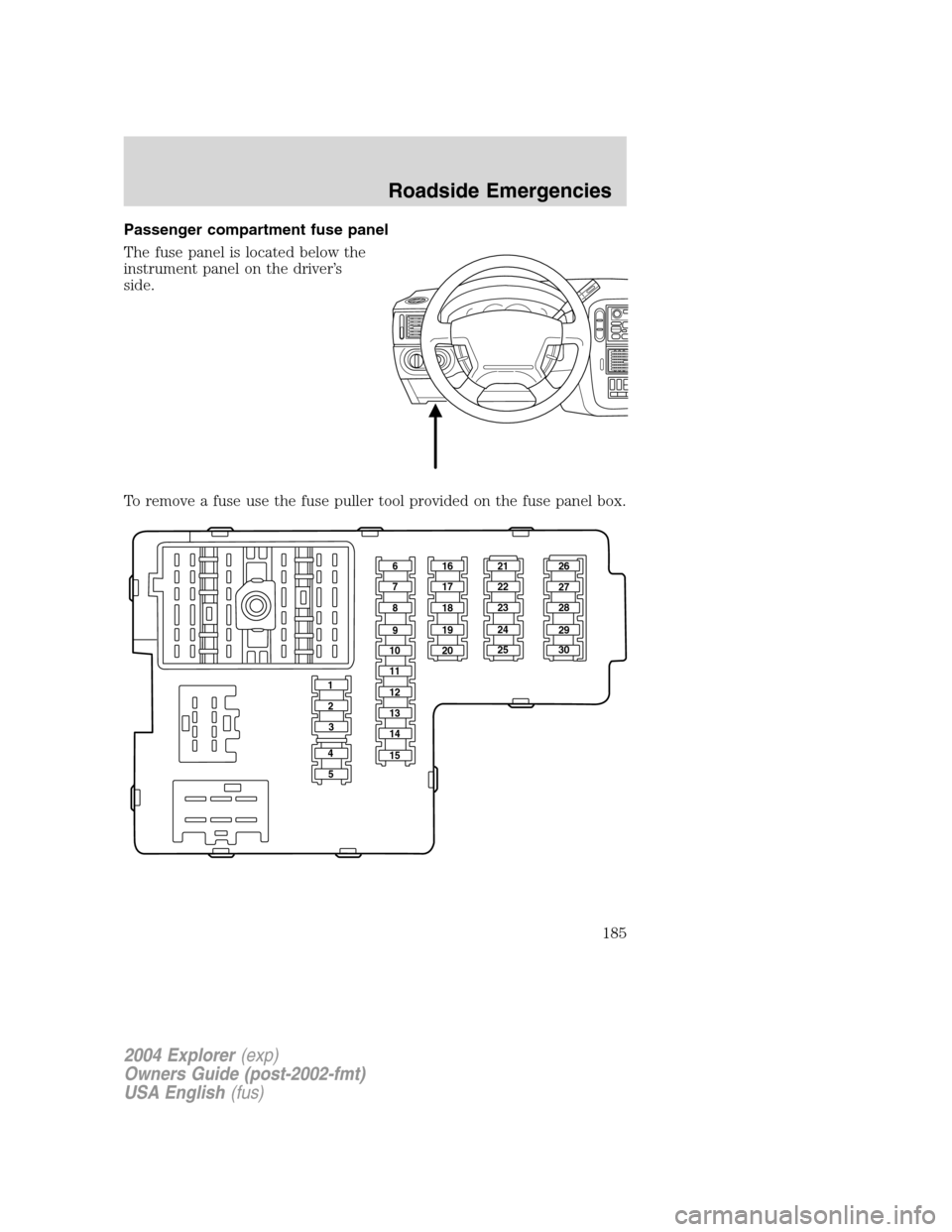

FORD EXPLORER 2004 3.G Owners Manual Passenger compartment fuse panel
The fuse panel is located below the
instrument panel on the driver’s
side.
To remove a fuse use the fuse puller tool provided on the fuse panel box.
161621 26
27
28

Page 186 of 296

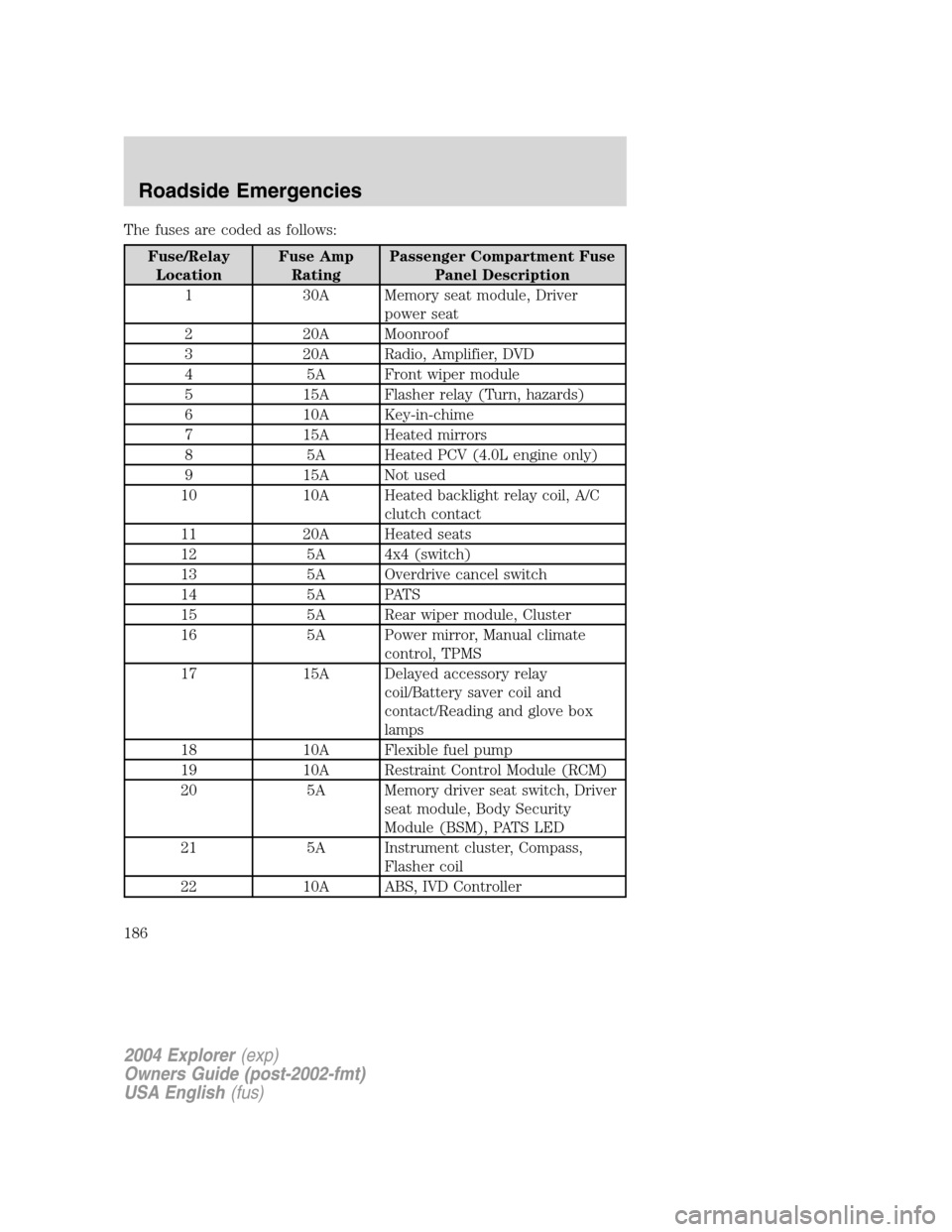

FORD EXPLORER 2004 3.G Owners Manual The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
1 30A Memory seat module, Driver
power seat
2 20A Moonroof
3 20A Radio, Amplifier, DVD
4

Page 188 of 296

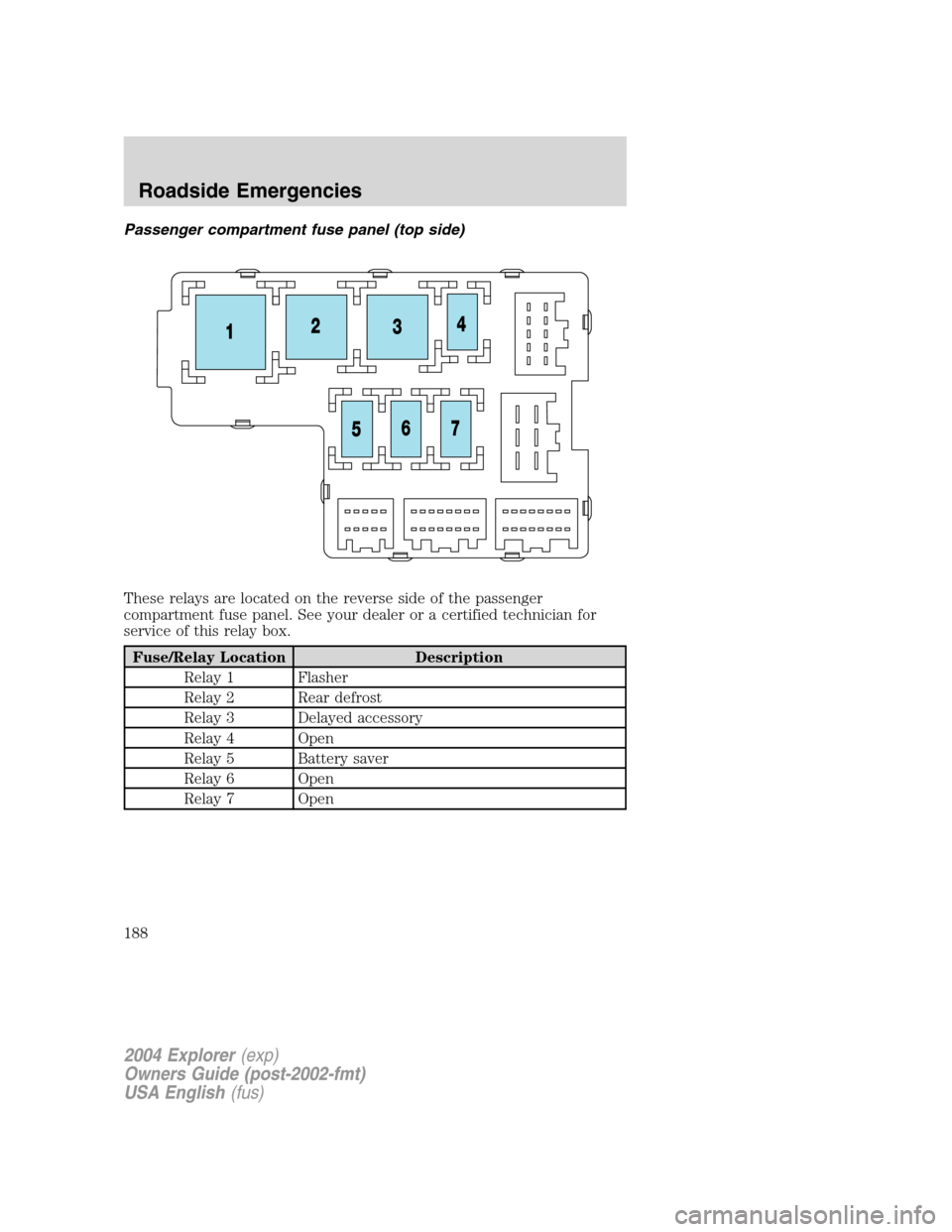

FORD EXPLORER 2004 3.G Owners Manual Passenger compartment fuse panel (top side)
These relays are located on the reverse side of the passenger
compartment fuse panel. See your dealer or a certified technician for
service of this relay bo

Page 189 of 296

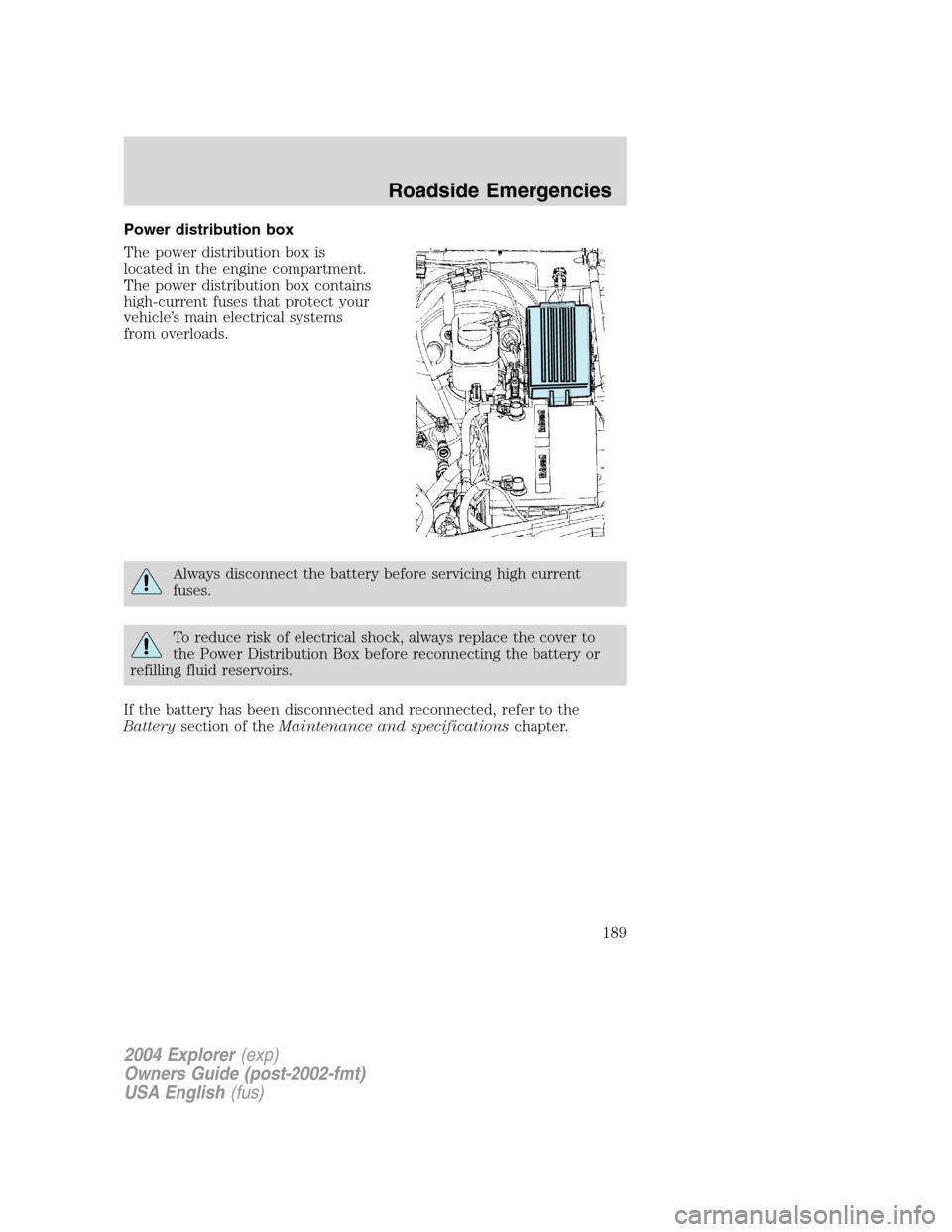

FORD EXPLORER 2004 3.G Owners Manual Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
fro

Page 190 of 296

FORD EXPLORER 2004 3.G Owners Manual The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 60A** PJB #1
2 30A** BSM
3 — Not used
4 30A** Rear defrost
5 40A** Anti-lock Brake

Page 191 of 296

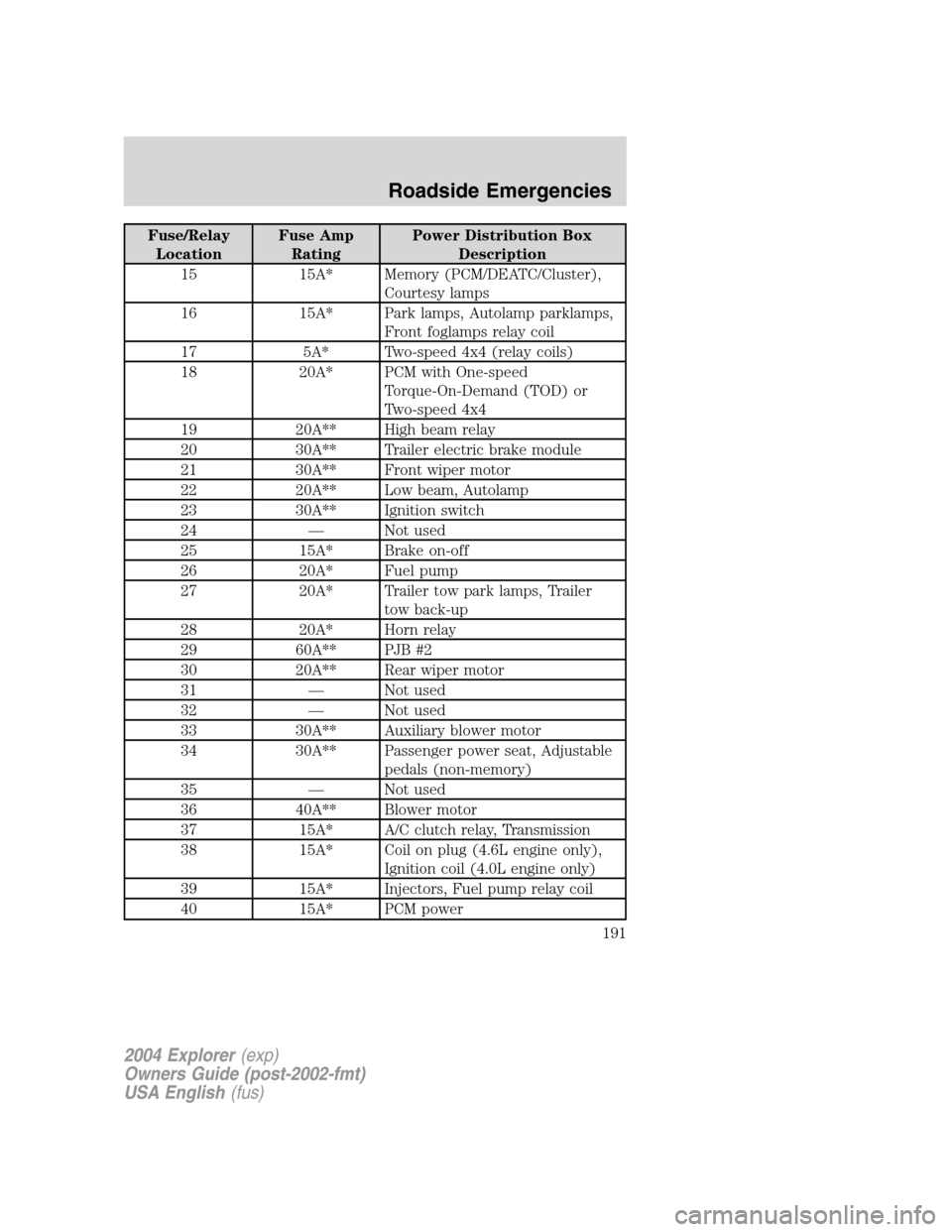

FORD EXPLORER 2004 3.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
15 15A* Memory (PCM/DEATC/Cluster),
Courtesy lamps
16 15A* Park lamps, Autolamp parklamps,
Front foglamps relay coil
17 5A* Two-spe

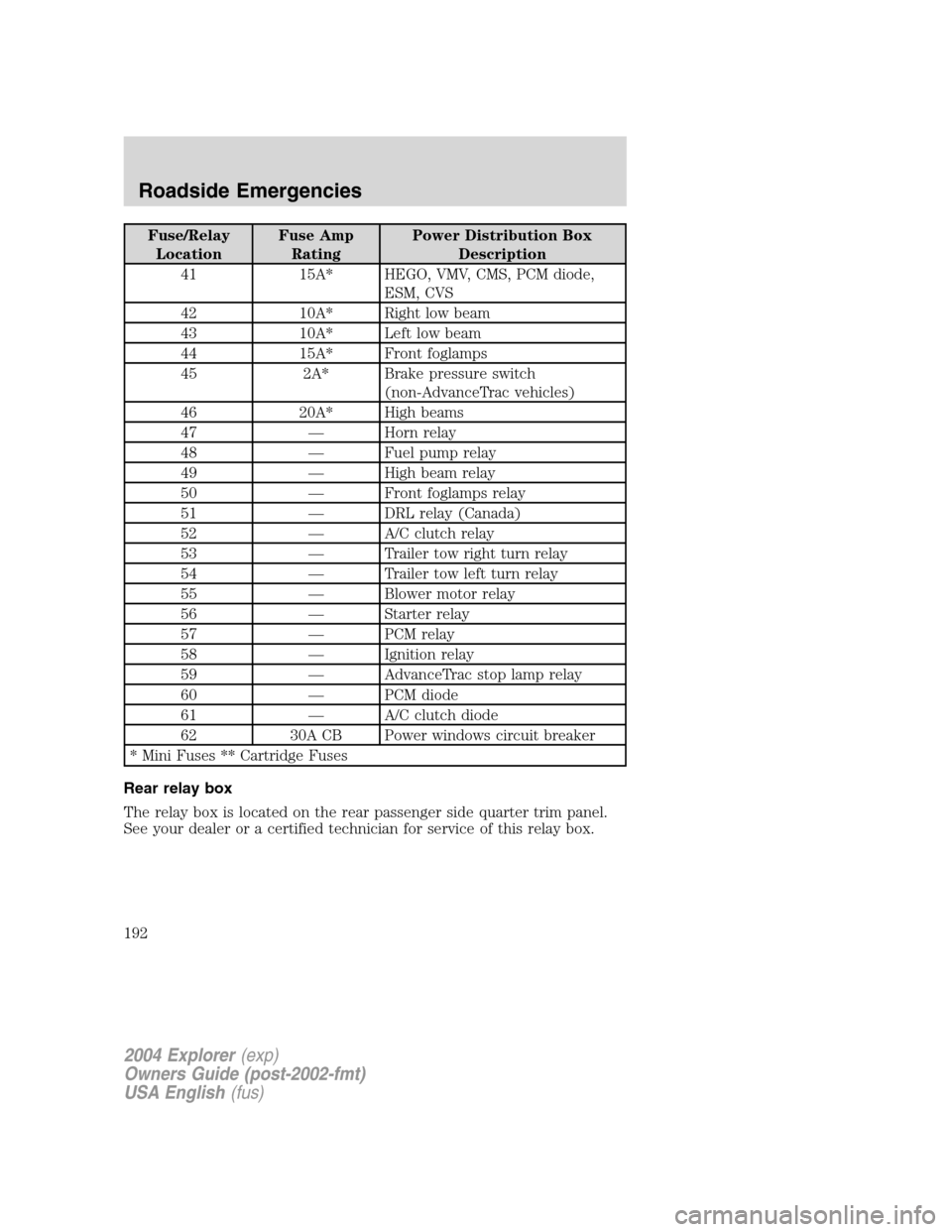

Page 192 of 296

FORD EXPLORER 2004 3.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
41 15A* HEGO, VMV, CMS, PCM diode,
ESM, CVS
42 10A* Right low beam
43 10A* Left low beam
44 15A* Front foglamps
45 2A* Brake pressu

Page 194 of 296

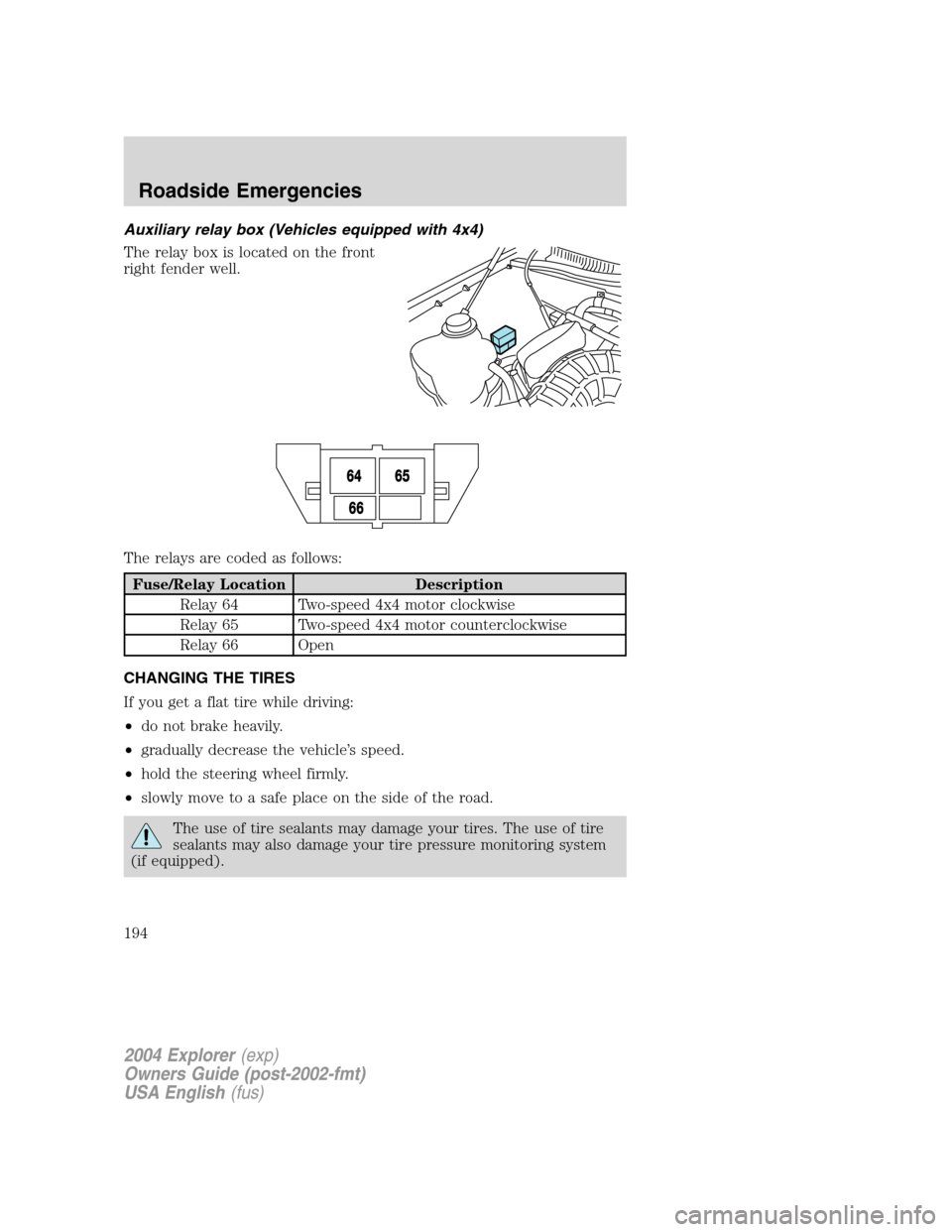

FORD EXPLORER 2004 3.G Owners Manual Auxiliary relay box (Vehicles equipped with 4x4)
The relay box is located on the front
right fender well.
The relays are coded as follows:
Fuse/Relay Location Description
Relay 64 Two-speed 4x4 motor

Page 289 of 296

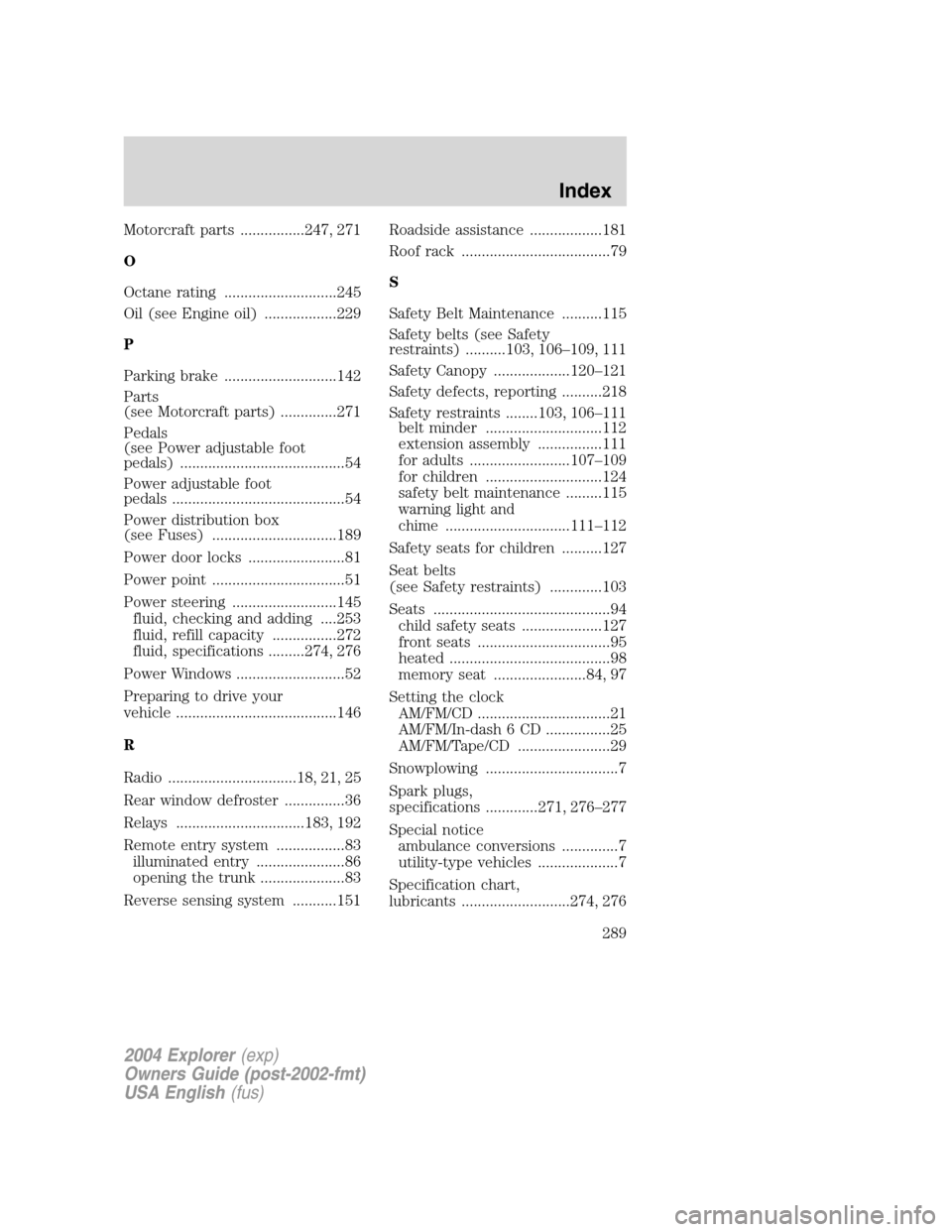

FORD EXPLORER 2004 3.G Owners Manual Motorcraft parts ................247, 271
O
Octane rating ............................245
Oil (see Engine oil) ..................229
P
Parking brake ............................142
Parts
(see Motorcra
