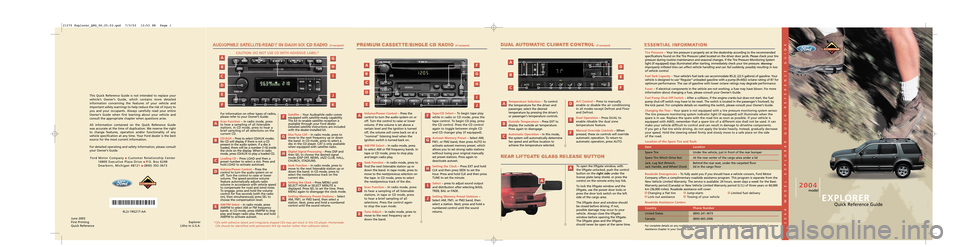

FORD EXPLORER 2004 3.G Quick Reference Guide

(if equipped)
For information on other types of radios,
please refer to your Owner’s Guide.
Scan Function–In radio mode, press
to hear a sampling of all listenable
stations. In CD mode, press to hear a
brief sampling of all selections on the
current CD.
CD/AUX – Press to select CD/AUX modes.
No CD will display if there is not a CD
present in the audio system. If a disc is
loaded, there will be a number (1-6) inside
the circle on the display. When in radio
mode, press CD/AUX to play a loaded CD.
Loading CD– Press LOAD and then a
preset number to select a slot. Press and
hold LOAD to activate autoload.
Volume/Power Control – Press the
control to turn the audio system on or
off. Turn the control to raise or lower
volume. The speed-sensitive volume
feature automatically adjusts radio
volume in accordance with vehicle speed
to compensate for road and wind noise.
To engage, press and hold the volume
control for five seconds (with the radio
on), then simultaneously press SEL to
choose the compensation level.
AM/FM Select – In radio mode, press
AM/FM to select AM or FM frequency
bands. In CD mode, press AM/FM to stop
play and begin radio play. Press and hold
AM/FM to activate autoset.
Satellite – Your Audiophile radio comes
equipped with satellite-ready capability.
The kit to enable satellite reception is
available through your Ford dealer.
Detailed satellite instructions are included
with the dealer-installed kit.
Disc/Tune CAT– In radio mode, press to
move to the next frequency up or down
the band. In CD mode, press to select a
disc in the CD player. CAT is only available
when equipped with satellite radio.
Digital Signal Processing– Press DSP and
then SEL to choose the desired signal
mode (DSP OFF, NEWS, JAZZ CLUB, HALL,
CHURCH, STADIUM).
Seek Function– In radio mode, press to
move to the next listenable station up or
down the band. In CD mode, press to
select the next/previous track on the
current disc.
Setting the Clock– Press MENU until
SELECT HOUR or SELECT MINUTE is
displayed. Press SEL to set the time. Press
MENU again to disengage the clock mode.
Setting Memory Preset Stations– Select
AM, FM1, or FM2 band, then select a
station. Next, press and hold a numbered
control until the sound returns.
A
B
D
E
C
F
G
J
K
I
H
A
J
K
I
G
C
D
E
F
HB
CAUTION: DO NOT USE CD WITH ADHESIVE LABEL*
* CDs with adhesive labels and irregularly shaped CDs may get stuck in the CD player. Homemade
CDs should be identified with permanent felt tip marker rather than adhesive labels.
June 2003
First Printing
Quick ReferenceExplorer
Litho in U.S.A.
Temperature Selection–To control
the temperature for the driver and
passenger, select the desired
temperature by pressing the driver’s
or passenger’s temperature controls.
Outside Temperature – Press EXT to
display the outside air temperature.
Press again to disengage.
Automatic Operation– In this mode,
the system will automatically determine
fan speed and airflow location to
achieve the temperature selected.
A
B
F
A
B
E
C
D
F
Tire Pressure –Your tire pressure is properly set at the dealership according to the recommended
specifications found on the Tire Pressure Label located on the driver door jamb. Please check your tire
pressure during routine maintenance and seasonal changes. If the Tire Pressure Monitoring System
light (if equipped) stays illuminated after starting, immediately check your tire pressure.
Warning:Improperly inflated tires can affect vehicle handling and can fail suddenly, possibly resulting in loss
of vehicle control.
Fuel Tank Capacity–Your vehicle’s fuel tank can accommodate 85.2L (22.5 gallons) of gasoline. Your
vehicle is designed to use "Regular" unleaded gasoline with a pump (R+M)/2 octane rating of 87 for
optimum performance. The use of gasoline with lower octane ratings may degrade performance.
Fuses–If electrical components in the vehicle are not working, a fuse may have blown. For more
information about changing a fuse, please consult your Owner’s Guide.
Fuel Pump Shut-Off Switch–After a collision, if the engine cranks but does not start, the fuel
pump shut-off switch may have to be reset. The switch is located in the passenger’s footwell, by
the kick panel. For complete details on resetting the switch, please consult your Owner’s Guide.
Changing the Tires–Your spare is not equipped with a tire pressure monitoring system sensor.The tire pressure monitoring system indicator light (if equipped) will illuminate when the
spare is in use. Replace the spare with the road tire as soon as possible. If your vehicle is
equipped with AWD, remember that a spare tire of a different size shall not be used. It can
make your vehicle difficult to control and can result in damage to driveline components.
If you get a flat tire while driving, do not apply the brake heavily. Instead, gradually decreaseyour speed. Hold the steering wheel firmly and slowly move to a safe place on the side
of the road.
Location of the Spare Tire and Tools
Item Location
Spare Tire Under the vehicle, just in front of the rear bumper
Spare Tire Winch Drive Nut At the rear center of the cargo area under a lid
Jack, Lug Nut Wrench, Behind the rear seat, under the carpeted floor
Jack Handle, and Wheel Chock lid in the cargo floor
Roadside Emergencies– To fully assist you if you should have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This program is separate from the
New Vehicle Limited Warranty. The service is available: 24 hours, seven days a week for the Basic
Warranty period (Canada) or New Vehicle Limited Warranty period (U.S.) of three years or 60,000
km (36,000 miles). Roadside assistance will cover:
Changing a flat tire Jump-starts Limited fuel delivery
Lock-out assistance Towing of your vehicle
Roadside Assistance Centers
Country Phone Number
United States (800) 241-3673
Canada (800) 665-2006
For complete details on any roadside assistance concern, see the Roadside Emergencies chapter or the Customer
Assistance chapter in your Owner’s Guide.
EXPLORER
Quick Reference Guide
A/C Control– Press to manually
enable or disable the air conditioning
in all modes except Defrost and Floor
and Defrost.
Dual Operation– Press DUAL to
enable /disable the dual zone
temperature feature.
Manual Override Controls– When
pressed, these six controls will override
automatic operation. To return to
automatic operation, press AUTO.
2004 2004model
2004 MODEL EXPLORER QUICK REFERENCE GUIDE
E
D
To open the liftgate window, with
the liftgate unlocked, push the control
button on the
right sideunder the
license plate lamp shield, or press the
control on the remote entry key fob.
To lock the liftgate window and the
liftgate, use the power door locks or
press the door lock switch on the left
side of the cargo area.
The liftgate door and window should
be closed before driving. If not,
possible damage may occur to your
vehicle. Always close the liftgate
window before opening the liftgate.
The liftgate glass and the liftgate
should never be open at the same time.
Volume/Power Control–Press the
control to turn the audio system on or
off. Turn the control to raise or lower
volume. If the volume is set above a
certain level and the ignition is turned
off, the volume will come back on at a
"nominal" listening level when the
ignition switch is turned back on.
AM/FM Select–In radio mode, press
to select AM or FM frequency bands. In
tape or CD mode, press to stop play
and begin radio play.
Seek Function– In radio mode, press to
find the next listenable station up or
down the band. In tape mode, press to
move to the next/previous selection on
the tape. In CD mode, press to select
the next/previous track of the disc.
Scan Function– In radio mode, press
to hear a sampling of all listenable
stations. In tape or CD mode, press
to hear a brief sampling of all
selections. Press the control again
to stop the scan mode.
Tune Adjust – In radio mode, press to
move to the next frequency up or
down the band.
Tape/CD Select– To begin tape play
while in radio or CD mode, press the
tape control. To begin CD play, press
the CD control. Press the CD control
again to toggle between single CD
and CD changer play (if equipped).
Autoset Memory Preset – Select AM,
FM1, or FM2 band, then press AUTO to
activate autoset memory preset, which
allows you to set strong radio stations
without losing your original manually
set preset stations. Press again to
deactivate autoset.
Setting the Clock– Press EXT and hold
CLK and then press SEEK to set the
hour. Press and hold CLK and then press
TUNE to set the minute.
Select– press to adjust sound output
and distribution after selecting BASS,
TREB, BAL or FADE.
Setting Memory Preset Stations–
Select AM, FM1, or FM2 band, then
select a station. Next, press and hold a
numbered control until the sound
returns.
A
B
E
D
C
F
G
I
A
B
E
D
C
F
G
J
I
H
J
HC
C
A
A
*F4L2J19G217AA*
4L2J-19G217-AA
(if equipped)(if equipped)
This Quick Reference Guide is not intended to replace your
vehicle’s Owner’s Guide, which contains more detailed
information concerning the features of your vehicle and
important safety warnings to help reduce the risk of injury to
you and your occupants. Always carefully read your entire
Owner’s Guide when first learning about your vehicle and
consult the appropriate chapter when questions arise.
All information contained on the Quick Reference Guide
was accurate at the time of duplication. We reserve the right
to change features, operation and/or functionality of any
vehicle specification at any time. Your Ford dealer is the best
source for the most current information.
For detailed operating and safety information, please consult
your Owner’s Guide.
Ford Motor Company
Customer Relationship Center
16800 Executive Plaza Drive P.O. Box 6248
Dearborn, Michigan 48121 (800) 392-3673
21270 Explorer_QRG_06.25.03.qxd 7/3/03 12:53 PM Page 1

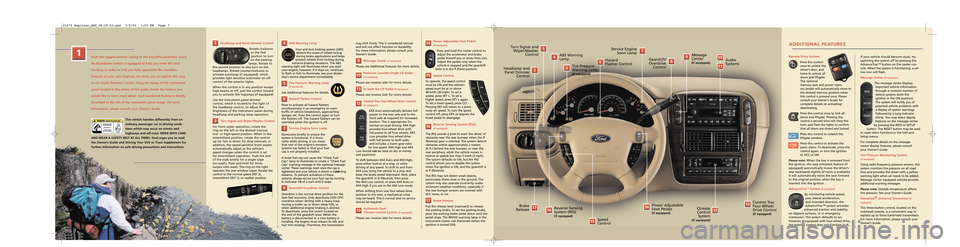

From the rugged exterior styling to the bountiful amenities, every
No Boundaries vehicle is equipped to help you enter the next
territory. In order to help you fully appreciate the countless
features of your new Explorer, we invite you to explore this easy
to use Quick Reference Guide. Using the image of the instrument
panel located in the center of the guide, locate the feature you
would like to learn more about. Each numbered feature is briefly
described to the left of the instrument panel image. For more
information, please consult your Owner’s Guide.
This vehicle handles differently from an
ordinary passenger car in driving condi-
tions which may occur on streets and
highways and off-road. DRIVE WITH CARE
AND WEAR A SAFETY BELT AT ALL TIMES. Ford urges you to read
the Owner’s Guide and Driving Your SUV or Truck Supplement for
further information on safe driving precautions and instructions.
Headlamp and
Panel Dimmer
Control 2
3
Headlamp and Panel Dimmer Control
Rotate clockwise
to the first
position to turn
on the parking
lamps. Rotate to
the second position to also turn on the
headlamps. Rotate counterclockwise to
activate autolamp (if equipped), which
provides light-sensitive automatic on-off
control of the exterior lights.
When the control is in any position except
high beams or off, pull the control toward
you to activate the foglamps (if equipped).
Use the instrument panel dimmer
control, which is located to the right of
the headlamp control, to adjust the
brightness of the instrument panel during
headlamp and parking lamp operation.
Turn Signal and Wiper/Washer Control
For front wiper operation, rotate the
ring on the left to the desired interval,
low- or high-speed position. When in the
intermittent position, rotate the control
up for fast or down for slow intervals. In
addition, the speed-sensitive front wipers
automatically adjust as the vehicle’s
speed changes when the control is set
for intermittent operation. Push the end
of the stalk briefly for a single wipe
(no wash). Push and hold for three
swipes with wash. The ring on the right
operates the rear window wiper. Rotate the
control to the normal speed (INT 2),
intermittent (INT 1), or washer position.
ABS Warning Lamp
Your anti-lock braking system (ABS)
detects the onset of wheel lockup
during brake applications and helps
prevent wheels from locking during
extreme braking situations. The ABS
warning light will illuminate when you start
your engine; however, if it stays on, continues
to flash or fails to illuminate, see your dealer-
ship's service department immediately.
Tire Pressure Warning Lamp(if equipped)
See Additional Features for details.
Hazard Flasher Control
Press to activate all hazard flashers
simultaneously in an emergency to warn
traffic of vehicle breakdown, approaching
danger, etc. Press the control again to turn
the flashers off. The hazard flashers can be
operated when the ignition is off.
Service Engine Soon Lamp
Illuminates briefly to ensure the
system is functional. If it illumi-
nates while driving, it can mean
that one of the engine’s emission
systems has failed or that your fuel
cap is not properly installed.
A loose fuel cap can cause the “Check Fuel
Cap” lamp to illuminate or create a “Check Fuel
Cap” warning message in the optional message
center. These warnings reset once the cap is
tightened and your vehicle is driven a short
distance. To prevent activation of these
systems, always secure your fuel cap by turning
it clockwise 1/8 of a turn until it stops.
Gearshift/Overdrive Control
Overdrive is the normal drive position for the
best fuel economy. Only deactivate (O/D OFF)
overdrive when: driving with a heavy load,
towing a trailer up or down steep hills, or
when additional engine braking is desired.
To deactivate, press the switch located on
the end of the gearshift lever. When the
battery is disconnected or a new battery is
installed, the engine must relearn its idle and
fuel trim strategy. Therefore, the transmission
2
3
4
6
5
7
Turn Signal and
Wiper/Washer
ControlService Engine
Soon Lamp
ABS Warning
Lamp
6Hazard
Flasher Control
5Tire Pressure
Warning Lamp
(if equipped)
Gearshift/
Overdrive
Control10
11
Audio
Systems
12Control Trac
Four-Wheel
Drive Control
(if equipped)
14Power Adjustable
Foot Pedals
(if equipped)
Reverse Sensing
System (RSS)
(if equipped)
Brake
Release
13Climate
Control
System
(if equipped)
may shift firmly. This is considered normal
and will not affect function or durability.
For more information, please consult your
Owner’s Guide.
Message Center (if equipped)
Please see Additional Features for more details.
Premium Cassette/Single CD Radio(if equipped)
Please see reverse side for more details.
In Dash Six CD Radio (if equipped)
Please see reverse side for more details.
Control Trac Four-Wheel Drive Control (if equipped)
4X4 Auto automatically delivers full
power to the rear axle and to the
front axle as required for increased
traction. This is appropriate for
normal on-road driving. 4X4 High
provides four-wheel drive with
full power to all four wheels. 4X4
Low provides four-wheel drive
with full power to both axles
and includes a lower gear ratio
for low speed. 4X4 High and 4X4
Low should
notbe used on dry or merely
wet pavement.
To shift between 4X4 Auto and 4X4 High,
press either button at a stop, or while
driving at any speed. To shift to and from
4X4 Low, bring the vehicle to a stop and
keep the brake pedal depressed. Next, place
the gearshift in N (Neutral), then press
the 4X4 Low control, or press 4X4 Auto or
4X4 High if you are in the 4X4 Low mode.
When shifting from one four-wheel drive
position to the next, a mechanical noise
may be heard. This is normal and no service
should be required.
Automatic Dual
Climate Control System (if equipped)
Please see reverse side for more details.
Power Adjustable Foot Pedals (if equipped)
Press and hold the rocker control to
adjust the accelerator and brake
pedal toward you or away from you.
Adjust the pedals only when the
vehicle is stopped and the gearshift
lever is in the P (Park) position.
Speed Control
To operate, the speed control
must be ON and the vehicle’s
speed must be at or above
48 km/h (30 mph). To set a
speed, press SET +. To set a
higher speed, press SET + again.
To set a lower speed, press CST -.
Pressing RES will return to a previ-
ously set speed. To turn the speed
control off, press OFF, or depress the
brake pedal to disengage.
Reverse Sensing System (RSS) (if equipped)
The RSS sounds a tone to warn the driver of
obstacles near the rear bumper when the R
(Reverse) gear is selected. The system detects
obstacles within approximately 2 meters
(6 ft.) behind the rear bumper, or near the
rear periphery, while the vehicle moves in
reverse at speeds less than 5 km/h (3 mph).
The system defaults to ON, but the RSS
control allows you to disable the system
when the ignition is ON, and the gearshift is
in R (Reverse).
The RSS may not detect small objects,
particularly those close to the ground. The
system may also operate incorrectly under
inclement weather conditions, especially if
the rear bumper sensors are covered with
dirt, snow, or ice.
Brake Release
Pull the release lever (rearward) to release
the parking brake. To set the parking brake,
press the parking brake pedal down until the
pedal stops. The BRAKE warning lamp in the
instrument cluster will illuminate (when the
ignition is turned ON).
9
10
11
12
13
16
Remote Entry System
Press this control
once to unlock the
driver’s door, and
twice to unlock all
doors and liftgate.
The optional
memory seat and power mem-
ory pedals will automatically move to
the desired memory position when
this control is pressed once. Please
consult your Owner’s Guide for
complete details on activating/
deactivating.
Press this control once to lock all
doors and liftgate. Pressing the
control a second time will chirp the
horn and flash the lights to confirm
that all doors are closed and locked.
Press this control to unlatch the
liftgate window.
Press this control to activate the
panic alarm. To deactivate, press the
control again, or turn the ignition
to ACC or ON.
Please note: When the key is removed from
the ignition, the easy entry/exit feature (if
equipped) automatically moves the driver’s
seat backwards slightly (if room is available).
It will automatically move the seat forward
to the original position when the key is
inserted into the ignition.
AdvanceTracTMSystem (if equipped)
By monitoring vehicle speed,
yaw, lateral acceleration,
and intended direction, the
AdvanceTrac™ system provides
enhanced traction and stability
on slippery surfaces, or in emergency
maneuvers. The system defaults to on;
however, if equipped with four-wheel drive,
the stability control does not function in 4L.
If your vehicle should become stuck, try
switching the system off by pressing the
AdvanceTrac™ button on the center con-
sole. When the system is functioning, a yel-
low icon will flash.
Message Center (if equipped)
The message center displays
important vehicle information
through a constant monitor of
vehicle systems (with the
ignition in the ON position).
The system will notify you of
potential vehicle problems with
a display of system warnings
followed by a long indicator
chime. You may select display
features on the message center
by pressing the INFO or SETUP
button. The RESET button may be used
to reset select functions in the Info and
Setup menus.
For complete details on the message
center display features, please consult
your Owner’s Guide.
Tire Pressure Monitoring System (if equipped)
Using radio-frequency pressure sensors, this
system monitors tire pressure on all road
tires and provides the driver with a yellow
warning light when air needs to be added.
Message Center equipped vehicles provide
additional warning messages.
Please note:Outside temperature affects
tire pressure. See your Owner’s Guide.
HomeLink®
Universal Transceiver (if
equipped)
This three-button control, located on the
overhead console, is a convenient way to
replace up to three hand-held transmitters.
For more information, please consult your
Owner’s Guide.
8
14
15
1
8
Message
Center
(if equipped)
17
16
15
7
4
Speed
Control
9
17
warning
21270 Explorer_QRG_06.25.03.qxd 7/3/03 1:02 PM Page 7
