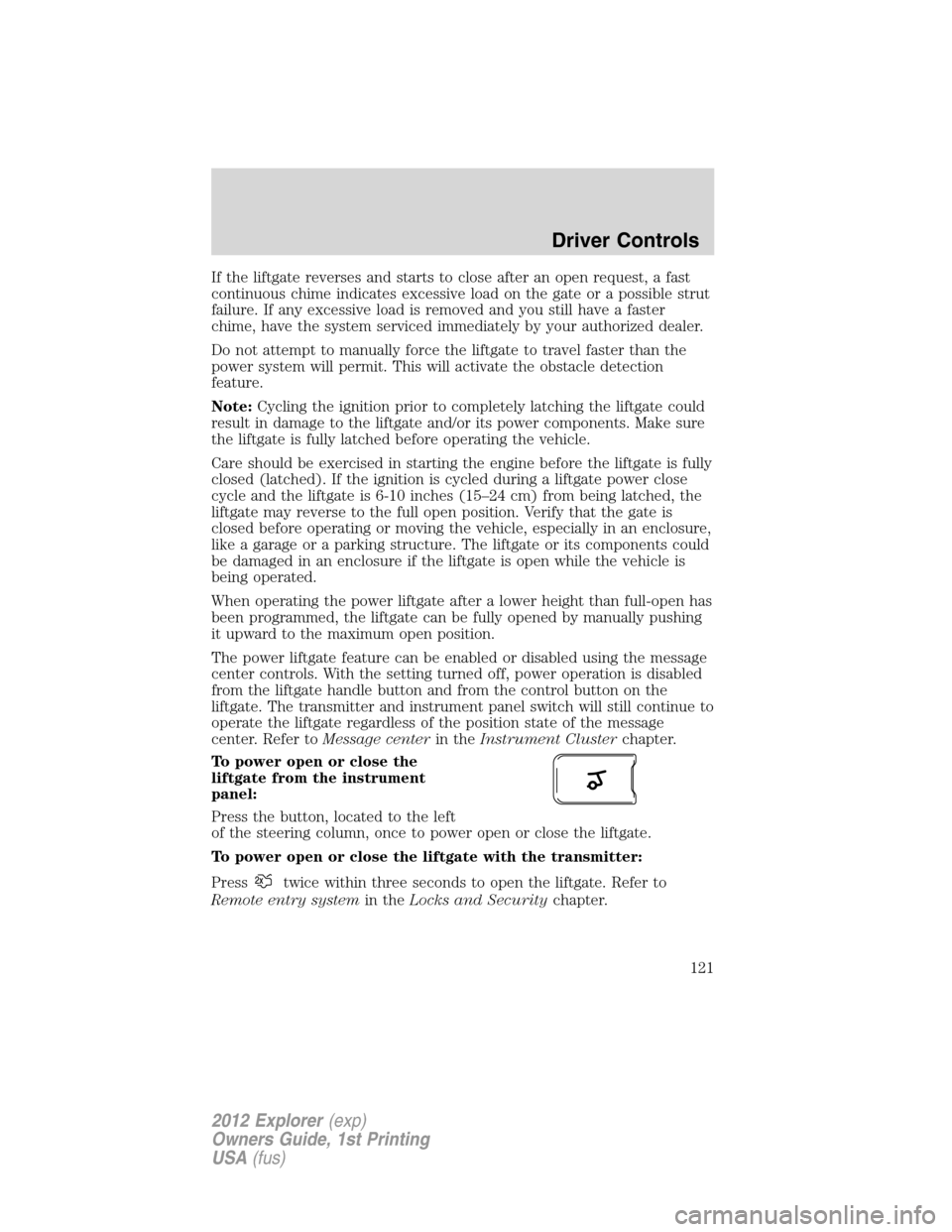

If the liftgate reverses and starts to close after an open request, a fast
continuous chime indicates excessive load on the gate or a possible strut
failure. If any excessive load is removed and you still have a faster
chime, have the system serviced immediately by your authorized dealer.
Do not attempt to manually force the liftgate to travel faster than the
power system will permit. This will activate the obstacle detection
feature.
Note:Cycling the ignition prior to completely latching the liftgate could
result in damage to the liftgate and/or its power components. Make sure
the liftgate is fully latched before operating the vehicle.
Care should be exercised in starting the engine before the liftgate is fully
closed (latched). If the ignition is cycled during a liftgate power close
cycle and the liftgate is 6-10 inches (15–24 cm) from being latched, the
liftgate may reverse to the full open position. Verify that the gate is
closed before operating or moving the vehicle, especially in an enclosure,
like a garage or a parking structure. The liftgate or its components could
be damaged in an enclosure if the liftgate is open while the vehicle is
being operated.
When operating the power liftgate after a lower height than full-open has
been programmed, the liftgate can be fully opened by manually pushing
it upward to the maximum open position.
The power liftgate feature can be enabled or disabled using the message
center controls. With the setting turned off, power operation is disabled
from the liftgate handle button and from the control button on the
liftgate. The transmitter and instrument panel switch will still continue to
operate the liftgate regardless of the position state of the message
center. Refer toMessage centerin theInstrument Clusterchapter.
To power open or close the
liftgate from the instrument
panel:
Press the button, located to the left
of the steering column, once to power open or close the liftgate.
To power open or close the liftgate with the transmitter:
Press
twice within three seconds to open the liftgate. Refer to
Remote entry systemin theLocks and Securitychapter.
Driver Controls
121
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

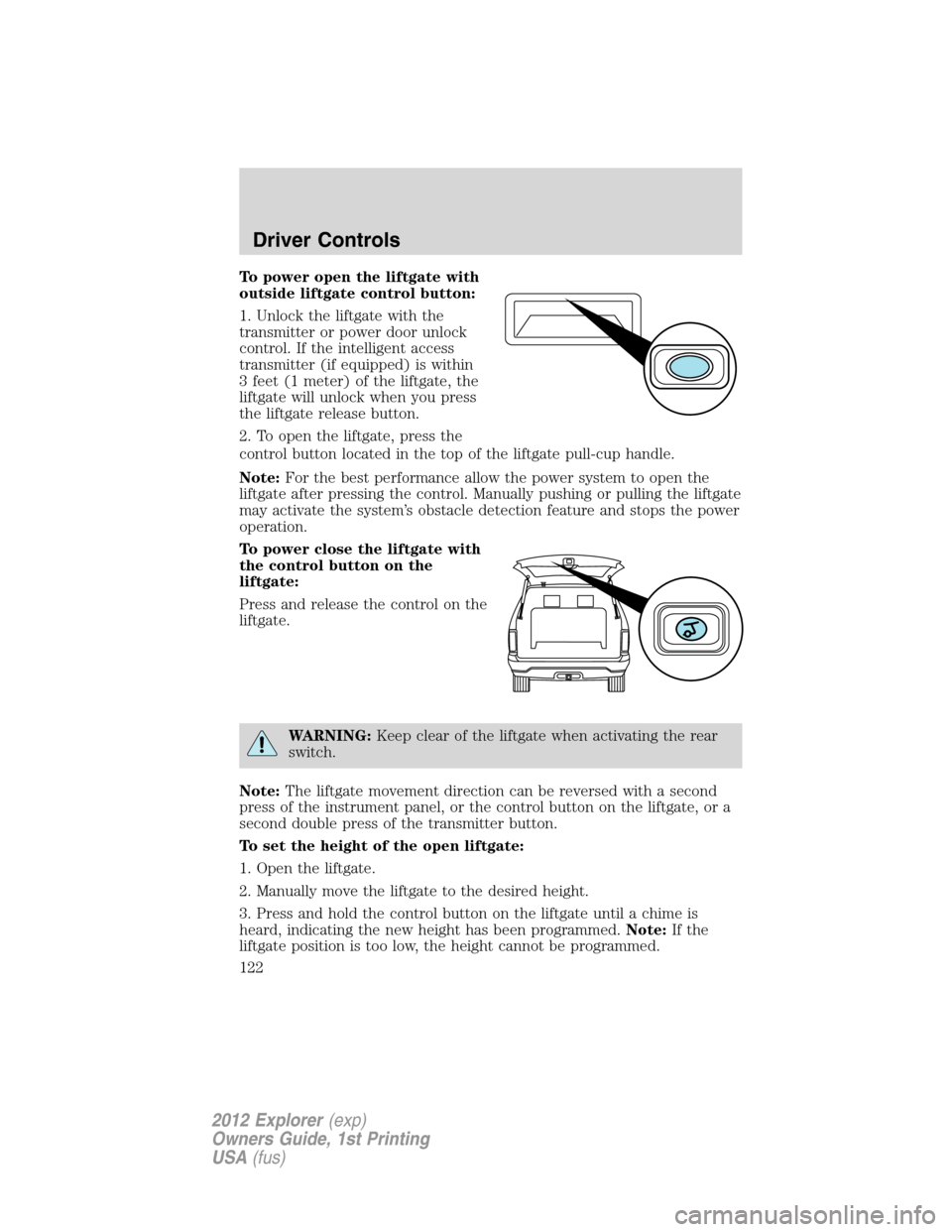

To power open the liftgate with
outside liftgate control button:
1. Unlock the liftgate with the
transmitter or power door unlock
control. If the intelligent access
transmitter (if equipped) is within
3 feet (1 meter) of the liftgate, the
liftgate will unlock when you press
the liftgate release button.
2. To open the liftgate, press the
control button located in the top of the liftgate pull-cup handle.
Note:For the best performance allow the power system to open the
liftgate after pressing the control. Manually pushing or pulling the liftgate
may activate the system’s obstacle detection feature and stops the power
operation.
To power close the liftgate with
the control button on the
liftgate:
Press and release the control on the
liftgate.
WARNING:Keep clear of the liftgate when activating the rear
switch.
Note:The liftgate movement direction can be reversed with a second
press of the instrument panel, or the control button on the liftgate, or a
second double press of the transmitter button.
To set the height of the open liftgate:
1. Open the liftgate.
2. Manually move the liftgate to the desired height.
3. Press and hold the control button on the liftgate until a chime is
heard, indicating the new height has been programmed.Note:If the
liftgate position is too low, the height cannot be programmed.
Driver Controls
122
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

The new open liftgate height will now be recalled when the power
liftgate is opened. To change the programmed height, repeat the above
procedure. Once the power liftgate is opened it can be manually moved
to a different height.
Note:Do not drive with the liftgate open without first disabling the
power function and securing the liftgate to the vehicle.
Note:The new liftgate height will be retained even if the battery is
disconnected.
To manually operate the liftgate:
1. Disable the liftgate power function. Refer to theMessage centerin the
Instrument Clusterchapter.
2. Open and close the liftgate as you would a standard liftgate. Refer to
Manual liftgatein this chapter.
Note:In case of operation in extreme cold -40°F (-40°C), or on extreme
inclines, manual operation of the liftgate is suggested.
Obstacle detection
The power liftgate system is equipped with an obstacle detection feature.
If the power liftgate is closing, the system will reverse to full open when
it detects an obstacle. A chime will sound three times when an obstacle
is detected as the liftgate begins to reopen. Once the obstacle is
removed, the liftgate can be closed under power.
If the power liftgate is opening, the system will stop and a chime will
sound three times when an obstacle is detected. Once the obstacle is
removed, the liftgate can again be operated normally.
Resetting the power liftgate:
The power liftgate may not operate properly and may need to be reset if
any of these conditions occur:
•a low voltage or dead battery
•disconnected battery
•the liftgate is manually closed and left ajar (unlatched)
To reset the power liftgate:
1. Disconnect the battery for 20 seconds then, reconnect the battery.
2. Manually close and fully latch the liftgate.
3. Power open the liftgate by using the transmitter, or the instrument
panel control button.
Driver Controls
123
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

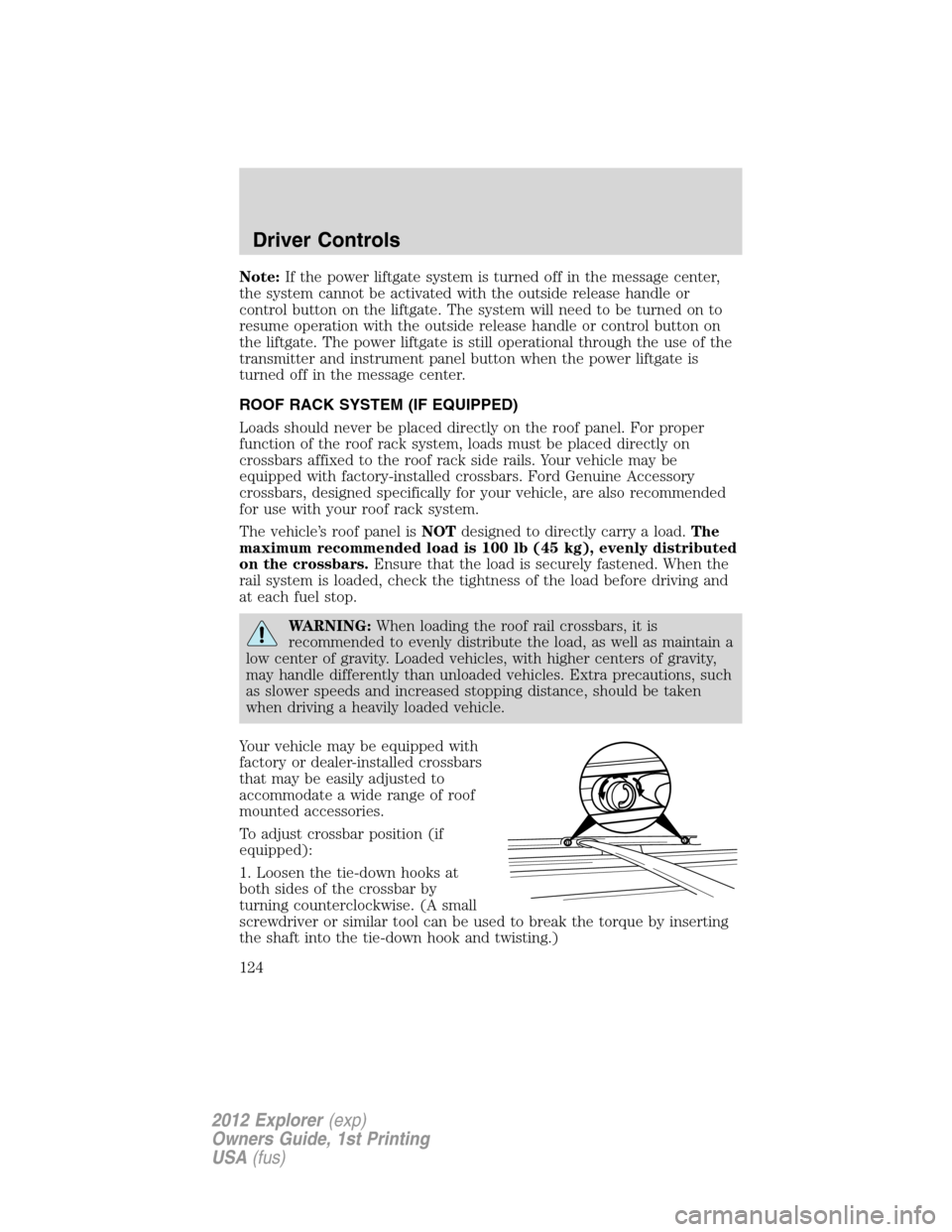

Note:If the power liftgate system is turned off in the message center,
the system cannot be activated with the outside release handle or
control button on the liftgate. The system will need to be turned on to
resume operation with the outside release handle or control button on
the liftgate. The power liftgate is still operational through the use of the
transmitter and instrument panel button when the power liftgate is
turned off in the message center.
ROOF RACK SYSTEM (IF EQUIPPED)
Loads should never be placed directly on the roof panel. For proper
function of the roof rack system, loads must be placed directly on
crossbars affixed to the roof rack side rails. Your vehicle may be
equipped with factory-installed crossbars. Ford Genuine Accessory
crossbars, designed specifically for your vehicle, are also recommended
for use with your roof rack system.
The vehicle’s roof panel isNOTdesigned to directly carry a load.The
maximum recommended load is 100 lb (45 kg), evenly distributed
on the crossbars.Ensure that the load is securely fastened. When the
rail system is loaded, check the tightness of the load before driving and
at each fuel stop.
WARNING:When loading the roof rail crossbars, it is
recommended to evenly distribute the load, as well as maintain a
low center of gravity. Loaded vehicles, with higher centers of gravity,
may handle differently than unloaded vehicles. Extra precautions, such
as slower speeds and increased stopping distance, should be taken
when driving a heavily loaded vehicle.
Your vehicle may be equipped with
factory or dealer-installed crossbars
that may be easily adjusted to
accommodate a wide range of roof
mounted accessories.
To adjust crossbar position (if
equipped):
1. Loosen the tie-down hooks at
both sides of the crossbar by
turning counterclockwise. (A small
screwdriver or similar tool can be used to break the torque by inserting
the shaft into the tie-down hook and twisting.)
Driver Controls
124
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

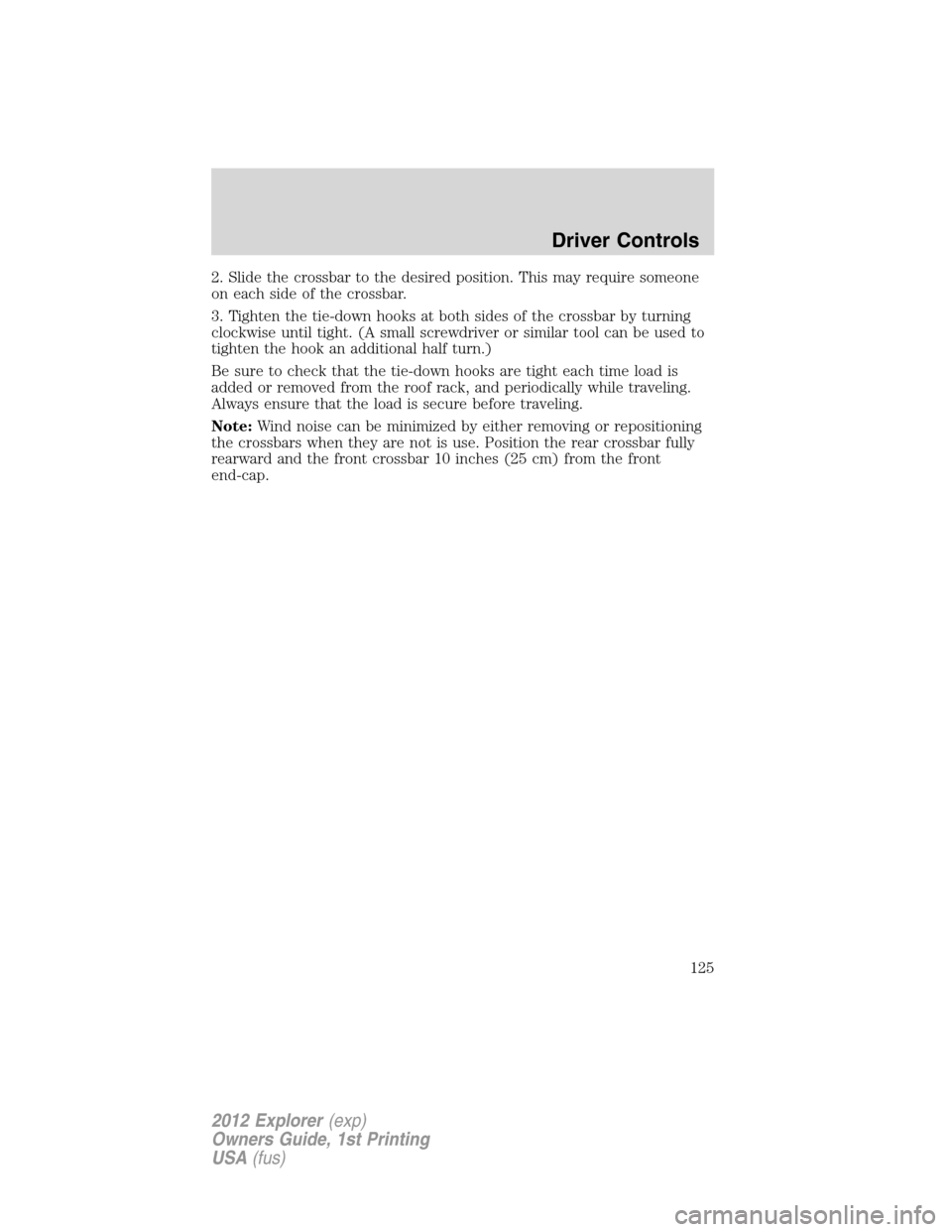

2. Slide the crossbar to the desired position. This may require someone
on each side of the crossbar.
3. Tighten the tie-down hooks at both sides of the crossbar by turning
clockwise until tight. (A small screwdriver or similar tool can be used to
tighten the hook an additional half turn.)
Be sure to check that the tie-down hooks are tight each time load is
added or removed from the roof rack, and periodically while traveling.
Always ensure that the load is secure before traveling.
Note:Wind noise can be minimized by either removing or repositioning
the crossbars when they are not is use. Position the rear crossbar fully
rearward and the front crossbar 10 inches (25 cm) from the front
end-cap.
Driver Controls
125
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

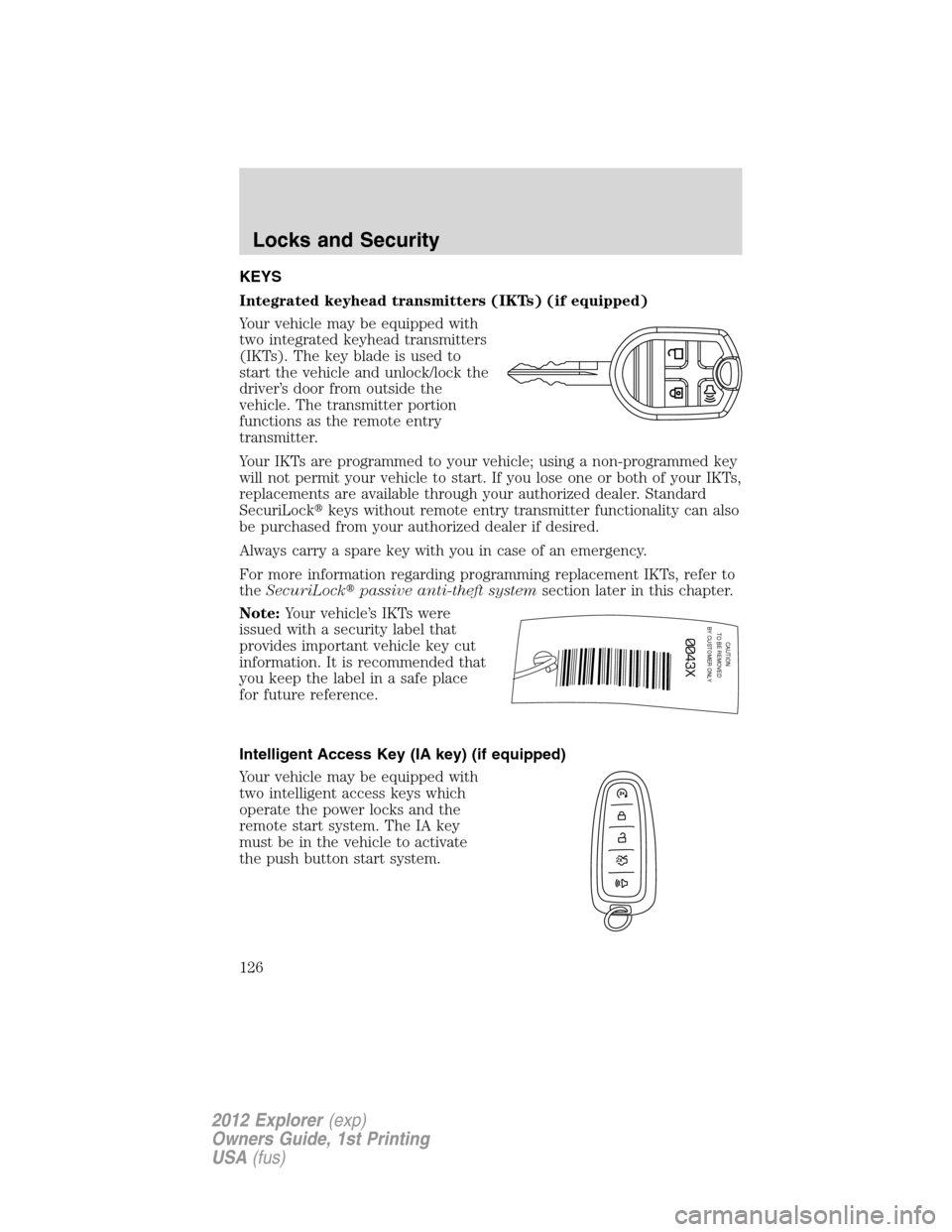

KEYS
Integrated keyhead transmitters (IKTs) (if equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters
(IKTs). The key blade is used to
start the vehicle and unlock/lock the
driver’s door from outside the
vehicle. The transmitter portion
functions as the remote entry
transmitter.
Your IKTs are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose one or both of your IKTs,
replacements are available through your authorized dealer. Standard
SecuriLockkeys without remote entry transmitter functionality can also
be purchased from your authorized dealer if desired.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to
theSecuriLockpassive anti-theft systemsection later in this chapter.
Note:Your vehicle’s IKTs were
issued with a security label that
provides important vehicle key cut
information. It is recommended that
you keep the label in a safe place
for future reference.
Intelligent Access Key (IA key) (if equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks and the
remote start system. The IA key
must be in the vehicle to activate
the push button start system.
CAUTIONTO BE REMOVED
BY CUSTOMER ONLY
Locks and Security
126
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

The IA key also contains a
removable mechanical key blade
that can be used to unlock the
driver door. To release the
mechanical key blade, slide the
release on the back of the
transmitter and pull the blade out.
Your IA keys are programmed to
your vehicle. You cannot enter or start your vehicle with an
unprogrammed key. If you lose one or both of your IA keys,
replacements are available from your authorized dealer. For more
information on programming replacement IA keys, refer to the
SecuriLockpassive anti-theft systemsection in this chapter.
Note:Your vehicle’s IA back-up
keys were issued with a security tag
that provides important vehicle key
cut information. It is recommended
that you keep the tag in a safe place
for future reference.
MYKEY
The MyKeyfeature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey. The key will remain restricted
until MyKeyis cleared. Any remaining keys are referred to as an
“administrator key” or admin key. The admin key can be used to create a
MyKey, program optional MyKeysettings, and clear the MyKey
feature. When the MyKeyfeature is enabled the user can use system
check in the message center to see how many MyKeysand admin keys
are programmed to the vehicle, and see the total distance the vehicle has
been driven with the MyKeyactive.
MyKeyrestricted features
Standard settings – these settings cannot be changed
•The audio system will be muted whenever Belt-Minderis activated
until the safety belts are buckled. Refer to theSeating and Safety
Restraintschapter for a detailed description of Belt-Minder
operation.
•Low fuel warnings are displayed in the message center followed by a
chime when the distance to empty value reaches 75 miles (120 km).
Locks and Security
127
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

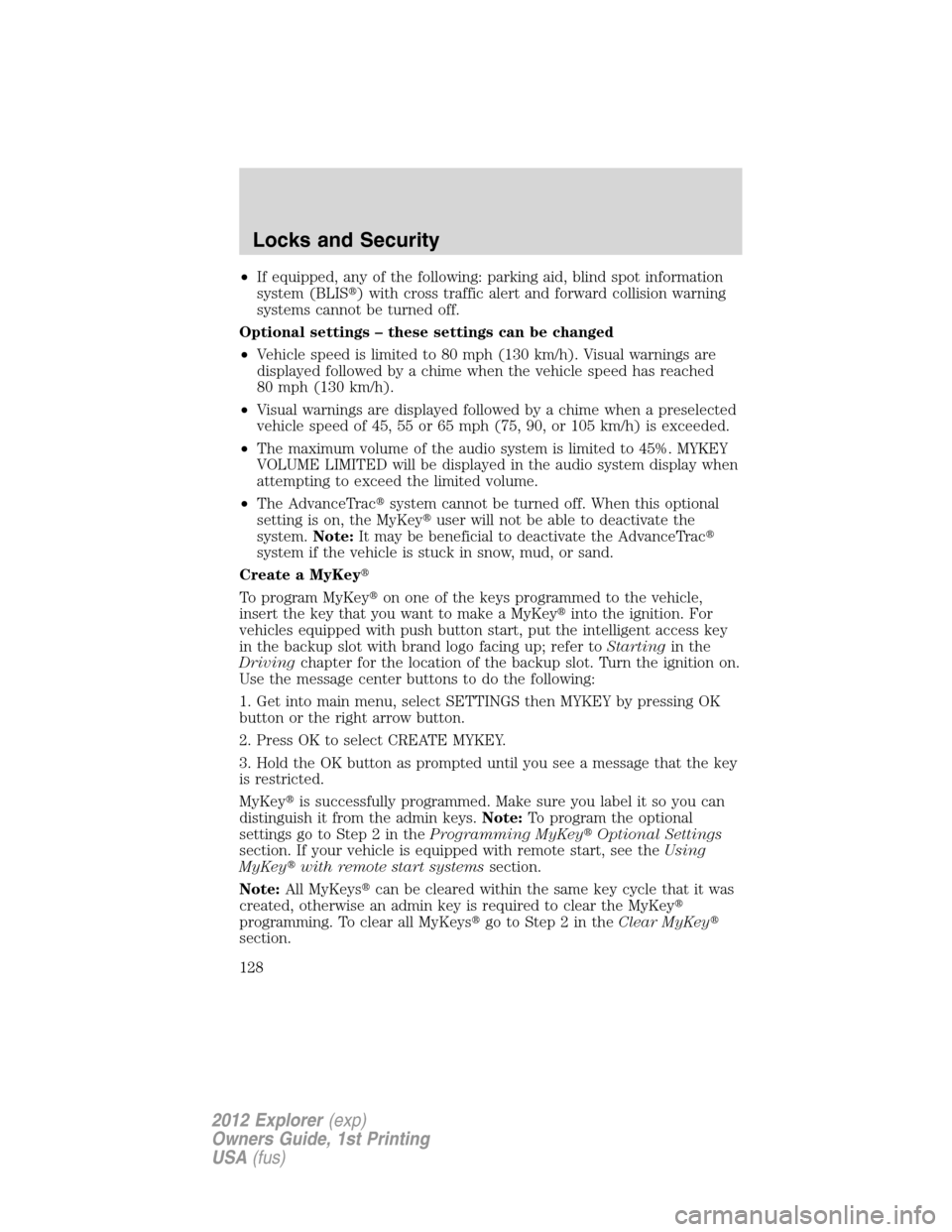

•If equipped, any of the following: parking aid, blind spot information
system (BLIS) with cross traffic alert and forward collision warning
systems cannot be turned off.
Optional settings – these settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the audio system display when
attempting to exceed the limited volume.
•The AdvanceTracsystem cannot be turned off. When this optional
setting is on, the MyKeyuser will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Create a MyKey
To program MyKeyon one of the keys programmed to the vehicle,
insert the key that you want to make a MyKeyinto the ignition. For
vehicles equipped with push button start, put the intelligent access key
in the backup slot with brand logo facing up; refer toStartingin the
Drivingchapter for the location of the backup slot. Turn the ignition on.
Use the message center buttons to do the following:
1. Get into main menu, select SETTINGS then MYKEY by pressing OK
button or the right arrow button.
2. Press OK to select CREATE MYKEY.
3. Hold the OK button as prompted until you see a message that the key
is restricted.
MyKeyis successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKeyOptional Settings
section. If your vehicle is equipped with remote start, see theUsing
MyKeywith remote start systemssection.
Note:All MyKeyscan be cleared within the same key cycle that it was
created, otherwise an admin key is required to clear the MyKey
programming. To clear all MyKeysgo to Step 2 in theClear MyKey
section.
Locks and Security
128
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

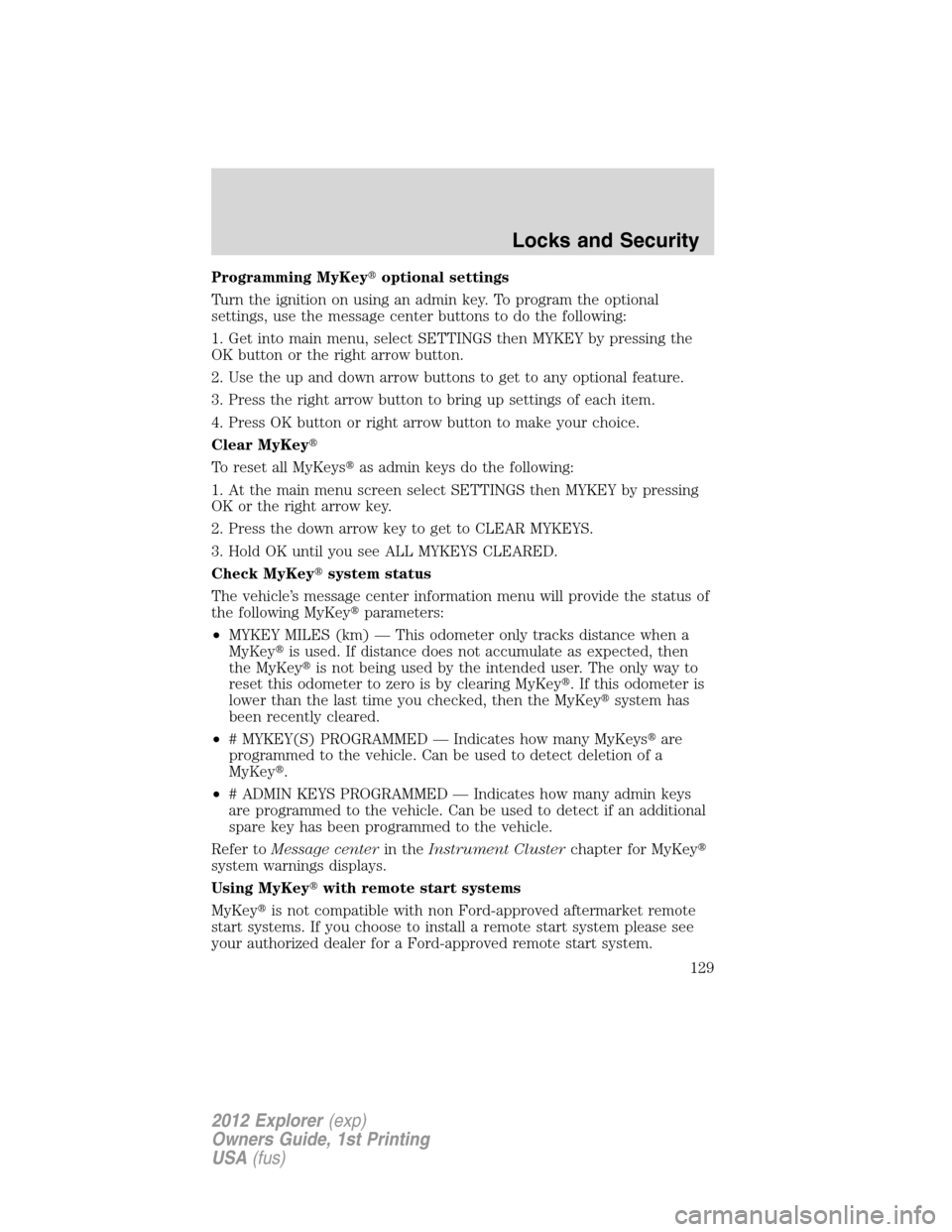

Programming MyKeyoptional settings
Turn the ignition on using an admin key. To program the optional
settings, use the message center buttons to do the following:
1. Get into main menu, select SETTINGS then MYKEY by pressing the
OK button or the right arrow button.
2. Use the up and down arrow buttons to get to any optional feature.
3. Press the right arrow button to bring up settings of each item.
4. Press OK button or right arrow button to make your choice.
Clear MyKey
To reset all MyKeysas admin keys do the following:
1. At the main menu screen select SETTINGS then MYKEY by pressing
OK or the right arrow key.
2. Press the down arrow key to get to CLEAR MYKEYS.
3. Hold OK until you see ALL MYKEYS CLEARED.
Check MyKeysystem status
The vehicle’s message center information menu will provide the status of
the following MyKeyparameters:
•MYKEY MILES (km) — This odometer only tracks distance when a
MyKeyis used. If distance does not accumulate as expected, then
the MyKeyis not being used by the intended user. The only way to
reset this odometer to zero is by clearing MyKey. If this odometer is
lower than the last time you checked, then the MyKeysystem has
been recently cleared.
•# MYKEY(S) PROGRAMMED — Indicates how many MyKeysare
programmed to the vehicle. Can be used to detect deletion of a
MyKey.
•# ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle.
Refer toMessage centerin theInstrument Clusterchapter for MyKey
system warnings displays.
Using MyKeywith remote start systems
MyKeyis not compatible with non Ford-approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford-approved remote start system.
Locks and Security
129
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

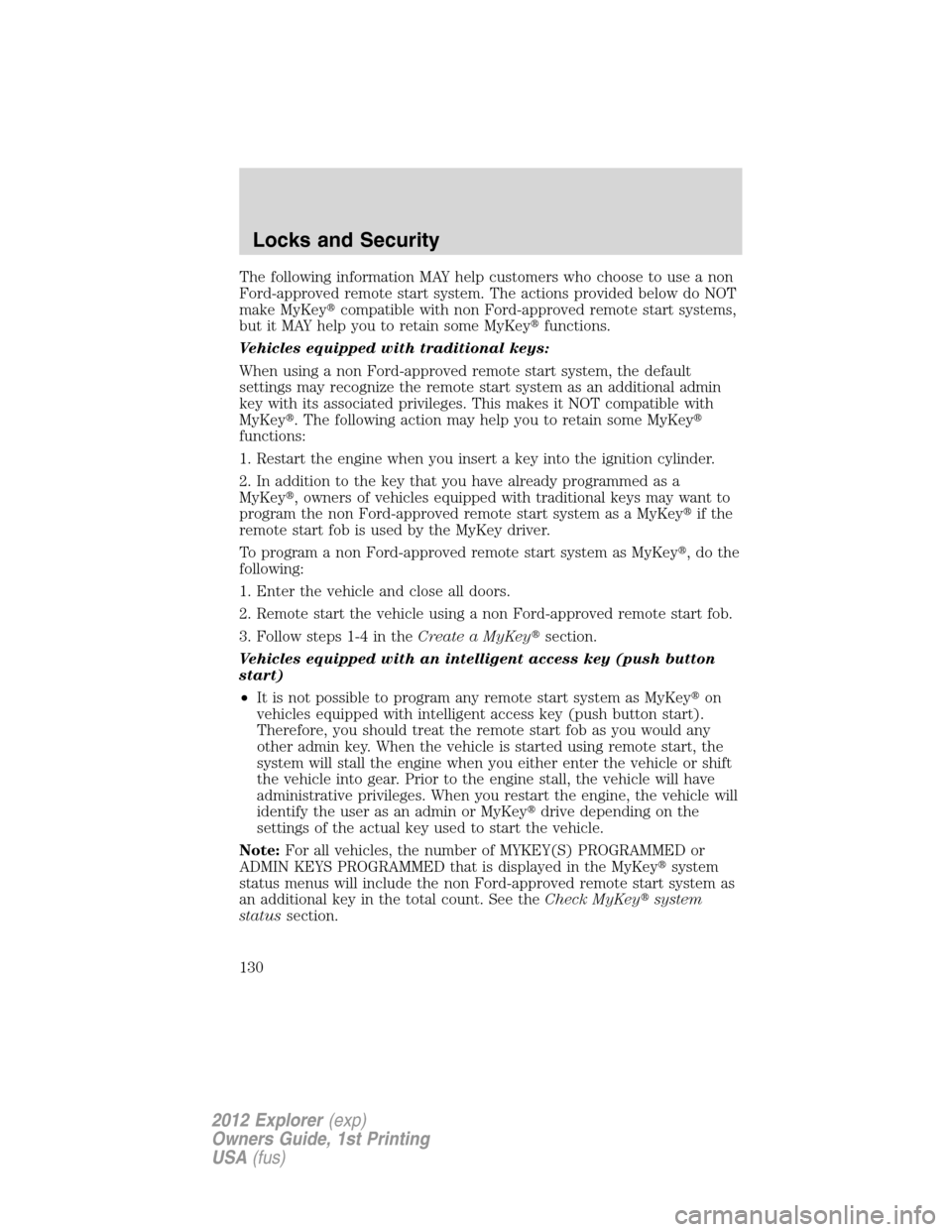

The following information MAY help customers who choose to use a non
Ford-approved remote start system. The actions provided below do NOT
make MyKeycompatible with non Ford-approved remote start systems,
but it MAY help you to retain some MyKeyfunctions.
Vehicles equipped with traditional keys:
When using a non Ford-approved remote start system, the default
settings may recognize the remote start system as an additional admin
key with its associated privileges. This makes it NOT compatible with
MyKey. The following action may help you to retain some MyKey
functions:
1. Restart the engine when you insert a key into the ignition cylinder.
2. In addition to the key that you have already programmed as a
MyKey, owners of vehicles equipped with traditional keys may want to
program the non Ford-approved remote start system as a MyKeyif the
remote start fob is used by the MyKey driver.
To program a non Ford-approved remote start system as MyKey,dothe
following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a non Ford-approved remote start fob.
3. Follow steps 1-4 in theCreate a MyKeysection.
Vehicles equipped with an intelligent access key (push button
start)
•It is not possible to program any remote start system as MyKeyon
vehicles equipped with intelligent access key (push button start).
Therefore, you should treat the remote start fob as you would any
other admin key. When the vehicle is started using remote start, the
system will stall the engine when you either enter the vehicle or shift
the vehicle into gear. Prior to the engine stall, the vehicle will have
administrative privileges. When you restart the engine, the vehicle will
identify the user as an admin or MyKeydrive depending on the
settings of the actual key used to start the vehicle.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKeysystem
status menus will include the non Ford-approved remote start system as
an additional key in the total count. See theCheck MyKeysystem
statussection.
Locks and Security
130
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
