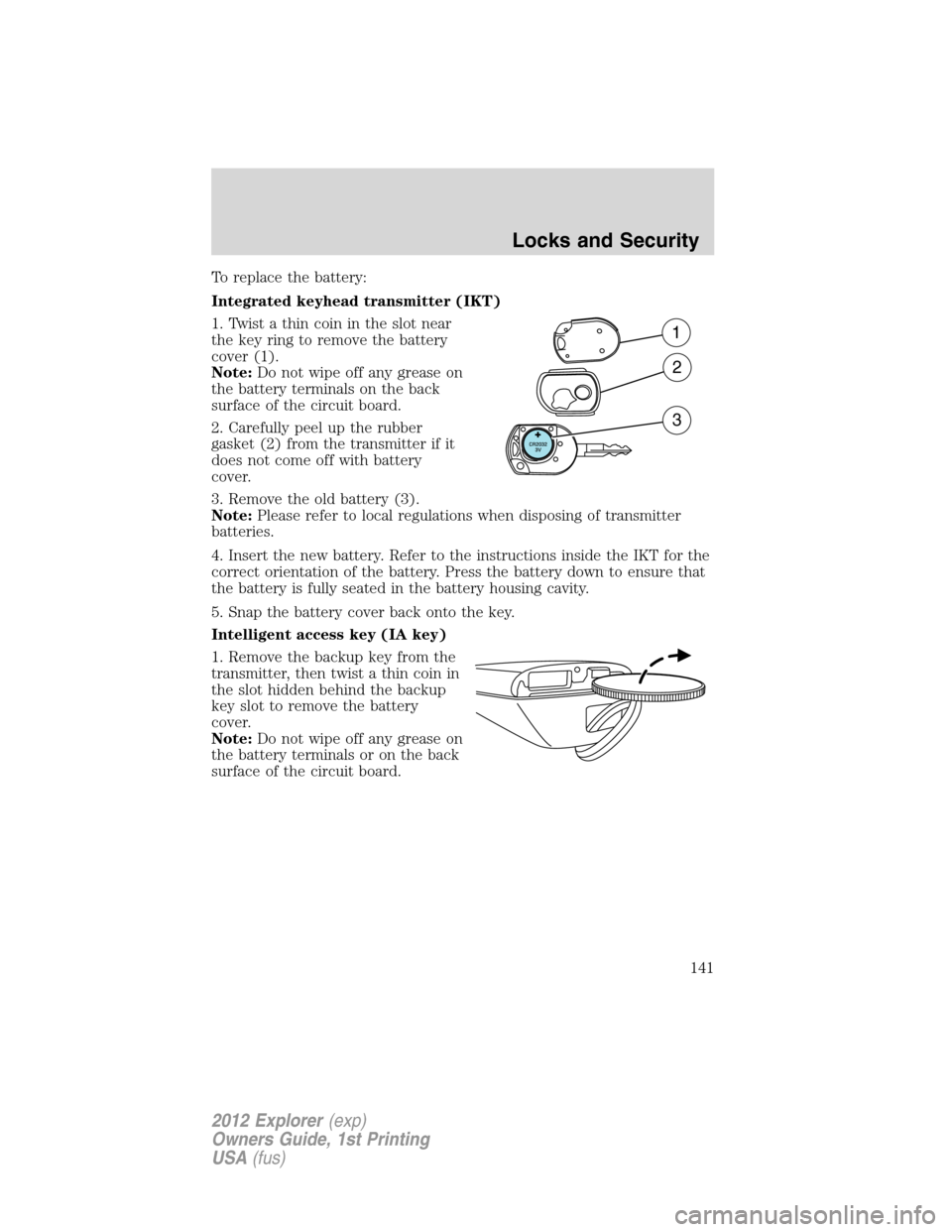

To replace the battery:
Integrated keyhead transmitter (IKT)
1. Twist a thin coin in the slot near
the key ring to remove the battery
cover (1).
Note:Do not wipe off any grease on
the battery terminals on the back
surface of the circuit board.
2. Carefully peel up the rubber
gasket (2) from the transmitter if it
does not come off with battery
cover.
3. Remove the old battery (3).
Note:Please refer to local regulations when disposing of transmitter
batteries.
4. Insert the new battery. Refer to the instructions inside the IKT for the
correct orientation of the battery. Press the battery down to ensure that
the battery is fully seated in the battery housing cavity.
5. Snap the battery cover back onto the key.
Intelligent access key (IA key)
1. Remove the backup key from the
transmitter, then twist a thin coin in
the slot hidden behind the backup
key slot to remove the battery
cover.
Note:Do not wipe off any grease on
the battery terminals or on the back
surface of the circuit board.
1
2
3
Locks and Security
141
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

2. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
3. Insert the new battery. Refer to
the instructions inside the IA key
for the correct orientation of the
battery. Press the battery down to
ensure that the battery is fully
seated in the battery housing cavity.
4. Snap the battery cover back onto the transmitter and install the
backup key.
Note:Replacement of the battery willnotcause the IKT or IA key to
become de-programmed from your vehicle. They should operate normally
after battery replacement.
Replacing lost intelligent access keys (IA keys)
If you would like to have your IA keys reprogrammed because you lost
one, or would like to buy additional transmitters you can either
reprogram them yourself, or takeall transmittersto your authorized
dealer for reprogramming.
How to reprogram your intelligent access keys (IA keys)
To program new IA keys yourself, refer toSecuriLockpassive
anti-theft systemin this chapter.Note:At least two already
programmed transmitters are required to perform this procedure
yourself.
Illuminated entry
The interior lamps, parking lamps and puddle lamps (if equipped)
illuminate when the integrated keyhead transmitter, intelligent access
keys or the keyless entry system keypad is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
•the ignition is turned on, or
•the
control on the transmitter is pressed, or
•the vehicle is locked using the keyless entry keypad, or
•after 25 seconds of illumination.
Locks and Security
142
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

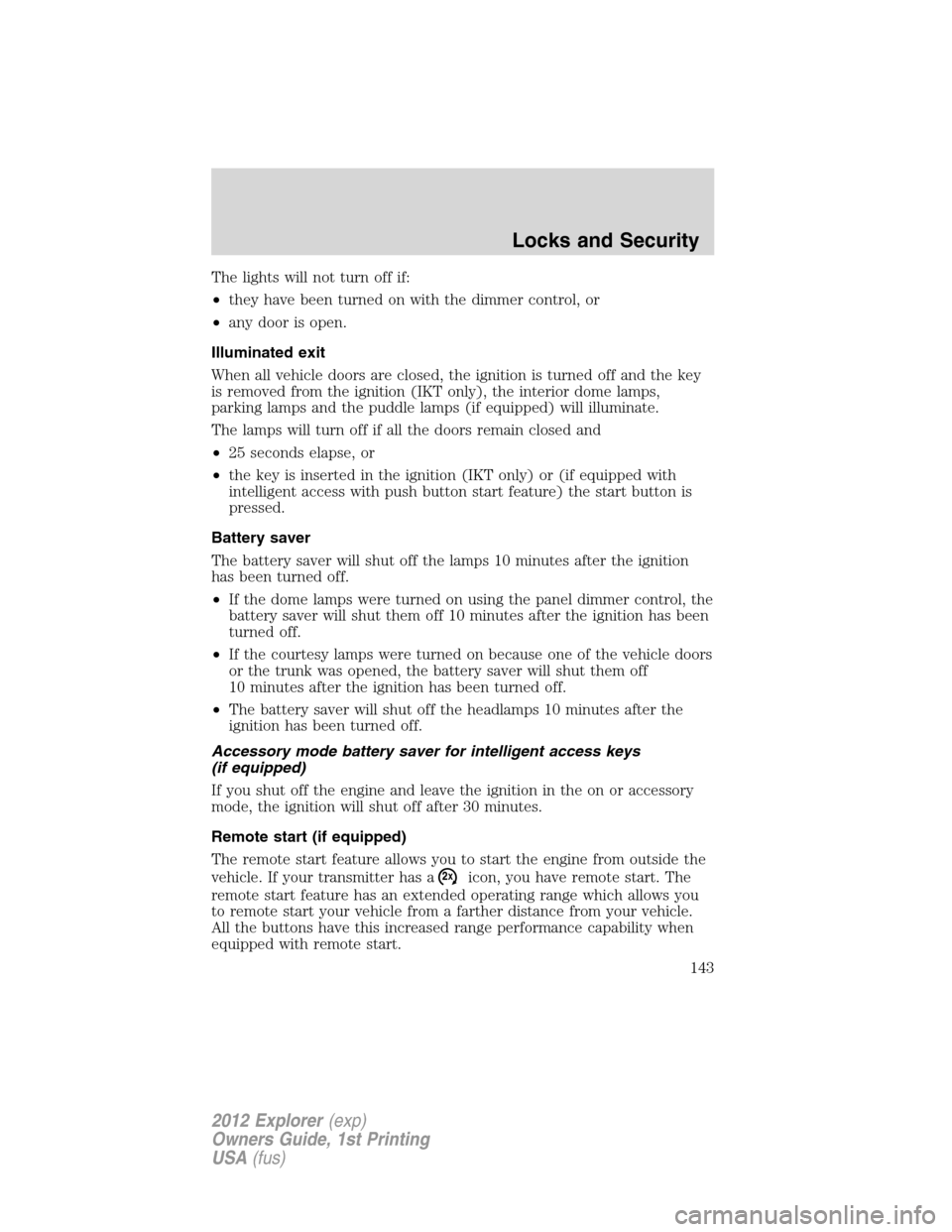

The lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Illuminated exit
When all vehicle doors are closed, the ignition is turned off and the key
is removed from the ignition (IKT only), the interior dome lamps,
parking lamps and the puddle lamps (if equipped) will illuminate.
The lamps will turn off if all the doors remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition (IKT only) or (if equipped with
intelligent access with push button start feature) the start button is
pressed.
Battery saver
The battery saver will shut off the lamps 10 minutes after the ignition
has been turned off.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut them off 10 minutes after the ignition has been
turned off.
•If the courtesy lamps were turned on because one of the vehicle doors
or the trunk was opened, the battery saver will shut them off
10 minutes after the ignition has been turned off.
•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned off.
Accessory mode battery saver for intelligent access keys
(if equipped)
If you shut off the engine and leave the ignition in the on or accessory
mode, the ignition will shut off after 30 minutes.
Remote start (if equipped)
The remote start feature allows you to start the engine from outside the
vehicle. If your transmitter has a
icon, you have remote start. The
remote start feature has an extended operating range which allows you
to remote start your vehicle from a farther distance from your vehicle.
All the buttons have this increased range performance capability when
equipped with remote start.
Locks and Security
143
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

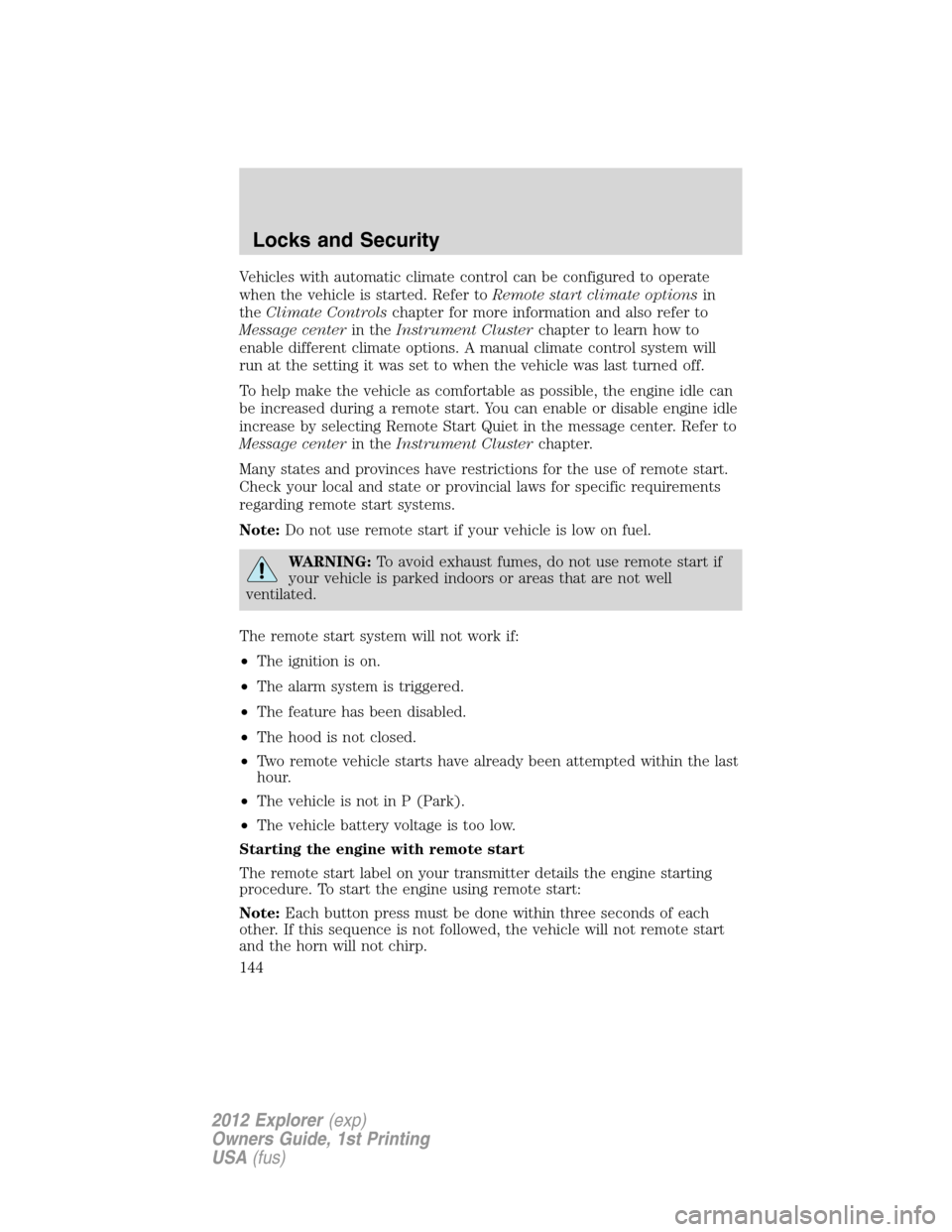

Vehicles with automatic climate control can be configured to operate
when the vehicle is started. Refer toRemote start climate optionsin
theClimate Controlschapter for more information and also refer to
Message centerin theInstrument Clusterchapter to learn how to
enable different climate options. A manual climate control system will
run at the setting it was set to when the vehicle was last turned off.
To help make the vehicle as comfortable as possible, the engine idle can
be increased during a remote start. You can enable or disable engine idle
increase by selecting Remote Start Quiet in the message center. Refer to
Message centerin theInstrument Clusterchapter.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
Note:Do not use remote start if your vehicle is low on fuel.
WARNING:To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well
ventilated.
The remote start system will not work if:
•The ignition is on.
•The alarm system is triggered.
•The feature has been disabled.
•The hood is not closed.
•Two remote vehicle starts have already been attempted within the last
hour.
•The vehicle is not in P (Park).
•The vehicle battery voltage is too low.
Starting the engine with remote start
The remote start label on your transmitter details the engine starting
procedure. To start the engine using remote start:
Note:Each button press must be done within three seconds of each
other. If this sequence is not followed, the vehicle will not remote start
and the horn will not chirp.
Locks and Security
144
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

1. Pressto lock all the doors.
2. Press
two times. The exterior
lamps will flash twice.
If for some reason, the system fails to start, the horn will chirp.
Note:If the vehicle has been remote started and is equipped with an
IKT, you must turn the ignition on before driving the vehicle. If equipped
with an IA transmitter, you must press the START/STOP button on the
instrument panel once while applying the brake pedal before driving the
vehicle.
The power windows will be inhibited during the remote start and the
radio will not turn on automatically.
The parking lamps will remain on and the engine will run for 5, 10, or
15 minutes, depending on how you programmed the system. To select
the duration of the remote start system refer toMessage centerin the
Instrument Clusterchapter.
Extending the engine run time
To keep the engine running for another remote start duration, repeat
Steps 1 and 2 with the engine still running. If you programmed the
duration to last 10 minutes, the second 10 minutes will begin
immediately so that, for example, if the vehicle had been running from
the first remote start for five minutes, the engine will continue to run for
a total of 15 minutes. You can only extend the remote start once.
If the vehicle is remote started then remote stopped, wait at least five
seconds before remote starting a second time.
The ignition must be turned on and then back off or allow one hour to
pass before using remote start again if additional remote starts are
desired.
Turning the engine off after using remote start
•Press
one time. The parking lamps will turn off.
You may have to be closer to the vehicle than when starting due to
ground reflection and the added noise of the running engine.
You can disable or enable the remote start system through the message
center. Refer toMessage centerin theInstrument Clusterchapter.
Locks and Security
145
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

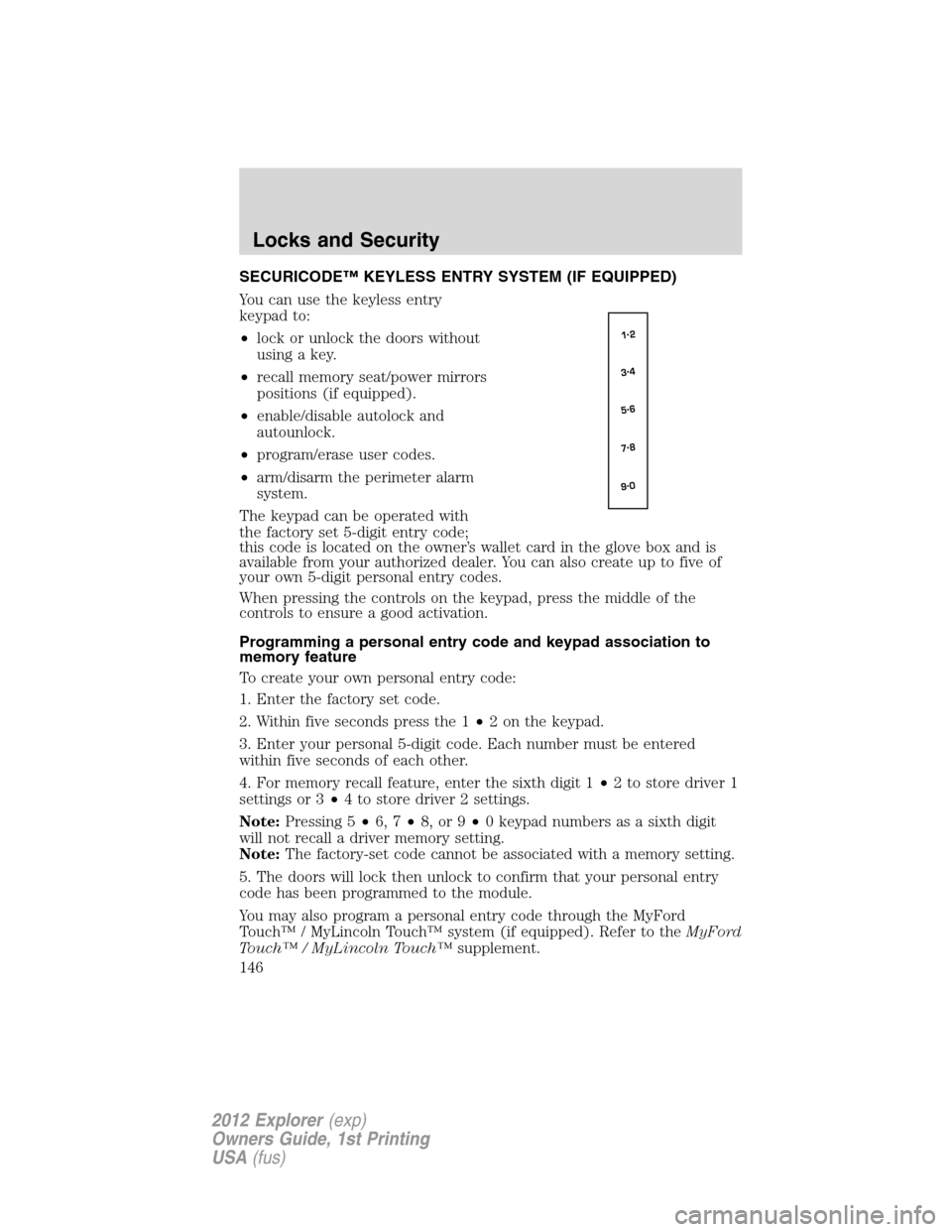

SECURICODE™ KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•recall memory seat/power mirrors
positions (if equipped).
•enable/disable autolock and
autounlock.
•program/erase user codes.
•arm/disarm the perimeter alarm
system.
The keypad can be operated with
the factory set 5-digit entry code;
this code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create up to five of
your own 5-digit personal entry codes.
When pressing the controls on the keypad, press the middle of the
controls to ensure a good activation.
Programming a personal entry code and keypad association to
memory feature
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds press the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. For memory recall feature, enter the sixth digit 1•2 to store driver 1
settings or 3•4 to store driver 2 settings.
Note:Pressing 5•6, 7•8, or 9•0 keypad numbers as a sixth digit
will not recall a driver memory setting.
Note:The factory-set code cannot be associated with a memory setting.
5. The doors will lock then unlock to confirm that your personal entry
code has been programmed to the module.
You may also program a personal entry code through the MyFord
Touch™ / MyLincoln Touch™ system (if equipped). Refer to theMyFord
Touch™ / MyLincoln Touch™supplement.
Locks and Security
146
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Tips:
•Do not set a code that uses five of the same number.
•Do not use five numbers in sequential order.
•The factory set code will work even if you have set your own personal
code.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds, press the 1•2 on the keypad and release.
3. Press and hold the 1•2 for two seconds. This must be done within
five seconds of completing Step 2.
All personal codes are now erased and only the factory set 5–digit code
will work.
Anti-scan feature
If the wrong code has been entered seven times (35 consecutive button
presses), the keypad will go into an anti-scan mode. This mode disables
the keypad for one minute and the keypad lamp will flash.
The anti-scan feature will turn off after:
•one minute of keypad inactivity.
•pressing the
control on the transmitter.
•the ignition is turned on.
•unlocking the vehicle using intelligent access (if equipped).
Unlocking and locking the doors using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate.Note:If the two-stage unlocking
feature is disabled, all doors will unlock; for more information regarding
two-stage unlocking, refer to theUnlocking the doors/Two stage unlock
section earlier in this chapter.
To unlock all doors,enter the factory set code or your personal code,
then press the 3•4 control within five seconds.
To lock all doors,press and hold the 7•8 and the 9•0 at the same
time (with the driver’s door closed). Youdo notneed to enter the
keypad code first.
To enable/disable autolock/autounlock, refer toAutolock featureor
Autounlock featureearlier in this chapter.
Locks and Security
147
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

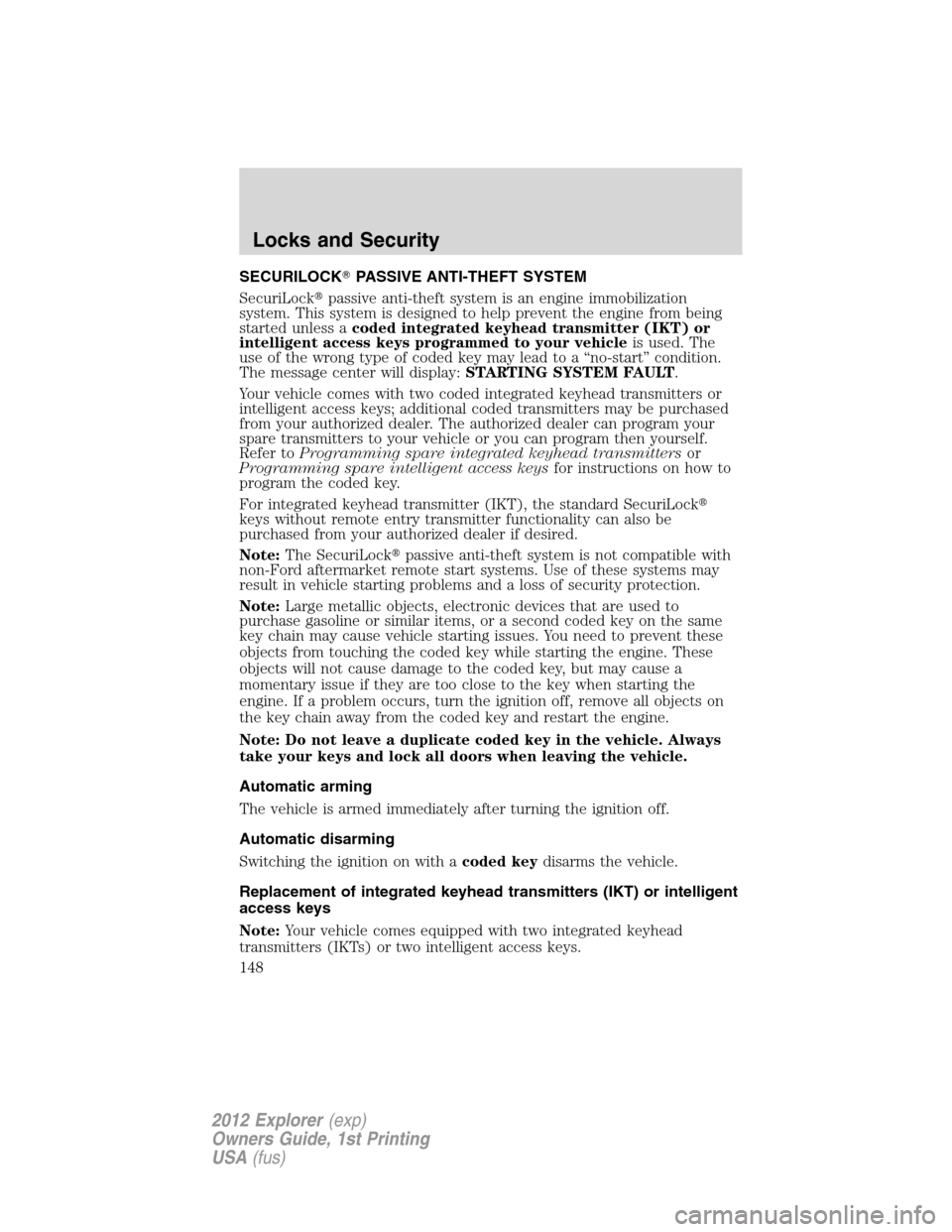

SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLockpassive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded integrated keyhead transmitter (IKT) or
intelligent access keys programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
The message center will display:STARTING SYSTEM FAULT.
Your vehicle comes with two coded integrated keyhead transmitters or
intelligent access keys; additional coded transmitters may be purchased
from your authorized dealer. The authorized dealer can program your
spare transmitters to your vehicle or you can program then yourself.
Refer toProgramming spare integrated keyhead transmittersor
Programming spare intelligent access keysfor instructions on how to
program the coded key.
For integrated keyhead transmitter (IKT), the standard SecuriLock
keys without remote entry transmitter functionality can also be
purchased from your authorized dealer if desired.
Note:The SecuriLockpassive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Automatic arming
The vehicle is armed immediately after turning the ignition off.
Automatic disarming
Switching the ignition on with acoded keydisarms the vehicle.
Replacement of integrated keyhead transmitters (IKT) or intelligent
access keys
Note:Your vehicle comes equipped with two integrated keyhead
transmitters (IKTs) or two intelligent access keys.
Locks and Security
148
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

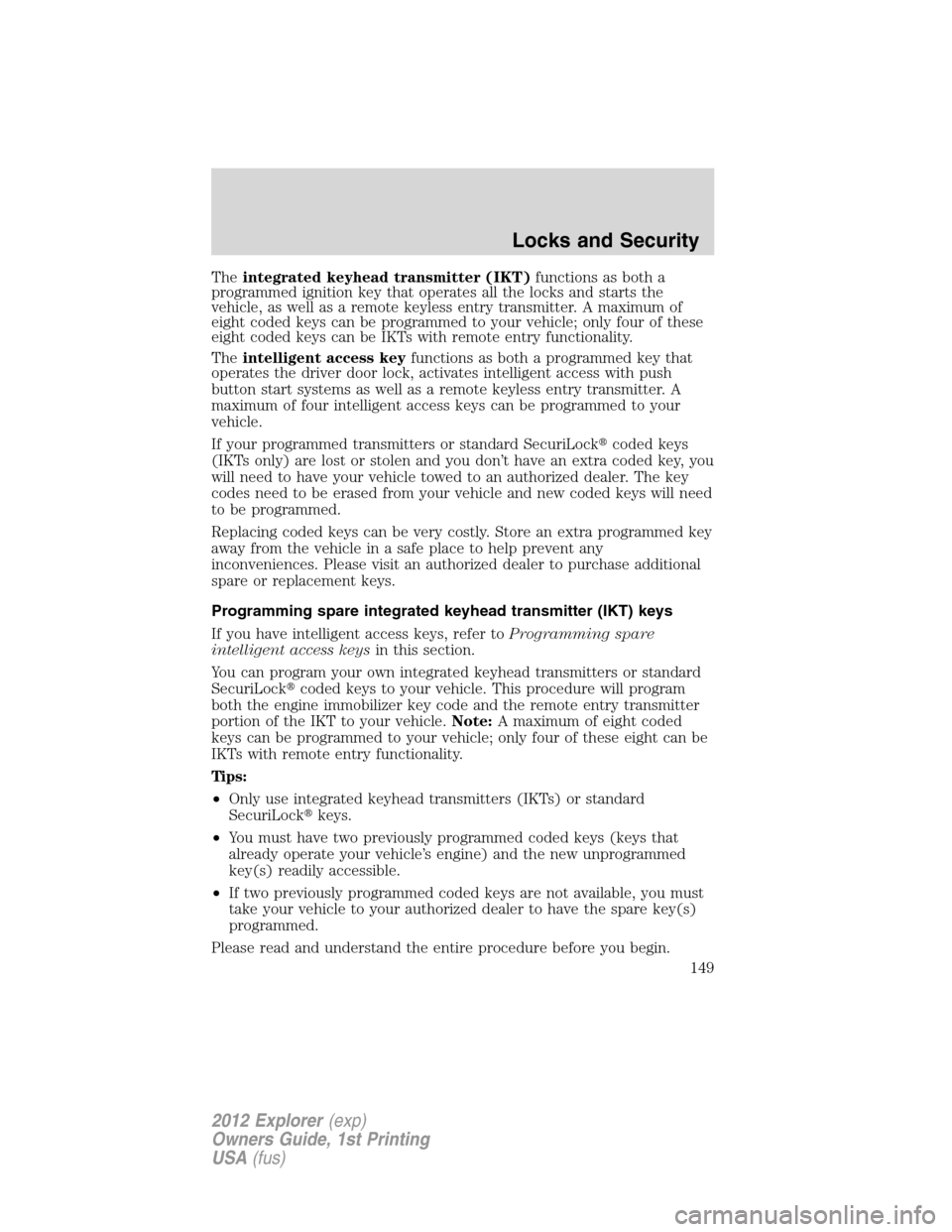

Theintegrated keyhead transmitter (IKT)functions as both a
programmed ignition key that operates all the locks and starts the
vehicle, as well as a remote keyless entry transmitter. A maximum of
eight coded keys can be programmed to your vehicle; only four of these
eight coded keys can be IKTs with remote entry functionality.
Theintelligent access keyfunctions as both a programmed key that
operates the driver door lock, activates intelligent access with push
button start systems as well as a remote keyless entry transmitter. A
maximum of four intelligent access keys can be programmed to your
vehicle.
If your programmed transmitters or standard SecuriLockcoded keys
(IKTs only) are lost or stolen and you don’t have an extra coded key, you
will need to have your vehicle towed to an authorized dealer. The key
codes need to be erased from your vehicle and new coded keys will need
to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare integrated keyhead transmitter (IKT) keys
If you have intelligent access keys, refer toProgramming spare
intelligent access keysin this section.
You can program your own integrated keyhead transmitters or standard
SecuriLockcoded keys to your vehicle. This procedure will program
both the engine immobilizer key code and the remote entry transmitter
portion of the IKT to your vehicle.Note:A maximum of eight coded
keys can be programmed to your vehicle; only four of these eight can be
IKTs with remote entry functionality.
Tips:
•Only use integrated keyhead transmitters (IKTs) or standard
SecuriLockkeys.
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Please read and understand the entire procedure before you begin.
Locks and Security
149
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

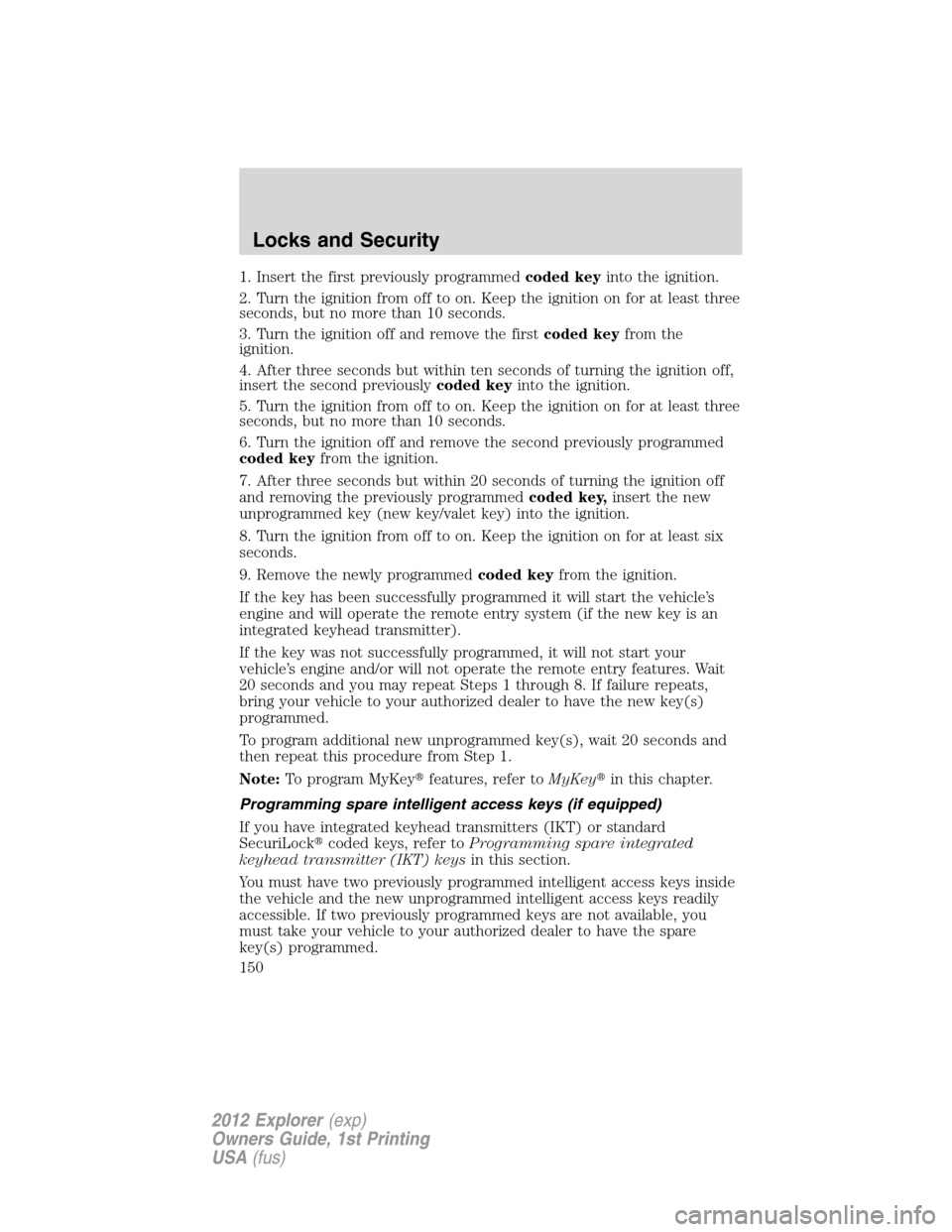

1. Insert the first previously programmedcoded keyinto the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the firstcoded keyfrom the
ignition.
4. After three seconds but within ten seconds of turning the ignition off,
insert the second previouslycoded keyinto the ignition.
5. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed
coded keyfrom the ignition.
7. After three seconds but within 20 seconds of turning the ignition off
and removing the previously programmedcoded key,insert the new
unprogrammed key (new key/valet key) into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six
seconds.
9. Remove the newly programmedcoded keyfrom the ignition.
If the key has been successfully programmed it will start the vehicle’s
engine and will operate the remote entry system (if the new key is an
integrated keyhead transmitter).
If the key was not successfully programmed, it will not start your
vehicle’s engine and/or will not operate the remote entry features. Wait
20 seconds and you may repeat Steps 1 through 8. If failure repeats,
bring your vehicle to your authorized dealer to have the new key(s)
programmed.
To program additional new unprogrammed key(s), wait 20 seconds and
then repeat this procedure from Step 1.
Note:To program MyKeyfeatures, refer toMyKeyin this chapter.
Programming spare intelligent access keys (if equipped)
If you have integrated keyhead transmitters (IKT) or standard
SecuriLockcoded keys, refer toProgramming spare integrated
keyhead transmitter (IKT) keysin this section.
You must have two previously programmed intelligent access keys inside
the vehicle and the new unprogrammed intelligent access keys readily
accessible. If two previously programmed keys are not available, you
must take your vehicle to your authorized dealer to have the spare
key(s) programmed.
Locks and Security
150
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
