FORD EXPLORER 2012 5.G Owners Manual

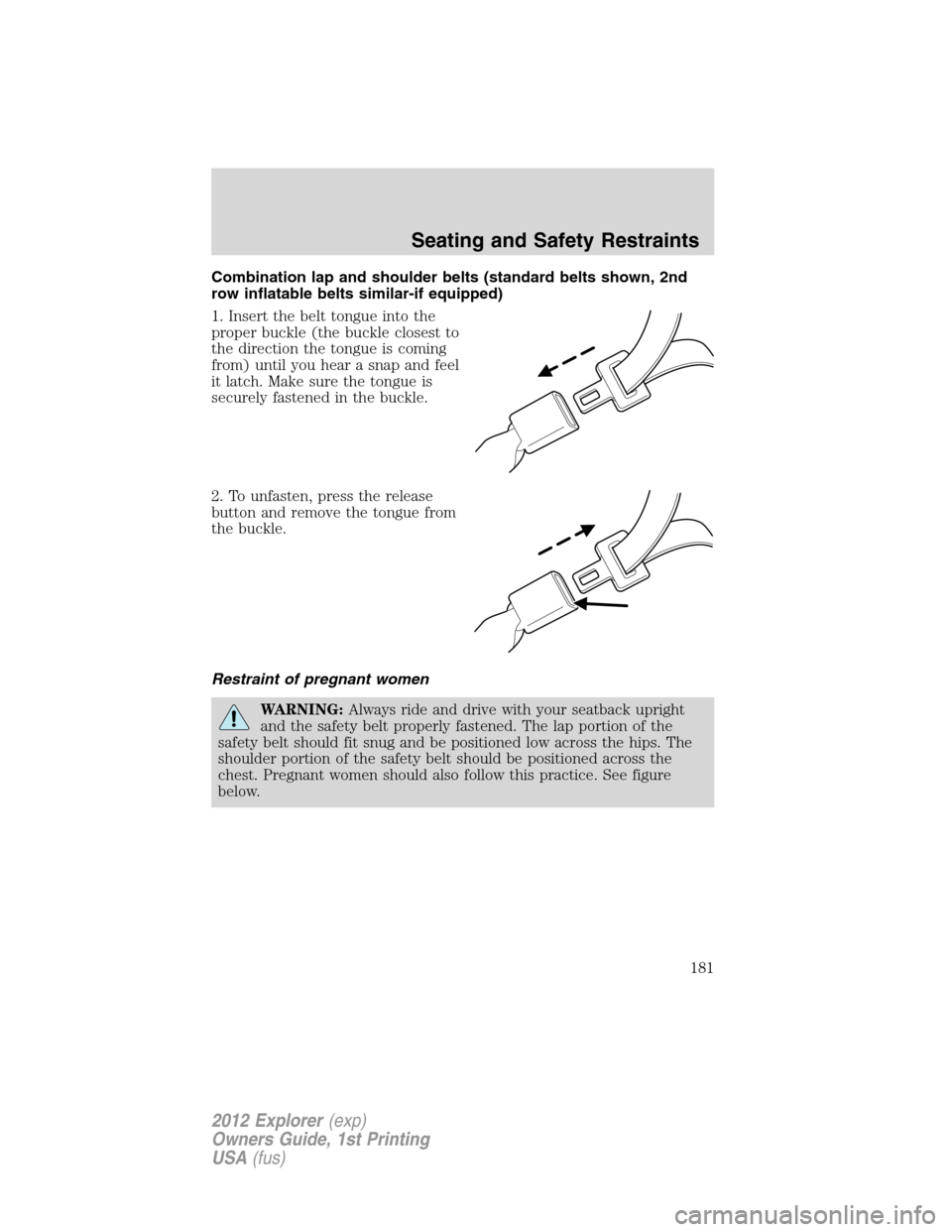

Combination lap and shoulder belts (standard belts shown, 2nd
row inflatable belts similar-if equipped)
1. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) until you hear a snap and feel
it latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, press the release
button and remove the tongue from
the buckle.
Restraint of pregnant women
WARNING:Always ride and drive with your seatback upright
and the safety belt properly fastened. The lap portion of the
safety belt should fit snug and be positioned low across the hips. The
shoulder portion of the safety belt should be positioned across the
chest. Pregnant women should also follow this practice. See figure
below.
Seating and Safety Restraints
181
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Pregnant women should always
wear their safety belt. The lap belt
portion of a combination lap and
shoulder belt should be positioned
low across the hips below the belly
and worn as tight as comfort will
allow. The shoulder belt should be
positioned to cross the middle of
the shoulder and the center of the
chest.
Safety belt locking modes
All safety restraints in the vehicle are combination lap and shoulder
belts. The driver safety belt has the first locking mode and the front
outboard passenger and rear seat safety belts have both types of locking
modes described as follows:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder or lap belt
length adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph
(8 km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
In addition, the retractor(s) is designed to lock if the webbing is pulled
out too quickly. If this occurs, let the belt retract slightly and pull
webbing out again in a slow and controlled manner.
Automatic locking mode
In this mode, the shoulder belt or lap belt is automatically pre-locked.
The belt will still retract to remove any slack in the shoulder or lap belt.
The automatic locking mode is not available on the driver safety belt.
When to use the automatic locking mode
This mode should be usedany timea child safety seat, except a
booster, is installed in passenger front or rear seating positions. Children
12 years old and under should be properly restrained in a rear seating
position whenever possible. Refer toSafety restraints for childrenor
Safety seats for childrenlater in this chapter.
Seating and Safety Restraints
182
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

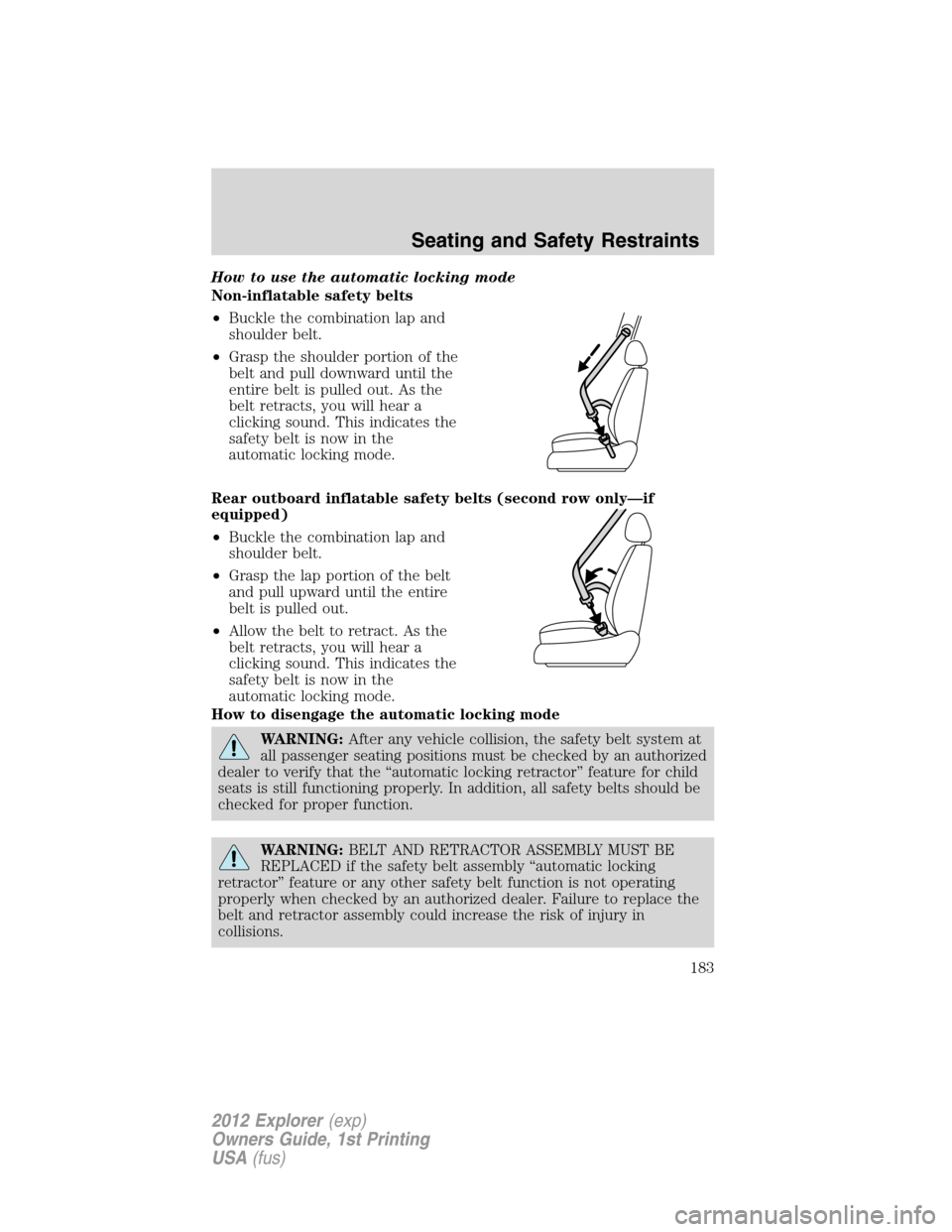

How to use the automatic locking mode
Non-inflatable safety belts
•Buckle the combination lap and
shoulder belt.
•Grasp the shoulder portion of the
belt and pull downward until the
entire belt is pulled out. As the
belt retracts, you will hear a
clicking sound. This indicates the
safety belt is now in the
automatic locking mode.
Rear outboard inflatable safety belts (second row only—if
equipped)
•Buckle the combination lap and
shoulder belt.
•Grasp the lap portion of the belt
and pull upward until the entire
belt is pulled out.
•Allow the belt to retract. As the
belt retracts, you will hear a
clicking sound. This indicates the
safety belt is now in the
automatic locking mode.
How to disengage the automatic locking mode
WARNING:After any vehicle collision, the safety belt system at
all passenger seating positions must be checked by an authorized
dealer to verify that the “automatic locking retractor” feature for child
seats is still functioning properly. In addition, all safety belts should be
checked for proper function.
WARNING:BELT AND RETRACTOR ASSEMBLY MUST BE
REPLACED if the safety belt assembly “automatic locking
retractor” feature or any other safety belt function is not operating
properly when checked by an authorized dealer. Failure to replace the
belt and retractor assembly could increase the risk of injury in
collisions.
Seating and Safety Restraints
183
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Disconnect the combination lap/shoulder belt and allow it to retract
completely to disengage the automatic locking mode and activate the
vehicle sensitive (emergency) locking mode.
Rear Inflatable Safety Belt (if equipped)
The rear inflatable safety belts are
fitted in the shoulder portion of the
safety belts of the second-row
outboard seating positions.
Note:The rear inflatable safety
belts are compatible with most
infant and child safety car seats and
belt positioning booster seats when
properly installed. This is because
they are designed to fill with a
cooled gas at a lower pressure and
at a slower rate than traditional
airbags. After inflation, the shoulder
portion of the safety belt remains
cool to the touch.
The rear inflatable safety belt consists of the following:
•An inflatable bag located in the shoulder safety belt webbing.
•Lap safety belt webbing with automatic locking mode.
•Seat mounted buckles with gas generators concealed under the seat
cushions.
•The same warning light, electronic control and diagnostic unit as used
for the front safety belts.
•Impact sensors located in various parts of the vehicle.
WARNING:Do not attempt to service, repair, or modify the rear
inflatable safety belt.
Seating and Safety Restraints
184
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

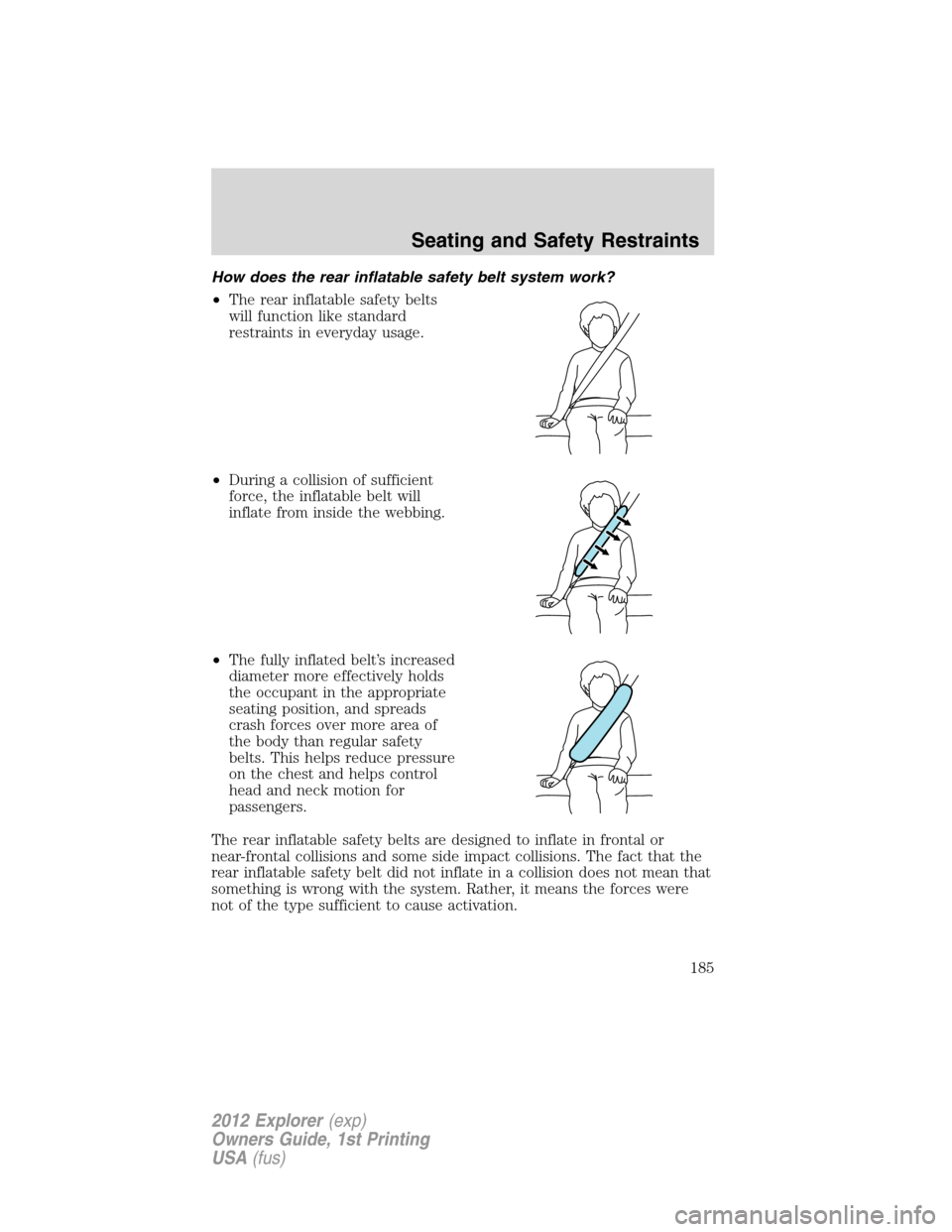

How does the rear inflatable safety belt system work?
•The rear inflatable safety belts
will function like standard
restraints in everyday usage.
•During a collision of sufficient
force, the inflatable belt will
inflate from inside the webbing.
•The fully inflated belt’s increased
diameter more effectively holds
the occupant in the appropriate
seating position, and spreads
crash forces over more area of
the body than regular safety
belts. This helps reduce pressure
on the chest and helps control
head and neck motion for
passengers.
The rear inflatable safety belts are designed to inflate in frontal or
near-frontal collisions and some side impact collisions. The fact that the
rear inflatable safety belt did not inflate in a collision does not mean that
something is wrong with the system. Rather, it means the forces were
not of the type sufficient to cause activation.
Seating and Safety Restraints
185
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

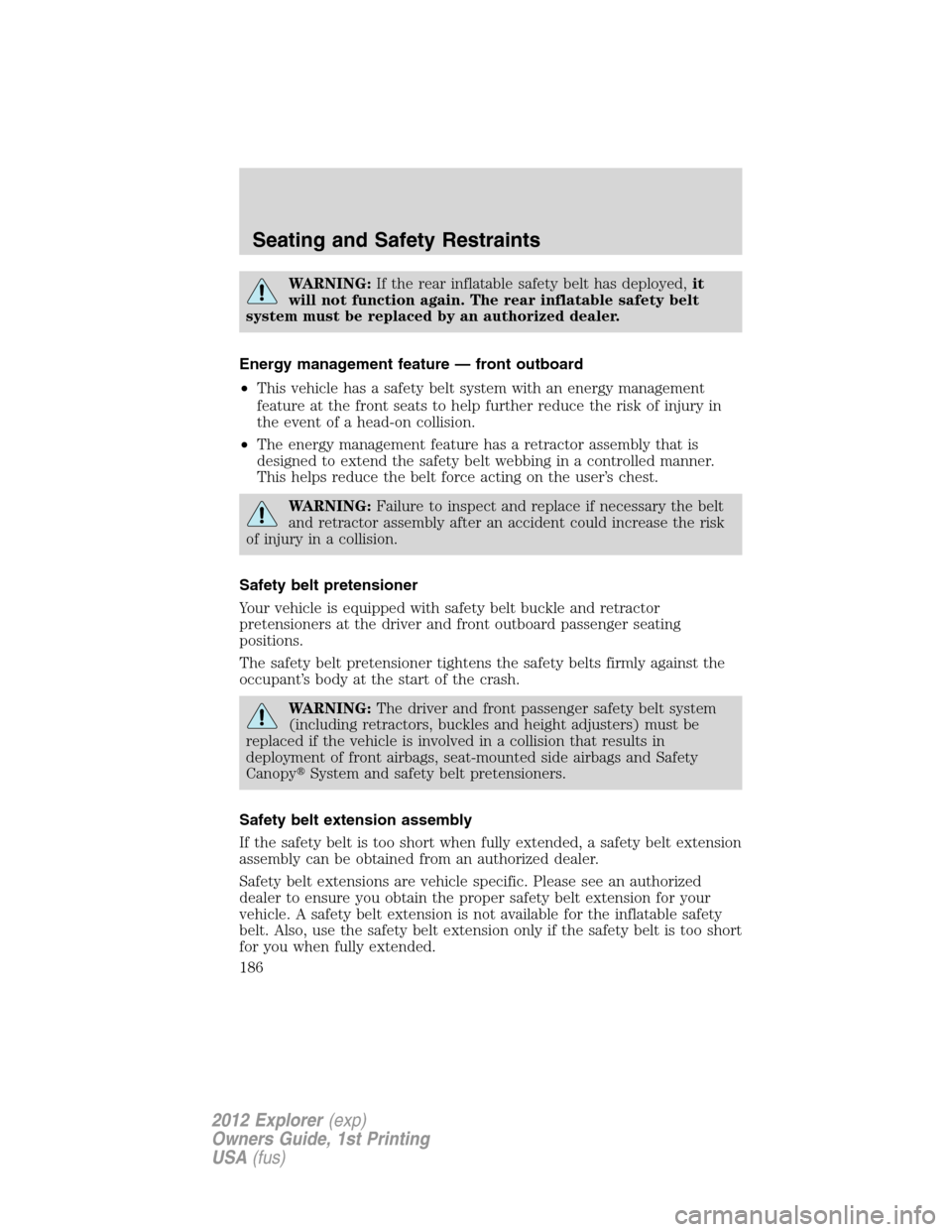

WARNING:If the rear inflatable safety belt has deployed,it
will not function again. The rear inflatable safety belt
system must be replaced by an authorized dealer.
Energy management feature — front outboard
•This vehicle has a safety belt system with an energy management
feature at the front seats to help further reduce the risk of injury in
the event of a head-on collision.
•The energy management feature has a retractor assembly that is
designed to extend the safety belt webbing in a controlled manner.
This helps reduce the belt force acting on the user’s chest.
WARNING:Failure to inspect and replace if necessary the belt
and retractor assembly after an accident could increase the risk
of injury in a collision.
Safety belt pretensioner
Your vehicle is equipped with safety belt buckle and retractor
pretensioners at the driver and front outboard passenger seating
positions.
The safety belt pretensioner tightens the safety belts firmly against the
occupant’s body at the start of the crash.
WARNING:The driver and front passenger safety belt system
(including retractors, buckles and height adjusters) must be
replaced if the vehicle is involved in a collision that results in
deployment of front airbags, seat-mounted side airbags and Safety
CanopySystem and safety belt pretensioners.
Safety belt extension assembly
If the safety belt is too short when fully extended, a safety belt extension
assembly can be obtained from an authorized dealer.
Safety belt extensions are vehicle specific. Please see an authorized
dealer to ensure you obtain the proper safety belt extension for your
vehicle. A safety belt extension is not available for the inflatable safety
belt. Also, use the safety belt extension only if the safety belt is too short
for you when fully extended.
Seating and Safety Restraints
186
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

WARNING:Do not use extensions with an inflatable safety belt.
WARNING:Do not use extensions to change the fit of the
shoulder belt across the torso.
Safety belt height adjustment
WARNING:Position the safety belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust
the safety belt properly could reduce the effectiveness of the seat belt
and increase the risk of injury in a collision.
Your vehicle has safety belt height
adjustments for the front outboard
seating positions.
Adjust the height of the shoulder
belt so the belt rests across the
middle of your shoulder.
Slide the adjuster up to raise the
belt and push the button and slide it
down to lower the belt.
Safety belt warning light and indicator chime
The safety belt warning light illuminates in the instrument cluster and a
chime sounds to remind the occupants to fasten their safety belts.
Seating and Safety Restraints
187
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

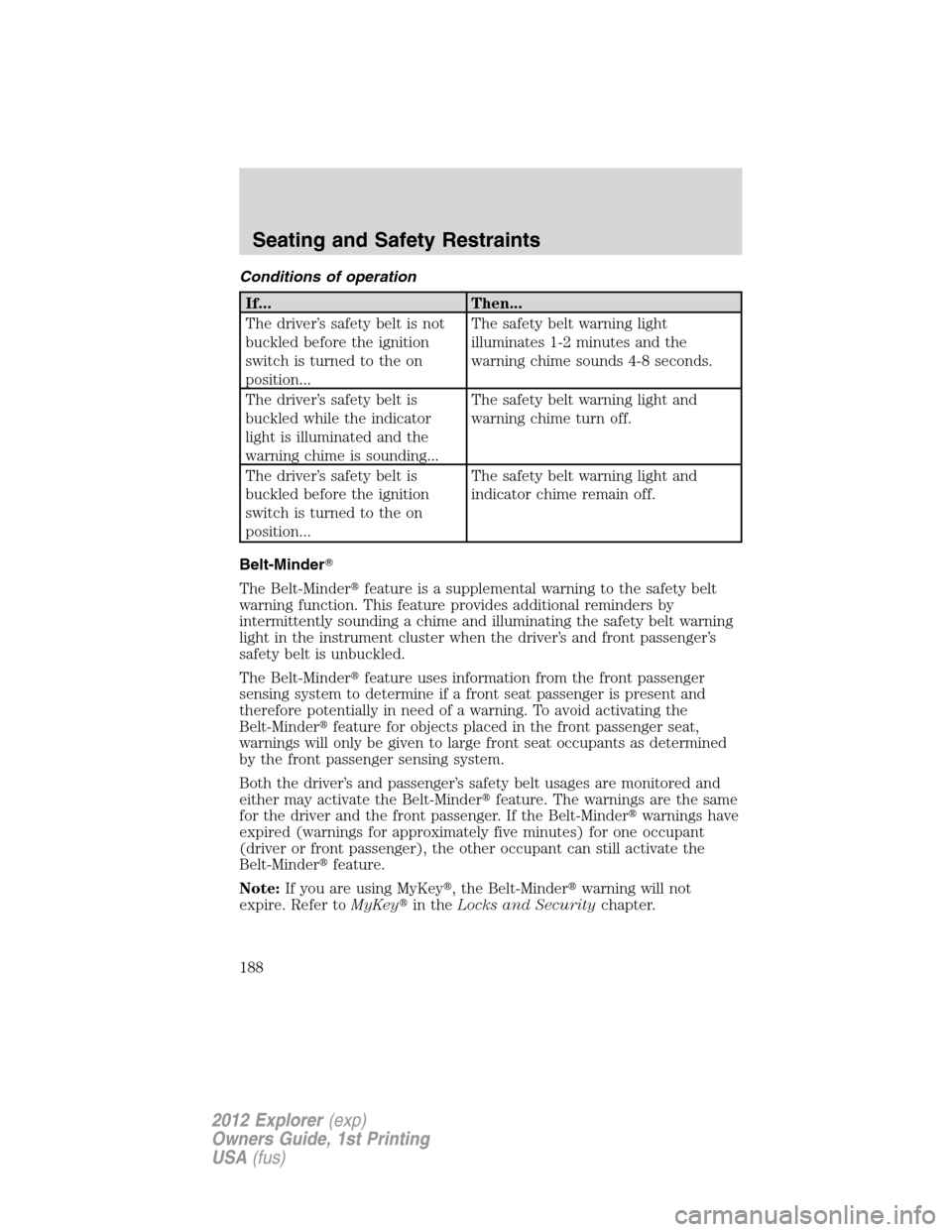

Conditions of operation
If... Then...
The driver’s safety belt is not
buckled before the ignition
switch is turned to the on
position...The safety belt warning light
illuminates 1-2 minutes and the
warning chime sounds 4-8 seconds.
The driver’s safety belt is
buckled while the indicator
light is illuminated and the
warning chime is sounding...The safety belt warning light and
warning chime turn off.
The driver’s safety belt is
buckled before the ignition
switch is turned to the on
position...The safety belt warning light and
indicator chime remain off.
Belt-Minder
The Belt-Minderfeature is a supplemental warning to the safety belt
warning function. This feature provides additional reminders by
intermittently sounding a chime and illuminating the safety belt warning
light in the instrument cluster when the driver’s and front passenger’s
safety belt is unbuckled.
The Belt-Minderfeature uses information from the front passenger
sensing system to determine if a front seat passenger is present and
therefore potentially in need of a warning. To avoid activating the
Belt-Minderfeature for objects placed in the front passenger seat,
warnings will only be given to large front seat occupants as determined
by the front passenger sensing system.
Both the driver’s and passenger’s safety belt usages are monitored and
either may activate the Belt-Minderfeature. The warnings are the same
for the driver and the front passenger. If the Belt-Minderwarnings have
expired (warnings for approximately five minutes) for one occupant
(driver or front passenger), the other occupant can still activate the
Belt-Minderfeature.
Note:If you are using MyKey, the Belt-Minderwarning will not
expire. Refer toMyKeyin theLocks and Securitychapter.
Seating and Safety Restraints
188
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

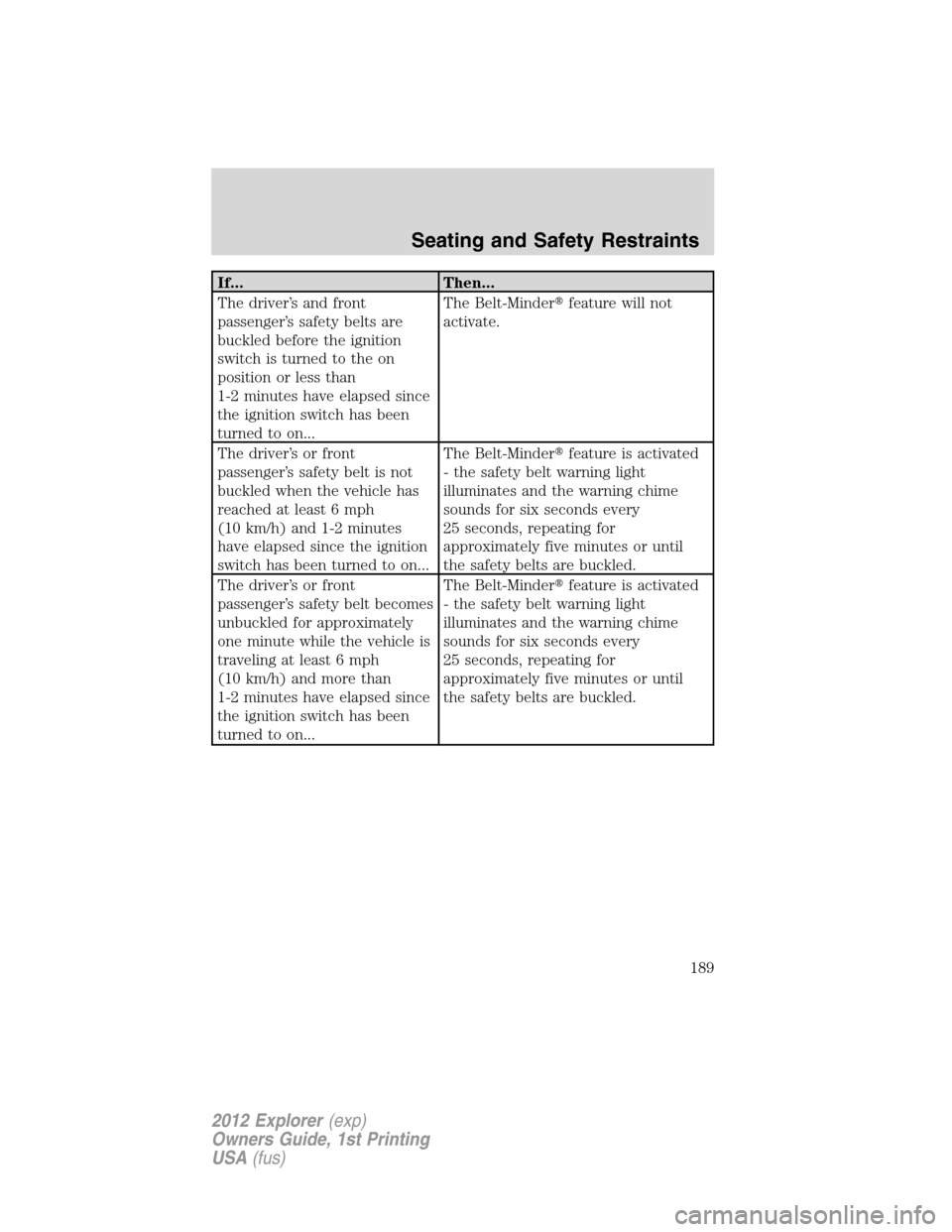

If... Then...
The driver’s and front
passenger’s safety belts are
buckled before the ignition
switch is turned to the on
position or less than
1-2 minutes have elapsed since
the ignition switch has been
turned to on...The Belt-Minderfeature will not
activate.
The driver’s or front
passenger’s safety belt is not
buckled when the vehicle has
reached at least 6 mph
(10 km/h) and 1-2 minutes
have elapsed since the ignition
switch has been turned to on...The Belt-Minderfeature is activated
- the safety belt warning light
illuminates and the warning chime
sounds for six seconds every
25 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
The driver’s or front
passenger’s safety belt becomes
unbuckled for approximately
one minute while the vehicle is
traveling at least 6 mph
(10 km/h) and more than
1-2 minutes have elapsed since
the ignition switch has been
turned to on...The Belt-Minderfeature is activated
- the safety belt warning light
illuminates and the warning chime
sounds for six seconds every
25 seconds, repeating for
approximately five minutes or until
the safety belts are buckled.
Seating and Safety Restraints
189
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

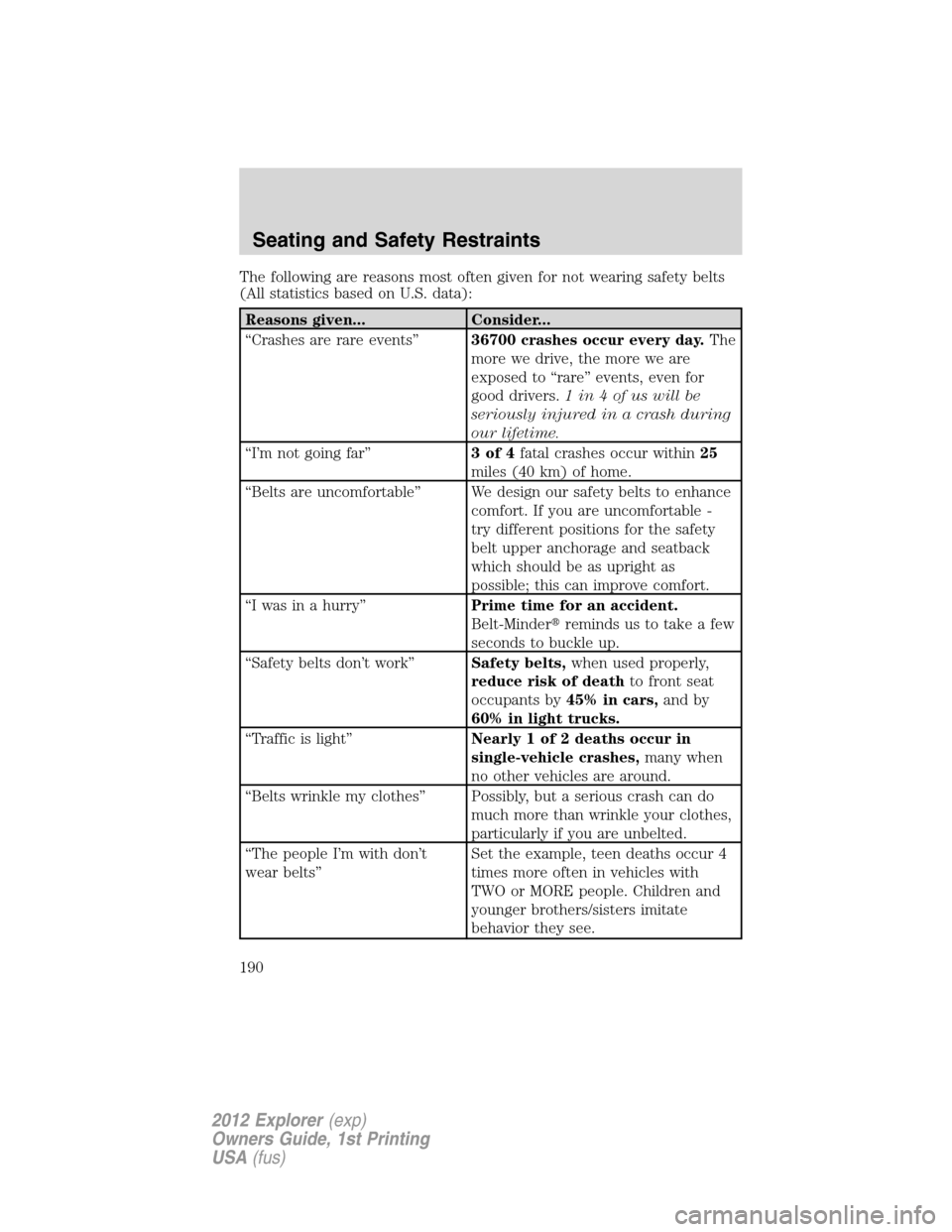

The following are reasons most often given for not wearing safety belts
(All statistics based on U.S. data):
Reasons given... Consider...
“Crashes are rare events”36700 crashes occur every day.The
more we drive, the more we are
exposed to “rare” events, even for
good drivers.1in4ofuswillbe
seriously injured in a crash during
our lifetime.
“I’m not going far”3of4fatal crashes occur within25
miles (40 km) of home.
“Belts are uncomfortable” We design our safety belts to enhance
comfort. If you are uncomfortable -
try different positions for the safety
belt upper anchorage and seatback
which should be as upright as
possible; this can improve comfort.
“I was in a hurry”Prime time for an accident.
Belt-Minderreminds us to take a few
seconds to buckle up.
“Safety belts don’t work”Safety belts,when used properly,
reduce risk of deathto front seat
occupants by45% in cars,and by
60% in light trucks.
“Traffic is light”Nearly 1 of 2 deaths occur in
single-vehicle crashes,many when
no other vehicles are around.
“Belts wrinkle my clothes” Possibly, but a serious crash can do
much more than wrinkle your clothes,
particularly if you are unbelted.
“The people I’m with don’t
wear belts”Set the example, teen deaths occur 4
times more often in vehicles with
TWO or MORE people. Children and
younger brothers/sisters imitate
behavior they see.
Seating and Safety Restraints
190
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
