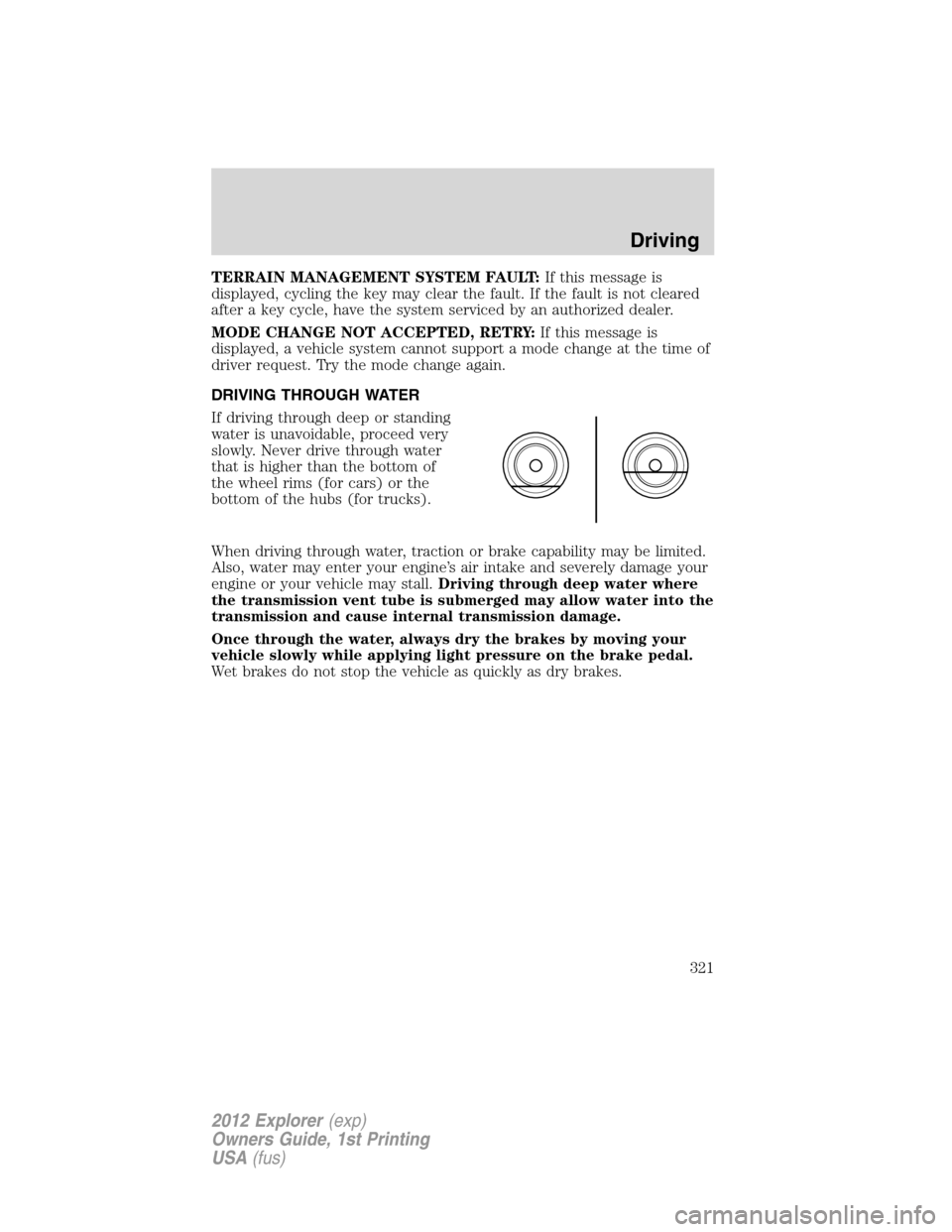

FORD EXPLORER 2012 5.G Owners Manual TERRAIN MANAGEMENT SYSTEM FAULT:If this message is
displayed, cycling the key may clear the fault. If the fault is not cleared
after a key cycle, have the system serviced by an authorized dealer.
MODE

Page 322 of 439

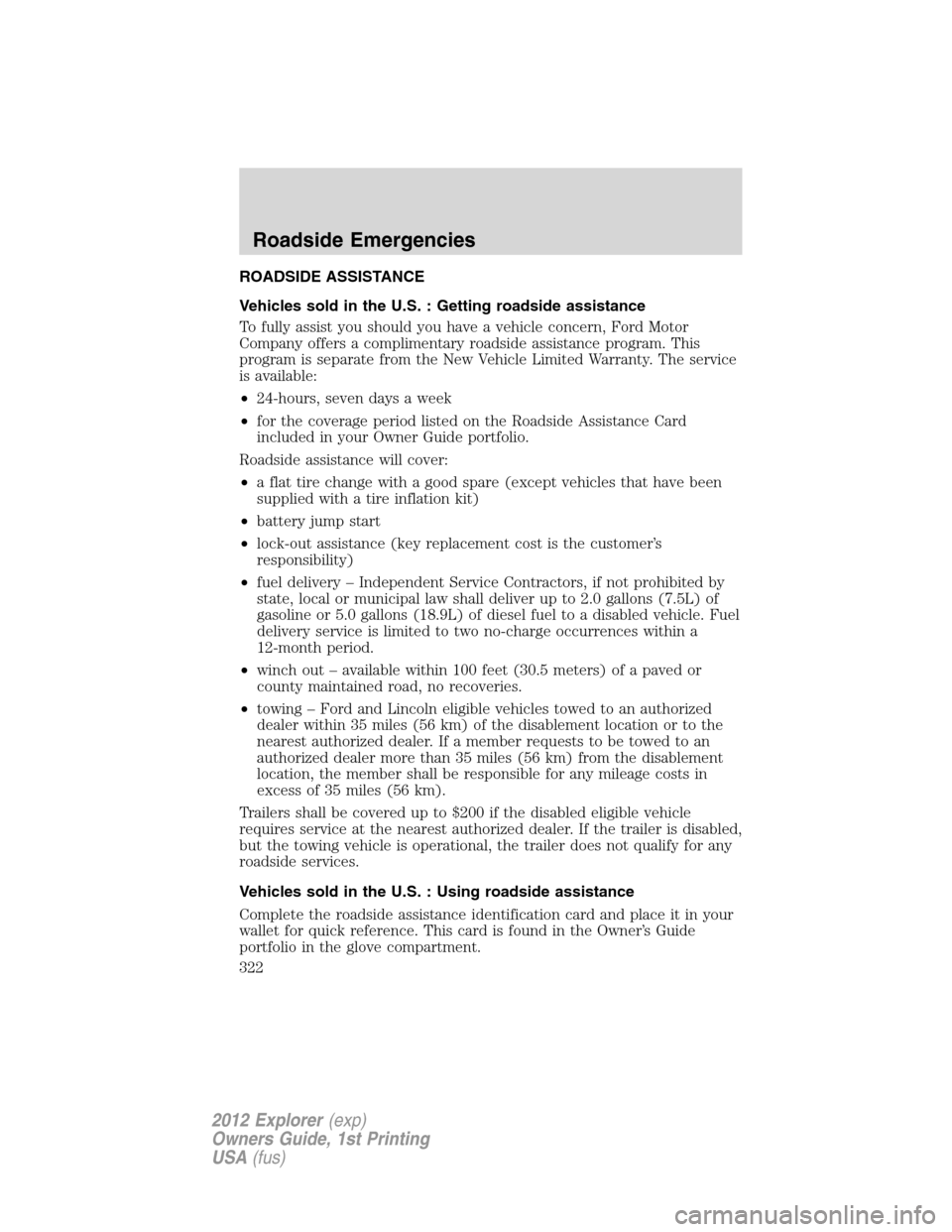

FORD EXPLORER 2012 5.G Owners Manual ROADSIDE ASSISTANCE
Vehicles sold in the U.S. : Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program

Page 323 of 439

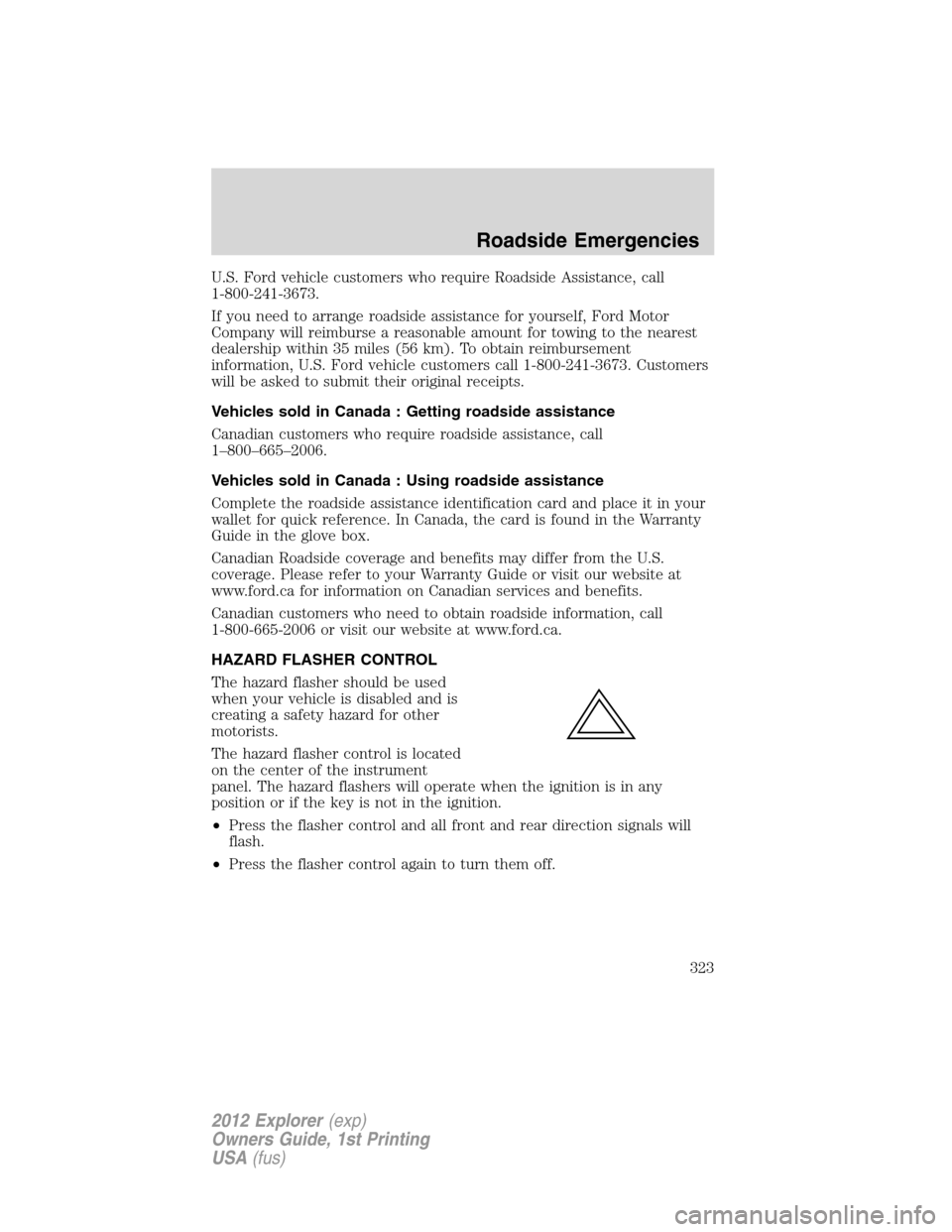

FORD EXPLORER 2012 5.G Owners Manual U.S. Ford vehicle customers who require Roadside Assistance, call
1-800-241-3673.
If you need to arrange roadside assistance for yourself, Ford Motor
Company will reimburse a reasonable amount for tow

Page 324 of 439

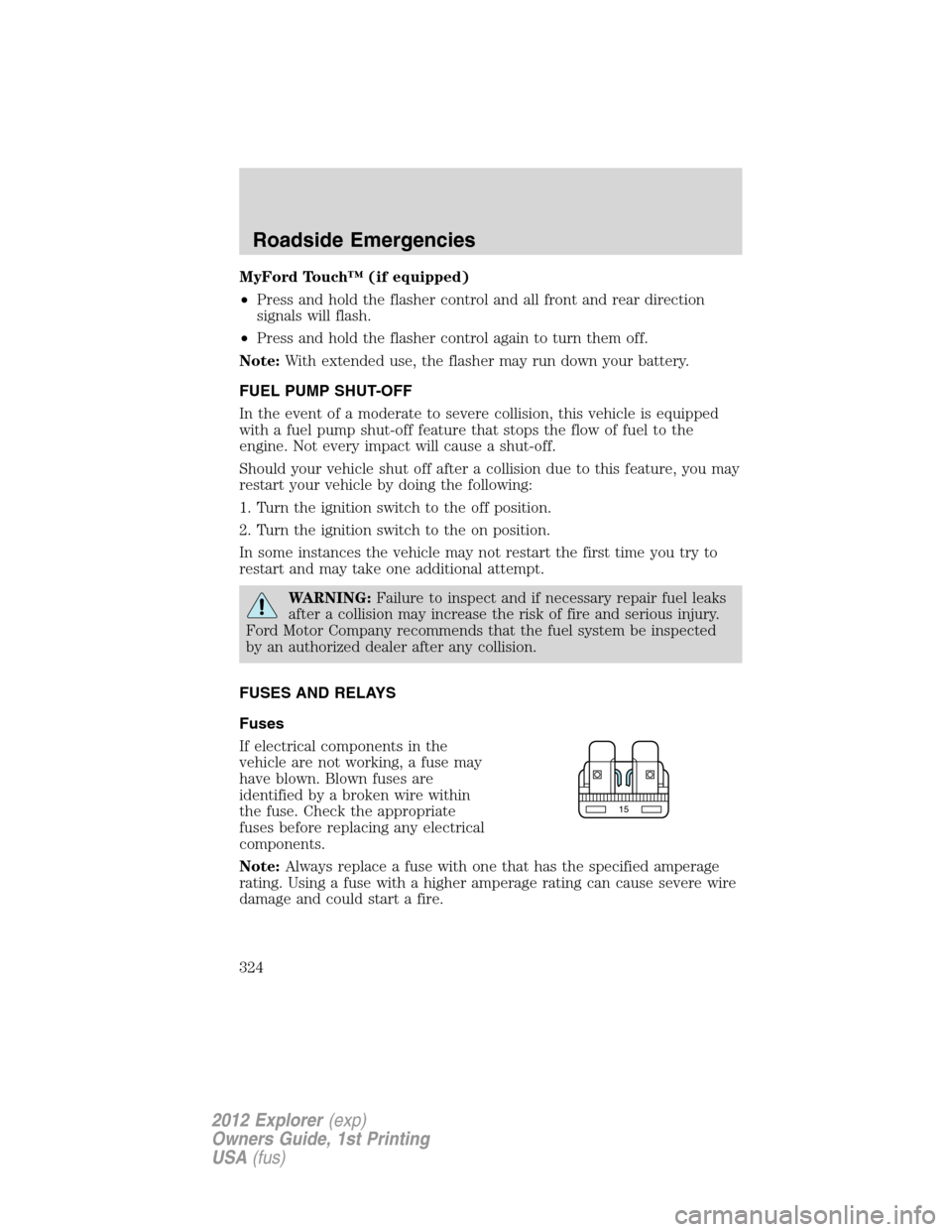

FORD EXPLORER 2012 5.G Owners Manual MyFord Touch™ (if equipped)
•Press and hold the flasher control and all front and rear direction
signals will flash.
•Press and hold the flasher control again to turn them off.
Note:With extende

Page 325 of 439

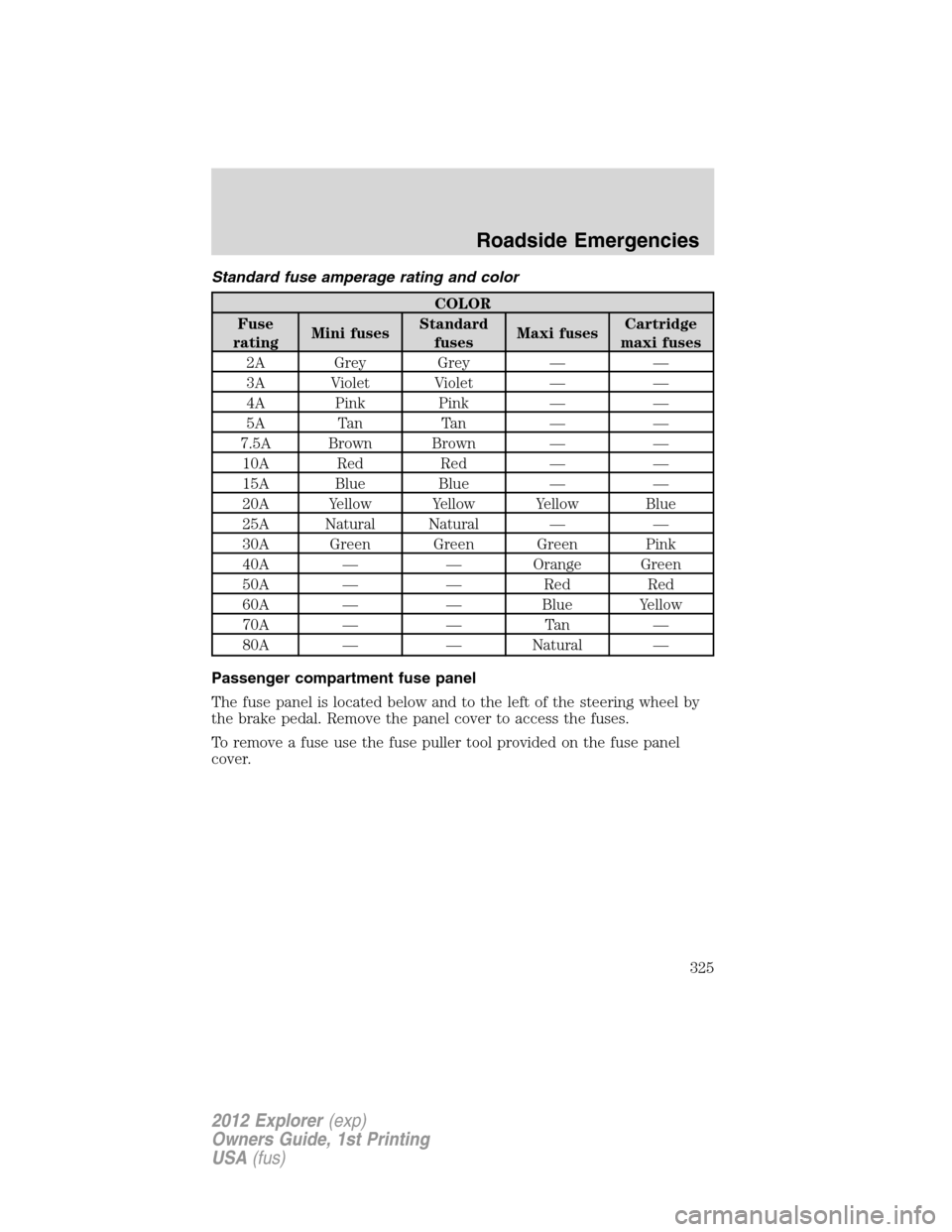

FORD EXPLORER 2012 5.G Owners Manual Standard fuse amperage rating and color
COLOR
Fuse
ratingMini fusesStandard
fusesMaxi fusesCartridge
maxi fuses
2A Grey Grey — —
3A Violet Violet — —
4A Pink Pink — —
5A Tan Tan — —
7.

Page 326 of 439

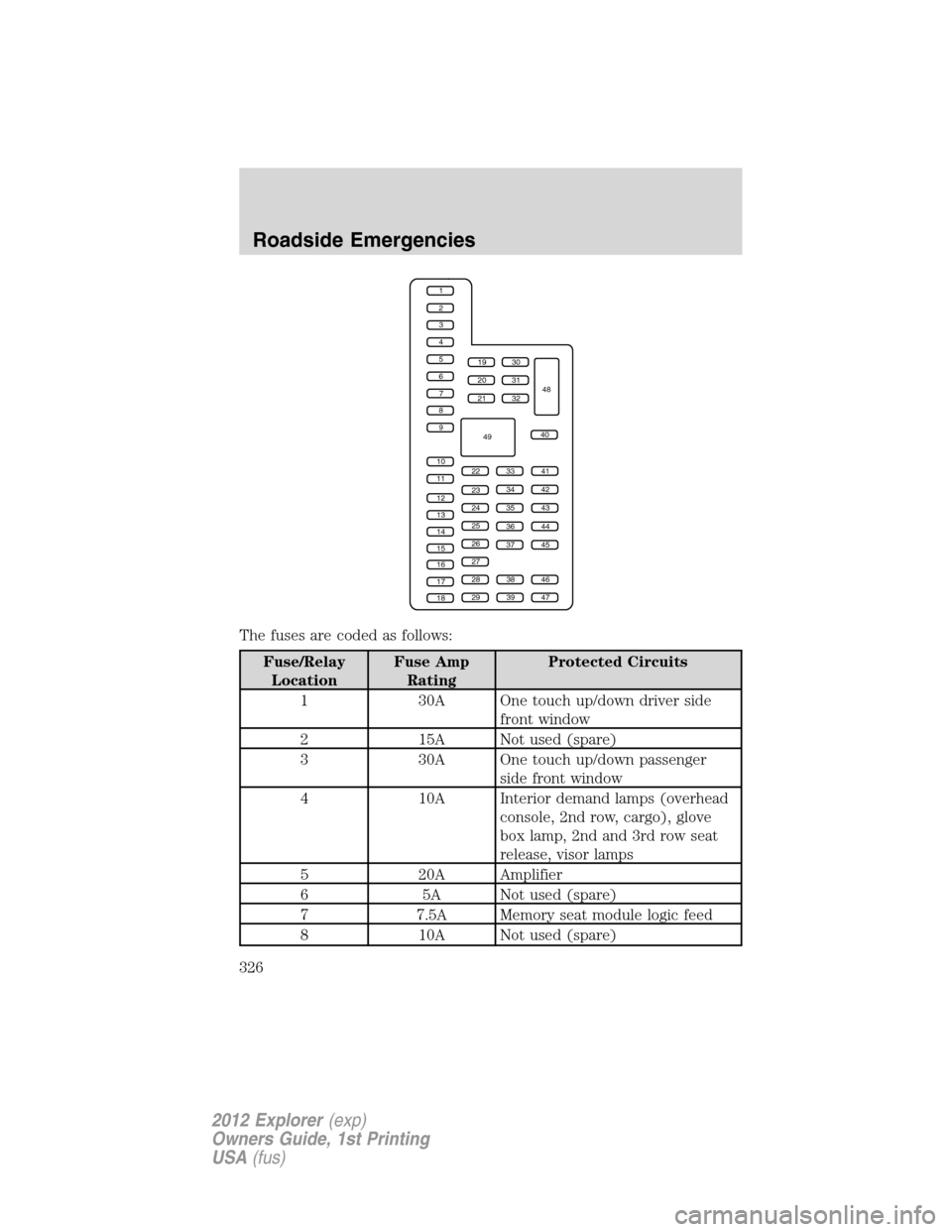

FORD EXPLORER 2012 5.G Owners Manual The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
1 30A One touch up/down driver side
front window
2 15A Not used (spare)
3 30A One touch up/down passenger
side fron

Page 327 of 439

FORD EXPLORER 2012 5.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
9 10A 4” Radio display, Power liftgate
logic, Electronic finish panel,
SYNCBase Module
10 10A Run/accessory relay (wipers, rear
washer), Rain se

Page 328 of 439

FORD EXPLORER 2012 5.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
25 15A Liftgate release
26 5A Radio frequency module
27 20A IA module
28 15A Ignition switch, Push button start
29 20A Radio, 8” SYNCMulti-funct

Page 329 of 439

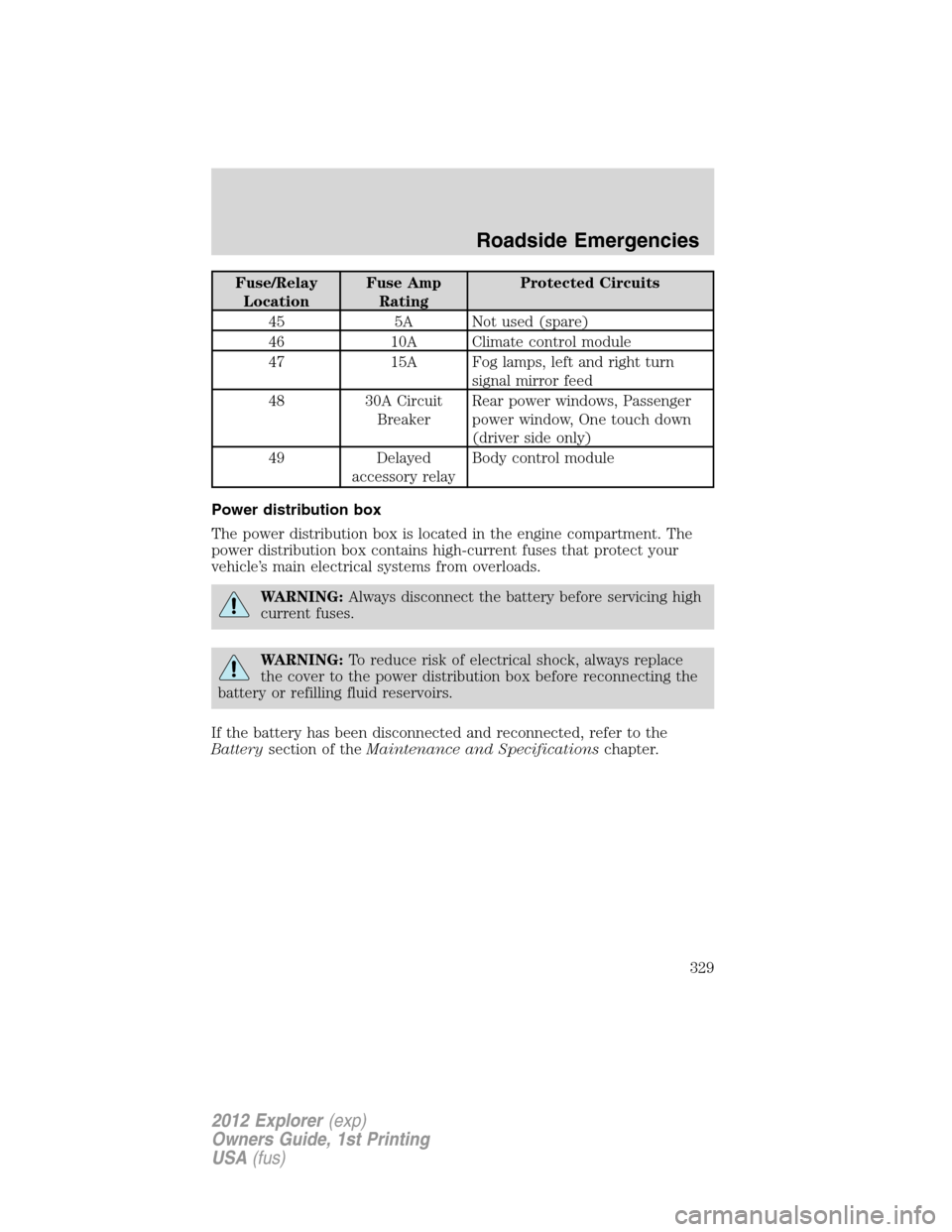

FORD EXPLORER 2012 5.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
45 5A Not used (spare)
46 10A Climate control module
47 15A Fog lamps, left and right turn
signal mirror feed
48 30A Circuit
BreakerRear power wind

Page 330 of 439

FORD EXPLORER 2012 5.G Owners Manual The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 — Not used
3 30A** Trailer brake control module
4 30A** Wipers, Fro
