Brakes
•Make sure brakes and parking brake are fully released.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, levers and pins under vehicle are
covered with grease to prevent rust.
•Move vehicles at least 25 feet (8 m) every 15 days to lubricate
working parts and prevent corrosion.
MOTORCRAFT PART NUMBERS
Component 3.5L V6 engine 2.0L EcoBoost™
engine
Air filter element FA-1884 FA-1884
Battery BXT-65-650 BXT-65-650
Oil filter FL-500-S FL-910-S
Spark plugs
1
Cabin air filter FP-68 FP-68
Windshield wiper
bladeWW-2001-PF
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
Maintenance and Specifications
401
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

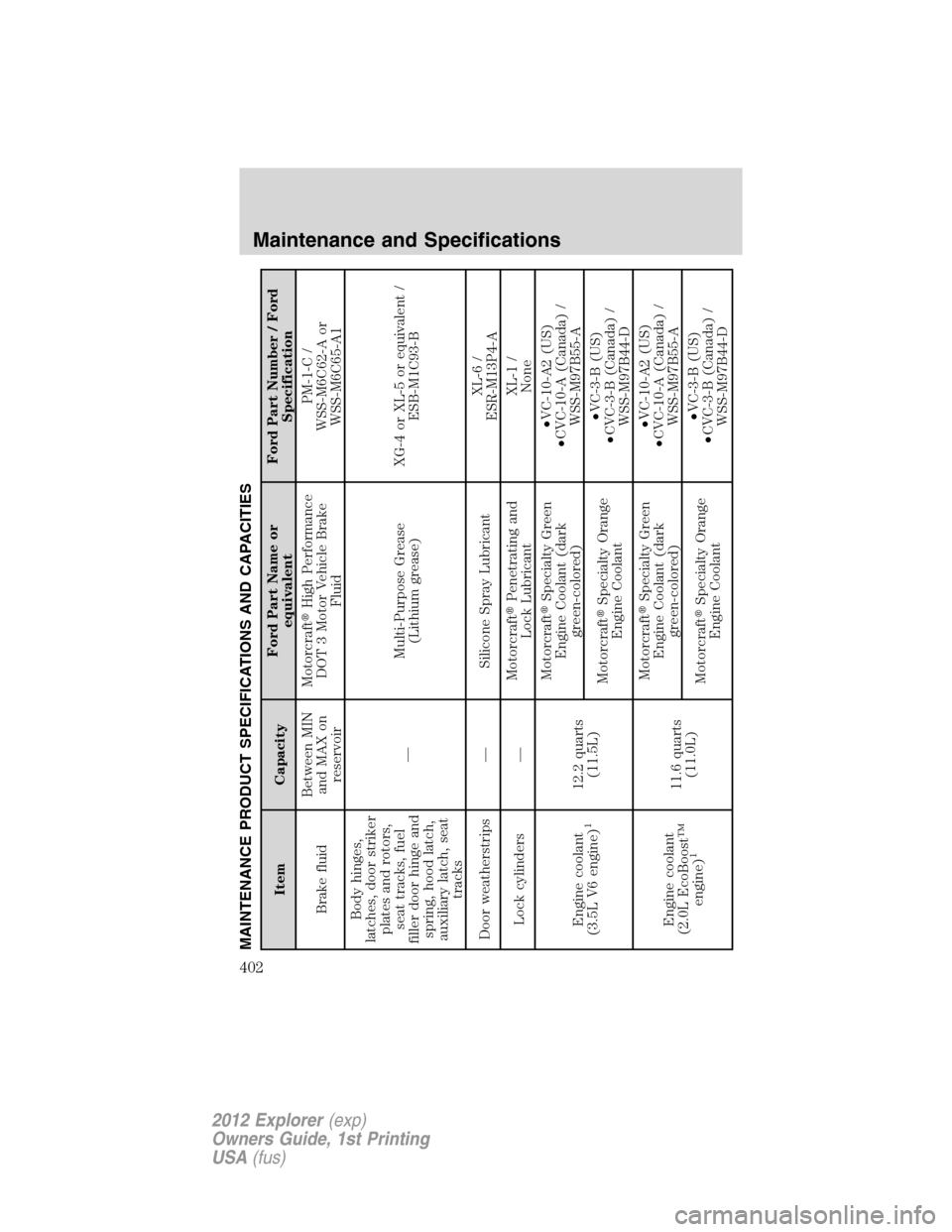

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
equivalentFord Part Number / Ford
Specification
Brake fluidBetween MIN
and MAX on
reservoirMotorcraftHigh Performance
DOT 3 Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Body hinges,
latches, door striker
plates and rotors,
seat tracks, fuel
filler door hinge and
spring, hood latch,
auxiliary latch, seat
tracks—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or equivalent /
ESB-M1C93-B
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Lock cylinders —MotorcraftPenetrating and
Lock LubricantXL-1 /
None
Engine coolant
(3.5L V6 engine)
1
12.2 quarts
(11.5L)MotorcraftSpecialty Green
Engine Coolant (dark
green-colored)•VC-10-A2 (US)
•CVC-10-A (Canada) /
WSS-M97B55-A
MotorcraftSpecialty Orange
Engine Coolant•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Engine coolant
(2.0L EcoBoost™
engine)
1
11.6 quarts
(11.0L)MotorcraftSpecialty Green
Engine Coolant (dark
green-colored)•VC-10-A2 (US)
•CVC-10-A (Canada) /
WSS-M97B55-A
MotorcraftSpecialty Orange
Engine Coolant•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Maintenance and Specifications
402
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord Part Name or
equivalentFord Part Number / Ford
Specification

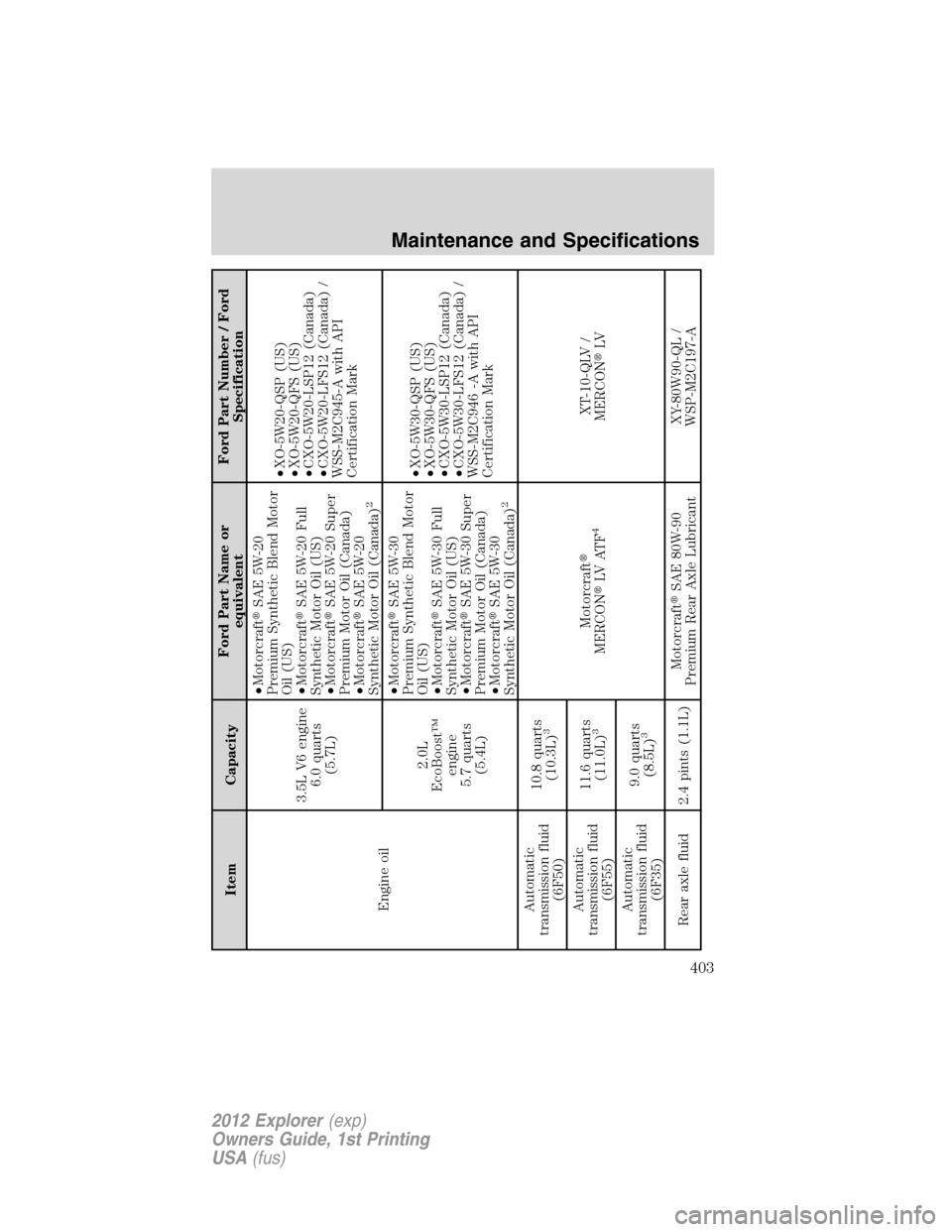

Engine oil3.5L V6 engine
6.0 quarts
(5.7L)•MotorcraftSAE 5W-20
Premium Synthetic Blend Motor
Oil (US)
•MotorcraftSAE 5W-20 Full
Synthetic Motor Oil (US)
•MotorcraftSAE 5W-20 Super
Premium Motor Oil (Canada)
•MotorcraftSAE 5W-20
Synthetic Motor Oil (Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12 (Canada)
•CXO-5W20-LFS12 (Canada) /
WSS-M2C945-A with API
Certification Mark
2.0L
EcoBoost™
engine
5.7 quarts
(5.4L)•MotorcraftSAE 5W-30
Premium Synthetic Blend Motor
Oil (US)
•MotorcraftSAE 5W-30 Full
Synthetic Motor Oil (US)
•MotorcraftSAE 5W-30 Super
Premium Motor Oil (Canada)
•MotorcraftSAE 5W-30
Synthetic Motor Oil (Canada)
2
•XO-5W30-QSP (US)
•XO-5W30-QFS (US)
•CXO-5W30-LSP12 (Canada)
•CXO-5W30-LFS12 (Canada) /
WSS-M2C946 -A with API
Certification Mark
Automatic
transmission fluid
(6F50)10.8 quarts
(10.3L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV Automatic
transmission fluid
(6F55)11.6 quarts
(11.0L)
3
Automatic
transmission fluid
(6F35)9.0 quarts
(8.5L)
3
Rear axle fluid 2.4 pints (1.1L)MotorcraftSAE 80W-90
Premium Rear Axle LubricantXY-80W90-QL /
WSP-M2C197-A
Maintenance and Specifications
403
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord Part Name or
equivalentFord Part Number / Ford
Specification

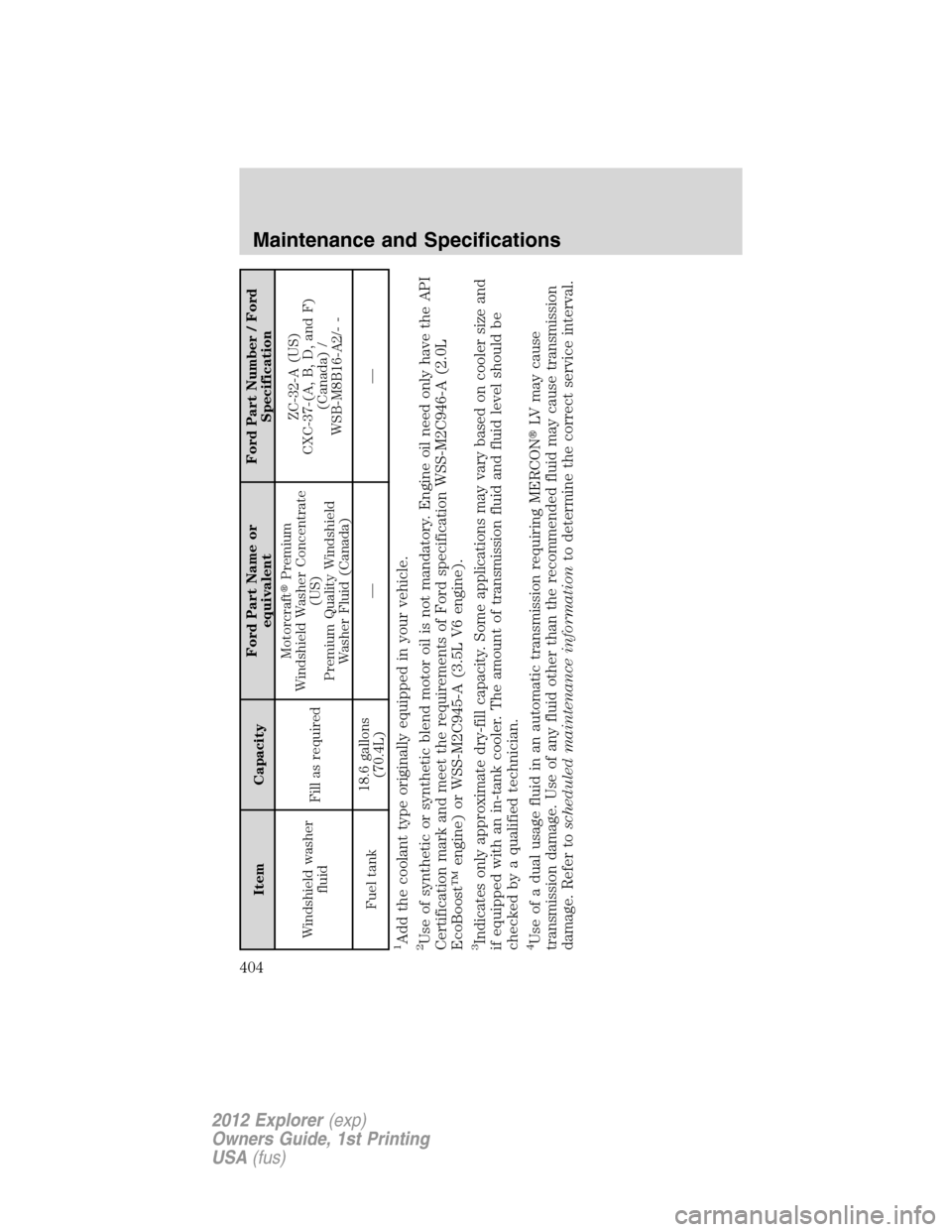

Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer Concentrate
(US)
Premium Quality Windshield
Washer Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank18.6 gallons
(70.4L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only have the API
Certification mark and meet the requirements of Ford specification WSS-M2C946-A (2.0L
EcoBoost™ engine) or WSS-M2C945-A (3.5L V6 engine).3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
checked by a qualified technician.4Use of a dual usage fluid in an automatic transmission requiring MERCONLV may cause
transmission damage. Use of any fluid other than the recommended fluid may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Maintenance and Specifications
404
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

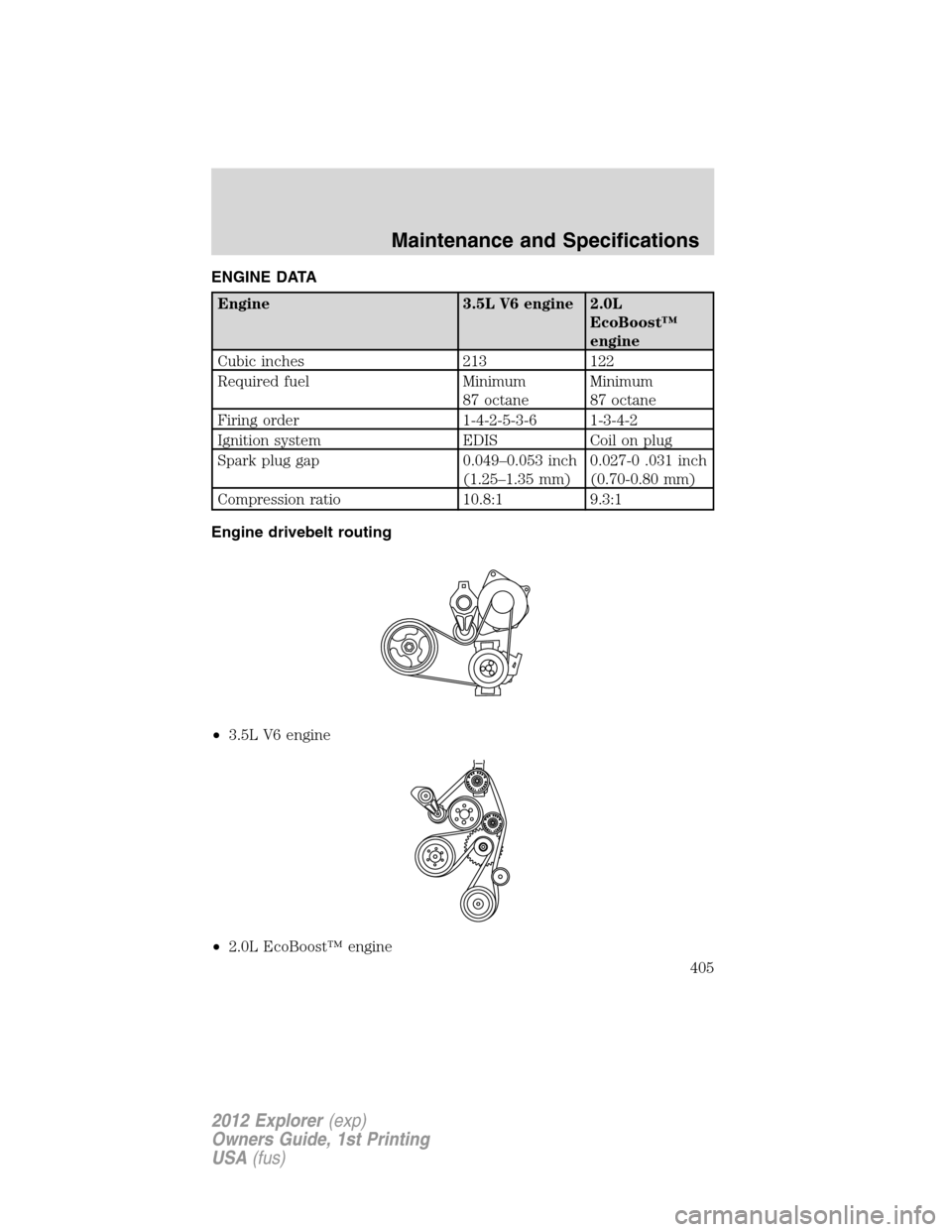

ENGINE DATA
Engine 3.5L V6 engine 2.0L
EcoBoost™
engine
Cubic inches 213 122
Required fuel Minimum
87 octaneMinimum
87 octane
Firing order 1-4-2-5-3-6 1-3-4-2
Ignition system EDIS Coil on plug
Spark plug gap 0.049–0.053 inch
(1.25–1.35 mm)0.027-0 .031 inch
(0.70-0.80 mm)
Compression ratio 10.8:1 9.3:1
Engine drivebelt routing
•3.5L V6 engine
•2.0L EcoBoost™ engine
Maintenance and Specifications
405
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

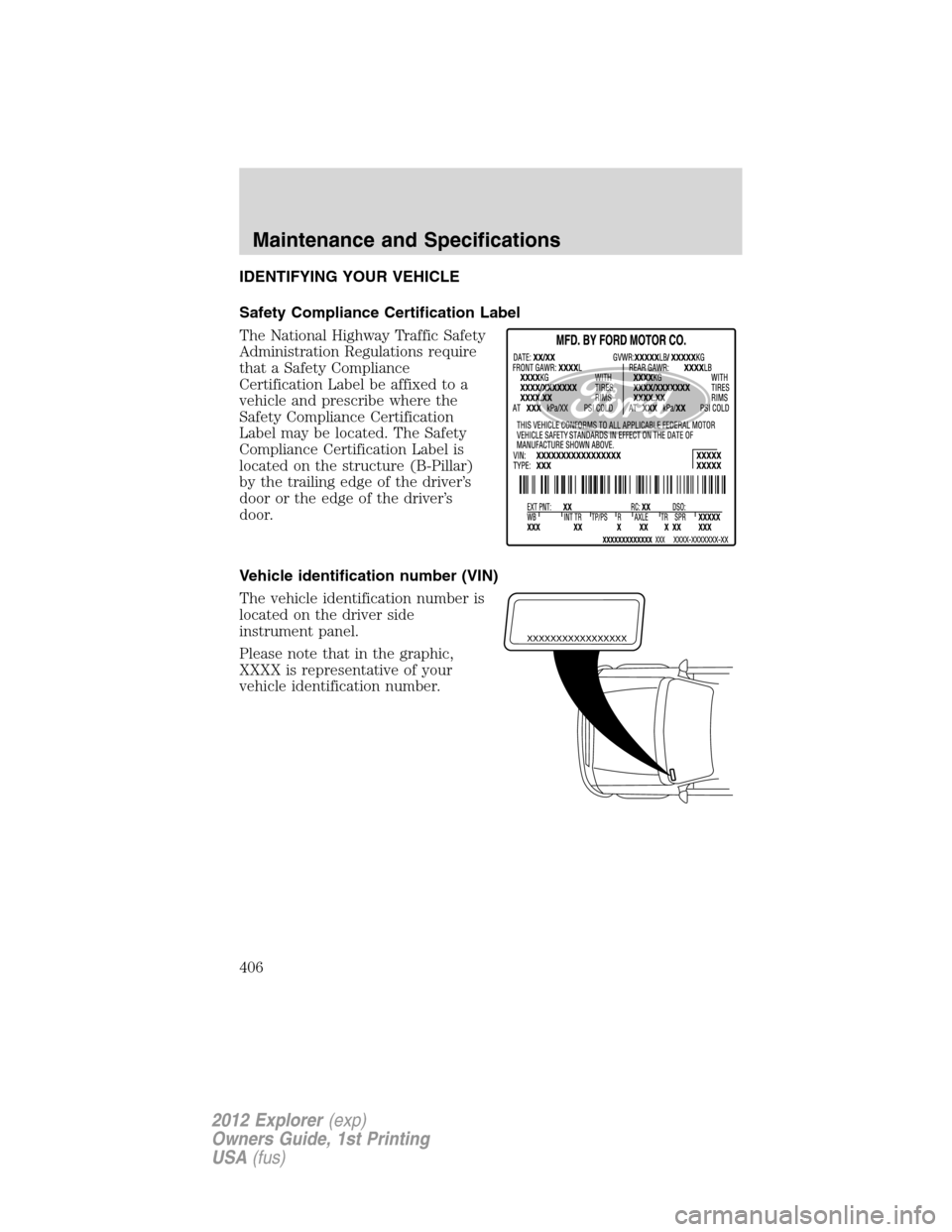

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
406
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

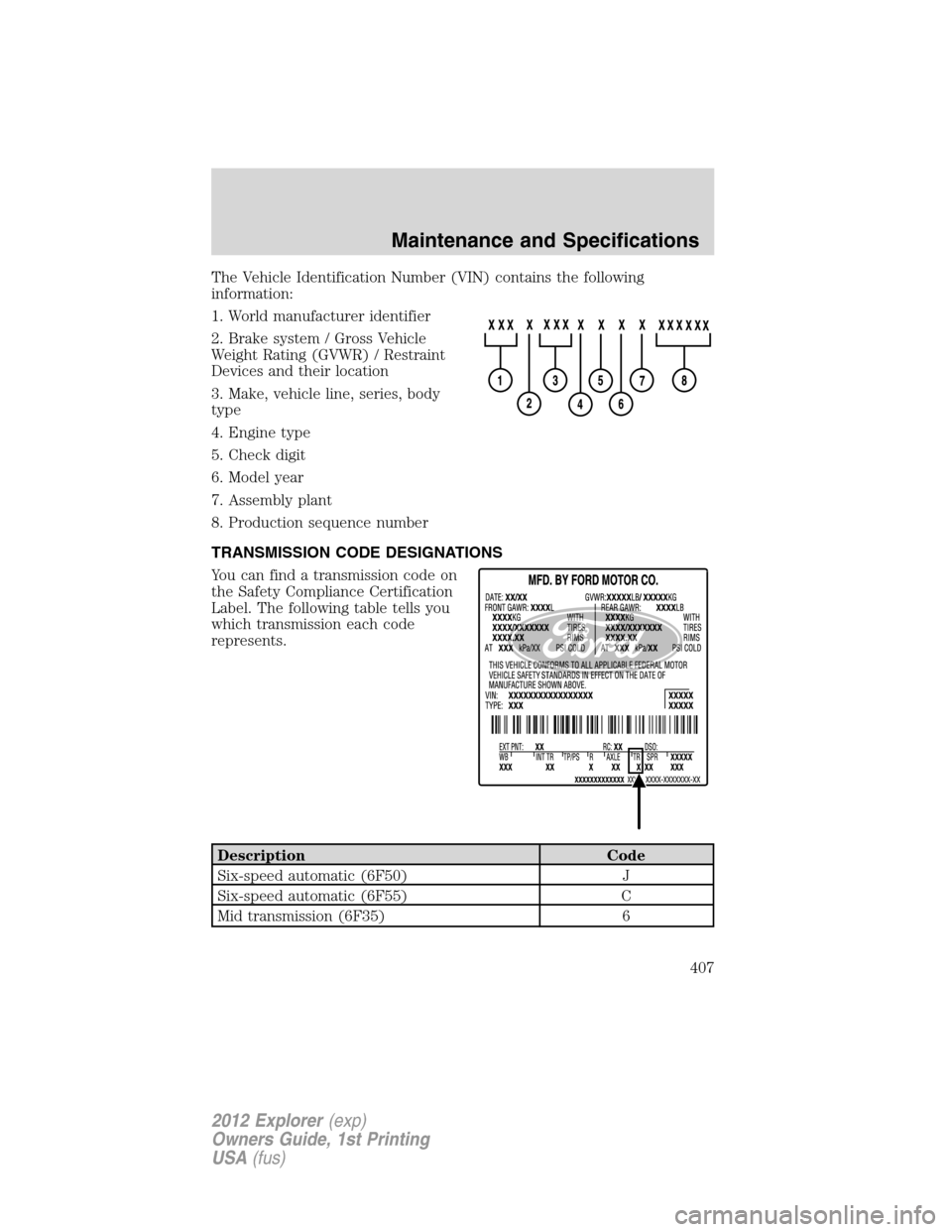

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Six-speed automatic (6F50) J
Six-speed automatic (6F55) C
Mid transmission (6F35) 6
Maintenance and Specifications
407
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

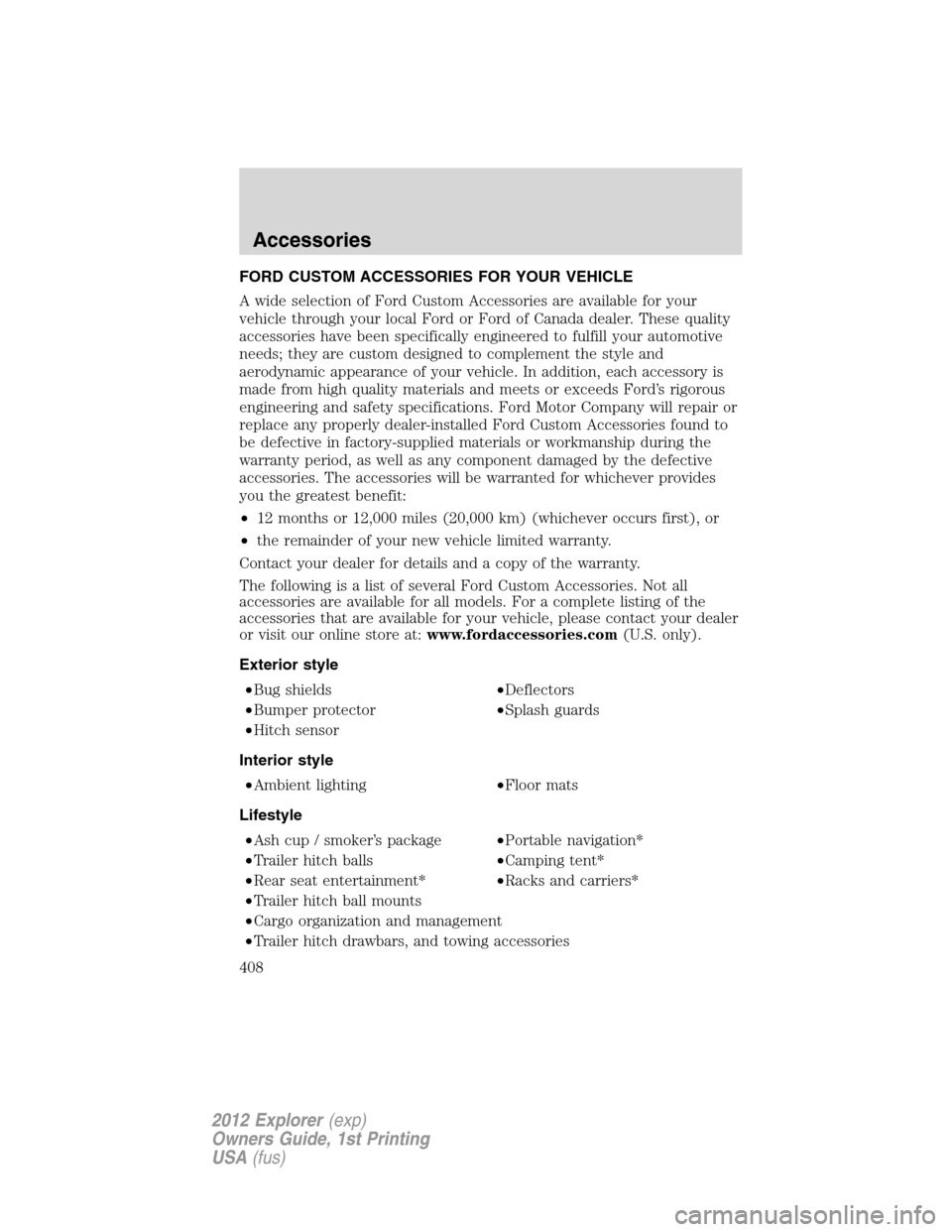

FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at:www.fordaccessories.com(U.S. only).
Exterior style
•Bug shields•Deflectors
•Bumper protector•Splash guards
•Hitch sensor
Interior style
•Ambient lighting•Floor mats
Lifestyle
•Ash cup / smoker’s package•Portable navigation*
•Trailer hitch balls•Camping tent*
•Rear seat entertainment*•Racks and carriers*
•Trailer hitch ball mounts
•Cargo organization and management
•Trailer hitch drawbars, and towing accessories
Accessories
408
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

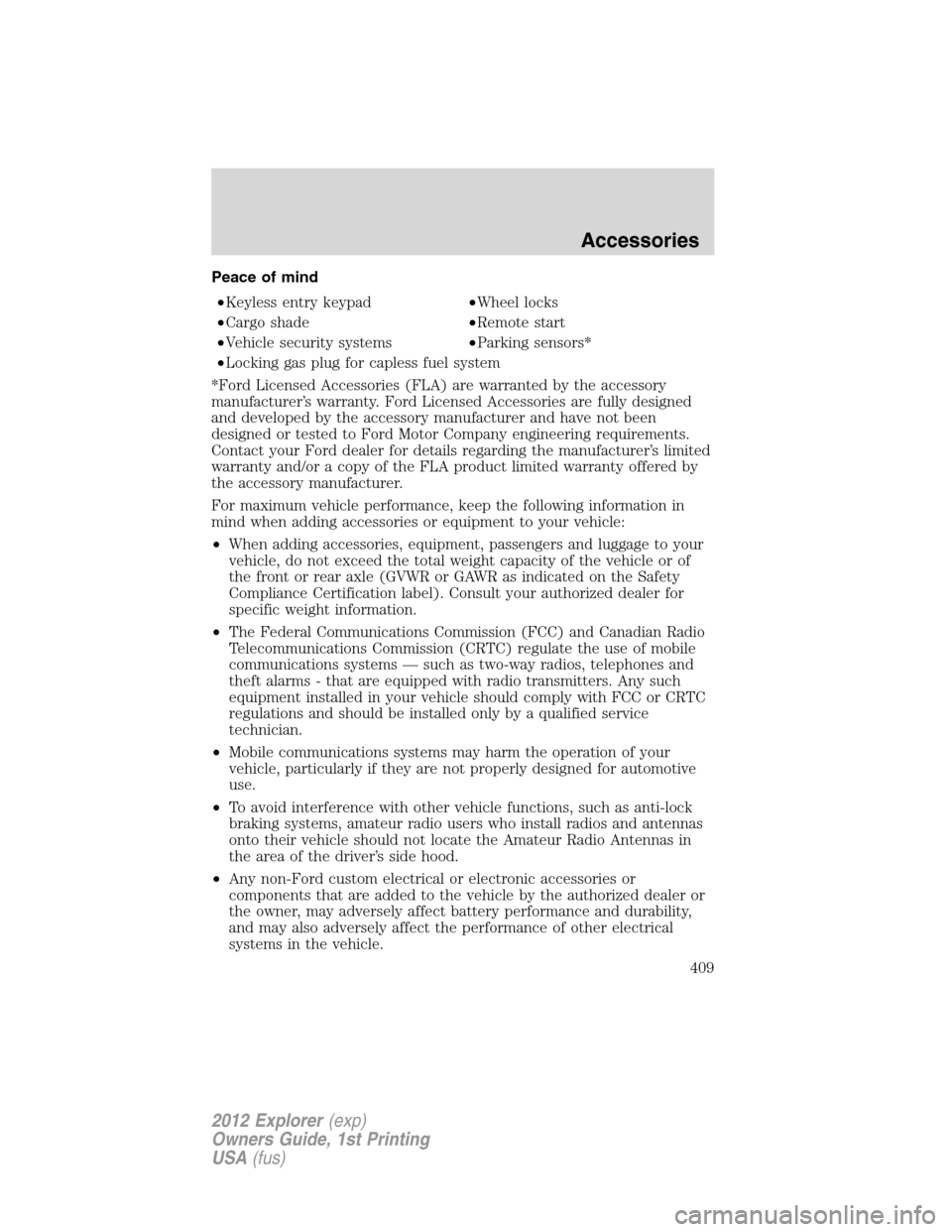

Peace of mind
•Keyless entry keypad•Wheel locks
•Cargo shade•Remote start
•Vehicle security systems•Parking sensors*
•Locking gas plug for capless fuel system
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Any non-Ford custom electrical or electronic accessories or
components that are added to the vehicle by the authorized dealer or
the owner, may adversely affect battery performance and durability,
and may also adversely affect the performance of other electrical
systems in the vehicle.
Accessories
409
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

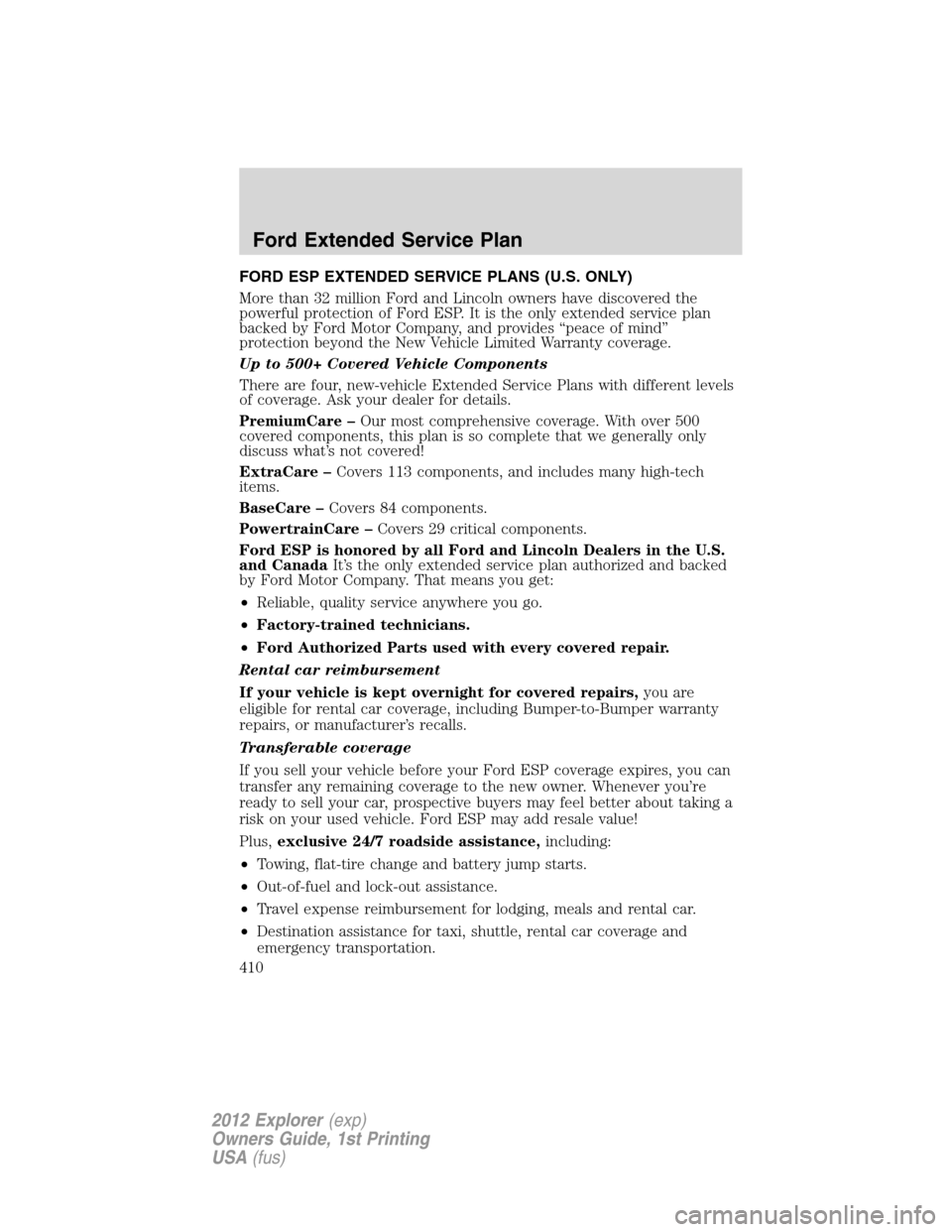

FORD ESP EXTENDED SERVICE PLANS (U.S. ONLY)
More than 32 million Ford and Lincoln owners have discovered the
powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask your dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford and Lincoln Dealers in the U.S.
and CanadaIt’s the only extended service plan authorized and backed
by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Ford Authorized Parts used with every covered repair.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
410
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
