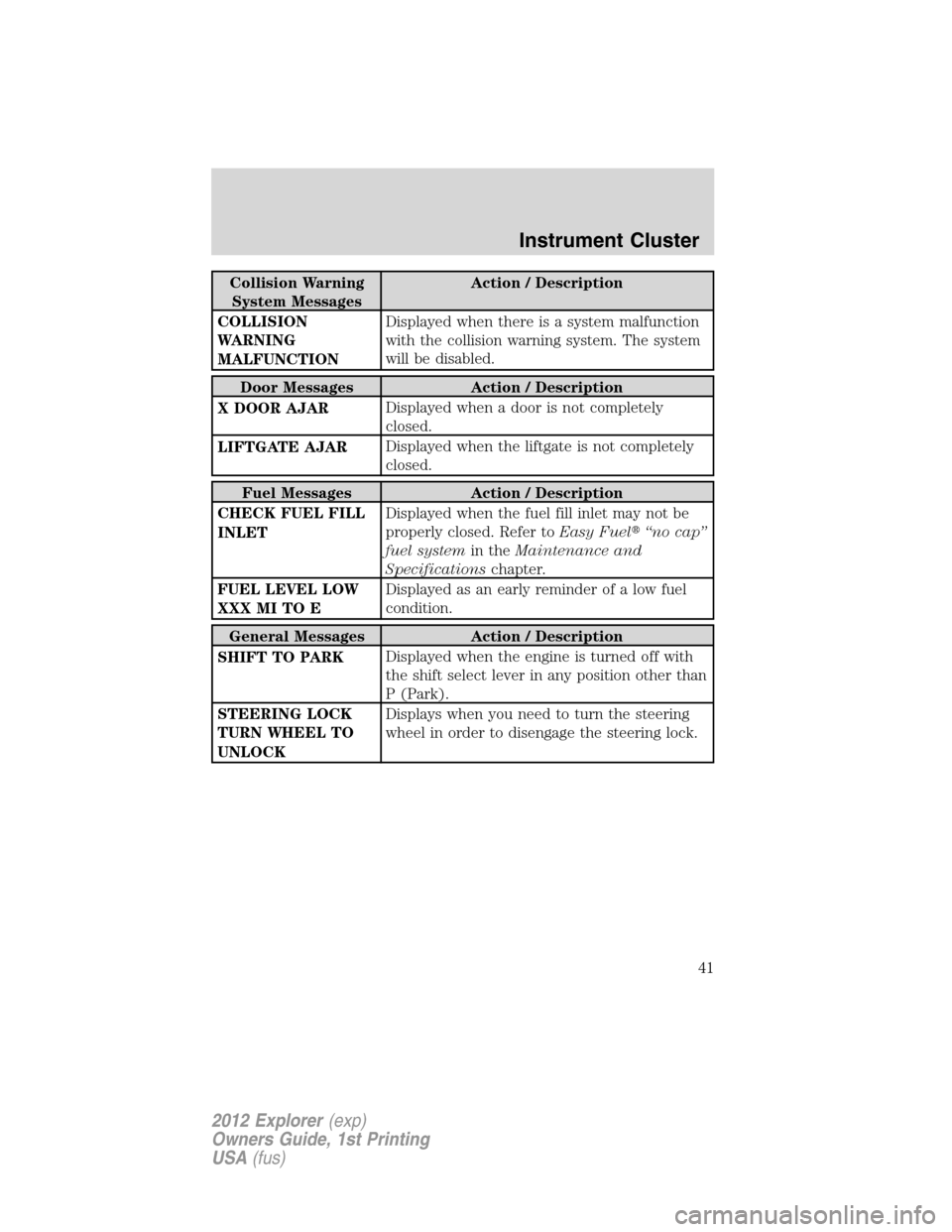

Collision Warning
System MessagesAction / Description
COLLISION
WARNING
MALFUNCTIONDisplayed when there is a system malfunction
with the collision warning system. The system
will be disabled.
Door Messages Action / Description
X DOOR AJARDisplayed when a door is not completely
closed.
LIFTGATE AJARDisplayed when the liftgate is not completely
closed.
Fuel Messages Action / Description
CHECK FUEL FILL
INLETDisplayed when the fuel fill inlet may not be
properly closed. Refer toEasy Fuel“no cap”
fuel systemin theMaintenance and
Specificationschapter.
FUEL LEVEL LOW
XXX MI TO EDisplayed as an early reminder of a low fuel
condition.
General Messages Action / Description
SHIFT TO PARKDisplayed when the engine is turned off with
the shift select lever in any position other than
P (Park).
STEERING LOCK
TURN WHEEL TO
UNLOCKDisplays when you need to turn the steering
wheel in order to disengage the steering lock.
Instrument Cluster
41
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Page 42 of 439
Keys and Intelligent
Access MessagesAction / Description
NO KEY DETECTEDDisplayed if the intelligent access key is not
detected by the system in the following three
scenarios:
•When the start/stop button is pressed in an
attempt to either start the engine or cycle
through the ignition states.
•When the engine is running and a door is
opened then closed.
•When the vehicle’s speed exceeds 10 mph
(16 km/h) for the first time after starting.
Refer toPush button start systemin the
Drivingchapter for more information.
KEY PROGRAMMED
3 KEYS TOTALDisplayed during spare key programming,
when a third intelligent access key is
programmed to the system.
KEY PROGRAMMED
4 KEYS TOTALDisplayed during spare key programming,
when a fourth intelligent access key is
programmed to the system.
MAX NUMBER OF
KEYS LEARNEDDisplayed during spare key programming when
the maximum number of keys have been
programmed.
PRESS BRAKE TO
STARTDisplayed when the start/stop button is
pressed without the brake pedal being applied.
This is a reminder that the brake pedal must
be applied when the start/stop button is
pressed in order to start the engine. Refer to
Push button start systemin theDriving
chapter for more information.
RESTART NOW OR
KEY IS NEEDEDDisplayed when the start/stop button is
pressed to shut off the engine and a Intelligent
Access Key is not detected inside the vehicle.
Refer toPush button start systemin the
Drivingchapter for more information.
ACCESSORY
POWER ACTIVEDisplayed when the vehicle is in the accessory
ignition state.
Instrument Cluster
42
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Page 43 of 439
Maintenance
MessagesAction / Description
LOW ENGINE OIL
PRESSUREStop the vehicle as soon as safely possible,
turn off the engine. Check the oil level. See
Checking the engine oilin theMaintenance
and Specificationschapter. If the warning
stays on or continues to come on with your
engine running, contact your authorized dealer
as soon as possible.
CHANGE ENGINE
OIL SOONDisplayed when the engine oil life remaining is
10% or less.
OIL CHANGE
REQUIREDDisplayed when the oil life left reaches 0%.
ENGINE COOLANT
OVER TEMPDisplayed when the engine coolant
temperature is excessively high.
WASHER FLUID
LEVEL LOWIndicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level.
Refer toWindshield washer fluidin the
Maintenance and Specificationschapter.
POWER STEERING
ASSIST FAULTThe power steering system has disabled power
steering assist due to a system error, service is
required.
SERVICE POWER
STEERINGThe power steering system has detected a
condition that requires service.
SERVICE POWER
STEERING NOWThe power steering system has detected a
condition within the power steering system
that requires service immediately.
STEERING
MALFUNCTION
SERVICE NOWContact your authorized dealer.
Instrument Cluster
43
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Page 44 of 439

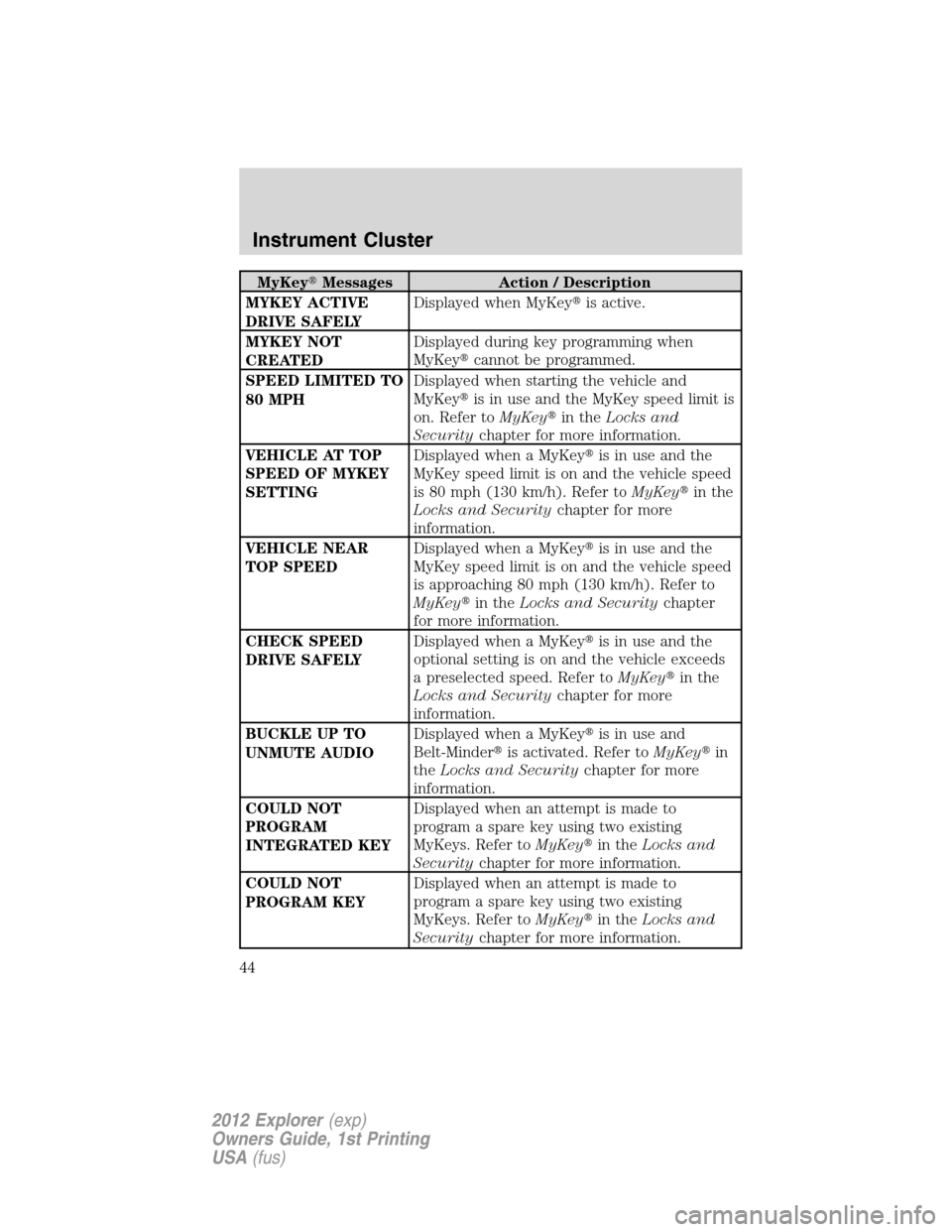

MyKeyMessages Action / Description
MYKEY ACTIVE
DRIVE SAFELYDisplayed when MyKeyis active.
MYKEY NOT
CREATEDDisplayed during key programming when
MyKeycannot be programmed.
SPEED LIMITED TO
80 MPHDisplayed when starting the vehicle and
MyKeyis in use and the MyKey speed limit is
on. Refer toMyKeyin theLocks and
Securitychapter for more information.
VEHICLE AT TOP
SPEED OF MYKEY
SETTINGDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is 80 mph (130 km/h). Refer toMyKeyin the
Locks and Securitychapter for more
information.
VEHICLE NEAR
TOP SPEEDDisplayed when a MyKeyis in use and the
MyKey speed limit is on and the vehicle speed
is approaching 80 mph (130 km/h). Refer to
MyKeyin theLocks and Securitychapter
for more information.
CHECK SPEED
DRIVE SAFELYDisplayed when a MyKeyis in use and the
optional setting is on and the vehicle exceeds
a preselected speed. Refer toMyKeyin the
Locks and Securitychapter for more
information.
BUCKLE UP TO
UNMUTE AUDIODisplayed when a MyKeyis in use and
Belt-Minderis activated. Refer toMyKeyin
theLocks and Securitychapter for more
information.
COULD NOT
PROGRAM
INTEGRATED KEYDisplayed when an attempt is made to
program a spare key using two existing
MyKeys. Refer toMyKeyin theLocks and
Securitychapter for more information.
COULD NOT
PROGRAM KEYDisplayed when an attempt is made to
program a spare key using two existing
MyKeys. Refer toMyKeyin theLocks and
Securitychapter for more information.
Instrument Cluster
44
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Page 45 of 439

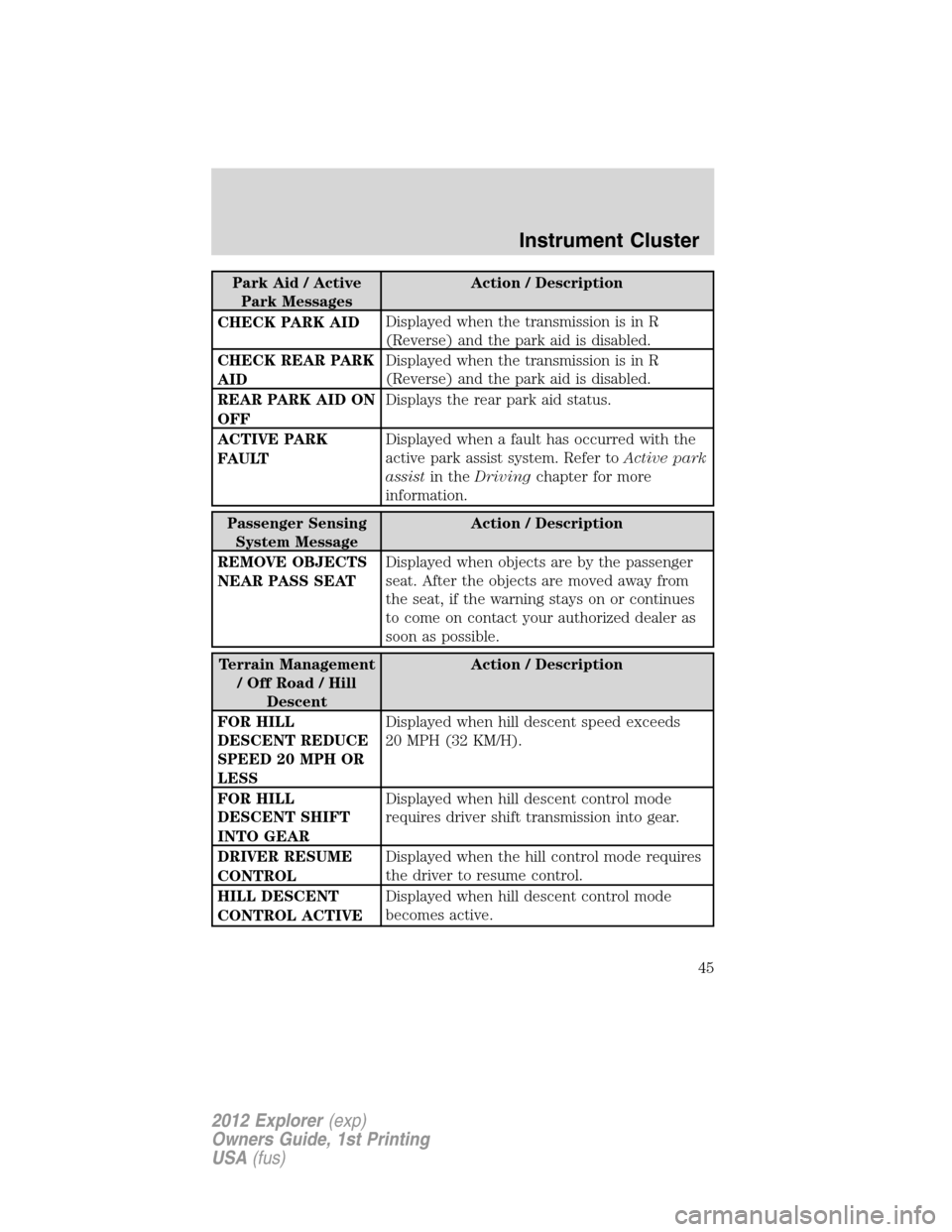

Park Aid / Active
Park MessagesAction / Description
CHECK PARK AIDDisplayed when the transmission is in R
(Reverse) and the park aid is disabled.
CHECK REAR PARK
AIDDisplayed when the transmission is in R
(Reverse) and the park aid is disabled.
REAR PARK AID ON
OFFDisplays the rear park aid status.
ACTIVE PARK
FAULTDisplayed when a fault has occurred with the
active park assist system. Refer toActive park
assistin theDrivingchapter for more
information.
Passenger Sensing
System MessageAction / Description
REMOVE OBJECTS
NEAR PASS SEATDisplayed when objects are by the passenger
seat. After the objects are moved away from
the seat, if the warning stays on or continues
to come on contact your authorized dealer as
soon as possible.
Terrain Management
/OffRoad/Hill
DescentAction / Description
FOR HILL
DESCENT REDUCE
SPEED 20 MPH OR
LESSDisplayed when hill descent speed exceeds
20 MPH (32 KM/H).
FOR HILL
DESCENT SHIFT
INTO GEARDisplayed when hill descent control mode
requires driver shift transmission into gear.
DRIVER RESUME
CONTROLDisplayed when the hill control mode requires
the driver to resume control.
HILL DESCENT
CONTROL ACTIVEDisplayed when hill descent control mode
becomes active.
Instrument Cluster
45
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Page 46 of 439

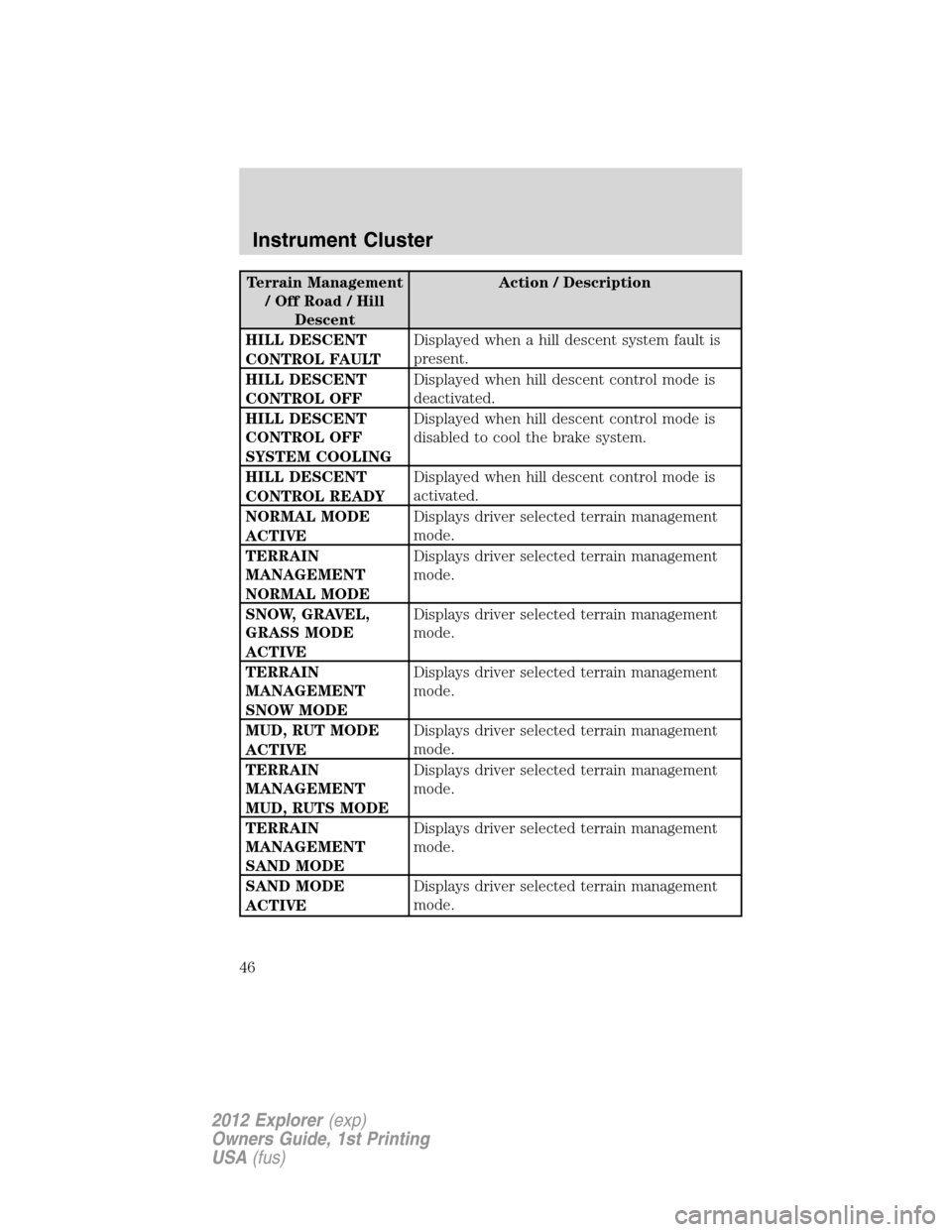

Terrain Management
/OffRoad/Hill
DescentAction / Description
HILL DESCENT
CONTROL FAULTDisplayed when a hill descent system fault is
present.
HILL DESCENT
CONTROL OFFDisplayed when hill descent control mode is
deactivated.
HILL DESCENT
CONTROL OFF
SYSTEM COOLINGDisplayed when hill descent control mode is
disabled to cool the brake system.
HILL DESCENT
CONTROL READYDisplayed when hill descent control mode is
activated.
NORMAL MODE
ACTIVEDisplays driver selected terrain management
mode.
TERRAIN
MANAGEMENT
NORMAL MODEDisplays driver selected terrain management
mode.
SNOW, GRAVEL,
GRASS MODE
ACTIVEDisplays driver selected terrain management
mode.
TERRAIN
MANAGEMENT
SNOW MODEDisplays driver selected terrain management
mode.
MUD, RUT MODE
ACTIVEDisplays driver selected terrain management
mode.
TERRAIN
MANAGEMENT
MUD, RUTS MODEDisplays driver selected terrain management
mode.
TERRAIN
MANAGEMENT
SAND MODEDisplays driver selected terrain management
mode.
SAND MODE
ACTIVEDisplays driver selected terrain management
mode.
Instrument Cluster
46
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Page 47 of 439
Terrain Management
/OffRoad/Hill
DescentAction / Description
MODE CHANGE
NOT ACCEPTED,
RETRYDisplayed when terrain management mode
cannot be changed at time of driver request.
TERRAIN
MANAGEMENT
SYSTEM FAULTDisplays when the terrain management system
detects an error.
Tire Messages Action / Description
LOW TIRE
PRESSUREDisplayed when one or more tires on your
vehicle have low tire pressure. Refer to
Inflating Your Tiresin theTires, Wheels and
Loadingchapter.
TIRE PRESSURE
MONITOR FAULTDisplayed when the Tire Pressure Monitoring
System is malfunctioning. If the warning stays
on or continues to come on, have the system
inspected by your authorized dealer.
TIRE PRESSURE
SENSOR FAULTDisplayed when a tire pressure sensor is
malfunctioning, or your spare tire is in use.
For more information on how the system
operates under these conditions, refer to
Understanding Your Tire Pressure
Monitoring System (TPMS)in theTires,
Wheels and Loadingchapter. If the warning
stays on or continues to come on, contact your
authorized dealer as soon as possible.
Instrument Cluster
47
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Page 48 of 439

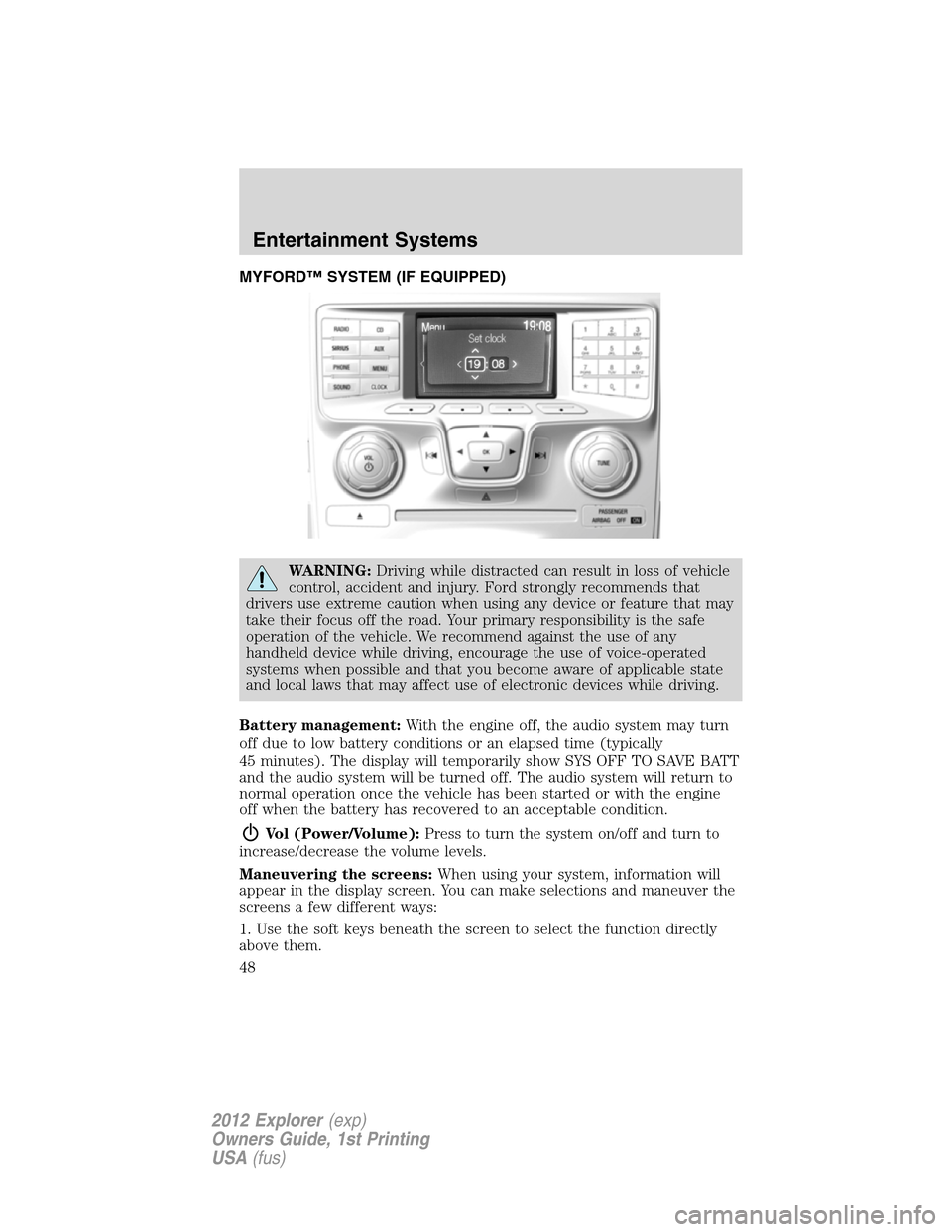

MYFORD™ SYSTEM (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Battery management:With the engine off, the audio system may turn
off due to low battery conditions or an elapsed time (typically
45 minutes). The display will temporarily show SYS OFF TO SAVE BATT
and the audio system will be turned off. The audio system will return to
normal operation once the vehicle has been started or with the engine
off when the battery has recovered to an acceptable condition.
Vol (Power/Volume):Press to turn the system on/off and turn to
increase/decrease the volume levels.
Maneuvering the screens:When using your system, information will
appear in the display screen. You can make selections and maneuver the
screens a few different ways:
1. Use the soft keys beneath the screen to select the function directly
above them.
Entertainment Systems
48
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Page 49 of 439

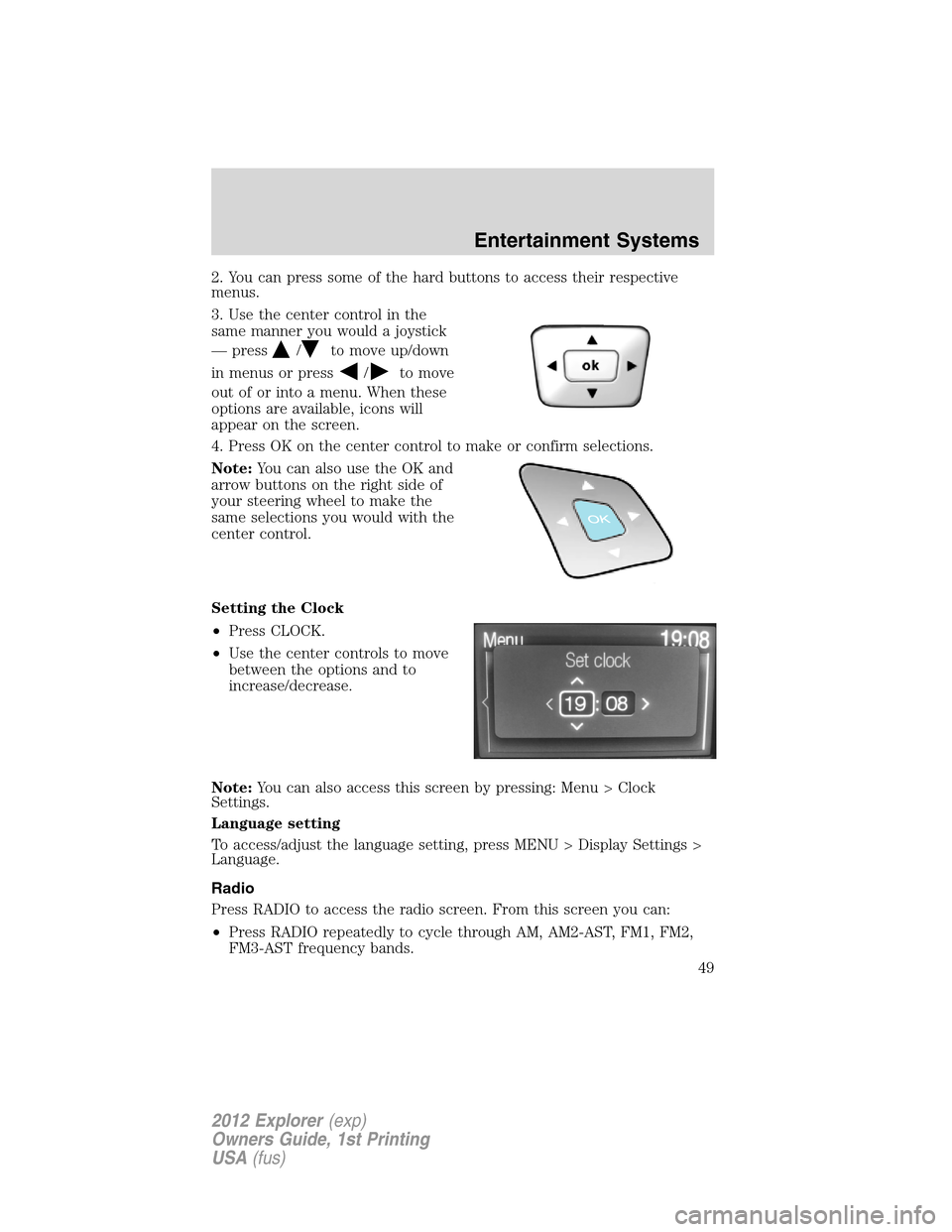

2. You can press some of the hard buttons to access their respective
menus.
3. Use the center control in the
same manner you would a joystick
— press
/to move up/down
in menus or press
/to move
out of or into a menu. When these
options are available, icons will
appear on the screen.
4. Press OK on the center control to make or confirm selections.
Note:You can also use the OK and
arrow buttons on the right side of
your steering wheel to make the
same selections you would with the
center control.
Setting the Clock
•Press CLOCK.
•Use the center controls to move
between the options and to
increase/decrease.
Note:You can also access this screen by pressing: Menu > Clock
Settings.
Language setting
To access/adjust the language setting, press MENU > Display Settings >
Language.
Radio
Press RADIO to access the radio screen. From this screen you can:
•Press RADIO repeatedly to cycle through AM, AM2-AST, FM1, FM2,
FM3-AST frequency bands.
Entertainment Systems
49
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Page 50 of 439

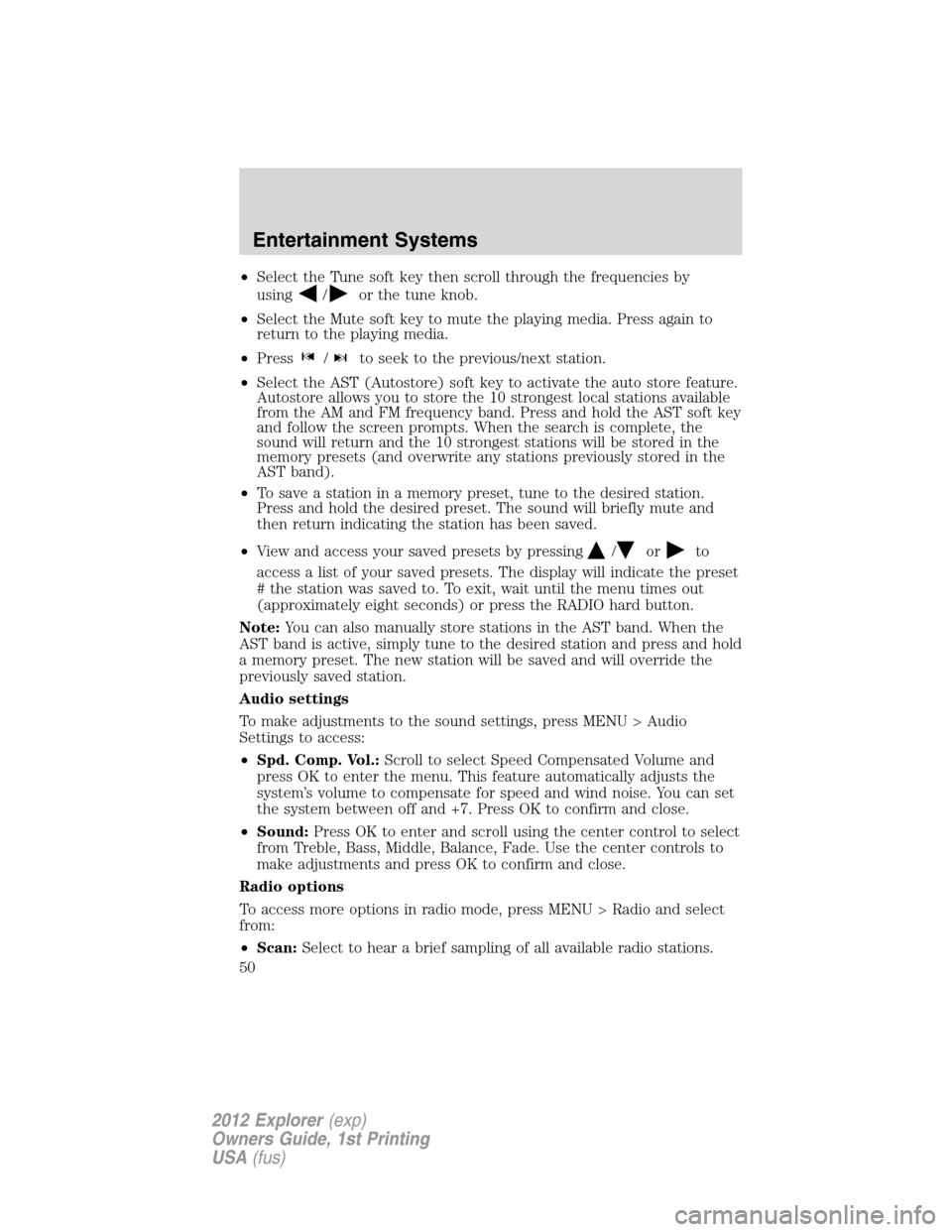

•Select the Tune soft key then scroll through the frequencies by
using
/or the tune knob.
•Select the Mute soft key to mute the playing media. Press again to
return to the playing media.
•Press
/to seek to the previous/next station.
•Select the AST (Autostore) soft key to activate the auto store feature.
Autostore allows you to store the 10 strongest local stations available
from the AM and FM frequency band. Press and hold the AST soft key
and follow the screen prompts. When the search is complete, the
sound will return and the 10 strongest stations will be stored in the
memory presets (and overwrite any stations previously stored in the
AST band).
•To save a station in a memory preset, tune to the desired station.
Press and hold the desired preset. The sound will briefly mute and
then return indicating the station has been saved.
•View and access your saved presets by pressing
/orto
access a list of your saved presets. The display will indicate the preset
# the station was saved to. To exit, wait until the menu times out
(approximately eight seconds) or press the RADIO hard button.
Note:You can also manually store stations in the AST band. When the
AST band is active, simply tune to the desired station and press and hold
a memory preset. The new station will be saved and will override the
previously saved station.
Audio settings
To make adjustments to the sound settings, press MENU > Audio
Settings to access:
•Spd. Comp. Vol.:Scroll to select Speed Compensated Volume and
press OK to enter the menu. This feature automatically adjusts the
system’s volume to compensate for speed and wind noise. You can set
the system between off and +7. Press OK to confirm and close.
•Sound:Press OK to enter and scroll using the center control to select
from Treble, Bass, Middle, Balance, Fade. Use the center controls to
make adjustments and press OK to confirm and close.
Radio options
To access more options in radio mode, press MENU > Radio and select
from:
•Scan:Select to hear a brief sampling of all available radio stations.
Entertainment Systems
50
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
