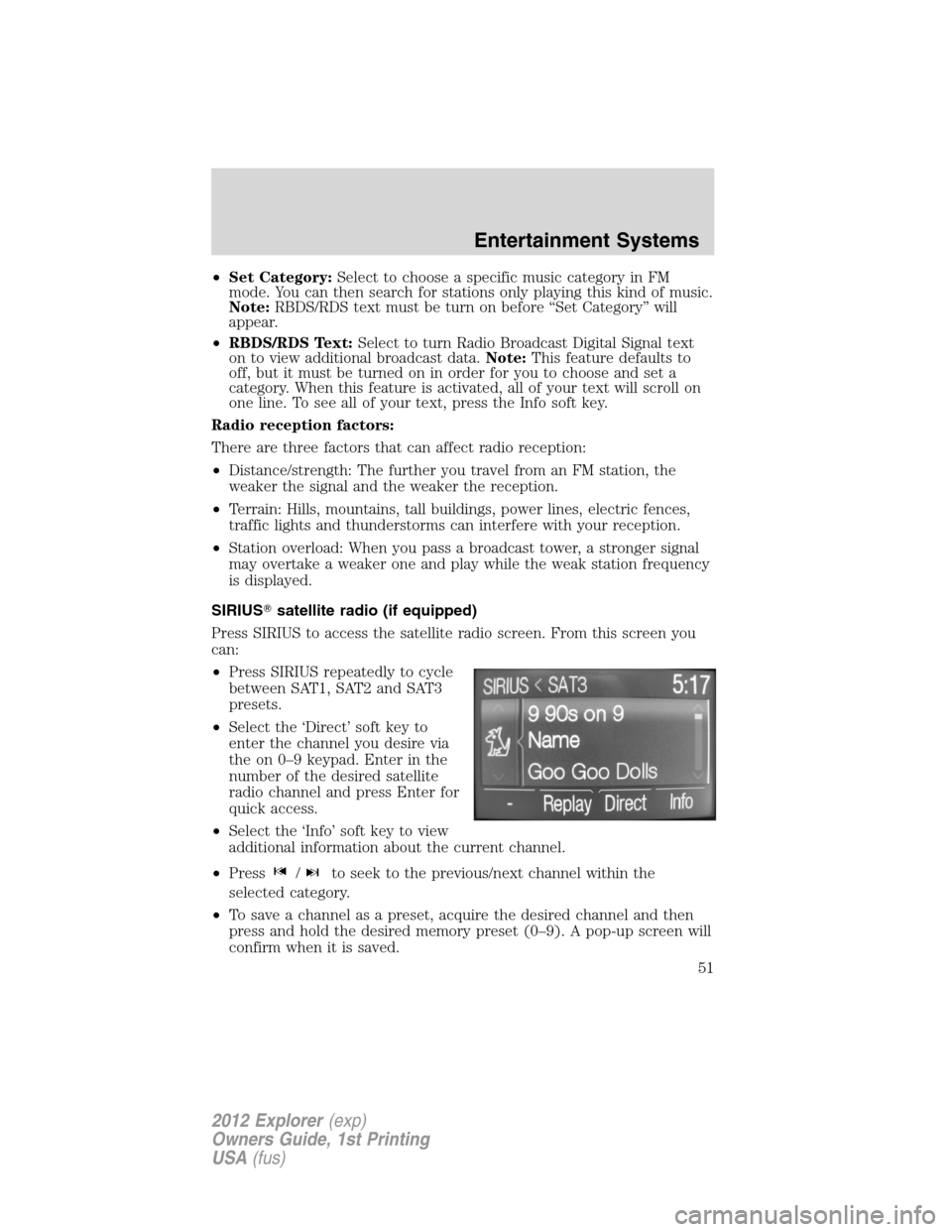

•Set Category:Select to choose a specific music category in FM
mode. You can then search for stations only playing this kind of music.
Note:RBDS/RDS text must be turn on before “Set Category” will
appear.
•RBDS/RDS Text:Select to turn Radio Broadcast Digital Signal text
on to view additional broadcast data.Note:This feature defaults to
off, but it must be turned on in order for you to choose and set a
category. When this feature is activated, all of your text will scroll on
one line. To see all of your text, press the Info soft key.
Radio reception factors:
There are three factors that can affect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
SIRIUSsatellite radio (if equipped)
Press SIRIUS to access the satellite radio screen. From this screen you
can:
•Press SIRIUS repeatedly to cycle
between SAT1, SAT2 and SAT3
presets.
•Select the ‘Direct’ soft key to
enter the channel you desire via
the on 0–9 keypad. Enter in the
number of the desired satellite
radio channel and press Enter for
quick access.
•Select the ‘Info’ soft key to view
additional information about the current channel.
•Press
/to seek to the previous/next channel within the
selected category.
•To save a channel as a preset, acquire the desired channel and then
press and hold the desired memory preset (0–9). A pop-up screen will
confirm when it is saved.
Entertainment Systems
51
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

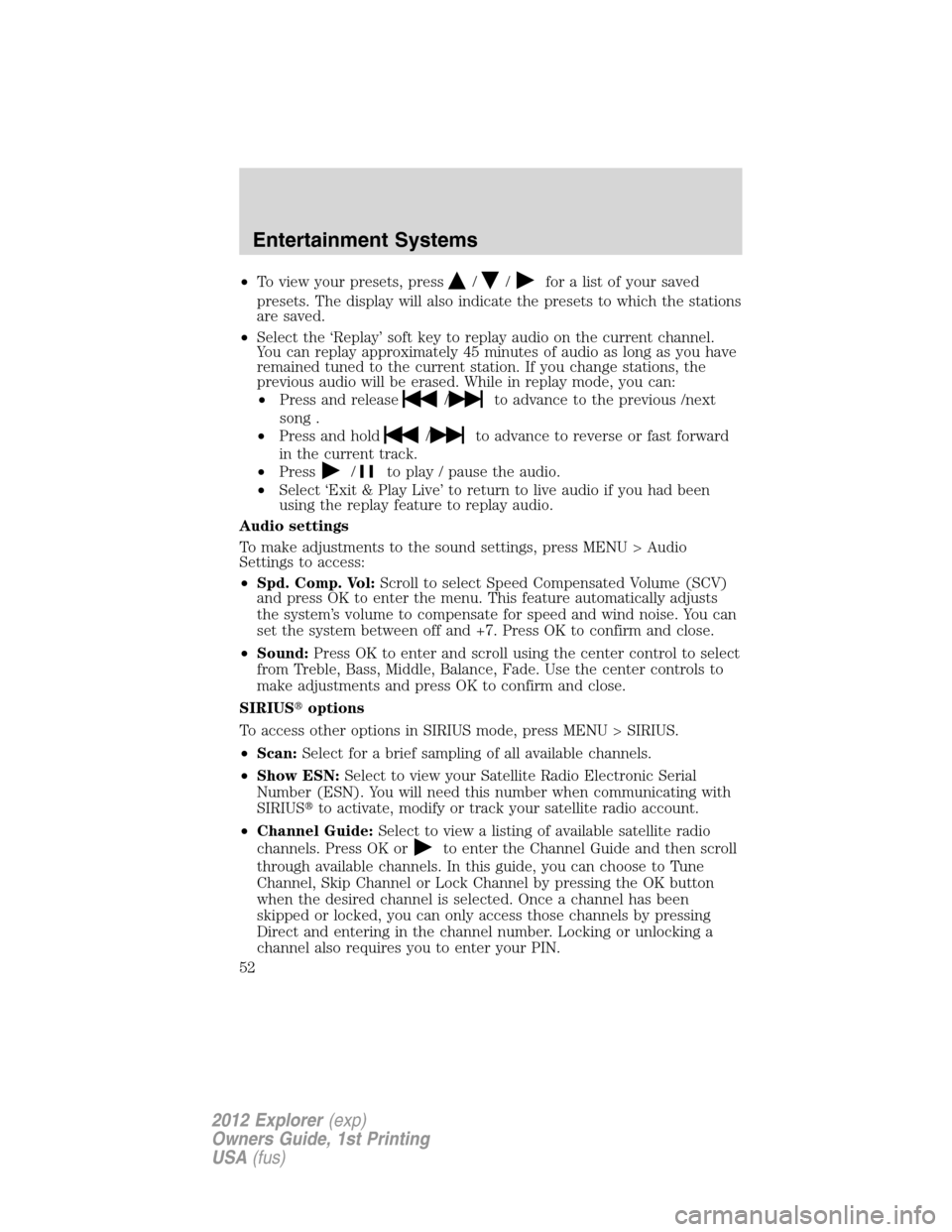

•To view your presets, press//for a list of your saved
presets. The display will also indicate the presets to which the stations
are saved.
•Select the ‘Replay’ soft key to replay audio on the current channel.
You can replay approximately 45 minutes of audio as long as you have
remained tuned to the current station. If you change stations, the
previous audio will be erased. While in replay mode, you can:
•Press and release
/to advance to the previous /next
song .
•Press and hold
/to advance to reverse or fast forward
in the current track.
•Press
/to play / pause the audio.
•Select ‘Exit & Play Live’ to return to live audio if you had been
using the replay feature to replay audio.
Audio settings
To make adjustments to the sound settings, press MENU > Audio
Settings to access:
•Spd. Comp. Vol:Scroll to select Speed Compensated Volume (SCV)
and press OK to enter the menu. This feature automatically adjusts
the system’s volume to compensate for speed and wind noise. You can
set the system between off and +7. Press OK to confirm and close.
•Sound:Press OK to enter and scroll using the center control to select
from Treble, Bass, Middle, Balance, Fade. Use the center controls to
make adjustments and press OK to confirm and close.
SIRIUSoptions
To access other options in SIRIUS mode, press MENU > SIRIUS.
•Scan:Select for a brief sampling of all available channels.
•Show ESN:Select to view your Satellite Radio Electronic Serial
Number (ESN). You will need this number when communicating with
SIRIUSto activate, modify or track your satellite radio account.
•Channel Guide:Select to view a listing of available satellite radio
channels. Press OK or
to enter the Channel Guide and then scroll
through available channels. In this guide, you can choose to Tune
Channel, Skip Channel or Lock Channel by pressing the OK button
when the desired channel is selected. Once a channel has been
skipped or locked, you can only access those channels by pressing
Direct and entering in the channel number. Locking or unlocking a
channel also requires you to enter your PIN.
Entertainment Systems
52
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

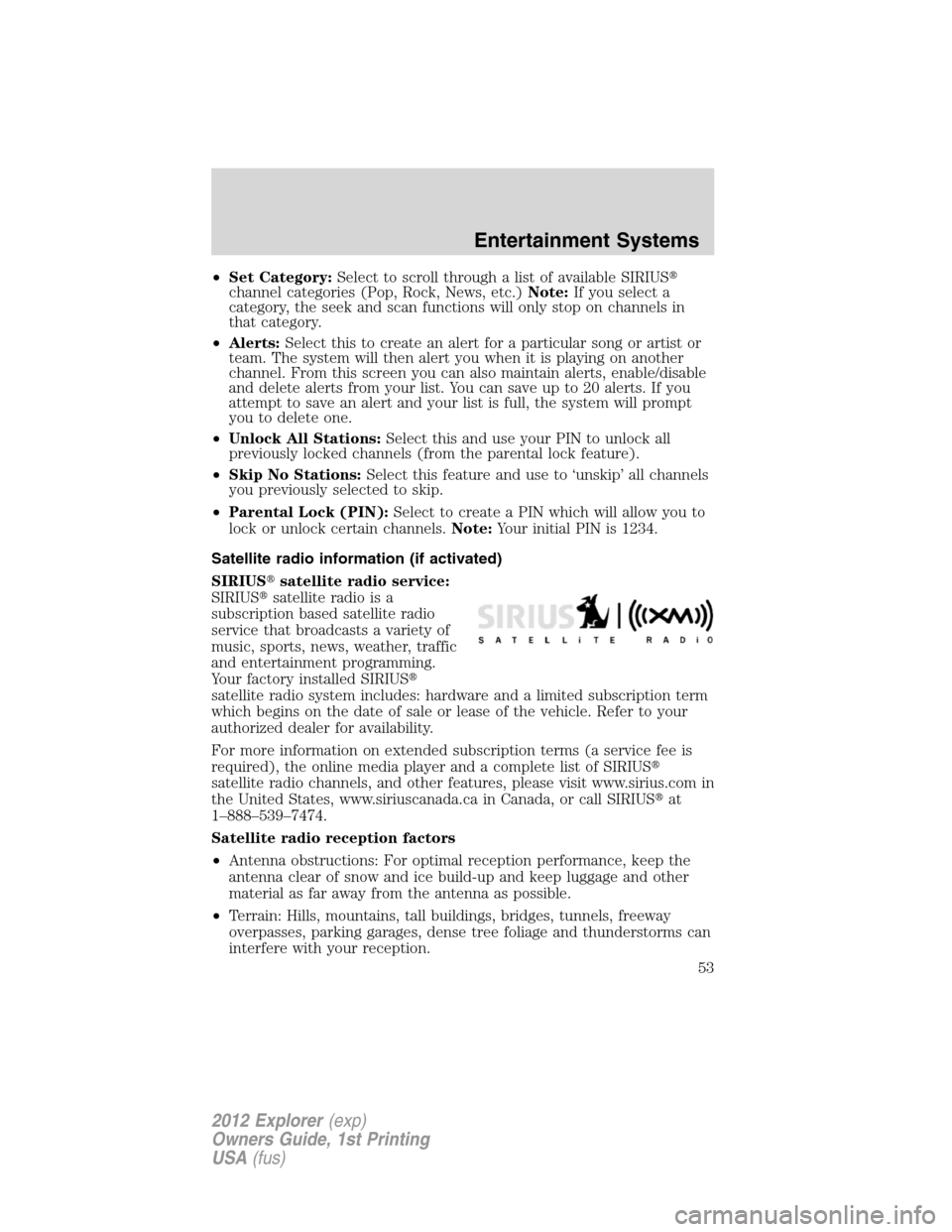

•Set Category:Select to scroll through a list of available SIRIUS
channel categories (Pop, Rock, News, etc.)Note:If you select a
category, the seek and scan functions will only stop on channels in
that category.
•Alerts:Select this to create an alert for a particular song or artist or
team. The system will then alert you when it is playing on another
channel. From this screen you can also maintain alerts, enable/disable
and delete alerts from your list. You can save up to 20 alerts. If you
attempt to save an alert and your list is full, the system will prompt
you to delete one.
•Unlock All Stations:Select this and use your PIN to unlock all
previously locked channels (from the parental lock feature).
•Skip No Stations:Select this feature and use to ‘unskip’ all channels
you previously selected to skip.
•Parental Lock (PIN):Select to create a PIN which will allow you to
lock or unlock certain channels.Note:Your initial PIN is 1234.
Satellite radio information (if activated)
SIRIUSsatellite radio service:
SIRIUSsatellite radio is a
subscription based satellite radio
service that broadcasts a variety of
music, sports, news, weather, traffic
and entertainment programming.
Your factory installed SIRIUS
satellite radio system includes: hardware and a limited subscription term
which begins on the date of sale or lease of the vehicle. Refer to your
authorized dealer for availability.
For more information on extended subscription terms (a service fee is
required), the online media player and a complete list of SIRIUS
satellite radio channels, and other features, please visit www.sirius.com in
the United States, www.siriuscanada.ca in Canada, or call SIRIUSat
1–888–539–7474.
Satellite radio reception factors
•Antenna obstructions: For optimal reception performance, keep the
antenna clear of snow and ice build-up and keep luggage and other
material as far away from the antenna as possible.
•Terrain: Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and thunderstorms can
interfere with your reception.
Entertainment Systems
53
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

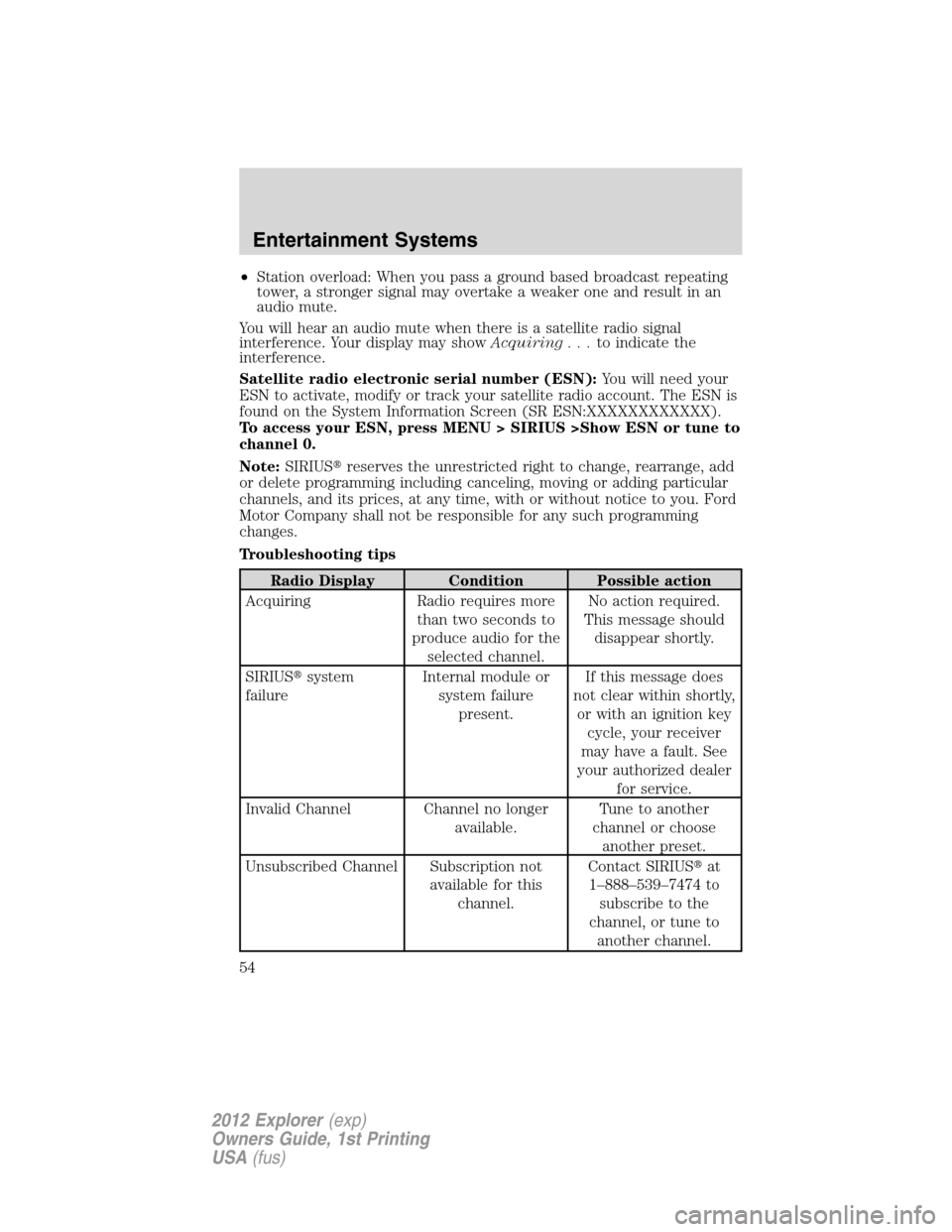

•Station overload: When you pass a ground based broadcast repeating
tower, a stronger signal may overtake a weaker one and result in an
audio mute.
You will hear an audio mute when there is a satellite radio signal
interference. Your display may showAcquiring...to indicate the
interference.
Satellite radio electronic serial number (ESN):You will need your
ESN to activate, modify or track your satellite radio account. The ESN is
found on the System Information Screen (SR ESN:XXXXXXXXXXXX).
To access your ESN, press MENU > SIRIUS >Show ESN or tune to
channel 0.
Note:SIRIUSreserves the unrestricted right to change, rearrange, add
or delete programming including canceling, moving or adding particular
channels, and its prices, at any time, with or without notice to you. Ford
Motor Company shall not be responsible for any such programming
changes.
Troubleshooting tips
Radio Display Condition Possible action
Acquiring Radio requires more
than two seconds to
produce audio for the
selected channel.No action required.
This message should
disappear shortly.
SIRIUSsystem
failureInternal module or
system failure
present.If this message does
not clear within shortly,
or with an ignition key
cycle, your receiver
may have a fault. See
your authorized dealer
for service.
Invalid Channel Channel no longer
available.Tune to another
channel or choose
another preset.
Unsubscribed Channel Subscription not
available for this
channel.Contact SIRIUSat
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
Entertainment Systems
54
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

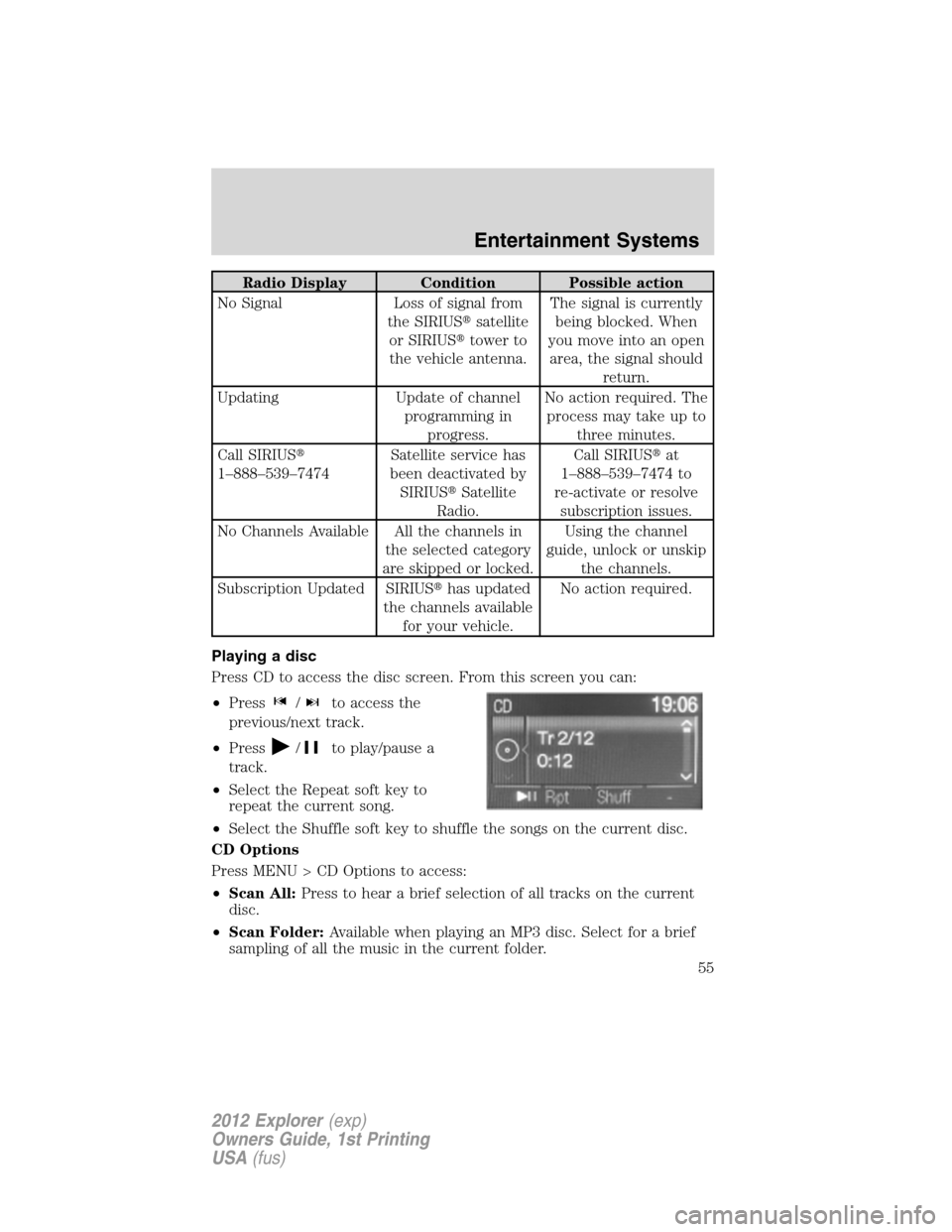

Radio Display Condition Possible action
No Signal Loss of signal from
the SIRIUSsatellite
or SIRIUStower to
the vehicle antenna.The signal is currently
being blocked. When
you move into an open
area, the signal should
return.
Updating Update of channel
programming in
progress.No action required. The
process may take up to
three minutes.
Call SIRIUS
1–888–539–7474Satellite service has
been deactivated by
SIRIUSSatellite
Radio.Call SIRIUSat
1–888–539–7474 to
re-activate or resolve
subscription issues.
No Channels Available All the channels in
the selected category
are skipped or locked.Using the channel
guide, unlock or unskip
the channels.
Subscription Updated SIRIUShas updated
the channels available
for your vehicle.No action required.
Playing a disc
Press CD to access the disc screen. From this screen you can:
•Press
/to access the
previous/next track.
•Press
/to play/pause a
track.
•Select the Repeat soft key to
repeat the current song.
•Select the Shuffle soft key to shuffle the songs on the current disc.
CD Options
Press MENU > CD Options to access:
•Scan All:Press to hear a brief selection of all tracks on the current
disc.
•Scan Folder:Available when playing an MP3 disc. Select for a brief
sampling of all the music in the current folder.
Entertainment Systems
55
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

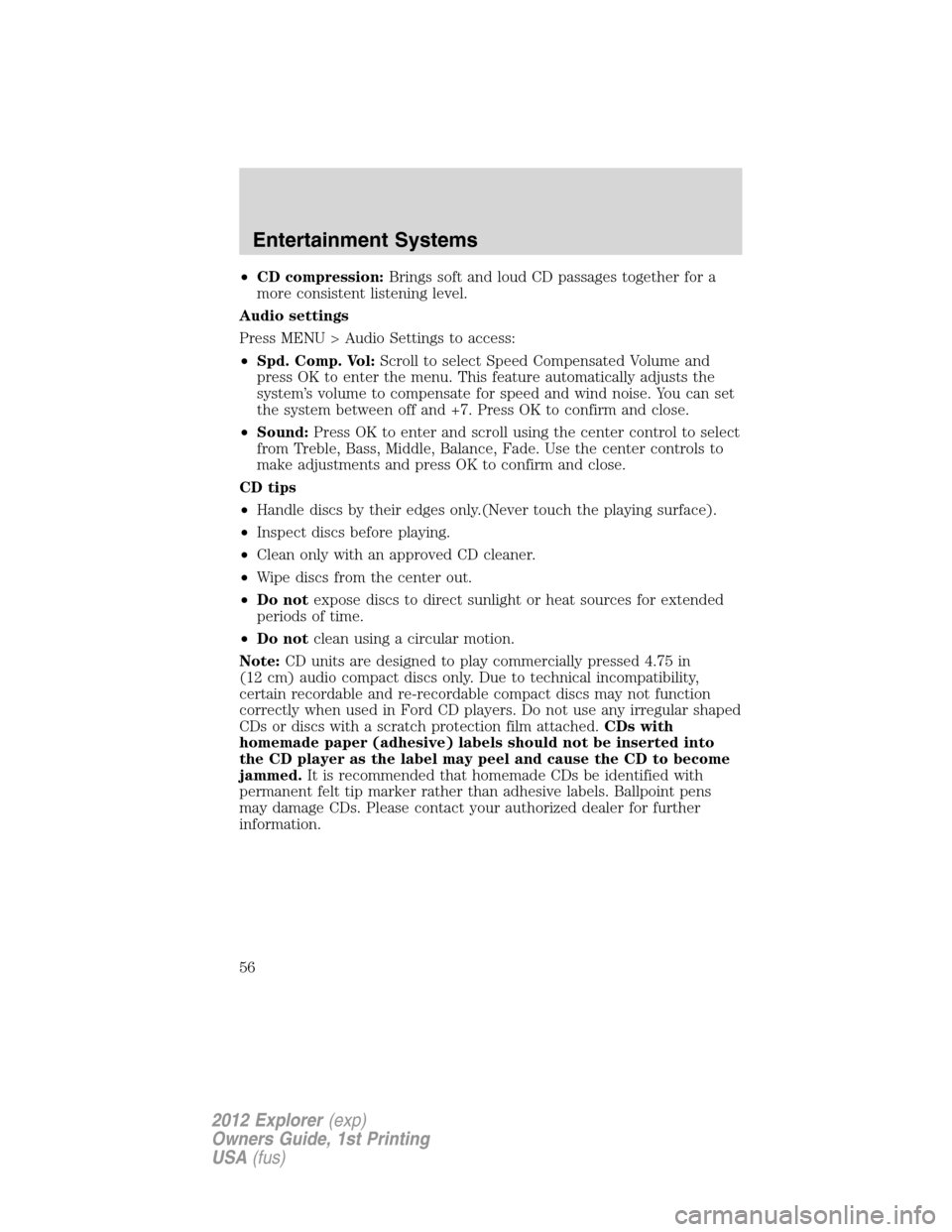

•CD compression:Brings soft and loud CD passages together for a
more consistent listening level.
Audio settings
Press MENU > Audio Settings to access:
•Spd. Comp. Vol:Scroll to select Speed Compensated Volume and
press OK to enter the menu. This feature automatically adjusts the
system’s volume to compensate for speed and wind noise. You can set
the system between off and +7. Press OK to confirm and close.
•Sound:Press OK to enter and scroll using the center control to select
from Treble, Bass, Middle, Balance, Fade. Use the center controls to
make adjustments and press OK to confirm and close.
CD tips
•Handle discs by their edges only.(Never touch the playing surface).
•Inspect discs before playing.
•Clean only with an approved CD cleaner.
•Wipe discs from the center out.
•Do notexpose discs to direct sunlight or heat sources for extended
periods of time.
•Do notclean using a circular motion.
Note:CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not function
correctly when used in Ford CD players. Do not use any irregular shaped
CDs or discs with a scratch protection film attached.CDs with
homemade paper (adhesive) labels should not be inserted into
the CD player as the label may peel and cause the CD to become
jammed.It is recommended that homemade CDs be identified with
permanent felt tip marker rather than adhesive labels. Ballpoint pens
may damage CDs. Please contact your authorized dealer for further
information.
Entertainment Systems
56
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

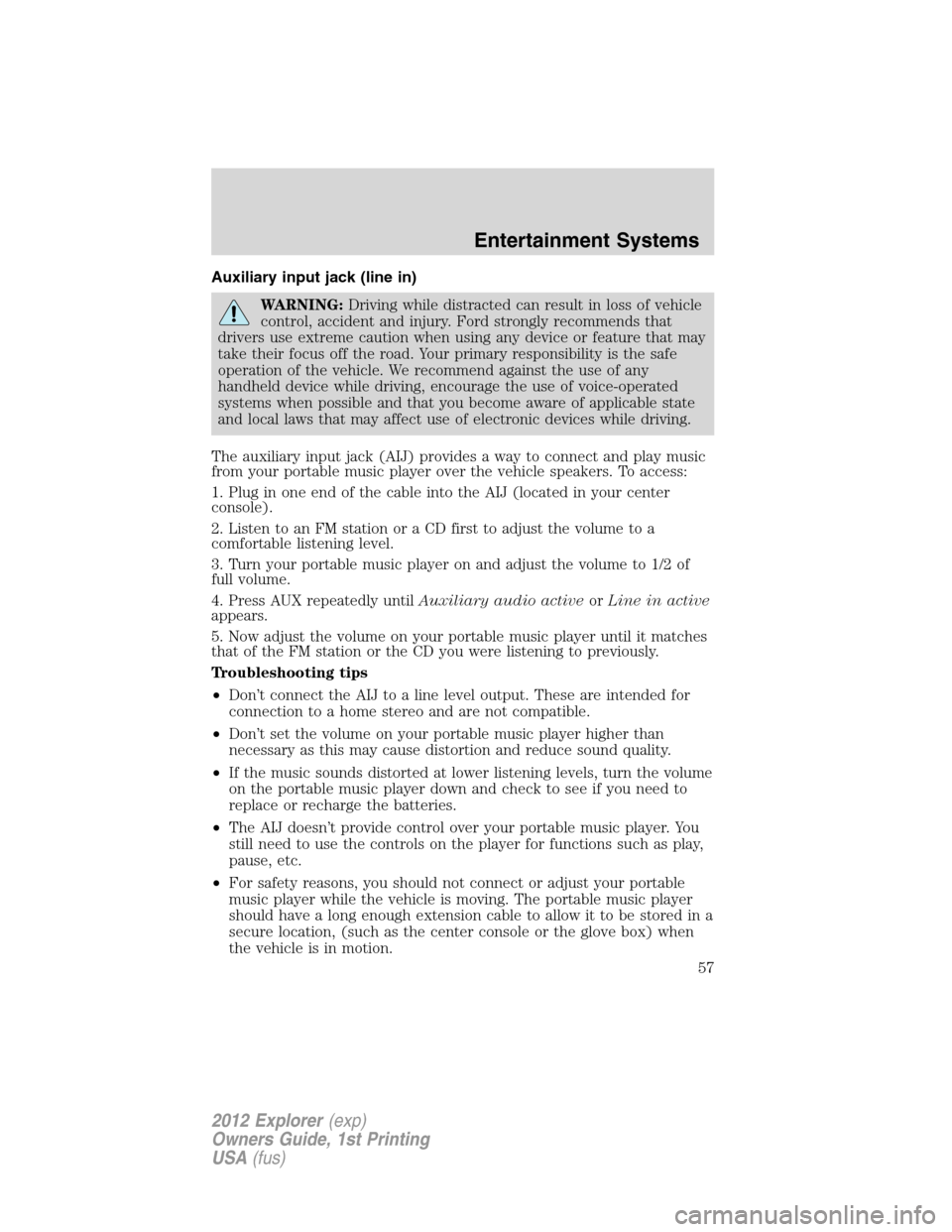

Auxiliary input jack (line in)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
The auxiliary input jack (AIJ) provides a way to connect and play music
from your portable music player over the vehicle speakers. To access:
1. Plug in one end of the cable into the AIJ (located in your center
console).
2. Listen to an FM station or a CD first to adjust the volume to a
comfortable listening level.
3. Turn your portable music player on and adjust the volume to 1/2 of
full volume.
4. Press AUX repeatedly untilAuxiliary audio activeorLine in active
appears.
5. Now adjust the volume on your portable music player until it matches
that of the FM station or the CD you were listening to previously.
Troubleshooting tips
•Don’t connect the AIJ to a line level output. These are intended for
connection to a home stereo and are not compatible.
•Don’t set the volume on your portable music player higher than
necessary as this may cause distortion and reduce sound quality.
•If the music sounds distorted at lower listening levels, turn the volume
on the portable music player down and check to see if you need to
replace or recharge the batteries.
•The AIJ doesn’t provide control over your portable music player. You
still need to use the controls on the player for functions such as play,
pause, etc.
•For safety reasons, you should not connect or adjust your portable
music player while the vehicle is moving. The portable music player
should have a long enough extension cable to allow it to be stored in a
secure location, (such as the center console or the glove box) when
the vehicle is in motion.
Entertainment Systems
57
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

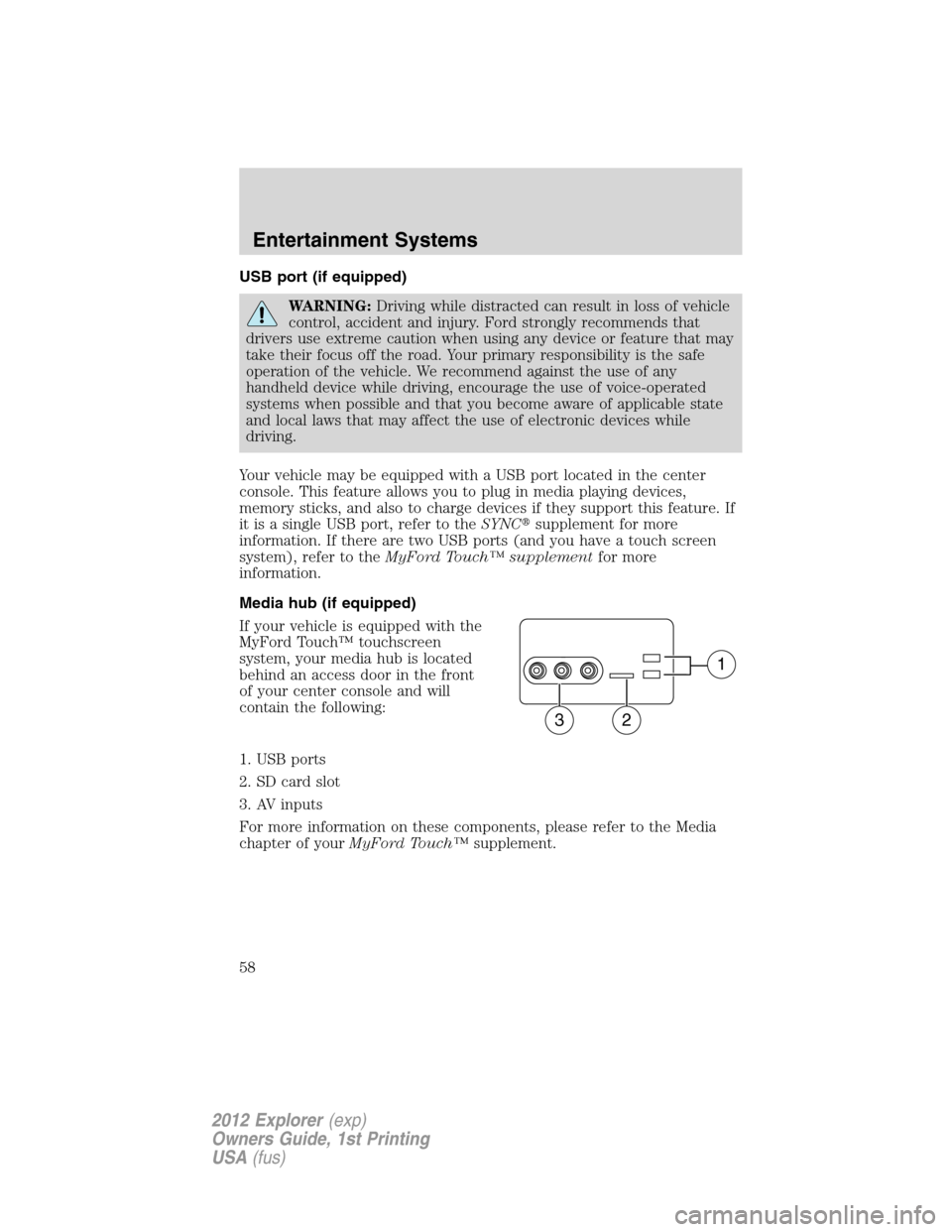

USB port (if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect the use of electronic devices while
driving.
Your vehicle may be equipped with a USB port located in the center
console. This feature allows you to plug in media playing devices,
memory sticks, and also to charge devices if they support this feature. If
it is a single USB port, refer to theSYNCsupplement for more
information. If there are two USB ports (and you have a touch screen
system), refer to theMyFord Touch™ supplementfor more
information.
Media hub (if equipped)
If your vehicle is equipped with the
MyFord Touch™ touchscreen
system, your media hub is located
behind an access door in the front
of your center console and will
contain the following:
1. USB ports
2. SD card slot
3. AV inputs
For more information on these components, please refer to the Media
chapter of yourMyFord Touch™supplement.
1
32
Entertainment Systems
58
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

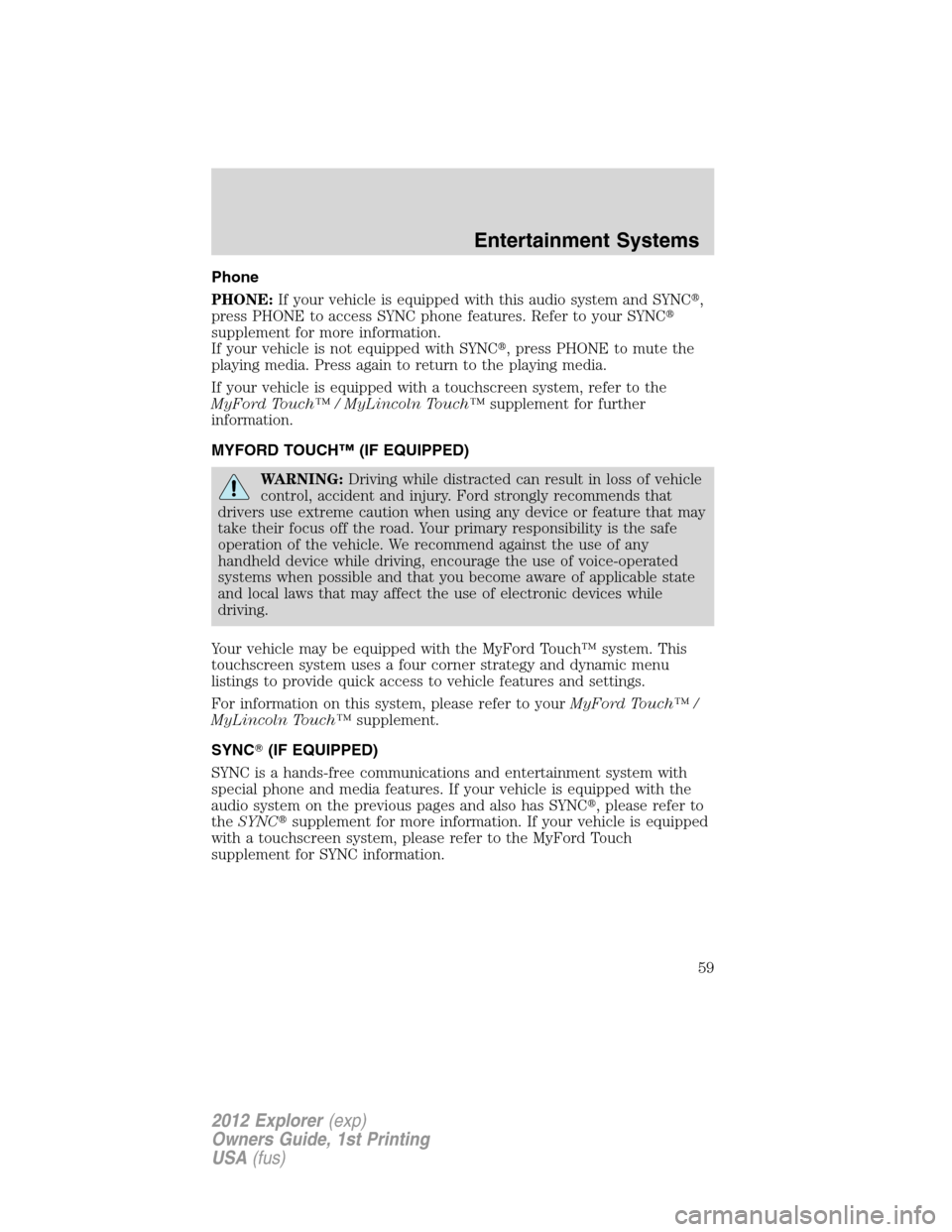

Phone
PHONE:If your vehicle is equipped with this audio system and SYNC,
press PHONE to access SYNC phone features. Refer to your SYNC
supplement for more information.
If your vehicle is not equipped with SYNC, press PHONE to mute the
playing media. Press again to return to the playing media.
If your vehicle is equipped with a touchscreen system, refer to the
MyFord Touch™ / MyLincoln Touch™supplement for further
information.
MYFORD TOUCH™ (IF EQUIPPED)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect the use of electronic devices while
driving.
Your vehicle may be equipped with the MyFord Touch™ system. This
touchscreen system uses a four corner strategy and dynamic menu
listings to provide quick access to vehicle features and settings.
For information on this system, please refer to yourMyFord Touch™ /
MyLincoln Touch™supplement.
SYNC(IF EQUIPPED)
SYNC is a hands-free communications and entertainment system with
special phone and media features. If your vehicle is equipped with the
audio system on the previous pages and also has SYNC, please refer to
theSYNCsupplement for more information. If your vehicle is equipped
with a touchscreen system, please refer to the MyFord Touch
supplement for SYNC information.
Entertainment Systems
59
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

SINGLE ZONE MANUAL SYSTEM WITH REAR CLIMATE
CONTROLS (IF EQUIPPED)
Temperature conversion:To switch between Fahrenheit and Celsius:
Press MENU > Display Settings > Temp. Setting, or refer toSettingsin
theMessage Centersection of theInstrument Clusterchapter.
1.
(Fan speed adjustment):Turn to select the desired fan speed.
2.
R(Rear defroster):Press to activate/deactivate the rear window
defroster. This button will also activate/deactivate the heated mirrors (if
equipped). Refer toRear window defrosterlater in this chapter for
more information.
3.
(Defrost):Distributes outside air through the windshield
defroster vents and demister vents. Can be used to clear the windshield
of fog and thin ice. The system will automatically provide outside air to
reduce window fogging. Press this button again to return to the previous
air flow selection.
4.
(Power):Press to activate/deactivate the climate control system.
When the system is off, outside air is prevented from entering the
vehicle through the vents.
5.
(Multifunction control):Press repeatedly to toggle through the
settings and manually choose one of the following air distribution modes:
•
:Distributes air through the windshield defroster vents, de-mister
vents, floor vents and rear seat floor vents. The system will
automatically provide outside air to reduce window fogging.
13121110
1
28
9
37456
Climate Controls
60
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
