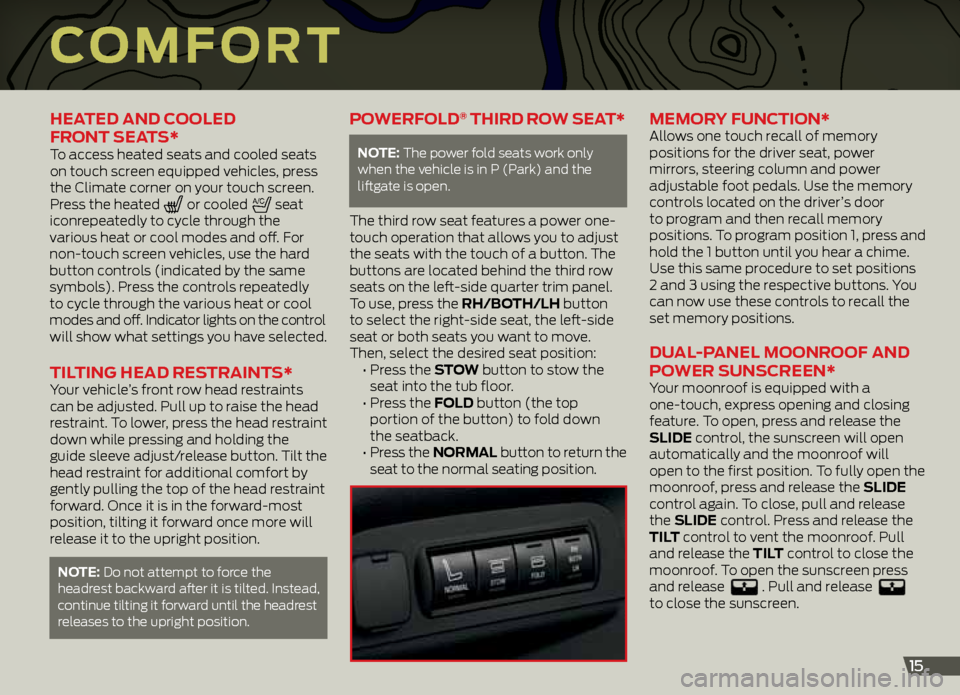

mirror controls FORD EXPLORER 2013 5.G Quick Reference Guide

coMF oRt
heated and cooLed
FR ont Seat S*
To access heated seats and cooled seats
on touch screen equipped vehicles, press
the Climate corner on your touch screen.
Press the heated
or cooled seat
iconrepeatedly to cycle through the
various heat or cool modes and off. For
non-touch screen vehicles, use the hard
button controls (indicated by the same
symbols). Press the controls repeatedly
to cycle through the various heat or cool
modes and off. Indicator lights on the control
will show what settings you have selected.
tiL ting head Re StR aint S*Your vehicle’s front row head restraints
can be adjusted. Pull up to raise the head
restraint. To lower, press the head restraint
down while pressing and holding the
guide sleeve adjust/release button. Tilt the
head restraint for additional comfort by
gently pulling the top of the head restraint
forward. Once it is in the forward-most
position, tilting it forward once more will
release it to the upright position.
note: Do not attempt to force the
headrest backward after it is tilted. Instead,
continue tilting it forward until the headrest
releases to the upright position.
PoweRFoLd® thiRd R ow Seat*
note: The power fold seats work only
when the vehicle is in P (Park) and the
liftgate is open.
The third row seat features a power one-
touch operation that allows you to adjust
the seats with the touch of a button. The
buttons are located behind the third row
seats on the left-side quarter trim panel.
To use, press the Rh/both/Lh button
to select the right-side seat, the left-side
seat or both seats you want to move.
Then, select the desired seat position:
• Press the Stow button to stow the
seat into the tub floor.
• Press the F oLd button (the top
portion of the button) to fold down
the seatback.
• Press the noRMaL button to return the
seat to the normal seating position.
MeMoR y Function* Allows one touch recall of memory
positions for the driver seat, power
mirrors, steering column and power
adjustable foot pedals. Use the memory
controls located on the driver’s door
to program and then recall memory
positions. To program position 1, press and
hold the 1 button until you hear a chime.
Use this same procedure to set positions
2 and 3 using the respective buttons. You
can now use these controls to recall the
set memory positions.
d uaL -PaneL MoonR ooF and
P oweR S unScReen*
Your moonroof is equipped with a
one-touch, express opening and closing
feature. To open, press and release the
SLide control, the sunscreen will open
automatically and the moonroof will
open to the first position. To fully open the
moonroof, press and release the SLide
control again. To close, pull and release
the SLide control. Press and release the
tiLt control to vent the moonroof. Pull
and release the tiL t control to close the
moonroof. To open the sunscreen press
and release
. Pull and release
to close the sunscreen.
15
