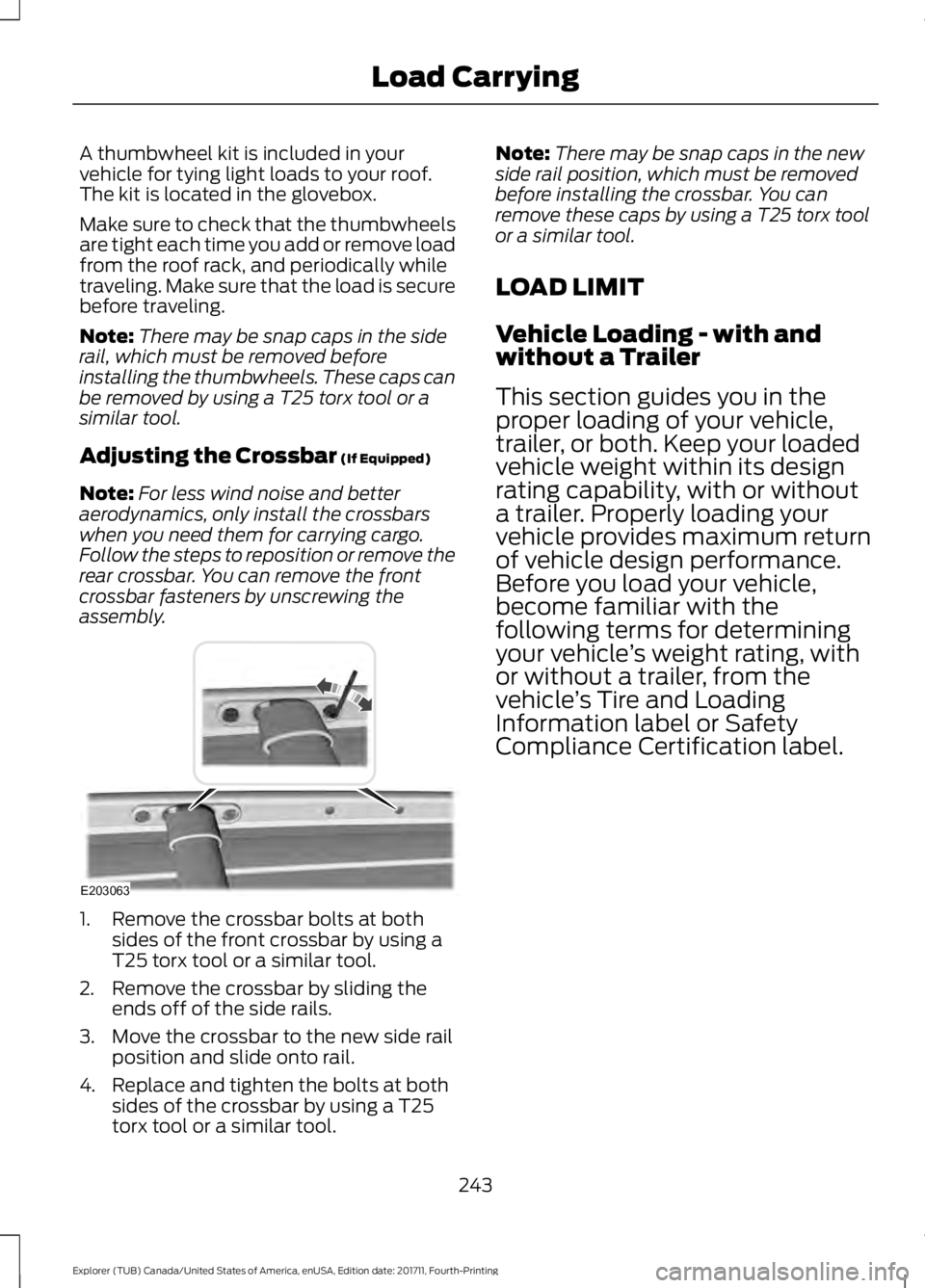

roof FORD EXPLORER 2018 User Guide

A thumbwheel kit is included in your
vehicle for tying light loads to your roof.
The kit is located in the glovebox.
Make sure to check that the thumbwheels
are tight each time you add or remove load
from the roof rack, and periodically while
traveling. Make sure that the load is secure
before traveling.
Note:
There may be snap caps in the side
rail, which must be removed before
installing the thumbwheels. These caps can
be removed by using a T25 torx tool or a
similar tool.
Adjusting the Crossbar (If Equipped)
Note: For less wind noise and better
aerodynamics, only install the crossbars
when you need them for carrying cargo.
Follow the steps to reposition or remove the
rear crossbar. You can remove the front
crossbar fasteners by unscrewing the
assembly. 1. Remove the crossbar bolts at both
sides of the front crossbar by using a
T25 torx tool or a similar tool.
2. Remove the crossbar by sliding the ends off of the side rails.
3. Move the crossbar to the new side rail position and slide onto rail.
4. Replace and tighten the bolts at both sides of the crossbar by using a T25
torx tool or a similar tool. Note:
There may be snap caps in the new
side rail position, which must be removed
before installing the crossbar. You can
remove these caps by using a T25 torx tool
or a similar tool.
LOAD LIMIT
Vehicle Loading - with and
without a Trailer
This section guides you in the
proper loading of your vehicle,
trailer, or both. Keep your loaded
vehicle weight within its design
rating capability, with or without
a trailer. Properly loading your
vehicle provides maximum return
of vehicle design performance.
Before you load your vehicle,
become familiar with the
following terms for determining
your vehicle ’s weight rating, with
or without a trailer, from the
vehicle ’s Tire and Loading
Information label or Safety
Compliance Certification label.
243
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Load CarryingE203063

You are required to submit your warranty
dispute to BBB AUTO LINE before asserting
in court any rights or remedies conferred
by California Civil Code Section 1793.22(b).
You are also required to use BBB AUTO
LINE before exercising rights or seeking
remedies created by the Federal
Magnuson-Moss Warranty Act, 15 U.S.C.
sec. 2301 et seq. If you choose to seek
redress by pursuing rights and remedies
not created by California Civil Code Section
1793.22(b) or the Magnuson-Moss
Warranty Act, resort to BBB AUTO LINE is
not required by those statutes.
THE BETTER BUSINESS
BUREAU (BBB) AUTO LINE
PROGRAM (U.S. ONLY)
Your satisfaction is important to Ford
Motor Company and to your dealer. If a
warranty concern has not been resolved
using the three-step procedure outlined
earlier in this chapter in the Getting the
Services you need section, you may be
eligible to participate in the BBB AUTO
LINE program.
The BBB AUTO LINE program consists of
two parts – mediation and arbitration.
During mediation, a representative of the
BBB will contact both you and Ford Motor
Company to explore options for settlement
of the claim. If an agreement is not reached
during mediation or you do not want to
participate in mediation, and if your claim
is eligible, you may participate in the
arbitration process. An arbitration hearing
will be scheduled so that you can present
your case in an informal setting before an
impartial person. The arbitrator will
consider the testimony provided and make
a decision after the hearing.
Disputes submitted to the BBB AUTO LINE
program are usually decided within forty
days after you file your claim with the BBB.
You are not bound by the decision, and
may reject the decision and proceed to
court where all findings of the BBB Auto
Line dispute, and decision, are admissible
in the court action. Should you choose to
accept the BBB AUTO LINE decision, Ford
is then bound by the decision, and must
comply with the decision within 30 days
of receipt of your acceptance letter.
BBB AUTO LINE Application: Using the
information provided below, please call or
write to request a program application.
You will be asked for your name and
address, general information about your
new vehicle, information about your
warranty concerns, and any steps you have
already taken to try to resolve them. A
Customer Claim Form will be mailed that
will need to be completed, signed and
returned to the BBB along with proof of
ownership. Upon receipt, the BBB will
review the claim for eligibility under the
Program Summary Guidelines.
You can get more information by
calling BBB AUTO LINE at
1-800-955-5100, or writing to:
BBB AUTO LINE
3033 Wilson Boulevard, Suite 600
Arlington, Virginia 22201
BBB AUTO LINE applications can also be
requested by calling the Ford Motor
Company Customer Relationship Center
at 1-800-392-3673.
Note:
Ford Motor Company reserves the
right to change eligibility limitations, modify
procedures, or to discontinue this process
at any time without notice and without
obligation.
268
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Customer Assistance

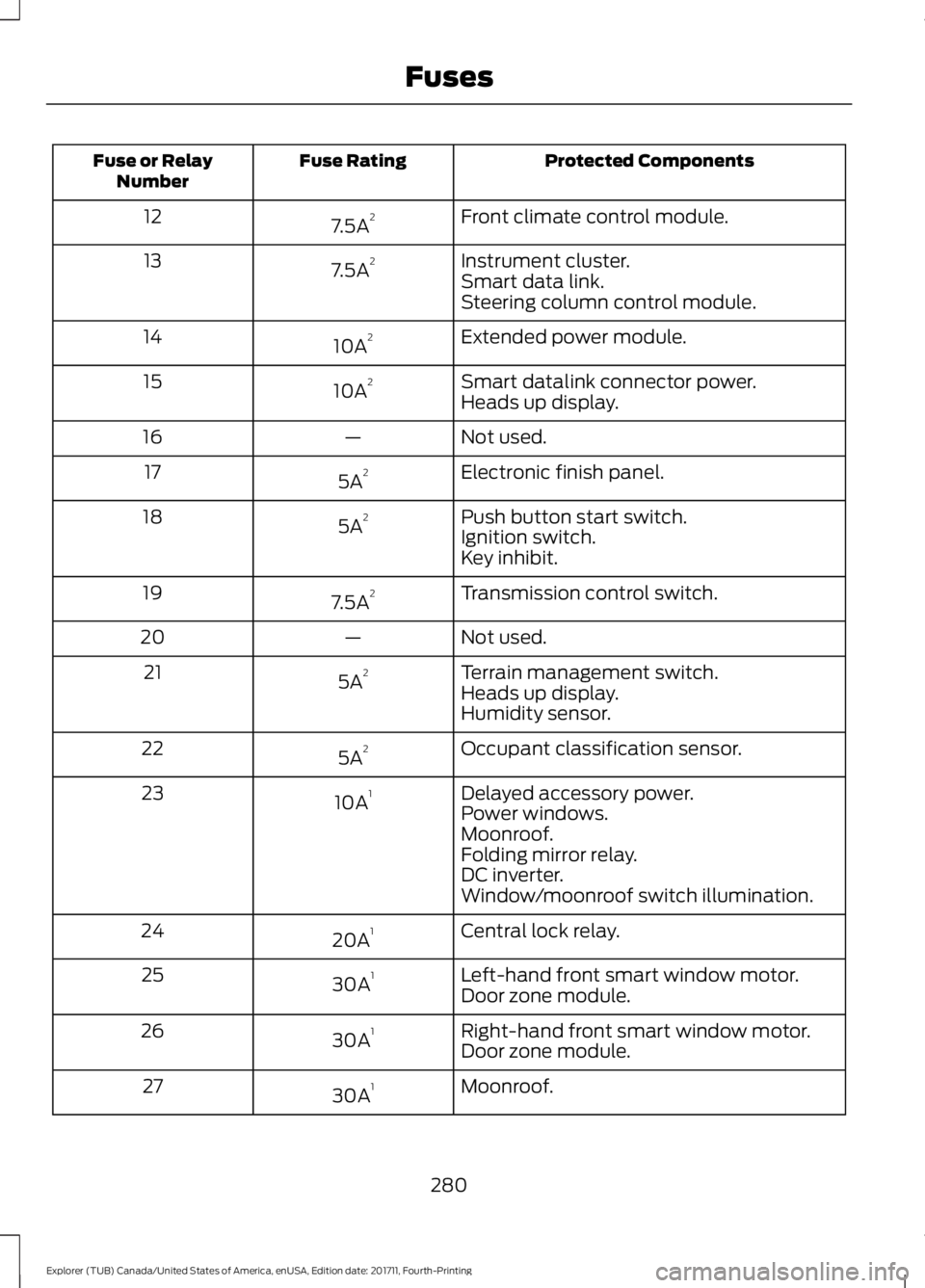

Protected Components
Fuse Rating
Fuse or Relay
Number
Front climate control module.
7.5A 2
12
Instrument cluster.
7.5A 2
13
Smart data link.
Steering column control module.
Extended power module.
10A 2
14
Smart datalink connector power.
10A 2
15
Heads up display.
Not used.
—
16
Electronic finish panel.
5A 2
17
Push button start switch.
5A 2
18
Ignition switch.
Key inhibit.
Transmission control switch.
7.5A 2
19
Not used.
—
20
Terrain management switch.
5A 2
21
Heads up display.
Humidity sensor.
Occupant classification sensor.
5A 2
22
Delayed accessory power.
10A 1
23
Power windows.
Moonroof.
Folding mirror relay.
DC inverter.
Window/moonroof switch illumination.
Central lock relay.
20A 1
24
Left-hand front smart window motor.
30A 1
25
Door zone module.
Right-hand front smart window motor.
30A 1
26
Door zone module.
Moonroof.
30A 1
27
280
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Fuses

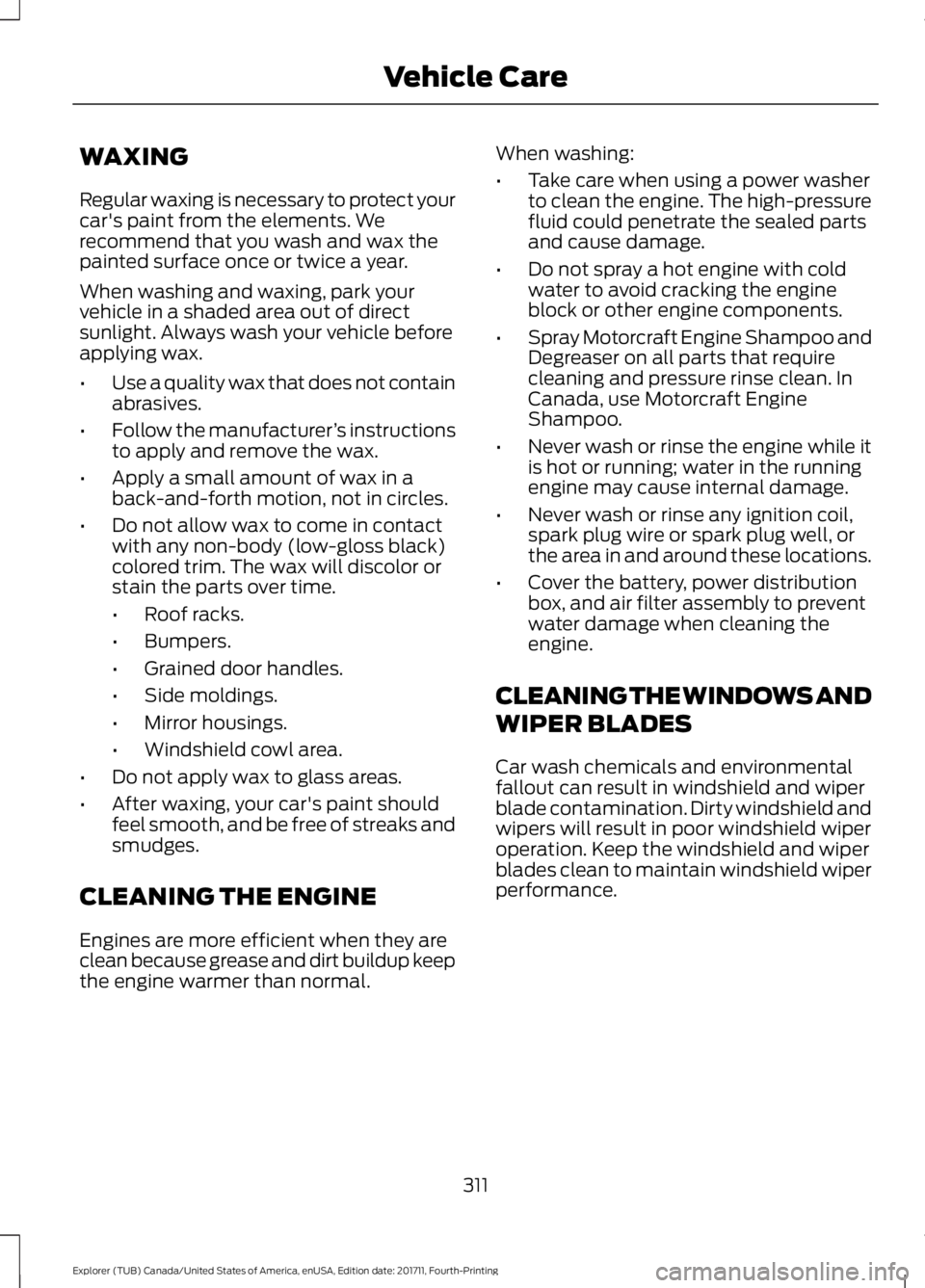

WAXING
Regular waxing is necessary to protect your
car's paint from the elements. We
recommend that you wash and wax the
painted surface once or twice a year.
When washing and waxing, park your
vehicle in a shaded area out of direct
sunlight. Always wash your vehicle before
applying wax.
•
Use a quality wax that does not contain
abrasives.
• Follow the manufacturer ’s instructions
to apply and remove the wax.
• Apply a small amount of wax in a
back-and-forth motion, not in circles.
• Do not allow wax to come in contact
with any non-body (low-gloss black)
colored trim. The wax will discolor or
stain the parts over time.
•Roof racks.
• Bumpers.
• Grained door handles.
• Side moldings.
• Mirror housings.
• Windshield cowl area.
• Do not apply wax to glass areas.
• After waxing, your car's paint should
feel smooth, and be free of streaks and
smudges.
CLEANING THE ENGINE
Engines are more efficient when they are
clean because grease and dirt buildup keep
the engine warmer than normal. When washing:
•
Take care when using a power washer
to clean the engine. The high-pressure
fluid could penetrate the sealed parts
and cause damage.
• Do not spray a hot engine with cold
water to avoid cracking the engine
block or other engine components.
• Spray Motorcraft Engine Shampoo and
Degreaser on all parts that require
cleaning and pressure rinse clean. In
Canada, use Motorcraft Engine
Shampoo.
• Never wash or rinse the engine while it
is hot or running; water in the running
engine may cause internal damage.
• Never wash or rinse any ignition coil,
spark plug wire or spark plug well, or
the area in and around these locations.
• Cover the battery, power distribution
box, and air filter assembly to prevent
water damage when cleaning the
engine.
CLEANING THE WINDOWS AND
WIPER BLADES
Car wash chemicals and environmental
fallout can result in windshield and wiper
blade contamination. Dirty windshield and
wipers will result in poor windshield wiper
operation. Keep the windshield and wiper
blades clean to maintain windshield wiper
performance.
311
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Vehicle Care

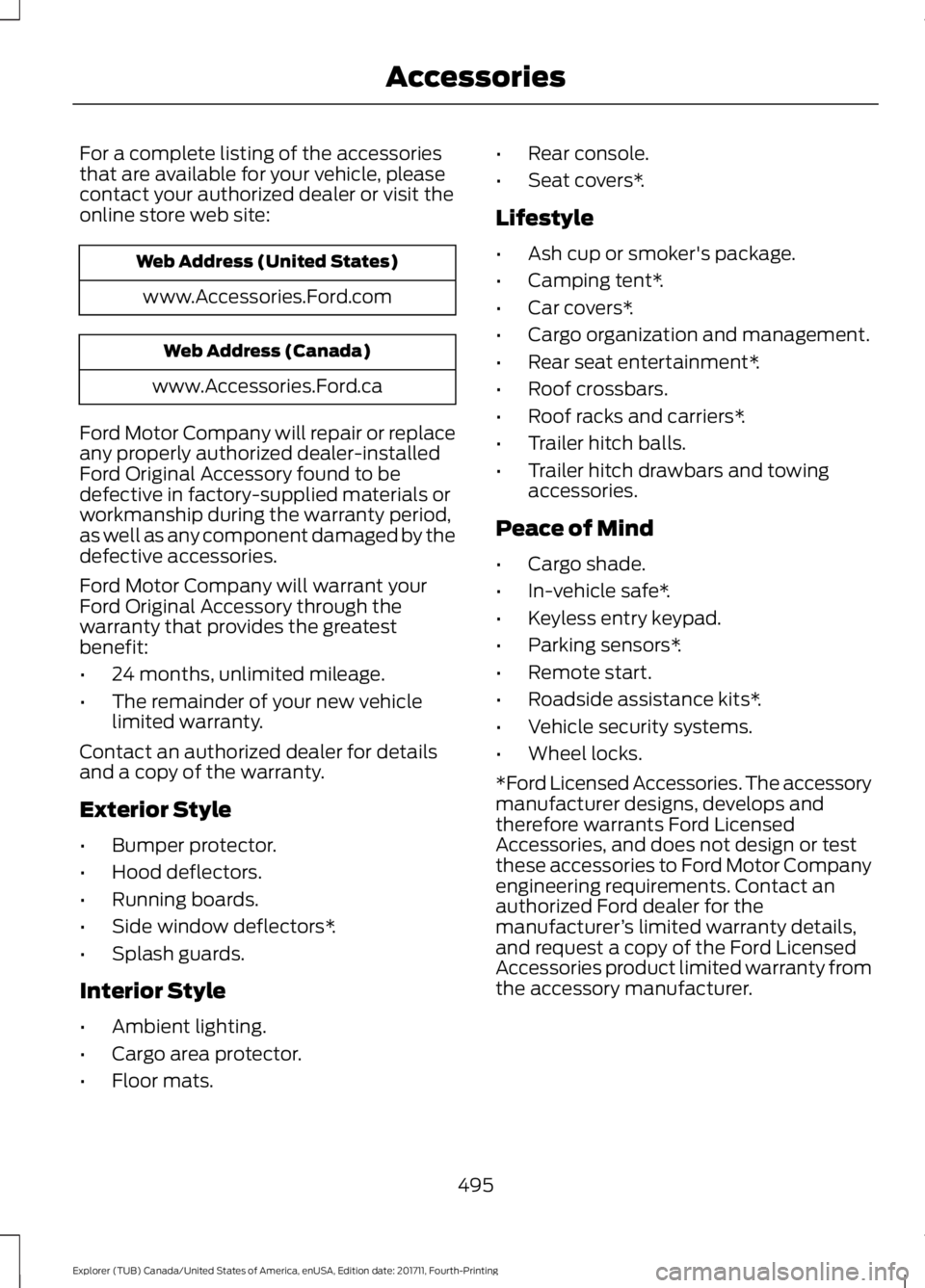

For a complete listing of the accessories
that are available for your vehicle, please
contact your authorized dealer or visit the
online store web site:
Web Address (United States)
www.Accessories.Ford.com Web Address (Canada)
www.Accessories.Ford.ca
Ford Motor Company will repair or replace
any properly authorized dealer-installed
Ford Original Accessory found to be
defective in factory-supplied materials or
workmanship during the warranty period,
as well as any component damaged by the
defective accessories.
Ford Motor Company will warrant your
Ford Original Accessory through the
warranty that provides the greatest
benefit:
• 24 months, unlimited mileage.
• The remainder of your new vehicle
limited warranty.
Contact an authorized dealer for details
and a copy of the warranty.
Exterior Style
• Bumper protector.
• Hood deflectors.
• Running boards.
• Side window deflectors*.
• Splash guards.
Interior Style
• Ambient lighting.
• Cargo area protector.
• Floor mats. •
Rear console.
• Seat covers*.
Lifestyle
• Ash cup or smoker's package.
• Camping tent*.
• Car covers*.
• Cargo organization and management.
• Rear seat entertainment*.
• Roof crossbars.
• Roof racks and carriers*.
• Trailer hitch balls.
• Trailer hitch drawbars and towing
accessories.
Peace of Mind
• Cargo shade.
• In-vehicle safe*.
• Keyless entry keypad.
• Parking sensors*.
• Remote start.
• Roadside assistance kits*.
• Vehicle security systems.
• Wheel locks.
*Ford Licensed Accessories. The accessory
manufacturer designs, develops and
therefore warrants Ford Licensed
Accessories, and does not design or test
these accessories to Ford Motor Company
engineering requirements. Contact an
authorized Ford dealer for the
manufacturer ’s limited warranty details,
and request a copy of the Ford Licensed
Accessories product limited warranty from
the accessory manufacturer.
495
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Accessories

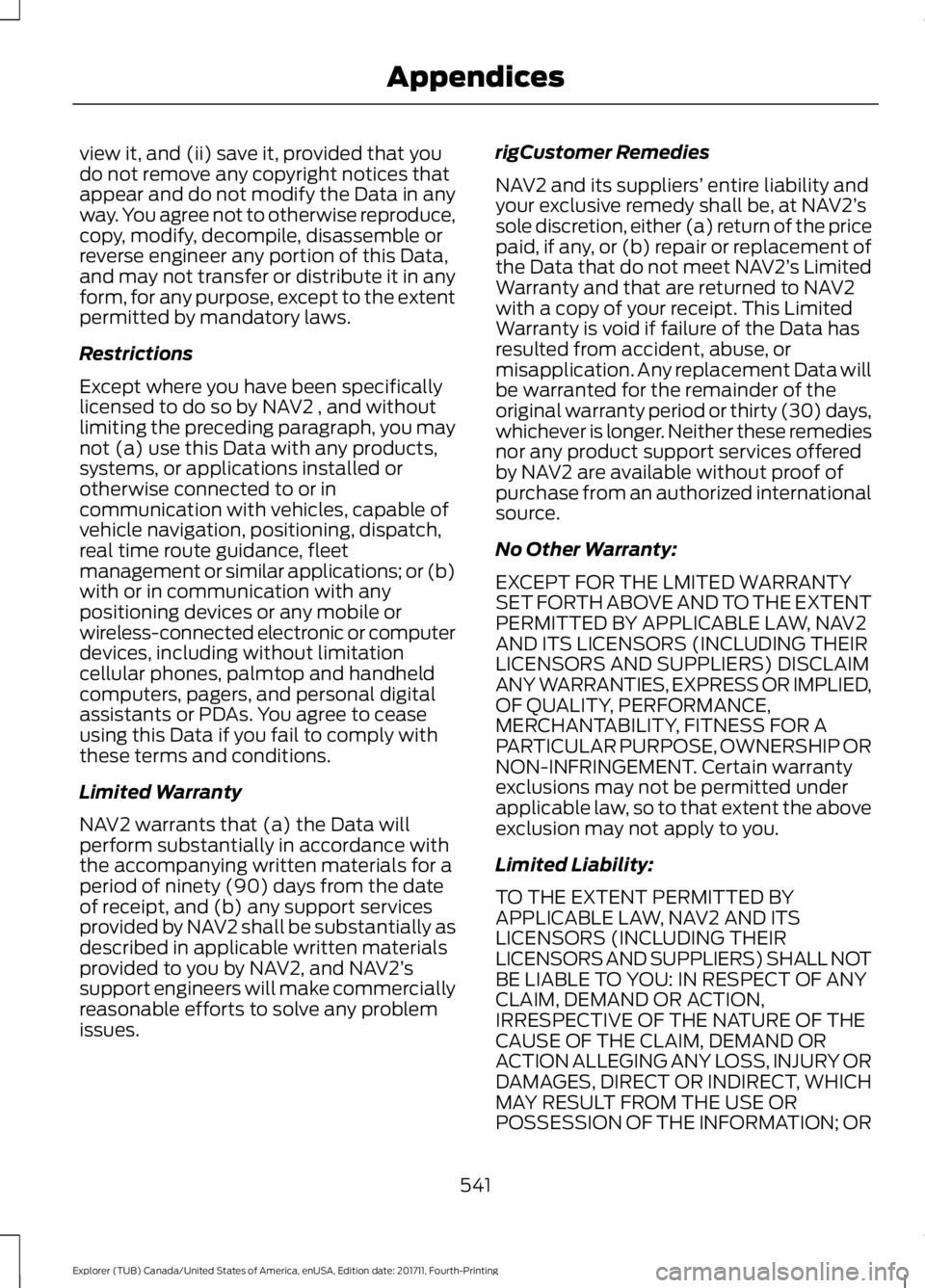

view it, and (ii) save it, provided that you
do not remove any copyright notices that
appear and do not modify the Data in any
way. You agree not to otherwise reproduce,
copy, modify, decompile, disassemble or
reverse engineer any portion of this Data,
and may not transfer or distribute it in any
form, for any purpose, except to the extent
permitted by mandatory laws.
Restrictions
Except where you have been specifically
licensed to do so by NAV2 , and without
limiting the preceding paragraph, you may
not (a) use this Data with any products,
systems, or applications installed or
otherwise connected to or in
communication with vehicles, capable of
vehicle navigation, positioning, dispatch,
real time route guidance, fleet
management or similar applications; or (b)
with or in communication with any
positioning devices or any mobile or
wireless-connected electronic or computer
devices, including without limitation
cellular phones, palmtop and handheld
computers, pagers, and personal digital
assistants or PDAs. You agree to cease
using this Data if you fail to comply with
these terms and conditions.
Limited Warranty
NAV2 warrants that (a) the Data will
perform substantially in accordance with
the accompanying written materials for a
period of ninety (90) days from the date
of receipt, and (b) any support services
provided by NAV2 shall be substantially as
described in applicable written materials
provided to you by NAV2, and NAV2’
s
support engineers will make commercially
reasonable efforts to solve any problem
issues. rigCustomer Remedies
NAV2 and its suppliers’
entire liability and
your exclusive remedy shall be, at NAV2’ s
sole discretion, either (a) return of the price
paid, if any, or (b) repair or replacement of
the Data that do not meet NAV2’ s Limited
Warranty and that are returned to NAV2
with a copy of your receipt. This Limited
Warranty is void if failure of the Data has
resulted from accident, abuse, or
misapplication. Any replacement Data will
be warranted for the remainder of the
original warranty period or thirty (30) days,
whichever is longer. Neither these remedies
nor any product support services offered
by NAV2 are available without proof of
purchase from an authorized international
source.
No Other Warranty:
EXCEPT FOR THE LMITED WARRANTY
SET FORTH ABOVE AND TO THE EXTENT
PERMITTED BY APPLICABLE LAW, NAV2
AND ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) DISCLAIM
ANY WARRANTIES, EXPRESS OR IMPLIED,
OF QUALITY, PERFORMANCE,
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, OWNERSHIP OR
NON-INFRINGEMENT. Certain warranty
exclusions may not be permitted under
applicable law, so to that extent the above
exclusion may not apply to you.
Limited Liability:
TO THE EXTENT PERMITTED BY
APPLICABLE LAW, NAV2 AND ITS
LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) SHALL NOT
BE LIABLE TO YOU: IN RESPECT OF ANY
CLAIM, DEMAND OR ACTION,
IRRESPECTIVE OF THE NATURE OF THE
CAUSE OF THE CLAIM, DEMAND OR
ACTION ALLEGING ANY LOSS, INJURY OR
DAMAGES, DIRECT OR INDIRECT, WHICH
MAY RESULT FROM THE USE OR
POSSESSION OF THE INFORMATION; OR
541

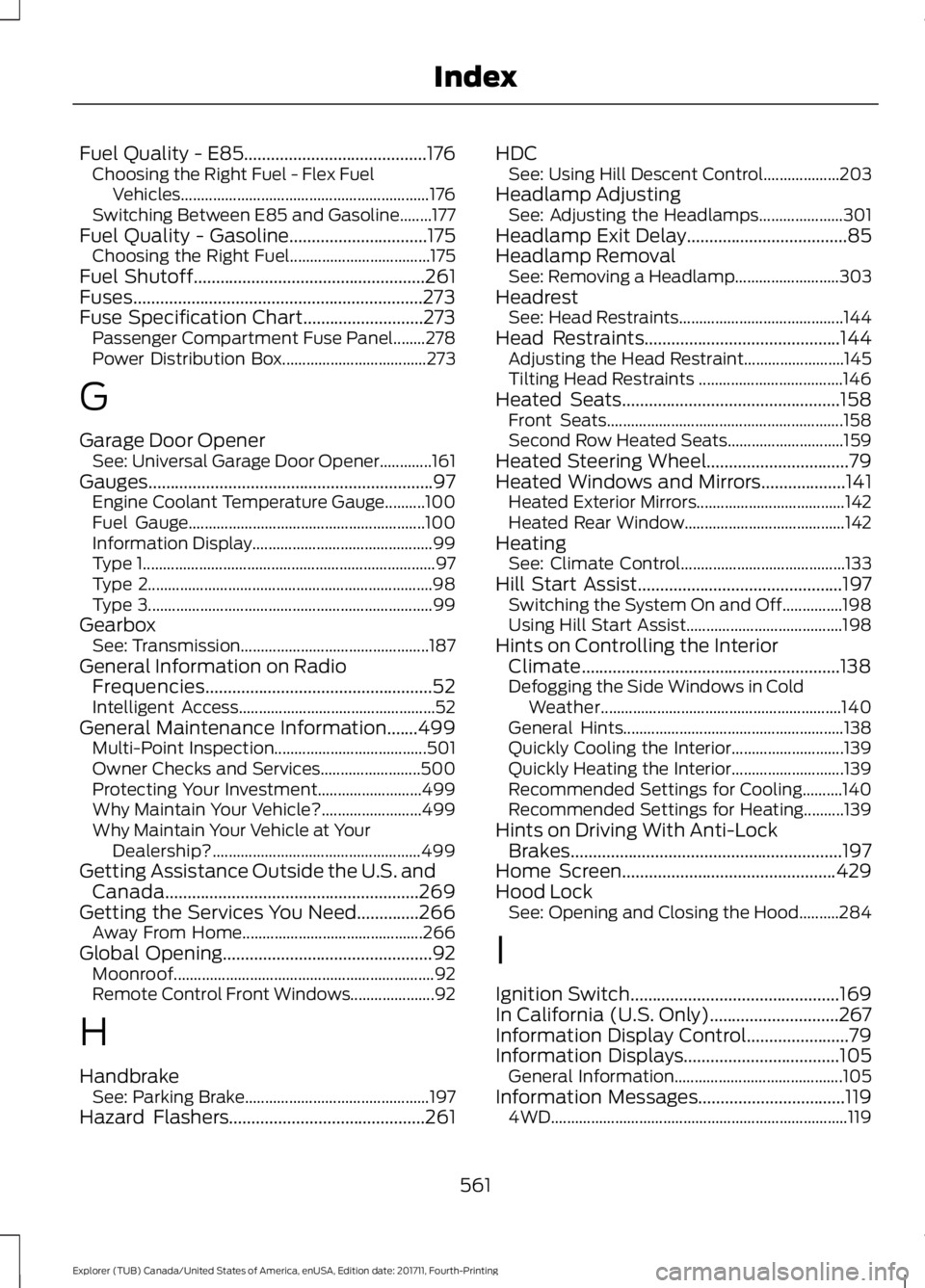

Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Appendices

Fuel Quality - E85.........................................176
Choosing the Right Fuel - Flex Fuel
Vehicles.............................................................. 176
Switching Between E85 and Gasoline........177
Fuel Quality - Gasoline...............................175 Choosing the Right Fuel................................... 175
Fuel Shutoff....................................................261
Fuses.................................................................273
Fuse Specification Chart...........................273 Passenger Compartment Fuse Panel........278
Power Distribution Box.................................... 273
G
Garage Door Opener See: Universal Garage Door Opener.............161
Gauges................................................................97 Engine Coolant Temperature Gauge..........100
Fuel Gauge........................................................... 100
Information Display............................................. 99
Type 1........................................................................\
. 97
Type 2....................................................................... 98
Type 3....................................................................... 99
Gearbox See: Transmission............................................... 187
General Information on Radio Frequencies...................................................52
Intelligent Access................................................. 52
General Maintenance Information.......499 Multi-Point Inspection...................................... 501
Owner Checks and Services......................... 500
Protecting Your Investment.......................... 499
Why Maintain Your Vehicle?......................... 499
Why Maintain Your Vehicle at Your Dealership?.................................................... 499
Getting Assistance Outside the U.S. and Canada.........................................................269
Getting the Services You Need..............266 Away From Home............................................. 266
Global Opening
...............................................92
Moonroof................................................................. 92
Remote Control Front Windows..................... 92
H
Handbrake See: Parking Brake.............................................. 197
Hazard Flashers
............................................261 HDC
See: Using Hill Descent Control................... 203
Headlamp Adjusting See: Adjusting the Headlamps..................... 301
Headlamp Exit Delay
....................................85
Headlamp Removal See: Removing a Headlamp.......................... 303
Headrest See: Head Restraints......................................... 144
Head Restraints
............................................144
Adjusting the Head Restraint......................... 145
Tilting Head Restraints .................................... 146
Heated Seats.................................................158 Front Seats........................................................... 158
Second Row Heated Seats............................. 159
Heated Steering Wheel................................79
Heated Windows and Mirrors...................141 Heated Exterior Mirrors..................................... 142
Heated Rear Window........................................ 142
Heating See: Climate Control......................................... 133
Hill Start Assist..............................................197 Switching the System On and Off...............198
Using Hill Start Assist....................................... 198
Hints on Controlling the Interior Climate..........................................................138
Defogging the Side Windows in Cold Weather............................................................ 140
General Hints....................................................... 138
Quickly Cooling the Interior............................ 139
Quickly Heating the Interior............................ 139
Recommended Settings for Cooling..........140
Recommended Settings for Heating..........139
Hints on Driving With Anti-Lock Brakes
.............................................................197
Home Screen................................................429
Hood Lock See: Opening and Closing the Hood..........284
I
Ignition Switch
...............................................169
In California (U.S. Only).............................267
Information Display Control.......................79
Information Displays
...................................105
General Information.......................................... 105
Information Messages
.................................119
4WD........................................................................\
.. 119
561

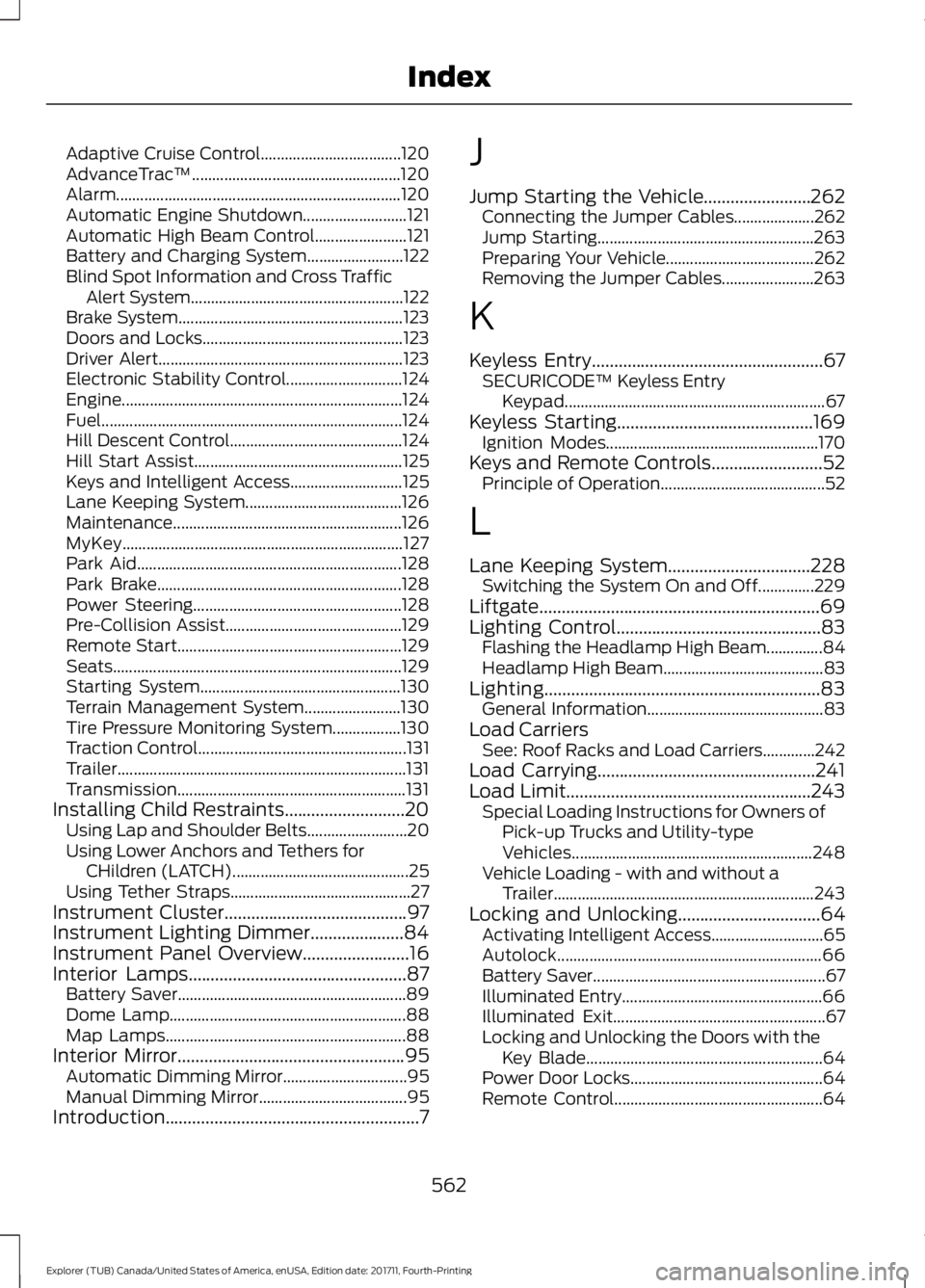

Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Index

Adaptive Cruise Control...................................
120
AdvanceTrac ™.................................................... 120
Alarm....................................................................... 120
Automatic Engine Shutdown.......................... 121
Automatic High Beam Control....................... 121
Battery and Charging System........................ 122
Blind Spot Information and Cross Traffic Alert System..................................................... 122
Brake System........................................................ 123
Doors and Locks.................................................. 123
Driver Alert............................................................. 123
Electronic Stability Control............................. 124
Engine...................................................................... 124
Fuel........................................................................\
... 124
Hill Descent Control........................................... 124
Hill Start Assist.................................................... 125
Keys and Intelligent Access............................ 125
Lane Keeping System....................................... 126
Maintenance......................................................... 126
MyKey...................................................................... 127
Park Aid.................................................................. 128
Park Brake............................................................. 128
Power Steering.................................................... 128
Pre-Collision Assist............................................ 129
Remote Start........................................................ 129
Seats........................................................................\
129
Starting System.................................................. 130
Terrain Management System........................ 130
Tire Pressure Monitoring System.................130
Traction Control.................................................... 131
Trailer........................................................................\
131
Transmission......................................................... 131
Installing Child Restraints...........................20 Using Lap and Shoulder Belts......................... 20
Using Lower Anchors and Tethers for CHildren (LATCH)............................................ 25
Using Tether Straps............................................. 27
Instrument Cluster.........................................97
Instrument Lighting Dimmer.....................84
Instrument Panel Overview........................16
Interior Lamps
.................................................87
Battery Saver......................................................... 89
Dome Lamp........................................................... 88
Map Lamps............................................................ 88
Interior Mirror
...................................................95
Automatic Dimming Mirror............................... 95
Manual Dimming Mirror..................................... 95
Introduction.........................................................7 J
Jump Starting the Vehicle........................262
Connecting the Jumper Cables.................... 262
Jump Starting...................................................... 263
Preparing Your Vehicle..................................... 262
Removing the Jumper Cables....................... 263
K
Keyless Entry
....................................................67
SECURICODE™ Keyless Entry
Keypad................................................................. 67
Keyless Starting
............................................169
Ignition Modes..................................................... 170
Keys and Remote Controls.........................52 Principle of Operation......................................... 52
L
Lane Keeping System................................228 Switching the System On and Off..............229
Liftgate...............................................................69
Lighting Control
..............................................83
Flashing the Headlamp High Beam..............84
Headlamp High Beam........................................ 83
Lighting..............................................................83 General Information............................................ 83
Load Carriers See: Roof Racks and Load Carriers.............242
Load Carrying.................................................241
Load Limit.......................................................243 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................ 248
Vehicle Loading - with and without a Trailer................................................................. 243
Locking and Unlocking
................................64
Activating Intelligent Access............................ 65
Autolock.................................................................. 66
Battery Saver.......................................................... 67
Illuminated Entry.................................................. 66
Illuminated Exit..................................................... 67
Locking and Unlocking the Doors with the Key Blade........................................................... 64
Power Door Locks................................................ 64
Remote Control.................................................... 64
562
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Index

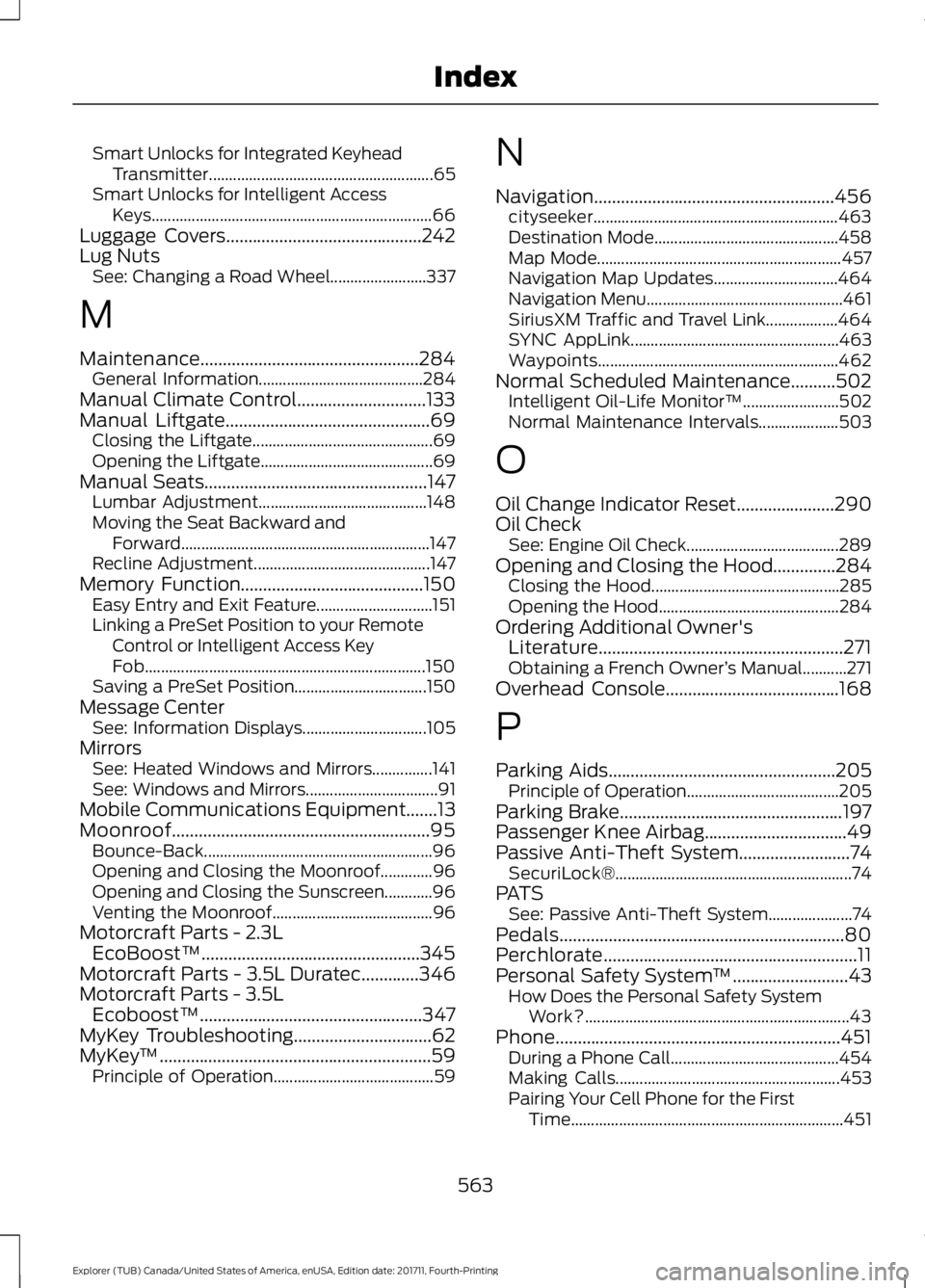

Smart Unlocks for Integrated Keyhead
Transmitter........................................................ 65
Smart Unlocks for Intelligent Access Keys...................................................................... 66
Luggage Covers............................................242
Lug Nuts See: Changing a Road Wheel........................ 337
M
Maintenance
.................................................284
General Information......................................... 284
Manual Climate Control.............................133
Manual Liftgate
..............................................69
Closing the Liftgate............................................. 69
Opening the Liftgate........................................... 69
Manual Seats
..................................................147
Lumbar Adjustment.......................................... 148
Moving the Seat Backward and Forward.............................................................. 147
Recline Adjustment............................................ 147
Memory Function.........................................150 Easy Entry and Exit Feature............................. 151
Linking a PreSet Position to your Remote Control or Intelligent Access Key
Fob...................................................................... 150
Saving a PreSet Position................................. 150
Message Center See: Information Displays............................... 105
Mirrors See: Heated Windows and Mirrors...............141
See: Windows and Mirrors................................. 91
Mobile Communications Equipment.......13
Moonroof..........................................................95 Bounce-Back......................................................... 96
Opening and Closing the Moonroof.............96
Opening and Closing the Sunscreen............96
Venting the Moonroof........................................ 96
Motorcraft Parts - 2.3L EcoBoost™.................................................345
Motorcraft Parts - 3.5L Duratec.............346
Motorcraft Parts - 3.5L Ecoboost™..................................................347
MyKey Troubleshooting
...............................62
MyKey ™.............................................................59
Principle of Operation........................................ 59N
Navigation......................................................456
cityseeker............................................................. 463
Destination Mode.............................................. 458
Map Mode............................................................. 457
Navigation Map Updates............................... 464
Navigation Menu................................................. 461
SiriusXM Traffic and Travel Link.................. 464
SYNC AppLink.................................................... 463
Waypoints............................................................ 462
Normal Scheduled Maintenance..........502 Intelligent Oil-Life Monitor™........................ 502
Normal Maintenance Intervals.................... 503
O
Oil Change Indicator Reset......................290
Oil Check See: Engine Oil Check...................................... 289
Opening and Closing the Hood..............284 Closing the Hood............................................... 285
Opening the Hood............................................. 284
Ordering Additional Owner's Literature.......................................................271
Obtaining a French Owner ’s Manual...........271
Overhead Console
.......................................168
P
Parking Aids
...................................................205
Principle of Operation...................................... 205
Parking Brake
..................................................197
Passenger Knee Airbag................................49
Passive Anti-Theft System
.........................74
SecuriLock®........................................................... 74
PATS See: Passive Anti-Theft System..................... 74
Pedals................................................................80
Perchlorate.........................................................11
Personal Safety System ™
..........................43
How Does the Personal Safety System
Work?.................................................................. 43
Phone................................................................451 During a Phone Call.......................................... 454
Making Calls........................................................ 453
Pairing Your Cell Phone for the First Time.................................................................... 451
563
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Index

Roof Racks and Load Carriers.................242
Adjusting the Crossbar.................................... 243
Thumbwheel Kit................................................. 242
Running-In See: Breaking-In.................................................. 257
Running Out of Fuel......................................177
Adding Fuel From a Portable Fuel
Container........................................................... 178
Filling a Portable Fuel Container................... 178
S
Safety Canopy ™
............................................49
Safety Precautions.......................................175
Satellite Radio...............................................375
Satellite Radio Electronic Serial Number
(ESN)................................................................. 376
Satellite Radio Reception Factors...............375
SiriusXM Satellite Radio Service.................. 375
Troubleshooting................................................. 376
Scheduled Maintenance Record...........507
Scheduled Maintenance
..........................499
Seatbelt Extension........................................42
Seatbelt Height Adjustment......................39
Seatbelt Reminder
........................................40
Belt-Minder™....................................................... 40
Seatbelts...........................................................35 Principle of Operation......................................... 35
Seatbelt Warning Lamp and Indicator Chime..............................................................40
Conditions of operation.................................... 40
Seats.................................................................144
Security...............................................................74
Settings...........................................................467 911 Assist................................................................ 472
Ambient Lighting............................................... 479
Bluetooth............................................................. 469
Clock...................................................................... 469
Display
.................................................................. 480
General................................................................... 477
Media Player....................................................... 468
Mobile Apps......................................................... 475
Navigation............................................................. 473
Phone
.................................................................... 469
Radio....................................................................... 472
Sound..................................................................... 467
Valet Mode............................................................ 481
Vehicle .................................................................... 479Voice Control......................................................
480
Wi-Fi & Hotspot.................................................. 477
Side Airbags
.....................................................48
Side Sensing System..................................207 Obstacle Distance Indicator......................... 208
Sitting in the Correct Position
..................144
Snow Chains See: Using Snow Chains................................. 332
Spare Wheel See: Changing a Road Wheel........................ 337
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Notice to Owners of Pickup Trucks and Utility Type Vehicles........................................ 13
On Board Diagnostics Data Link Connector............................................................ 13
Special Instructions.............................................. 12
Using Your Vehicle as an Ambulance............13
Using Your Vehicle With a Snowplow............13
Special Operating Conditions Scheduled Maintenance..............................................505
Exceptions........................................................... 506
Speed Control See: Cruise Control........................................... 220
Stability Control
..........................................200
Principle of Operation..................................... 200
Starter Switch See: Ignition Switch........................................... 169
Starting a Gasoline Engine........................170 Automatic Engine Shutdown......................... 172
Failure to Start....................................................... 171
Guarding Against Exhaust Fumes................173
Important Ventilating Information...............173
Stopping the Engine When Your Vehicle is Moving................................................................ 172
Stopping the Engine When Your Vehicle is Stationary.......................................................... 172
Vehicles with an Ignition Key.......................... 170
Vehicles with Keyless Start............................. 170
Starting and Stopping the Engine.........169 General Information.......................................... 169
Steering............................................................237 Electric Power Steering.................................... 237
Steering Wheel
................................................76
Storage Compartments.............................167
Sunroof See: Moonroof....................................................... 95
565
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fourth-Printing Index
