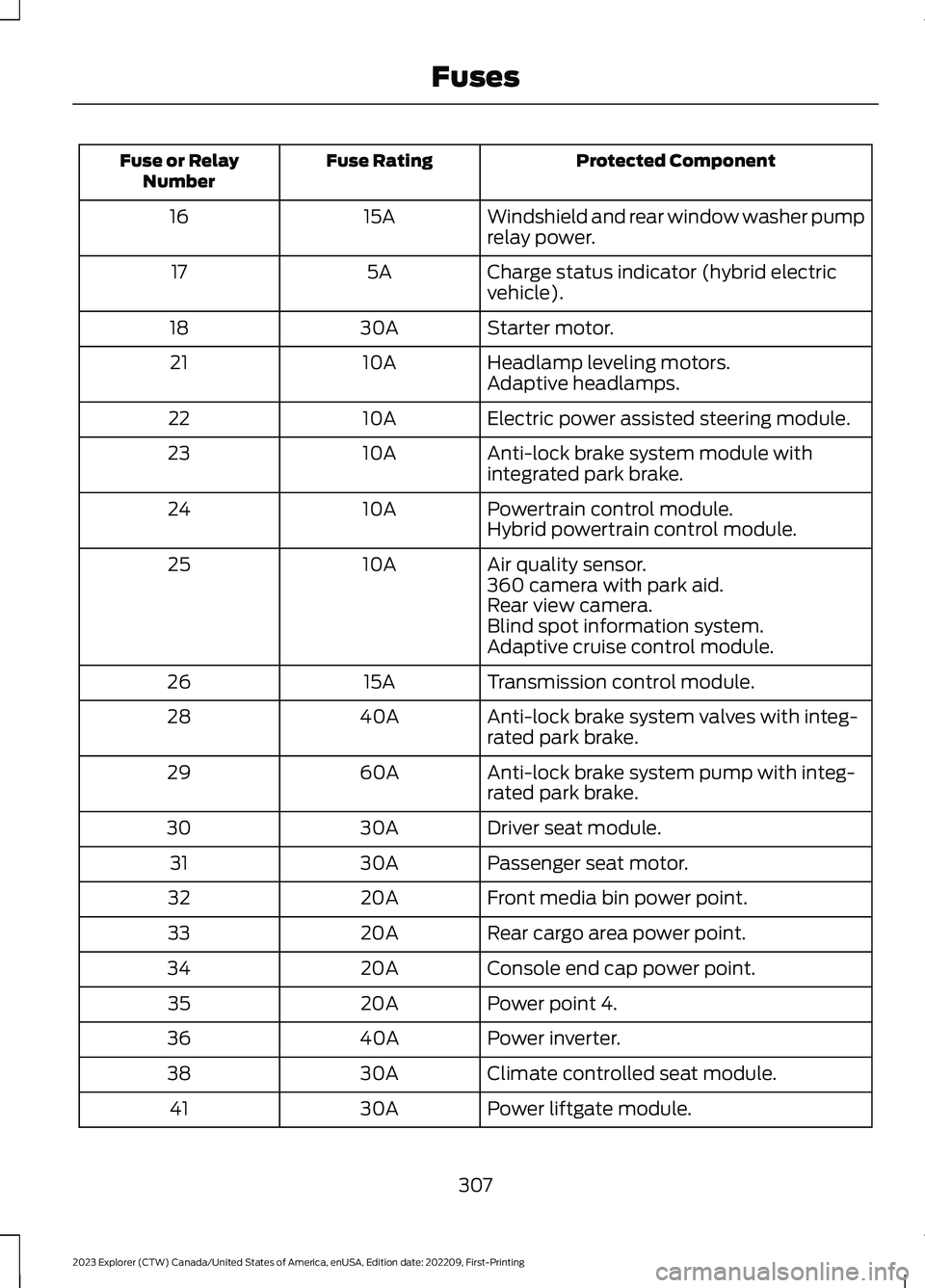

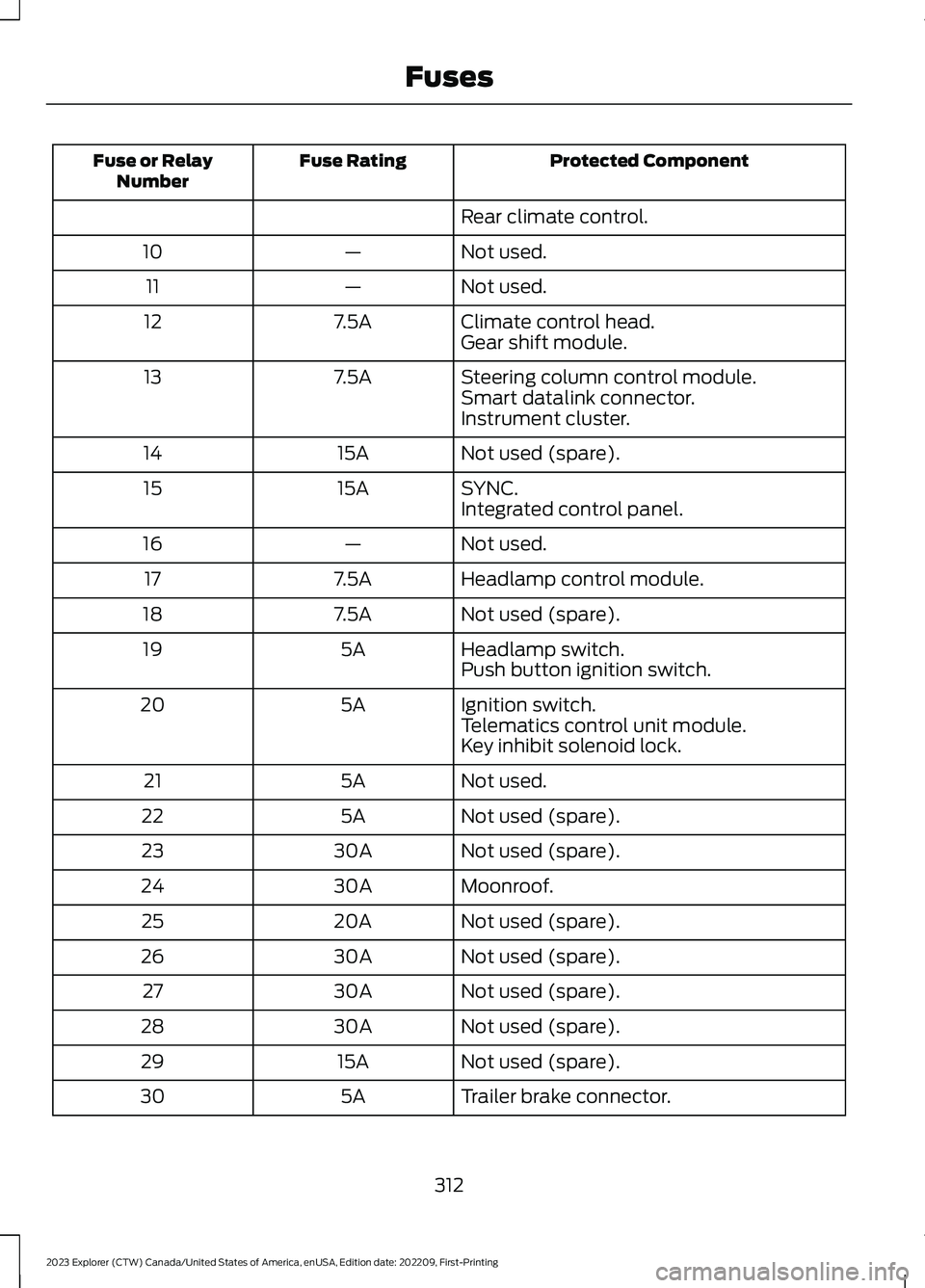

FORD EXPLORER 2023  Owners Manual Protected ComponentFuse RatingFuse or RelayNumber
Windshield and rear window washer pumprelay power.15A16
Charge status indicator (hybrid electricvehicle).5A17
Starter motor.30A18
Headlamp leveling mo

Page 312 of 573

FORD EXPLORER 2023  Owners Manual Protected ComponentFuse RatingFuse or RelayNumber
Trailer brake control module.30A42
Body control module.60A43
Brake on and off switch.10A44
Battery charger control module (hybridelectric vehicle).15A

Page 313 of 573

FORD EXPLORER 2023  Owners Manual Protected ComponentFuse RatingFuse or RelayNumber
High voltage positive temperature coeffi-cient heater (hybrid electric vehicle).
Traction battery coolant proportional valve(hybrid electric vehicle).

Page 314 of 573

FORD EXPLORER 2023  Owners Manual Protected ComponentFuse RatingFuse or RelayNumber
USB smart charger 2.5A139
Traffic cam.5A142
Battery electronic control module.15A146
Left-hand headlamp module.30A148
Right-hand headlamp module.30A14

Page 315 of 573

FORD EXPLORER 2023  Owners Manual Protected ComponentFuse RatingFuse or RelayNumber
Not used.—1
Moonroof.10A2ERA-GLONAS.eCall.Telematics control unit module.Inverter.Driver door switch pack.
Memory seat switch.7.5A3Wireless accessor

Page 316 of 573

FORD EXPLORER 2023  Owners Manual Protected ComponentFuse RatingFuse or RelayNumber
Rear climate control.
Not used.—10
Not used.—11
Climate control head.7.5A12Gear shift module.
Steering column control module.7.5A13Smart datalink

Page 317 of 573

FORD EXPLORER 2023  Owners Manual Protected ComponentFuse RatingFuse or RelayNumber
Terrain management switch.10A31Selectable drive mode switch.Transceiver module.
Audio control module.20A32
Not used.—33
Run/start relay.30A34
Not us

Page 318 of 573

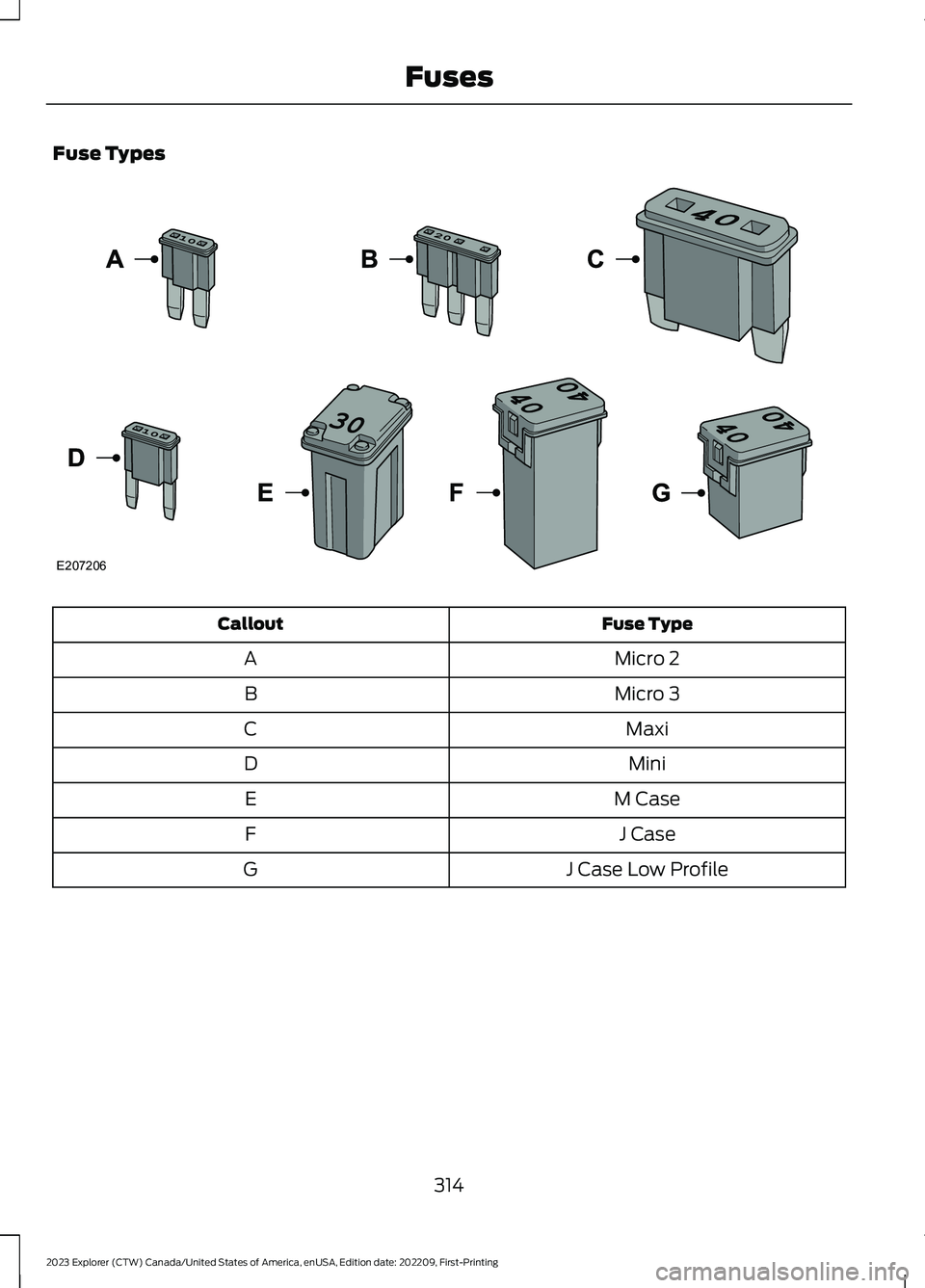

FORD EXPLORER 2023  Owners Manual Fuse Types
Fuse TypeCallout
Micro 2A
Micro 3B
MaxiC
MiniD
M CaseE
J CaseF
J Case Low ProfileG
314
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingFusesE

Page 319 of 573

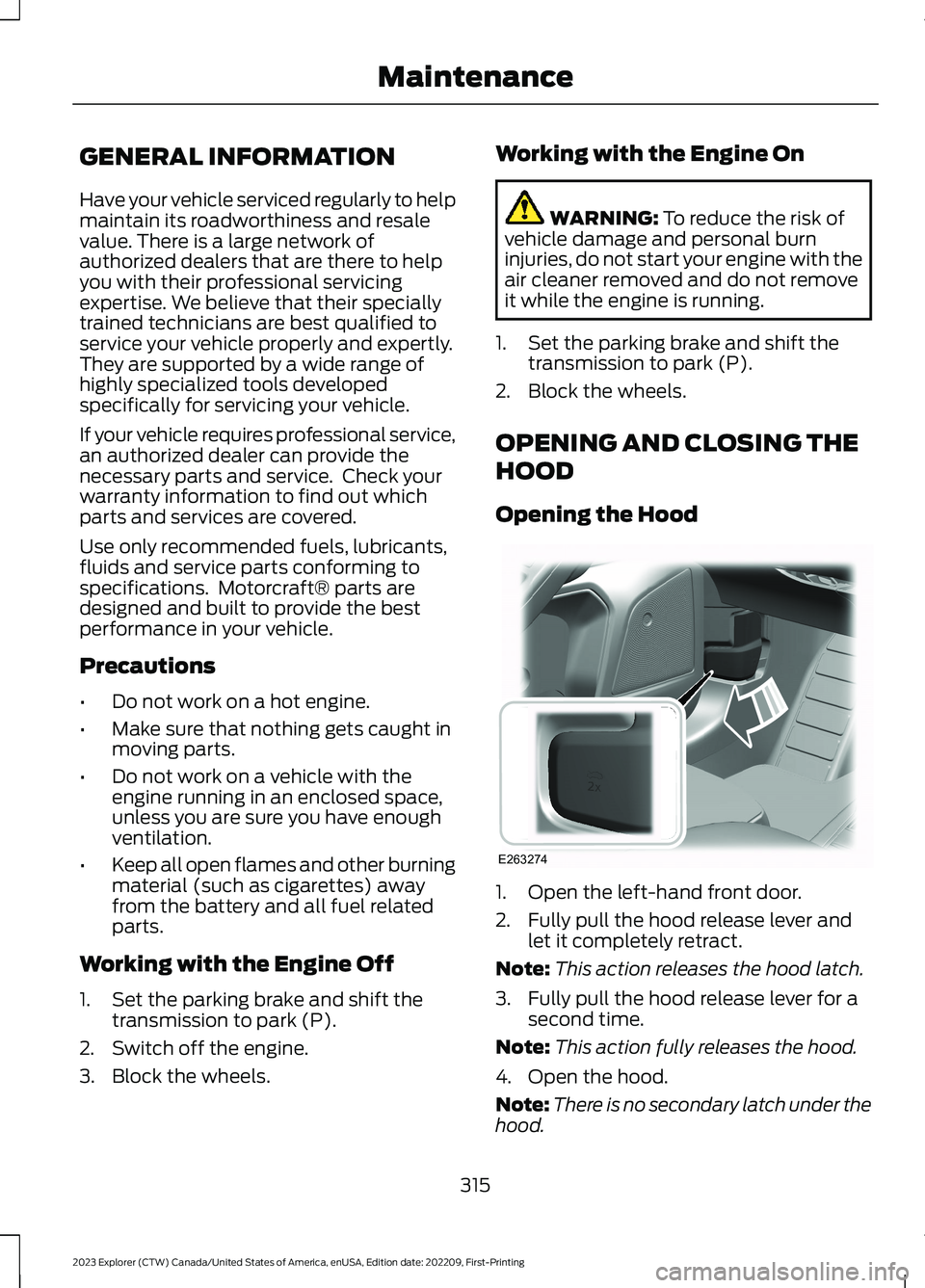

FORD EXPLORER 2023  Owners Manual GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network ofauthorized dealers that are there to helpyou with their professi

Page 320 of 573

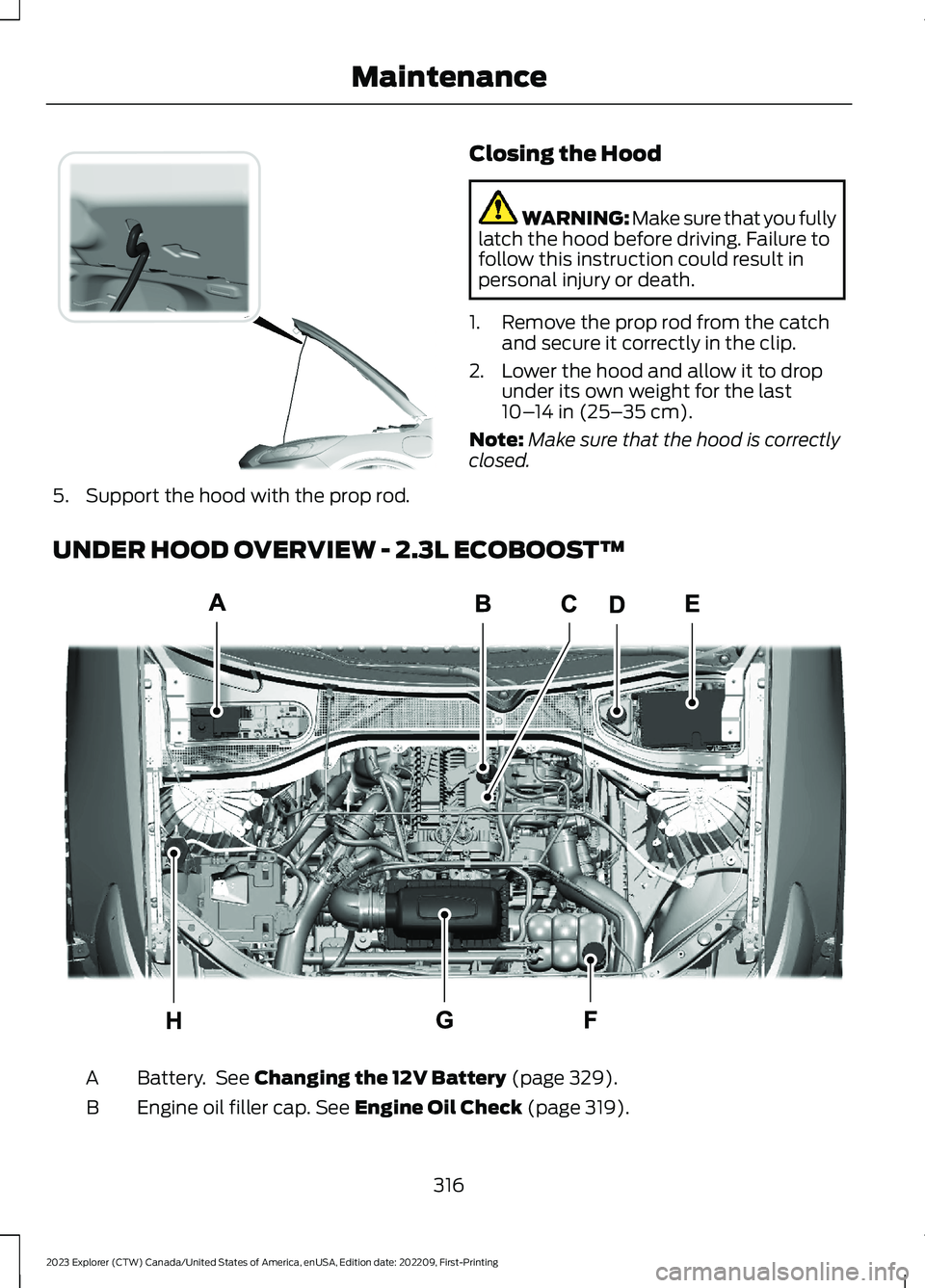

FORD EXPLORER 2023  Owners Manual 5.Support the hood with the prop rod.
Closing the Hood
WARNING: Make sure that you fullylatch the hood before driving. Failure tofollow this instruction could result inpersonal injury or death.
1.Remo
