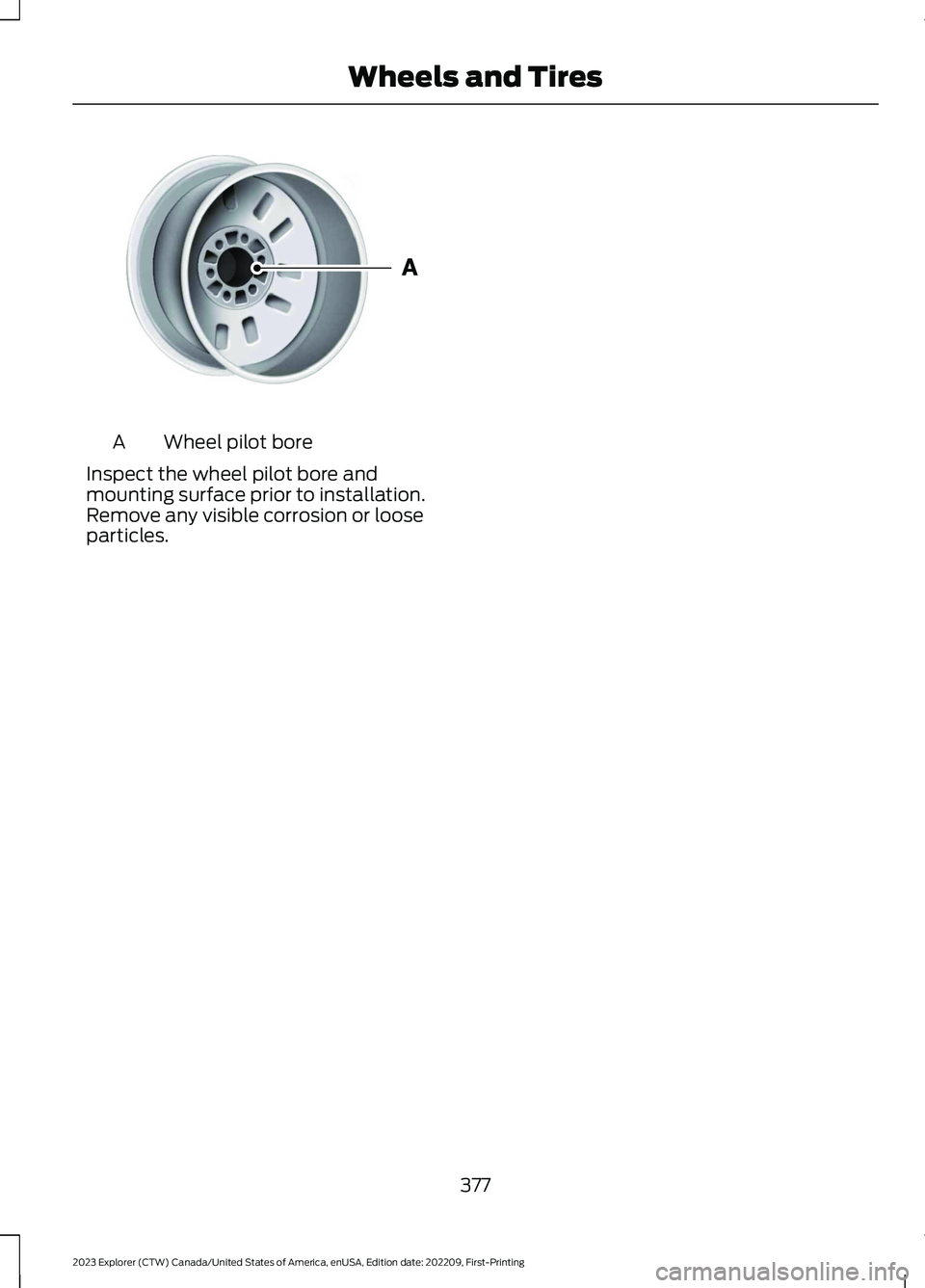

Wheel pilot boreA
Inspect the wheel pilot bore andmounting surface prior to installation.Remove any visible corrosion or looseparticles.
377
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingWheels and TiresE145950
Page 382 of 573

ENGINE SPECIFICATIONS - 2.3L ECOBOOST™
2.3L EcoBoostEngine
10:1Compression ratio.
138 in³ (2,261 cm³)Displacement.
1-3-4-2Firing order.
Coil on plugIgnition system.
0.028–0.031 in (0.7–0.8 mm)Spark plug gap.
Drivebelt Routing
2.3L EcoBoost Engine
Long drivebelt is on first pulleygroove closest to engine.A.
Short drivebelt is on secondpulley groove farthest fromengine.
B.
ENGINE SPECIFICATIONS - 3.0L, ST
DescriptionItem
60 degree V6Configuration.
3.36 in (85.4 mm) bore x 3.39 in (86 mm)strokeBore x stroke.
180 in³ (2,956 cm³)Displacement.
378
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE293908
Page 383 of 573

DescriptionItem
9.5:1Compression ratio.
1-4-2-5-3-6Firing order.
0.028–0.031 in (0.7–0.8 mm)Spark plug gap.
400 hp1Horsepower.
415 lb.ft1Torque.
6500 RPMRedline.
Overhead cam - roller finger followersValvetrain.
Coil on plugIgnition.
2.4 in (60 mm)Throttle body.
Cast aluminumPistons.
Forged steelCrankshaft.
Forged steelConnecting rods.
Twin turbochargedInduction.
18.0 psi (124 kPa)Maximum Boost.
Dual 2.16 in (55 mm) exhaust with quad3 in (76 mm) chrome tipsExhaust system.
1 When using premium fuel.
Drivebelt Routing
379
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE297178
Page 384 of 573

ENGINE SPECIFICATIONS - 3.0L
3.0LEngine
9.5:1Compression ratio.
180 in³ (2,956 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
0.028–0.031 in (0.7–0.8 mm)Spark plug gap.
Drivebelt Routing
ENGINE SPECIFICATIONS - 3.3L, GASOLINE
3.3LEngine
12.0:1Compression ratio.
204 in³ (3,340 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
0.049–0.053 in (1.25–1.35 mm)Spark plug gap.
380
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE297178
Page 385 of 573

Drivebelt RoutingLong drivebelt is on secondpulley groove farthest fromengine.
A.
Short drivebelt is on first pulleygroove closest to engine.B.
ENGINE SPECIFICATIONS - 3.3L, HYBRID ELECTRIC VEHICLE
(HEV)
3.3L HEVEngine
12.0:1Compression ratio.
204 in³ (3,340 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
0.049–0.053 in (1.25–1.35 mm)Spark plug gap.
Drivebelt Routing
381
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE288323 E291364
Page 386 of 573

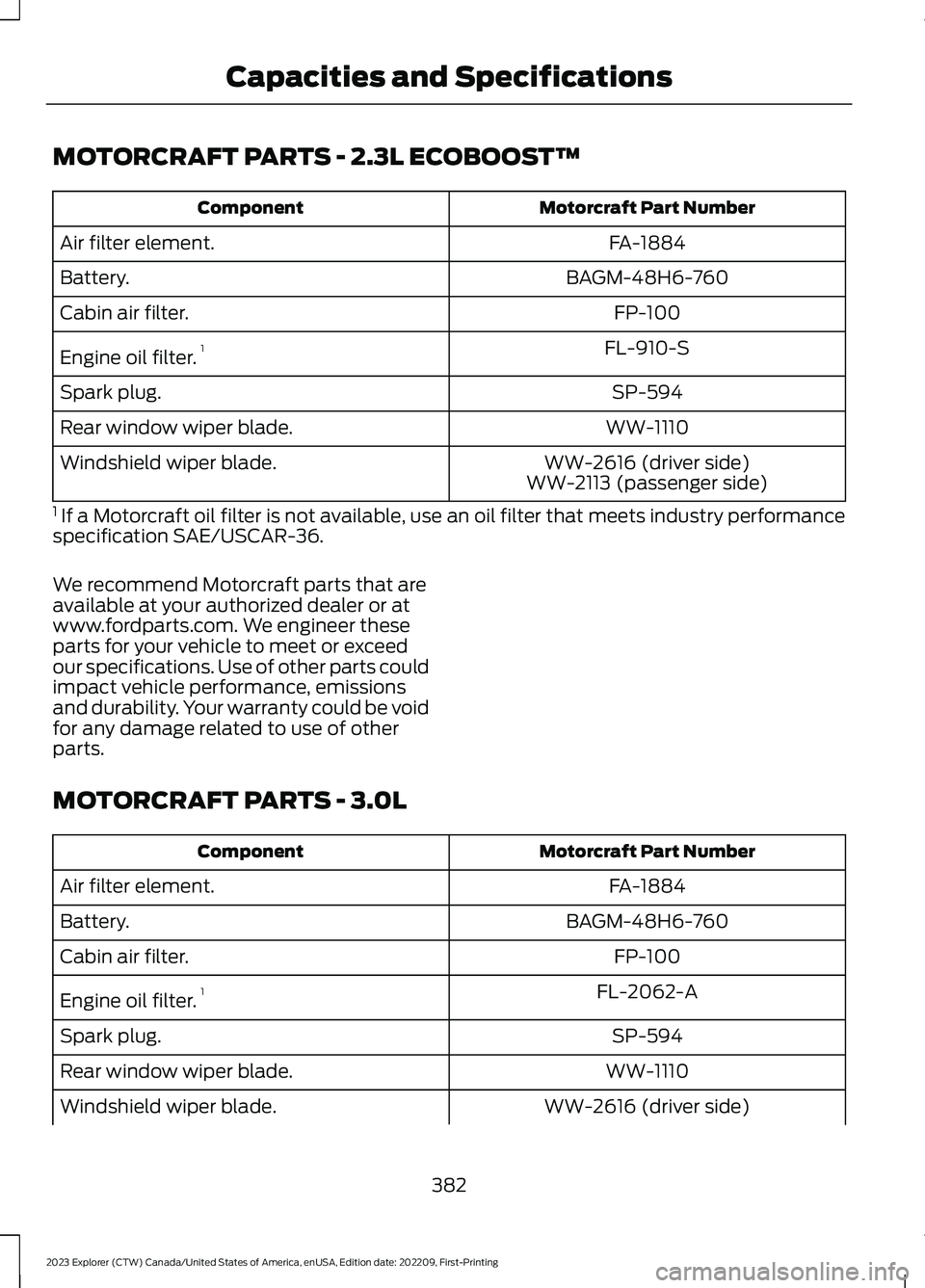

MOTORCRAFT PARTS - 2.3L ECOBOOST™
Motorcraft Part NumberComponent
FA-1884Air filter element.
BAGM-48H6-760Battery.
FP-100Cabin air filter.
FL-910-SEngine oil filter.1
SP-594Spark plug.
WW-1110Rear window wiper blade.
WW-2616 (driver side)Windshield wiper blade.WW-2113 (passenger side)
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that areavailable at your authorized dealer or atwww.fordparts.com. We engineer theseparts for your vehicle to meet or exceedour specifications. Use of other parts couldimpact vehicle performance, emissionsand durability. Your warranty could be voidfor any damage related to use of otherparts.
MOTORCRAFT PARTS - 3.0L
Motorcraft Part NumberComponent
FA-1884Air filter element.
BAGM-48H6-760Battery.
FP-100Cabin air filter.
FL-2062-AEngine oil filter.1
SP-594Spark plug.
WW-1110Rear window wiper blade.
WW-2616 (driver side)Windshield wiper blade.
382
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications
Page 387 of 573

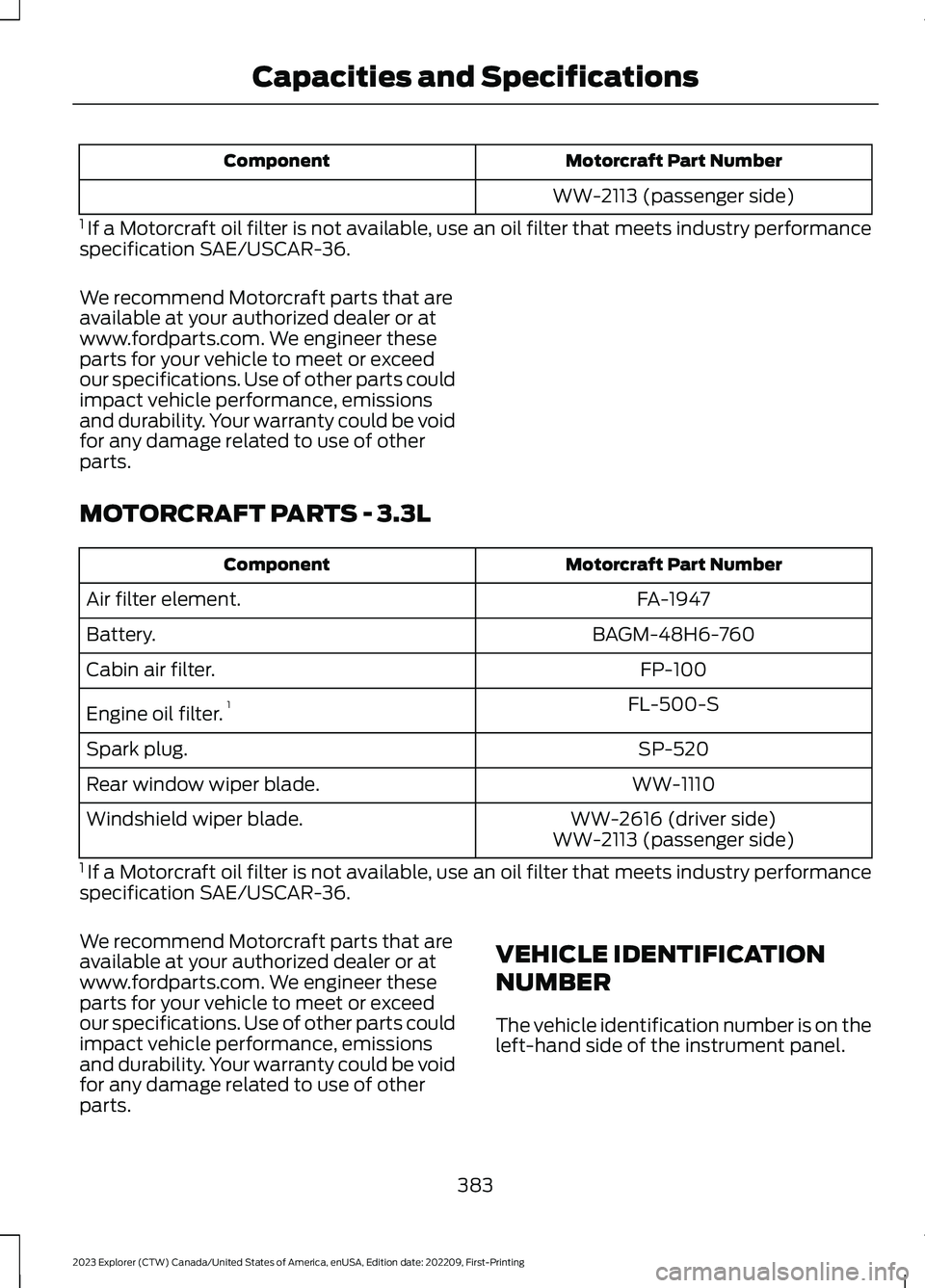

Motorcraft Part NumberComponent
WW-2113 (passenger side)
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that areavailable at your authorized dealer or atwww.fordparts.com. We engineer theseparts for your vehicle to meet or exceedour specifications. Use of other parts couldimpact vehicle performance, emissionsand durability. Your warranty could be voidfor any damage related to use of otherparts.
MOTORCRAFT PARTS - 3.3L
Motorcraft Part NumberComponent
FA-1947Air filter element.
BAGM-48H6-760Battery.
FP-100Cabin air filter.
FL-500-SEngine oil filter.1
SP-520Spark plug.
WW-1110Rear window wiper blade.
WW-2616 (driver side)Windshield wiper blade.WW-2113 (passenger side)
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performancespecification SAE/USCAR-36.
We recommend Motorcraft parts that areavailable at your authorized dealer or atwww.fordparts.com. We engineer theseparts for your vehicle to meet or exceedour specifications. Use of other parts couldimpact vehicle performance, emissionsand durability. Your warranty could be voidfor any damage related to use of otherparts.
VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is on theleft-hand side of the instrument panel.
383
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications
Page 388 of 573

Please note that in the graphic, XXXX isrepresentative of your vehicle identificationnumber.
The Vehicle Identification Number containsthe following information:
World manufacturer identifier.A
Brake system, Gross VehicleWeight Rating, Restraint Devicesand their locations.
B
Make, vehicle line, series, bodytype.C
Engine type.D
Check digit.E
Model year.F
Assembly plant.G
Production sequence number.H
CAPACITIES AND
SPECIFICATIONS - 2.3L
ECOBOOST™
Use oil and fluid that meets the definedspecification and viscosity grade.
If you do not use oil and fluid that meetsthe defined specification and viscositygrade, it could result in:
•Component damage that your vehiclewarranty does not cover.
•Longer engine cranking periods.
•Increased emission levels.
•Reduced engine performance.
•Reduced fuel economy.
•Reduced brake performance.
Air Conditioning System
WARNING: The air conditioningrefrigerant system contains refrigerantunder high pressure. Only qualifiedpersonnel should service the airconditioning refrigerant system. Openingthe air conditioning refrigerant systemcan cause personal injury.
Capacities
Refrigerant OilRefrigerantVariant
5.41 fl oz (160 ml)35 oz (0.99 kg)All.
384
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE142476 E142477
Page 389 of 573

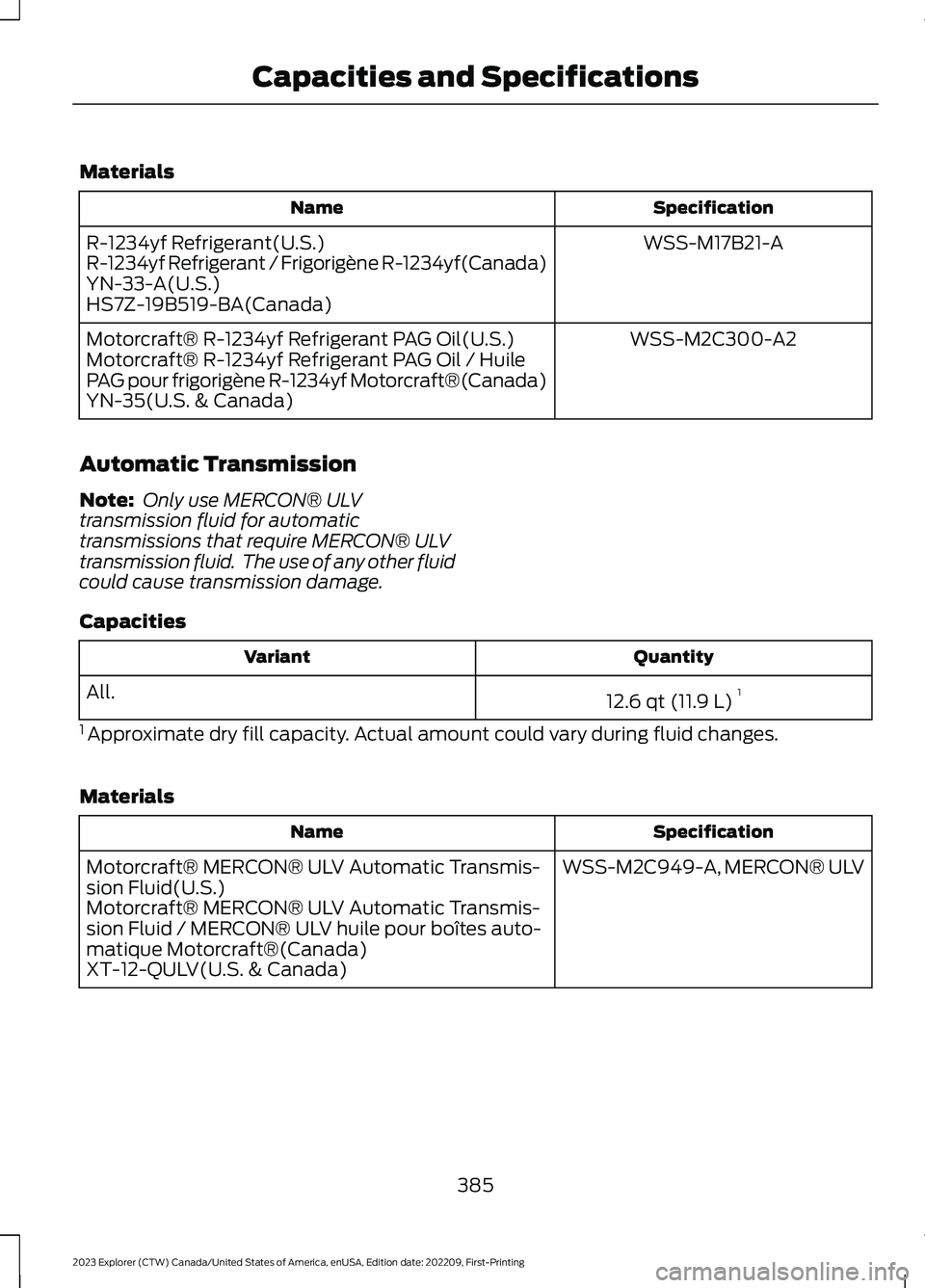

Materials
SpecificationName
WSS-M17B21-AR-1234yf Refrigerant(U.S.)R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)YN-33-A(U.S.)HS7Z-19B519-BA(Canada)
WSS-M2C300-A2Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)Motorcraft® R-1234yf Refrigerant PAG Oil / HuilePAG pour frigorigène R-1234yf Motorcraft®(Canada)YN-35(U.S. & Canada)
Automatic Transmission
Note: Only use MERCON® ULVtransmission fluid for automatictransmissions that require MERCON® ULVtransmission fluid. The use of any other fluidcould cause transmission damage.
Capacities
QuantityVariant
12.6 qt (11.9 L)1All.
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
Materials
SpecificationName
WSS-M2C949-A, MERCON® ULVMotorcraft® MERCON® ULV Automatic Transmis-sion Fluid(U.S.)Motorcraft® MERCON® ULV Automatic Transmis-sion Fluid / MERCON® ULV huile pour boîtes auto-matique Motorcraft®(Canada)XT-12-QULV(U.S. & Canada)
385
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingCapacities and Specifications
Page 390 of 573

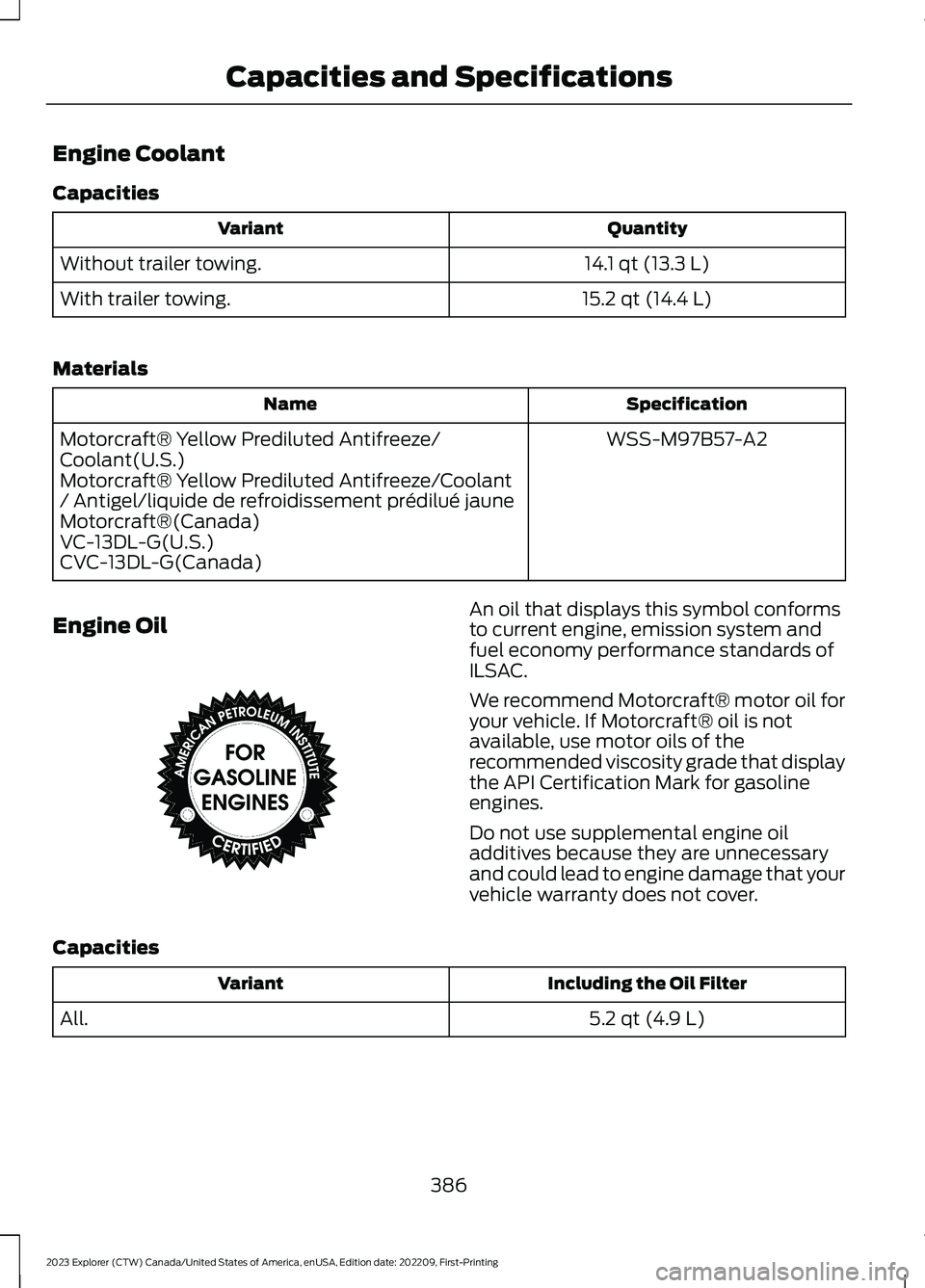

Engine Coolant
Capacities
QuantityVariant
14.1 qt (13.3 L)Without trailer towing.
15.2 qt (14.4 L)With trailer towing.
Materials
SpecificationName
WSS-M97B57-A2Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)Motorcraft® Yellow Prediluted Antifreeze/Coolant/ Antigel/liquide de refroidissement prédilué jauneMotorcraft®(Canada)VC-13DL-G(U.S.)CVC-13DL-G(Canada)
Engine OilAn oil that displays this symbol conformsto current engine, emission system andfuel economy performance standards ofILSAC.
We recommend Motorcraft® motor oil foryour vehicle. If Motorcraft® oil is notavailable, use motor oils of therecommended viscosity grade that displaythe API Certification Mark for gasolineengines.
Do not use supplemental engine oiladditives because they are unnecessaryand could lead to engine damage that yourvehicle warranty does not cover.
Capacities
Including the Oil FilterVariant
5.2 qt (4.9 L)All.
386
2023 Explorer (CTW) Canada/United States of America, enUSA, Edition date: 202209, First-PrintingCapacities and SpecificationsE142732
