TILT STEERING WHEEL (IF EQUIPPED)
To adjust the steering wheel:
1. Pull and hold the steering wheel
release control toward you.
2. Move the steering wheel up or
down until you find the desired
location.
3. Release the steering wheel
release control. This will lock the
steering wheel in position.
Never adjust the steering wheel when the vehicle is moving.
CENTER CONSOLE
Your vehicle may be equipped with a
variety of console features. These
include:
•Utility compartment with compact
disc storage
•Auxiliary power point
•Cupholders
•Ashcup
•Removable utility bag
•Writing surface with note pad
•Coin holder
•Armrest
Use only soft cups in the cupholder. Hard objects can injure you
in a collision.
Cell phone use
The use of Mobile Communications Equipment has become increasingly
important in the conduct of business and personal affairs. However,
drivers must not compromise their own or others’ safety when using
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
41

3. Place the Velcro
strip onto the
back of the garage door opener
control.
4. Adhere the back of garage door
opener control to the Velcro
strip
found inside the storage
compartment. Make sure that the
controls for the garage door opener
face outward.
5. Place the height adjusters onto
the back of the storage
compartment door. Add as many
adjusters are needed to activate the
garage door opener.
6. Close the storage compartment
door and press the garage door
opener control to verify that it
works. If not, you may need to add more adjusters.
AUXILIARY POWER POINT
The power point is an additional power source for electrical accessories.
NOTE:Power outlets are designed for accessory plugs only. Do not hang
any type of accessory or accessory bracket from the plug. Improper use
of the power outlet can cause damage not covered by your warranty.
•With a full console:
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
43

•Without a full console:
Do not plug optional electrical accessories into the cigarette lighter. Use
the power point.
Do not use the power point for operating the cigarette lighter element.
The Maximum power each power point can supply depends on the fuse
rating. For example: a 20A fuse should supply a maximum of 240 Watts.
Exceeding these limits will result in a blown fuse.
Always keep the power point caps closed when not being used.
Truck bed auxiliary power point
An additional auxiliary power point
is located in the bed of the truck.
Lift the cover to access the auxiliary
power point.
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
44

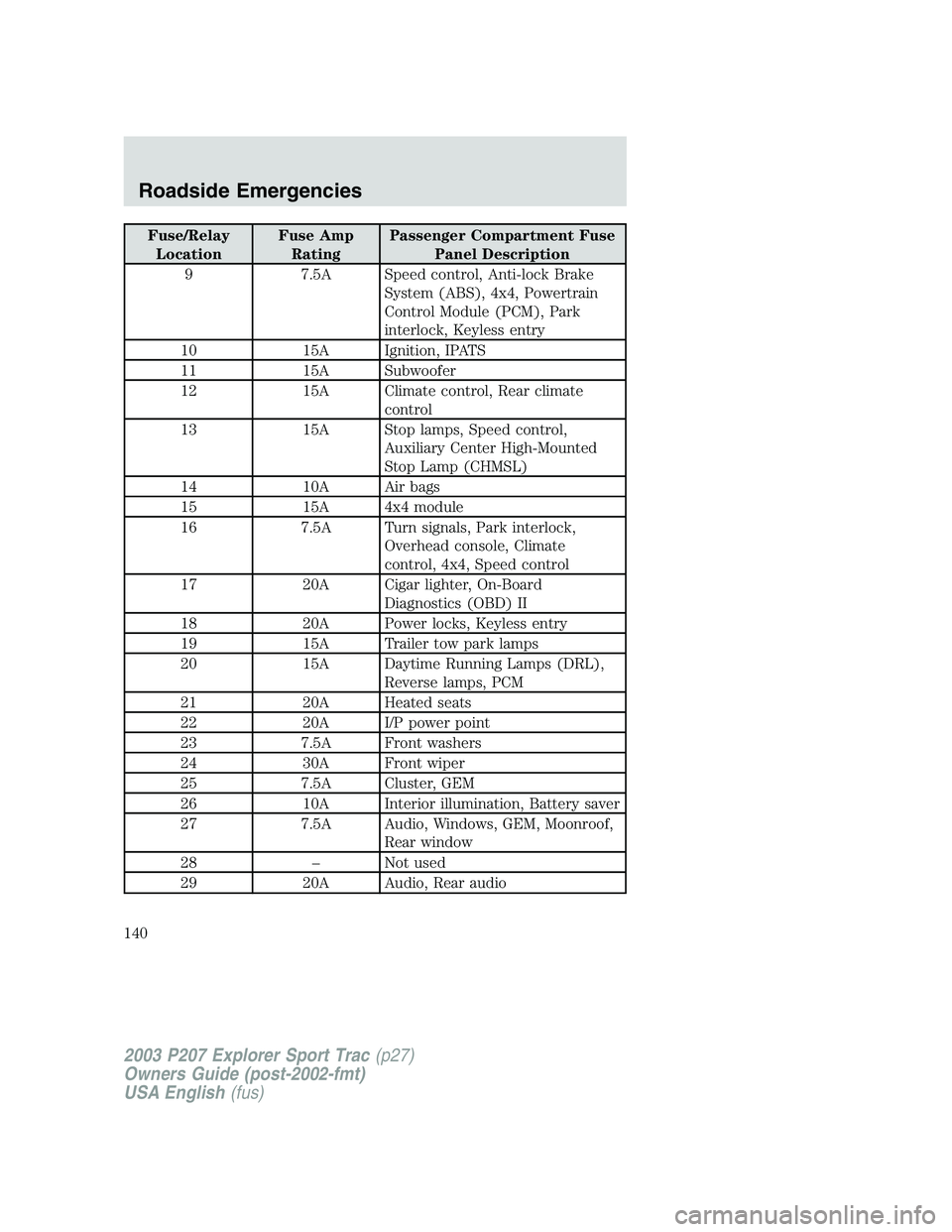

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
9 7.5A Speed control, Anti-lock Brake
System (ABS), 4x4, Powertrain
Control Module (PCM), Park
interlock, Keyless entry
10 15A Ignition, IPATS
11 15A Subwoofer
12 15A Climate control, Rear climate
control
13 15A Stop lamps, Speed control,
Auxiliary Center High-Mounted
Stop Lamp (CHMSL)
14 10A Air bags
15 15A 4x4 module
16 7.5A Turn signals, Park interlock,
Overhead console, Climate
control, 4x4, Speed control
17 20A Cigar lighter, On-Board
Diagnostics (OBD) II
18 20A Power locks, Keyless entry
19 15A Trailer tow park lamps
20 15A Daytime Running Lamps (DRL),
Reverse lamps, PCM
21 20A Heated seats
22 20A I/P power point
23 7.5A Front washers
24 30A Front wiper
25 7.5A Cluster, GEM
26 10A Interior illumination, Battery saver
27 7.5A Audio, Windows, GEM, Moonroof,
Rear window
28 – Not used
29 20A Audio, Rear audio
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
140

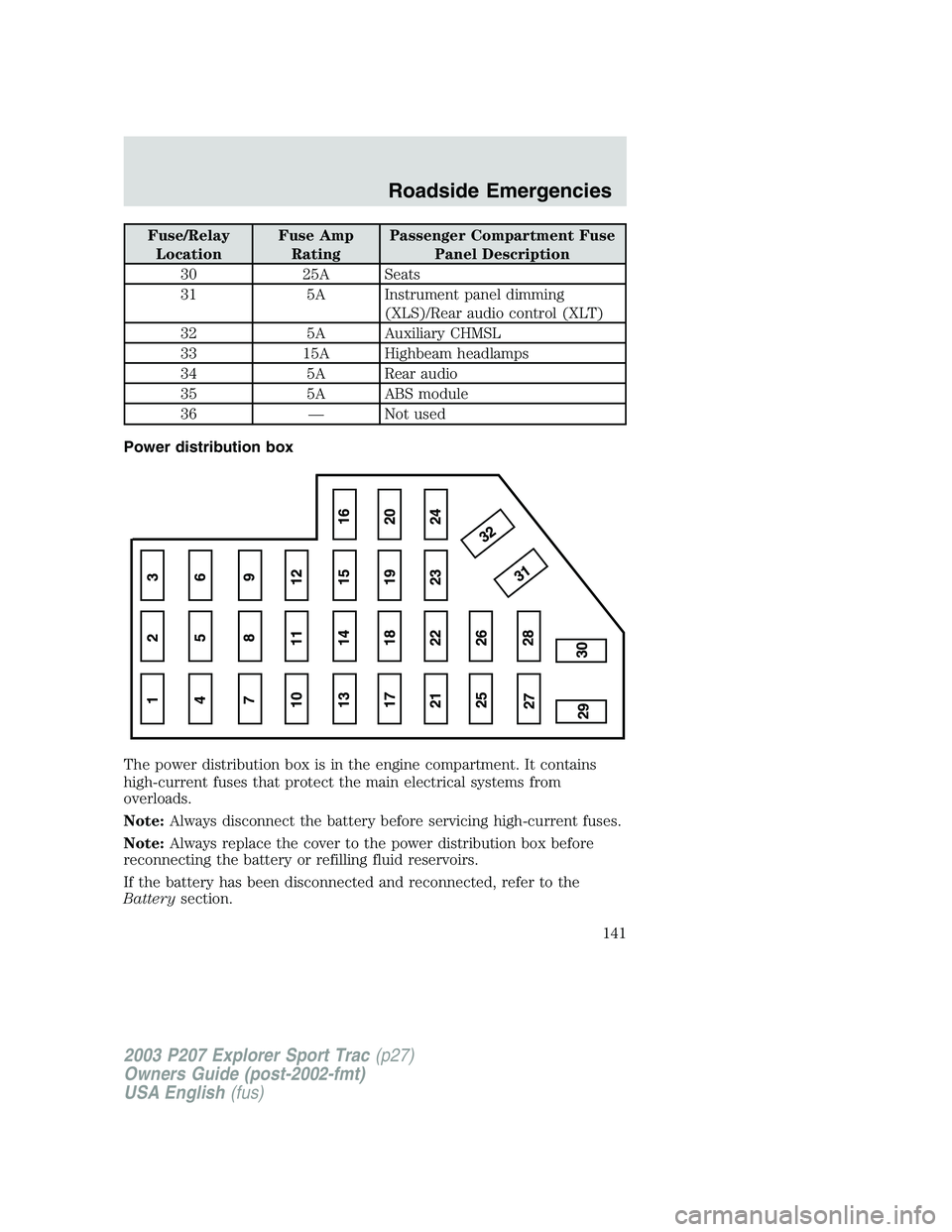

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
30 25A Seats
31 5A Instrument panel dimming
(XLS)/Rear audio control (XLT)
32 5A Auxiliary CHMSL
33 15A Highbeam headlamps
34 5A Rear audio
35 5A ABS module
36 — Not used
Power distribution box
The power distribution box is in the engine compartment. It contains
high-current fuses that protect the main electrical systems from
overloads.
Note:Always disconnect the battery before servicing high-current fuses.
Note:Always replace the cover to the power distribution box before
reconnecting the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection.
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
141

LUBRICANT SPECIFICATIONS
ItemFord Part Name
or equivalentFord Part
NumberFord
Specification
Body hinges,
latches, door
striker plates and
rotors, seat
tracks, fuel filler
door hinge and
spring, hood
latch, auxiliary
latch, seat tracksMulti-Purpose
GreaseD0AZ-19584-AA
or XL-5ESB-M1C93-B or
ESR-M1C159-A
Hydraulic clutch
fluid and brake
fluidMotorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1ESA-M6C25-A
and DOT 3
Driveshaft, slip
spline, universal
jointsPremium Long
Life GreaseXG-1-C or
XG-1-T or
XG-1-KESA-M1C75-B
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-M97B51-A1
Engine oilMotorcraft SAE
5W-30 Super
Premium Motor
Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W30-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C205-A
with API
Certification
Mark
Automatic
transmission
(5R55E)
1
Motorcraft
MERCONVATFXT-5-QM MERCONV
4–speed manual
transmissionMotorcraft
MERCON
Multi-Purpose
AT FXT-2-QDX MERCON
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
203

A
Air bag supplemental
restraint system ..............86–87, 91
and child safety seats ..............88
description ..........................87, 91
disposal ......................................94
driver air bag ......................89, 92
indicator light .....................90, 93
operation .............................89, 92
passenger air bag ...............89, 92
Air cleaner filter .......................200
Anti-lock brake system
(see Brakes) ..............................111
Audio system
Single CD ..................................16
Audio system
(see Radio) ......................16, 19, 23
Automatic transmission ............113
driving an automatic
overdrive .................................115
fluid, refill capacities ..............201
fluid, specification ..................205
Auxiliary power point .................43
Axle
lubricant
specifications ..................203, 205
refill capacities ........................201
traction lok ..............................113
B
Battery .......................................179
acid, treating emergencies .....179
jumping a disabled battery ....152
maintenance-free ....................179
replacement, specifications ...200
servicing ..................................179
BeltMinder ...................................82
Brakes ........................................111anti-lock ...................................111
anti-lock brake system
(ABS) warning light ...............111
fluid, checking and adding ....192
fluid, refill capacities ..............201
fluid, specifications .........203, 205
lubricant specifications ..203, 205
parking ....................................112
shift interlock ..........................113
C
Calculating load ........................127
Capacities for refilling fluids ....201
Cargo cage ...................................55
Cassette tape player ...................16
CD-single premium ...............19, 23
Cell phone use ............................41
Certification Label ....................207
Child safety restraints ................95
child safety belts ......................95
Child safety seats ........................97
attaching with tether straps ..102
in front seat ..............................99
in rear seat ........................99, 101
Cleaning your vehicle
engine compartment ..............169
instrument panel ....................171
interior .....................................171
interior trim ............................171
plastic parts ............................170
safety belts ..............................171
washing ....................................168
waxing .....................................168
wheels ......................................169
wiper blades ............................170
Clock adjust
Single CD ..................................16
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
