Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Inspect and lubricate U-joints.
Inspect frequently, service
as required
See axle maintenance items under Exceptions.
Replace spark plugs. (Gasoline Engine).
Every
60,000 mi
(96,000 km) Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use
(Such as Delivery, Taxi, Patrol Car or Livery)
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Replace engine air filter. (Gasoline Engine).
Inspect frequently, service
as required
Inspect the air filter restriction gauge. Replace the filter if
necessary (Diesel Engine).
Replace spark plugs. (Gasoline Engine).
Every
60,000 mi
(96,000 km) Operating in Dusty or Sandy Conditions (Such as Unpaved or Dusty Roads)
Replace engine air filter. (Gasoline engine).
Inspect frequently, service
as required
Inspect the air filter restriction gauge. Replace the filter if
necessary (Diesel Engine).
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Every
5,000 mi (8,000 km)
Rotate tires, inspect tires for wear and measure tread
depth.
Change engine oil and filter. 1
Every
5,000 mi (8,000 km)
or six months
1 Reset your Intelligent Oil-Life Monitor after each engine oil and filter change.
569
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201808, Third-Printing- Scheduled Maintenance

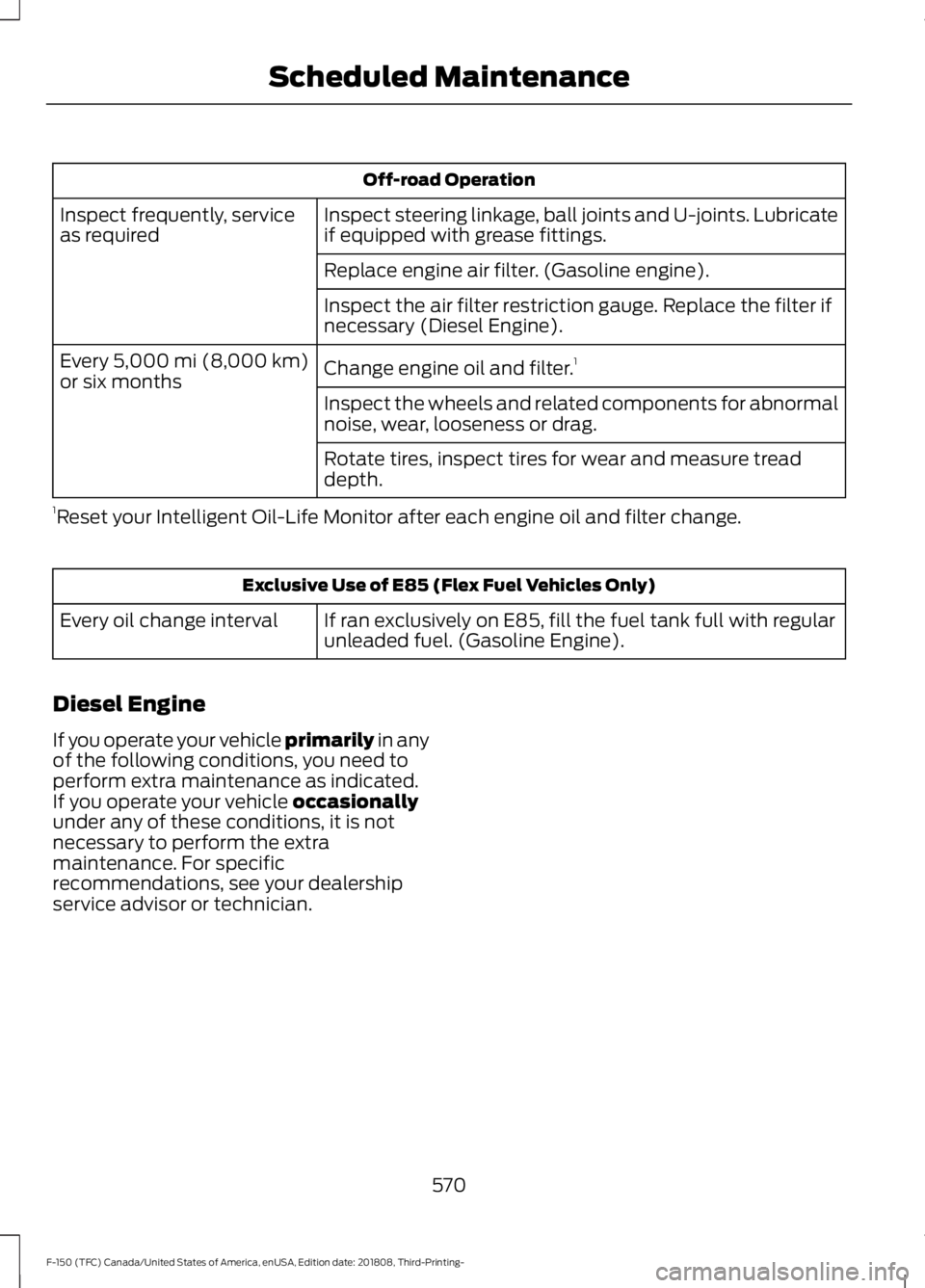

Off-road Operation
Inspect steering linkage, ball joints and U-joints. Lubricate
if equipped with grease fittings.
Inspect frequently, service
as required
Replace engine air filter. (Gasoline engine).
Inspect the air filter restriction gauge. Replace the filter if
necessary (Diesel Engine).
Change engine oil and filter.1
Every 5,000 mi (8,000 km)
or six months
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Rotate tires, inspect tires for wear and measure tread
depth.
1 Reset your Intelligent Oil-Life Monitor after each engine oil and filter change. Exclusive Use of E85 (Flex Fuel Vehicles Only)
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel. (Gasoline Engine).
Every oil change interval
Diesel Engine
If you operate your vehicle primarily
in any
of the following conditions, you need to
perform extra maintenance as indicated.
If you operate your vehicle
occasionally
under any of these conditions, it is not
necessary to perform the extra
maintenance. For specific
recommendations, see your dealership
service advisor or technician.
570
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201808, Third-Printing- Scheduled Maintenance

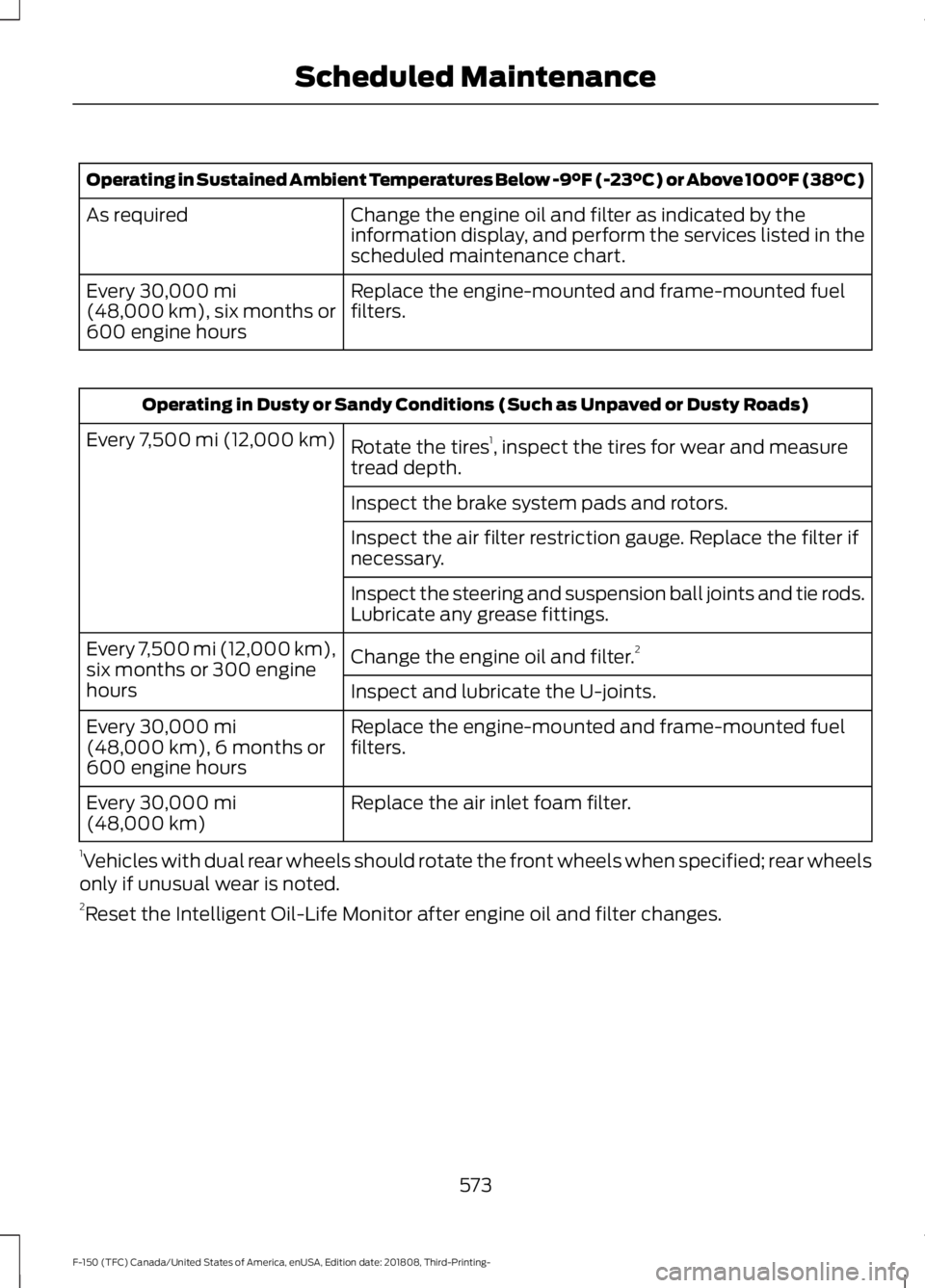

Operating in Sustained Ambient Temperatures Below -9°F (-23°C) or Above 100°F (38°C)
Change the engine oil and filter as indicated by the
information display, and perform the services listed in the
scheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuel
filters.
Every 30,000 mi
(48,000 km), six months or
600 engine hours Operating in Dusty or Sandy Conditions (Such as Unpaved or Dusty Roads)
Rotate the tires1
, inspect the tires for wear and measure
tread depth.
Every
7,500 mi (12,000 km)
Inspect the brake system pads and rotors.
Inspect the air filter restriction gauge. Replace the filter if
necessary.
Inspect the steering and suspension ball joints and tie rods.
Lubricate any grease fittings.
Change the engine oil and filter. 2
Every 7,500 mi (12,000 km),
six months or 300 engine
hours Inspect and lubricate the U-joints.
Replace the engine-mounted and frame-mounted fuel
filters.
Every
30,000 mi
(48,000 km), 6 months or
600 engine hours
Replace the air inlet foam filter.
Every
30,000 mi
(48,000 km)
1 Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheels
only if unusual wear is noted.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes.
573
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201808, Third-Printing- Scheduled Maintenance

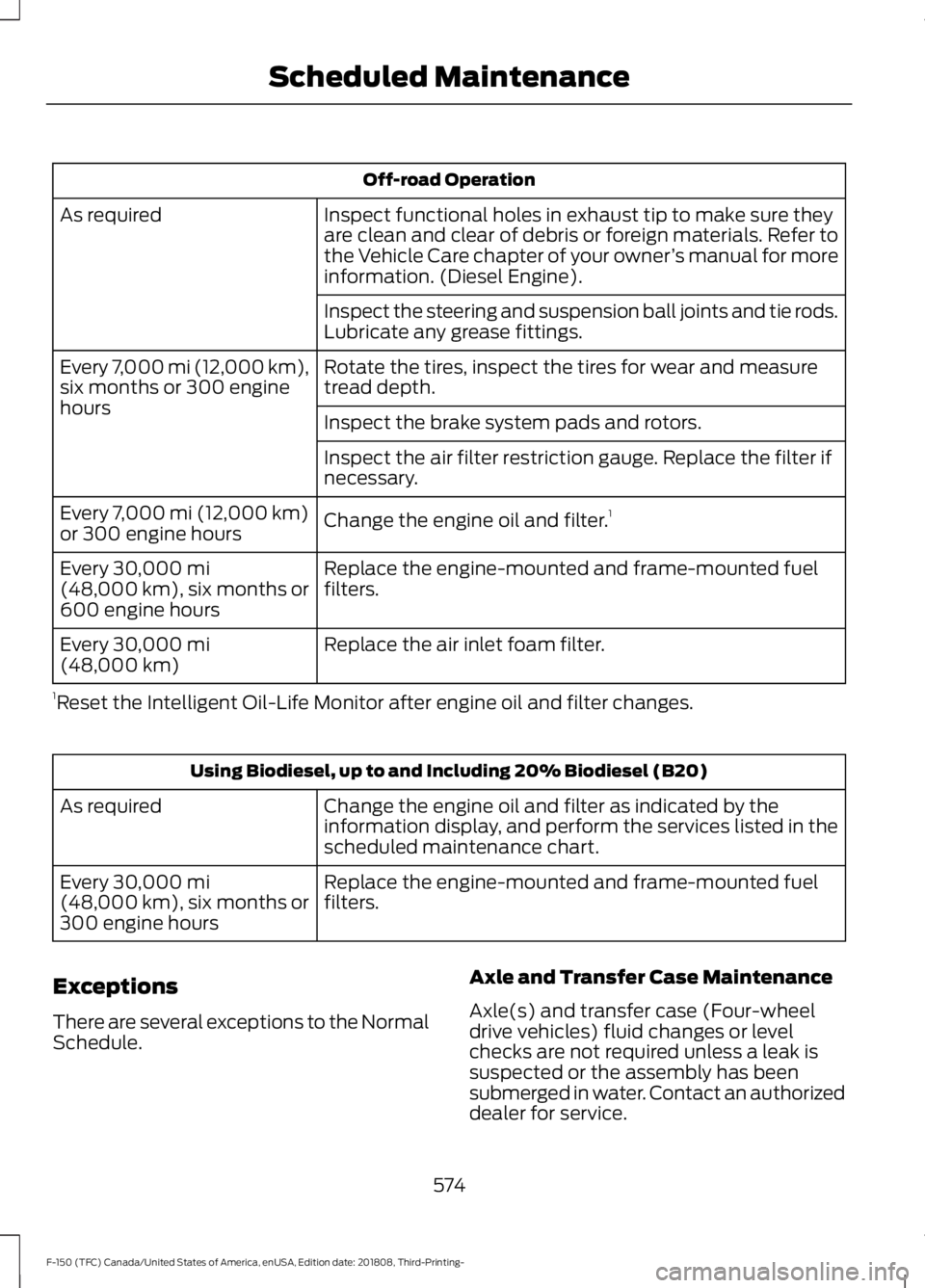

Off-road Operation
Inspect functional holes in exhaust tip to make sure they
are clean and clear of debris or foreign materials. Refer to
the Vehicle Care chapter of your owner ’s manual for more
information. (Diesel Engine).
As required
Inspect the steering and suspension ball joints and tie rods.
Lubricate any grease fittings.
Rotate the tires, inspect the tires for wear and measure
tread depth.
Every 7,000 mi (12,000 km),
six months or 300 engine
hours
Inspect the brake system pads and rotors.
Inspect the air filter restriction gauge. Replace the filter if
necessary.
Change the engine oil and filter. 1
Every 7,000 mi (12,000 km)
or 300 engine hours
Replace the engine-mounted and frame-mounted fuel
filters.
Every 30,000 mi
(48,000 km), six months or
600 engine hours
Replace the air inlet foam filter.
Every
30,000 mi
(48,000 km)
1 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. Using Biodiesel, up to and Including 20% Biodiesel (B20)
Change the engine oil and filter as indicated by the
information display, and perform the services listed in the
scheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuel
filters.
Every
30,000 mi
(48,000 km), six months or
300 engine hours
Exceptions
There are several exceptions to the Normal
Schedule. Axle and Transfer Case Maintenance
Axle(s) and transfer case (Four-wheel
drive vehicles) fluid changes or level
checks are not required unless a leak is
suspected or the assembly has been
submerged in water. Contact an authorized
dealer for service.
574
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201808, Third-Printing- Scheduled Maintenance

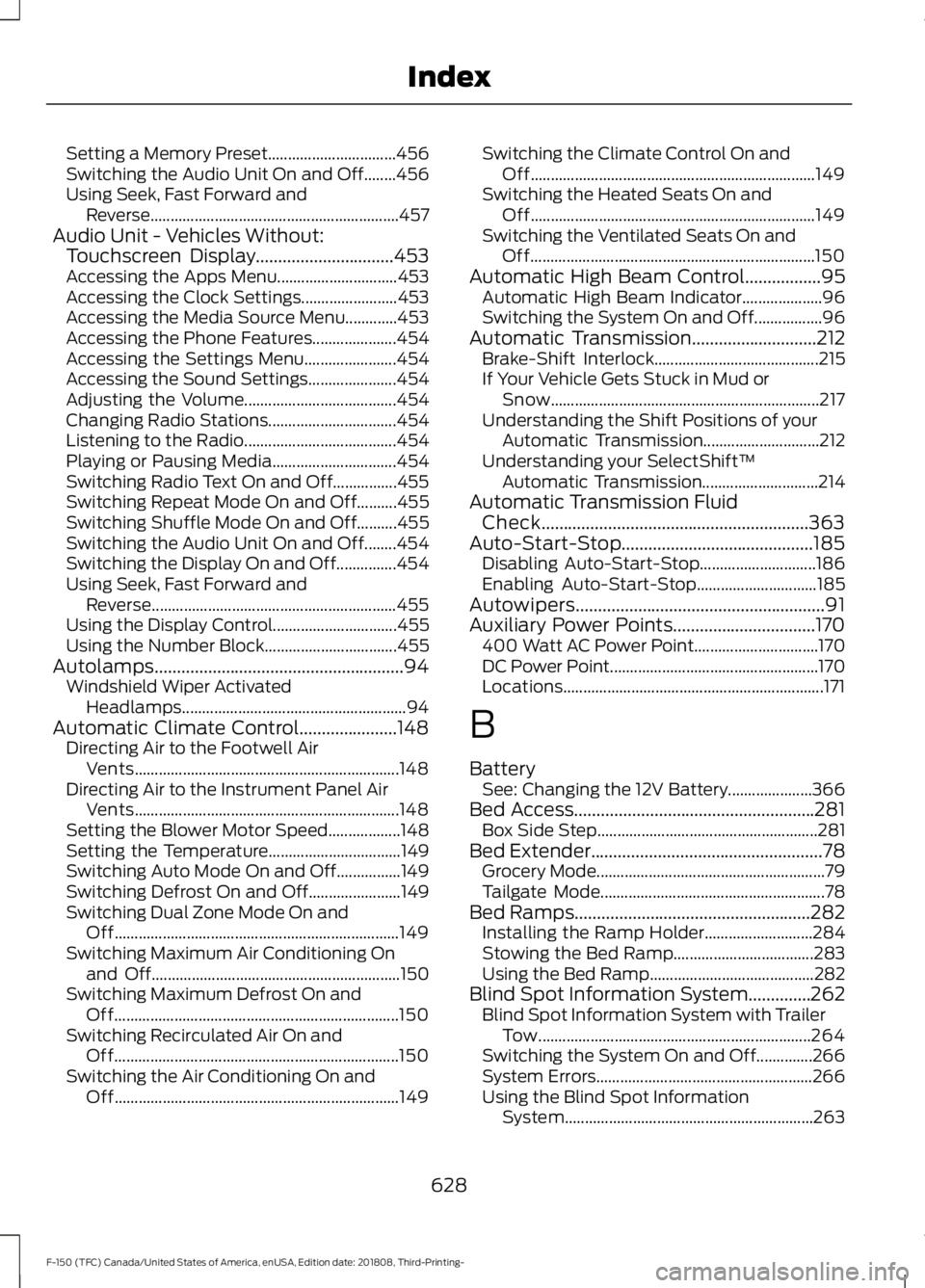

Setting a Memory Preset................................
456
Switching the Audio Unit On and Off........456
Using Seek, Fast Forward and Reverse.............................................................. 457
Audio Unit - Vehicles Without: Touchscreen Display...............................453
Accessing the Apps Menu.............................. 453
Accessing the Clock Settings........................ 453
Accessing the Media Source Menu.............453
Accessing the Phone Features..................... 454
Accessing the Settings Menu....................... 454
Accessing the Sound Settings...................... 454
Adjusting the Volume...................................... 454
Changing Radio Stations................................ 454
Listening to the Radio...................................... 454
Playing or Pausing Media............................... 454
Switching Radio Text On and Off................455
Switching Repeat Mode On and Off..........455
Switching Shuffle Mode On and Off..........455
Switching the Audio Unit On and Off........454
Switching the Display On and Off...............454
Using Seek, Fast Forward and Reverse............................................................. 455
Using the Display Control............................... 455
Using the Number Block................................. 455
Autolamps........................................................94 Windshield Wiper Activated
Headlamps........................................................ 94
Automatic Climate Control......................148 Directing Air to the Footwell Air
Vents.................................................................. 148
Directing Air to the Instrument Panel Air Vents.................................................................. 148
Setting the Blower Motor Speed.................. 148
Setting the Temperature................................. 149
Switching Auto Mode On and Off................149
Switching Defrost On and Off....................... 149
Switching Dual Zone Mode On and Off....................................................................... 149
Switching Maximum Air Conditioning On and Off.............................................................. 150
Switching Maximum Defrost On and Off....................................................................... 150
Switching Recirculated Air On and Off....................................................................... 150
Switching the Air Conditioning On and Off....................................................................... 149Switching the Climate Control On and
Off....................................................................... 149
Switching the Heated Seats On and Off....................................................................... 149
Switching the Ventilated Seats On and Off....................................................................... 150
Automatic High Beam Control.................95 Automatic High Beam Indicator.................... 96
Switching the System On and Off.................96
Automatic Transmission............................212 Brake-Shift Interlock......................................... 215
If Your Vehicle Gets Stuck in Mud or Snow................................................................... 217
Understanding the Shift Positions of your Automatic Transmission............................. 212
Understanding your SelectShift™ Automatic Transmission............................. 214
Automatic Transmission Fluid Check............................................................363
Auto-Start-Stop...........................................185 Disabling Auto-Start-Stop............................. 186
Enabling Auto-Start-Stop.............................. 185
Autowipers........................................................91
Auxiliary Power Points................................170 400 Watt AC Power Point............................... 170
DC Power Point.................................................... 170
Locations................................................................. 171
B
Battery See: Changing the 12V Battery..................... 366
Bed Access......................................................281 Box Side Step....................................................... 281
Bed Extender....................................................78 Grocery Mode......................................................... 79
Tailgate Mode........................................................ 78
Bed Ramps.....................................................282
Installing the Ramp Holder........................... 284
Stowing the Bed Ramp................................... 283
Using the Bed Ramp......................................... 282
Blind Spot Information System..............262 Blind Spot Information System with Trailer
Tow.................................................................... 264
Switching the System On and Off..............266
System Errors...................................................... 266
Using the Blind Spot Information System.............................................................. 263
628
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201808, Third-Printing- Index

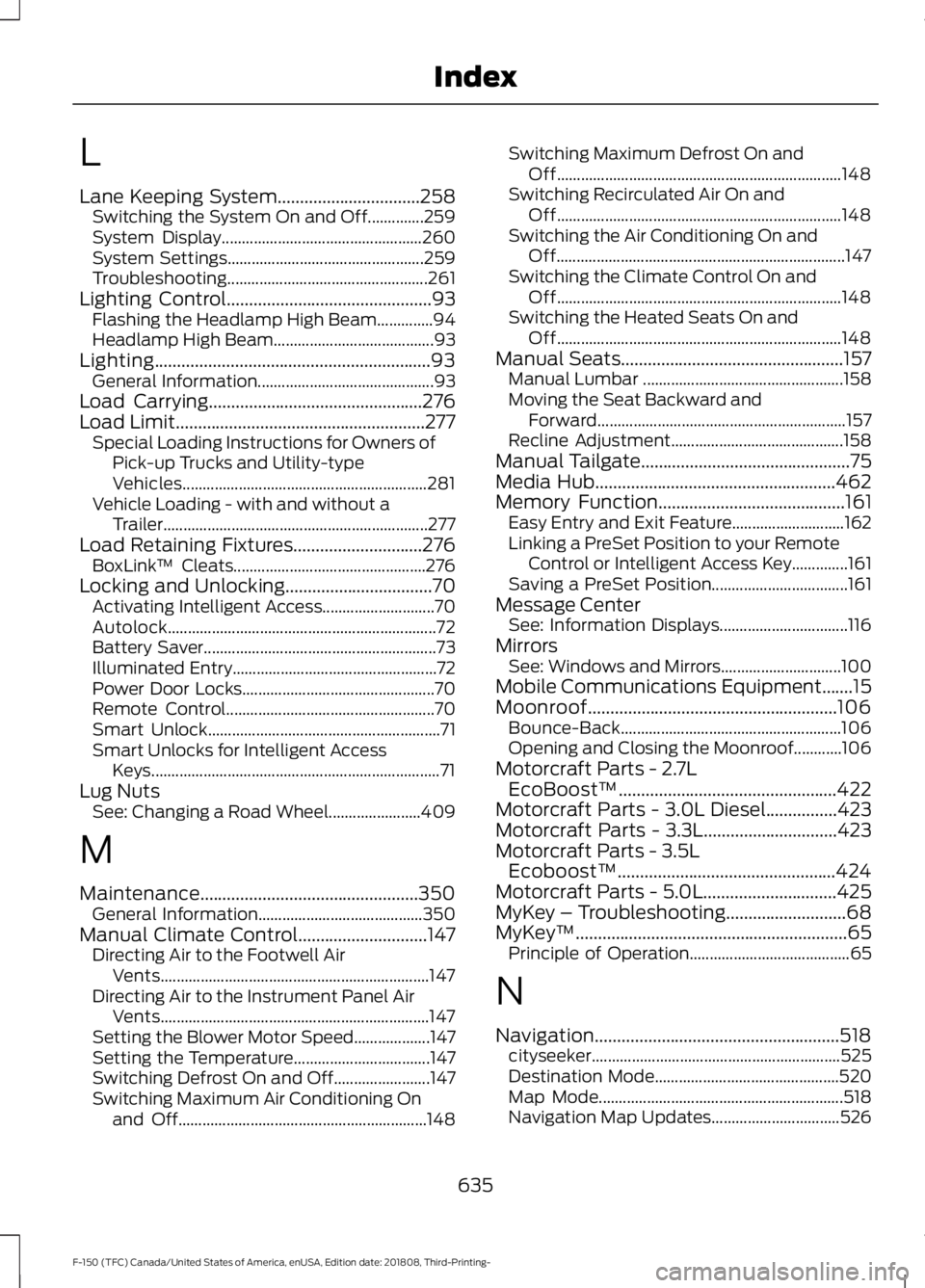

L
Lane Keeping System................................258
Switching the System On and Off..............259
System Display.................................................. 260
System Settings................................................. 259
Troubleshooting.................................................. 261
Lighting Control
..............................................93
Flashing the Headlamp High Beam..............94
Headlamp High Beam........................................ 93
Lighting
..............................................................93
General Information............................................ 93
Load Carrying................................................276
Load Limit........................................................277 Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 281
Vehicle Loading - with and without a Trailer.................................................................. 277
Load Retaining Fixtures.............................276 BoxLink ™ Cleats................................................ 276
Locking and Unlocking.................................70 Activating Intelligent Access............................ 70
Autolock................................................................... 72
Battery Saver.......................................................... 73
Illuminated Entry................................................... 72
Power Door Locks................................................ 70
Remote Control.................................................... 70
Smart Unlock.......................................................... 71
Smart Unlocks for Intelligent Access Keys........................................................................\
71
Lug Nuts See: Changing a Road Wheel....................... 409
M
Maintenance.................................................350 General Information......................................... 350
Manual Climate Control.............................147 Directing Air to the Footwell Air
Vents................................................................... 147
Directing Air to the Instrument Panel Air Vents................................................................... 147
Setting the Blower Motor Speed................... 147
Setting the Temperature.................................. 147
Switching Defrost On and Off........................ 147
Switching Maximum Air Conditioning On and Off.............................................................. 148Switching Maximum Defrost On and
Off....................................................................... 148
Switching Recirculated Air On and Off....................................................................... 148
Switching the Air Conditioning On and Off........................................................................\
147
Switching the Climate Control On and Off....................................................................... 148
Switching the Heated Seats On and Off....................................................................... 148
Manual Seats..................................................157
Manual Lumbar .................................................. 158
Moving the Seat Backward and Forward.............................................................. 157
Recline Adjustment........................................... 158
Manual Tailgate...............................................75
Media Hub......................................................462
Memory Function..........................................161 Easy Entry and Exit Feature............................ 162
Linking a PreSet Position to your Remote Control or Intelligent Access Key..............161
Saving a PreSet Position.................................. 161
Message Center See: Information Displays................................ 116
Mirrors See: Windows and Mirrors.............................. 100
Mobile Communications Equipment.......15
Moonroof........................................................106 Bounce-Back....................................................... 106
Opening and Closing the Moonroof............106
Motorcraft Parts - 2.7L EcoBoost™.................................................422
Motorcraft Parts - 3.0L Diesel................423
Motorcraft Parts - 3.3L..............................423
Motorcraft Parts - 3.5L Ecoboost™.................................................424
Motorcraft Parts - 5.0L
..............................425
MyKey – Troubleshooting...........................68
MyKey ™.............................................................65
Principle of Operation........................................ 65
N
Navigation.......................................................518 cityseeker.............................................................. 525
Destination Mode.............................................. 520
Map Mode............................................................. 518
Navigation Map Updates................................ 526
635
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201808, Third-Printing- Index

Navigation Menu................................................
523
SiriusXM Traffic and Travel Link................... 526
SYNC AppLink..................................................... 525
Waypoints............................................................ 524
Normal Scheduled Maintenance..........565 Intelligent Oil-Life Monitor............................. 565
Normal Maintenance Intervals..................... 567
O
Off-Road Driving..........................................320
Basic Off-road Driving Techniques.............320
Crossing Obstacles............................................ 321
Hill Climbing.......................................................... 321
Oil Change Indicator Reset......................358
Oil Check See: Engine Oil Check - Diesel...................... 357
See: Engine Oil Check - Gasoline................356
Opening and Closing the Hood..............350
Ordering Additional Owner's Literature......................................................337
Obtaining a French Owner ’s Manual..........337
Overhead Console
........................................173
P
Parking Aids
...................................................238
Principle of Operation...................................... 238
Passive Anti-Theft System........................80 SecuriLock ™......................................................... 80
PATS See: Passive Anti-Theft System.................... 80
Perchlorate........................................................13
Personal Safety System ™
.........................48
How Does the Personal Safety System
Work?.................................................................. 48
Phone................................................................512 During a Phone Call........................................... 516
Making Calls......................................................... 515
Pairing Your Cell Phone for the First Time.................................................................... 512
Phone Menu.......................................................... 513
Receiving Calls.................................................... 516
Smartphone Connectivity................................ 517
Text Messaging.................................................... 517
Post-Crash Alert System
..........................330
Power Door Locks See: Locking and Unlocking............................. 70Power Running Boards................................84
Power Seats
...................................................158
Adjusting the Lumbar Support...................... 159
Adjusting the Multi-Contour Front Seats With Active Motion ...................................... 159
Power Steering Fluid Check
....................365
Power Windows...........................................100
Accessory Delay................................................... 101
Bounce-Back....................................................... 100
One-Touch Up or Down.................................. 100
Window Lock........................................................ 101
Pre-Collision Assist.....................................270 Adjusting the Pre-Collision Assist
Settings............................................................. 272
Blocked Sensors................................................. 272
Distance Indication and Alert......................... 271
Using the Pre-Collision Assist System.............................................................. 270
Protecting the Environment........................17
Puncture See: Changing a Road Wheel....................... 409
R
Rear Axle
.........................................................226
Rear Parking Aid...........................................238
Obstacle Distance Indicator.......................... 239
Rear Seat Armrest
........................................173
Rear Seats.......................................................162
Folding Up the Rear Seat Cushion ..............162
Returning the Seat to the Seating
Position.............................................................. 162
Rear View Camera.......................................243 Camera guidelines............................................ 245
Manual Zoom...................................................... 246
Obstacle Distance Indicator.......................... 246
Rear Camera Delay........................................... 246
Using the Rear View Camera System.............................................................. 244
Rear View Camera See: Rear View Camera................................... 243
Recommended Towing Weights
............297
Calculating the Maximum Loaded Trailer
Weight for Your Vehicle.............................. 309
Refueling..........................................................194 Refueling System Overview........................... 194
Refueling System Warning............................. 196
Refueling Your Vehicle...................................... 195
636
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201808, Third-Printing- Index
