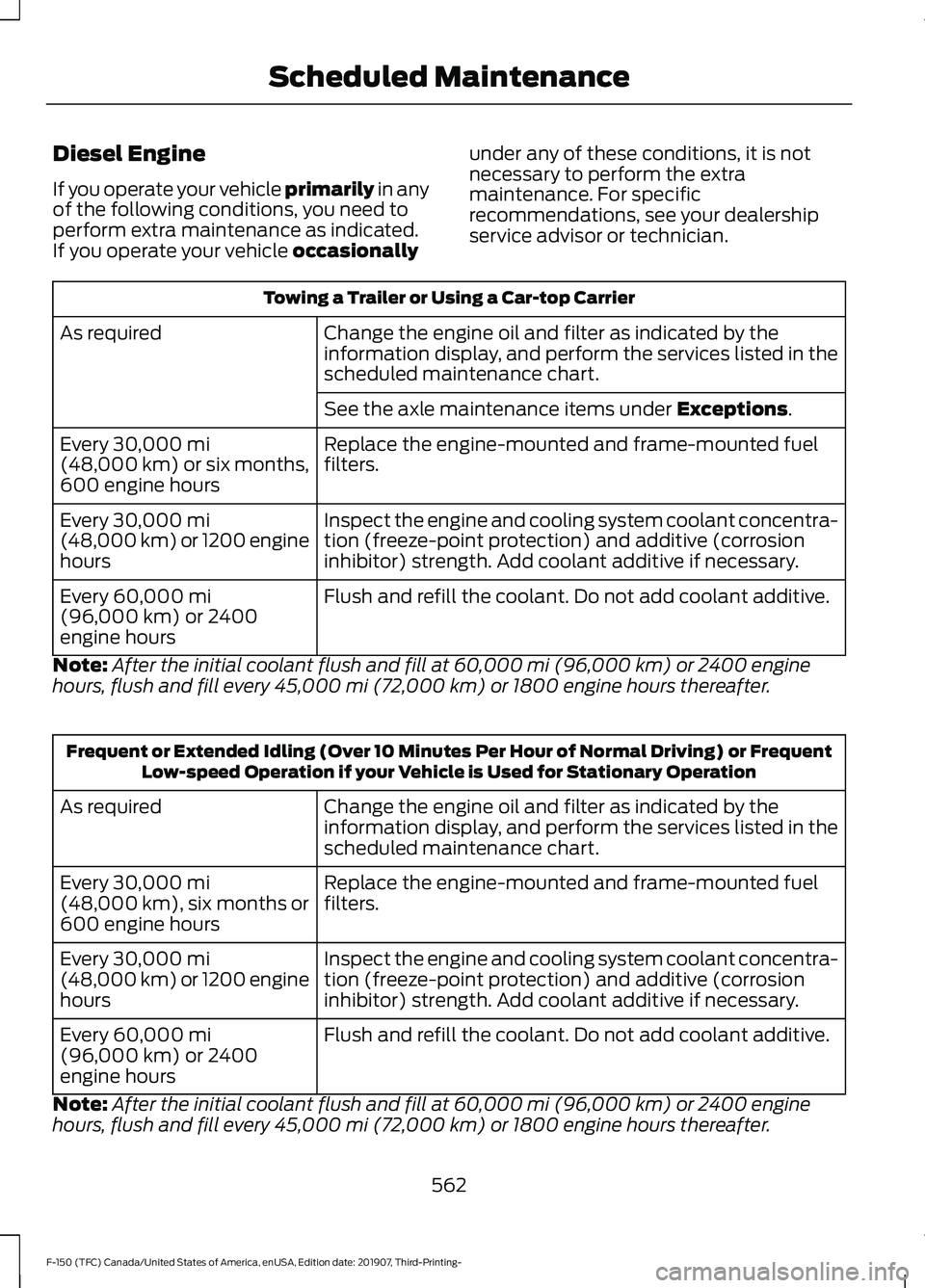

Diesel Engine
If you operate your vehicle primarily in any
of the following conditions, you need to
perform extra maintenance as indicated.
If you operate your vehicle
occasionally under any of these conditions, it is not
necessary to perform the extra
maintenance. For specific
recommendations, see your dealership
service advisor or technician. Towing a Trailer or Using a Car-top Carrier
Change the engine oil and filter as indicated by the
information display, and perform the services listed in the
scheduled maintenance chart.
As required
See the axle maintenance items under
Exceptions.
Replace the engine-mounted and frame-mounted fuel
filters.
Every
30,000 mi
(48,000 km) or six months,
600 engine hours
Inspect the engine and cooling system coolant concentra-
tion (freeze-point protection) and additive (corrosion
inhibitor) strength. Add coolant additive if necessary.
Every
30,000 mi
(48,000 km) or 1200 engine
hours
Flush and refill the coolant. Do not add coolant additive.
Every
60,000 mi
(96,000 km) or 2400
engine hours
Note: After the initial coolant flush and fill at
60,000 mi (96,000 km) or 2400 engine
hours, flush and fill every 45,000 mi (72,000 km) or 1800 engine hours thereafter. Frequent or Extended Idling (Over 10 Minutes Per Hour of Normal Driving) or Frequent
Low-speed Operation if your Vehicle is Used for Stationary Operation
Change the engine oil and filter as indicated by the
information display, and perform the services listed in the
scheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuel
filters.
Every
30,000 mi
(48,000 km), six months or
600 engine hours
Inspect the engine and cooling system coolant concentra-
tion (freeze-point protection) and additive (corrosion
inhibitor) strength. Add coolant additive if necessary.
Every
30,000 mi
(48,000 km) or 1200 engine
hours
Flush and refill the coolant. Do not add coolant additive.
Every
60,000 mi
(96,000 km) or 2400
engine hours
Note: After the initial coolant flush and fill at
60,000 mi (96,000 km) or 2400 engine
hours, flush and fill every 45,000 mi (72,000 km) or 1800 engine hours thereafter.
562
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Scheduled Maintenance

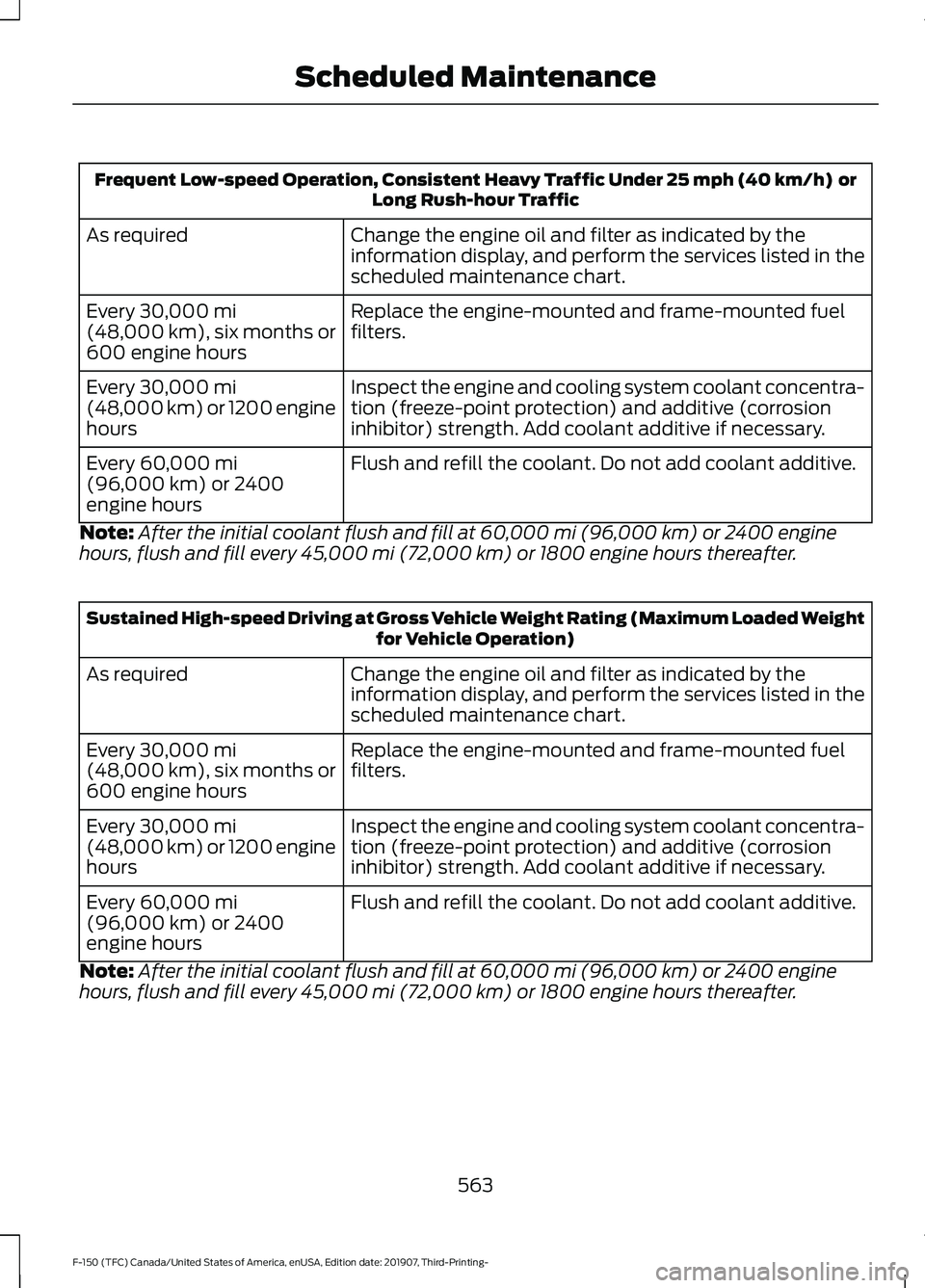

Frequent Low-speed Operation, Consistent Heavy Traffic Under 25 mph (40 km/h) or
Long Rush-hour Traffic
Change the engine oil and filter as indicated by the
information display, and perform the services listed in the
scheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuel
filters.
Every 30,000 mi
(48,000 km), six months or
600 engine hours
Inspect the engine and cooling system coolant concentra-
tion (freeze-point protection) and additive (corrosion
inhibitor) strength. Add coolant additive if necessary.
Every
30,000 mi
(48,000 km) or 1200 engine
hours
Flush and refill the coolant. Do not add coolant additive.
Every
60,000 mi
(96,000 km) or 2400
engine hours
Note: After the initial coolant flush and fill at
60,000 mi (96,000 km) or 2400 engine
hours, flush and fill every 45,000 mi (72,000 km) or 1800 engine hours thereafter. Sustained High-speed Driving at Gross Vehicle Weight Rating (Maximum Loaded Weight
for Vehicle Operation)
Change the engine oil and filter as indicated by the
information display, and perform the services listed in the
scheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuel
filters.
Every
30,000 mi
(48,000 km), six months or
600 engine hours
Inspect the engine and cooling system coolant concentra-
tion (freeze-point protection) and additive (corrosion
inhibitor) strength. Add coolant additive if necessary.
Every
30,000 mi
(48,000 km) or 1200 engine
hours
Flush and refill the coolant. Do not add coolant additive.
Every
60,000 mi
(96,000 km) or 2400
engine hours
Note: After the initial coolant flush and fill at
60,000 mi (96,000 km) or 2400 engine
hours, flush and fill every 45,000 mi (72,000 km) or 1800 engine hours thereafter.
563
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Scheduled Maintenance

Operating in Sustained Ambient Temperatures Below -9°F (-23°C) or Above 100°F (38°C)
Change the engine oil and filter as indicated by the
information display, and perform the services listed in the
scheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuel
filters.
Every 30,000 mi
(48,000 km), six months or
600 engine hours Operating in Dusty or Sandy Conditions (Such as Unpaved or Dusty Roads)
Rotate the tires1
, inspect the tires for wear and measure
tread depth.
Every
7,500 mi (12,000 km)
Inspect the brake system pads and rotors.
Inspect the air filter restriction gauge. Replace the filter if
necessary.
Inspect the steering and suspension ball joints and tie rods.
Lubricate any grease fittings.
Change the engine oil and filter. 2
Every 7,500 mi (12,000 km),
six months or 300 engine
hours Inspect and lubricate the U-joints.
Replace the engine-mounted and frame-mounted fuel
filters.
Every
30,000 mi
(48,000 km), 6 months or
600 engine hours
Replace the air inlet foam filter.
Every
30,000 mi
(48,000 km)
1 Vehicles with dual rear wheels should rotate the front wheels when specified; rear wheels
only if unusual wear is noted.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes.
564
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Scheduled Maintenance

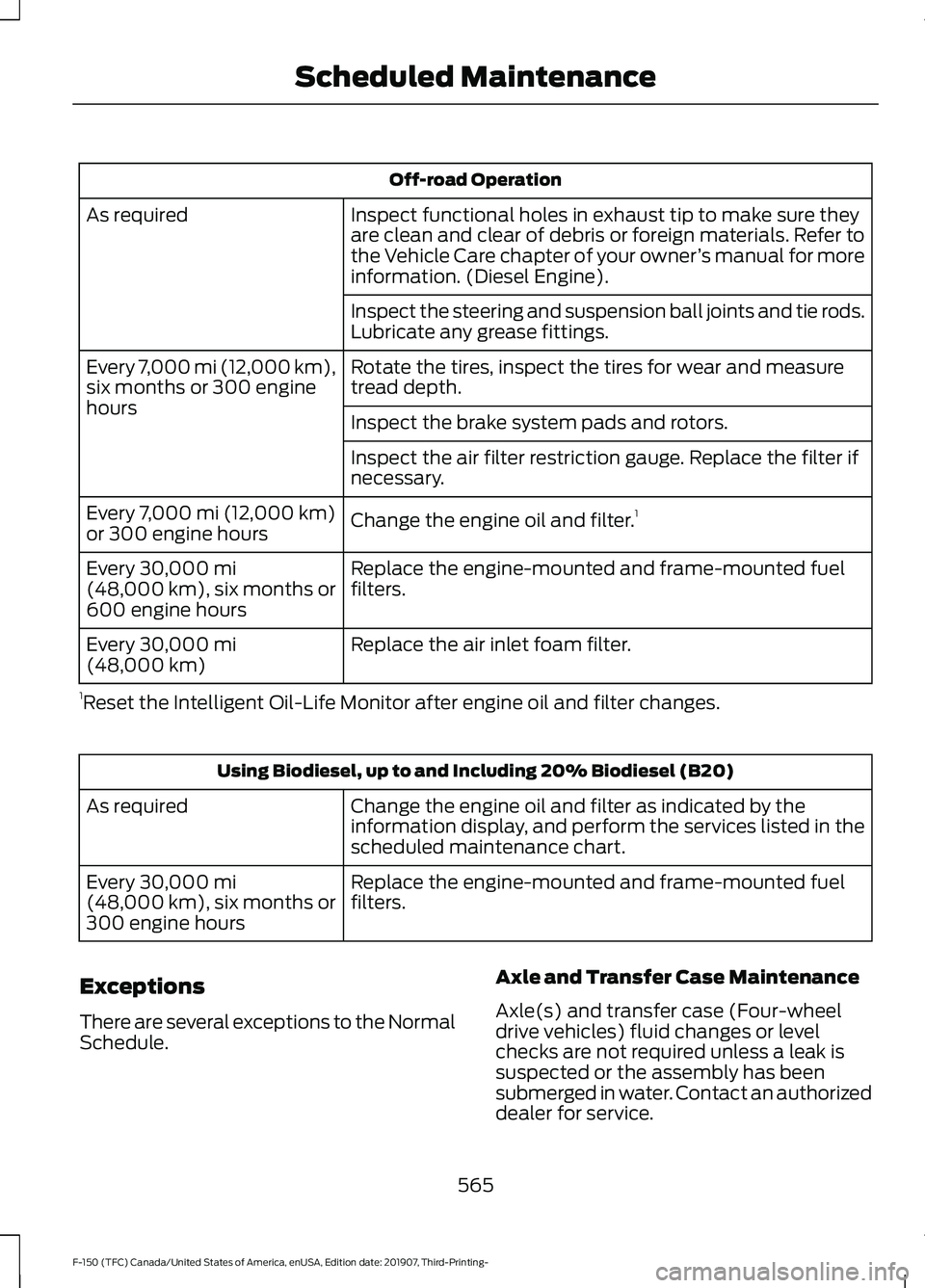

Off-road Operation
Inspect functional holes in exhaust tip to make sure they
are clean and clear of debris or foreign materials. Refer to
the Vehicle Care chapter of your owner ’s manual for more
information. (Diesel Engine).
As required
Inspect the steering and suspension ball joints and tie rods.
Lubricate any grease fittings.
Rotate the tires, inspect the tires for wear and measure
tread depth.
Every 7,000 mi (12,000 km),
six months or 300 engine
hours
Inspect the brake system pads and rotors.
Inspect the air filter restriction gauge. Replace the filter if
necessary.
Change the engine oil and filter. 1
Every 7,000 mi (12,000 km)
or 300 engine hours
Replace the engine-mounted and frame-mounted fuel
filters.
Every 30,000 mi
(48,000 km), six months or
600 engine hours
Replace the air inlet foam filter.
Every
30,000 mi
(48,000 km)
1 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. Using Biodiesel, up to and Including 20% Biodiesel (B20)
Change the engine oil and filter as indicated by the
information display, and perform the services listed in the
scheduled maintenance chart.
As required
Replace the engine-mounted and frame-mounted fuel
filters.
Every
30,000 mi
(48,000 km), six months or
300 engine hours
Exceptions
There are several exceptions to the Normal
Schedule. Axle and Transfer Case Maintenance
Axle(s) and transfer case (Four-wheel
drive vehicles) fluid changes or level
checks are not required unless a leak is
suspected or the assembly has been
submerged in water. Contact an authorized
dealer for service.
565
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Scheduled Maintenance

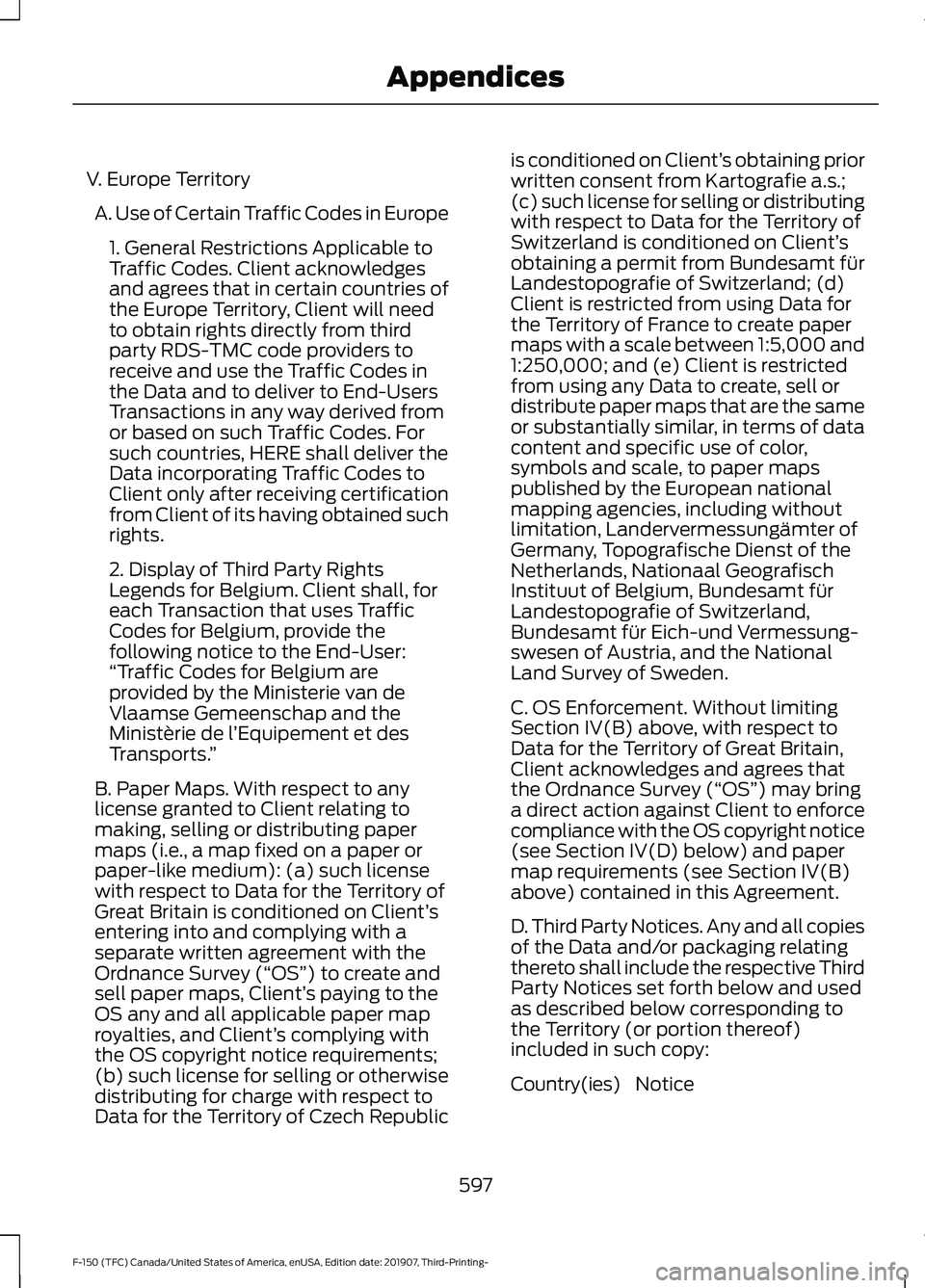

V. Europe Territory
A. Use of Certain Traffic Codes in Europe 1. General Restrictions Applicable to
Traffic Codes. Client acknowledges
and agrees that in certain countries of
the Europe Territory, Client will need
to obtain rights directly from third
party RDS-TMC code providers to
receive and use the Traffic Codes in
the Data and to deliver to End-Users
Transactions in any way derived from
or based on such Traffic Codes. For
such countries, HERE shall deliver the
Data incorporating Traffic Codes to
Client only after receiving certification
from Client of its having obtained such
rights.
2. Display of Third Party Rights
Legends for Belgium. Client shall, for
each Transaction that uses Traffic
Codes for Belgium, provide the
following notice to the End-User:
“Traffic Codes for Belgium are
provided by the Ministerie van de
Vlaamse Gemeenschap and the
Ministèrie de l ’Equipement et des
Transports. ”
B. Paper Maps. With respect to any
license granted to Client relating to
making, selling or distributing paper
maps (i.e., a map fixed on a paper or
paper-like medium): (a) such license
with respect to Data for the Territory of
Great Britain is conditioned on Client’ s
entering into and complying with a
separate written agreement with the
Ordnance Survey (“OS ”) to create and
sell paper maps, Client’ s paying to the
OS any and all applicable paper map
royalties, and Client’ s complying with
the OS copyright notice requirements;
(b) such license for selling or otherwise
distributing for charge with respect to
Data for the Territory of Czech Republic is conditioned on Client’
s obtaining prior
written consent from Kartografie a.s.;
(c) such license for selling or distributing
with respect to Data for the Territory of
Switzerland is conditioned on Client’ s
obtaining a permit from Bundesamt für
Landestopografie of Switzerland; (d)
Client is restricted from using Data for
the Territory of France to create paper
maps with a scale between 1:5,000 and
1:250,000; and (e) Client is restricted
from using any Data to create, sell or
distribute paper maps that are the same
or substantially similar, in terms of data
content and specific use of color,
symbols and scale, to paper maps
published by the European national
mapping agencies, including without
limitation, Landervermessungämter of
Germany, Topografische Dienst of the
Netherlands, Nationaal Geografisch
Instituut of Belgium, Bundesamt für
Landestopografie of Switzerland,
Bundesamt für Eich-und Vermessung-
swesen of Austria, and the National
Land Survey of Sweden.
C. OS Enforcement. Without limiting
Section IV(B) above, with respect to
Data for the Territory of Great Britain,
Client acknowledges and agrees that
the Ordnance Survey (“OS ”) may bring
a direct action against Client to enforce
compliance with the OS copyright notice
(see Section IV(D) below) and paper
map requirements (see Section IV(B)
above) contained in this Agreement.
D. Third Party Notices. Any and all copies
of the Data and/or packaging relating
thereto shall include the respective Third
Party Notices set forth below and used
as described below corresponding to
the Territory (or portion thereof)
included in such copy:
Notice
Country(ies)
597
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Appendices

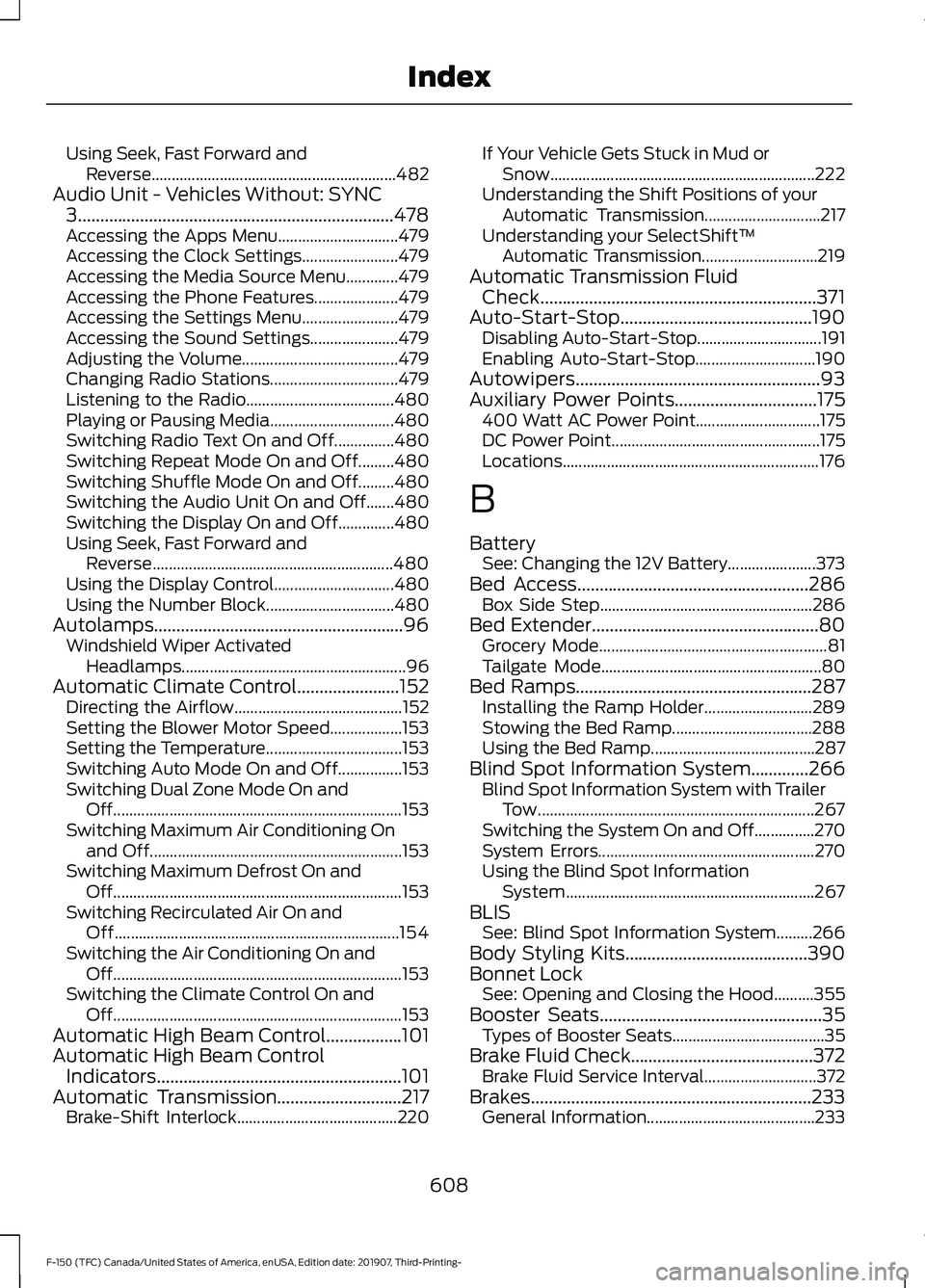

Using Seek, Fast Forward and
Reverse............................................................. 482
Audio Unit - Vehicles Without: SYNC 3.......................................................................478
Accessing the Apps Menu.............................. 479
Accessing the Clock Settings........................ 479
Accessing the Media Source Menu.............479
Accessing the Phone Features..................... 479
Accessing the Settings Menu........................ 479
Accessing the Sound Settings...................... 479
Adjusting the Volume....................................... 479
Changing Radio Stations................................ 479
Listening to the Radio..................................... 480
Playing or Pausing Media............................... 480
Switching Radio Text On and Off...............480
Switching Repeat Mode On and Off.........480
Switching Shuffle Mode On and Off.........480
Switching the Audio Unit On and Off.......480
Switching the Display On and Off..............480
Using Seek, Fast Forward and Reverse............................................................ 480
Using the Display Control.............................. 480
Using the Number Block................................ 480
Autolamps........................................................96 Windshield Wiper Activated
Headlamps........................................................ 96
Automatic Climate Control.......................152 Directing the Airflow.......................................... 152
Setting the Blower Motor Speed.................. 153
Setting the Temperature.................................. 153
Switching Auto Mode On and Off................153
Switching Dual Zone Mode On and Off........................................................................\
153
Switching Maximum Air Conditioning On and Off............................................................... 153
Switching Maximum Defrost On and Off........................................................................\
153
Switching Recirculated Air On and Off....................................................................... 154
Switching the Air Conditioning On and Off........................................................................\
153
Switching the Climate Control On and Off........................................................................\
153
Automatic High Beam Control.................101
Automatic High Beam Control Indicators.......................................................101
Automatic Transmission
............................217
Brake-Shift Interlock........................................ 220If Your Vehicle Gets Stuck in Mud or
Snow.................................................................. 222
Understanding the Shift Positions of your Automatic Transmission............................. 217
Understanding your SelectShift™ Automatic Transmission............................. 219
Automatic Transmission Fluid Check..............................................................371
Auto-Start-Stop...........................................190 Disabling Auto-Start-Stop............................... 191
Enabling Auto-Start-Stop.............................. 190
Autowipers
.......................................................93
Auxiliary Power Points................................175
400 Watt AC Power Point............................... 175
DC Power Point.................................................... 175
Locations................................................................ 176
B
Battery See: Changing the 12V Battery...................... 373
Bed Access
....................................................286
Box Side Step..................................................... 286
Bed Extender...................................................80 Grocery Mode......................................................... 81
Tailgate Mode....................................................... 80
Bed Ramps
.....................................................287
Installing the Ramp Holder........................... 289
Stowing the Bed Ramp................................... 288
Using the Bed Ramp......................................... 287
Blind Spot Information System.............266 Blind Spot Information System with Trailer
Tow..................................................................... 267
Switching the System On and Off...............270
System Errors...................................................... 270
Using the Blind Spot Information System.............................................................. 267
BLIS See: Blind Spot Information System.........266
Body Styling Kits.........................................390
Bonnet Lock See: Opening and Closing the Hood..........355
Booster Seats
..................................................35
Types of Booster Seats...................................... 35
Brake Fluid Check.........................................372 Brake Fluid Service Interval............................ 372
Brakes...............................................................233 General Information.......................................... 233
608
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Index

Switching the Front Fog Lamps On or
Off........................................................................\
. 97
Front Passenger Sensing System............53
Front Seat Armrest.......................................167
Fuel and Refueling.......................................193
Fuel Consumption.......................................202 Advertised Capacity......................................... 202
Calculating Fuel Economy............................. 203
Filling the Fuel Tank.......................................... 203
Fuel Filler Funnel Location - Regular Cab.................................................................198
Fuel Filler Funnel Location - SuperCab/ SuperCrew...................................................198
Fuel Filter - Diesel........................................376
Fuel Filter - Gasoline...................................376
Fuel Quality - Diesel....................................193
Biodiesel................................................................ 195
Diesel Fuel Additives ........................................ 196
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Not Required .........194
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Required (United
States/Canada/Puerto Rico/U.S. Virgin
Islands And Other Locales) ...................... 193
Fuel Quality - E85........................................196 Choosing the Right Fuel - Flex Fuel
Vehicles............................................................. 196
Switching Between E85 and Gasoline............................................................. 197
Fuel Quality - Gasoline...............................197 Choosing the Right Fuel................................... 197
Fuel Shutoff
...................................................332
Fuses................................................................344
Fuse Specification Chart..........................344 Passenger Compartment Fuse
Panel................................................................. 350
Power Distribution Box.................................... 344
G
Garage Door Opener
.....................................171
Garage Door Opener See: Universal Garage Door Opener.............171
Gauges................................................................111 Diesel Exhaust Fluid (DEF) Gauge................114
Engine Coolant Temperature Gauge............113 Engine Oil Pressure Gauge...............................
113
Fuel Gauge............................................................. 113
Information Display............................................ 114
Transmission Fluid Temperature Gauge.................................................................. 113
Turbo Boost Gauge............................................. 113
Type 1 and 2............................................................. 111
Type 3....................................................................... 112
Gearbox See: Transmission............................................... 217
General Information on Radio Frequencies..................................................60
Intelligent Access................................................ 60
General Maintenance Information........553 Multi-Point Inspection..................................... 556
Owner Checks and Services.......................... 554
Protecting Your Investment........................... 553
Why Maintain Your Vehicle?.......................... 553
Why Maintain Your Vehicle at Your Dealership?..................................................... 553
Getting Assistance Outside the U.S. and Canada.........................................................340
Getting the Services You Need...............337 Away From Home.............................................. 337
H
Hazard Flashers
............................................332
Headlamp Adjusting See: Adjusting the Headlamps..................... 375
Headrest See: Head Restraints......................................... 158
Head Restraints
............................................158
Adjusting the Head Restraint......................... 159
Heated Exterior Mirrors..............................156
Heated Rear Window..................................156
Heated Seats
.................................................166
Rear Heated Seats............................................. 166
Heated Steering Wheel
................................91
Heated Windshield......................................156
Windshield Wiper De-Icer............................... 156
Heating See: Climate Control.......................................... 151
Hill Descent Control
.....................................241
Principle of Operation....................................... 241
Hill Start Assist.............................................235 Switching the System On and Off..............236
Using Hill Start Assist...................................... 236
614
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Index

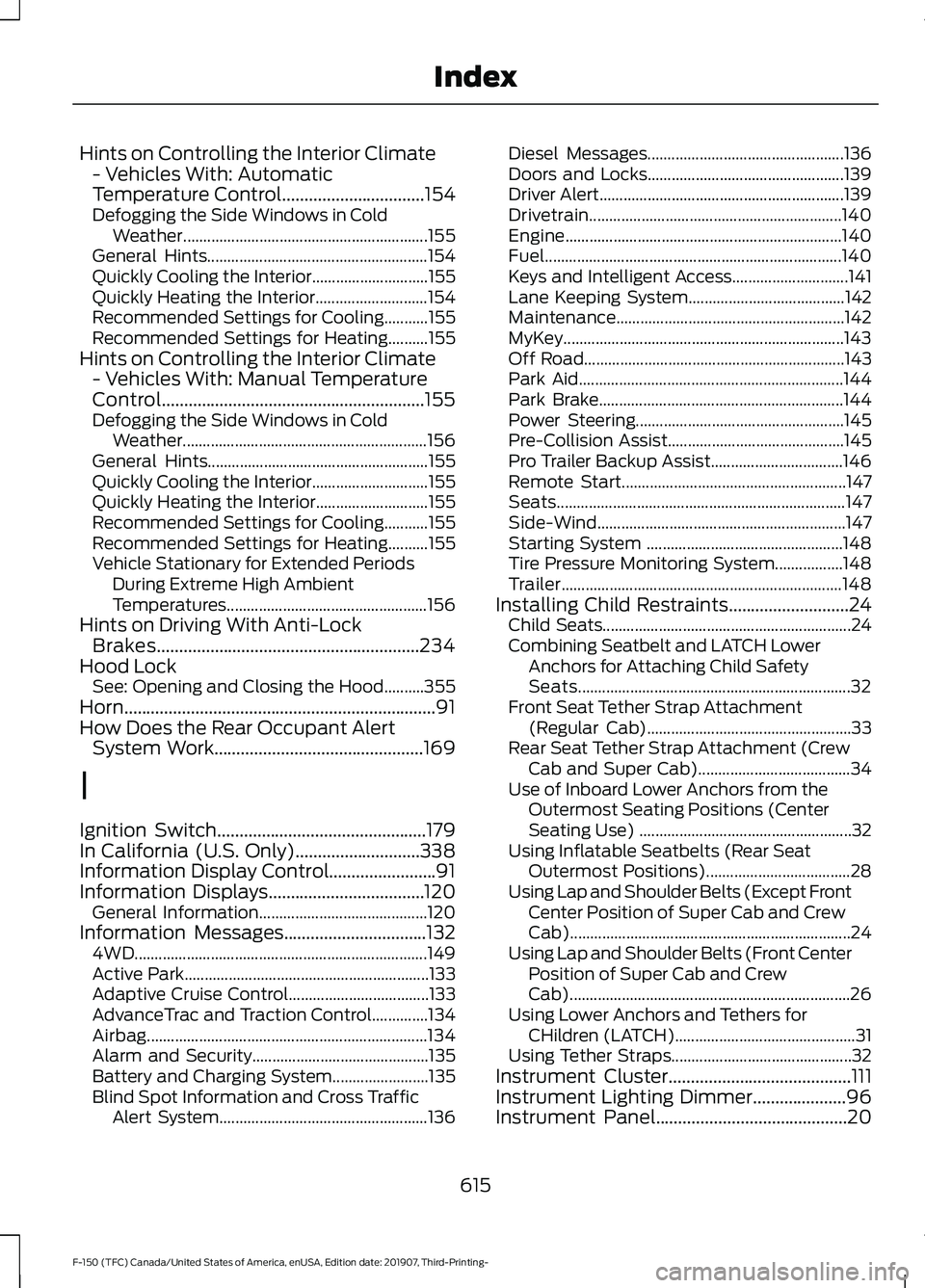

Hints on Controlling the Interior Climate
- Vehicles With: Automatic
Temperature Control................................154
Defogging the Side Windows in Cold
Weather............................................................. 155
General Hints....................................................... 154
Quickly Cooling the Interior............................. 155
Quickly Heating the Interior............................ 154
Recommended Settings for Cooling...........155
Recommended Settings for Heating..........155
Hints on Controlling the Interior Climate - Vehicles With: Manual Temperature
Control...........................................................155
Defogging the Side Windows in Cold Weather............................................................. 156
General Hints....................................................... 155
Quickly Cooling the Interior............................. 155
Quickly Heating the Interior............................ 155
Recommended Settings for Cooling...........155
Recommended Settings for Heating..........155
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures.................................................. 156
Hints on Driving With Anti-Lock Brakes
...........................................................234
Hood Lock See: Opening and Closing the Hood..........355
Horn......................................................................91
How Does the Rear Occupant Alert System Work
...............................................169
I
Ignition Switch...............................................179
In California (U.S. Only)
............................338
Information Display Control........................91
Information Displays...................................120 General Information.......................................... 120
Information Messages................................132 4WD........................................................................\
. 149
Active Park............................................................. 133
Adaptive Cruise Control................................... 133
AdvanceTrac and Traction Control..............134
Airbag...................................................................... 134
Alarm and Security............................................ 135
Battery and Charging System........................ 135
Blind Spot Information and Cross Traffic Alert System.................................................... 136Diesel Messages.................................................
136
Doors and Locks................................................. 139
Driver Alert............................................................. 139
Drivetrain............................................................... 140
Engine..................................................................... 140
Fuel........................................................................\
.. 140
Keys and Intelligent Access............................. 141
Lane Keeping System....................................... 142
Maintenance......................................................... 142
MyKey...................................................................... 143
Off Road................................................................. 143
Park Aid.................................................................. 144
Park Brake............................................................. 144
Power Steering.................................................... 145
Pre-Collision Assist............................................ 145
Pro Trailer Backup Assist................................. 146
Remote Start........................................................ 147
Seats........................................................................\
147
Side-Wind.............................................................. 147
Starting System ................................................. 148
Tire Pressure Monitoring System.................148
Trailer...................................................................... 148
Installing Child Restraints
...........................24
Child Seats.............................................................. 24
Combining Seatbelt and LATCH Lower Anchors for Attaching Child Safety
Seats.................................................................... 32
Front Seat Tether Strap Attachment (Regular Cab)................................................... 33
Rear Seat Tether Strap Attachment (Crew Cab and Super Cab)...................................... 34
Use of Inboard Lower Anchors from the Outermost Seating Positions (Center
Seating Use) ..................................................... 32
Using Inflatable Seatbelts (Rear Seat Outermost Positions).................................... 28
Using Lap and Shoulder Belts (Except Front Center Position of Super Cab and Crew
Cab)...................................................................... 24
Using Lap and Shoulder Belts (Front Center Position of Super Cab and Crew
Cab)...................................................................... 26
Using Lower Anchors and Tethers for CHildren (LATCH)............................................. 31
Using Tether Straps............................................. 32
Instrument Cluster
.........................................111
Instrument Lighting Dimmer.....................96
Instrument Panel...........................................20
615
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Index

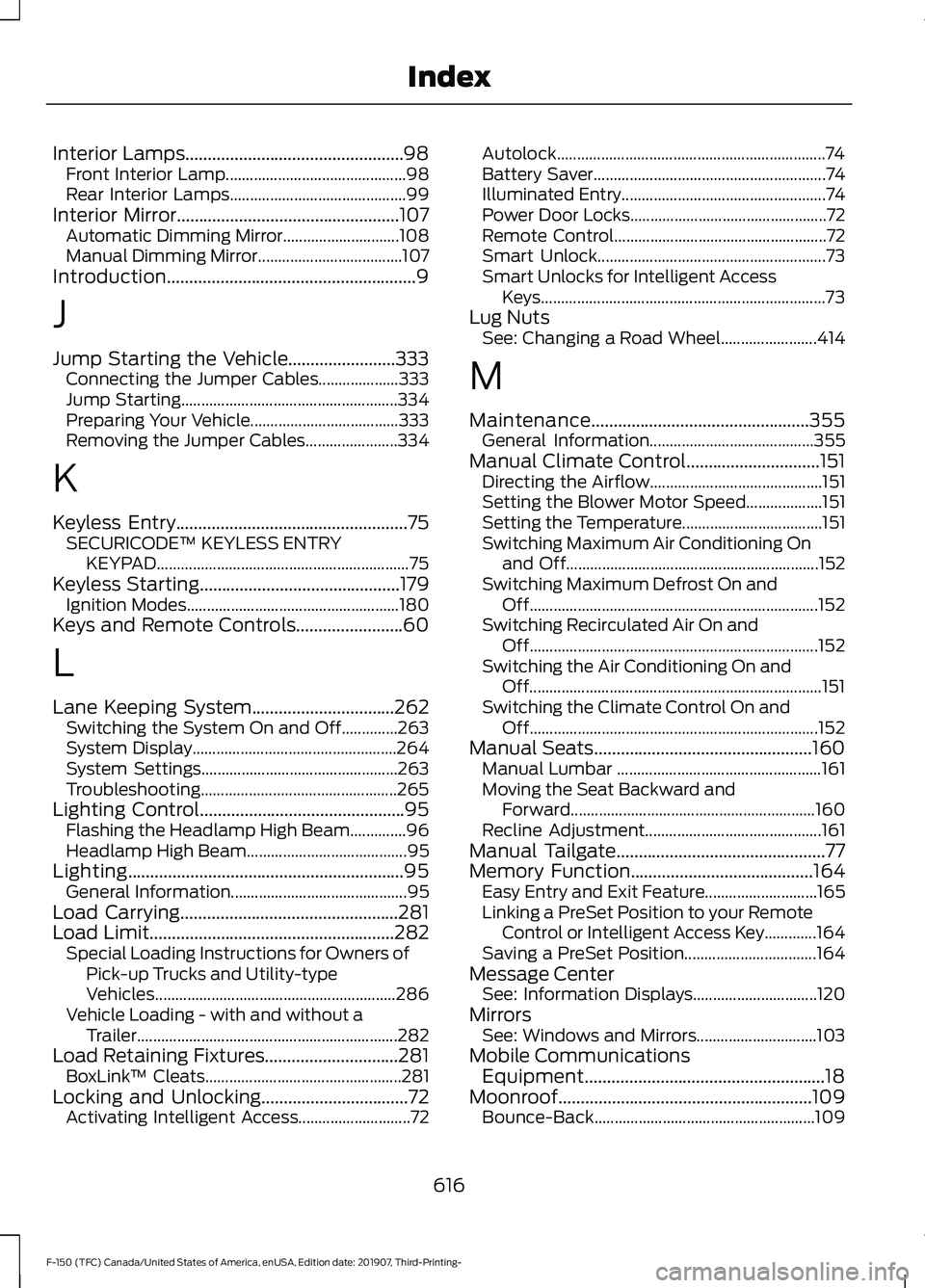

Interior Lamps.................................................98
Front Interior Lamp............................................. 98
Rear Interior Lamps............................................ 99
Interior Mirror..................................................107
Automatic Dimming Mirror............................. 108
Manual Dimming Mirror.................................... 107
Introduction........................................................9
J
Jump Starting the Vehicle
........................333
Connecting the Jumper Cables.................... 333
Jump Starting...................................................... 334
Preparing Your Vehicle..................................... 333
Removing the Jumper Cables....................... 334
K
Keyless Entry....................................................75 SECURICODE™ KEYLESS ENTRY
KEYPAD............................................................... 75
Keyless Starting
.............................................179
Ignition Modes..................................................... 180
Keys and Remote Controls........................60
L
Lane Keeping System................................262 Switching the System On and Off..............263
System Display................................................... 264
System Settings................................................. 263
Troubleshooting................................................. 265
Lighting Control..............................................95 Flashing the Headlamp High Beam..............96
Headlamp High Beam........................................ 95
Lighting..............................................................95 General Information............................................ 95
Load Carrying.................................................281
Load Limit
.......................................................282
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................ 286
Vehicle Loading - with and without a Trailer................................................................. 282
Load Retaining Fixtures..............................281 BoxLink ™ Cleats................................................. 281
Locking and Unlocking
.................................72
Activating Intelligent Access............................ 72Autolock...................................................................
74
Battery Saver.......................................................... 74
Illuminated Entry................................................... 74
Power Door Locks................................................. 72
Remote Control..................................................... 72
Smart Unlock......................................................... 73
Smart Unlocks for Intelligent Access Keys....................................................................... 73
Lug Nuts See: Changing a Road Wheel........................ 414
M
Maintenance.................................................355 General Information......................................... 355
Manual Climate Control
..............................151
Directing the Airflow........................................... 151
Setting the Blower Motor Speed................... 151
Setting the Temperature................................... 151
Switching Maximum Air Conditioning On and Off............................................................... 152
Switching Maximum Defrost On and Off........................................................................\
152
Switching Recirculated Air On and Off........................................................................\
152
Switching the Air Conditioning On and Off........................................................................\
. 151
Switching the Climate Control On and Off........................................................................\
152
Manual Seats.................................................160 Manual Lumbar ................................................... 161
Moving the Seat Backward and Forward............................................................. 160
Recline Adjustment............................................ 161
Manual Tailgate
...............................................77
Memory Function.........................................164
Easy Entry and Exit Feature............................ 165
Linking a PreSet Position to your Remote Control or Intelligent Access Key.............164
Saving a PreSet Position................................. 164
Message Center See: Information Displays............................... 120
Mirrors See: Windows and Mirrors.............................. 103
Mobile Communications Equipment......................................................18
Moonroof.........................................................109 Bounce-Back....................................................... 109
616
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Index

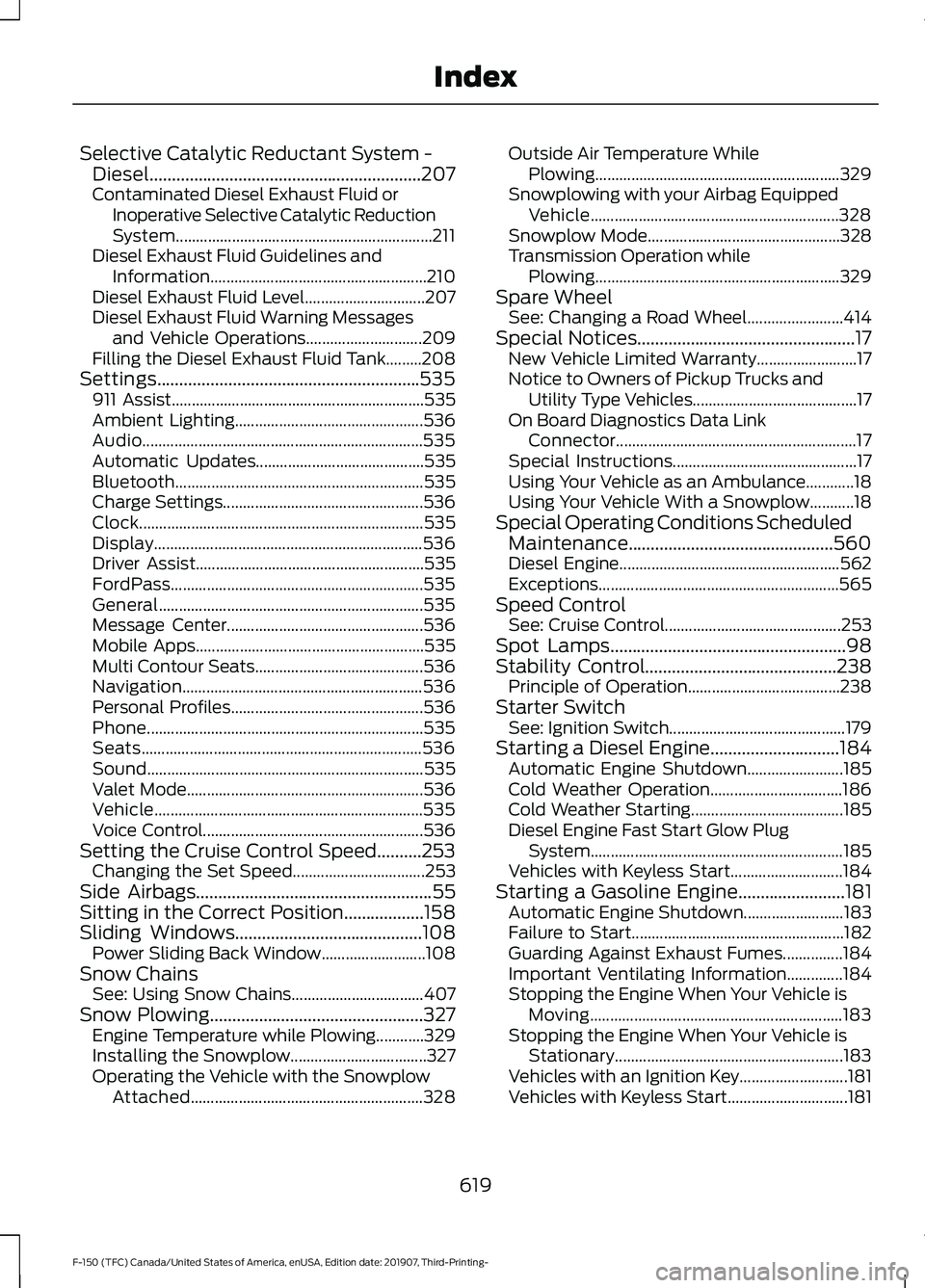

Selective Catalytic Reductant System -
Diesel.............................................................207
Contaminated Diesel Exhaust Fluid or Inoperative Selective Catalytic Reduction
System................................................................ 211
Diesel Exhaust Fluid Guidelines and Information...................................................... 210
Diesel Exhaust Fluid Level.............................. 207
Diesel Exhaust Fluid Warning Messages and Vehicle Operations............................. 209
Filling the Diesel Exhaust Fluid Tank.........208
Settings...........................................................535 911 Assist............................................................... 535
Ambient Lighting............................................... 536
Audio...................................................................... 535
Automatic Updates.......................................... 535
Bluetooth.............................................................. 535
Charge Settings.................................................. 536
Clock....................................................................... 535
Display................................................................... 536
Driver Assist......................................................... 535
FordPass............................................................... 535
General.................................................................. 535
Message Center................................................. 536
Mobile Apps......................................................... 535
Multi Contour Seats.......................................... 536
Navigation............................................................ 536
Personal Profiles................................................ 536
Phone..................................................................... 535
Seats...................................................................... 536
Sound..................................................................... 535
Valet Mode........................................................... 536
Vehicle................................................................... 535
Voice Control....................................................... 536
Setting the Cruise Control Speed..........253 Changing the Set Speed................................. 253
Side Airbags.....................................................55
Sitting in the Correct Position..................158
Sliding Windows..........................................108 Power Sliding Back Window.......................... 108
Snow Chains See: Using Snow Chains................................. 407
Snow Plowing
................................................327
Engine Temperature while Plowing............329
Installing the Snowplow.................................. 327
Operating the Vehicle with the Snowplow Attached.......................................................... 328Outside Air Temperature While
Plowing............................................................. 329
Snowplowing with your Airbag Equipped Vehicle.............................................................. 328
Snowplow Mode................................................ 328
Transmission Operation while Plowing............................................................. 329
Spare Wheel See: Changing a Road Wheel........................ 414
Special Notices.................................................17 New Vehicle Limited Warranty......................... 17
Notice to Owners of Pickup Trucks and Utility Type Vehicles......................................... 17
On Board Diagnostics Data Link Connector............................................................ 17
Special Instructions.............................................. 17
Using Your Vehicle as an Ambulance............18
Using Your Vehicle With a Snowplow...........18
Special Operating Conditions Scheduled Maintenance..............................................560
Diesel Engine....................................................... 562
Exceptions............................................................ 565
Speed Control See: Cruise Control............................................ 253
Spot Lamps
.....................................................98
Stability Control...........................................238
Principle of Operation...................................... 238
Starter Switch See: Ignition Switch............................................ 179
Starting a Diesel Engine
.............................184
Automatic Engine Shutdown........................ 185
Cold Weather Operation................................. 186
Cold Weather Starting...................................... 185
Diesel Engine Fast Start Glow Plug System............................................................... 185
Vehicles with Keyless Start............................ 184
Starting a Gasoline Engine........................181 Automatic Engine Shutdown......................... 183
Failure to Start..................................................... 182
Guarding Against Exhaust Fumes...............184
Important Ventilating Information..............184
Stopping the Engine When Your Vehicle is Moving............................................................... 183
Stopping the Engine When Your Vehicle is Stationary......................................................... 183
Vehicles with an Ignition Key........................... 181
Vehicles with Keyless Start.............................. 181
619
F-150 (TFC) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Index
