Page 491 of 796

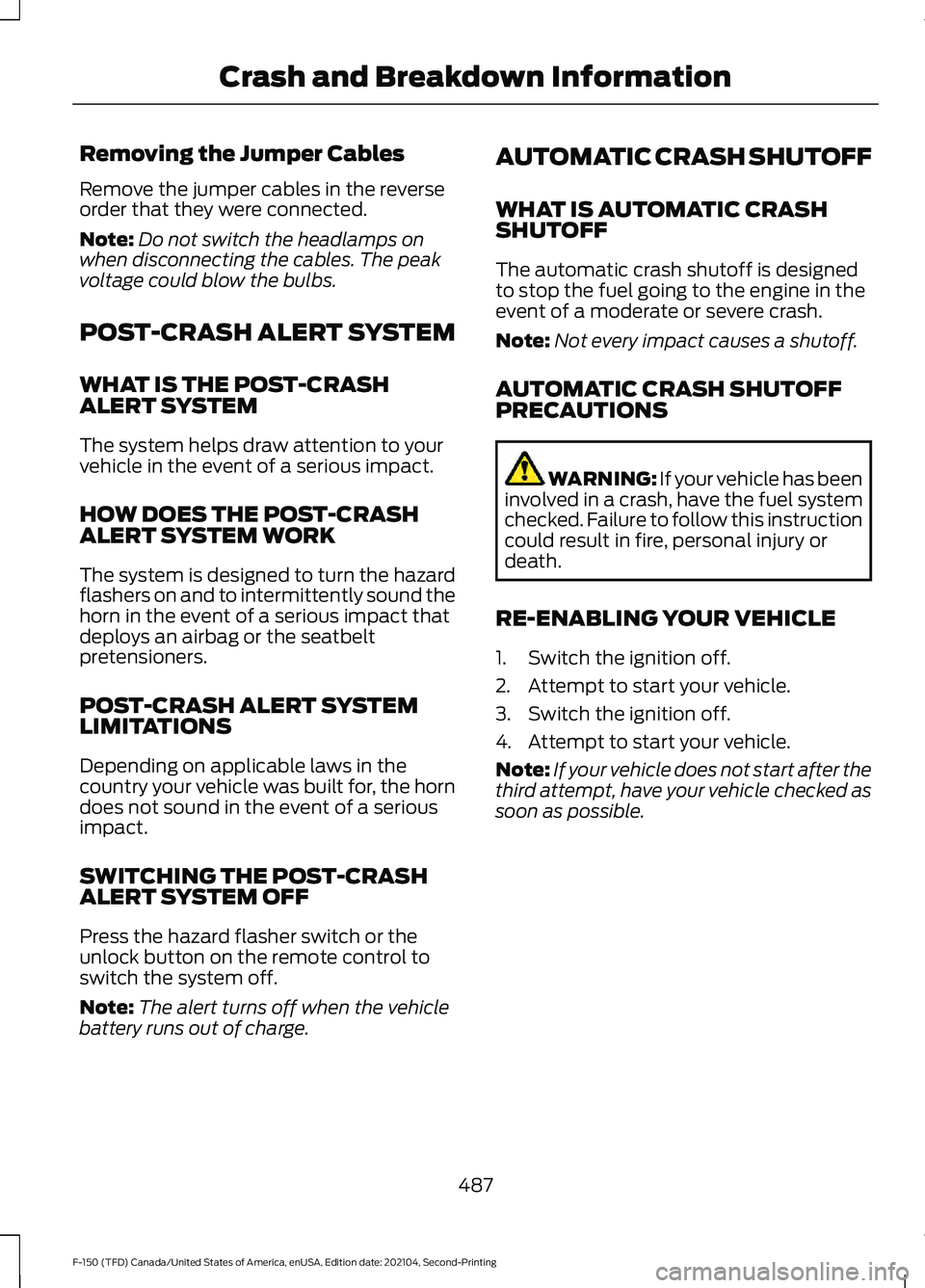

FORD F-150 2021  Owners Manual Removing the Jumper Cables
Remove the jumper cables in the reverse
order that they were connected.
Note:
Do not switch the headlamps on
when disconnecting the cables. The peak
voltage could blow the b

Page 492 of 796

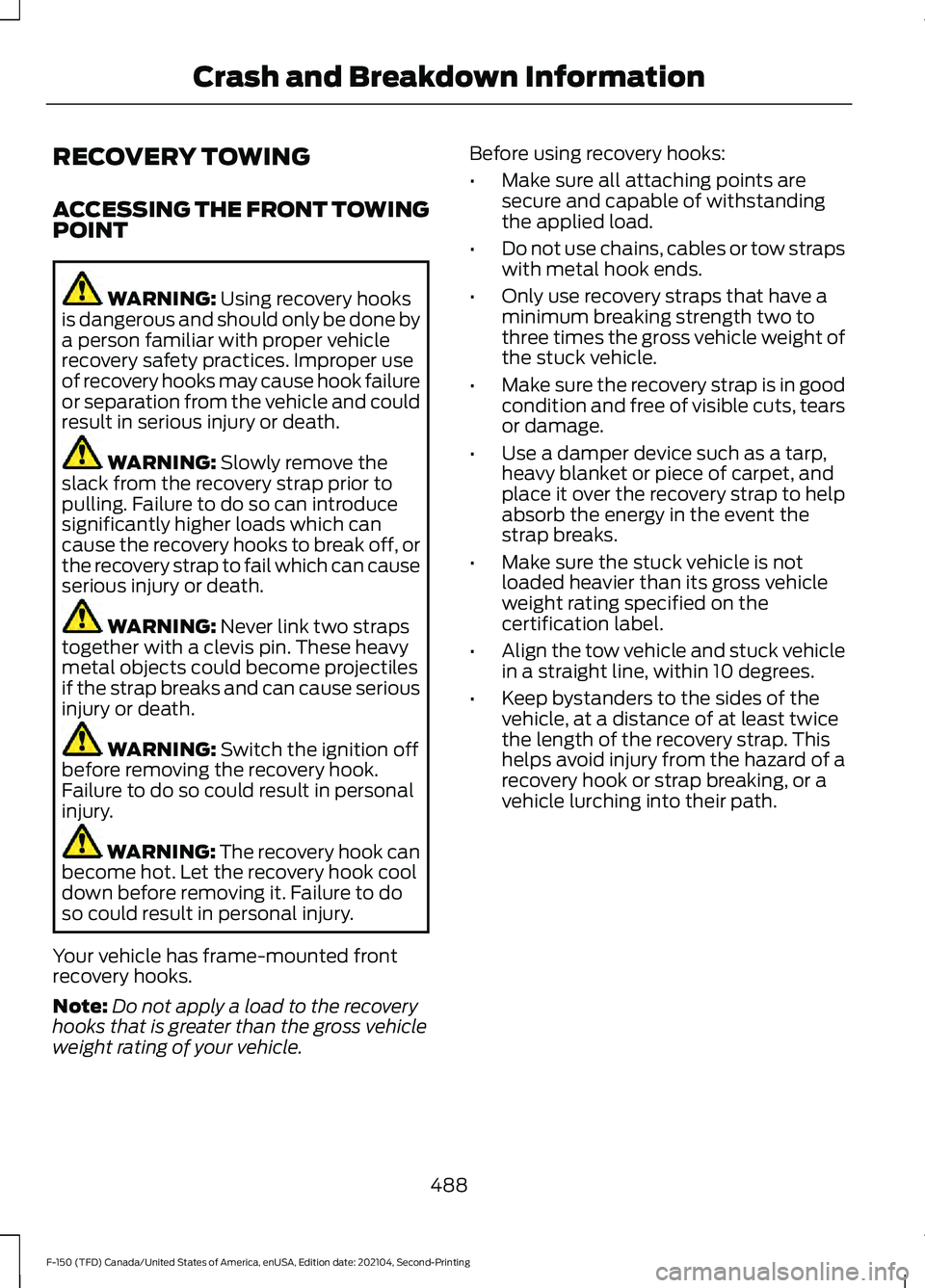

FORD F-150 2021  Owners Manual RECOVERY TOWING
ACCESSING THE FRONT TOWING
POINT
WARNING: Using recovery hooks
is dangerous and should only be done by
a person familiar with proper vehicle
recovery safety practices. Improper use
of

Page 493 of 796

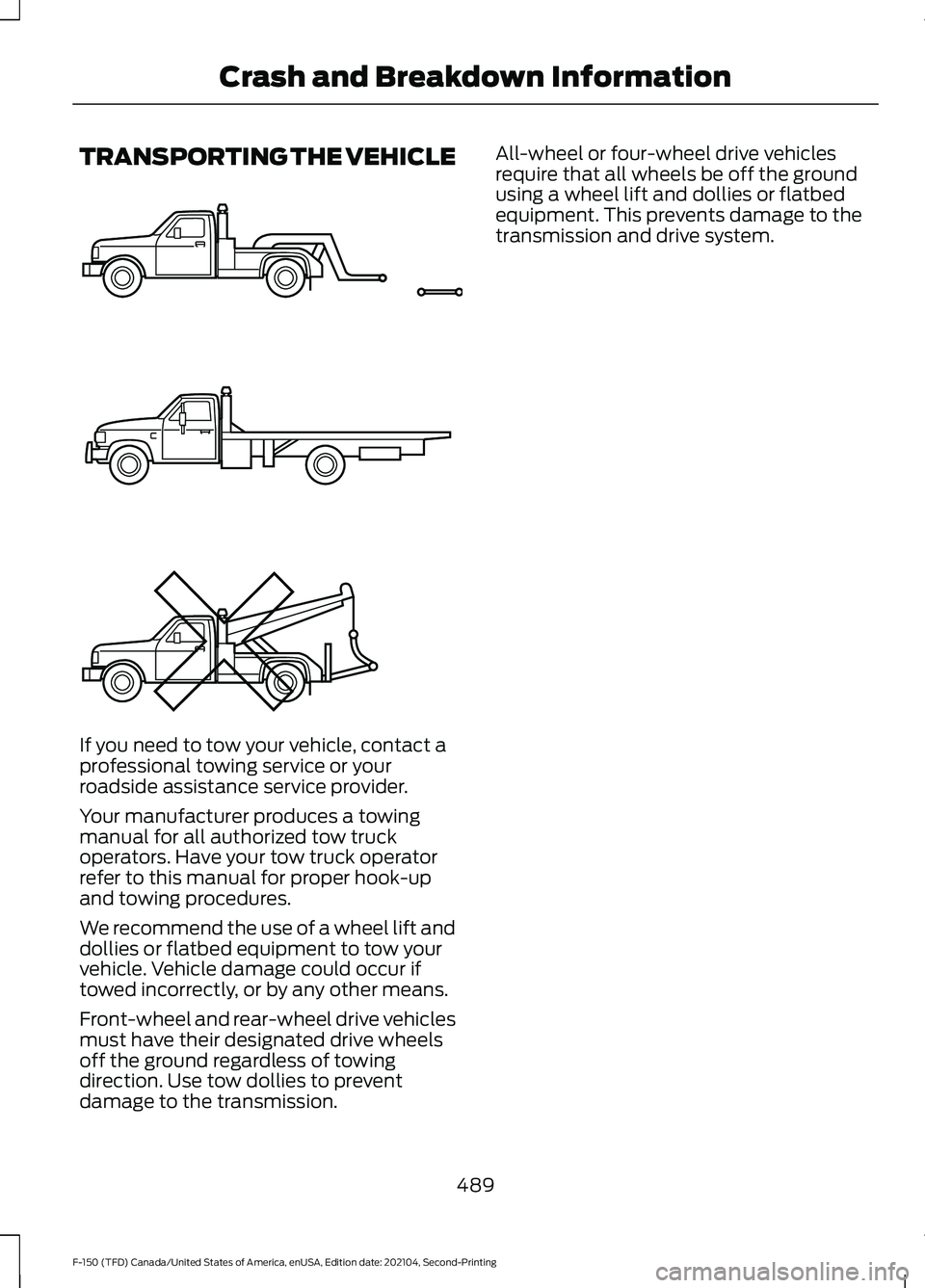

FORD F-150 2021  Owners Manual TRANSPORTING THE VEHICLE
If you need to tow your vehicle, contact a
professional towing service or your
roadside assistance service provider.
Your manufacturer produces a towing
manual for all authori

Page 494 of 796

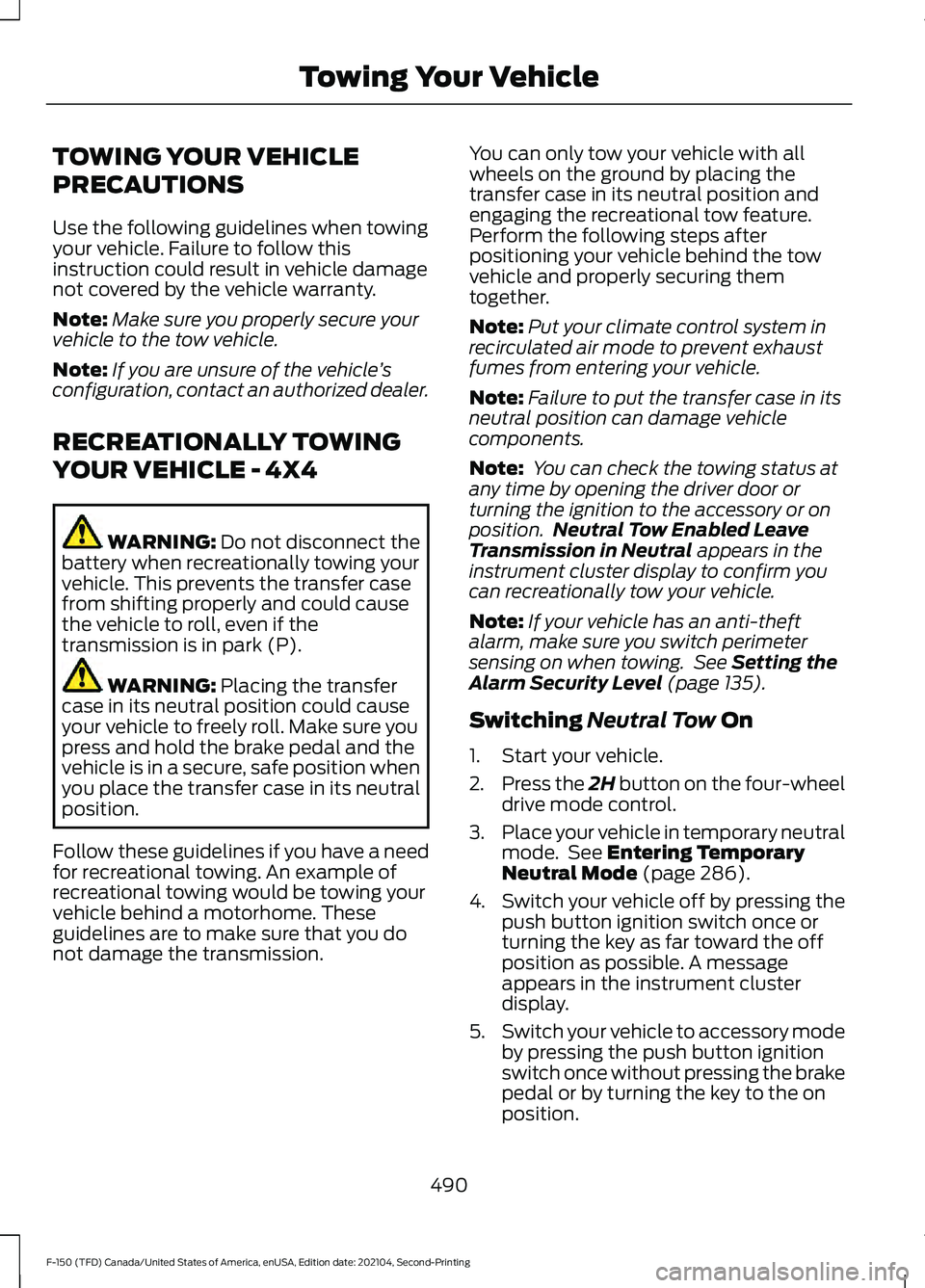

FORD F-150 2021  Owners Manual TOWING YOUR VEHICLE
PRECAUTIONS
Use the following guidelines when towing
your vehicle. Failure to follow this
instruction could result in vehicle damage
not covered by the vehicle warranty.
Note:
Make

Page 495 of 796

FORD F-150 2021  Owners Manual 6. Press and hold the brake pedal.
7. Using the instrument cluster controls
on the steering wheel, select Settings.
8. Select Neutral Tow.
9. Press and hold the
OK button until a
confirmation message

Page 496 of 796

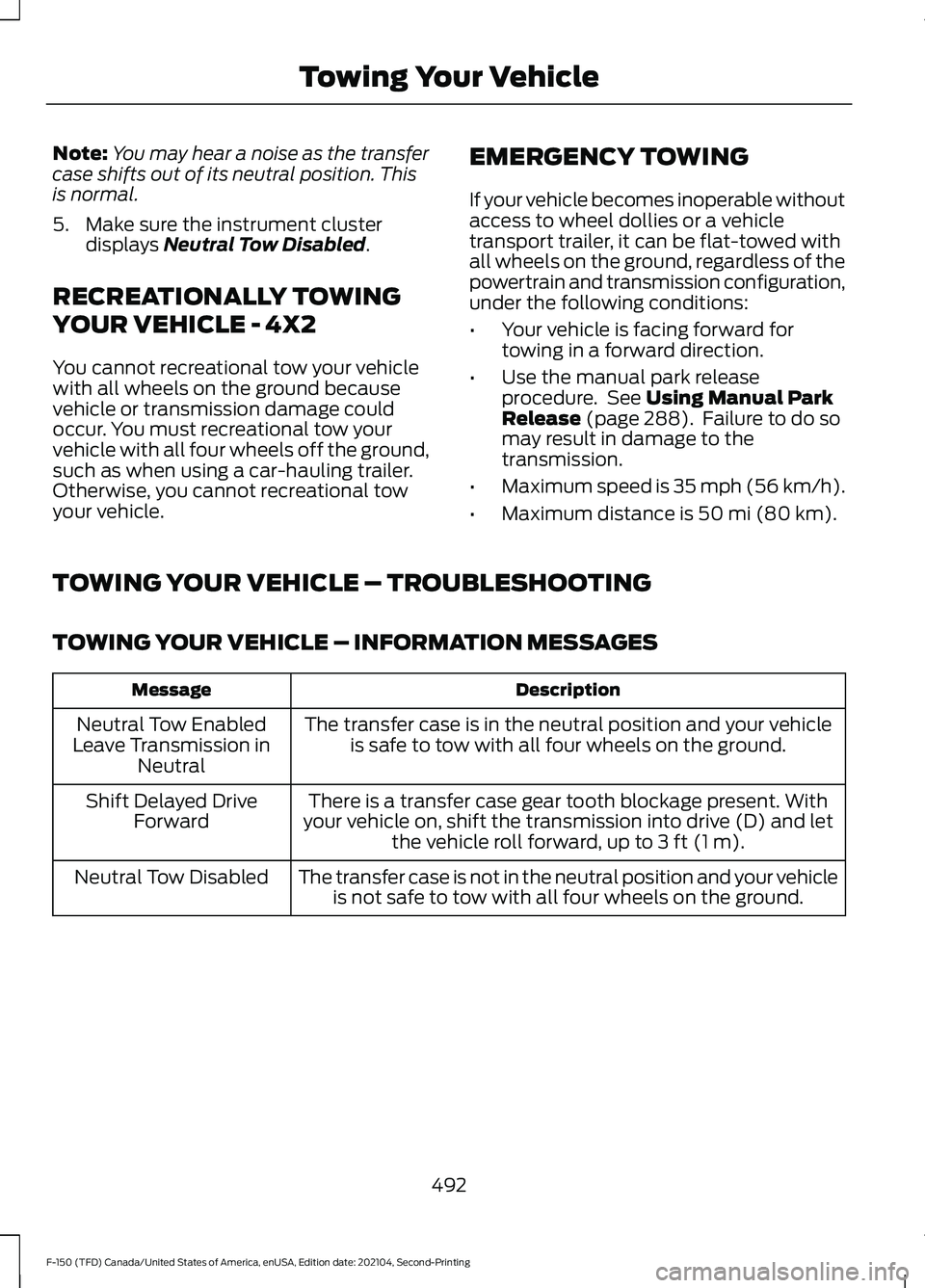

FORD F-150 2021  Owners Manual Note:
You may hear a noise as the transfer
case shifts out of its neutral position. This
is normal.
5. Make sure the instrument cluster displays Neutral Tow Disabled.
RECREATIONALLY TOWING
YOUR VEHICL

Page 497 of 796

FORD F-150 2021  Owners Manual FUSE PRECAUTIONS
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before

Page 498 of 796

FORD F-150 2021  Owners Manual IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected Component
Rating
Item
Body control module -
battery power in feed 1.
40 A
1
Body control module -
battery power in feed 2.
40 A
3
Fuel pump.

Page 499 of 796

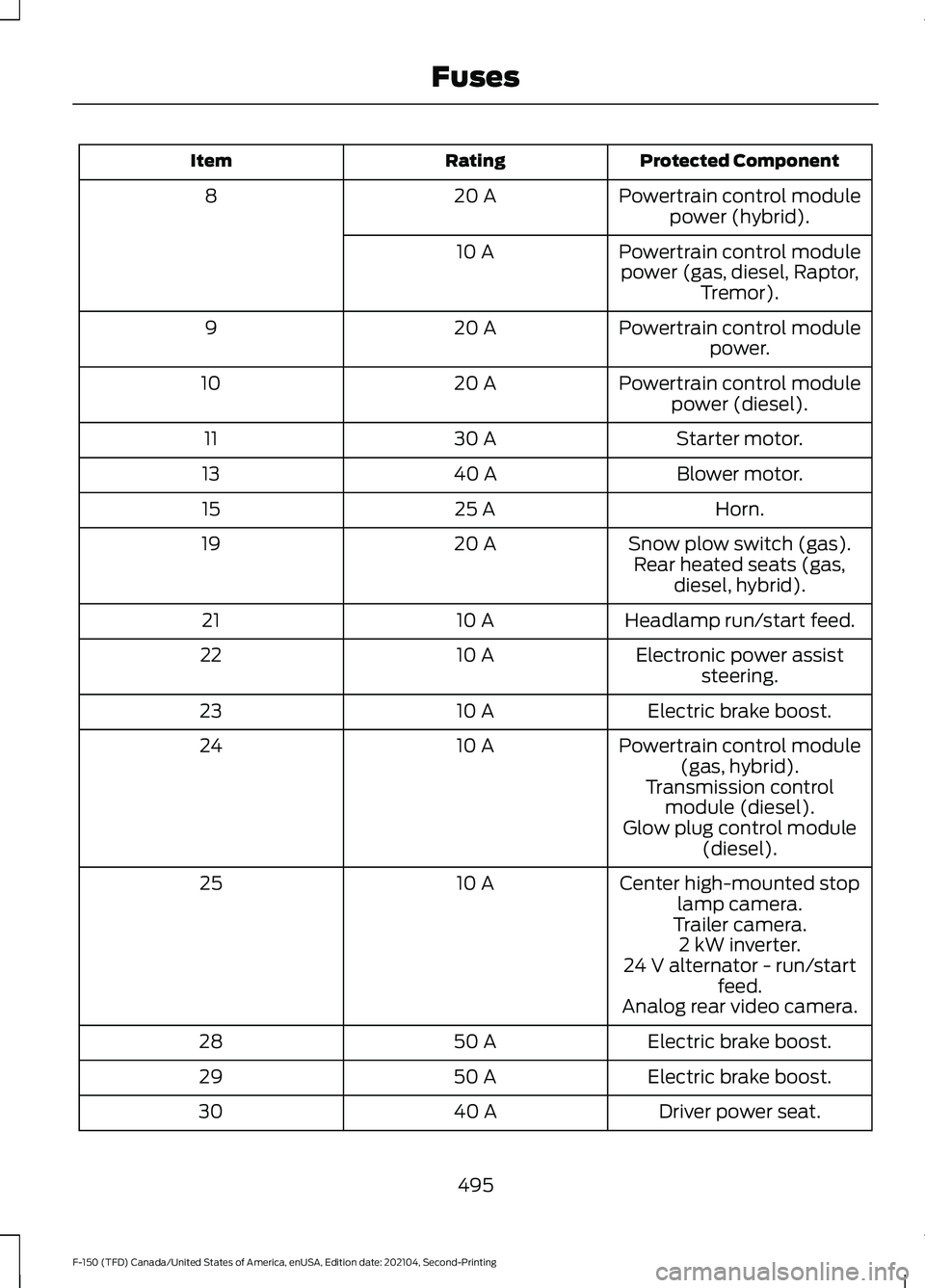

FORD F-150 2021  Owners Manual Protected Component
Rating
Item
Powertrain control modulepower (hybrid).
20 A
8
Powertrain control modulepower (gas, diesel, Raptor, Tremor).
10 A
Powertrain control modulepower.
20 A
9
Powertrain con

Page 500 of 796

FORD F-150 2021  Owners Manual Protected Component
Rating
Item
Passenger power seat.
30 A
31
Auxiliary power point.
20 A
32
Auxiliary power point.
20 A
33
USB smart charger.
Auxiliary power point.
20 A
34
Tailgate module.
30 A
37
C
