Page 501 of 796

FORD F-150 2021  Owners Manual Protected Component
Rating
Item
Four-wheel drive.
25 A
64
Transmission controlmodule (diesel).
15 A
65
Transmission run/start.
20 A
67
Left-hand windshield wiper.
30 A
69
Four-wheel drive.
25 A
82
Sup

Page 502 of 796

FORD F-150 2021  Owners Manual Protected Component
Rating
Item
USB smart charger.
5 A
139
Traction battery controlmodule (hybrid).
15 A
146
Change air cooler fan relay(Raptor, Tremor).
40 A
147
DC/DC power (hybrid).
5 A
159
Smart d

Page 503 of 796

FORD F-150 2021  Owners Manual BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROL
MODULE FUSE BOX ACCESSING THE BODY CONTROL
MODULE FUSE BOX
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
499
F-150 (TFD) Canada/Unite

Page 504 of 796

FORD F-150 2021  Owners Manual Protected Component
Fuse Rating
Fuse
Loca- tion
Not used.
—
1
Delayed accessory feed.
10 A
2
Wireless charger.
7.5 A
3
Not used.
20 A
4
Not used.
—
5
Driver power window switch.
10 A
6
Gear shift

Page 505 of 796

FORD F-150 2021  Owners Manual Protected Component
Fuse Rating
Fuse
Loca- tion
Driver door control module.
30 A
23
Moonroof.
30 A
24
Not used.
20 A
25
Passenger door control module.
30 A
26
Not used.
30 A
27
Amplifier.
30 A
28
12 i

Page 506 of 796

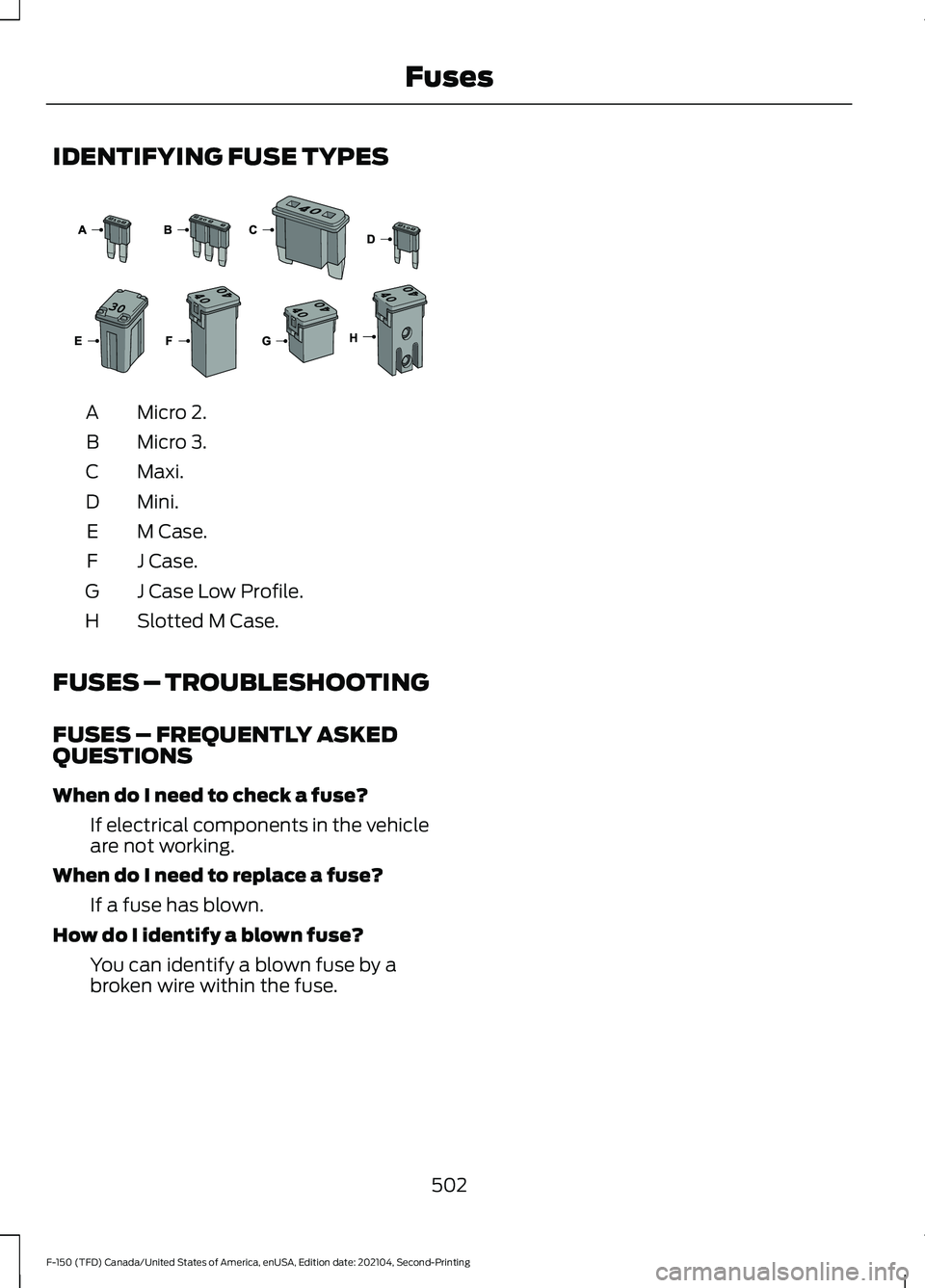

FORD F-150 2021  Owners Manual IDENTIFYING FUSE TYPES
Micro 2.
A
Micro 3.
B
Maxi.
C
Mini.
D
M Case.
E
J Case.
F
J Case Low Profile.
G
Slotted M Case.
H
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKED
QUESTIONS
When do I need t

Page 507 of 796

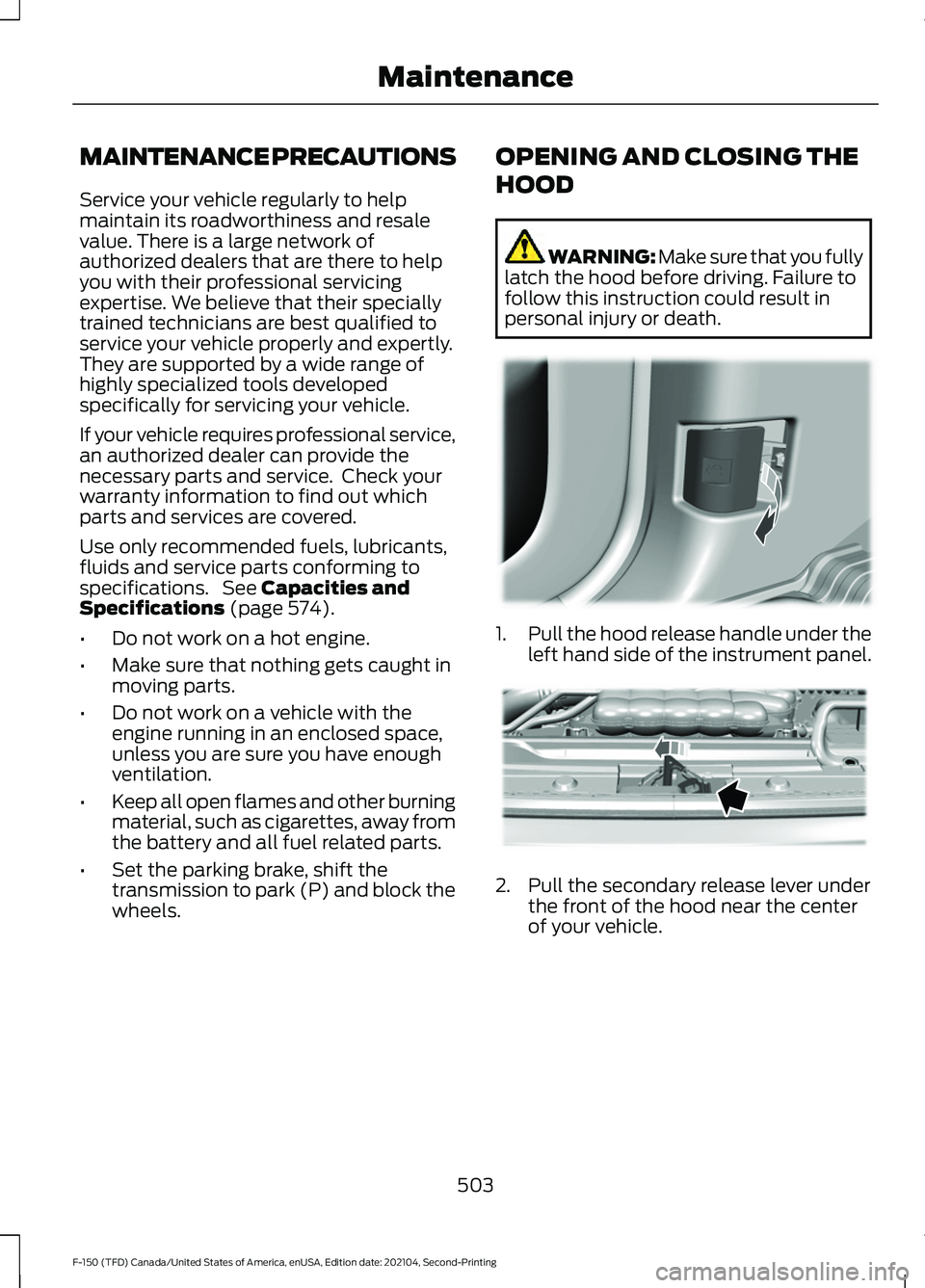

FORD F-150 2021  Owners Manual MAINTENANCE PRECAUTIONS
Service your vehicle regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their profes

Page 508 of 796

FORD F-150 2021  Owners Manual 3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it fully latches.
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™ Engine compartment fuse box. See Fuses

Page 509 of 796

FORD F-150 2021  Owners Manual Engine oil dipstick. See Engine Oil Dipstick Overview (page 510).
D.
Brake fluid reservoir.
 See Checking the Brake Fluid (page 309).
E.
Air filter assembly.
 See Changing the Engine Air Filter (page

Page 510 of 796

FORD F-150 2021  Owners Manual Engine coolant reservoir. See Checking the Coolant (page 511).
G.
Windshield washer fluid reservoir.
H.
UNDER HOOD OVERVIEW - 3.3L Engine compartment fuse box.
 See Fuses (page 493).
A.
Battery.
 See
