Crash and Breakdown
Information
Roadside Assistance .................................483
High Voltage Battery Vehicle Precautions - Hybrid Electric Vehicle (HEV) ........
484
Switching the Hazard Flashers On and Off ................................................................
485
Jump Starting the Vehicle .......................
485
Post-Crash Alert System .........................
487
Automatic Crash Shutoff ........................
487
Recovery Towing ........................................
488
Transporting the Vehicle .........................
489
Towing Your Vehicle
Towing Your Vehicle Precautions ........
490
Recreationally Towing Your Vehicle - 4x4 ..............................................................
490
Recreationally Towing Your Vehicle - 4x2 ........................................................................\
492
Emergency Towing ....................................
492
Towing Your Vehicle – Troubleshooting ........................................................................\
492
Fuses
Fuse Precautions ........................................
493
Under Hood Fuse Box ...............................
493
Body Control Module Fuse Box ............
499
Identifying Fuse Types ..............................
502
Fuses – Troubleshooting .........................
502
Maintenance
Maintenance Precautions .......................
503
Opening and Closing the Hood .............
503
Under Hood Overview - 2.7L EcoBoost™ .......................................................................
504
Under Hood Overview - 3.0L Diesel .....
505
Under Hood Overview - 3.3L .................
506
Under Hood Overview - 3.5L Ecoboost™ ........................................................................\
507
Under Hood Overview - 3.5L, Hybrid Electric Vehicle (HEV) .........................
508Under Hood Overview - 5.0L
.................
509
Engine Oil .......................................................
510
Checking the Coolant .................................
511
Engine Air Filter .............................................
515
Draining the Fuel Filter Water Trap - Diesel ...........................................................
518
Changing the Fuel Filter - Diesel ...........
519
Changing the Fuel Filter - Gasoline ......
519
Changing the 12V Battery .........................
519
Adjusting the Headlamps .........................
521
Exterior Bulbs ...............................................
522
Interior Bulbs .................................................
531
Drive Belt Routing - 2.7L EcoBoost™, Vehicles With: Dual Generators .........
531
Drive Belt Routing - 2.7L EcoBoost™, Vehicles With: Single Generator ........
531
Drive Belt Routing - 3.0L Diesel ..............
531
Drive Belt Routing - 3.3L ...........................
532
Drive Belt Routing - 3.5L Ecoboost™, Vehicles With: Dual Generators ........
532
Drive Belt Routing - 3.5L Ecoboost™, Vehicles With: Single Generator .......
532
Drive Belt Routing - 3.5L, Hybrid Electric Vehicle (HEV) ..........................................
532
Drive Belt Routing - 5.0L, Vehicles With: Single Generator .....................................
533
Drive Belt Routing - 5.0L, Vehicles With: Dual Generators ......................................
533
Vehicle Care
Cleaning Products ......................................
534
Cleaning the Exterior .................................
535
Cleaning the Interior ...................................
537
Repairing Minor Paint Damage .............
539
Waxing Your Vehicle ..................................
539
Storing Your Vehicle
Preparing Your Vehicle for Storage ......
540
Removing Your Vehicle From Storage ........................................................................\
.
541
15
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Table of Contents
Page 497 of 796

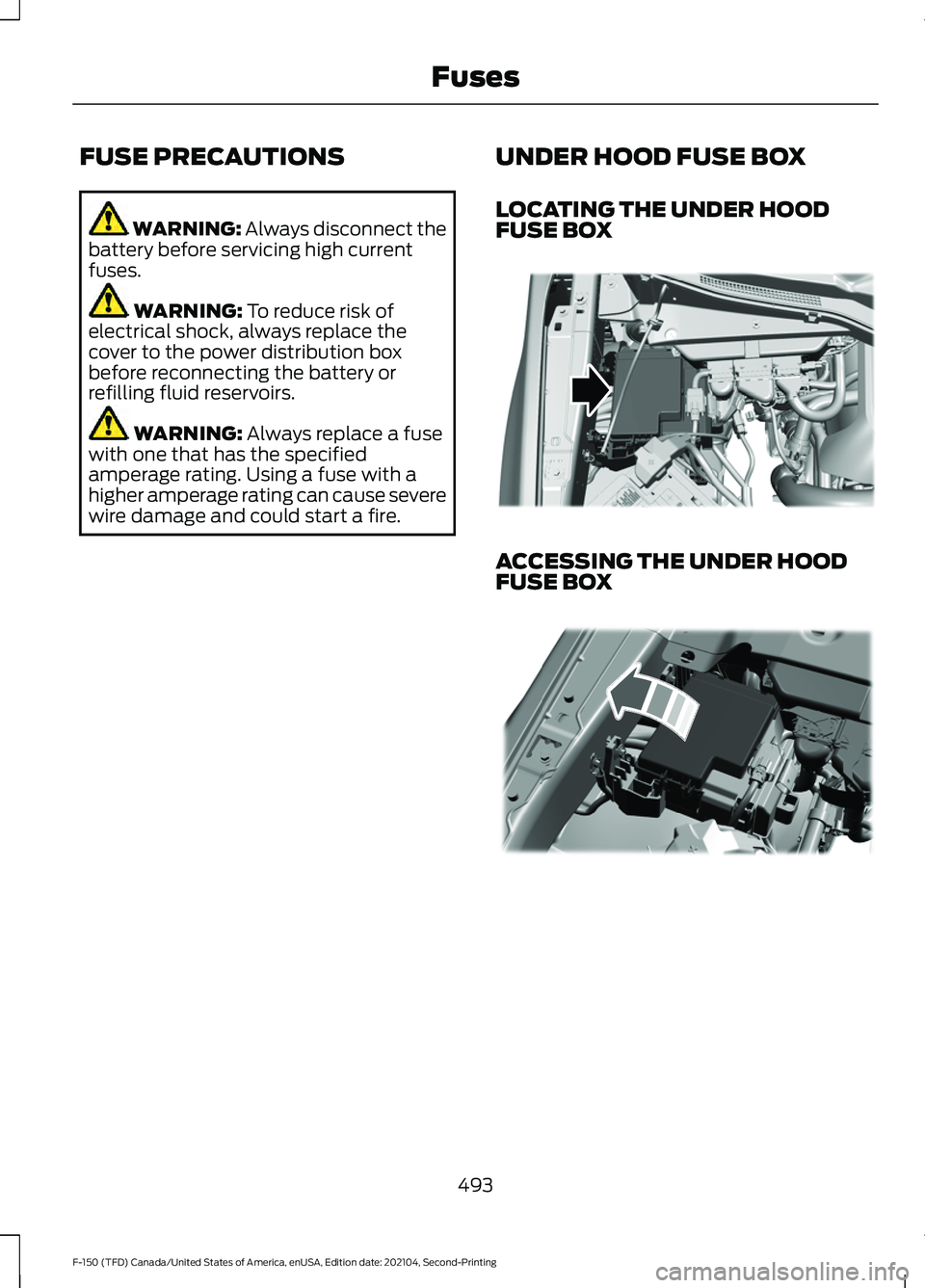

FUSE PRECAUTIONS
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. WARNING:
Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. UNDER HOOD FUSE BOX
LOCATING THE UNDER HOOD
FUSE BOX ACCESSING THE UNDER HOOD
FUSE BOX
493
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing FusesE311329 E322941
Page 498 of 796

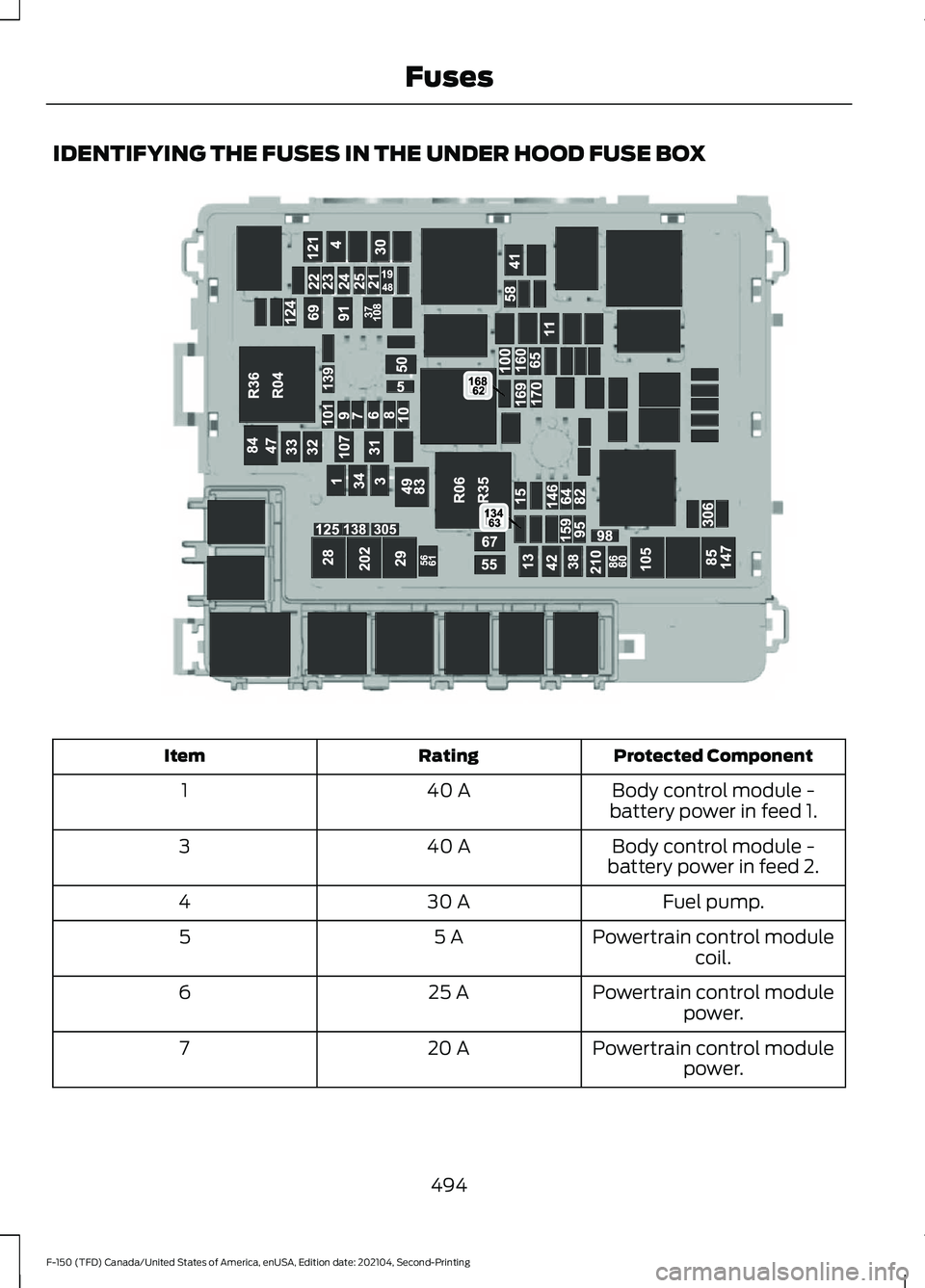

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected Component
Rating
Item
Body control module -
battery power in feed 1.
40 A
1
Body control module -
battery power in feed 2.
40 A
3
Fuel pump.
30 A
4
Powertrain control modulecoil.
5 A
5
Powertrain control modulepower.
25 A
6
Powertrain control modulepower.
20 A
7
494
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing FusesE346600
Page 503 of 796

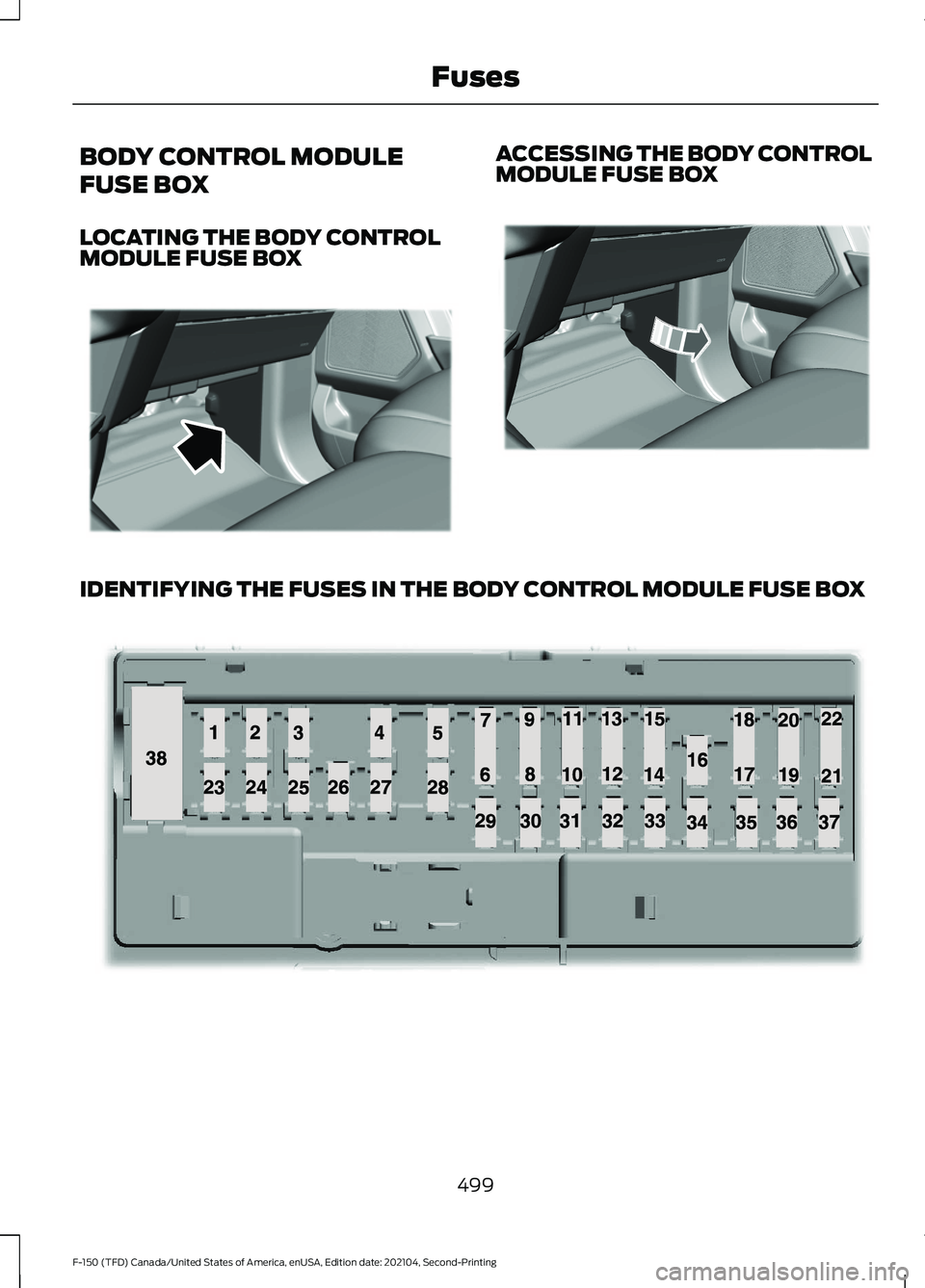

BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROL
MODULE FUSE BOX ACCESSING THE BODY CONTROL
MODULE FUSE BOX
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
499
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing FusesE322874 E322804 E145984
Page 508 of 796
3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it fully latches.

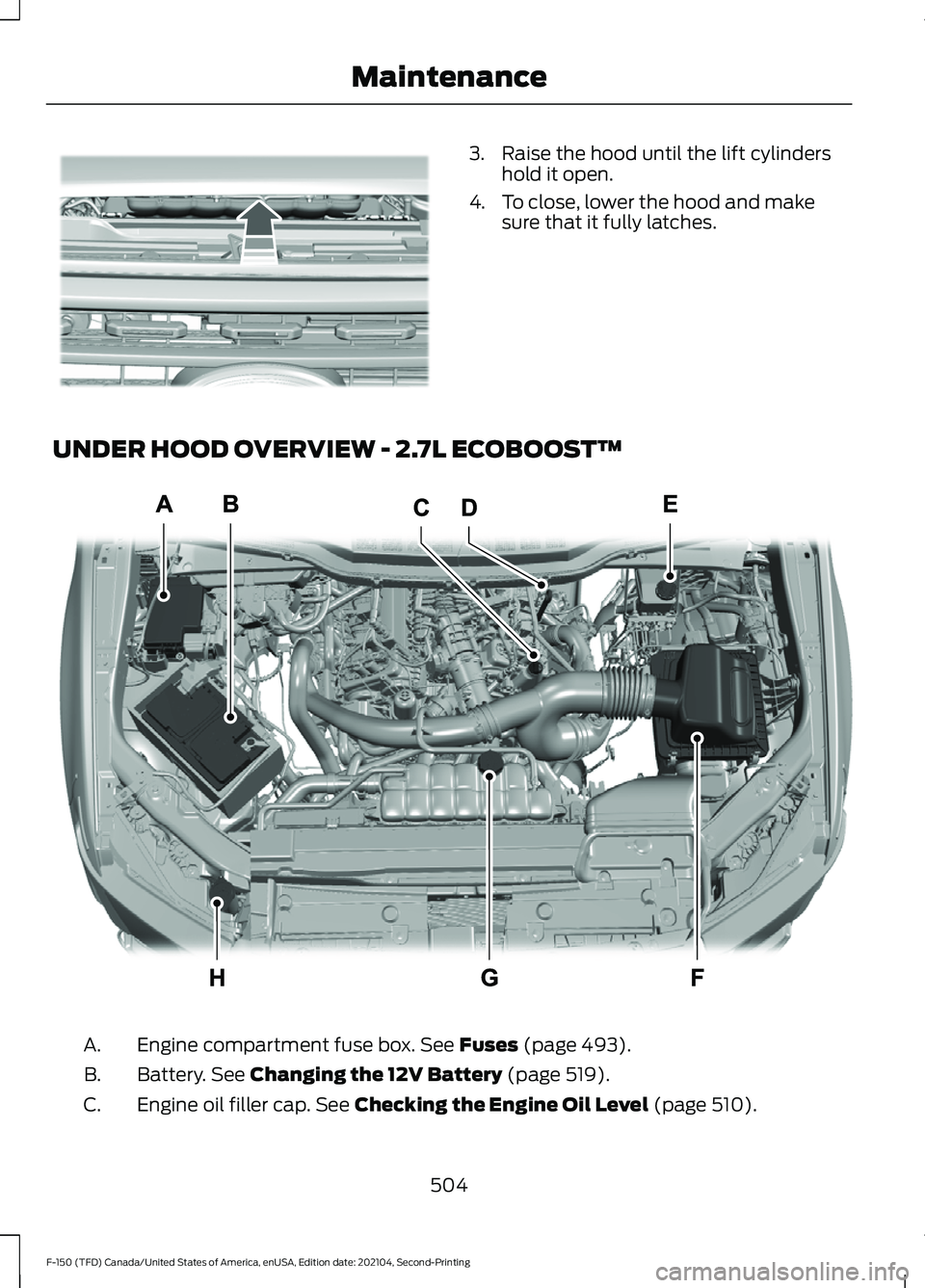

UNDER HOOD OVERVIEW - 2.7L ECOBOOST™ Engine compartment fuse box. See Fuses (page 493).
A.
Battery.
See Changing the 12V Battery (page 519).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 510).
C.
504
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing MaintenanceE338089 E337516
Page 509 of 796
Engine oil dipstick. See Engine Oil Dipstick Overview (page 510).
D.
Brake fluid reservoir.
See Checking the Brake Fluid (page 309).
E.
Air filter assembly.
See Changing the Engine Air Filter (page 516).
F.
Engine coolant reservoir.
See Checking the Coolant (page 511).
G.
Windshield washer fluid reservoir.
H.

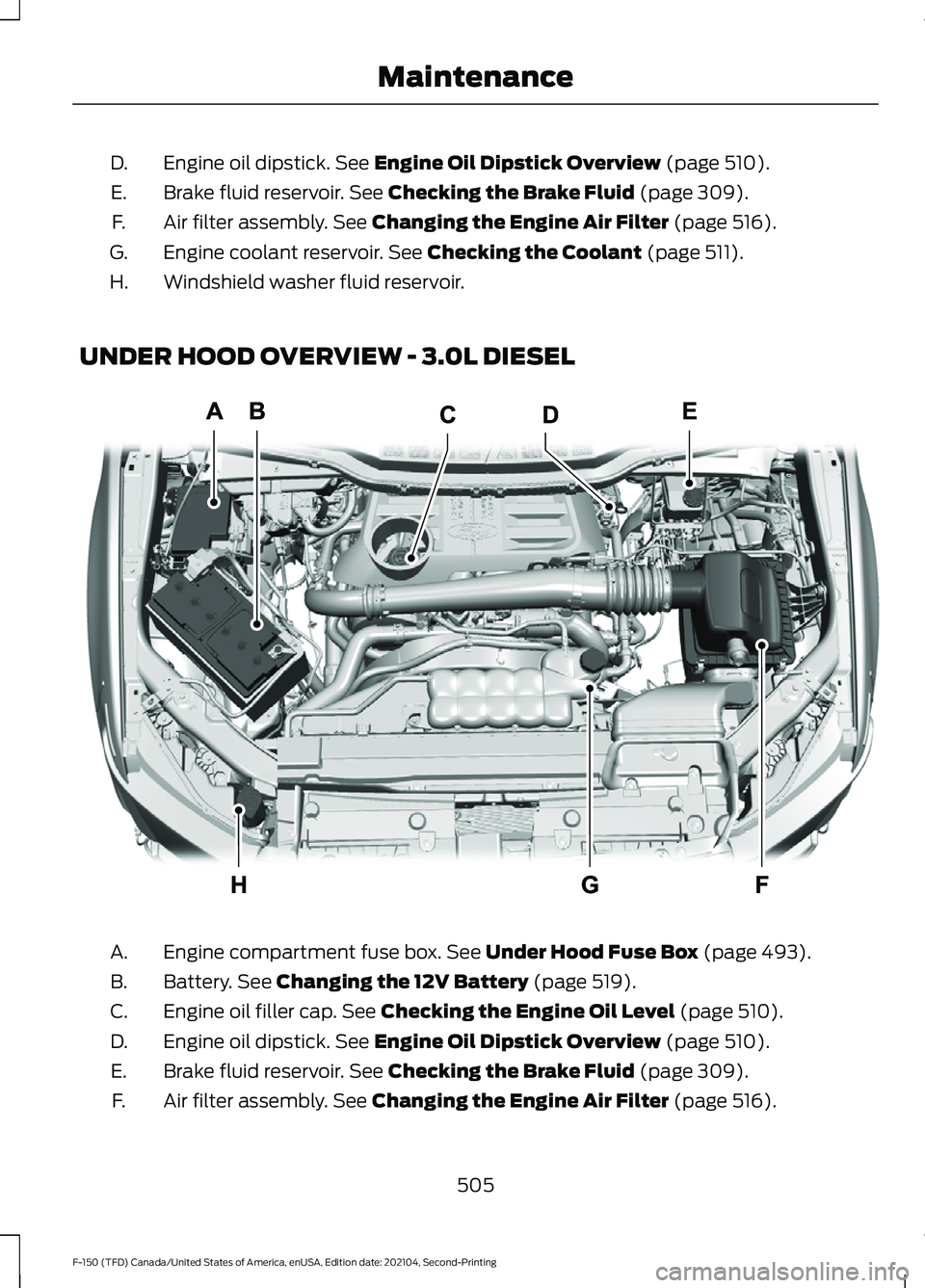

UNDER HOOD OVERVIEW - 3.0L DIESEL Engine compartment fuse box.
See Under Hood Fuse Box (page 493).
A.
Battery.
See Changing the 12V Battery (page 519).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 510).
C.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 510).
D.
Brake fluid reservoir.
See Checking the Brake Fluid (page 309).
E.
Air filter assembly.
See Changing the Engine Air Filter (page 516).
F.
505
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing MaintenanceE337515
Page 510 of 796
Engine coolant reservoir. See Checking the Coolant (page 511).
G.
Windshield washer fluid reservoir.
H.

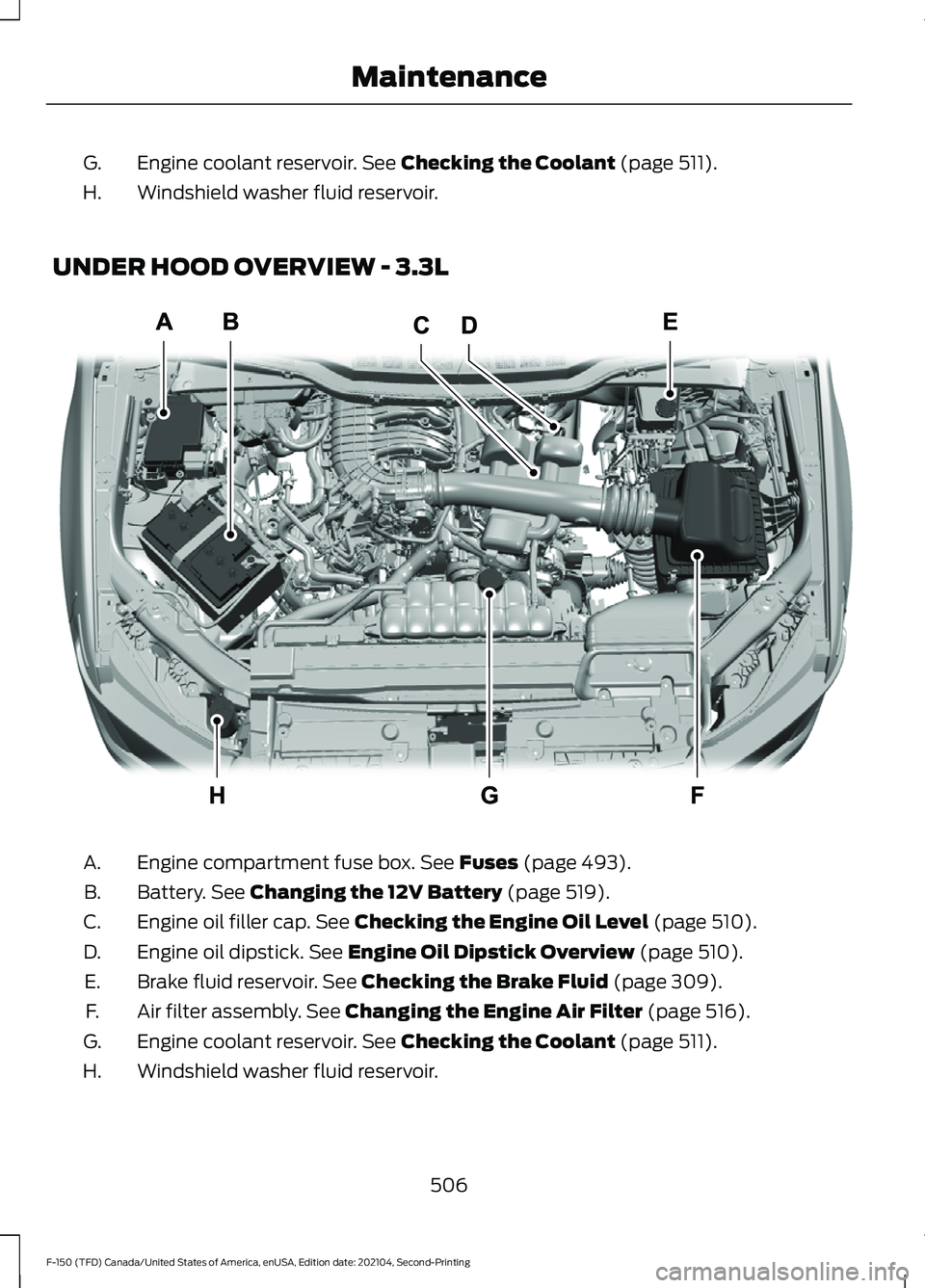

UNDER HOOD OVERVIEW - 3.3L Engine compartment fuse box.
See Fuses (page 493).
A.
Battery.
See Changing the 12V Battery (page 519).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 510).
C.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 510).
D.
Brake fluid reservoir.
See Checking the Brake Fluid (page 309).
E.
Air filter assembly.
See Changing the Engine Air Filter (page 516).
F.
Engine coolant reservoir.
See Checking the Coolant (page 511).
G.
Windshield washer fluid reservoir.
H.
506
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing MaintenanceE337514
Page 511 of 796

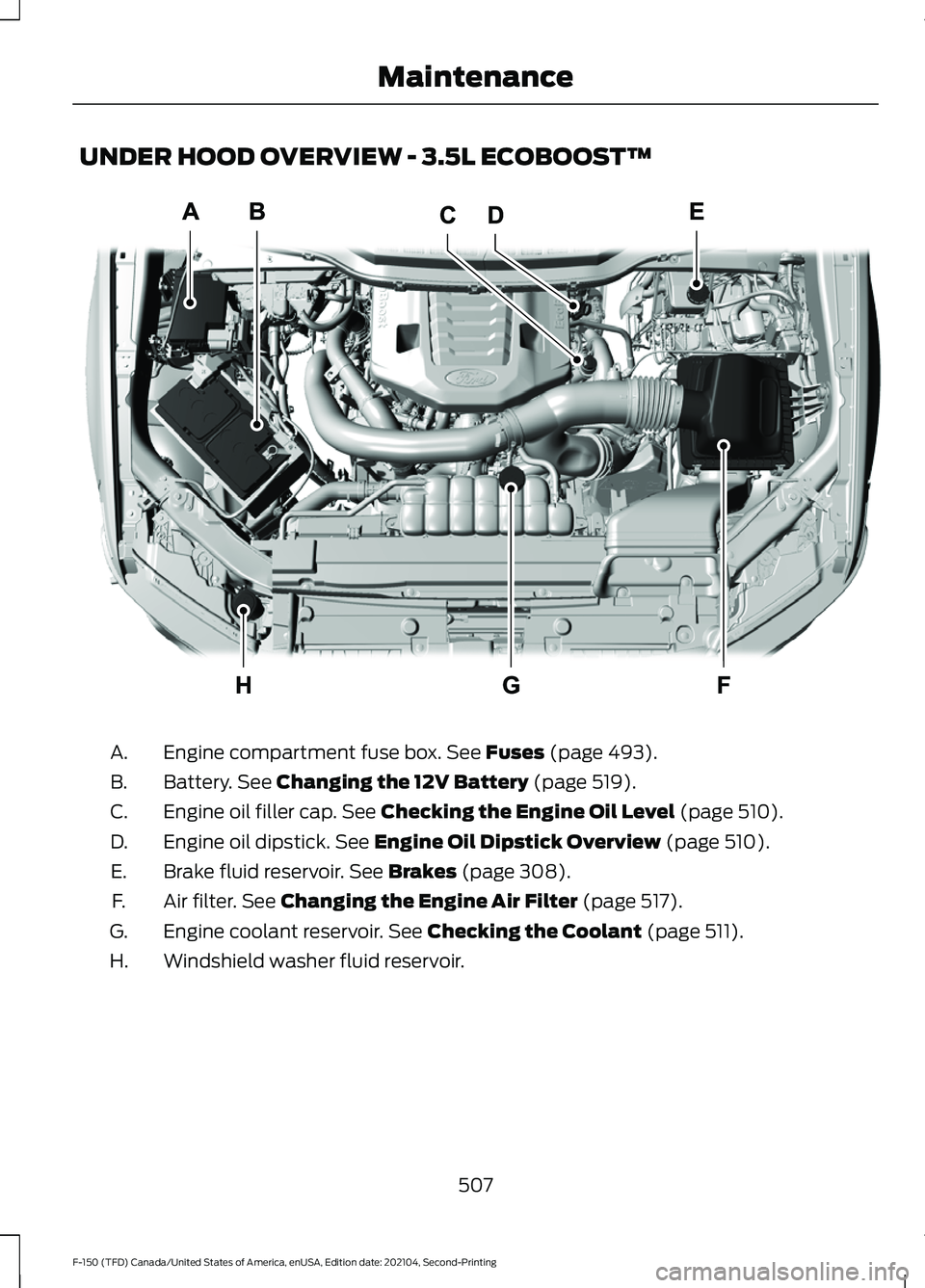

UNDER HOOD OVERVIEW - 3.5L ECOBOOST™
Engine compartment fuse box. See Fuses (page 493).
A.
Battery.
See Changing the 12V Battery (page 519).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 510).
C.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 510).
D.
Brake fluid reservoir.
See Brakes (page 308).
E.
Air filter.
See Changing the Engine Air Filter (page 517).
F.
Engine coolant reservoir.
See Checking the Coolant (page 511).
G.
Windshield washer fluid reservoir.
H.
507
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing MaintenanceE313722
Page 512 of 796

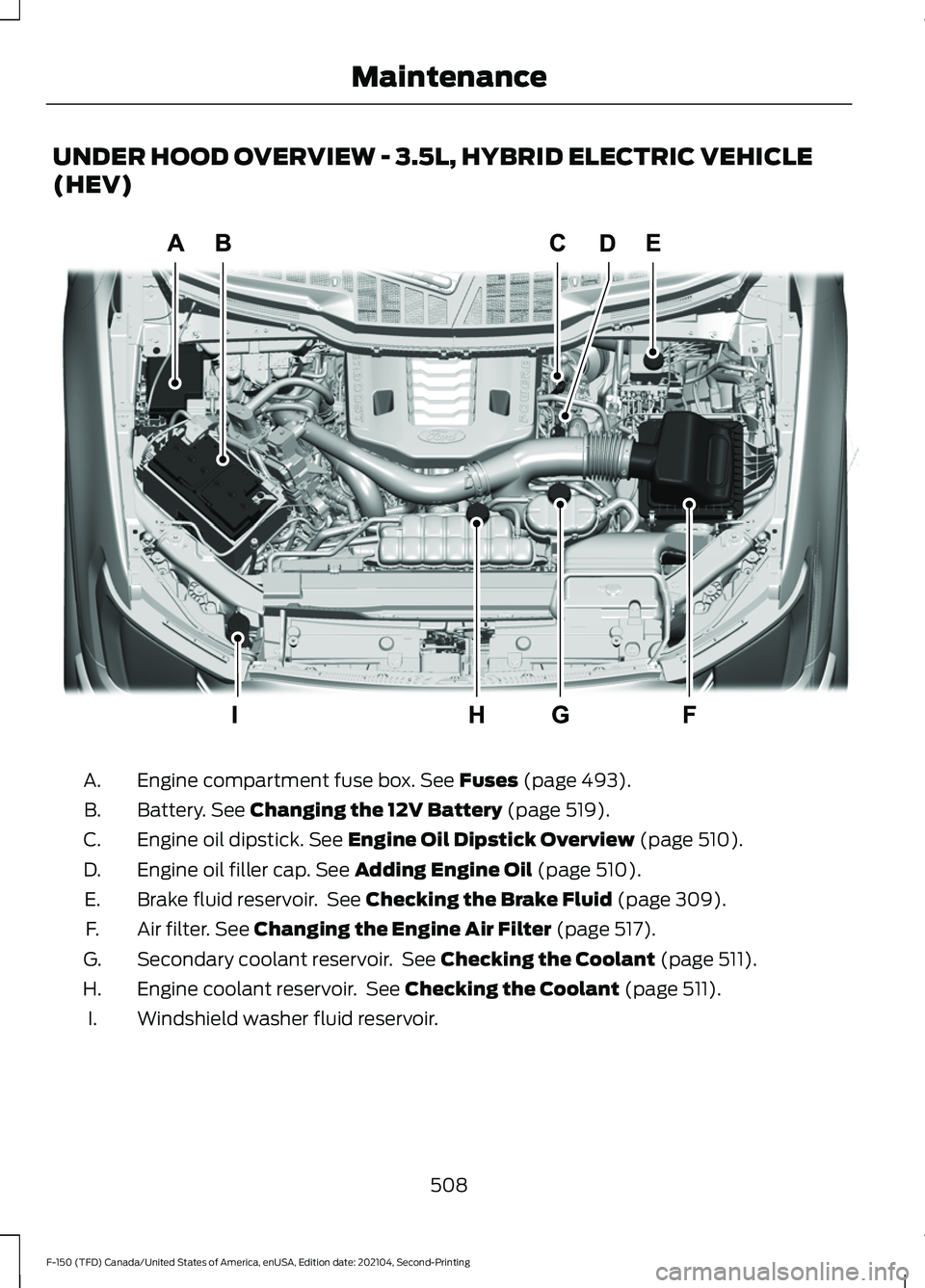

UNDER HOOD OVERVIEW - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Engine compartment fuse box. See Fuses (page 493).
A.
Battery.
See Changing the 12V Battery (page 519).
B.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 510).
C.
Engine oil filler cap.
See Adding Engine Oil (page 510).
D.
Brake fluid reservoir. See
Checking the Brake Fluid (page 309).
E.
Air filter.
See Changing the Engine Air Filter (page 517).
F.
Secondary coolant reservoir. See
Checking the Coolant (page 511).
G.
Engine coolant reservoir. See
Checking the Coolant (page 511).
H.
Windshield washer fluid reservoir.
I.
508
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing MaintenanceE333718
Page 513 of 796

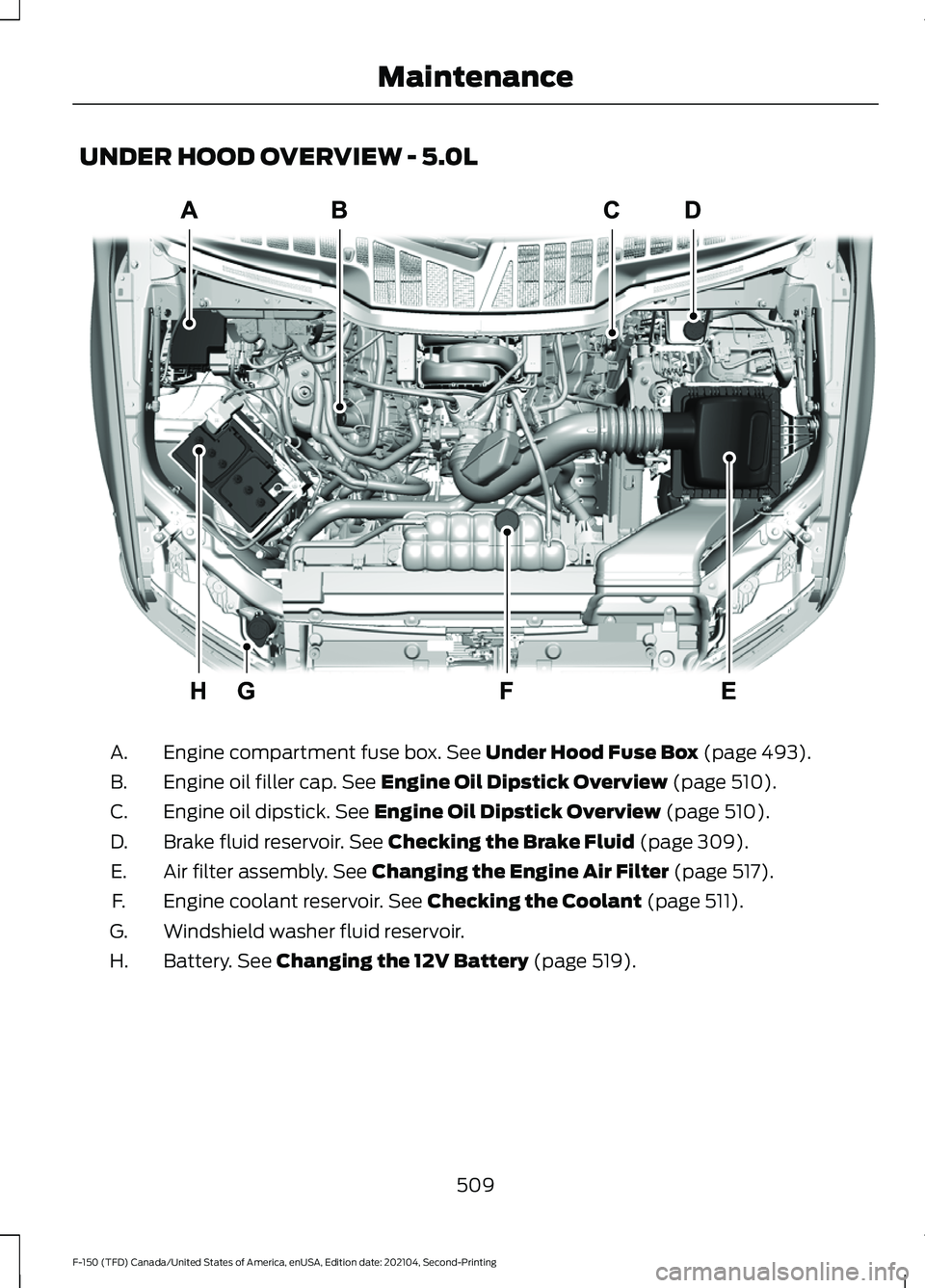

UNDER HOOD OVERVIEW - 5.0L
