WHAT IS ACTIVE PARK
ASSIST
Assists you with parking in and out of
parking spaces.
HOW DOES ACTIVE PARK
ASSIST WORK
Active park assist uses sensors to detect
parking spaces. Active park assist controls
steering, acceleration, braking and shifting
as required to maneuver into or out of a
parking space when activate.
ACTIVE PARK ASSIST
PRECAUTIONS
WARNING: You must remain in
your vehicle when the system turns on.
At all times, you are responsible for
controlling your vehicle, supervising the
system and intervening, if required.
Failure to take care may result in the loss
of control of your vehicle, serious
personal injury or death. WARNING:
The sensors may not
detect objects in heavy rain or other
conditions that cause interference. WARNING: You are responsible for
controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death. WARNING:
Do not use the system
with accessories that extend beyond the
front or rear of your vehicle, for example
a trailer hitch or bike rack. The system is
not able to make corrections for the
additional length of the accessories.
SWITCHING ACTIVE PARK
ASSIST ON AND OFF Press the parking aid button,
then press the active park assist
icon on the touchscreen to bring
up full screen notifications.
Press the soft keys on the touchscreen to
switch between the parallel park in,
perpendicular park in, or parallel park out
parking modes.
Cancelling Active Park Assist
To cancel parking assistance at any time,
shift out of neutral (N).
Pausing Active Park Assist
To pause parking assistance at any time,
release the parking aid button.
If you open the passenger or rear doors,
active park assist pauses.
To resume parking, press and hold the
parking aid button again.
ENTERING A PARALLEL
PARKING SPACE
1. Press the parking aid button.
Note: The system detects other vehicles
and curbs to find a parking space.
2. Press the active park assist icon on the
touchscreen.
3. Select parallel parking.
325
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Active Park Assist
(If Equipped)PE326188

4. Use the turn signal to choose the
direction to exit the parking space.
5. Press and hold the brake pedal.
6. Release the steering wheel and shift into neutral (N).
7. Release the parking brake.
8. Press and hold the parking aid button.
9. Release the brake pedal to allow your vehicle to move.
Note: After active park assist drives your
vehicle to a position where you can exit the
parking space in a forward movement, a
message appears instructing you to take full
control of your vehicle.
10. Take control of your vehicle.
Note: You can slow down your vehicle at
any time by pressing the brake pedal.
ACTIVE PARK ASSIST –
TROUBLESHOOTING
ACTIVE PARK ASSIST –
INFORMATION MESSAGES Action
Message
The system
requires service.
Have your vehicle
checked as soon as possible.
Active Park Fault
ACTIVE PARK ASSIST –
FREQUENTLY ASKED QUESTIONS
Why does active park assist not
operate correctly? The system is unable to detect a
vehicle, curb or object to park next to
or in between. The system needs
boundary objects to operate correctly. Why does active park assist not search
for a parking space?
You have switched traction control off.
Why does active park assist not search
for a parking space? The transmission is in reverse (R). Your
vehicle must be moving forward to be
able to detect a parking space.
Why does active park assist not offer
a parking space? The sensors could be blocked. For
example, snow, ice or large
accumulations of dirt. Blocked sensors
can affect how the system functions.
Why does active park assist not offer
a parking space? The sensors in the front or rear bumper
could be damaged.
Why does active park assist not offer
a parking space? There is not enough room in the
parking space for your vehicle to safely
park.
Why does active park assist not offer
a parking space? There is not enough space for the
parking maneuver on the opposite side
of the parking space.
Why does active park assist not offer
a parking space? The parking space is more than 5 ft
(1.5 m) or less than 2 ft (0.5 m) away
from your vehicle.
Why does active park assist not offer
a parking space? Your vehicle's speed is greater than
22 mph (35 km/h) for parallel parking
or greater than
19 mph (30 km/h) for
perpendicular parking.
327
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Active Park Assist
(If Equipped)

WHAT IS CROSS TRAFFIC
ALERT
The system alerts you of vehicles
approaching from the sides behind your
vehicle when you shift into reverse (R).
HOW DOES CROSS TRAFFIC
ALERT WORK
Cross traffic alert detects vehicles that
approach at a speed between 4–
37 mph
(6–60 km/h). Coverage decreases when
the sensors are partially, mostly or fully
obstructed. The sensor on the left-hand side is only
partially obstructed and zone coverage on
the right-hand side is maximized.
Zone coverage also decreases when
parking at narrow angles. The sensor on
the left-hand side is mostly obstructed and
zone coverage on that side is severely
reduced.
Note:
Slowly reversing helps increase the
coverage area and effectiveness. CROSS TRAFFIC ALERT
PRECAUTIONS WARNING:
Do not use the cross
traffic alert system as a replacement for
using the interior and exterior mirrors or
looking over your shoulder before
reversing out of a parking space. The
cross traffic alert system is not a
replacement for careful driving. WARNING:
The system may not
operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.
CROSS TRAFFIC ALERT
LIMITATIONS
The system may not correctly operate
when any of the following occur:
• Something is blocking the sensors.
• Adjacently parked vehicles or objects
are obstructing the sensors.
• Vehicles approach at speeds less than
4 mph (6 km/h) or greater than 37 mph
(60 km/h)
.
• Your vehicle speed is greater than
7 mph (12 km/h)
.
• You reverse out of an angled parking
space.
372
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Cross Traffic Alert
(If Equipped)E142440 E142441

WHAT IS TRAILER HITCHING
ASSISTANCE
Trailer hitching assistance helps the driver
align the vehicle hitch ball to a trailer
coupler.
HOW DOES TRAILER HITCHING
ASSISTANCE WORK
Trailer hitching assistance uses the
following to detect your trailer:
•
Rear view camera.
• Radar.
• Parking aid sensors.
• External rear lighting.
This feature also controls the following to
align the hitch ball with the trailer coupler:
• Steering.
• Shifting.
• Braking and acceleration.
Note: Blocked sensors could affect system
performance. Do not cover the sensors with
bumper stickers, tape, repair compound or
other objects.
TRAILER HITCHING
ASSISTANCE PRECAUTIONS WARNING: You are responsible for
controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death. WARNING: The system is not
designed to detect cyclists,
motorcyclists, pedestrians or animals.
Apply the brakes when necessary. Failure
to follow this instruction could result
personal injury or death. WARNING:
The system may not
operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.
Note: Trailer hitching assistance only works
with conventional trailers, couplers and
hitch balls.
Note: The hitch ball must be properly
installed on the vehicle for the system to
function as intended. An improperly
installed hitch ball could result in damage
to your vehicle or trailer.
Note: Certain aftermarket modifications
such as oversized tires or lift kits could make
trailer hitching assistance fail or not work
as intended.
Note: Keep the sensors and camera free
from snow, ice and dirt.
Note: Clean the camera lens with a soft,
lint-free cloth and non-abrasive cleaner.
TRAILER HITCHING
ASSISTANCE LIMITATIONS
The system could not function or could
function with reduced performance during
the following:
• When using trailer hitching assistance
in tall grass and weeds.
• When safety chains, cables or wiring
are dangling near the coupler.
• When using trailer hitching assistance
on slippery surfaces.
415
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Trailer Hitching Assistance
(If Equipped)

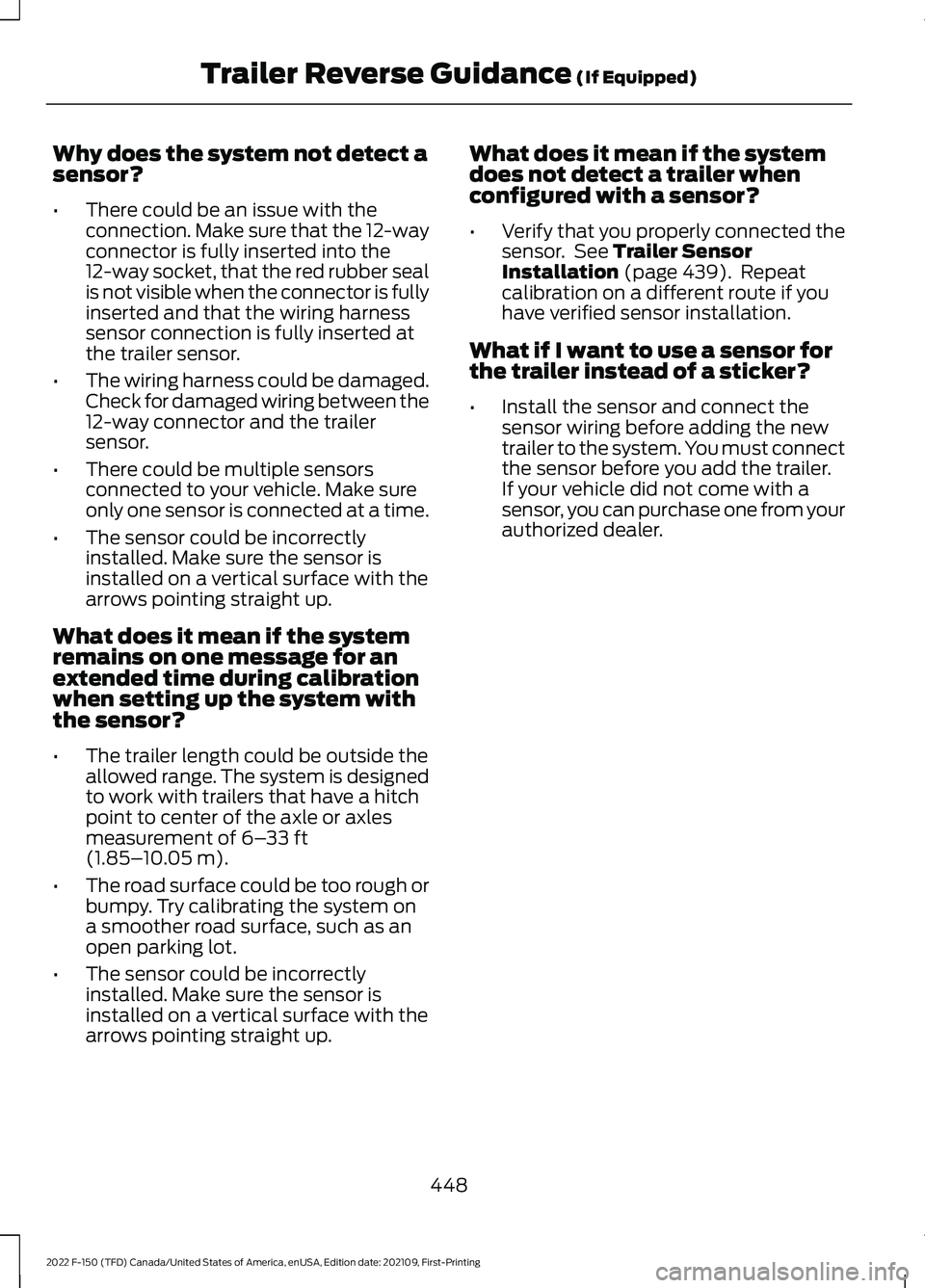

Why does the system not detect a
sensor?
•
There could be an issue with the
connection. Make sure that the 12-way
connector is fully inserted into the
12-way socket, that the red rubber seal
is not visible when the connector is fully
inserted and that the wiring harness
sensor connection is fully inserted at
the trailer sensor.
• The wiring harness could be damaged.
Check for damaged wiring between the
12-way connector and the trailer
sensor.
• There could be multiple sensors
connected to your vehicle. Make sure
only one sensor is connected at a time.
• The sensor could be incorrectly
installed. Make sure the sensor is
installed on a vertical surface with the
arrows pointing straight up.
What does it mean if the system
remains on one message for an
extended time during calibration
when setting up the system with
the sensor?
• The trailer length could be outside the
allowed range. The system is designed
to work with trailers that have a hitch
point to center of the axle or axles
measurement of 6–33 ft
(1.85– 10.05 m).
• The road surface could be too rough or
bumpy. Try calibrating the system on
a smoother road surface, such as an
open parking lot.
• The sensor could be incorrectly
installed. Make sure the sensor is
installed on a vertical surface with the
arrows pointing straight up. What does it mean if the system
does not detect a trailer when
configured with a sensor?
•
Verify that you properly connected the
sensor. See
Trailer Sensor
Installation (page 424). Repeat
calibration on a different route if you
have verified sensor installation.
What if I want to use a sensor for
the trailer instead of a sticker?
• Install the sensor and connect the
sensor wiring before adding the new
trailer to the system. You must connect
the sensor before you add the trailer.
If your vehicle did not come with a
sensor, you can purchase one from your
authorized dealer.
436
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Trailer Backup Assistance
(If Equipped)

Why does the system not detect a
sensor?
•
There could be an issue with the
connection. Make sure that the 12-way
connector is fully inserted into the
12-way socket, that the red rubber seal
is not visible when the connector is fully
inserted and that the wiring harness
sensor connection is fully inserted at
the trailer sensor.
• The wiring harness could be damaged.
Check for damaged wiring between the
12-way connector and the trailer
sensor.
• There could be multiple sensors
connected to your vehicle. Make sure
only one sensor is connected at a time.
• The sensor could be incorrectly
installed. Make sure the sensor is
installed on a vertical surface with the
arrows pointing straight up.
What does it mean if the system
remains on one message for an
extended time during calibration
when setting up the system with
the sensor?
• The trailer length could be outside the
allowed range. The system is designed
to work with trailers that have a hitch
point to center of the axle or axles
measurement of 6–33 ft
(1.85– 10.05 m).
• The road surface could be too rough or
bumpy. Try calibrating the system on
a smoother road surface, such as an
open parking lot.
• The sensor could be incorrectly
installed. Make sure the sensor is
installed on a vertical surface with the
arrows pointing straight up. What does it mean if the system
does not detect a trailer when
configured with a sensor?
•
Verify that you properly connected the
sensor. See
Trailer Sensor
Installation (page 439). Repeat
calibration on a different route if you
have verified sensor installation.
What if I want to use a sensor for
the trailer instead of a sticker?
• Install the sensor and connect the
sensor wiring before adding the new
trailer to the system. You must connect
the sensor before you add the trailer.
If your vehicle did not come with a
sensor, you can purchase one from your
authorized dealer.
448
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Trailer Reverse Guidance
(If Equipped)

CHANGING A FLAT TIRE
If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.
Have a flat serviced by an authorized
dealer to prevent damage to the system
sensors. See Tire Pressure Monitoring
System Precautions (page 537). Replace
the spare tire with a road tire as soon as
possible. When repairing or replacing the
flat tire, have the authorized dealer inspect
the system sensor for damage.
Note: The use of tire sealant could damage
your tire pressure monitoring system. Only
use in roadside emergencies.
Note: The tire pressure monitoring system
indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, you must mount all
road wheels that come with tire pressure
monitoring sensors on this vehicle.
Dissimilar Spare Wheel and Tire
Assembly Information WARNING:
Failure to follow these
guidelines could result in an increased
risk of loss of vehicle control, injury or
death.
If you have a dissimilar spare wheel and
tire, the intent of the spare wheel is for
temporary use only. This means that if you
need to use it, replace it as soon as
possible with a road wheel and tire
assembly that is the same size and type
as the road tires and wheels originally
provided by Ford. We define a dissimilar spare wheel and tire
assembly as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and
wheels.
Full-size dissimilar spare
When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•
Exceed
70 mph (113 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time.
• Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.
Engage any four-wheel drive mode. See
Four-Wheel Drive Limitations (page 270).
The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• Four-wheel drive capability.
When driving with the full-size dissimilar
spare wheel and tire assembly, give
additional caution to:
• Towing a trailer.
• Driving vehicles that come with a
camper body.
• Driving vehicles with a load on the
cargo rack.
Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.
543
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Changing a Road Wheel

Aid Mode.........................................................363
How Does Aid Mode Work............................. 363
What Is Aid Mode.............................................. 363
Airbag Precautions
.........................................72
Airbags...............................................................70 Front Passenger Sensing System................... 74
Air Conditioning See: Climate Control - Vehicles With:
Automatic Temperature Control..............181
See: Climate Control - Vehicles With: Manual Temperature Control................................... 186
Air Conditioning System Capacity and Specification - 2.7L EcoBoost™
.........585
Air Conditioning System Capacity and Specification - 3.3L.................................586
Air Conditioning System Capacity and Specification - 3.5L, Hybrid Electric
Vehicle (HEV)............................................588
Air Conditioning System Capacity and Specification - 3.5L Ecoboost™.........587
Air Conditioning System Capacity and Specification - 5.0L.................................589
Alert and Aid Mode.....................................363 How Does Alert and Aid Mode Work.........364
What Is Alert and Aid Mode........................... 363
Alert Mode......................................................362 Adjusting the Steering Wheel Vibration
Intensity............................................................ 363
How Does Alert Mode Work.......................... 363
What Is Alert Mode........................................... 362
AM/FM Radio
...............................................605
AM/FM Radio Limitations.............................. 605
Selecting a Radio Station.............................. 605
Ambient Lighting
..........................................158
Adjusting Ambient Lighting............................ 158
Switching Ambient Lighting On and Off....................................................................... 158
Anti-Lock Braking System.......................286 Anti-Lock Braking System
Limitations...................................................... 286
Anti-Theft Alarm System..........................132 Arming the Anti-Theft Alarm System.........133
Disarming the Anti-Theft Alarm
System............................................................... 133
How Does the Anti-Theft Alarm System Work.................................................................... 132
What Are the Inclination Sensors.................133
What Are the Interior Sensors........................ 132What Is the Anti-Theft Alarm System........132
What Is the Perimeter Alarm..........................
132
Anti-Theft Alarm System Settings........133 Setting the Alarm Security Level.................. 133
Switching Ask on Exit On and Off................133
What are the Alarm Security Levels............133
What Is Ask on Exit............................................. 133
Appendices
.....................................................716
Applying the Electric Parking Brake.............................................................289
Applying the Electric Parking Brake in an Emergency..................................................289
App Precautions..........................................626
App Requirements
......................................626
Apps.................................................................626
At a Glance........................................................31
Audio System...............................................603
AM/FM Radio..................................................... 605
Audio System – Troubleshooting................610
Digital Radio....................................................... 606
Satellite Radio.................................................... 607
Audio System Precautions
......................603
Audio System – Troubleshooting..........610 Audio System – Information
Messages......................................................... 610
Auto-Dimming Exterior Mirror
.................163
What Is the Auto-Dimming Exterior
Mirror
.................................................................. 163
Auto-Dimming Interior Mirror...................161 Auto-Dimming Interior Mirror
Limitations........................................................ 161
What Is the Auto-Dimming Interior Mirror................................................................... 161
Auto Hold
........................................................297
Auto Hold Indicators...................................297
Autolamps......................................................146 Autolamp Settings............................................. 146
What Are Autolamps........................................ 146
Autolock...........................................................103 Autolock Requirements................................... 103
What Is Autolock................................................ 103
Automatically Releasing the Electric Parking Brake
.............................................289
Automatic Crash Shutoff.........................466
Automatic Crash Shutoff
Precautions.................................................... 466
Re-Enabling Your Vehicle............................... 466
What Is Automatic Crash Shutoff..............466
720
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index

Automatic High Beam Control –
Troubleshooting............................................. 152
Exterior Lamps..................................................... 147
Exterior Zone Lighting....................................... 149
Glare Free Lighting............................................. 153
Glare Free Lighting – Troubleshooting............................................. 155
Headlamps........................................................... 145
Headlamps – Troubleshooting..................... 146
Exterior Mirrors...............................................162 Auto-Dimming Exterior Mirror....................... 163
Exterior Zone Lighting.................................149 Exterior Zone Lighting Settings..................... 150
Using the Exterior Zone Lighting.................. 149
What Is Exterior Zone Lighting...................... 149
F
Fastening and Unfastening the Seatbelts........................................................62
Feature Bar.....................................................615
Flat Tire See: Changing a Flat Tire................................ 543
See: Changing a Flat Tire - Raptor/ Tremor.............................................................. 549
Floor Mats......................................................456
Folding the Exterior Mirrors - Vehicles With: Manual Folding Mirrors................162
Folding the Exterior Mirrors - Vehicles With: Power Folding Mirrors..................162
Foot Pedals See: Adjusting the Pedals............................... 140
Ford Performance...........................................19
Ford Protect..................................................640
Four-Wheel Drive
........................................269
Four-Wheel Drive Modes................................ 273
Four-Wheel Drive – Troubleshooting.........274
Four-Wheel Drive Indicators
....................274
Four-Wheel Drive Limitations.................270
Four-Wheel Drive Modes..........................273 Four-Wheel Drive Auto.................................... 273
Four-Wheel Drive High..................................... 273
Four-Wheel Drive Low...................................... 274
Two-Wheel Drive High..................................... 273
Four-Wheel Drive Precautions
...............270 Four-Wheel Drive –
Troubleshooting.........................................274
Four-Wheel Drive – Information Messages.......................................................... 275
Four-Wheel Drive – Warning Lamps..........274
Front Axle Fluid Capacity and Specification..............................................592
Front Exterior
....................................................41
Front Exterior - Police Responder............43
Front Exterior - Raptor.................................42
Front Parking Aid..........................................314 Front Parking Aid Audible Warnings............315
Front Parking Aid Limitations......................... 315
Locating the Front Parking Aid Sensors.............................................................. 315
What is the Front Parking Aid........................ 314
Front Passenger Sensing System
.............74
Front Passenger Sensing System
Indicators............................................................ 76
Front Passenger Sensing System Precautions........................................................ 76
How Does the Front Passenger Sensing System Work..................................................... 74
What Is the Front Passenger Sensing System................................................................. 74
Front Seat Precautions
..............................190
Front Seats.....................................................190
Heated Seats........................................................ 197
Manual Seats........................................................ 191
Massage Seats.................................................... 196
Power Seats.......................................................... 193
Ventilated Seats.................................................. 197
Fuel and Refueling.......................................247 Fuel and Refueling –
Troubleshooting............................................. 257
Fuel Quality.......................................................... 248
Refueling................................................................ 251
Running Out of Fuel......................................... 250
Fuel and Refueling Precautions
..............247
Fuel and Refueling – Troubleshooting.........................................257
Fuel and Refueling – Information Messages.......................................................... 257
Fuel and Refueling – Warning Lamps........257
Fuel Gauge
......................................................168
Fuel Gauge Limitations.................................... 169
Locating the Fuel Filler Door.......................... 169
What Is Distance to Empty............................. 169
727
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index

Tire Pressure Monitoring System
Sensors............................................................ 680
Wireless Accessory Charging Module............................................................. 684
Rear Axle Fluid Capacity and Specification - Police
Responder...................................................594
Rear Axle Fluid Capacity and Specification - Raptor............................594
Rear Axle Fluid Capacity and Specification..............................................593
Rear Exterior - Police Responder
.............46
Rear Exterior - Raptor...................................45
Rear Exterior....................................................44
Rear Occupant Alert System Audible Warnings......................................................203
Rear Occupant Alert System Indicators.....................................................203
Rear Occupant Alert System Limitations..................................................202
Rear Occupant Alert System Precautions.................................................202
Rear Occupant Alert System..................202
Rear Parking Aid............................................314 Locating the Rear Parking Aid
Sensors.............................................................. 314
Rear Parking Aid Audible Warnings.............314
Rear Parking Aid Limitations.......................... 314
What is the Rear Parking Aid.......................... 314
Rear Seats
.......................................................199
Heated Seats...................................................... 200
Manual Seats....................................................... 199
Rear View Camera Guide Lines...............319
Rear View Camera Precautions..............318
Rear View Camera.......................................318 Rear View Camera Settings............................ 319
Rear View Camera Settings......................319 Switching Rear View Camera Delay On and
Off...................................................................... 320
Switching the Rear View Camera View................................................................... 320
Zooming the Rear View Camera In and Out...................................................................... 319
Rebooting the Center Display
.................616
Recalling a Preset Position......................204
Recovery Towing
..........................................467
Accessing the Front Towing Point...............467 Recreationally Towing Your Vehicle -
4x2...................................................................471
Recreationally Towing Your Vehicle - 4x4.................................................................469
Refueling..........................................................251 Manually Opening the Fuel Filler
Door................................................................... 255
Refueling System Overview............................ 251
Refueling Your Vehicle...................................... 251
Releasing the Electric Parking Brake if the Vehicle Battery Has Run Out of
Charge..........................................................290
Remote Control Limitations
.......................87
Remotely Starting and Stopping the Vehicle
............................................................178
Remote Start Limitations..........................178
Remote Start Precautions
.........................178
Remote Start Remote Control Indicators......................................................179
Remote Start
..................................................178
Remote Start Settings...................................... 179
Remote Start Settings................................179 Setting the Remote Start Duration.............180
Switching Climate Control Auto Mode On
and Off............................................................... 179
Switching Climate Control Last Settings On and Off........................................................ 179
Switching the Heated Seat Settings On and Off....................................................................... 180
Switching the Heated Steering Wheel Settings On and Off..................................... 180
Removing and Installing the Tailgate............................................................111
Removing the Key Blade.............................89
Removing Your Vehicle From Storage..........................................................518
Repairing Minor Paint Damage...............515
Replacement Parts Recommendation....................................688
Replacing a Lost Key or Remote Control............................................................93
Replacing the Cabin Air Filter..................189
Replacing the Front Wiper Blades
.........142
Reporting Safety Defects in Canada.........................................................658
Reporting Safety Defects in the United States...........................................................658
735
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index
