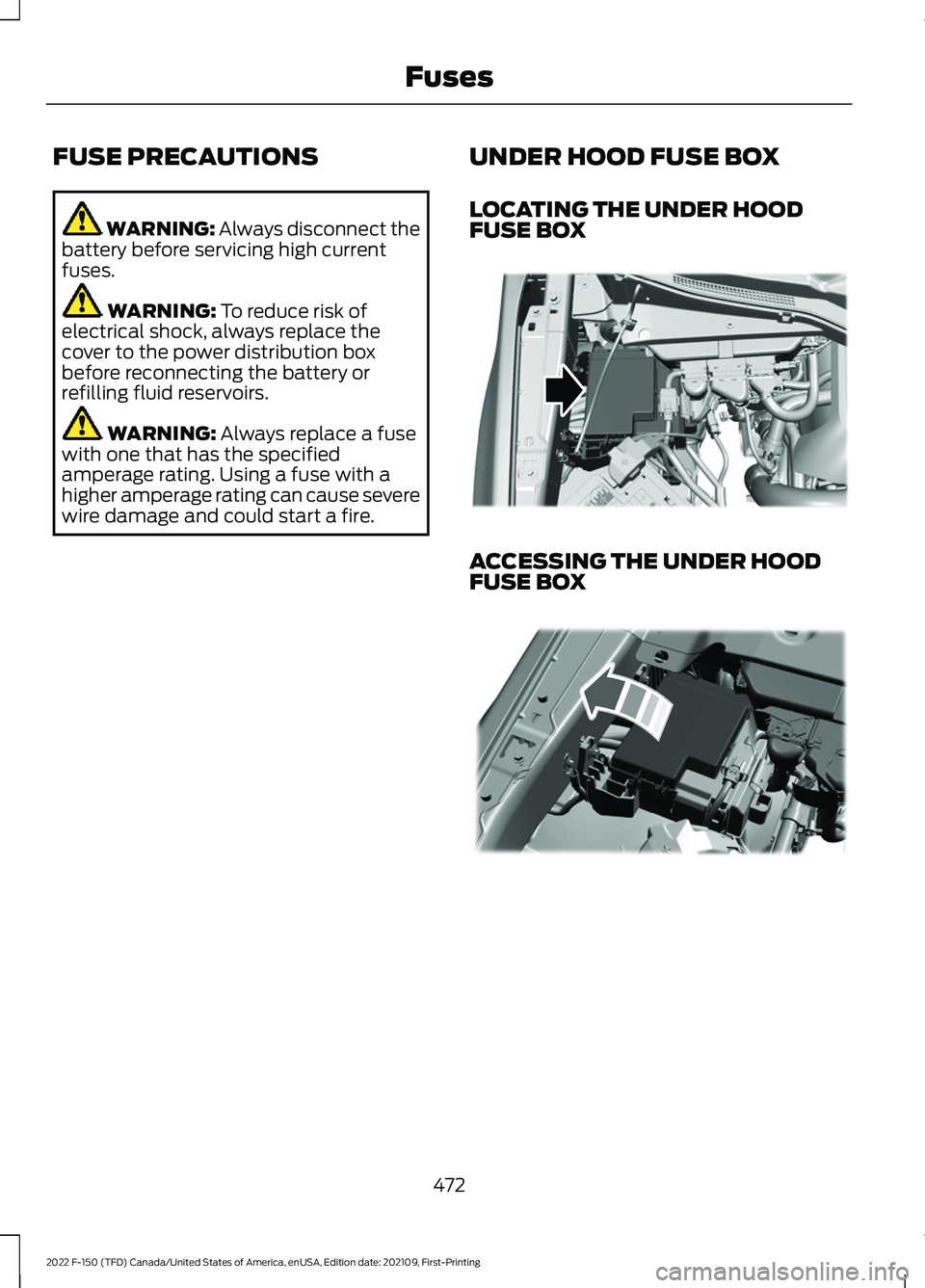

FUSE PRECAUTIONS
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. WARNING:
Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. UNDER HOOD FUSE BOX
LOCATING THE UNDER HOOD
FUSE BOX ACCESSING THE UNDER HOOD
FUSE BOX
472
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing FusesE311329 E322941
Page 477 of 750

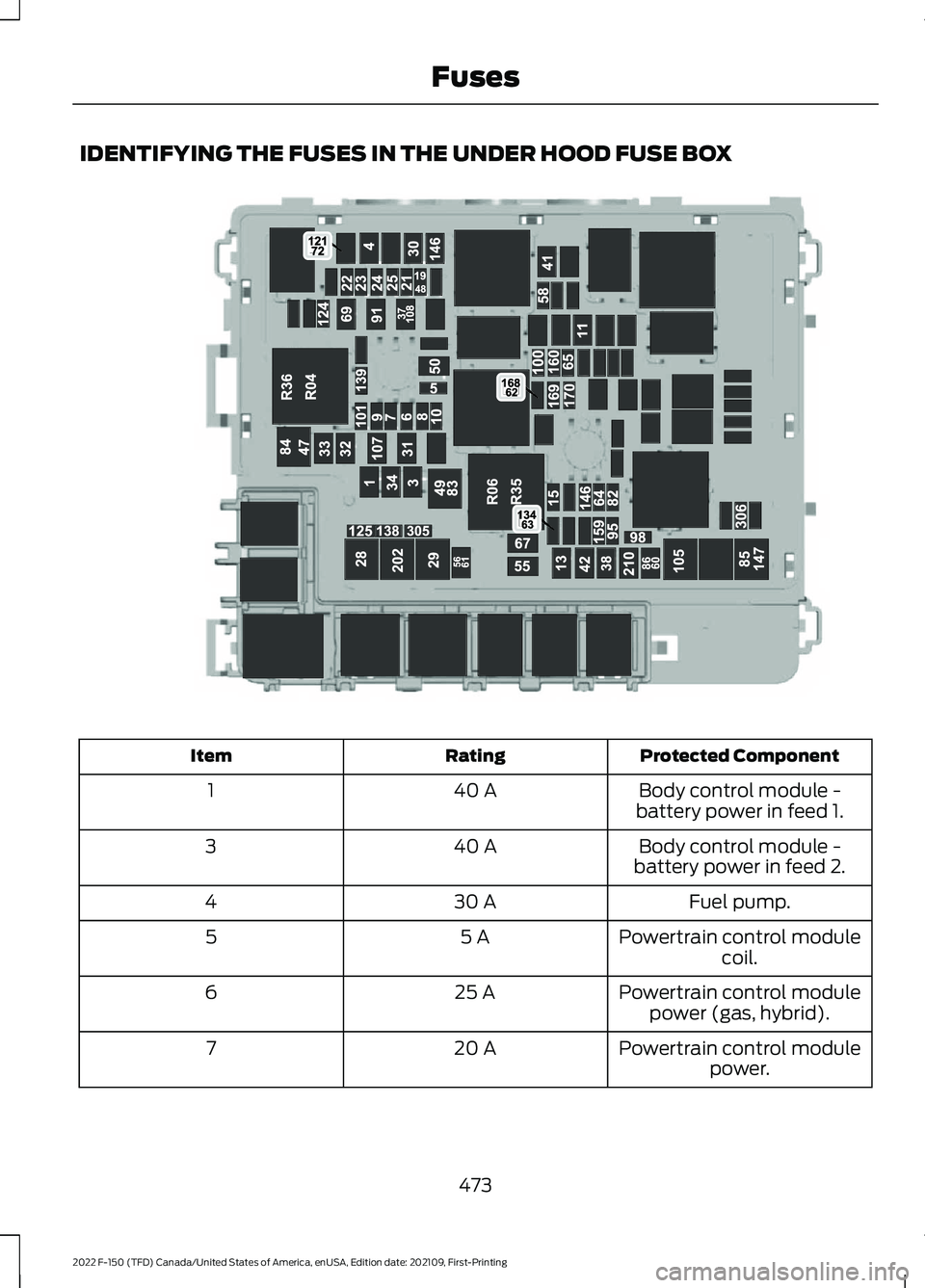

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Protected Component
Rating
Item
Body control module -
battery power in feed 1.
40 A
1
Body control module -
battery power in feed 2.
40 A
3
Fuel pump.
30 A
4
Powertrain control modulecoil.
5 A
5
Powertrain control modulepower (gas, hybrid).
25 A
6
Powertrain control modulepower.
20 A
7
473
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing FusesE356997
Page 482 of 750

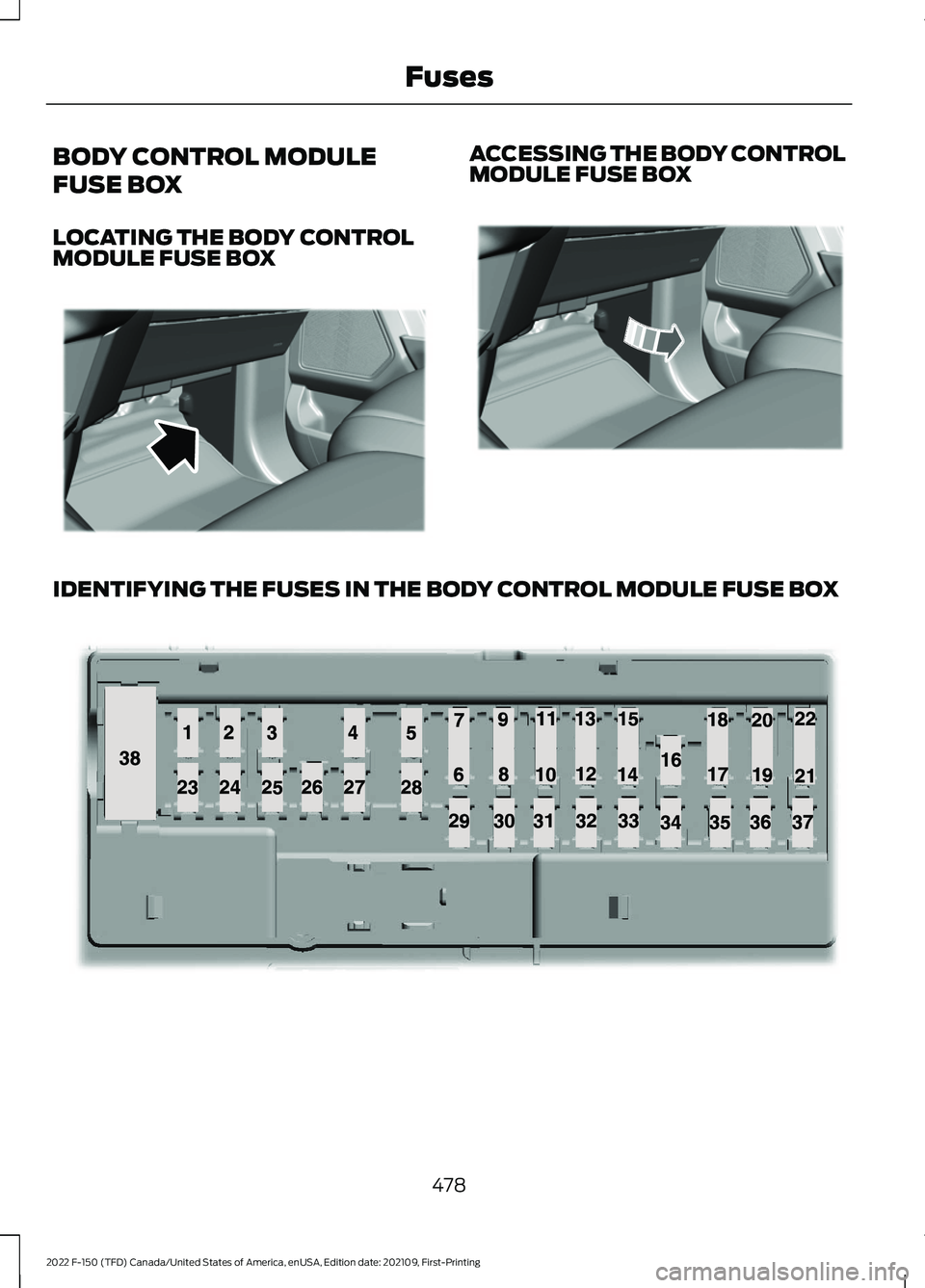

BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROL
MODULE FUSE BOX ACCESSING THE BODY CONTROL
MODULE FUSE BOX
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
478
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing FusesE322874 E322804 E145984
Page 487 of 750
3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it fully latches.
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™ Engine compartment fuse box. See Fuses (page 472).
A.
Battery.
See Changing the 12V Battery (page 494).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 488).
C.
483
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE338089 E337516
Page 488 of 750
Engine oil dipstick. See Engine Oil Dipstick Overview (page 488).
D.
Brake fluid reservoir.
See Checking the Brake Fluid (page 287).
E.
Air filter assembly.
See Changing the Engine Air Filter (page 493).
F.
Engine coolant reservoir.
See Checking the Coolant (page 489).
G.
Windshield washer fluid reservoir.
H.
UNDER HOOD OVERVIEW - 3.3L Engine compartment fuse box.
See Fuses (page 472).
A.
Battery.
See Changing the 12V Battery (page 494).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 488).
C.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 488).
D.
Brake fluid reservoir.
See Checking the Brake Fluid (page 287).
E.
Air filter assembly.
See Changing the Engine Air Filter (page 493).
F.
484
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE337514
Page 489 of 750
Engine coolant reservoir. See Checking the Coolant (page 489).
G.
Windshield washer fluid reservoir.
H.
UNDER HOOD OVERVIEW - 3.5L ECOBOOST™ Engine compartment fuse box.
See Fuses (page 472).
A.
Battery.
See Changing the 12V Battery (page 494).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 488).
C.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 488).
D.
Brake fluid reservoir.
See Brakes (page 286).
E.
Air filter.
See Changing the Engine Air Filter (page 493).
F.
Engine coolant reservoir.
See Checking the Coolant (page 489).
G.
Windshield washer fluid reservoir.
H.
485
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE313722
Page 490 of 750
UNDER HOOD OVERVIEW - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Engine compartment fuse box. See Fuses (page 472).
A.
Battery.
See Changing the 12V Battery (page 494).
B.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 488).
C.
Engine oil filler cap.
See Adding Engine Oil (page 488).
D.
Brake fluid reservoir. See
Checking the Brake Fluid (page 287).
E.
Air filter.
See Changing the Engine Air Filter (page 493).
F.
Secondary coolant reservoir. See
Checking the Coolant (page 489).
G.
Engine coolant reservoir. See
Checking the Coolant (page 489).
H.
Windshield washer fluid reservoir.
I.
486
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE333718
Page 491 of 750
UNDER HOOD OVERVIEW - 5.0L
Engine compartment fuse box. See Under Hood Fuse Box (page 472).
A.
Engine oil filler cap.
See Engine Oil Dipstick Overview (page 488).
B.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 488).
C.
Brake fluid reservoir.
See Checking the Brake Fluid (page 287).
D.
Air filter assembly.
See Changing the Engine Air Filter (page 493).
E.
Engine coolant reservoir.
See Checking the Coolant (page 489).
F.
Windshield washer fluid reservoir.
G.
Battery.
See Changing the 12V Battery (page 494).
H.
487
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE346494
Page 640 of 750
WHAT ARE THE AUXILIARY
SWITCHES
The auxiliary switchboard on the overhead
console makes aftermarket customization
easier with six prewired switches
connected to the power distribution box.
Each circuit is individually fused for
connection of electrical accessories.
For maximum vehicle performance, keep
the following information in mind when
adding accessories or equipment to your
vehicle:
•
When adding accessories, equipment,
passengers and luggage to your
vehicle, do not exceed the total weight
capacity of the vehicle or of the front
or rear axle (GVWR or GAWR as
indicated on the safety compliance
certification label). Ask an authorized
dealer for specific weight information.
• It is your responsibility to ensure that
any equipment you have fitted
complies with applicable local
legislation.
• An authorized dealer needs to install
mobile communication systems.
Improper installation may harm the
operation of your vehicle, particularly
if the manufacturer did not design the
mobile communication system
specifically for automotive use.
• If you or an authorized dealer add any
electrical or electronic accessories or
components not produced by us to
your vehicle, you may adversely affect
battery performance and durability. In
addition, you may also adversely affect
the performance of the other electrical
systems in the vehicle. LOCATING THE AUXILIARY
SWITCHES
The auxiliary switchboard on the overhead
console makes aftermarket customization
easier with six prewired switches
connected to the power distribution box.
The circuits are individually fused for
connection of electrical accessories.
The switches have labels for AUX 1 through
AUX 6. They only operate when the ignition
is in the on position, whether the engine is
running or not. We recommend that you
leave the engine running to maintain
battery charge when using the switches
for an extended time or when using higher
current draw accessories. When you turn
on a switch, the indicator light on the
switch illuminates and the circuit provides
power to the device wired to that switch.
Note:
AUX switch 1 operates the off-road
lamps when your vehicle comes with this
option.
636
