WHAT IS THE KEYLESS ENTRY
KEYPAD
The keyless entry keypad allows you to
lock and unlock your vehicle using the
keypad on the window trim.
KEYLESS ENTRY KEYPAD
LIMITATIONS
The system may not function if:
•
The vehicle battery has no charge.
LOCATING THE KEYLESS
ENTRY KEYPAD
The keypad is near the driver window and
illuminates when you touch it. KEYLESS ENTRY KEYPAD
MASTER ACCESS CODE
What Is the Master Access Code
The master access code is a factory-set
five-digit entry code. You can operate the
keypad with the master access code at
any time. The master access code is on the
owner
’s wallet card in the glove box and
is available from an authorized dealer. KEYLESS ENTRY KEYPAD
PERSONAL ACCESS CODES
Programming a Personal Entry
Code
1. Enter the five-digit master code.
2. Press 1·2 on the keypad within five
seconds.
3. Enter your personal five-digit code. You must do this within five seconds
of completing Step 2.
4. Press
1·2 on the keypad to save
personal code 1.
The doors lock then unlock to confirm that
programming was successful.
To program additional personal entry
codes, repeat Steps 1 through 3, then for
Step 4:
• Press
3·4 to save personal code 2.
• Press
5·6 to save personal code 3.
• Press
7·8 to save personal code 4.
• Press
9·0 to save personal code 5.
If your vehicle comes with SYNC, you can
also program the system with a personal
entry code.
Hints:
• Do not set a code that uses five of the
same number.
• Do not use five numbers in sequential
order.
• The five-digit master code works even
if you have set your own personal code.
Erasing a Personal Code
1. Enter the five-digit master code.
2. Press and release
1·2 on the keypad
within five seconds.
3. Press and hold
1·2 for two seconds.
You must do this within five seconds
of completing Step 2.
108
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Keyless Entry Keypad
(If Equipped)E190936
Page 116 of 750
1. Unlatch the tailgate.
2.
Disconnect the power door locks in-line
connector. It is under the pickup box
on the right-hand side of the vehicle
near the spare tire.
3. Install a protective cap on the in-line connector portion that remains under
the pickup box.
Note: A protective cap should be in the
glove compartment.
4. Partially lower the tailgate. Carefully feed the tailgate harness up through
the gap between the pickup box and
the bumper and place it out of the way
under the pickup box.
5. Lower the tailgate. 6. Use a screwdriver to gently pry the
spring clip on each connector past the
head of the support screw. Disconnect
the cable.
7. Disconnect the other cable.
Note: To avoid damaging the tailgate, you
may need assistance when removing. The
tailgate weighs approximately 97 lb (44 kg).
8. Lift the tailgate to 45 degrees from the
horizontal position.
9. Lift the right-hand side off its hinge.
10. Lift the tailgate to 80 degrees from the horizontal position.
11. Remove the tailgate from the left-hand side hinge by sliding it to
the right.
12. Install the tailgate in reverse order.
TAILGATE STEP
(IF EQUIPPED)
ACCESSING THE TAILGATE STEP
1. Lower the tailgate.
2. Push the button in the center of the step molding. The step pops out
slightly. 3. Pull the step out fully. Lower the step
to its lowest position.
112
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Tailgate - Vehicles With: Manual TailgateE189556 E311529 E187718

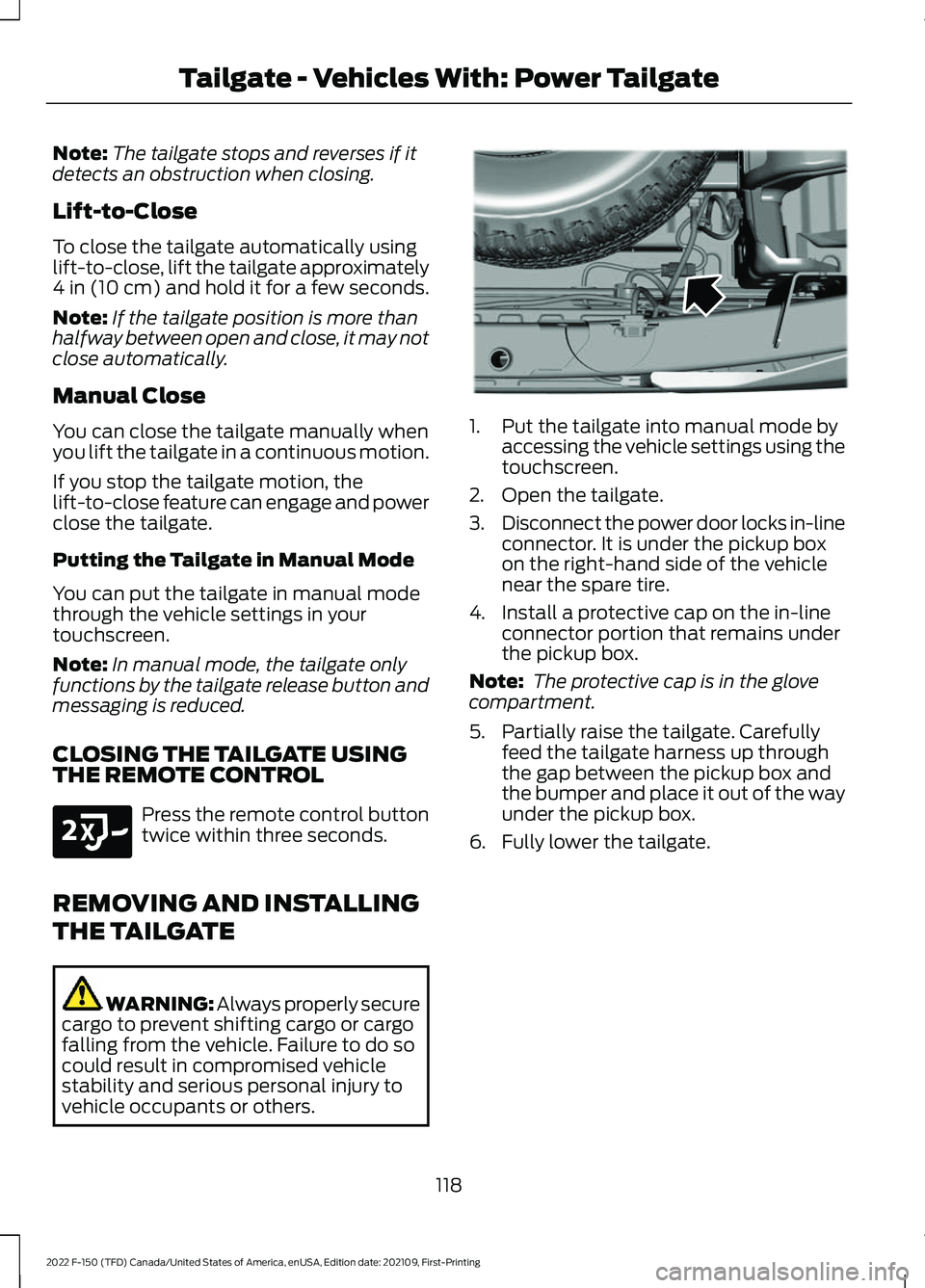

Page 122 of 750
Note:
The tailgate stops and reverses if it
detects an obstruction when closing.
Lift-to-Close
To close the tailgate automatically using
lift-to-close, lift the tailgate approximately
4 in (10 cm) and hold it for a few seconds.
Note: If the tailgate position is more than
halfway between open and close, it may not
close automatically.
Manual Close
You can close the tailgate manually when
you lift the tailgate in a continuous motion.
If you stop the tailgate motion, the
lift-to-close feature can engage and power
close the tailgate.
Putting the Tailgate in Manual Mode
You can put the tailgate in manual mode
through the vehicle settings in your
touchscreen.
Note: In manual mode, the tailgate only
functions by the tailgate release button and
messaging is reduced.
CLOSING THE TAILGATE USING
THE REMOTE CONTROL Press the remote control button
twice within three seconds.
REMOVING AND INSTALLING
THE TAILGATE WARNING: Always properly secure
cargo to prevent shifting cargo or cargo
falling from the vehicle. Failure to do so
could result in compromised vehicle
stability and serious personal injury to
vehicle occupants or others. 1. Put the tailgate into manual mode by
accessing the vehicle settings using the
touchscreen.
2. Open the tailgate.
3. Disconnect the power door locks in-line
connector. It is under the pickup box
on the right-hand side of the vehicle
near the spare tire.
4. Install a protective cap on the in-line connector portion that remains under
the pickup box.
Note: The protective cap is in the glove
compartment.
5. Partially raise the tailgate. Carefully feed the tailgate harness up through
the gap between the pickup box and
the bumper and place it out of the way
under the pickup box.
6. Fully lower the tailgate.
118
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Tailgate - Vehicles With: Power TailgateE191530 E189556

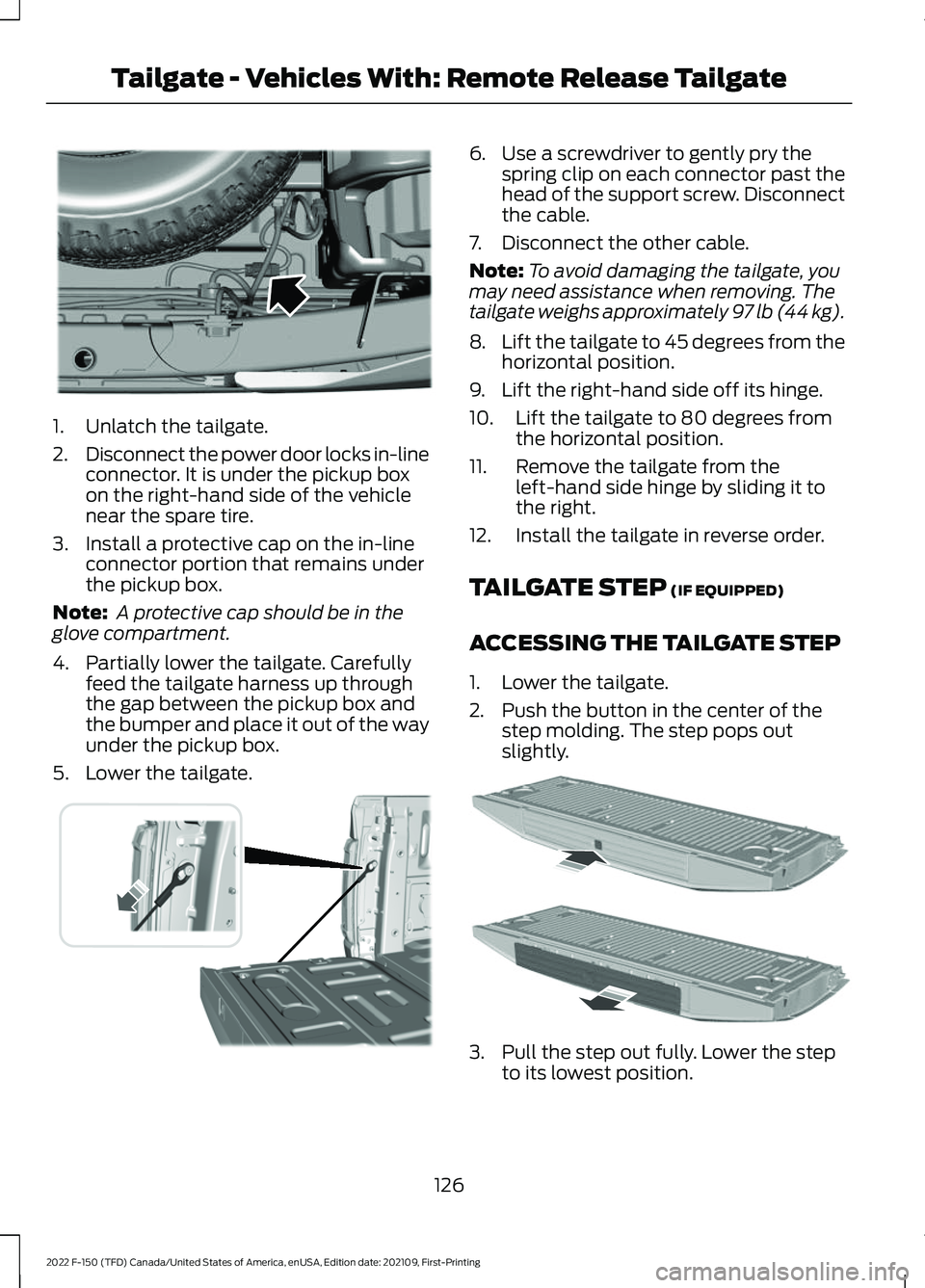

Page 130 of 750
1. Unlatch the tailgate.
2.
Disconnect the power door locks in-line
connector. It is under the pickup box
on the right-hand side of the vehicle
near the spare tire.
3. Install a protective cap on the in-line connector portion that remains under
the pickup box.
Note: A protective cap should be in the
glove compartment.
4. Partially lower the tailgate. Carefully feed the tailgate harness up through
the gap between the pickup box and
the bumper and place it out of the way
under the pickup box.
5. Lower the tailgate. 6. Use a screwdriver to gently pry the
spring clip on each connector past the
head of the support screw. Disconnect
the cable.
7. Disconnect the other cable.
Note: To avoid damaging the tailgate, you
may need assistance when removing. The
tailgate weighs approximately 97 lb (44 kg).
8. Lift the tailgate to 45 degrees from the
horizontal position.
9. Lift the right-hand side off its hinge.
10. Lift the tailgate to 80 degrees from the horizontal position.
11. Remove the tailgate from the left-hand side hinge by sliding it to
the right.
12. Install the tailgate in reverse order.
TAILGATE STEP
(IF EQUIPPED)
ACCESSING THE TAILGATE STEP
1. Lower the tailgate.
2. Push the button in the center of the step molding. The step pops out
slightly. 3. Pull the step out fully. Lower the step
to its lowest position.
126
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Tailgate - Vehicles With: Remote Release TailgateE189556 E311529 E187718
Page 732 of 750
What Is the Fuel Gauge...................................
168
What Is the Low Fuel Reminder................... 169
Fuel Quality...................................................248
Selecting the Correct Fuel ..............................248
Switching Between E85 and Gasoline........................................................... 249
Fuel Tank Capacity - Excluding: Hybrid Electric Vehicle (HEV)............................256
Fuel Tank Capacity - Gasoline, Excluding: Hybrid Electric Vehicle (HEV)
..............583
Fuel Tank Capacity - Gasoline, Hybrid Electric Vehicle (HEV)............................582
Fuel Tank Capacity - Hybrid Electric Vehicle (HEV)
.............................................257
Fuel Tank Capacity - Raptor...................584
Fuse Precautions..........................................472
Fuses.................................................................472 Body Control Module Fuse Box.................... 478
Fuses – Troubleshooting................................. 481
Under Hood Fuse Box....................................... 472
Fuses – Troubleshooting...........................481 Fuses – Frequently Asked Questions.........481
G
Garage Door Opener..................................205
Garage Door Opener Limitations..........205
Garage Door Opener Precautions
.........205
Garage Door Opener Radio Frequencies................................................208
General Maintenance Information
.......642
Glare Free Lighting.......................................153 Glare Free Lighting Indicators........................ 154
Glare Free Lighting Limitations..................... 154
Glare Free Lighting Precautions.................... 153
Glare Free Lighting Requirements................153
How Does Glare Free Lighting Work............153
Overriding Glare Free Lighting....................... 154
Switching Glare Free Lighting On and Off....................................................................... 154
Glare Free Lighting – Troubleshooting.........................................155
Glare Free Lighting – Information Messages.......................................................... 155
Glasses Holder.............................................230 Locating the Glasses Holder......................... 230
Glossary of Tire Terminology...................525 Glove Compartment...................................227
Locking the Glove Compartment.................227
Opening the Glove Compartment...............227
H
Headlamp Adjusting See: Adjusting the Headlamps - Vehicles With:
Halogen Headlamps.................................... 497
See: Adjusting the Headlamps - Vehicles With: LED Headlamps............................................ 496
Headlamps.....................................................145 Headlamp Indicators......................................... 145
Using the High Beam Headlamps................145
Headlamps – Troubleshooting...............146 Headlamps – Frequently Asked
Questions......................................................... 146
Heated Seats..................................................197 Heated Seat Precautions................................. 197
Switching the Heated Seats On and Off........................................................................\
197
Heating See: Climate Control - Vehicles With:
Automatic Temperature Control..............181
See: Climate Control - Vehicles With: Manual Temperature Control................................... 186
High Voltage Battery..................................259
High Voltage Battery Precautions.........259
High Voltage Battery Vehicle Precautions - Hybrid Electric Vehicle
(HEV)............................................................463
Hill Descent Control...................................309
Hill Descent Control –
Troubleshooting............................................. 310
Hill Descent Control Indicator................309
Hill Descent Control Precautions..........309
Hill Descent Control – Troubleshooting.........................................310
Hill Descent Control – Information Messages.......................................................... 310
Hill Start Assist.............................................296 Hill Start Assist – Troubleshooting.............296
Hill Start Assist Precautions
...................296
Hill Start Assist – Troubleshooting........................................296
Hill Start Assist – Information Messages......................................................... 296
