Page 8 of 750

Autowipers
......................................................141
Checking the Wiper Blades ......................
142
Replacing the Front Wiper Blades ........
142
Washers ..........................................................
143
Wipers and Washers – Troubleshooting ........................................................................\
.
143
Exterior Lighting
Exterior Lighting Control ...........................
145
Exterior Lighting Control - Police Responder ..................................................
145
Headlamps ....................................................
145

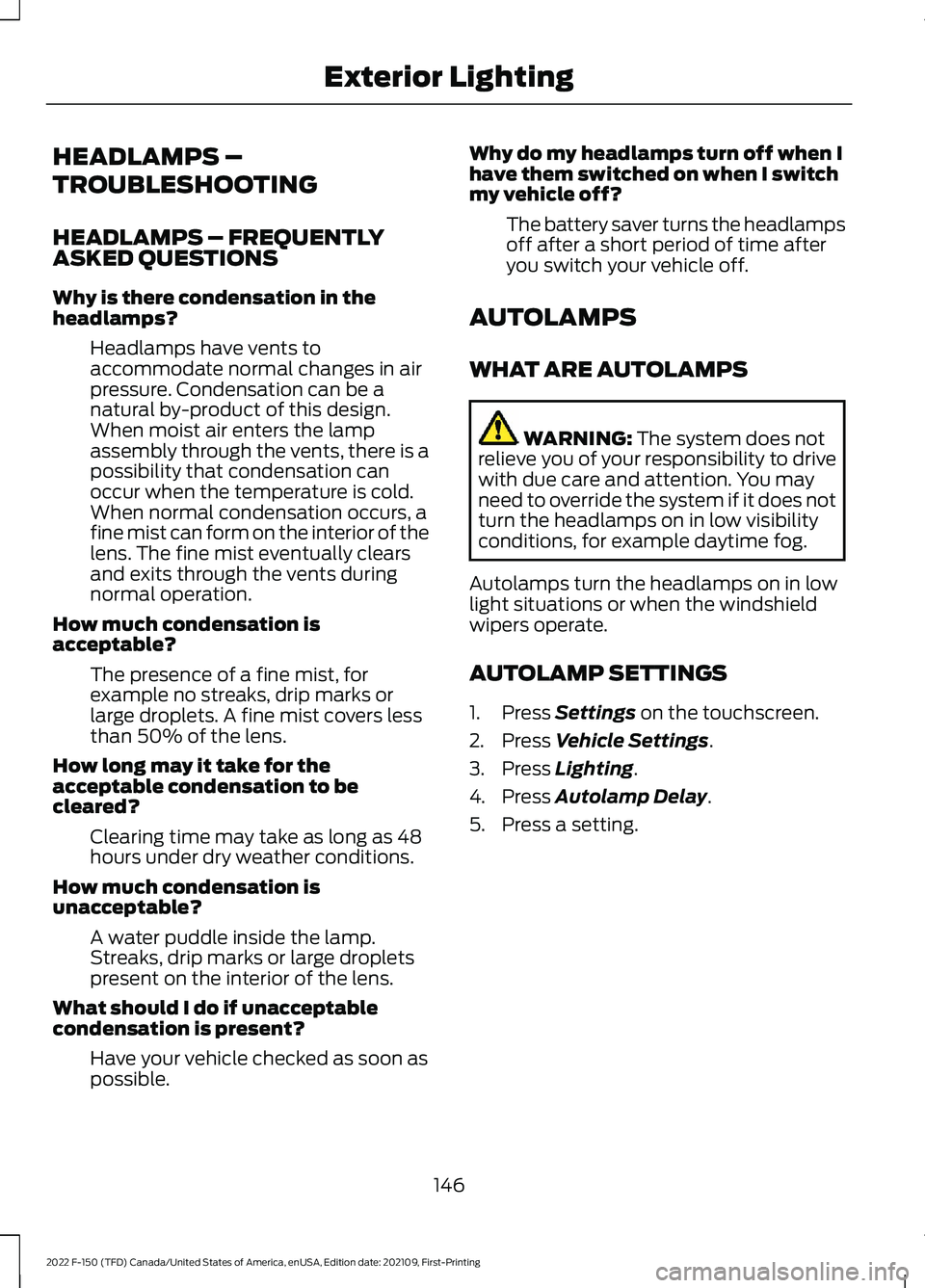

Headlamps – Troubleshooting ..............
146
Autolamps .....................................................
146

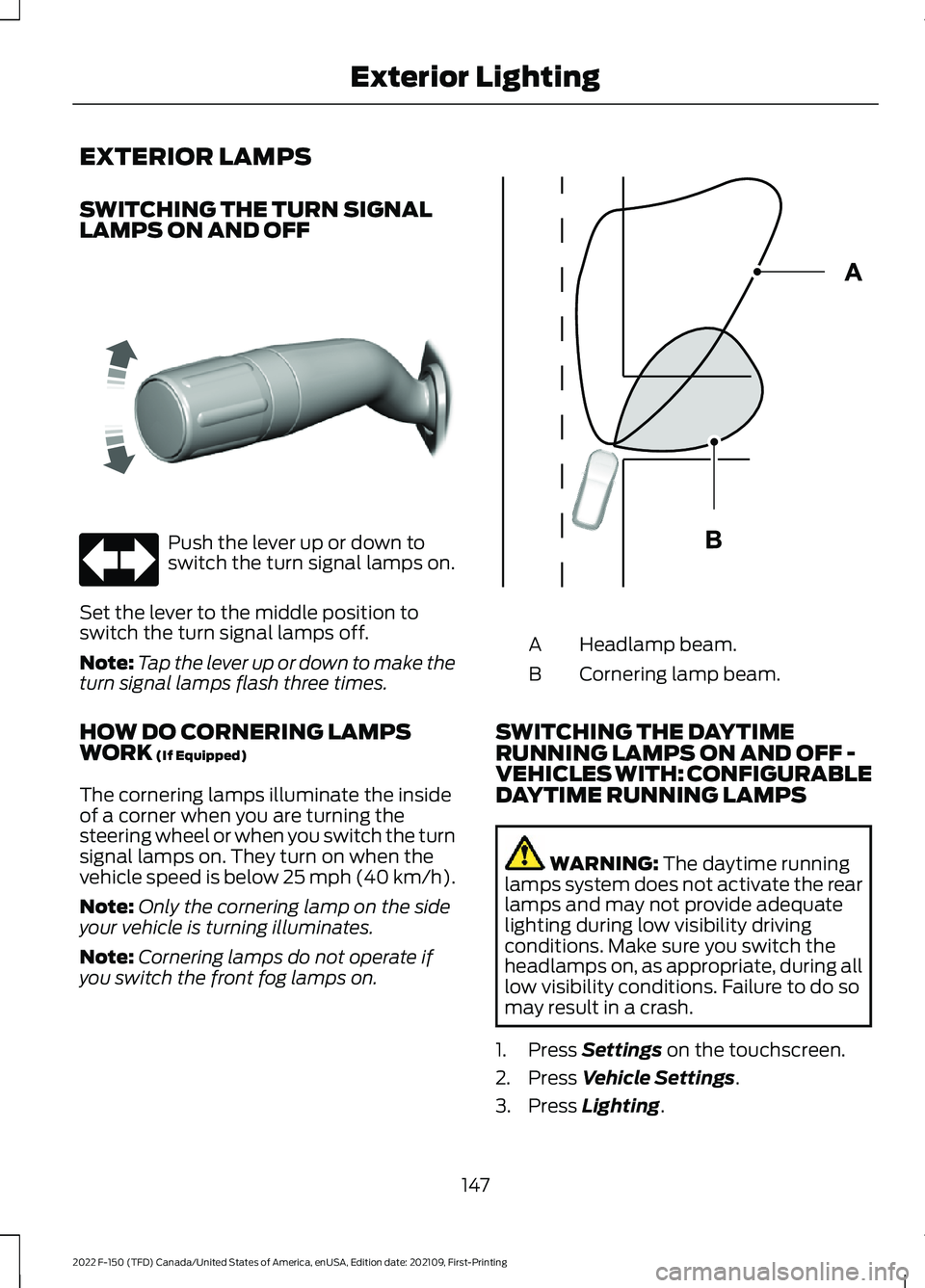

Exterior Lamps ..............................................
147
Exterior Zone Lighting ................................
149
Automatic High Beam Control ...............
150
Automatic High Beam Control – Troubleshooting .......................................
152
Glare Free Lighting ......................................
153
Glare Free Lighting – Troubleshooting ........................................................................\
.
155
Adaptive Front Lighting .............................
155
Interior Lighting
Switching All of the Interior Lamps On and Off .........................................................
157
Switching the Front Interior Lamps On and Off .........................................................
157
Switching the Front Interior Lamps On and Off - Police Responder .................
157
Switching the Rear Interior Lamps On and Off ........................................................
158
Interior Lamp Function ..............................
158
Adjusting the Instrument Panel Lighting Brightness ..................................................
158
Ambient Lighting .........................................
158
Interior Lighting – Troubleshooting ......
158
Windows
Opening and Closing the Windows ......
159Window Bounce-Back
..............................
159
Locking the Rear Window Controls ......
160
Opening and Closing the Sliding Windows ....................................................
160
Interior Mirror
Interior Mirror Precautions ........................
161
Manually Dimming the Interior Mirror ........................................................................\
..
161
Auto-Dimming Interior Mirror ..................
161
Exterior Mirrors
Adjusting the Exterior Mirrors ..................
162
Folding the Exterior Mirrors - Vehicles With: Manual Folding Mirrors ..............
162
Folding the Exterior Mirrors - Vehicles With: Power Folding Mirrors ................
162
Extending the Exterior Mirrors ................
163
Auto-Dimming Exterior Mirror ................
163
Moonroof
Opening and Closing the Sun Shade ........................................................................\
.
164
Opening and Closing the Moonroof ......
164
Venting the Moonroof ...............................
164
Moonroof Bounce-Back ...........................
165
Instrument Cluster
Instrument Cluster Overview - Vehicles With: 4.2 Inch Screen .............................
166
Instrument Cluster Overview - Vehicles With: 8 Inch Screen .................................
167
Instrument Cluster Overview - Vehicles With: 12.3 Inch Screen ...........................
168
Tachometer ...................................................
168
Speedometer ................................................
168
Fuel Gauge .....................................................
168
Engine Coolant Temperature Gauge ........................................................................\
169
Engine Oil Pressure Gauge ......................
169
Transmission Fluid Temperature Gauge ........................................................................\
169
4
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Table of Contents
Page 18 of 750

Breaking-In
....................................................455
Driving Economically .................................
455
Driving in Special Conditions .................
456
Floor Mats .....................................................
456
Snow Plowing - Vehicles Without: Snow Plow Mode
Snow Plowing Precautions ....................
458
Snow Plowing - Vehicles With: Snow Plow Mode
Snow Plowing Precautions ....................
459
Operating Your Vehicle With a Snowplow .................................................
459
Snowplow Mode ........................................
460
Crash and Breakdown Information
Roadside Assistance .................................
462
High Voltage Battery Vehicle Precautions - Hybrid Electric Vehicle (HEV) .........
463
Switching the Hazard Flashers On and Off ................................................................
464
Jump Starting the Vehicle .......................
464
Post-Crash Alert System ........................
466
Automatic Crash Shutoff ........................
466
Recovery Towing .........................................
467
Transporting the Vehicle .........................
468
Towing Your Vehicle
Towing Your Vehicle Precautions .........
469
Recreationally Towing Your Vehicle - 4x4 ..............................................................
469
Recreationally Towing Your Vehicle - 4x2 ........................................................................\
.
471
Emergency Towing ......................................
471
Towing Your Vehicle – Troubleshooting ........................................................................\
.
471 Fuses
Fuse Precautions
.........................................
472
Under Hood Fuse Box ...............................
472
Body Control Module Fuse Box .............
478
Identifying Fuse Types ..............................
481
Fuses – Troubleshooting ..........................
481
Maintenance
Maintenance Precautions .......................
482
Opening and Closing the Hood .............
482
Under Hood Overview - 2.7L EcoBoost™ ........................................................................\
483
Under Hood Overview - 3.3L .................
484
Under Hood Overview - 3.5L Ecoboost™ .......................................................................
485
Under Hood Overview - 3.5L, Hybrid Electric Vehicle (HEV) .........................
486
Under Hood Overview - 5.0L .................
487
Engine Oil ......................................................
488
Checking the Coolant ...............................
489
Engine Air Filter ...........................................
493
Changing the Fuel Filter - Gasoline ......
493
Changing the 12V Battery ........................
494
Adjusting the Headlamps - Vehicles With: LED Headlamps ..........................
496
Adjusting the Headlamps - Vehicles With: Halogen Headlamps .................
497
Exterior Bulbs ..............................................
499
Interior Bulbs ...............................................
508
Drive Belt Routing - 2.7L EcoBoost™, Vehicles With: Dual Generators .......
508
Drive Belt Routing - 2.7L EcoBoost™, Vehicles With: Single Generator ......
508
Drive Belt Routing - 3.3L ..........................
508
Drive Belt Routing - 3.5L Ecoboost™, Vehicles With: Dual Generators .......
509
Drive Belt Routing - 3.5L Ecoboost™, Vehicles With: Single Generator ......
509
Drive Belt Routing - 3.5L, Hybrid Electric Vehicle (HEV) ..........................................
509
Drive Belt Routing - 5.0L, Vehicles With: Dual Generators .....................................
509
14
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Table of Contents
Page 31 of 750

WARNING: Do not connect
wireless plug-in devices to the data link
connector. Unauthorized third parties
could gain access to vehicle data and
impair the performance of safety related
systems. Only allow repair facilities that
follow our service and repair instructions
to connect their equipment to the data
link connector.
We respect your privacy and are
committed to protecting it. The
information contained in this manual was
correct at the time of publication, but as
technology rapidly changes, we
recommend that you visit the local Ford
website for the latest information.
Your vehicle has electronic control units
that have data recording functionality and
the ability to permanently or temporarily
store data. This data could include
information on the condition and status of
your vehicle, vehicle maintenance
requirements, events and malfunctions.
The types of data that can be recorded are
described in this section. Some of the data
recorded is stored in event logs or error
logs.
Note: Error logs are reset following a service
or repair.
Note: We may provide information in
response to requests from law enforcement,
other government authorities and third
parties acting with lawful authority or
through a legal process. Such information
could be used by them in legal proceedings.
Data recorded includes, for example:
• Operating states of system
components, for example fuel level,
tire pressure and battery charge level.
• Vehicle and component status, for
example wheel speed, deceleration,
lateral acceleration and seatbelt
status. •
Events or errors in essential systems,
for example headlamps and brakes.
• System responses to driving situations,
for example airbag deployment and
stability control.
• Environmental conditions, for example
temperature.
Some of this data, when used in
combination with other information, for
example an accident report, damage to a
vehicle or eyewitness statements, could
be associated with a specific person.
Services That We Provide
If you use our services, we collect and use
data, for example account information,
vehicle location and driving characteristics,
that could identify you. We transmit this
data through a dedicated, protected
connection. We only collect and use data
to enable your use of our services to which
you have subscribed, with your consent or
where permitted by law. For additional
information, see the terms and conditions
of the services to which you have
subscribed.
For additional information about our
privacy policy, refer to the local Ford
website.
Services That Third Parties
Provide
We recommend that you review the terms
and conditions and data privacy
information for any services equipped with
your vehicle or to which you subscribe. We
take no responsibility for services that third
parties provide.
Where equipped, SiriusXM with 360L could
use the modem. To disable, turn off the
SiriusXM with 360L or Vehicle Connectivity
setting. See Enabling and Disabling the
Modem
(page 597).
27
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Data Privacy
Page 149 of 750

EXTERIOR LIGHTING
CONTROL
Lamps off.
A
Parking lamps on.
B
Autolamps on.
C
Headlamps on.
D
Rotate the control to make a selection.
Note: The lighting control defaults to
autolamps every time you switch your
vehicle on.
EXTERIOR LIGHTING
CONTROL - POLICE
RESPONDER Lamps off.
A
Parking lamps on.
B
Autolamps on.
C
Headlamps on.
D
Rotate the control to make a selection. Note:
The lighting control defaults to the
last known state every time you switch your
vehicle on.
HEADLAMPS
USING THE HIGH BEAM
HEADLAMPS Push the lever away from you to
switch the high beam on.
Push the lever forward again or pull the
lever toward you to switch the high beams
off.
Slightly pull the lever toward you and
release it to flash the headlamps.
HEADLAMP INDICATORS
Lamps On Illuminates when you switch the
low beam headlamps or the
parking lamps on.
Headlamp High Beam Illuminates when you switch the
high beam headlamps on.
145
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Exterior LightingE327629 E327629 E327570
Page 150 of 750

HEADLAMPS –
TROUBLESHOOTING
HEADLAMPS – FREQUENTLY
ASKED QUESTIONS
Why is there condensation in the
headlamps?
Headlamps have vents to
accommodate normal changes in air
pressure. Condensation can be a
natural by-product of this design.
When moist air enters the lamp
assembly through the vents, there is a
possibility that condensation can
occur when the temperature is cold.
When normal condensation occurs, a
fine mist can form on the interior of the
lens. The fine mist eventually clears
and exits through the vents during
normal operation.
How much condensation is
acceptable? The presence of a fine mist, for
example no streaks, drip marks or
large droplets. A fine mist covers less
than 50% of the lens.
How long may it take for the
acceptable condensation to be
cleared? Clearing time may take as long as 48
hours under dry weather conditions.
How much condensation is
unacceptable? A water puddle inside the lamp.
Streaks, drip marks or large droplets
present on the interior of the lens.
What should I do if unacceptable
condensation is present? Have your vehicle checked as soon as
possible. Why do my headlamps turn off when I
have them switched on when I switch
my vehicle off?
The battery saver turns the headlamps
off after a short period of time after
you switch your vehicle off.
AUTOLAMPS
WHAT ARE AUTOLAMPS WARNING: The system does not
relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.
Autolamps turn the headlamps on in low
light situations or when the windshield
wipers operate.
AUTOLAMP SETTINGS
1. Press
Settings on the touchscreen.
2. Press
Vehicle Settings.
3. Press
Lighting.
4. Press
Autolamp Delay.
5. Press a setting.
146
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Exterior Lighting
Page 151 of 750

EXTERIOR LAMPS
SWITCHING THE TURN SIGNAL
LAMPS ON AND OFF
Push the lever up or down to
switch the turn signal lamps on.
Set the lever to the middle position to
switch the turn signal lamps off.
Note: Tap the lever up or down to make the
turn signal lamps flash three times.
HOW DO CORNERING LAMPS
WORK (If Equipped)
The cornering lamps illuminate the inside
of a corner when you are turning the
steering wheel or when you switch the turn
signal lamps on. They turn on when the
vehicle speed is below 25 mph (40 km/h).
Note: Only the cornering lamp on the side
your vehicle is turning illuminates.
Note: Cornering lamps do not operate if
you switch the front fog lamps on. Headlamp beam.
A
Cornering lamp beam.
B
SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: CONFIGURABLE
DAYTIME RUNNING LAMPS WARNING:
The daytime running
lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.
1. Press
Settings on the touchscreen.
2. Press
Vehicle Settings.
3. Press
Lighting.
147
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Exterior LightingE311431 E327599

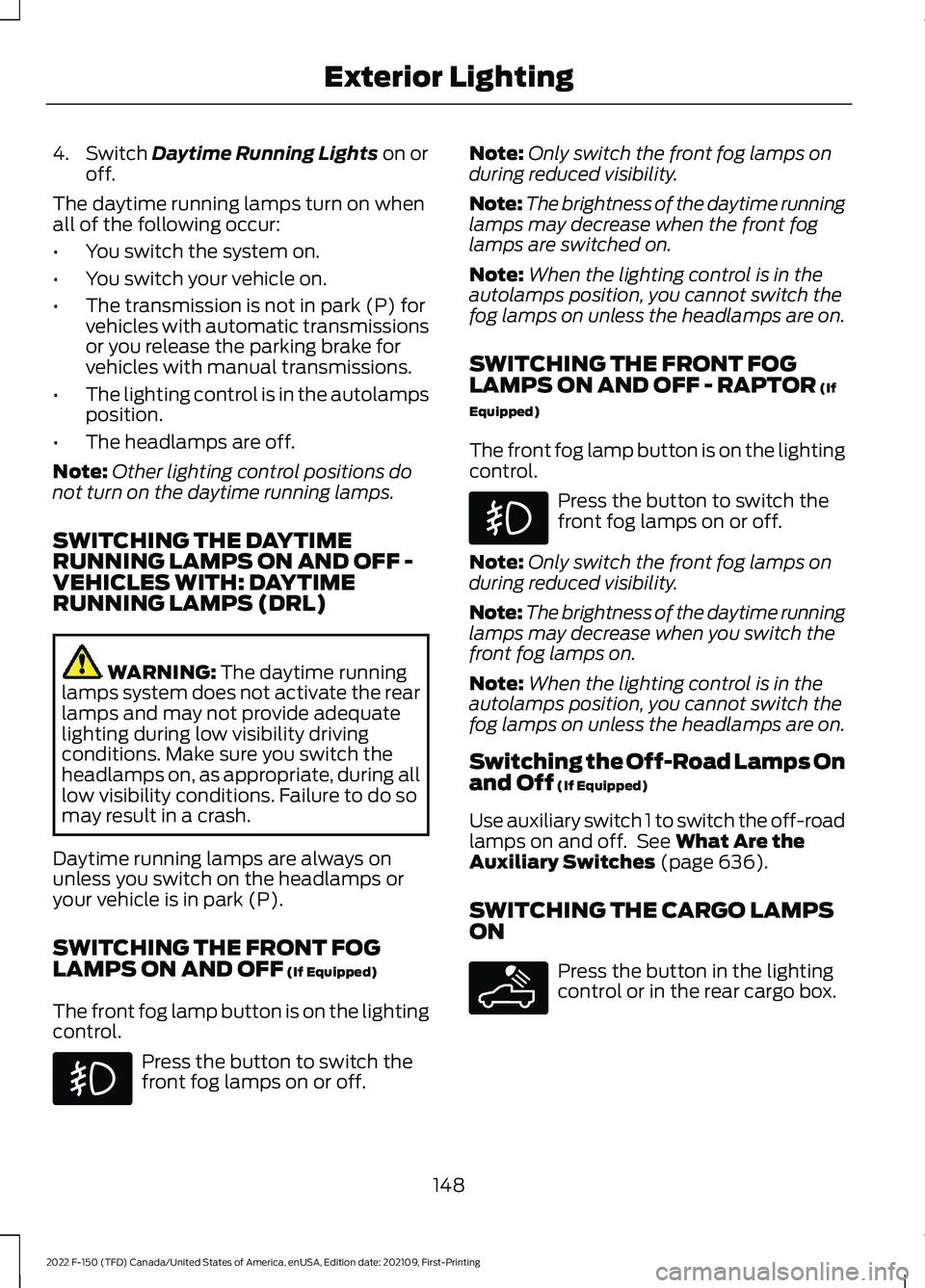

Page 152 of 750

4. Switch Daytime Running Lights on or
off.
The daytime running lamps turn on when
all of the following occur:
• You switch the system on.
• You switch your vehicle on.
• The transmission is not in park (P) for
vehicles with automatic transmissions
or you release the parking brake for
vehicles with manual transmissions.
• The lighting control is in the autolamps
position.
• The headlamps are off.
Note: Other lighting control positions do
not turn on the daytime running lamps.
SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: DAYTIME
RUNNING LAMPS (DRL) WARNING:
The daytime running
lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.
Daytime running lamps are always on
unless you switch on the headlamps or
your vehicle is in park (P).
SWITCHING THE FRONT FOG
LAMPS ON AND OFF
(If Equipped)
The front fog lamp button is on the lighting
control. Press the button to switch the
front fog lamps on or off. Note:
Only switch the front fog lamps on
during reduced visibility.
Note: The brightness of the daytime running
lamps may decrease when the front fog
lamps are switched on.
Note: When the lighting control is in the
autolamps position, you cannot switch the
fog lamps on unless the headlamps are on.
SWITCHING THE FRONT FOG
LAMPS ON AND OFF - RAPTOR
(If
Equipped)
The front fog lamp button is on the lighting
control. Press the button to switch the
front fog lamps on or off.
Note: Only switch the front fog lamps on
during reduced visibility.
Note: The brightness of the daytime running
lamps may decrease when you switch the
front fog lamps on.
Note: When the lighting control is in the
autolamps position, you cannot switch the
fog lamps on unless the headlamps are on.
Switching the Off-Road Lamps On
and Off
(If Equipped)
Use auxiliary switch 1 to switch the off-road
lamps on and off. See
What Are the
Auxiliary Switches (page 636).
SWITCHING THE CARGO LAMPS
ON Press the button in the lighting
control or in the rear cargo box.
148
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Exterior Lighting E189587
Page 154 of 750

You can also use individual zone controls
to switch on each zone.
Note:
Make sure to remove exterior lighting
covers when using zone lighting.
Note: When your vehicle is off and the timer
has one minute remaining, the direction
indicators flash six times.
Note: Indicators on the touchscreen
illuminate when the lights outside of the
zone lighting control are on.
Note: You can remotely control the zone
lighting using the FordPass app.
Note: Vehicles without spot lamps only
have two zones.
EXTERIOR ZONE LIGHTING
SETTINGS
1. Press Features on the touchscreen.
2. Press
Zone Lighting.
3. Press the settings menu in the upper right-hand corner.
4. Press a setting.
Enable Autolamp Override
This setting allows your vehicle to override
the autolamps when using zone lighting.
When you access zone lighting for the first
time, you can choose this setting. You can
change this setting at any time.
Include Reverse Lamps
This setting turns the reverse lamps on
when you switch the rear lighting zone on.
Switch this setting off if you have a backup
alarm installed to prevent the reverse
lamps from turning on and sounding the
alarm when using zone lighting. AUTOMATIC HIGH BEAM
CONTROL
HOW DOES AUTOMATIC HIGH
BEAM CONTROL WORK
Automatic high beam control turns the
high beams on if it is dark enough and no
other traffic is present. If it detects an
approaching vehicle
’s headlamps or tail
lamps, or street lighting ahead, the system
turns the high beams off.
A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.
150
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Exterior Lighting
Page 156 of 750

•
The system detects an approaching
vehicle's headlamps or a leading
vehicle's tail lamps.
• The system detects severe rain, snow
or fog.
• The system detects street lighting.
• The camera has reduced visibility.
• The vehicle speed falls below
approximately 19 mph (30 km/h).
SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF
1. Press
Settings on the touchscreen.
2. Press
Vehicle Settings.
3. Press
Lighting.
4. Switch
Auto Highbeam on or off.
AUTOMATIC HIGH BEAM
CONTROL INDICATORS Illuminates to confirm when the
system is ready to assist.
OVERRIDING AUTOMATIC HIGH
BEAM CONTROL Push the lever away from you to switch
the high beams on.
Push the lever away from you again to
switch the high beams off.
Push the lever away from you for a third
time to switch automatic high beam
control back on.
AUTOMATIC HIGH BEAM CONTROL – TROUBLESHOOTING
AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES Description
Message
The camera has reduced visibility. Clean the windshield. If
the message continues to appear, have your vehicle checked
as soon as possible.
Front Camera Low Visib-
ility Clean Screen
The camera has malfunctioned. Wait a short period of time
for the camera to cool down. If the message continues to
appear, have your vehicle checked as soon as possible.
Front Camera Tempor-
arily Not Available
The camera has malfunctioned. Have your vehicle checked
as soon as possible.
Front Camera Malfunc-
tion Service Required
152
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Exterior Lighting E308790
Page 158 of 750

The system adapts the lighting to avoid
glare if all of the following occur:
•
You switch the system on.
• You set the lighting control to the
autolamps position.
• The system detects an approaching
vehicle's headlamps or rear lamps.
GLARE FREE LIGHTING
LIMITATIONS
The system turns off if any of the following
occur:
• You switch the system off.
• You set the lighting control to any
position except autolamps.
• The ambient light level is high enough.
• The system detects severe rain, snow
or fog.
• The system detects street lighting.
• The camera has reduced visibility.
• The vehicle speed falls below
approximately 19 mph (30 km/h).
Note: The deactivation speed is lower on
curves.
SWITCHING GLARE FREE
LIGHTING ON AND OFF
1. Press
Settings on the touchscreen.
2. Press
Vehicle Settings. 3. Press
Lighting.
4. Switch
Glarefree Lighting on or off.
GLARE FREE LIGHTING
INDICATORS Illuminates to confirm when the
system is ready to assist.
OVERRIDING GLARE FREE
LIGHTING Push the lever away from you to switch
the high beams on.
Push the lever away from you again to
switch the high beams off.
Push the lever away from you for a third
time to switch glare free lighting back on.
154
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Exterior Lighting E308790
