Protected Component
Fuse
Rating
Fuse
Number
Driver front door module.
30 A
23
Moonroof.
30 A
24
Not used.
—
25
Passenger front door module.
30 A
26
Not used.
—
27
Amplifier.
30 A
28
Adjustable pedals switch.
15 A
29
Brake on-off output to trailer brake controller and customer access
circuits.
5 A
30
Remote keyless entry.
10 A
31
Radio.
20 A
32
Not used.
—
33
Run/start relay.
30 A
34
Not used.
—
35
Camera module.
15 A
36
Lane keeping system.
Auto-dimming interior mirror.
Rear heated seats.
Heated steering wheel.
20 A
37
Power windows.
30 A
38
Note: Spare fuse amperage may vary.
CHANGING A FUSE
Fuses WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. 335
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- FusesE217331

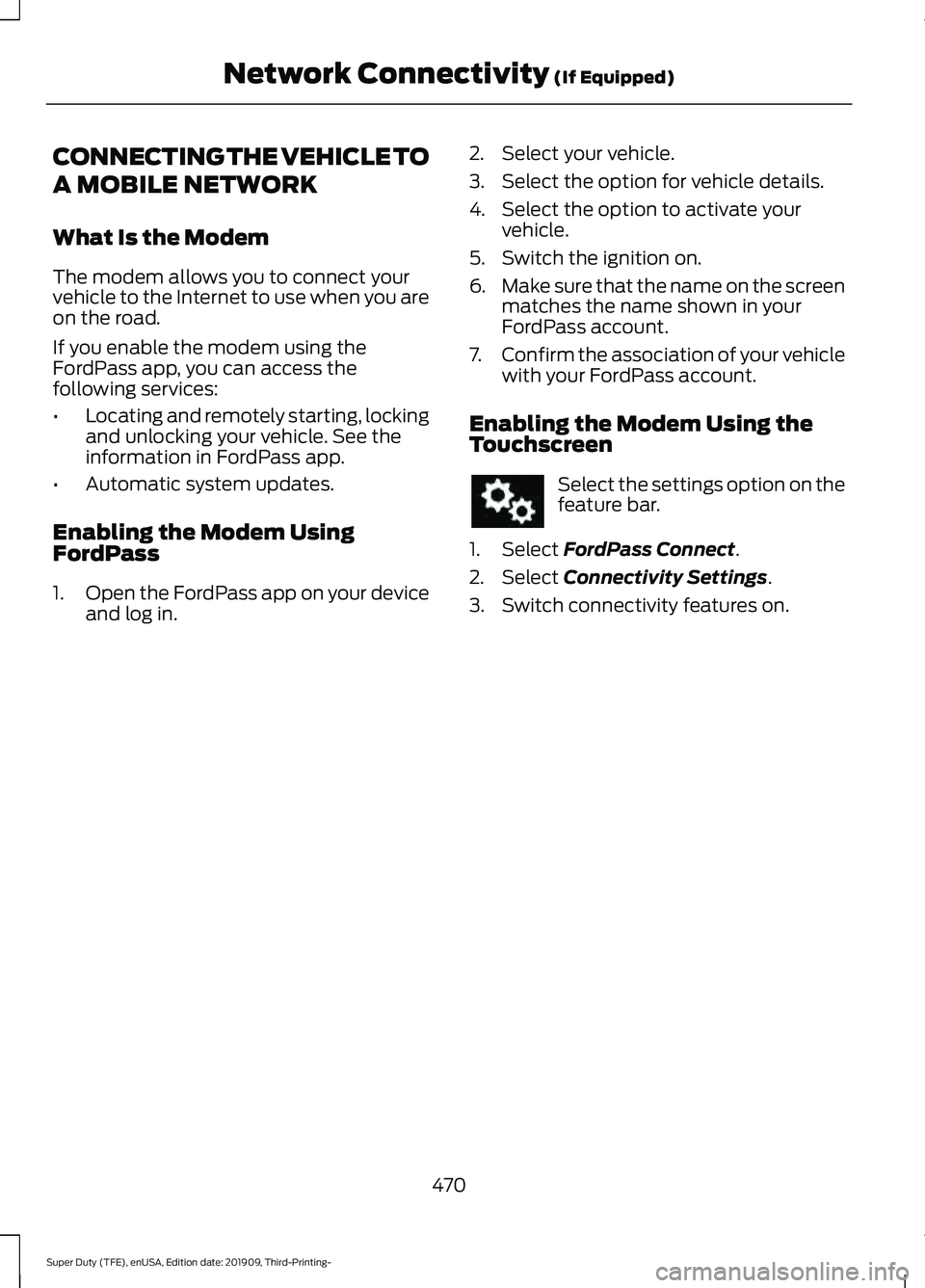

CONNECTING THE VEHICLE TO
A MOBILE NETWORK
What Is the Modem
The modem allows you to connect your
vehicle to the Internet to use when you are
on the road.
If you enable the modem using the
FordPass app, you can access the
following services:
•
Locating and remotely starting, locking
and unlocking your vehicle. See the
information in FordPass app.
• Automatic system updates.
Enabling the Modem Using
FordPass
1. Open the FordPass app on your device
and log in. 2. Select your vehicle.
3. Select the option for vehicle details.
4. Select the option to activate your
vehicle.
5. Switch the ignition on.
6. Make sure that the name on the screen
matches the name shown in your
FordPass account.
7. Confirm the association of your vehicle
with your FordPass account.
Enabling the Modem Using the
Touchscreen Select the settings option on the
feature bar.
1. Select FordPass Connect.
2. Select
Connectivity Settings.
3. Switch connectivity features on.
470
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Network Connectivity
(If Equipped)

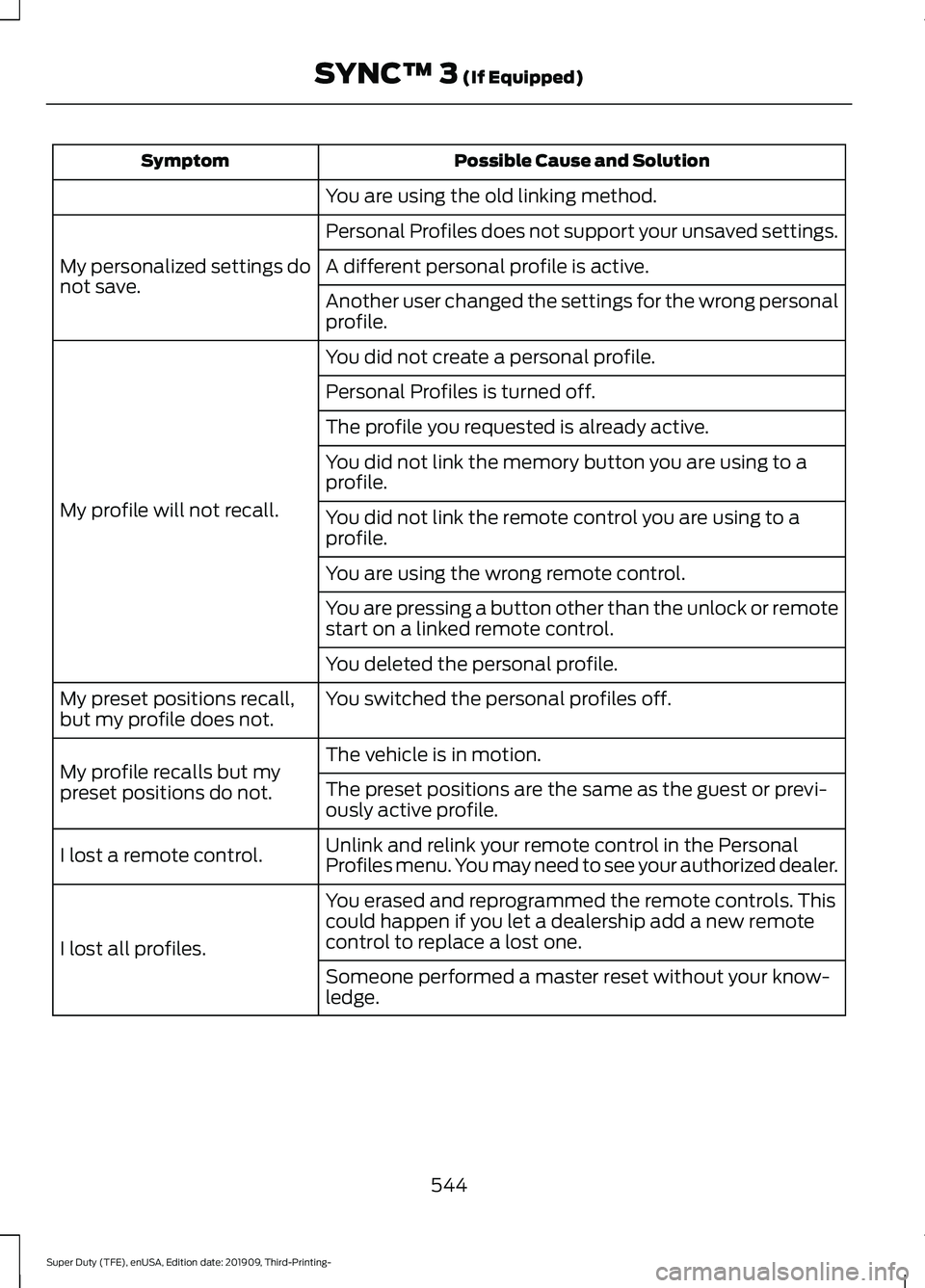

Possible Cause and Solution
Symptom
You are using the old linking method.
Personal Profiles does not support your unsaved settings.
My personalized settings do
not save. A different personal profile is active.
Another user changed the settings for the wrong personal
profile.
You did not create a personal profile.
My profile will not recall. Personal Profiles is turned off.
The profile you requested is already active.
You did not link the memory button you are using to a
profile.
You did not link the remote control you are using to a
profile.
You are using the wrong remote control.
You are pressing a button other than the unlock or remote
start on a linked remote control.
You deleted the personal profile.
You switched the personal profiles off.
My preset positions recall,
but my profile does not.
The vehicle is in motion.
My profile recalls but my
preset positions do not. The preset positions are the same as the guest or previ-
ously active profile.
Unlink and relink your remote control in the Personal
Profiles menu. You may need to see your authorized dealer.
I lost a remote control.
You erased and reprogrammed the remote controls. This
could happen if you let a dealership add a new remote
control to replace a lost one.
I lost all profiles.
Someone performed a master reset without your know-
ledge.
544
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- SYNC™ 3 (If Equipped)

Diesel Messages..................................................
125
Doors and Locks.................................................. 127
Driver Alert............................................................. 128
Drivetrain................................................................ 128
Engine..................................................................... 128
Fuel........................................................................\
.. 129
Keys and Remote Controls............................. 129
Lane Keeping System....................................... 130
Maintenance........................................................ 130
MyKey....................................................................... 131
Off Road.................................................................. 131
Park Aid................................................................... 132
Park Brake.............................................................. 132
Power Steering..................................................... 133
Pre-Collision Assist............................................ 133
Remote Start........................................................ 134
Seats........................................................................\
134
Starting System ................................................. 134
Tailgate................................................................... 134
Tire Pressure Monitoring System.................. 135
Trail Control.......................................................... 135
Trailer....................................................................... 136
Installing Child Restraints...........................22 Child Seats.............................................................. 22
Combining Seatbelt and LATCH Lower Anchors for Attaching Child
Restraints........................................................... 28
Front Seat Tether Strap Attachment (Regular Cab)................................................... 29
Rear Seat Tether Strap Attachment (Crew Cab and Super Cab)...................................... 30
Use of Inboard Lower Anchors from the Outboard Seating Positions (Center
Seating Use) ..................................................... 27
Using Lap and Shoulder Belts (Except Front Center Position of Super Cab and Crew
Cab)...................................................................... 22
Using Lap and Shoulder Belts (Front Center Position of Super Cab and Crew
Cab)...................................................................... 24
Using Lower Anchors and Tethers for CHildren (LATCH)........................................... 26
Using Tether Straps............................................. 28
Instrument Cluster........................................101
Instrument Lighting Dimmer......................87
Instrument Panel............................................18
Interior Air Quality........................................146 Interior Lamps
.................................................89
Front Interior Lamp............................................. 89
Rear Interior Lamps............................................ 90
Interior Mirror
...................................................98
Auto-Dimming Mirror......................................... 98
Manual Dimming Mirror..................................... 98
Introduction.........................................................7
J
Jump Starting the Vehicle..........................317 Connecting the Jumper Cables...................... 317
Jump Starting....................................................... 318
Preparing Your Vehicle...................................... 317
Removing the Jumper Cables........................ 318
K
Keyless Entry
...................................................68
SECURICODE™ KEYLESS ENTRY
KEYPAD.............................................................. 68
Keyless Starting
............................................169
Keys and Remote Controls.........................53
L
Lane Keeping System
................................245
Switching the System On and Off..............246
System Display................................................... 246
System Settings................................................. 246
Troubleshooting.................................................. 247
Lighting Control..............................................86 Flashing the Headlamp High Beam..............87
Headlamp High Beam....................................... 86
Lighting..............................................................86 General Information........................................... 86
Limited Slip Differential.............................215
Load Carrying
................................................265
Load Limit.......................................................265
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................ 269
Vehicle Loading - with and without a Trailer................................................................. 265
Locating the Cabin Air Filter.....................146
Locking and Unlocking.................................65 Activating Intelligent Access............................ 65
Autolock................................................................... 67
621
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index

P
Parking Aids...................................................228
Principle of Operation...................................... 228
Parking Brake.................................................219
Passive Anti-Theft System.........................75 SecuriLock®........................................................... 75
PATS See: Passive Anti-Theft System..................... 75
Perchlorate........................................................14
Phone................................................................521 Android Auto........................................................ 523
Apple CarPlay...................................................... 523
Pairing Your Cell Phone for the First Time................................................................... 522
Text Messaging................................................... 522
Using Your Cell Phone...................................... 522
Post-Crash Alert System
...........................319
Power Door Locks See: Locking and Unlocking............................. 65
Power Running Boards
.................................77
Power Seats...................................................150
Adjusting the Lumbar Support....................... 151
Adjusting the Multi-Contour Front Seats With Active Motion ........................................ 151
Power Steering Fluid Check
.....................367
Power Take-Off............................................205 Split Shaft Capability...................................... 206
Power Windows.............................................94 Accessory Delay................................................... 95
Bounce-Back......................................................... 94
One-Touch Up or Down.................................... 94
Window Lock......................................................... 95
Pre-Collision Assist
.....................................258
Adjusting the Pre-Collision Assist
Settings............................................................ 260
Blocked Sensors................................................. 261
Distance Indication and Alert....................... 259
Using the Pre-Collision Assist System.............................................................. 258
Protecting the Environment........................17
Puncture See: Changing a Road Wheel......................... 417
R
Rear Axle..........................................................215 Rear Parking Aid...........................................228
Obstacle Distance Indicator.......................... 229
Rear Seats
.......................................................154
Folding Up the Rear Seat Cushion ..............154
Rear Under Seat Storage................................. 155
Returning the Seat to the Seating Position.............................................................. 155
Rear View Camera
.......................................229
Camera Guidelines........................................... 230
Obstacle Distance Indicator........................... 231
Rear Camera Delay............................................ 231
Using the Rear View Camera System.............................................................. 230
Rear View Camera See: Rear View Camera................................... 229
Recommended Towing Weights
...........290
Calculating the Maximum Loaded Trailer
Weight for Your Vehicle.............................. 294
Refueling - Diesel.........................................184 Dual Fuel Tanks................................................... 186
Fueling Tips.......................................................... 185
Refueling................................................................ 185
Refueling - Gasoline....................................183 Fuel Filler Cap...................................................... 184
Remote Control..............................................53 Car Finder................................................................ 58
Integrated Keyhead Transmitter..................... 53
Intelligent Access Key......................................... 54
Memory Feature.................................................... 57
Remote Start......................................................... 58
Replacing the Battery......................................... 55
Sounding the Panic Alarm................................ 58
Remote Start.................................................144 Automatic Settings............................................ 145
Removing the Tailgate
...................................71
Repairing Minor Paint Damage...............387
Replacement Parts Recommendation........................................14
Collision Repairs.................................................... 14
Scheduled Maintenance and Mechanical Repairs.................................................................. 14
Warranty on Replacement Parts..................... 14
Replacing a Lost Key or Remote Control............................................................59
Replacing the Cabin Air Filter..................146
Reporting Safety Defects (Canada Only)..............................................................327
623
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index

Driving Off-Road With Truck and Utility
Vehicles............................................................. 210
Electronic Shift-On-the-Fly (ESOF) 4WD system............................................................... 207
Entering and Exiting Rock Crawl Mode with Tremor Package............................................ 209
How Your Vehicle Differs from Other Vehicles............................................................. 210
Operating 4WD Vehicles with Spare or Mismatched Tires......................................... 209
Using the Electronic Shift on the Fly 4WD system.............................................................. 208
Using Hill Descent Control.......................226 Hill Descent Modes........................................... 226
Using MyKey With Remote Start Systems..........................................................63
Using Power Running Boards.....................77 Automatic Power Deploy................................... 77
Automatic Power Stow....................................... 77
Bounce-back.......................................................... 78
Enabling and Disabling....................................... 77
Manual Power Deploy......................................... 77
Using Snow Chains....................................408
Using Stability Control...............................223 AdvanceTrac® with Roll Stability Control ™
(RSC®)............................................................. 223
Using SYNC™ With Your Media Player.............................................................491
Audio Voice Commands................................. 492
Media Sources..................................................... 491
Using SYNC™ With Your Phone............487 Accessing Features through the Phone
Menu................................................................. 488
Pairing a Phone.................................................. 487
Phone Controls.................................................. 488
Phone Voice Commands................................ 487
Using Traction Control................................221 Switching the System Off................................ 221
System Indicator Lights and Messages.......................................................... 221
Using Voice Recognition...........................485
Apps....................................................................... 508
Automatic Blower Motor Speed Reduction........................................................ 509
Climate.................................................................. 505
Entertainment.................................................... 504
General.................................................................. 503
Initiating a Voice Session............................... 485Navigation............................................................
507
Phone.................................................................... 506
SiriusXM Traffic and Travel Link.................. 508
System Interaction and Feedback.............486
Voice Settings.................................................... 509
Utilizing the Mediation/Arbitration Program (Canada Only)........................325
V
Vehicle Care..................................................380 General Information......................................... 380
Vehicle Certification Label.......................436
Vehicle Identification Number................435
Vehicle Storage
.............................................387
Body........................................................................\
387
Brakes.................................................................... 388
Cooling system................................................... 388
Disconnecting Your 12 Volt Battery.............388
Engine.................................................................... 388
Fuel system......................................................... 388
General.................................................................. 387
Miscellaneous ..................................................... 388
Removing Vehicle From Storage.................388
Tires........................................................................\
388
Vehicle Wi-Fi Hotspot
................................473
Ventilated Seats............................................157
Ventilation See: Climate Control......................................... 139
VIN See: Vehicle Identification Number............435
Voice Control
....................................................81
W
Warning Lamps and Indicators...............104 Adaptive Cruise Control................................... 104
Adaptive Steering.............................................. 104
Anti-Lock Braking System.............................. 104
Automatic High Beam...................................... 104
Battery.................................................................... 105
Blind Spot Monitor............................................. 105
Brake System Warning Lamp........................ 105
Check 4X4............................................................. 105
Check Fuel Cap................................................... 105
Cruise Control...................................................... 105
Diesel Engine Brake........................................... 105
Diesel Exhaust Fluid.......................................... 105
627
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index
