towing capacity FORD F-450 2020 Owners Manual

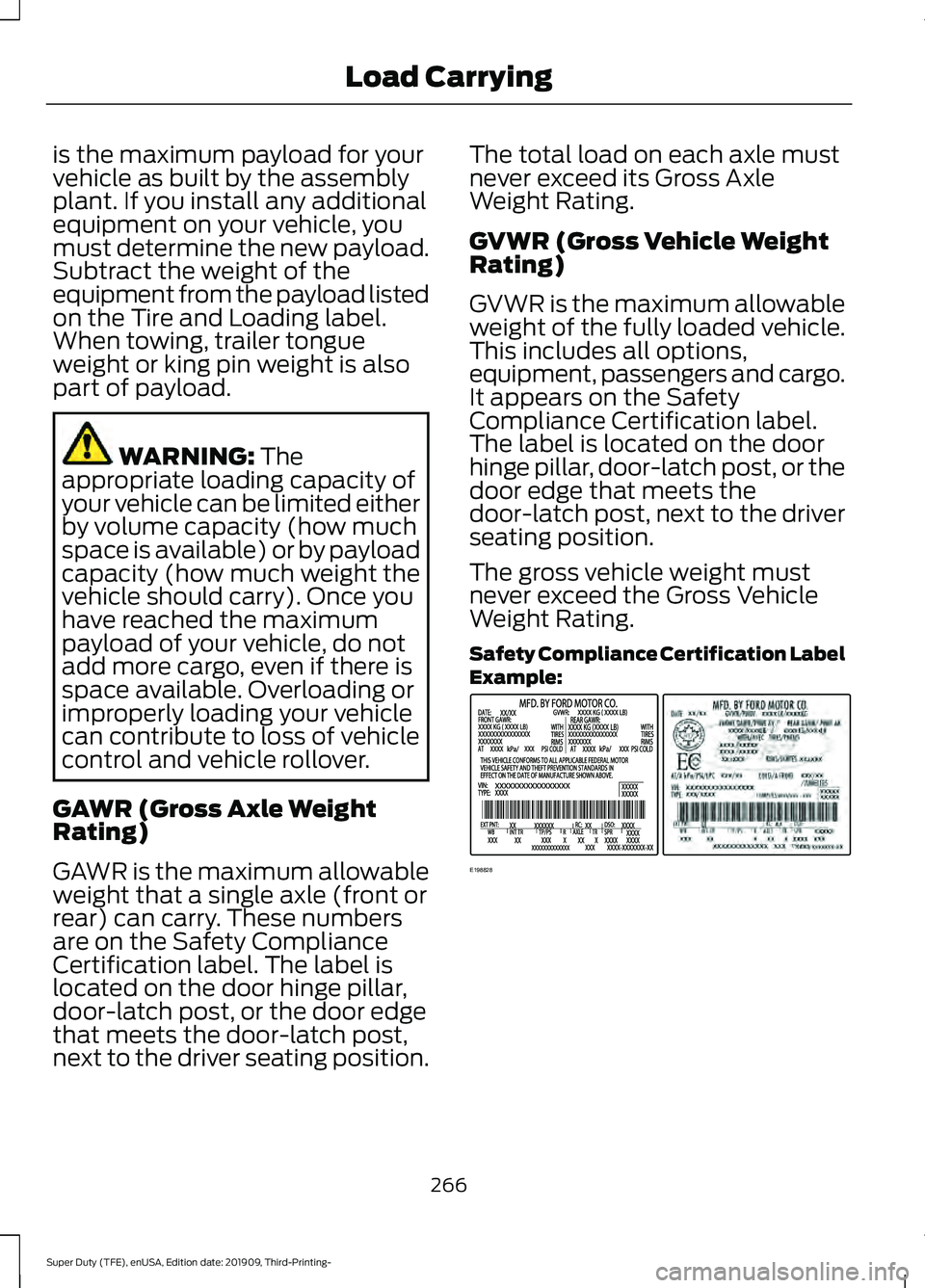

is the maximum payload for your
vehicle as built by the assembly
plant. If you install any additional
equipment on your vehicle, you
must determine the new payload.
Subtract the weight of the
equipment from the payload listed
on the Tire and Loading label.
When towing, trailer tongue
weight or king pin weight is also
part of payload.
WARNING: The
appropriate loading capacity of
your vehicle can be limited either
by volume capacity (how much
space is available) or by payload
capacity (how much weight the
vehicle should carry). Once you
have reached the maximum
payload of your vehicle, do not
add more cargo, even if there is
space available. Overloading or
improperly loading your vehicle
can contribute to loss of vehicle
control and vehicle rollover.
GAWR (Gross Axle Weight
Rating)
GAWR is the maximum allowable
weight that a single axle (front or
rear) can carry. These numbers
are on the Safety Compliance
Certification label. The label is
located on the door hinge pillar,
door-latch post, or the door edge
that meets the door-latch post,
next to the driver seating position. The total load on each axle must
never exceed its Gross Axle
Weight Rating.
GVWR (Gross Vehicle Weight
Rating)
GVWR is the maximum allowable
weight of the fully loaded vehicle.
This includes all options,
equipment, passengers and cargo.
It appears on the Safety
Compliance Certification label.
The label is located on the door
hinge pillar, door-latch post, or the
door edge that meets the
door-latch post, next to the driver
seating position.
The gross vehicle weight must
never exceed the Gross Vehicle
Weight Rating.
Safety Compliance Certification Label
Example:
266
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Load CarryingE198828

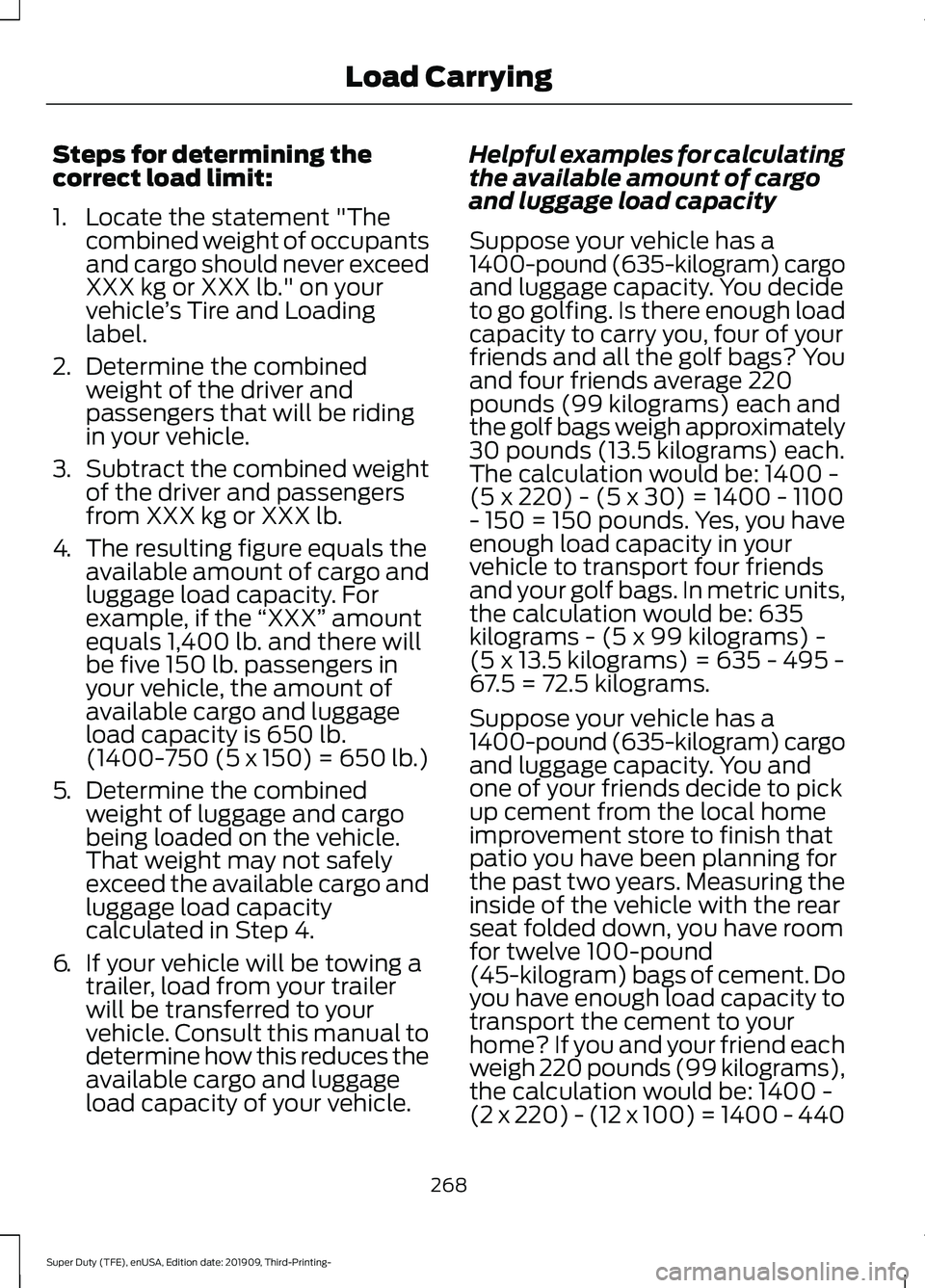

Steps for determining the
correct load limit:
1. Locate the statement "The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lb." on your
vehicle ’s Tire and Loading
label.
2. Determine the combined
weight of the driver and
passengers that will be riding
in your vehicle.
3. Subtract the combined weight
of the driver and passengers
from XXX kg or XXX lb.
4. The resulting figure equals the
available amount of cargo and
luggage load capacity. For
example, if the “XXX” amount
equals 1,400 lb. and there will
be five 150 lb. passengers in
your vehicle, the amount of
available cargo and luggage
load capacity is 650 lb.
(1400-750 (5 x 150) = 650 lb.)
5. Determine the combined
weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo and
luggage load capacity
calculated in Step 4.
6. If your vehicle will be towing a
trailer, load from your trailer
will be transferred to your
vehicle. Consult this manual to
determine how this reduces the
available cargo and luggage
load capacity of your vehicle. Helpful examples for calculating
the available amount of cargo
and luggage load capacity
Suppose your vehicle has a
1400-pound (635-kilogram) cargo
and luggage capacity. You decide
to go golfing. Is there enough load
capacity to carry you, four of your
friends and all the golf bags? You
and four friends average 220
pounds (99 kilograms) each and
the golf bags weigh approximately
30 pounds (13.5 kilograms) each.
The calculation would be: 1400 -
(5 x 220) - (5 x 30) = 1400 - 1100
- 150 = 150 pounds. Yes, you have
enough load capacity in your
vehicle to transport four friends
and your golf bags. In metric units,
the calculation would be: 635
kilograms - (5 x 99 kilograms) -
(5 x 13.5 kilograms) = 635 - 495 -
67.5 = 72.5 kilograms.
Suppose your vehicle has a
1400-pound (635-kilogram) cargo
and luggage capacity. You and
one of your friends decide to pick
up cement from the local home
improvement store to finish that
patio you have been planning for
the past two years. Measuring the
inside of the vehicle with the rear
seat folded down, you have room
for twelve 100-pound
(45-kilogram) bags of cement. Do
you have enough load capacity to
transport the cement to your
home? If you and your friend each
weigh 220 pounds (99 kilograms),
the calculation would be: 1400 -
(2 x 220) - (12 x 100) = 1400 - 440
268
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Load Carrying

TOWING A TRAILER
WARNING: Do not exceed
the GVWR or the GAWR
specified on the certification
label. WARNING:
Towing trailers
beyond the maximum
recommended gross trailer
weight exceeds the limit of your
vehicle and could result in engine
damage, transmission damage,
structural damage, loss of
vehicle control, vehicle rollover
and personal injury. WARNING:
Do not exceed
the lowest rating capacity for
your vehicle or trailer hitch.
Overloading your vehicle or
trailer hitch can impair your
vehicle stability and handling.
Failure to follow this instruction
could result in the loss of control
of your vehicle, personal injury or
death. WARNING:
Do not cut,
drill, weld or modify the trailer
hitch. Modifying the trailer hitch
could reduce the hitch rating. Note:
To prevent your trailer from
accumulating distance, and the
trailer information status appearing
when you restart your vehicle after
disconnecting your trailer, you must
deactivate your trailer. Using the
information display, go to the
Towing menu and then the Select
Trailer option. Select the No active
trailer option. See
Information
Displays (page 109).
Your vehicle may have electrical
items, such as fuses or relays,
related to towing. See
Fuses
(page 329).
Your vehicle may have ability to
modify trailer towing features.
See
General Information (page
109).
Your vehicle's load capacity
designation is by weight, not by
volume, so you cannot necessarily
use all available space when
loading a vehicle or trailer.
Towing a trailer places an extra
load on your vehicle's engine,
transmission, axle, brakes, tires
and suspension. Inspect these
components periodically during,
and after, any towing operation.
272
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Towing

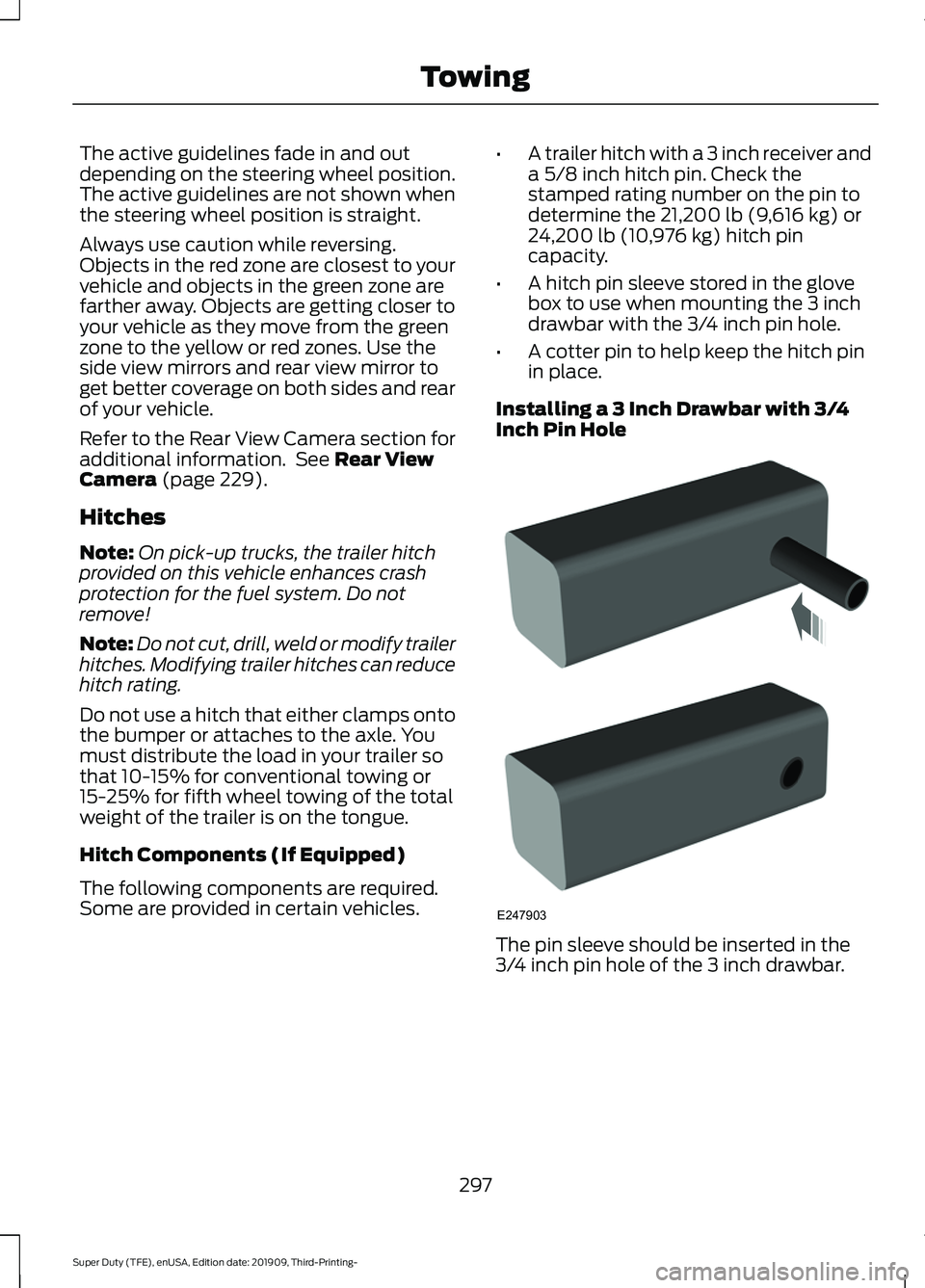

The active guidelines fade in and out
depending on the steering wheel position.
The active guidelines are not shown when
the steering wheel position is straight.
Always use caution while reversing.
Objects in the red zone are closest to your
vehicle and objects in the green zone are
farther away. Objects are getting closer to
your vehicle as they move from the green
zone to the yellow or red zones. Use the
side view mirrors and rear view mirror to
get better coverage on both sides and rear
of your vehicle.
Refer to the Rear View Camera section for
additional information. See Rear View
Camera (page 229).
Hitches
Note: On pick-up trucks, the trailer hitch
provided on this vehicle enhances crash
protection for the fuel system. Do not
remove!
Note: Do not cut, drill, weld or modify trailer
hitches. Modifying trailer hitches can reduce
hitch rating.
Do not use a hitch that either clamps onto
the bumper or attaches to the axle. You
must distribute the load in your trailer so
that 10-15% for conventional towing or
15-25% for fifth wheel towing of the total
weight of the trailer is on the tongue.
Hitch Components (If Equipped)
The following components are required.
Some are provided in certain vehicles. •
A trailer hitch with a 3 inch receiver and
a 5/8 inch hitch pin. Check the
stamped rating number on the pin to
determine the
21,200 lb (9,616 kg) or
24,200 lb (10,976 kg) hitch pin
capacity.
• A hitch pin sleeve stored in the glove
box to use when mounting the 3 inch
drawbar with the 3/4 inch pin hole.
• A cotter pin to help keep the hitch pin
in place.
Installing a 3 Inch Drawbar with 3/4
Inch Pin Hole The pin sleeve should be inserted in the
3/4 inch pin hole of the 3 inch drawbar.
297
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- TowingE247903

Launching or Retrieving a Boat or Personal
Watercraft (PWC)........................................ 304
Safety Chains...................................................... 299
Trailer Brakes....................................................... 299
Trailer Lamps...................................................... 303
Trailer Towing Connector................................ 295
When Towing a Trailer..................................... 303
Event Data Recording See: Data Recording............................................ 10
Export Unique Options.................................16
Exterior Mirrors................................................95 Blind Spot Information System...................... 98
Clearance Lamps ................................................. 97
Direction Indicator Mirrors ................................ 97
Fold-Away Exterior Mirrors............................... 95
Heated Exterior Mirrors ...................................... 97
Memory Mirrors .................................................... 97
Power Exterior Mirrors........................................ 95
PowerScope ™ Power Telescoping
Mirrors................................................................. 96
Puddle Lamps........................................................ 97
Spot Lamps............................................................ 97
Telescoping Mirrors............................................. 96
Trailer Towing Camera System....................... 97
F
Fastening the Seatbelts...............................37 Fastening the Cinch Tongue............................ 38
Seatbelt Locking Modes.................................... 39
Using Seatbelts During Pregnancy................38
Using the Seatbelt with Cinch Tongue (Front Center Seat on Super Cab and
Crew Cab)........................................................... 37
Fire Extinguisher
............................................316
Flat Tire See: Changing a Road Wheel......................... 417
Floor Mats........................................................313
Fog Lamps - Front See: Front Fog Lamps........................................ 88
Foot Pedals See: Adjusting the Pedals................................. 83
Ford Credit
.........................................................14
US Only..................................................................... 14
Ford Protect....................................................551 Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 552Ford Protect Extended Service Plans (U.S.
Only)................................................................... 551
Four-Wheel Drive.........................................207
Front Fog Lamps............................................88 Front Fog Lamp Indicator................................. 88
Switching the Front Fog Lamps On or Off........................................................................\
. 88
Fuel and Refueling.......................................178
Fuel Consumption........................................187 Advertised Capacity........................................... 187
Fuel Economy....................................................... 187
Fuel Filter - 6.2L/7.3L...................................371
Fuel Quality - Diesel.....................................181 Biodiesel................................................................. 182
Diesel Fuel Additives ........................................ 183
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Not Required ...........181
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Required (United
States/Canada/Puerto Rico/U.S. Virgin
Islands And Other Locales) ....................... 181
Fuel Quality - E85.........................................179 Choosing the Right Fuel - Flex Fuel
Vehicles.............................................................. 179
Switching Between E85 and Gasoline............................................................ 180
Fuel Quality - Gasoline..............................180 Choosing the Right Fuel.................................. 180
Fuel Shutoff
....................................................316
Fuses................................................................329
Fuse Specification Chart
..........................329
Engine Compartment Fuse Box................... 329
Passenger Compartment Fuse Panel........333
G
Garage Door Opener...................................158
Garage Door Opener See: Universal Garage Door Opener...........158
Gauges..............................................................101 DEF Gauge............................................................ 103
Engine Coolant Temperature Gauge..........103
Engine Oil Pressure Gauge.............................. 103
Fuel Gauge............................................................ 103
Transmission Fluid Temperature Gauge................................................................. 103
619
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index
