mirror controls FORD F-450 2022 Owners Manual

Security
Passive Anti-Theft System
......................106
Anti-Theft Alarm System ........................
106
Anti-Theft Alarm System Settings .......
107
Security – Troubleshooting .....................
108
Power Running Boards
Power Running Board Precautions ........
110
Power Running Board Settings ...............
110
Deploying and Stowing the Power Running Boards ........................................
110
Power Running Boards – Troubleshooting .......................................
110
Steering Wheel
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column ..........................................................
111
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column .........................................................
112
Resetting the Stopping Position - Vehicles With: Power Adjustable
Steering Column .......................................
112
Horn ...................................................................
112
Switching the Heated Steering Wheel On and Off ...................................................
112
Adjustable Pedals
Adjusting the Pedals ...................................
114
Wipers and Washers
Wipers ...............................................................
115
Autowipers ......................................................
115
Checking the Wiper Blades ......................
116
Replacing the Front Wiper Blades .........
116
Washers ...........................................................
116
Wipers and Washers – Troubleshooting ........................................................................\
..
117
Exterior Lighting
Exterior Lighting Control ............................
118Headlamps
.....................................................
118
Headlamps – Troubleshooting ...............
118
Autolamps ......................................................
119
Exterior Lamps ..............................................
119
Automatic High Beam Control ................
121
Automatic High Beam Control – Troubleshooting .......................................
123
Interior Lighting
Switching All of the Interior Lamps On and Off ........................................................
124
Switching the Front Interior Lamps On and Off ........................................................
124
Switching the Rear Interior Lamps On and Off ........................................................
124
Interior Lamp Function ..............................
124
Adjusting the Instrument Panel Lighting Brightness ...................................................
125
Ambient Lighting .........................................
125
Interior Lighting – Troubleshooting ......
125
Windows
Opening and Closing the Windows ......
126
Window Bounce-Back ...............................
126
Locking the Rear Window Controls .......
127
Opening and Closing the Sliding Windows .....................................................
127
Interior Mirror
Interior Mirror Precautions .......................
128
Manually Dimming the Interior Mirror ........................................................................\
.
128
Auto-Dimming Interior Mirror ..................
128
Exterior Mirrors
Adjusting the Exterior Mirrors ..................
129
Folding the Exterior Mirrors - Vehicles With: Manual Folding Mirrors ..............
129
Folding the Exterior Mirrors - Vehicles With: Power Folding Mirrors ................
129
Extending the Exterior Mirrors ................
130
Auto-Dimming Exterior Mirror ................
130
3
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Table of Contents

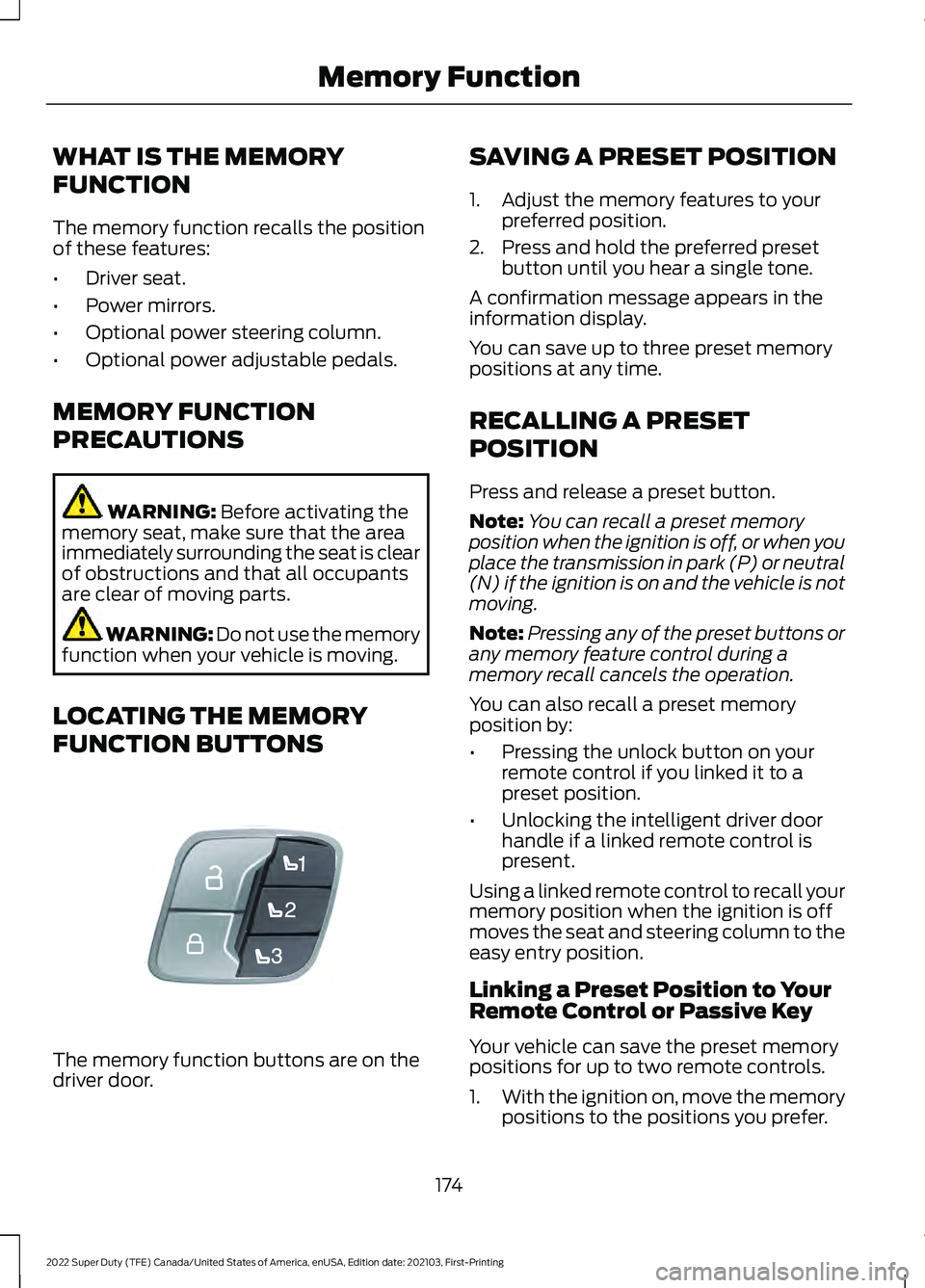

WHAT IS THE MEMORY
FUNCTION
The memory function recalls the position
of these features:
•
Driver seat.
• Power mirrors.
• Optional power steering column.
• Optional power adjustable pedals.
MEMORY FUNCTION
PRECAUTIONS WARNING: Before activating the
memory seat, make sure that the area
immediately surrounding the seat is clear
of obstructions and that all occupants
are clear of moving parts. WARNING:
Do not use the memory
function when your vehicle is moving.
LOCATING THE MEMORY
FUNCTION BUTTONS The memory function buttons are on the
driver door. SAVING A PRESET POSITION
1. Adjust the memory features to your
preferred position.
2. Press and hold the preferred preset button until you hear a single tone.
A confirmation message appears in the
information display.
You can save up to three preset memory
positions at any time.
RECALLING A PRESET
POSITION
Press and release a preset button.
Note: You can recall a preset memory
position when the ignition is off, or when you
place the transmission in park (P) or neutral
(N) if the ignition is on and the vehicle is not
moving.
Note: Pressing any of the preset buttons or
any memory feature control during a
memory recall cancels the operation.
You can also recall a preset memory
position by:
• Pressing the unlock button on your
remote control if you linked it to a
preset position.
• Unlocking the intelligent driver door
handle if a linked remote control is
present.
Using a linked remote control to recall your
memory position when the ignition is off
moves the seat and steering column to the
easy entry position.
Linking a Preset Position to Your
Remote Control or Passive Key
Your vehicle can save the preset memory
positions for up to two remote controls.
1. With the ignition on, move the memory
positions to the positions you prefer.
174
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Memory FunctionE307868

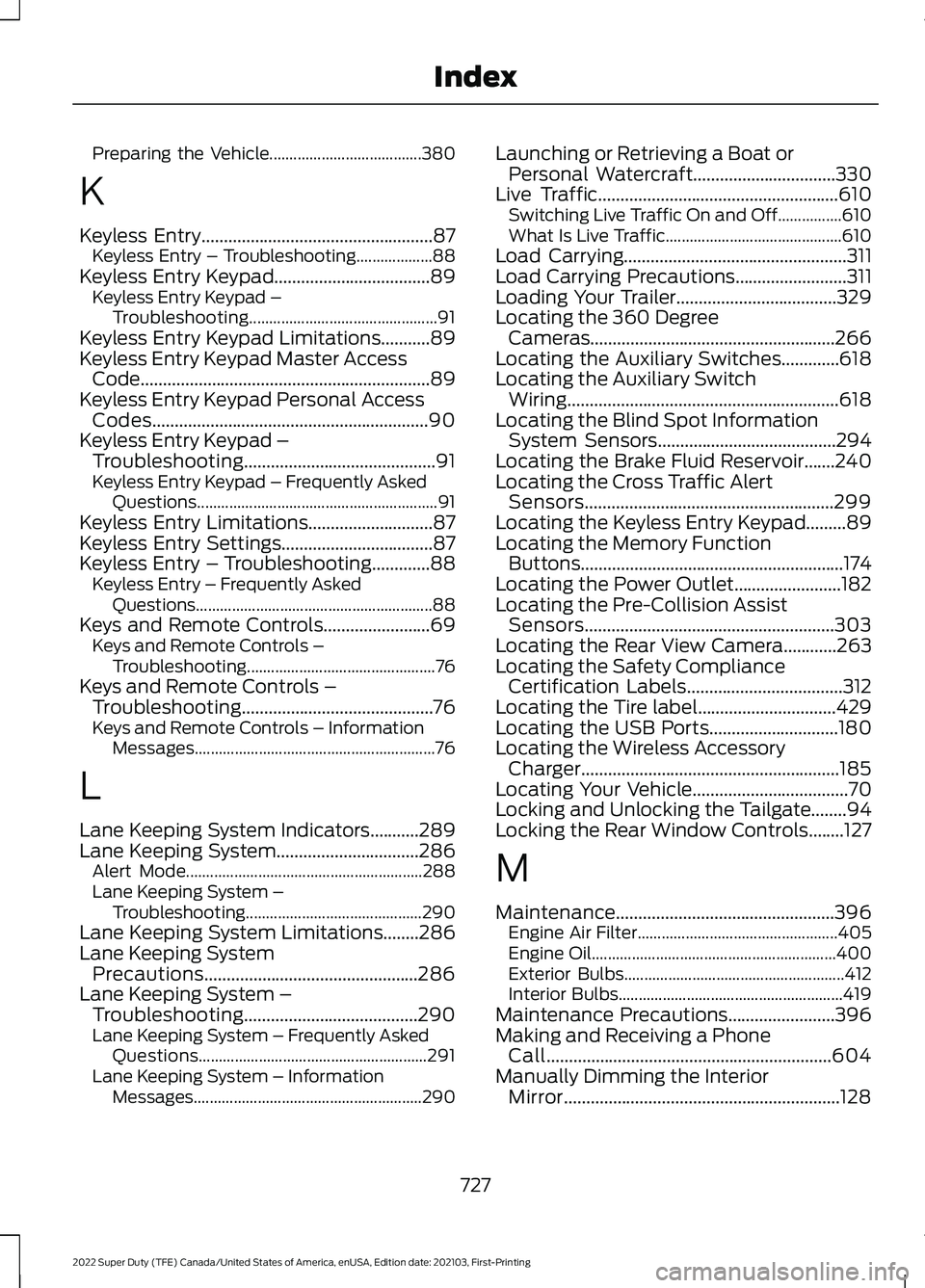

Preparing the Vehicle......................................
380
K
Keyless Entry....................................................87
Keyless Entry – Troubleshooting................... 88
Keyless Entry Keypad...................................89 Keyless Entry Keypad –
Troubleshooting............................................... 91
Keyless Entry Keypad Limitations
...........89
Keyless Entry Keypad Master Access Code.................................................................89
Keyless Entry Keypad Personal Access Codes..............................................................90
Keyless Entry Keypad – Troubleshooting
...........................................91
Keyless Entry Keypad – Frequently Asked
Questions............................................................ 91
Keyless Entry Limitations............................87
Keyless Entry Settings
..................................87
Keyless Entry – Troubleshooting.............88 Keyless Entry – Frequently Asked
Questions........................................................... 88
Keys and Remote Controls........................69 Keys and Remote Controls –
Troubleshooting............................................... 76
Keys and Remote Controls – Troubleshooting...........................................76
Keys and Remote Controls – Information Messages............................................................ 76
L
Lane Keeping System Indicators...........289
Lane Keeping System................................286 Alert Mode........................................................... 288
Lane Keeping System – Troubleshooting............................................ 290
Lane Keeping System Limitations........286
Lane Keeping System Precautions................................................286
Lane Keeping System – Troubleshooting.......................................290
Lane Keeping System – Frequently Asked Questions......................................................... 291
Lane Keeping System – Information Messages......................................................... 290Launching or Retrieving a Boat or
Personal Watercraft
................................330
Live Traffic......................................................610
Switching Live Traffic On and Off................610
What Is Live Traffic............................................ 610
Load Carrying
..................................................311
Load Carrying Precautions.........................311
Loading Your Trailer....................................329
Locating the 360 Degree Cameras.......................................................266
Locating the Auxiliary Switches.............618
Locating the Auxiliary Switch Wiring.............................................................618
Locating the Blind Spot Information System Sensors
........................................294
Locating the Brake Fluid Reservoir.......240
Locating the Cross Traffic Alert Sensors........................................................299
Locating the Keyless Entry Keypad.........89
Locating the Memory Function Buttons
...........................................................174
Locating the Power Outlet........................182
Locating the Pre-Collision Assist Sensors........................................................303
Locating the Rear View Camera............263
Locating the Safety Compliance Certification Labels
...................................312
Locating the Tire label...............................429
Locating the USB Ports.............................180
Locating the Wireless Accessory Charger..........................................................185
Locating Your Vehicle...................................70
Locking and Unlocking the Tailgate........94
Locking the Rear Window Controls........127
M
Maintenance.................................................396 Engine Air Filter.................................................. 405
Engine Oil............................................................. 400
Exterior Bulbs....................................................... 412
Interior Bulbs........................................................ 419
Maintenance Precautions........................396
Making and Receiving a Phone Call................................................................604
Manually Dimming the Interior Mirror..............................................................128
727
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index
