FORD F-53 2021 Owners Manual

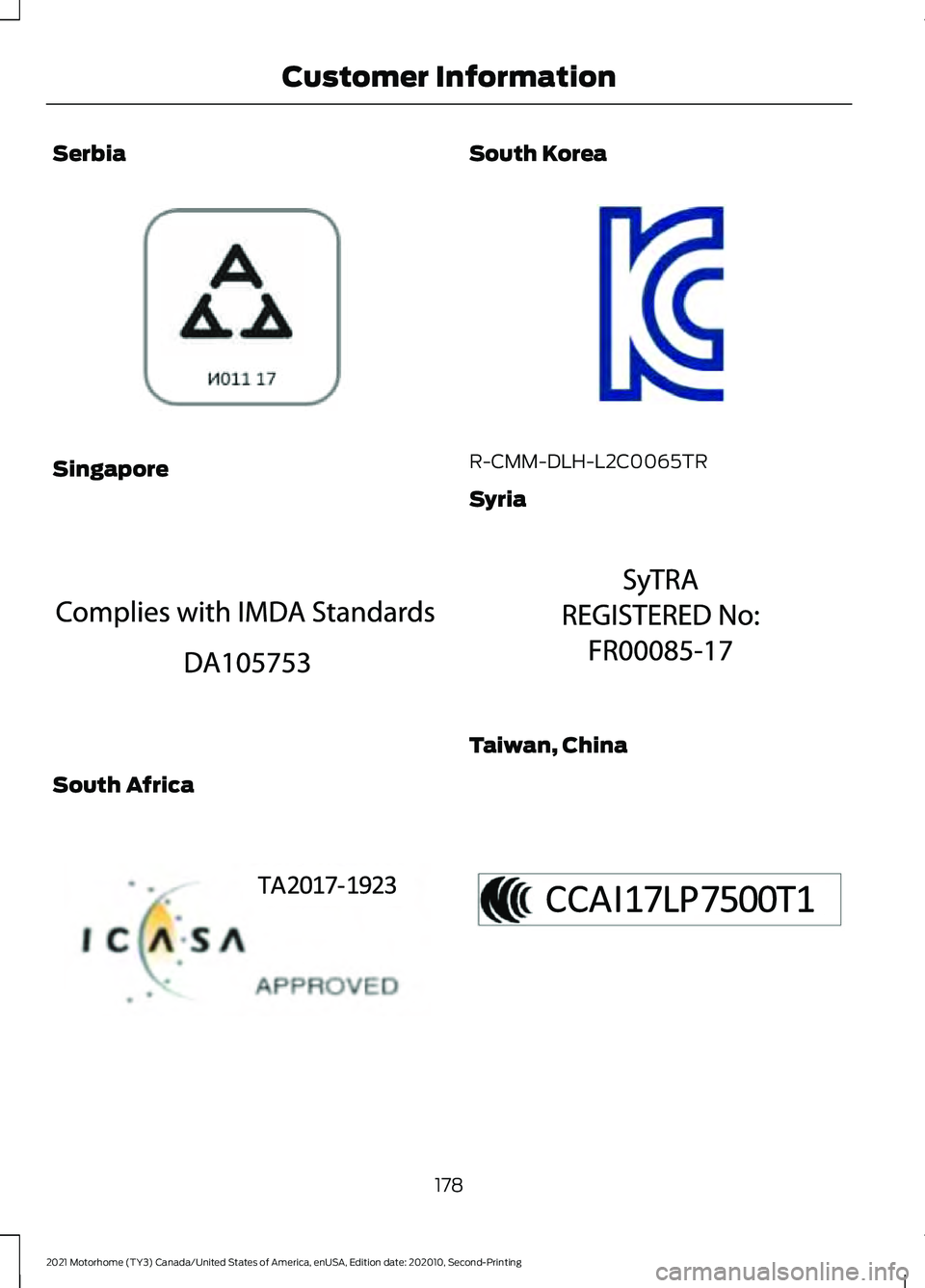

Serbia
Singapore
South Africa South Korea
R-CMM-DLH-L2C0065TR
Syria
Taiwan, China
178
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Customer InformationE308040 E340193 E340194 E339675 E342397 E340195

Ukraine
United Arab Emirates
United States and Canada
WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
FCC ID: L2C0065TR
IC: 3432A-0065TR This device complies with Part 15 of the
FCC Rules and with Innovation, Science
and Economic Development Canada
’s
licence-exempt RSS(s). Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired
operation.
Zambia 179
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Customer InformationE308043 E308044 E340196

ELECTROMAGNETIC
COMPATIBILITY
WARNING: Do not place objects
or mount equipment on or near the
airbag cover, on the side of the front or
rear seatbacks, or in areas that may
come into contact with a deploying
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash. WARNING: Do not fasten antenna
cables to vehicle wiring, fuel pipes and
brake pipes. WARNING:
Keep antenna and
power cables at least 4 in (10 cm) from
any electronic modules and airbags. Note:
We test and certify your vehicle to
meet electromagnetic compatibility
legislation. It is your responsibility to make
sure that any equipment an authorized
dealer installs on your vehicle complies with
applicable local legislation and other
requirements. Installation of some
aftermarket electronic devices could
degrade the performance of vehicle
functions, which use radio frequency signals
such as broadcast radio receiver, tire
pressure monitoring system, push button
start, Bluetooth®
connectivity or satellite
navigation.
Note: Any radio frequency transmitter
equipment in your vehicle (such as cellular
telephones and amateur radio transmitters)
must keep to the parameters in the
following illustrations and table. We do not
provide any other special provisions or
conditions for installations or use.
Car/SUV 180
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing AppendicesE239120

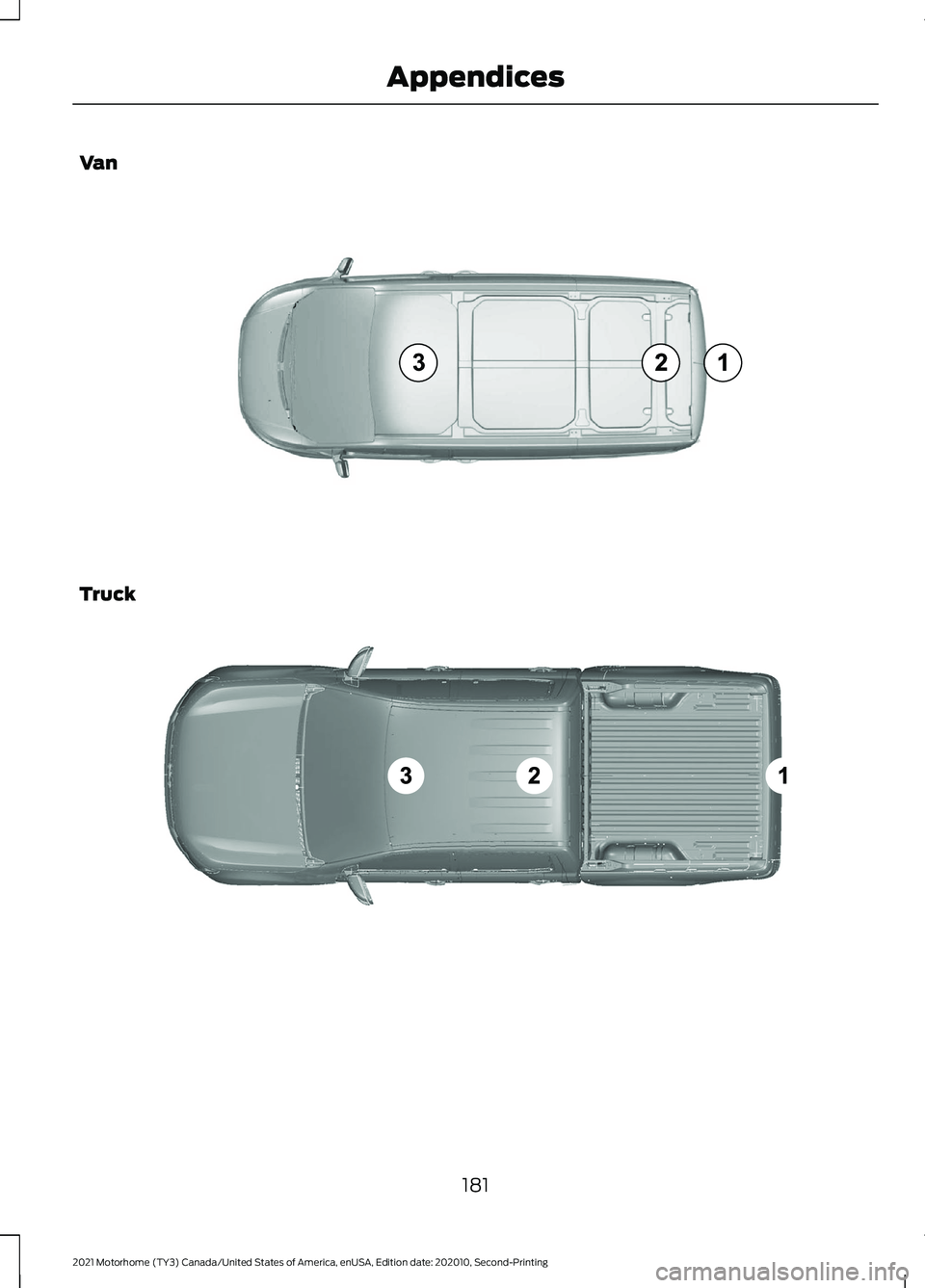

Van
Truck
181
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing AppendicesE239122 E239121

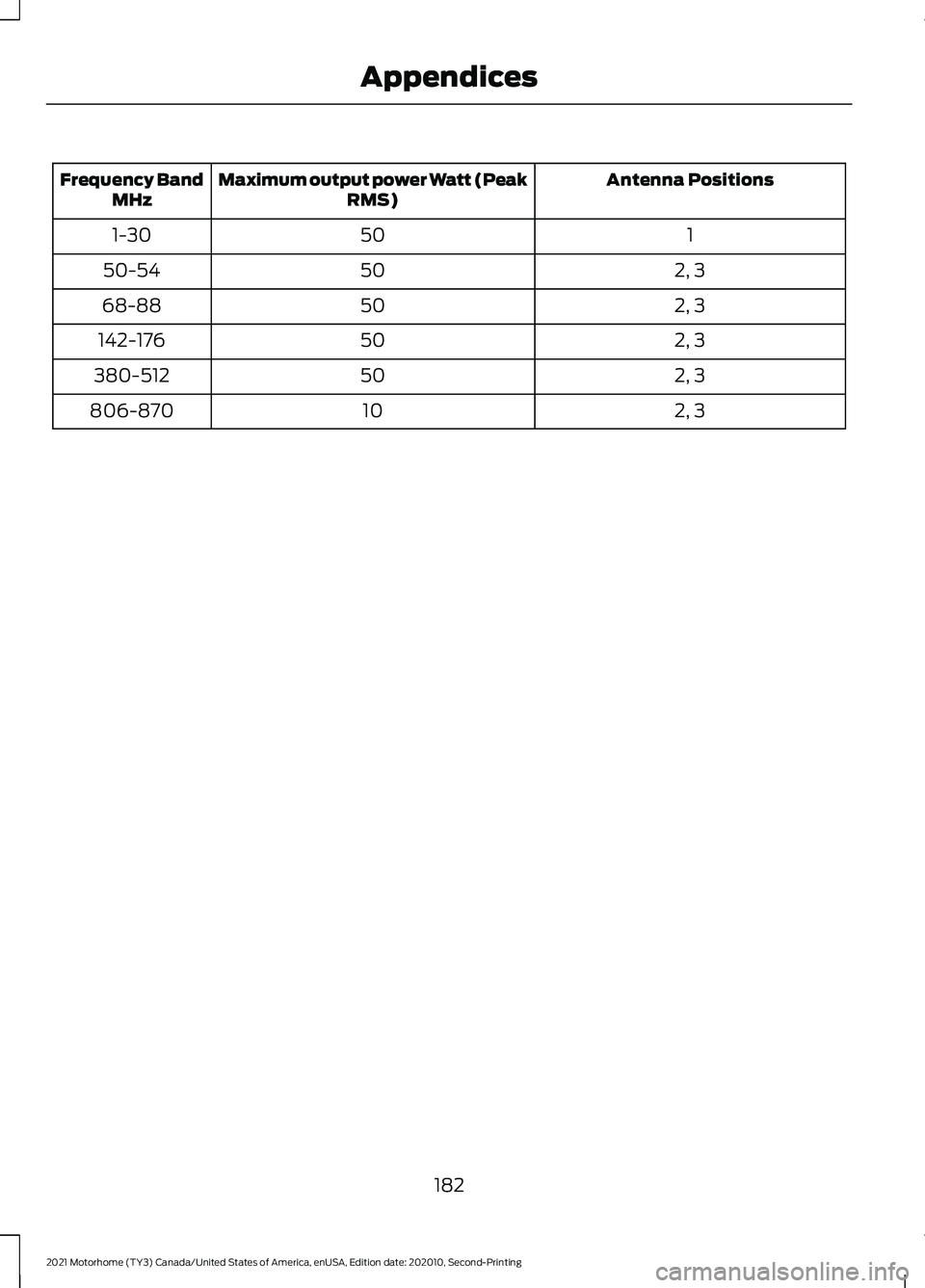

Antenna Positions
Maximum output power Watt (Peak
RMS)
Frequency Band
MHz
1
50
1-30
2, 3
50
50-54
2, 3
50
68-88
2, 3
50
142-176
2, 3
50
380-512
2, 3
10
806-870
182
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Appendices

DECLARATION OF
CONFORMITY
Your vehicle could have components that
transmit and receive radio waves and are
therefore subject to government
regulation.
These components must accept any
interference received, including
interference that could cause undesired
operation. For certification labels and
declarations of conformity, visit
www
. wir el e ss c onf ormit y .f or d . c om .
183
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Appendices

184
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing

A
About This Manual...........................................5
ABS
See: Brakes............................................................. 54
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes.................................................................. 55
Accessories See: Replacement Parts
Recommendation............................................ 12
ACC See: Using Adaptive Cruise Control...............61
Adjusting the Steering Wheel....................16
Air Filter See: Changing the Engine Air Filter...............117
Appendices....................................................180
Audible Warnings and Indicators.............29
Autolamps.........................................................19
Automatic High Beam Control..................22
Automatic High Beam Control Indicators........................................................22
Automatic Transmission.............................50
Automatic Transmission Fluid Check..............................................................122
B
Battery See: Changing the 12V Battery....................... 127
Brake Fluid Check.........................................124
Brakes.................................................................54 General Information............................................ 54
Breaking-In........................................................91
C
Canceling the Set Speed.............................61
Capacities and Specifications.................156
Car Wash See: Cleaning the Exterior............................... 130
Catalytic Converter........................................47
Changing a Fuse..............................................111
Changing the 12V Battery
...........................127
Changing the Engine Air Filter...................117
Cleaning the Engine......................................131
Cleaning the Exterior...................................130
Cleaning the Wheels
....................................131 Connected Vehicle
.......................................163
Connecting the Vehicle to a Mobile
Network............................................................. 163
Connected Vehicle Limitations
...............163
Connected Vehicle Requirements.........163
Connected Vehicle – Troubleshooting.........................................164
Connecting the Vehicle to a Mobile Network.........................................................163
Connecting FordPass to the Modem..........163
Enabling and Disabling the Modem............163
What Is the Modem........................................... 163
Connecting the Vehicle to a Wi-Fi Network.........................................................163
Coolant Check See: Engine Coolant Check............................. 118
Cruise Control.................................................60
Cruise Control Indicators..............................61
Cruise Control - Vehicles With: Adaptive Cruise Control................................................16
Cruise Control - Vehicles With: Cruise Control.............................................................16
Customer Assistance...................................98
Customer Information................................176 Radio Frequency Certification Labels.........176
D
Data Recording
..................................................7
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps.............................................................20
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)............20
Declaration of Conformity........................183
Direction Indicators
.........................................21
Driver Alert........................................................69
Driving Aids......................................................69
Driving Hints
....................................................90
Driving Through Water..................................91
DRL See: Daytime Running Lamps - Vehicles With:
Configurable Daytime Running
Lamps.................................................................. 20
See: Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)................20
185
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Index

E
Economical Driving.......................................90
Electromagnetic Compatibility...............180
Emission Law..................................................46
Engine Block Heater......................................39
Engine Coolant Check.................................118
Engine Emission Control
.............................46
Engine Oil Check............................................116
Engine Oil Dipstick........................................116
Engine Specifications
..................................152
Environment......................................................15
Essential Towing Checks.............................87
Event Data Recording See: Data Recording............................................... 7
Export Unique Options.................................14
F
Ford Credit
..........................................................11
Ford Protect...................................................166
Fuel and Refueling..........................................41
Fuel Consumption
.........................................44
Fuel Filter.........................................................129
Fuel Quality.......................................................41
Fuses.................................................................104
Fuse Specification Chart...........................104
G
Gauges...............................................................24
Gearbox See: Transmission................................................ 50
General Maintenance Information........168
Getting Assistance Outside the U.S. and Canada...........................................................101
Getting the Services You Need.................98
H
Handbrake See: Parking Brake............................................... 55
Hazard Flashers..............................................94
Hill Start Assist
...............................................56
Hints on Driving With Anti-Lock Brakes..............................................................55
Horn......................................................................17 I
Ignition Switch
.................................................37
In California (U.S. Only)...............................99
Information Display Control........................17
Information Displays....................................30 General Information............................................ 30
Information Messages
..................................34
Instrument Cluster.........................................24
Instrument Lighting Dimmer.....................20
Introduction........................................................5
J
Jump Starting the Vehicle..........................94
L
Lane Keeping System
...................................70
Lighting Control...............................................19
Lighting...............................................................19
Load Carrying
...................................................78
Load Limit.........................................................78
M
Maintenance....................................................113 General Information........................................... 113
Message Center See: Information Displays................................. 30
Mobile Communications Equipment.......13
Motorcraft Parts
............................................152
N
Normal Scheduled Maintenance
.............171
O
Oil Change Indicator Reset
........................116
Oil Check See: Engine Oil Check........................................ 116
Ordering Additional Owner's Literature
......................................................102
Overriding Automatic High Beam Control.............................................................23
186
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Index

P
Parking Brake...................................................55
Perchlorate.........................................................11
Power Steering Fluid Check......................126
Pre-Collision Assist........................................74
Protecting the Environment........................15
R
Radio Frequency Certification Labels.............................................................176
Cruise Control Module...................................... 176
Recommended Towing Weights..............84
Reduced Engine Performance..................90
Refueling...........................................................43
Replacement Parts Recommendation........................................12
Reporting Safety Defects (Canada Only)...............................................................103
Reporting Safety Defects (U.S. Only)...............................................................102
Resuming the Set Speed.............................61
Roadside Assistance....................................93
Roadside Emergencies
................................93
Running-In See: Breaking-In.................................................... 91
Running Out of Fuel......................................42
S
Safety Precautions
.........................................41
Scheduled Maintenance...........................168
Setting the Cruise Control Speed............60
Snow Chains See: Using Snow Chains.................................. 150
Special Notices................................................12
Special Operating Conditions Scheduled Maintenance................................................173
Speed Control See: Cruise Control............................................. 60
Stability Control.............................................58 Principle of Operation........................................ 58
Starter Switch See: Ignition Switch............................................. 37
Starting a Gasoline Engine..........................37
Starting and Stopping the Engine............37 General Information............................................ 37Steering..............................................................73
Steering Wheel
................................................16
Switching Automatic High Beam Control On and Off
.....................................................22
Switching Cruise Control On and Off....................................................................60
Symbols Glossary.............................................5
T
Technical Specifications See: Capacities and Specifications.............152
The Better Business Bureau (BBB) Auto Line Program (U.S. Only).......................100
Tire Care
...........................................................134
Tires See: Wheels and Tires...................................... 134
Towing a Trailer...............................................83
Towing the Vehicle on Four Wheels.......89
Towing................................................................83
Traction Control
..............................................57
Principle of Operation......................................... 57
Transmission Code Designation
.............155
Transmission...................................................50
Transporting the Vehicle.............................96
U
Under Hood Overview - Commercial Chassis............................................................114
Under Hood Overview - Motorhome Chassis............................................................115
Using Adaptive Cruise Control...................61
Using Snow Chains......................................150
Using Traction Control..................................57
V
Vehicle Care
....................................................130
General Information.......................................... 130
Vehicle Identification Number
.................154
Vehicle Storage..............................................132
VIN See: Vehicle Identification Number.............154
W
Warning Lamps and Indicators
.................27
187
2021 Motorhome (TY3) Canada/United States of America, enUSA, Edition date: 202010, Second-Printing Index
