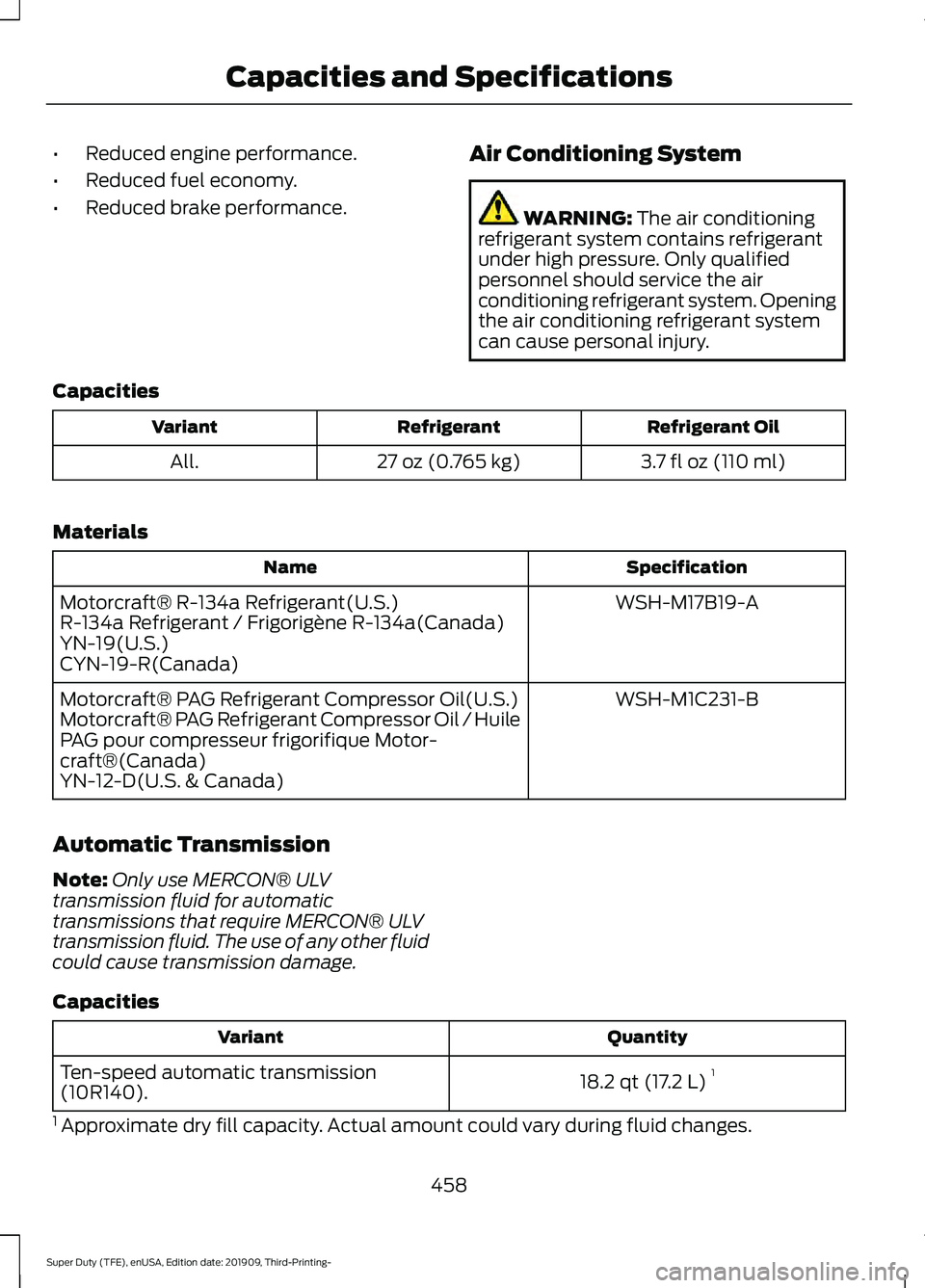

Page 461 of 631
•
Reduced engine performance.
• Reduced fuel economy.
• Reduced brake performance. Air Conditioning System WARNING: The air conditioning
refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system
can cause personal injury.
Capacities Refrigerant Oil
Refrigerant
Variant
3.7 fl oz (110 ml)
27 oz (0.765 kg)
All.
Materials Specification
Name
WSH-M17B19-A
Motorcraft® R-134a Refrigerant(U.S.)
R-134a Refrigerant / Frigorigène R-134a(Canada)
YN-19(U.S.)
CYN-19-R(Canada)
WSH-M1C231-B
Motorcraft® PAG Refrigerant Compressor Oil(U.S.)
Motorcraft® PAG Refrigerant Compressor Oil / Huile
PAG pour compresseur frigorifique Motor-
craft®(Canada)
YN-12-D(U.S. & Canada)
Automatic Transmission
Note: Only use MERCON® ULV
transmission fluid for automatic
transmissions that require MERCON® ULV
transmission fluid. The use of any other fluid
could cause transmission damage.
Capacities Quantity
Variant
18.2 qt (17.2 L)1
Ten-speed automatic transmission
(10R140).
1 Approximate dry fill capacity. Actual amount could vary during fluid changes.
458
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Capacities and Specifications
Page 622 of 631
Launching or Retrieving a Boat or Personal
Watercraft (PWC)........................................ 304
Safety Chains...................................................... 299
Trailer Brakes....................................................... 299
Trailer Lamps...................................................... 303
Trailer Towing Connector................................ 295
When Towing a Trailer..................................... 303
Event Data Recording See: Data Recording............................................ 10
Export Unique Options.................................16
Exterior Mirrors................................................95 Blind Spot Information System...................... 98
Clearance Lamps ................................................. 97
Direction Indicator Mirrors ................................ 97
Fold-Away Exterior Mirrors............................... 95
Heated Exterior Mirrors ...................................... 97
Memory Mirrors .................................................... 97
Power Exterior Mirrors........................................ 95
PowerScope ™ Power Telescoping
Mirrors................................................................. 96
Puddle Lamps........................................................ 97
Spot Lamps............................................................ 97
Telescoping Mirrors............................................. 96
Trailer Towing Camera System....................... 97
F
Fastening the Seatbelts...............................37 Fastening the Cinch Tongue............................ 38
Seatbelt Locking Modes.................................... 39
Using Seatbelts During Pregnancy................38
Using the Seatbelt with Cinch Tongue (Front Center Seat on Super Cab and
Crew Cab)........................................................... 37
Fire Extinguisher
............................................316
Flat Tire See: Changing a Road Wheel......................... 417
Floor Mats........................................................313
Fog Lamps - Front See: Front Fog Lamps........................................ 88
Foot Pedals See: Adjusting the Pedals................................. 83
Ford Credit
.........................................................14
US Only..................................................................... 14
Ford Protect....................................................551 Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 552Ford Protect Extended Service Plans (U.S.
Only)................................................................... 551
Four-Wheel Drive.........................................207
Front Fog Lamps............................................88 Front Fog Lamp Indicator................................. 88
Switching the Front Fog Lamps On or Off........................................................................\
. 88
Fuel and Refueling.......................................178
Fuel Consumption........................................187 Advertised Capacity........................................... 187
Fuel Economy....................................................... 187
Fuel Filter - 6.2L/7.3L...................................371
Fuel Quality - Diesel.....................................181 Biodiesel................................................................. 182
Diesel Fuel Additives ........................................ 183
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Not Required ...........181
Fuel Requirements - Choosing The Right Fuel: Vehicles Operated Where Ultra Low
Sulfur Diesel Fuel Is Required (United
States/Canada/Puerto Rico/U.S. Virgin
Islands And Other Locales) ....................... 181
Fuel Quality - E85.........................................179 Choosing the Right Fuel - Flex Fuel
Vehicles.............................................................. 179
Switching Between E85 and Gasoline............................................................ 180
Fuel Quality - Gasoline..............................180 Choosing the Right Fuel.................................. 180
Fuel Shutoff
....................................................316
Fuses................................................................329
Fuse Specification Chart
..........................329
Engine Compartment Fuse Box................... 329
Passenger Compartment Fuse Panel........333
G
Garage Door Opener...................................158
Garage Door Opener See: Universal Garage Door Opener...........158
Gauges..............................................................101 DEF Gauge............................................................ 103
Engine Coolant Temperature Gauge..........103
Engine Oil Pressure Gauge.............................. 103
Fuel Gauge............................................................ 103
Transmission Fluid Temperature Gauge................................................................. 103
619
Super Duty (TFE), enUSA, Edition date: 201909, Third-Printing- Index
