Careless or high speed driving
while plowing snow which results
in vehicle decelerations equivalent
to or greater than the air bag
deployment impact speeds listed
above can deploy the air bag. Such
driving also increases the risk of
accidents.
All occupants of the
vehicle, including the
driver, should always wear their
safety belts.
Never remove or defeat the
ªtripping mechanismsº designed
into the snow removal equipment
by its manufacturer. Doing so may
cause damage to the vehicle and
the snow removal equipment as
well as possible air bag
deployment.
Do not attempt to service,
repair, or modify the Air
Bag Supplemental Restraint
System or its fuses. See your
Ford or Lincoln-Mercury dealer.
Engine temperature while
plowing
When driving with a plow, your
engine may run at a higher
temperature than normal because
the attached snowplow blade will
restrict airflow to the radiator.
CHCH
f12_driving_wplow
Driving
132

If you are driving more then 24 km
(15 miles) at temperatures above
freezing, angle the plow blade
either full left or full right to
provide maximum airflow to the
radiator.
If you are driving less than 24 km
(15 miles) at speeds up to 64 km/h
(40 mph) in cold weather, you will
not need to worry about blade
position to provide maximum
airflow.
Transmission operation while
plowing
²Shift transfer case to 4L (4WD
Low) when plowing in small
areas at speeds below 8 km/h (5
mph).
²Shift transfer case to 4H (4WD
High) when plowing larger areas
or light snow at higher speeds.
Do not exceed 24 km/h (15
mph).
²Do not shift the transmission
from a forward gear to R
(Reverse) until the engine is at
idle and the wheels are stopped.
²If the vehicle is stuck, shift the
transmission in a steady motion
between forward and reverse
gears. Do not rock the vehicle
for more than a few minutes.
The transmission and tires may
be damaged or the engine can
overheat.
Driving
133

Do not spin the wheels at
over 35 mph (55 km/h).
The tires may fail and injure a
passenger or bystander.
FUEL CONSUMPTION
Fuel economy can be improved by
avoiding:
²lack of regular, scheduled
maintenance
²excessive speed
²rapid acceleration.
f12_fuel_consumption
Driving
134

HAZARD LIGHTS CONTROL
Use only in an emergency to warn
traffic of vehicle breakdown,
approaching danger, etc. Depress
to activate all indicators
simultaneously. Depress again to
switch off. The warning lights can
be operated when the ignition is
off.
FUEL PUMP SHUT-OFF SWITCH
If the engine cranks but does not
start after a collision, the fuel
pump shut±off switch may have
been activated. The shut±off
switch is a device intended to stop
the electric fuel pump when your
vehicle has been involved in a
substantial jolt.
1. Turn the ignition switch to the
OFF position.
2. Check fuel system for leaks.
3. If no fuel leak is apparent, reset
the fuel pump shut-off switch by
pushing in the button on the
switch.
4. Turn the ignition switch to the
ON position. Pause for a few
seconds and return the key to the
OFF position.
5. Make a further check for leaks
in the fuel system.com_hazard_switch.01
com_fuel_shut-off.01
f12_fuses
Roadside emergencies
135

REPLACING BLOWN FUSES
If electrical components in the
vehicle are not working, a fuse
may have blown. Blown fuses are
identified by a broken element.
Check the appropriate fuses before
replacing any electrical
components.
Even after a fuse is replaced, it
may continue to blow if the cause
of the overload is not identified
and corrected. If a fuse continues
to blow, have the vehicle's
electrical system checked.
Standard fuse amperage ratings
and colors
Fuse rating Color
7.5 amp Brown
10 amp Red
15 amp Blue
20 amp Yellow
30 amp Light green
30 amp fuse link Pink
40 amp Green
60 amp fuse link Yellow
80 amp fuse link Black
100 amp fuse link Blue
Roadside emergencies
136

Instrument panel fuses
Always replace a fuse with
one that has the specified
amperage rating. Using a fuse
with a higher amperage rating
can cause severe wire damage
and could start a fire.
Position Amps Description
1 15 Stop/turn lamps and turn indicators
2 5 Instrument cluster
3 25 Cigarette lighter
4 5 Power mirrors, autolamp, remote
anti-theft/keyless entry, headlamp relay and
parking lamp relay
5 15 Speed control, daytime running lamps, climate
control blend door, backup lamps, A/C clutch
coil
6 5 Brake-shift interlock, generic electronic module
(GEM)/central timer module (CTM) and air
suspension module
7 - Not used
8 5 Radio, remote anti-theft/keyless entry, GEM
module/CTM module
1
1
2
3
4
512 22
21323
31424
4
16 15
25
526
61727
71828
81929
11 21 31930
10 20
f12_pass_comp_fuses
Roadside emergencies
137

Position Amps Description
9 - Not used
10 - Not used
11 30 Wiper system
12 5 On-board diagnostic (OBD II) data link
connector
13 15 Brake ON/OFF switch, rear anti-lock brake
module and brake pressure switch
14 15 Interior lamps and accessory delay relay
15 5 GEM module/CTM module
16 20 High beam headlamps
17 - Not used
18 5 Instrument illumination
19 10 Air bag diagnostic monitor, instrument cluster
20 5 GEM module/CTM module and powertrain
control module (PCM)
21 15 Starter relay
22 10 Air bag diagnostic monitor and passenger air
bag deactivate switch
23 10 4WD clutch relay, electronic flasher, 4WD/2WD
vacuum solenoids and trailer tow battery charge
relay
24 10 I/P blower relay
25 5 4WABS module and relay
26 10 Right low beam headlamp and DRL module
27 5 Foglamp relay
28 10 Left low beam headlamp
29 5 Autolamp, instrument cluster, transmission
control indicator lamp and switch
30 30 Ignition coils and PCM relay
31 - Not used
Roadside emergencies
138

Relays
Position Description
1 Interior lamps relay
2 Battery saver relay
3 Not used
4 One touch down relay
5 Accessory delay relay

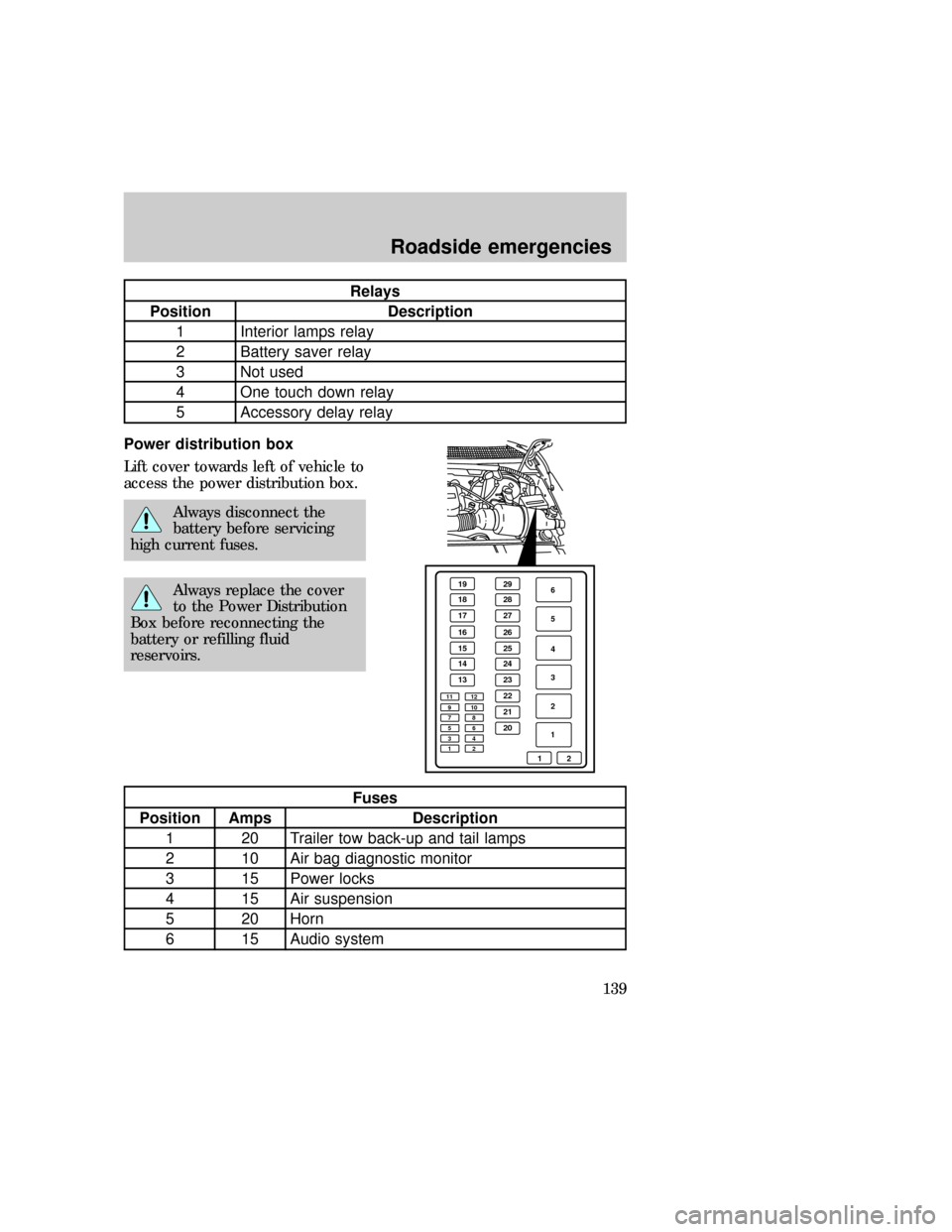

Power distribution box
Lift cover towards left of vehicle to
access the power distribution box.
Always disconnect the
battery before servicing
high current fuses.
Always replace the cover
to the Power Distribution
Box before reconnecting the
battery or refilling fluid
reservoirs.
Fuses
Position Amps Description
1 20 Trailer tow back-up and tail lamps
2 10 Air bag diagnostic monitor
3 15 Power locks
4 15 Air suspension
5 20 Horn
6 15 Audio system
29
6
5
4
3
2
1 28
27
26
25
24
2319
18
17
16
15
14
13
22
21
20
12
1197531
12108642
f12_eng_comp_fuses
Roadside emergencies
139

Fuses
Position Amps Description
7 15 Parking and tail lamps
8 30 Headlamps
9 15 Daytime running lamps and fog lamps
10 25 Auxiliary power point
11 - Not used
12 - Not used
13 - Not used
14 60/20 4WABS/rear anti-lock brake
15 50 Air suspension compressor
16 40 Trailer tow battery charge and stop/turn lamps
17 30 4WD transfer case shift motor and clutch
18 30 Driver power seat
19 20 Fuel pump
20 50 Instrument panel fuse panel ignition switch feed
21 50 Instrument panel fuse panel ignition switch feed
22 50 I/P fuse panel battery feed
23 40 I/P blower
24 30 PCM power
25 30 Power windows
26 - Not used
27 - Not used
28 30 Trailer tow electronic brake
29 - Not used
Diodes
Position Description
1 Rear ABS diode
2 PCM diode
Roadside emergencies
140

Relays
Position Description
1 Windshield wipers HI/LO speed
2 Windshield wipers run/park relay
3 Washer pump relay
4 Fuel pump relay
5 Horn relay
6 PCM power relay
Primary battery fuses
(megafuses)
Primary battery fuses are located
under the PRIMARY BATTERY
FUSE cover next to starter relay.
Ford recommends that megafuses
only be serviced by a qualified
service technician.
Location Amperage Description
1 175 Power network box megafuse
2 175 Alternator megafuse
3 20 Alternator field minifuse
1
2
3
f12_megafuse
