FORD F150 1999 10.G SVT Supplement Manual Introduction 2
SVT F-150 Lightning specific features 4
Engine/Transmission 6
Drivetrain 8
Performance 9
Options, color and trim 10
Maintenance 11
A word about warranty coverage 14
All rights reserved.

Page 2 of 14

FORD F150 1999 10.G SVT Supplement Manual INTRODUCTION
Welcome to the Ford Special Vehicle Team family and thank you for
purchasing the Ford SVT F±150 Lightning. We trust that our tremendous
dedication to the automotive enthusiasts total ow

Page 3 of 14

FORD F150 1999 10.G SVT Supplement Manual Every SVT vehicle produced has been designed and developed with four
key virtues in mind: Performance, Substance, Exclusivity, and Value.
These hallmarks have driven the SVT Mustang Cobra since 1993,

Page 4 of 14

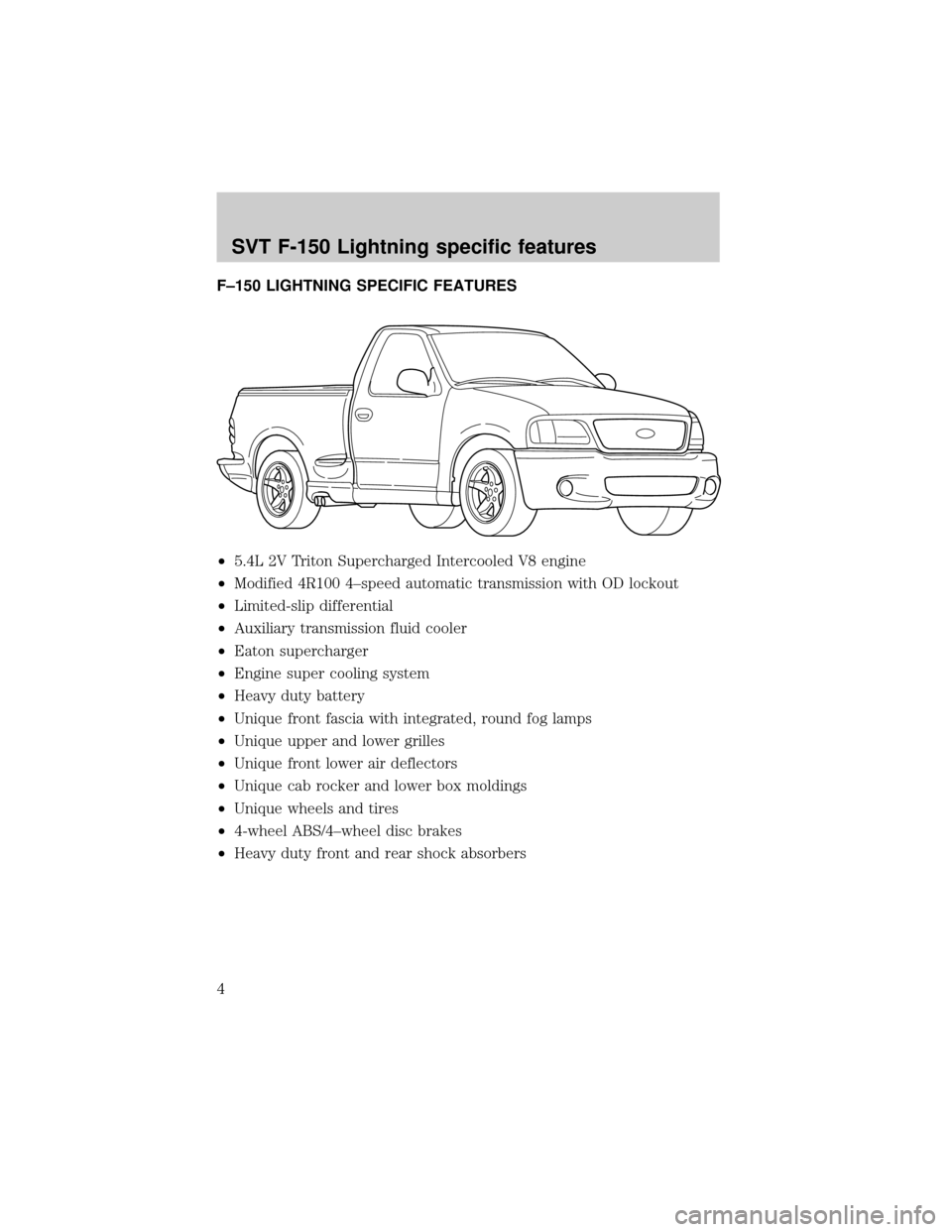

FORD F150 1999 10.G SVT Supplement Manual F±150 LIGHTNING SPECIFIC FEATURES
²5.4L 2V Triton Supercharged Intercooled V8 engine
²Modified 4R100 4±speed automatic transmission with OD lockout
²Limited-slip differential
²Auxiliary transmis

Page 5 of 14

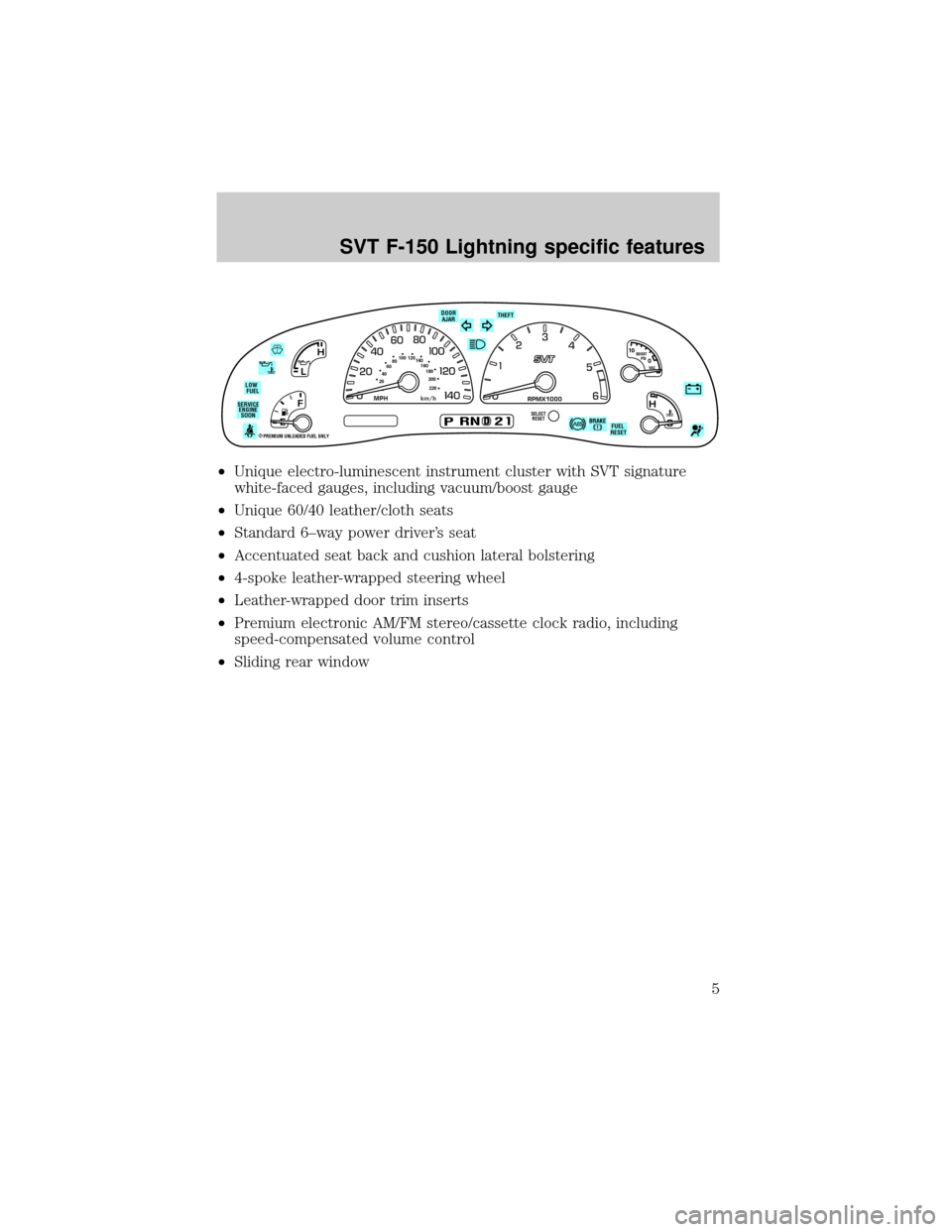

FORD F150 1999 10.G SVT Supplement Manual ²Unique electro-luminescent instrument cluster with SVT signature
white-faced gauges, including vacuum/boost gauge
²Unique 60/40 leather/cloth seats
²Standard 6±way power drivers seat
²Accentuat

Page 6 of 14

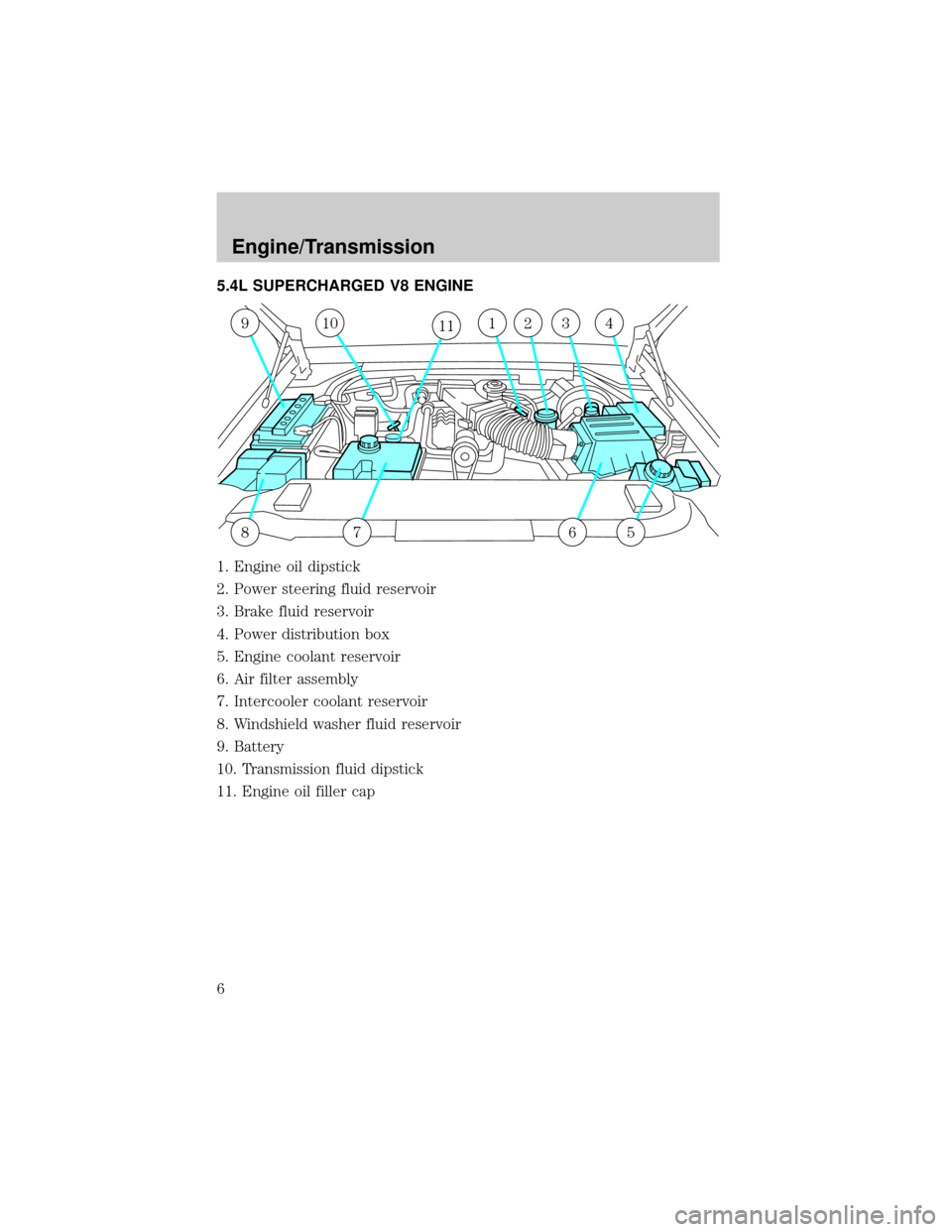

FORD F150 1999 10.G SVT Supplement Manual 5.4L SUPERCHARGED V8 ENGINE
1. Engine oil dipstick
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Power distribution box
5. Engine coolant reservoir
6. Air filter assembly
7. Intercoole

Page 7 of 14

FORD F150 1999 10.G SVT Supplement Manual ENGINE
ConfigurationSupercharged longitudinally mounted,
90-degree V8, single overhead cam, cast iron
cylinder block and cast aluminum cylinder
heads
Bore x Stroke90.2 x 105.8 mm (3.55 x 4.17 in)
Disp

Page 8 of 14

FORD F150 1999 10.G SVT Supplement Manual DRIVETRAIN
Rear axle9.75 in limited-slip differential with 3.55:1 final drive
ratio
DriveshaftSteel with hardened yoke
TransmissionModified 4R100 4-speed automatic with OD lockout
Gear ratiosGear Rati

Page 9 of 14

FORD F150 1999 10.G SVT Supplement Manual PERFORMANCE
0-100 km/h (0-60 mph)6.2 seconds
400 meters (quarter mile)14.63 seconds @ 156.7 km/h
(97.4 mph)
Top speed225 km/h (140 mph)
Braking, 100-0 km/h (60-0 mph)41.8 meters (137 ft.)
183 meter sl

Page 10 of 14

FORD F150 1999 10.G SVT Supplement Manual OPTIONS, COLOR AND TRIM
²Tonneau cover
²6±disc CD player
²Trailer tow package
Exterior:
²Black Clearcoat
²Oxford White
²Bright Red Clearcoat
Interior:
²Medium Graphite Leather/Cloth
Options, c
